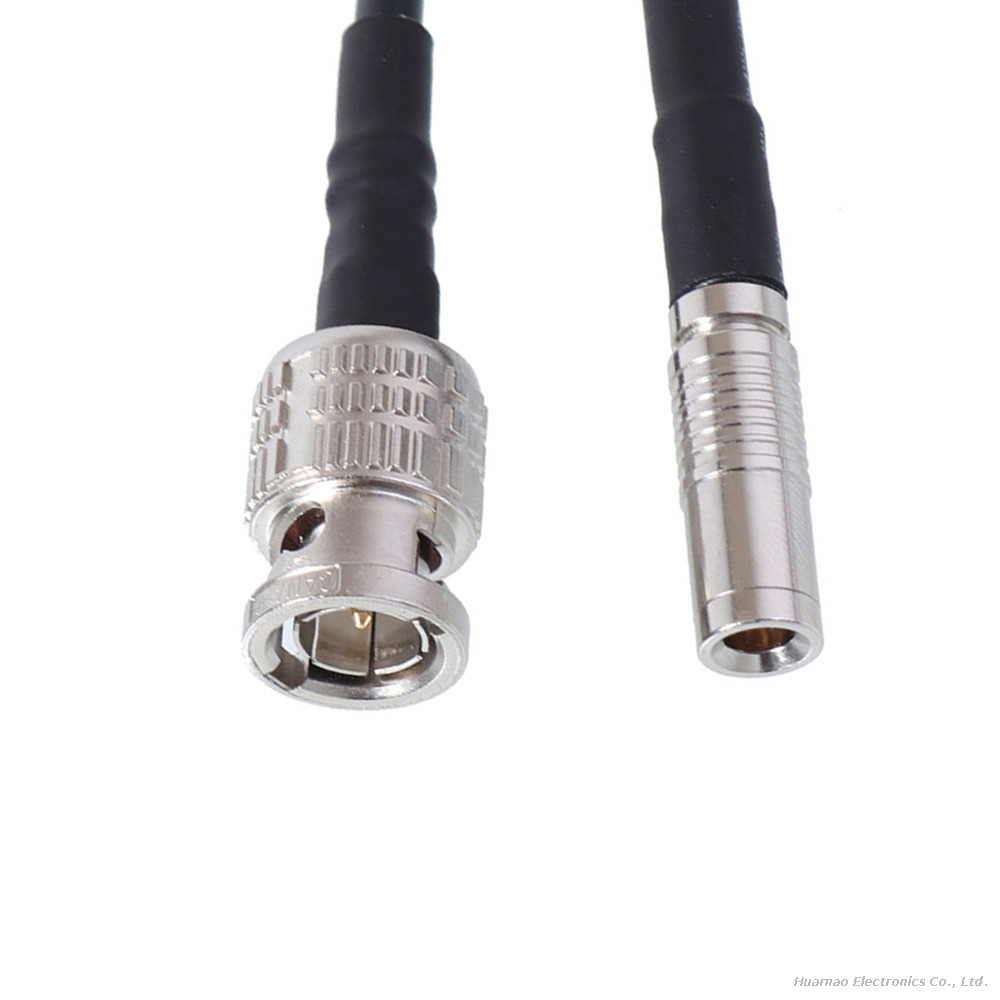

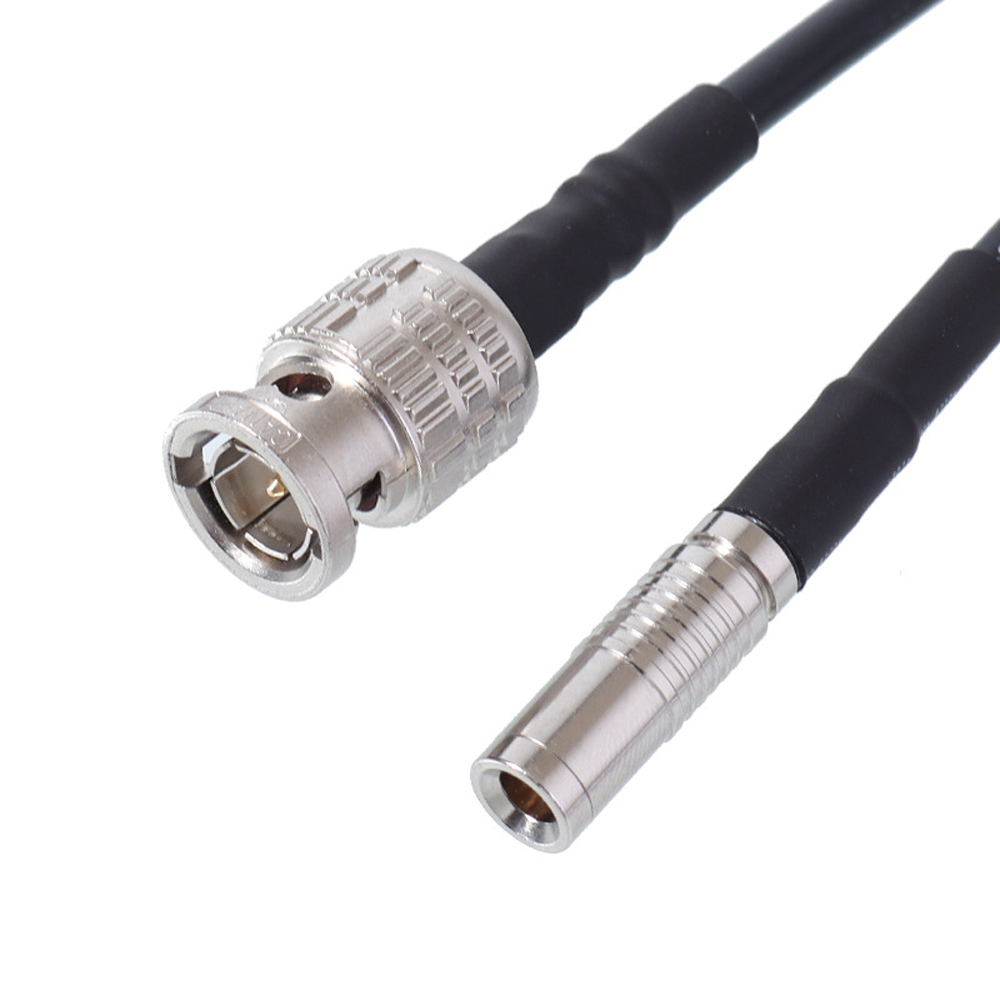

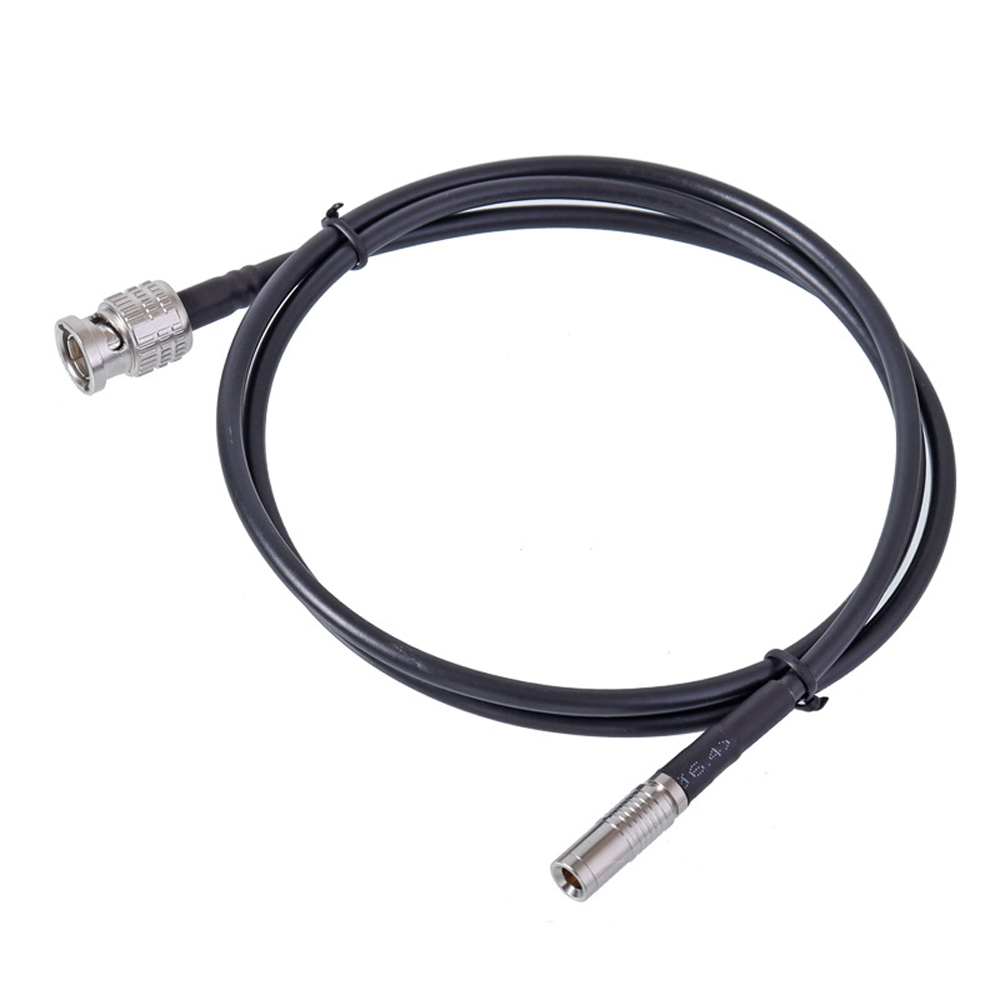

Q9 BNC-J To CC4 DIN(1.0/2.3) RF HD Connector Cable HDTVSDI

This RF high-definition connector cable features a Q9 BNC-J to CC4 DIN(1.0/2.3) connection, specifically engineered for HDTV SDI signal transmission. It ensures stable and low-loss transmission of high-frequency video signals, perfectly matching the connectivity needs of professional audio-visual equipment and RF communication devices.

Features

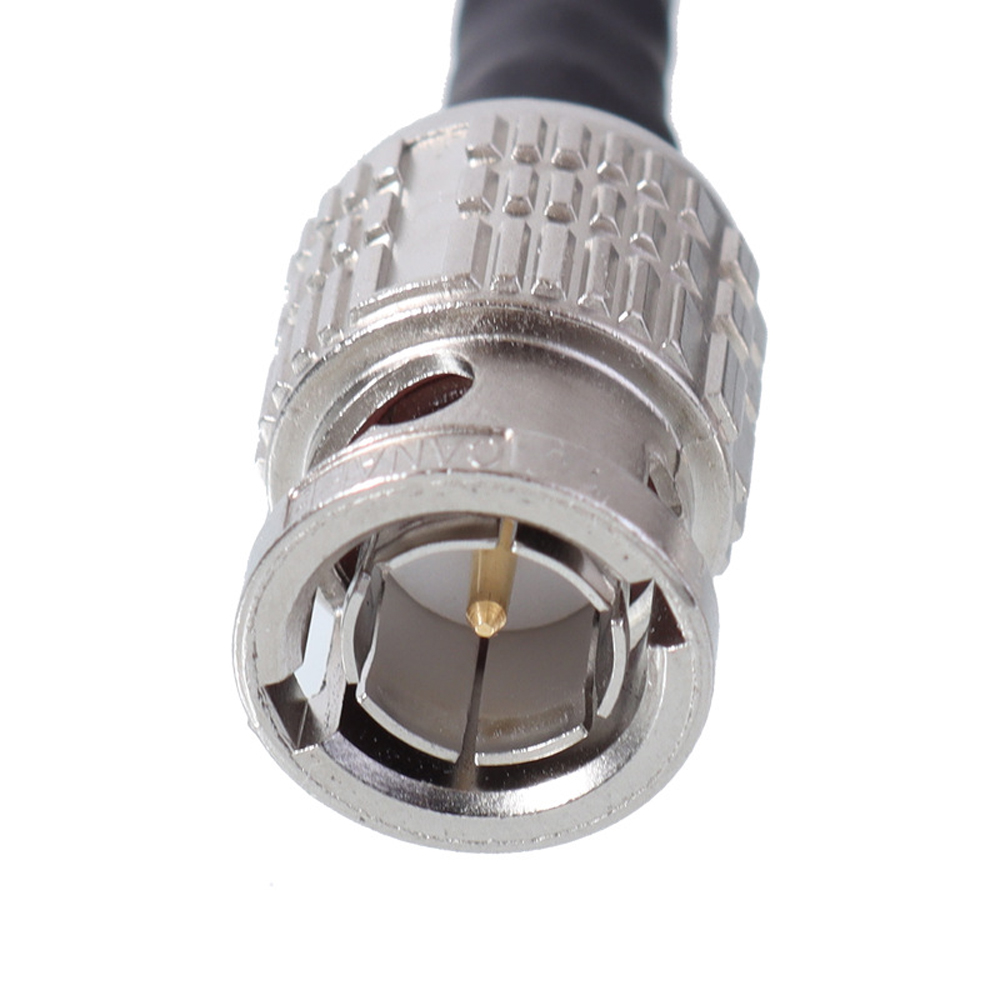

• Q9 BNC-J male connector with bayonet-style locking design for secure, anti-loose connection

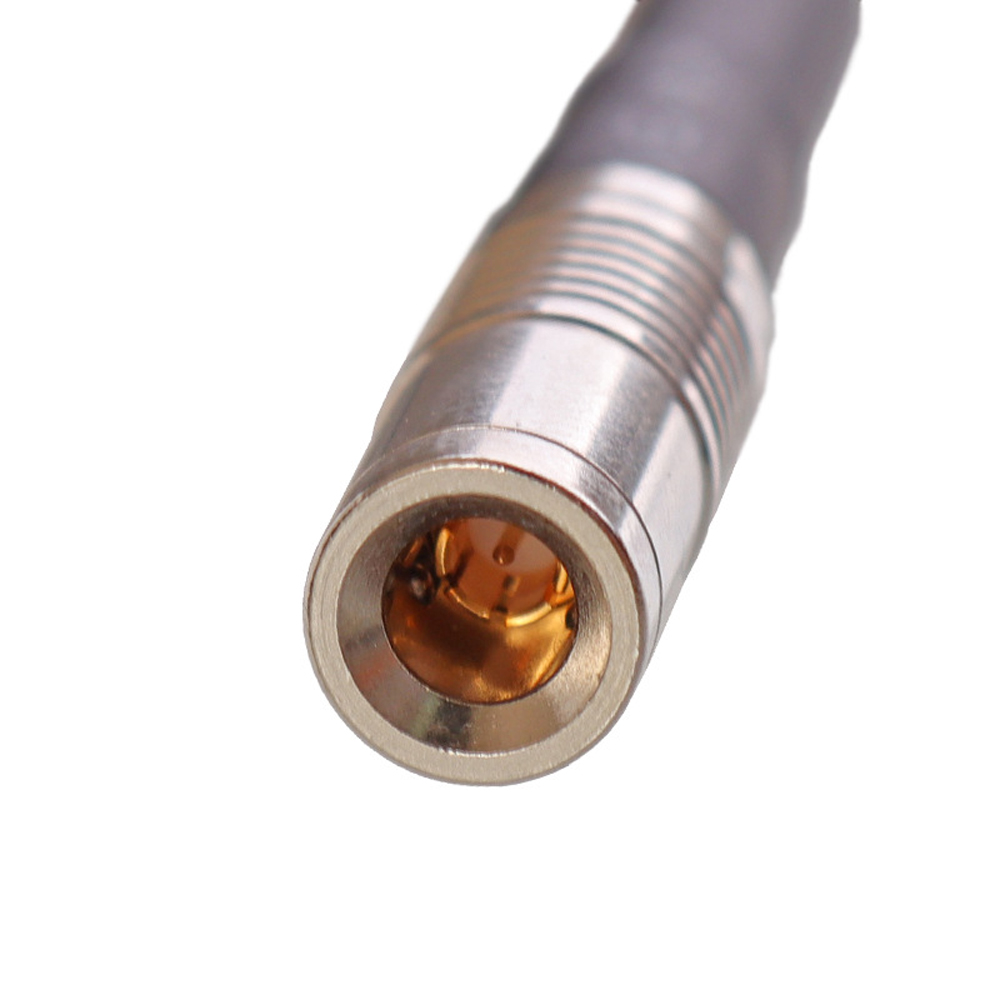

• Standard CC4 DIN(1.0/2.3) connector, ideal for high-precision signal transmission

• 50/75Ω impedance matching to optimize HD signal integrity

• Supports 0-4GHz frequency range, compatible with HDTV SDI high-definition transmission

• Low insertion loss and VSWR (≤1.3) for minimal signal attenuation

• Double shielding structure with strong electromagnetic interference (EMI) resistance

• High-quality brass-plated terminals for low contact resistance and long service life

• Wear-resistant and high-temperature resistant insulation, adapting to complex operating environments




Applications

• HDTV SDI high-definition video signal transmission

• Connection of professional audio-visual equipment (cameras, monitors, switchers)

• RF communication system signal transmission

• High-definition video wiring for security monitoring systems

• Interconnection of broadcast studio and video production equipment

• Signal connection for test instruments and RF devices

FAQ

Q1: Can I start a sample order first before ordering more?

A: Sure, We provide free samples if the stock sufficient, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.



Q2: What payment methods do you accept?

A: PayPal, T/T, Bank Transfer, Western Union and L/C

Q3: How does your factory do regarding quality control?

A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc

Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?

A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.

Q5: Delivery time and warranty? Which shipping service you will use for my goods?

A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.
