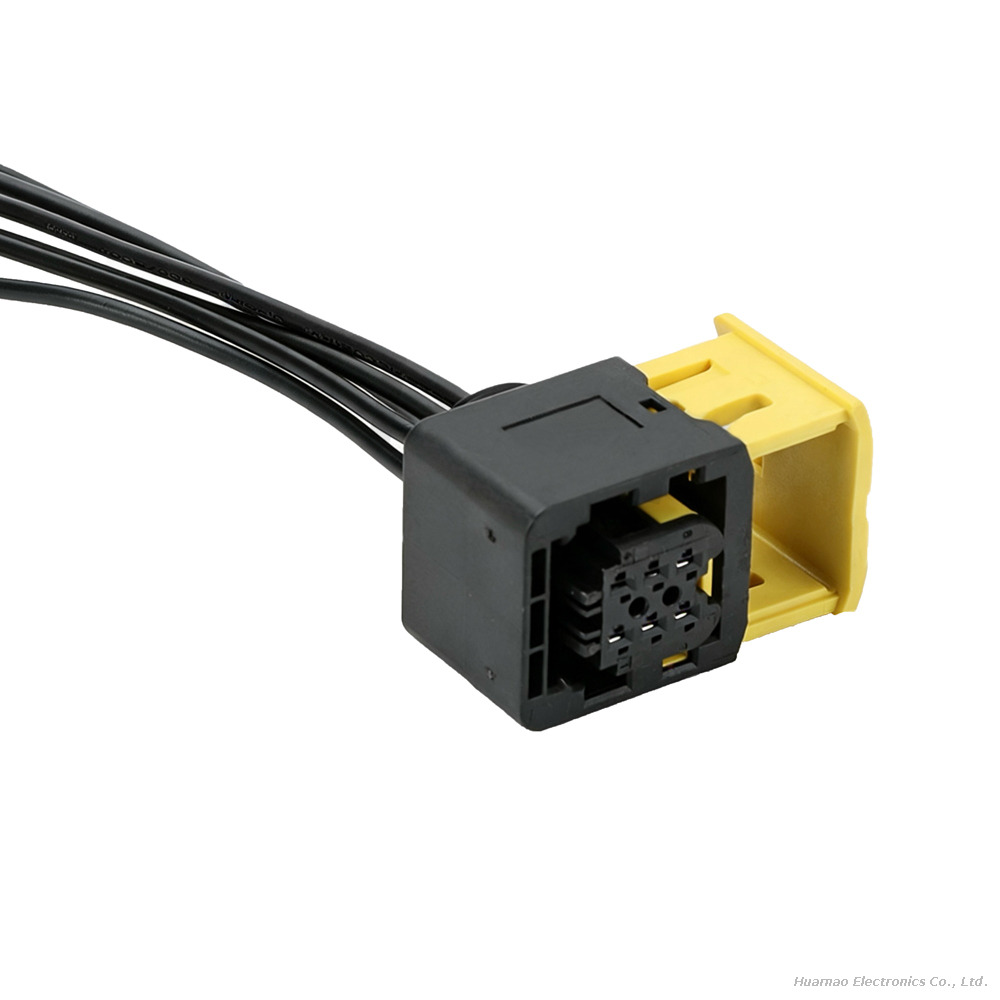

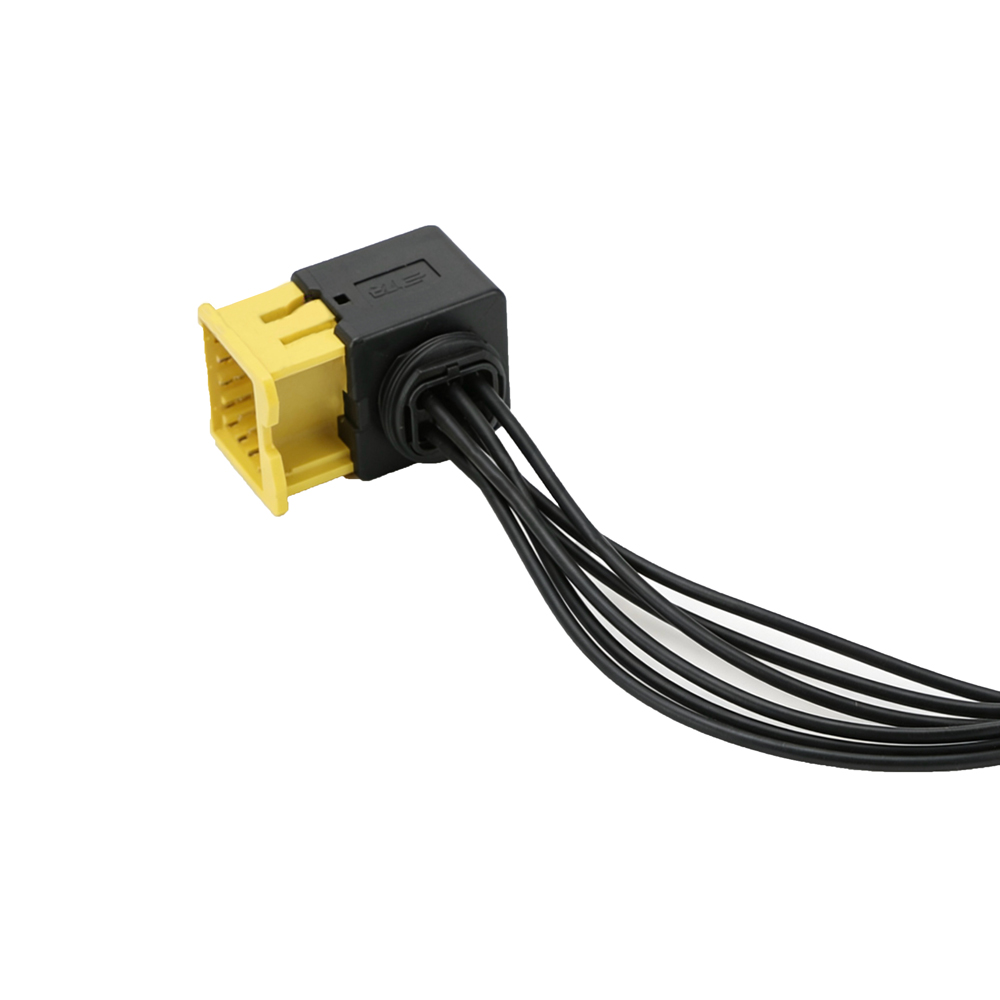

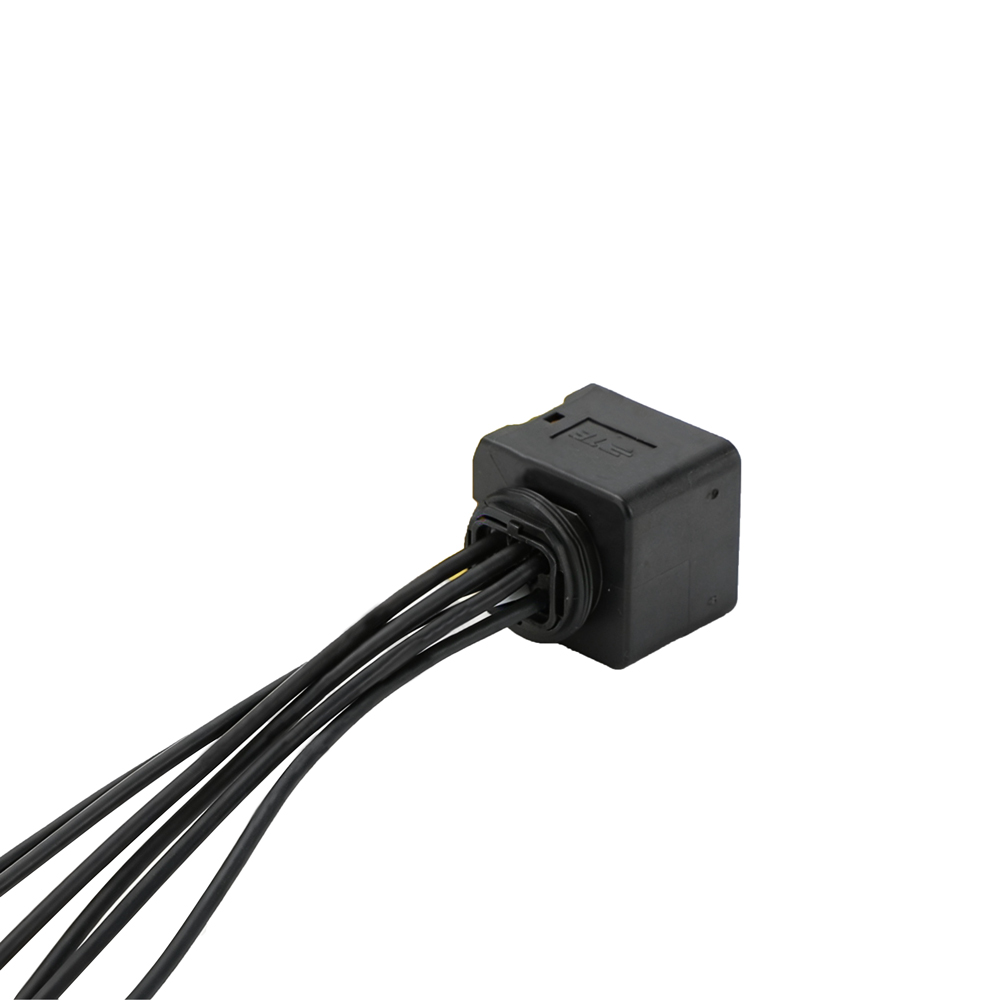

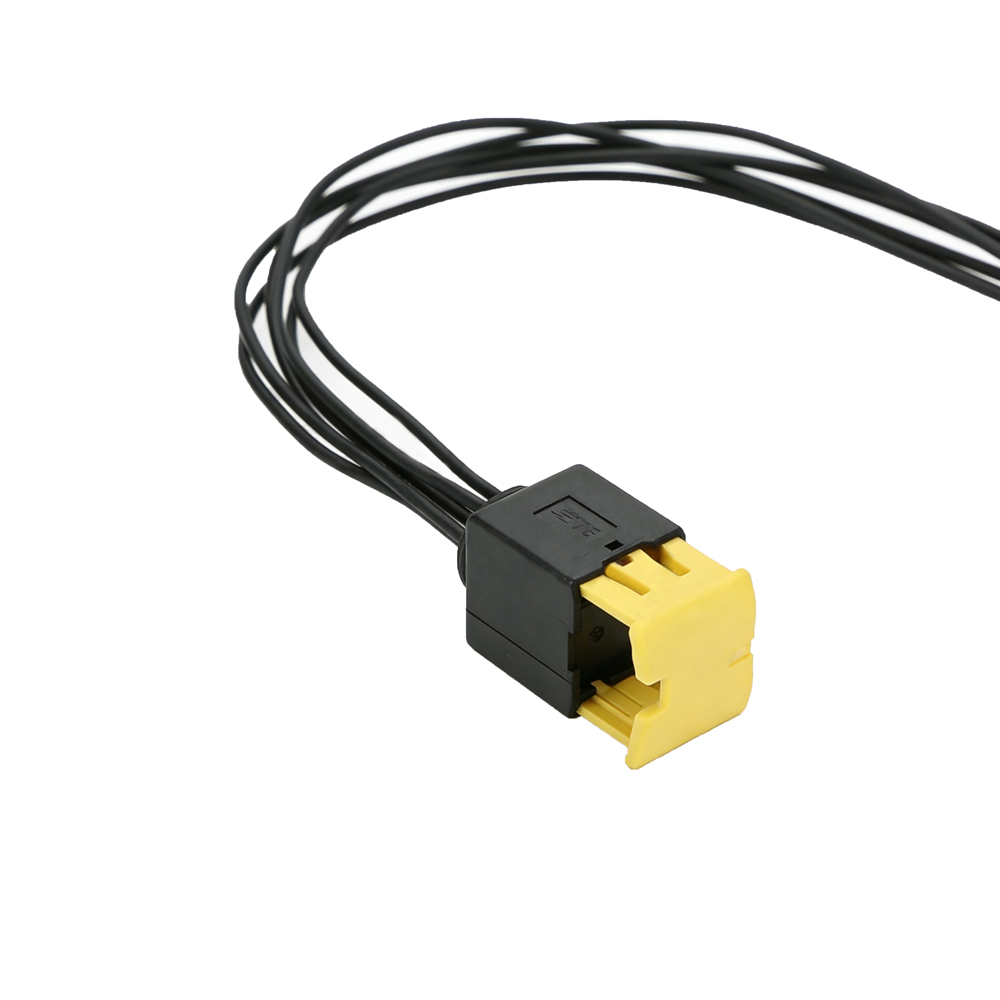

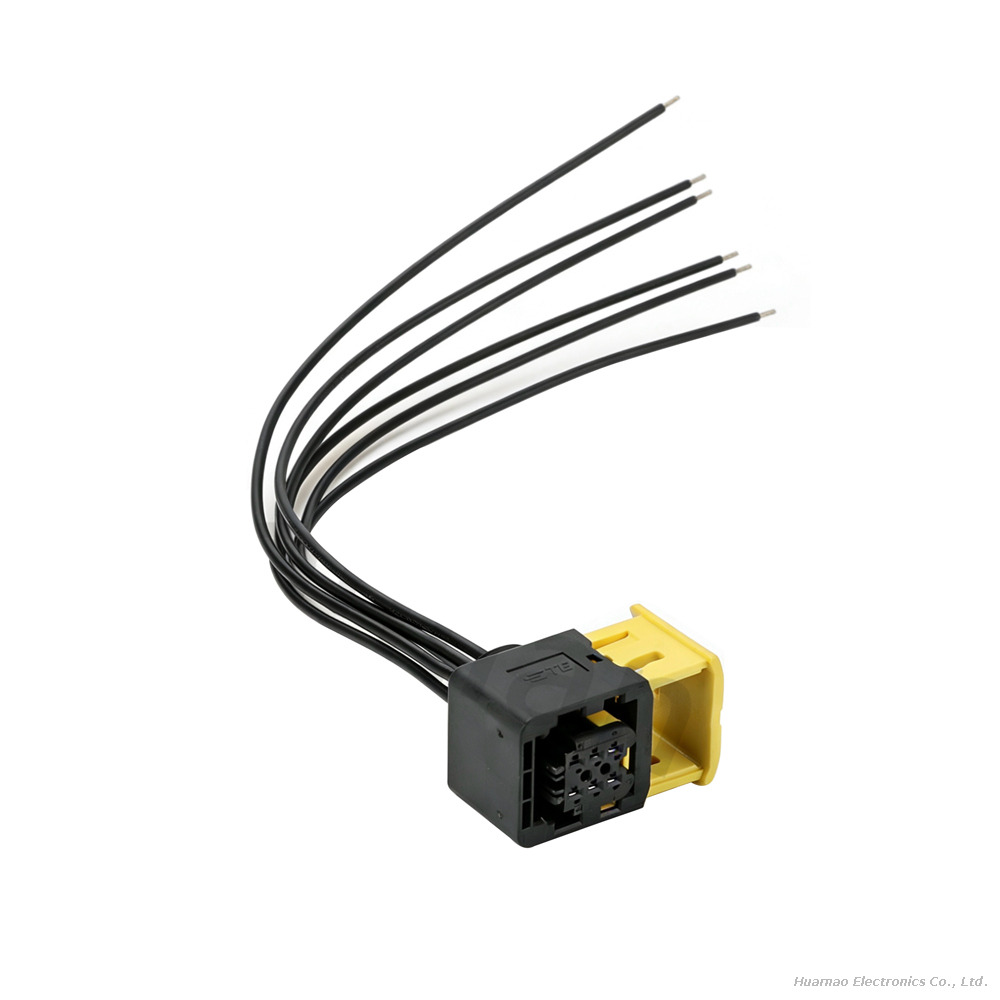

Designed exclusively for new energy automotive applications, the TE 1-1418469-1 terminal wire harness integrates rugged construction with precision engineering to deliver reliable power and signal transmission. As a core component of TE's Heavy Duty Sealed Connector Series, this wire-to-wire solution features male-female connectors optimized for 12V/24V/48V automotive systems, meeting the stringent performance requirements of electric vehicles (EVs), hybrid electric vehicles (HEVs), and related energy storage systems.
Core Features
✅ IP67 Waterproof & Dustproof Protection
Dual-seal structure with silicone gaskets and PBT GF housing ensures complete protection against water immersion (1m depth for 30 minutes) and dust ingress
Complies with IEC 60529 standards for harsh automotive environments, including rainy conditions and undercarriage exposure
✅ Broad Voltage Compatibility & Safe Current Handling
Rated for 12V/24V/48V nominal voltage architectures (up to 60VDC)
6-position design with 20A maximum current per terminal, supporting low-voltage power distribution and signal transmission
Polarized keyed alignment prevents reverse connection, eliminating short-circuit risks
✅ Extreme Environment Durability
Wide operating temperature range: -40℃ to 140℃ (-40°F to 284°F) for adaptation to extreme weather and engine compartment heat
UL94 V-0 flame-retardant housing resists combustion and prevents flame spread
Vibration-resistant design (10-2000Hz, 15g) and shock tolerance (50g, 11ms) meet automotive dynamic performance standards
✅ Premium Conductivity & Longevity
Tin-plated copper terminals ensure low contact resistance (<5mΩ) and corrosion resistance
500+ mating cycles for reliable long-term use in maintenance-friendly applications
4mm centerline spacing and compact form factor (25.7mm width × 43mm length × 31.25mm height) optimize installation in tight spaces
Application Scenarios
Ideal for new energy automotive systems including:
Electric vehicle battery management systems (BMS)
On-board chargers (OBC) and DC-DC converters
Hybrid powertrain control modules
In-vehicle infotainment and electronic control units (ECUs)
Charging station auxiliary connections
Vehicle-to-grid (V2G) interactive systems
Quality Assurance
Authentic TE Connectivity (AMP) components with full traceability
Compliant with GB/T 37133-2025 (latest EV high-voltage connection standards)
RoHS/ELV compliant (lead-free, cadmium-free construction)
Trust the TE 1-1418469-1 wire harness for safe, consistent performance in the most demanding new energy automotive applications. Contact our technical team for custom cable lengths, terminal configurations, or compatibility verification with your specific system.
