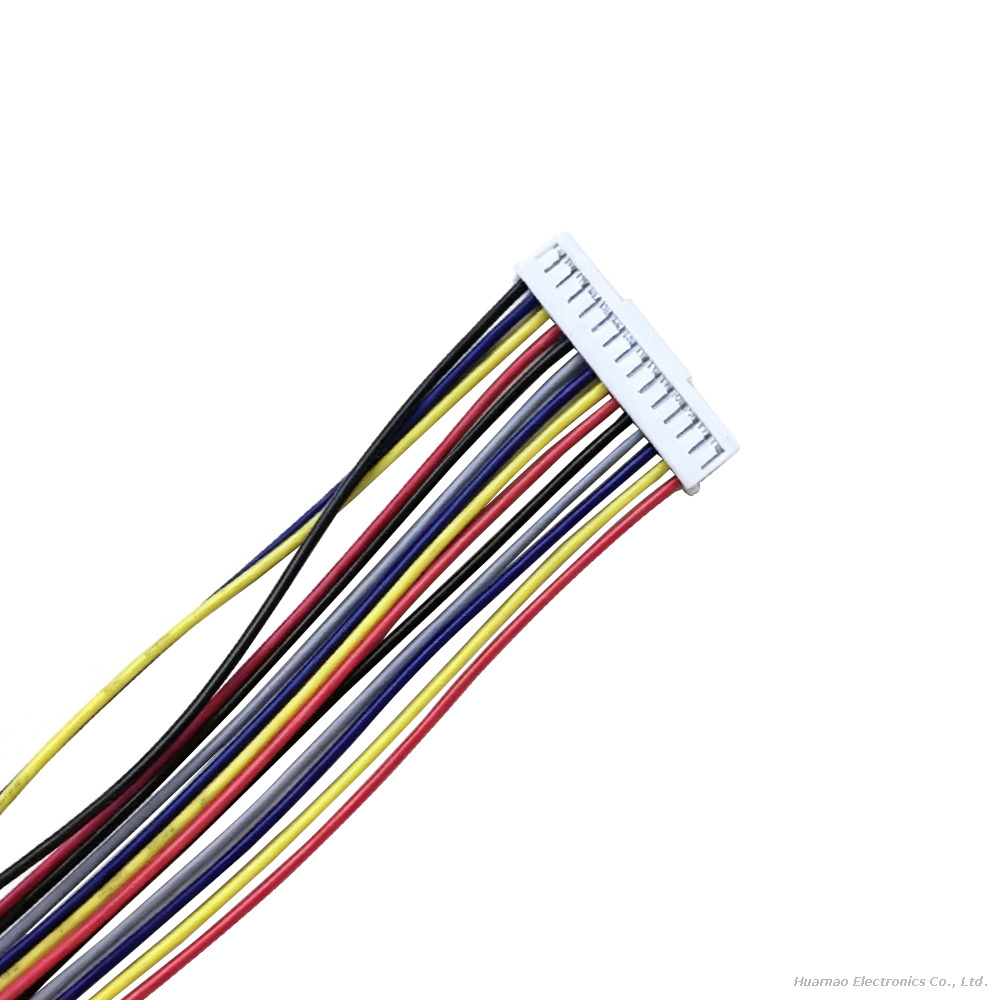

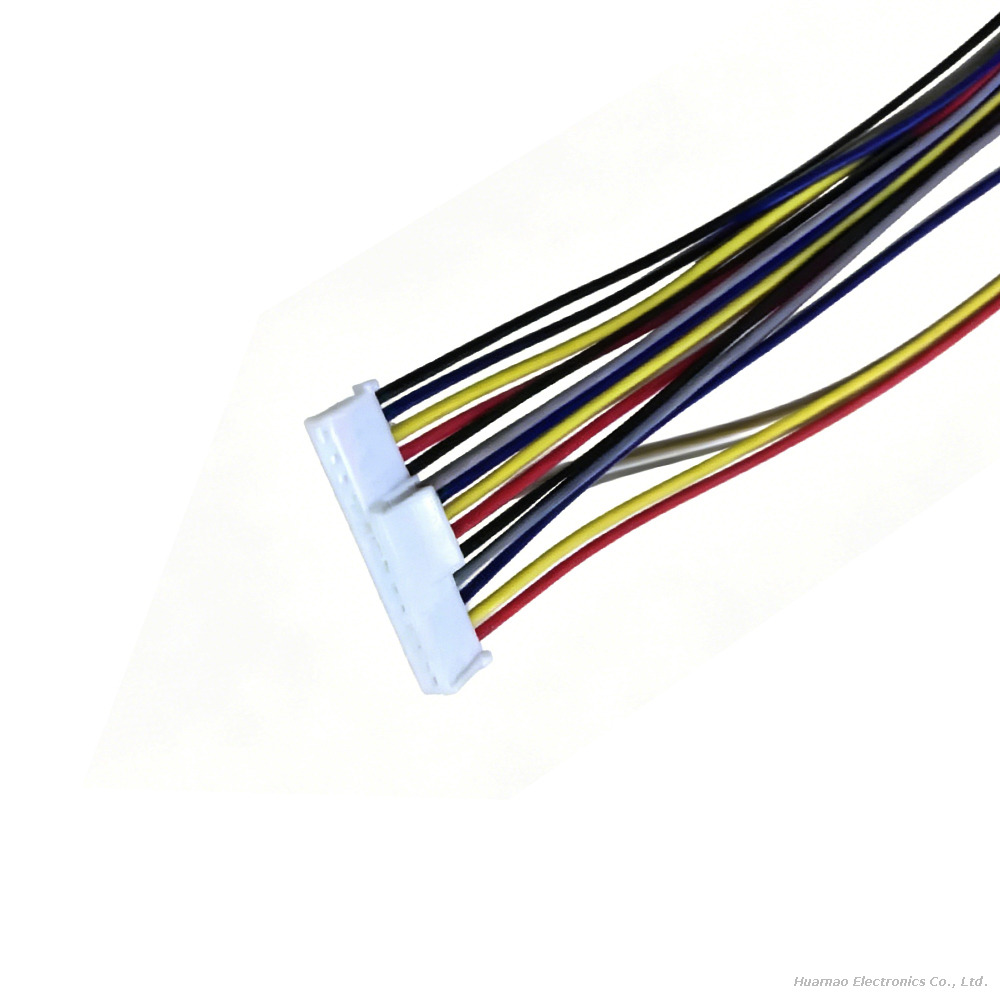

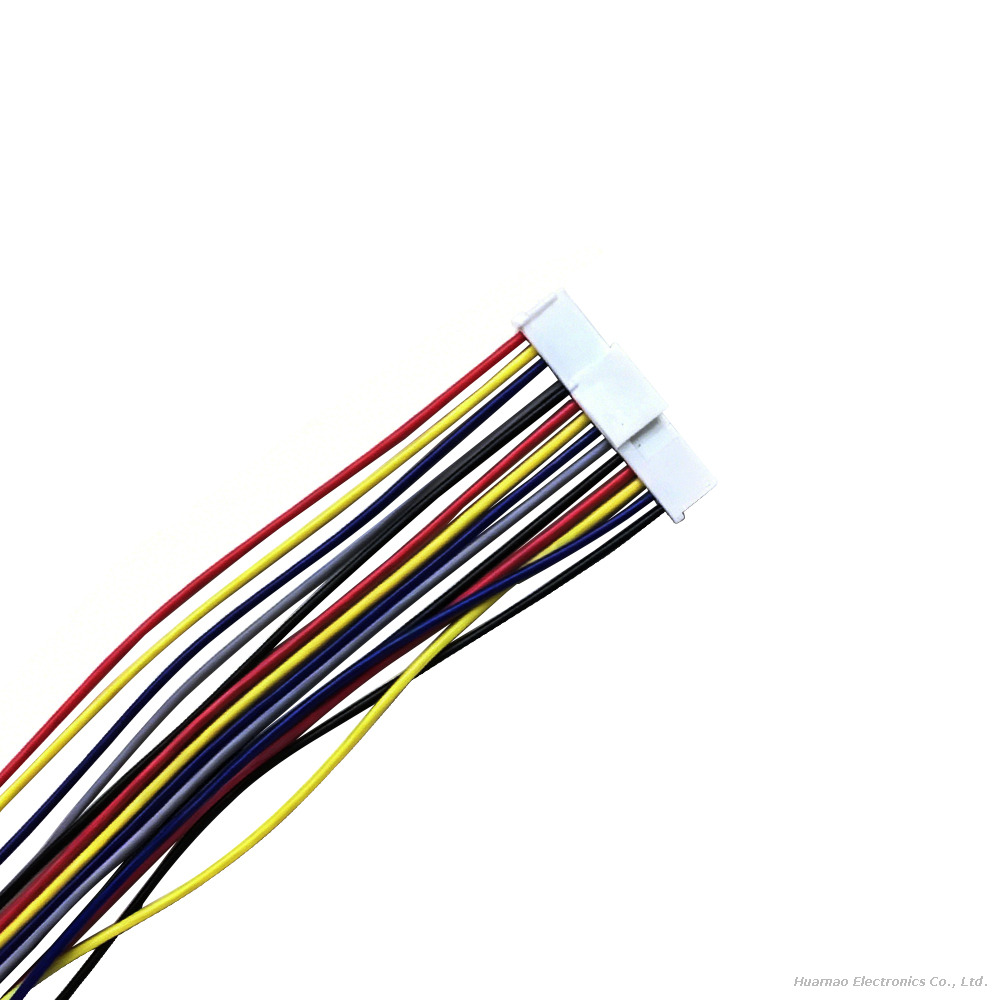

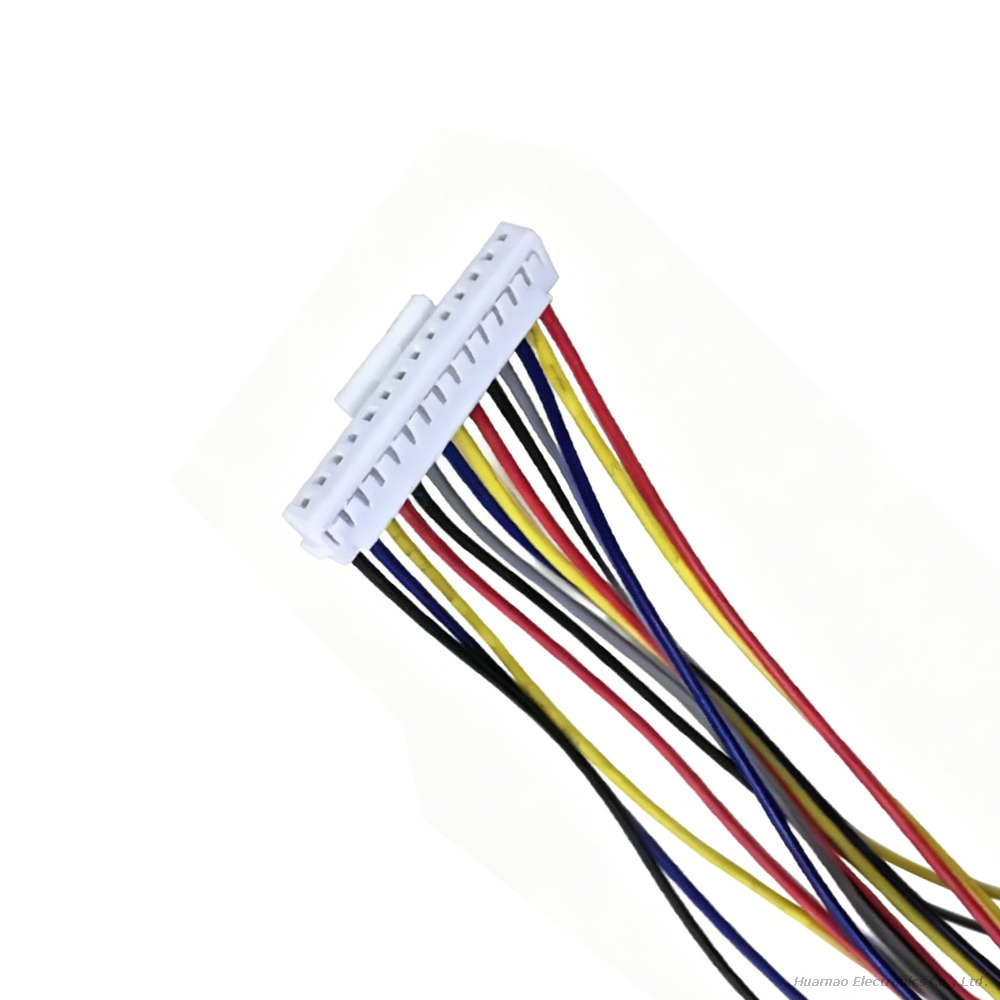

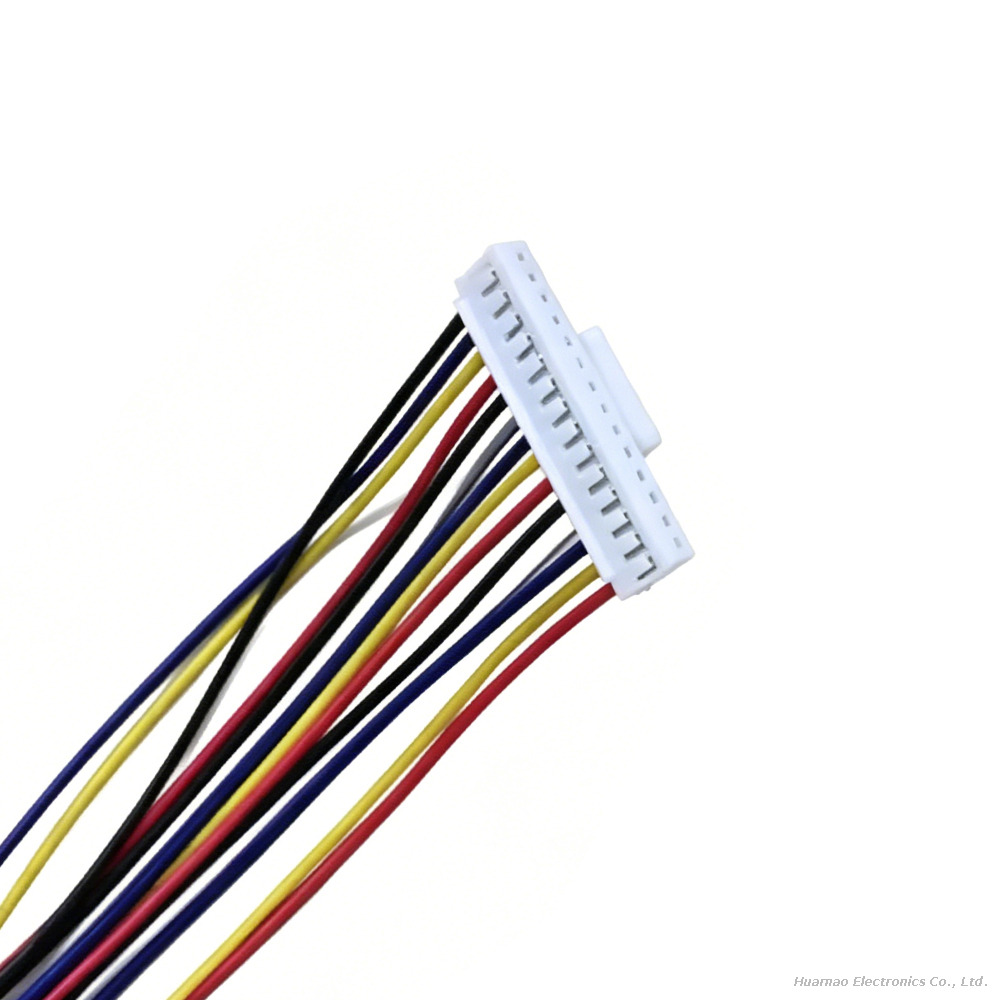

Molex 355071400 2.0mm Wiring Harness for Equipment Internal

The natural nylon PA66 housing is integrated with a wide-area positive lock buckle and built-in polarization guide ribs. The lock structure provides powerful retention force to avoid accidental disconnection caused by equipment vibration, pulling or assembly impact; the polarization ribs physically block reverse mating, effectively eliminating PCB short-circuit and component burnout risks during mass production assembly.

Automated precision crimping equipment processes all terminals to ensure consistent terminal pull-out resistance, preventing terminals from backing out under long-term operating vibration. Compatible wire range covers AWG24–30 multi-color stranded tinned copper wires, color coding enables fast and error-free circuit identification during equipment assembly.

Each finished harness undergoes 100% full inspection before delivery, including continuity test, terminal pull force test and high voltage withstand test. It perfectly mates with corresponding PCB wafers: straight type 35362 and right-angle type 35363, forming a complete wire-to-board interconnection solution for narrow internal spaces of precision devices. We support single-end finished cable production and cross-type dual-connector conversion wiring OEM customization for mass production of medical, industrial and consumer electronics factories.

Specifications

Advantages

• Original complete Molex Sherlock matching set: 35507-1400 housing and exclusive 50212 crimp terminals deliver contact resistance ≤20mΩ, guaranteeing stable long-term signal transmission without intermittent contact failures.

• Enhanced wide positive locking design: Larger locking contact surface than ordinary connectors, firmly locks the mated PCB header to resist vibration, impact and pulling force inside equipment, preventing loose connection faults.

• Physical anti-reverse insertion protection: Molded polarization ribs on the housing completely block reverse plugging, eliminating mass assembly short-circuit risks and reducing after-sales maintenance costs for equipment manufacturers.

• UL94 V-0 flame-retardant high-temperature nylon housing: Excellent insulation, heat-resistance and anti-aging performance, effectively lowering hidden fire hazards inside heat-generating control mainboards and power modules.

• Strict multi-process full quality inspection: Automated precision crimp forming + multi-item electrical performance testing screens out defective products such as cold solder joints, poor contact and loose terminals, improving customer assembly yield.

• Flexible all-round OEM customization service: Cable length, wire thickness, wire color sequence and terminal matching at both ends can be adjusted according to customer circuit schematics; small prototype sample orders are supported for product development verification

Application

• Industrial Control Equipment:PLC auxiliary signal wiring, small servo driver internal harness, industrial detection sensor connecting cable, test instrument mainboard jumper wire

• Portable Medical Devices:Blood pressure monitor internal wiring, portable diagnostic equipment signal harness, wearable vital sign monitoring module cable

• Smart Home & Consumer Electronics:Intelligent control panel internal wiring, air purifier mainboard sensor cable, small kitchen appliance control board terminal wire

• Precision Testing & Lab Equipment:Desktop signal analyzer internal wiring, small power supply auxiliary harness, environmental monitoring detector connecting cable

• Mini Automation Modules:Small motor drive control wiring, industrial door lock intelligent module signal cable, charging pile internal auxiliary wiring
