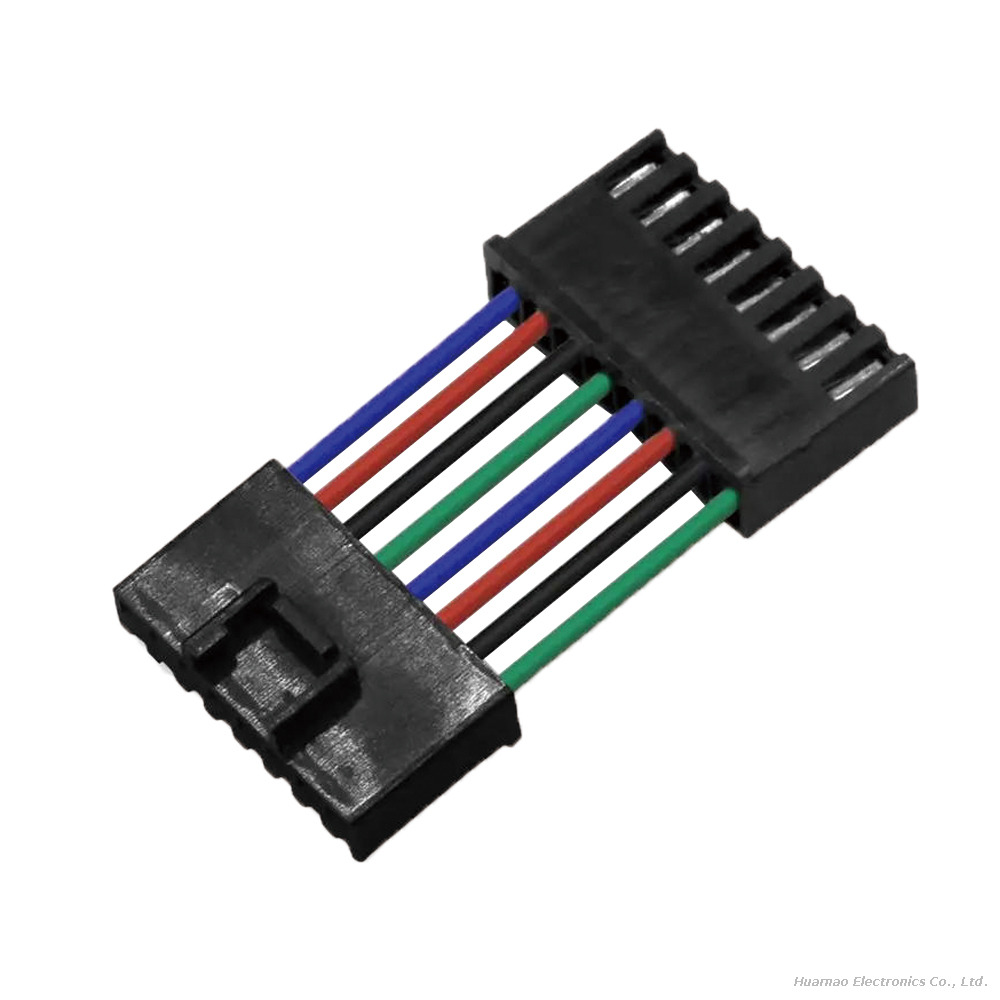

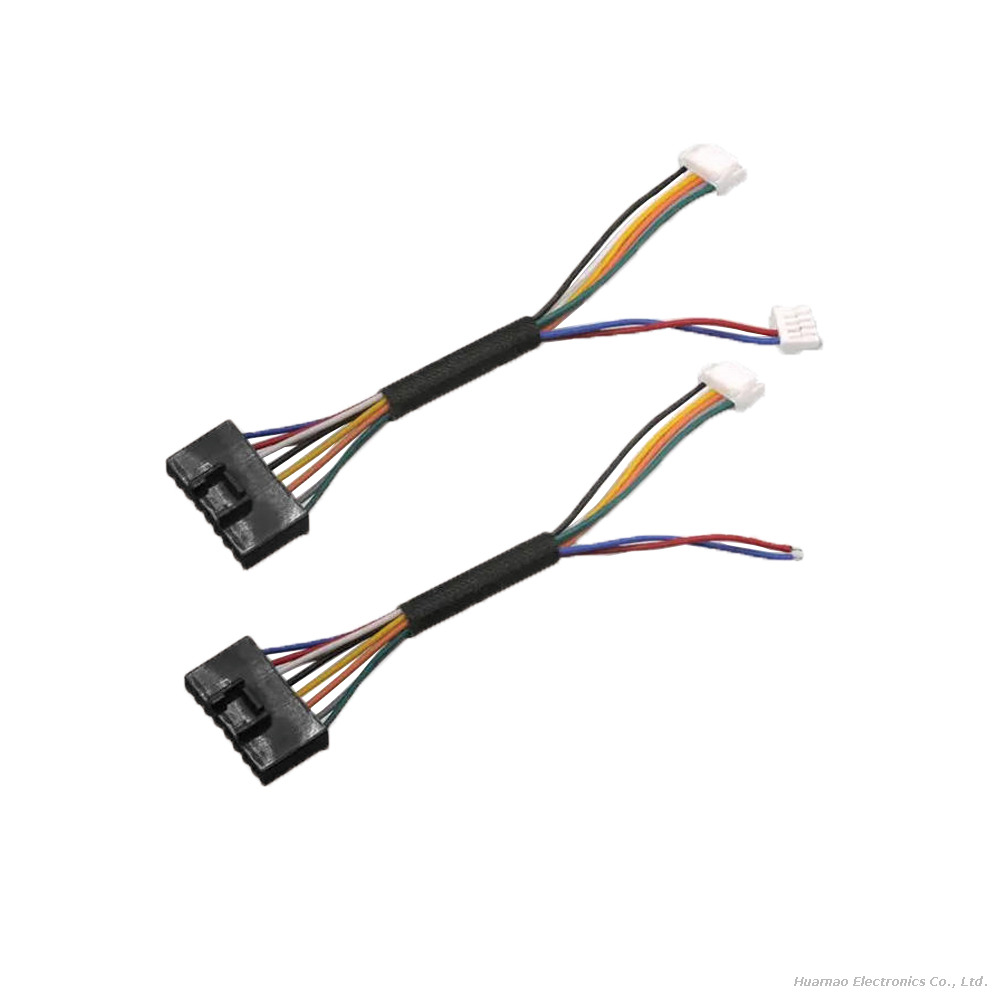

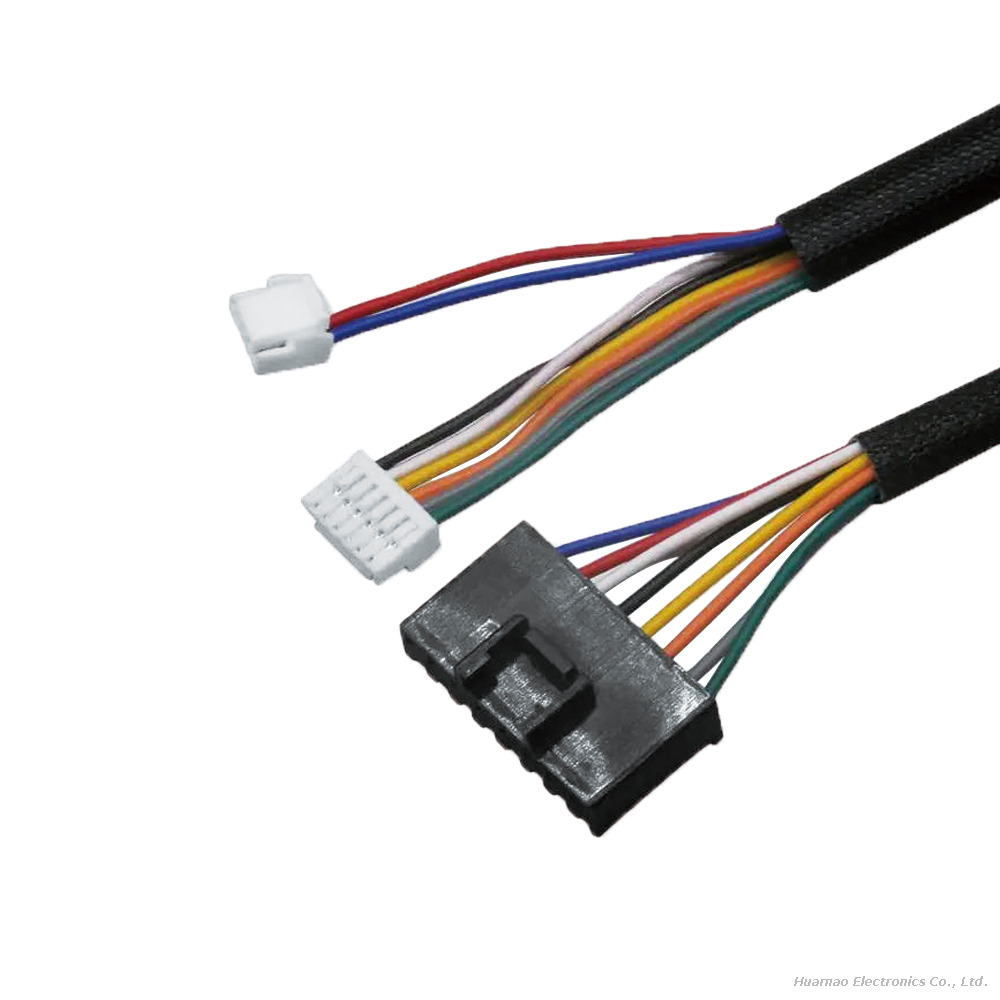

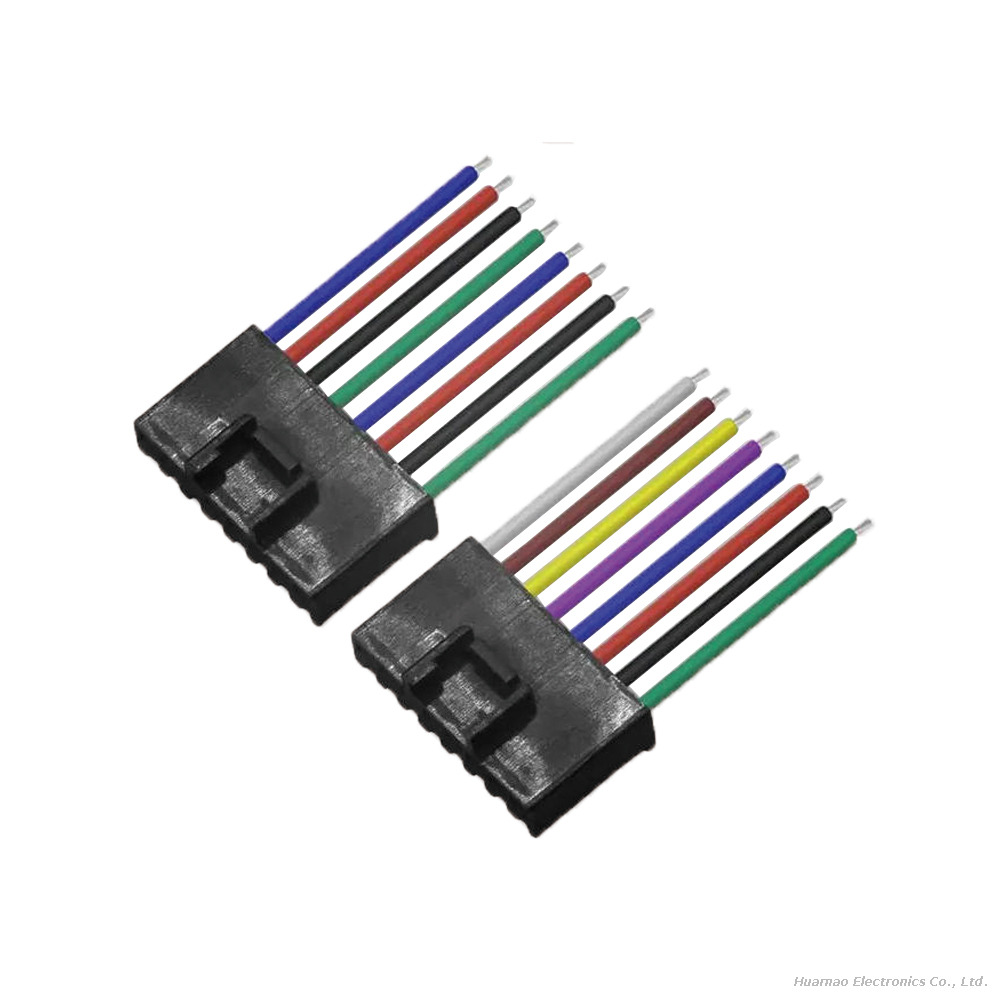

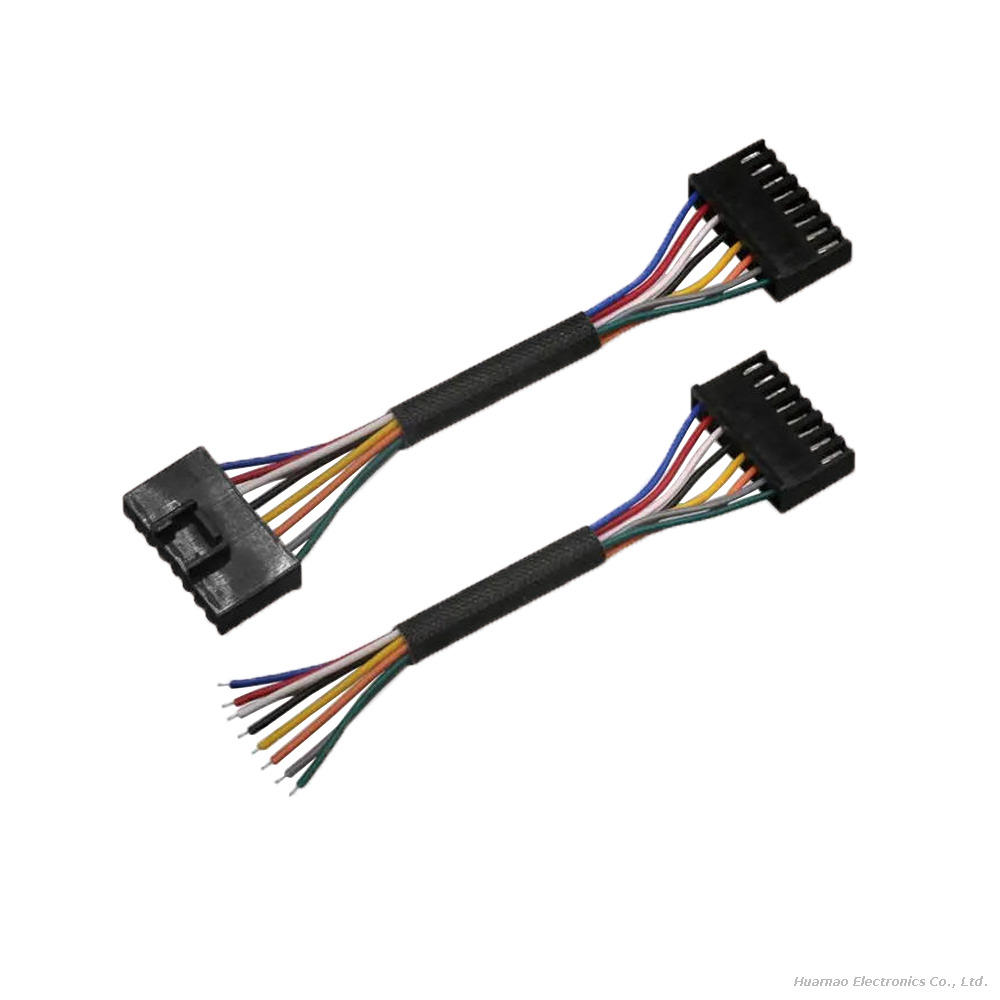

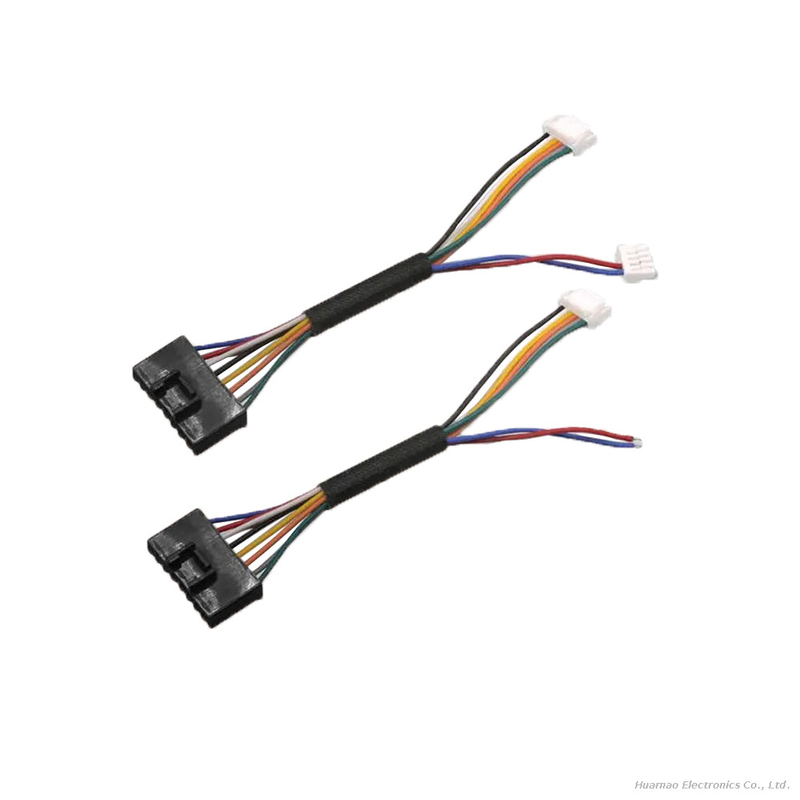

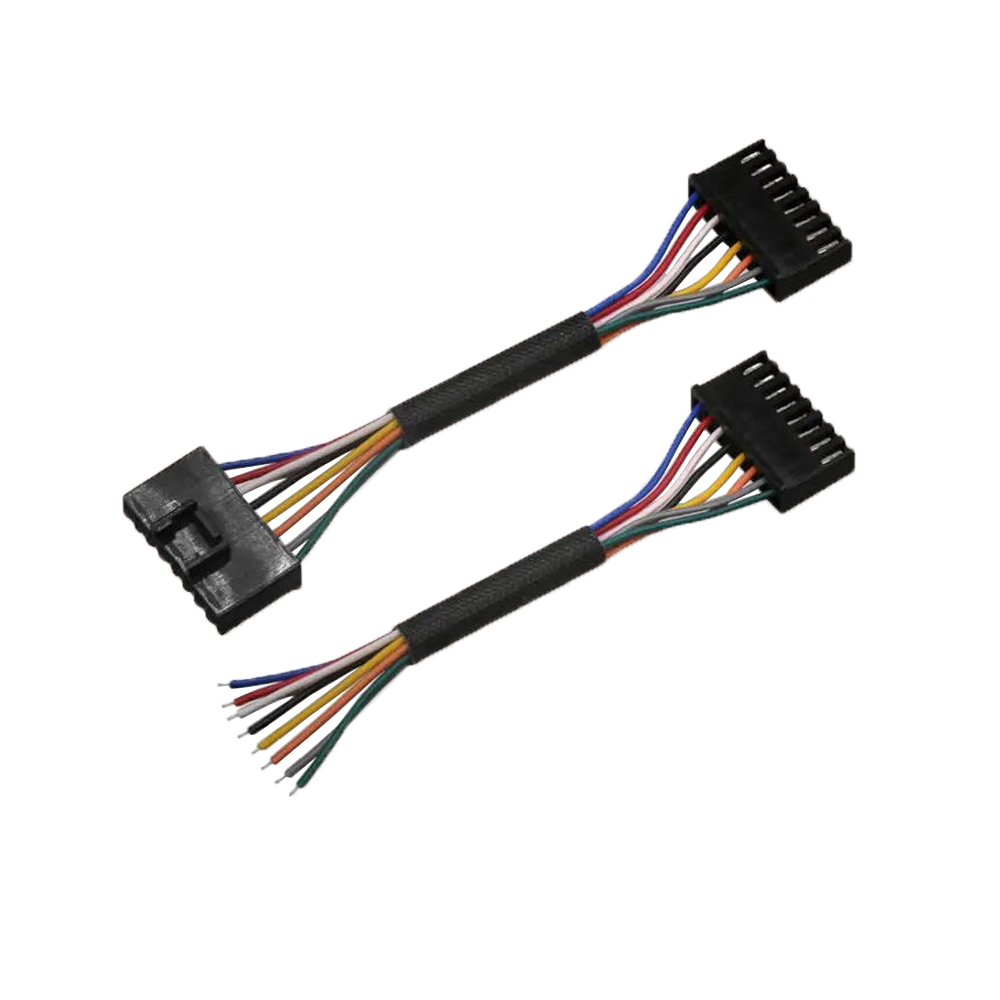

This multi-core connection cable equipped with HX25022-PD dedicated terminals is custom-developed for intelligent electronic fingerprint locks. It is used for stable connection between fingerprint recognition heads, main control boards, motor lock bodies, sensor modules and other components, with excellent anti-interference, bending resistance and anti-misplug performance, ensuring long-term reliable operation of intelligent electronic lock systems.
Key Features & Advantages
HX25022-PD Dedicated TerminalPerfectly matches the interface of electronic fingerprint locks, with tight crimping and strong anti-vibration performance, avoiding poor contact caused by lock body switching.
Multi-Core Integrated WiringSupports customized multi-core configuration to realize centralized transmission of fingerprint signals, control commands and power supply, simplifying internal wiring of locks.
Anti-Misplug Polarization DesignAsymmetric foolproof structure effectively prevents reverse insertion, protecting fragile fingerprint recognition modules and main control circuit boards from damage.
Repeated Bending ResistanceHigh-flexibility wire and stable crimping adapt to the frequent mechanical movement of the lock body during opening and closing.
Stable Signal TransmissionLow-resistance tinned copper conductor reduces signal attenuation, ensuring accurate and fast recognition of fingerprint modules.
Miniaturized StructureCompact terminals and thin cables are suitable for the narrow internal installation space of intelligent electronic locks.
Typical Applications
Internal connection cable between fingerprint recognition head and main control board of fingerprint lock
Wiring harness for touch panel and sensor module of electronic password lock
Control cable for motor and clutch mechanism of intelligent lock body
Multi-core connection wire for security electronic locks and smart door locks
Quality Assurance & Custom Processing
100% electrical continuity and terminal pull-out force testing before shipment
Customizable cable length, core count, wire color and terminal crimping form
Professional processing technology ensures stable connection performance
Support OEM processing for intelligent lock manufacturers
