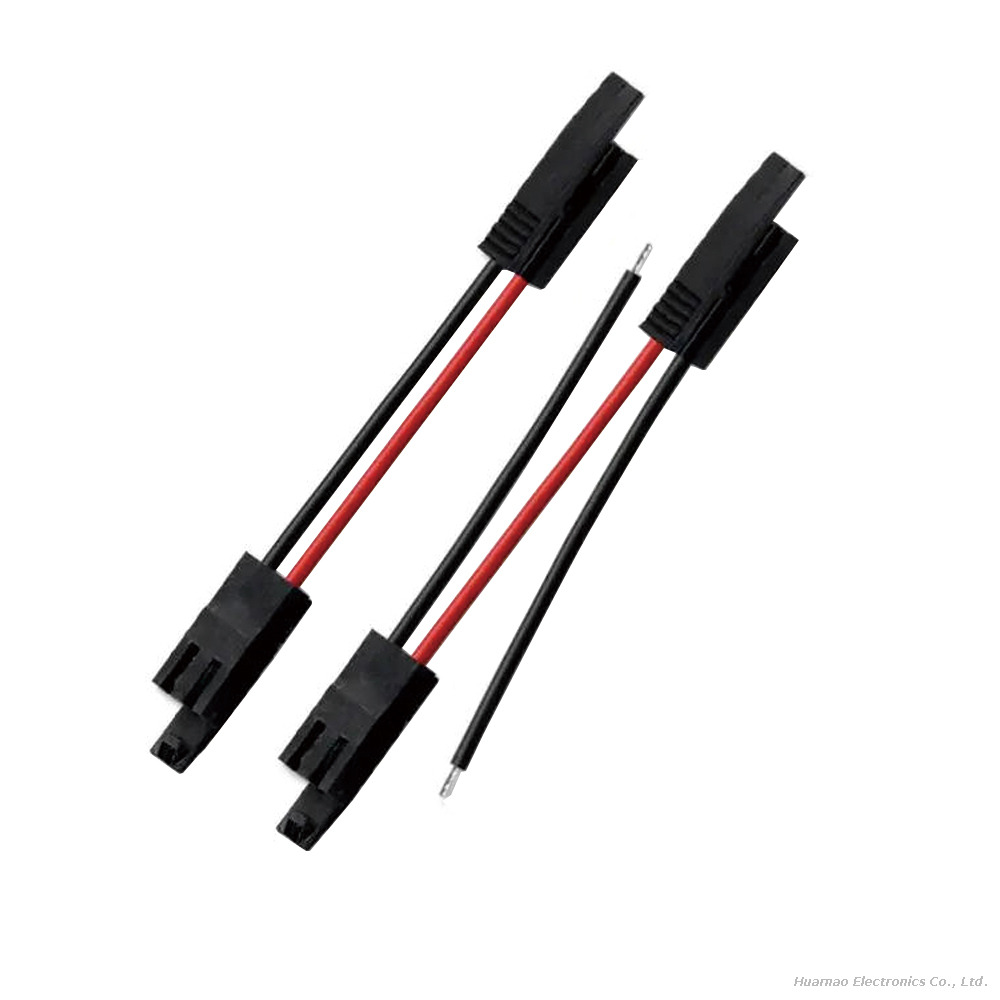

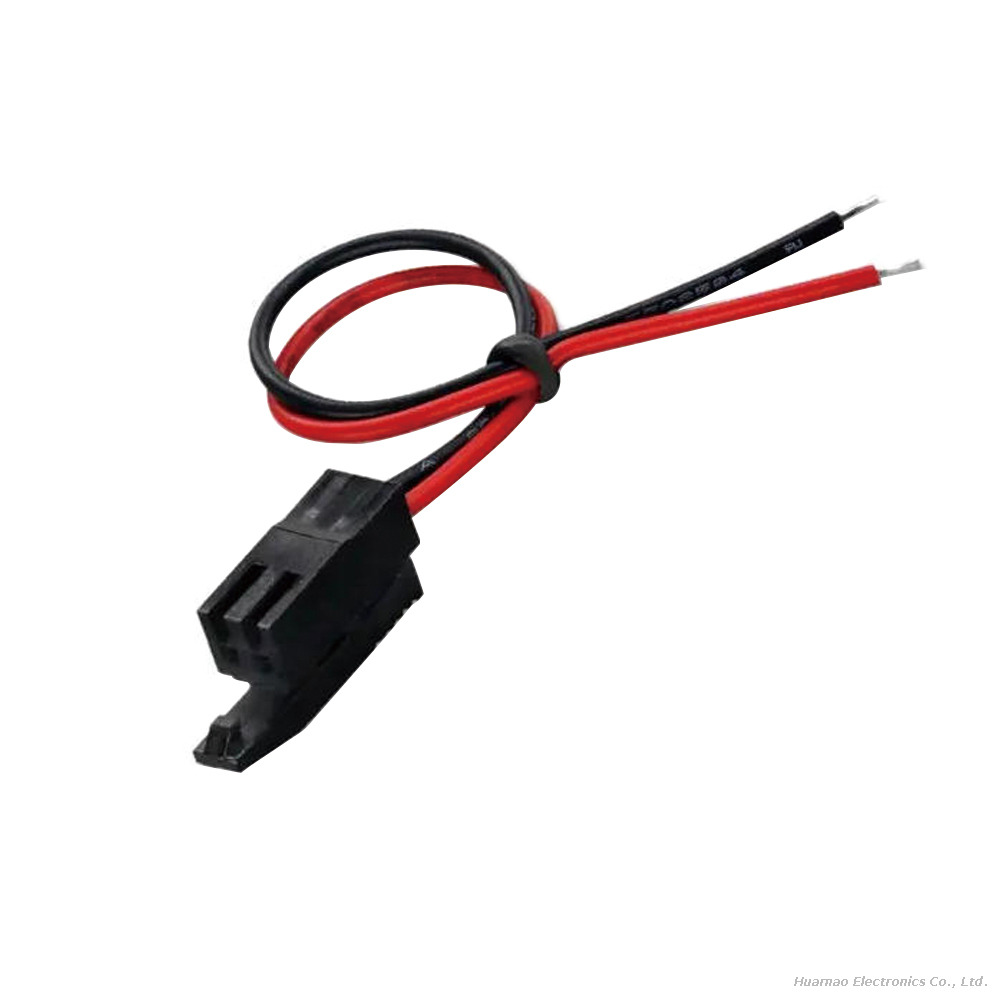

This is a 2-pin industrial control wire harness dedicated to FANUC CNC systems, equipped with a genuine JAE IL-L2S-S3L-B(N) 2.54mm pitch connector. It is professionally designed for connecting the system's backup lithium battery (such as BR-2/3AGCT4A 6V), ensuring stable power supply for memory data retention during power outages. The cable features reliable crimping, high-temperature resistance, and anti-vibration performance, fully meeting the harsh requirements of industrial machining environments.
Key Features

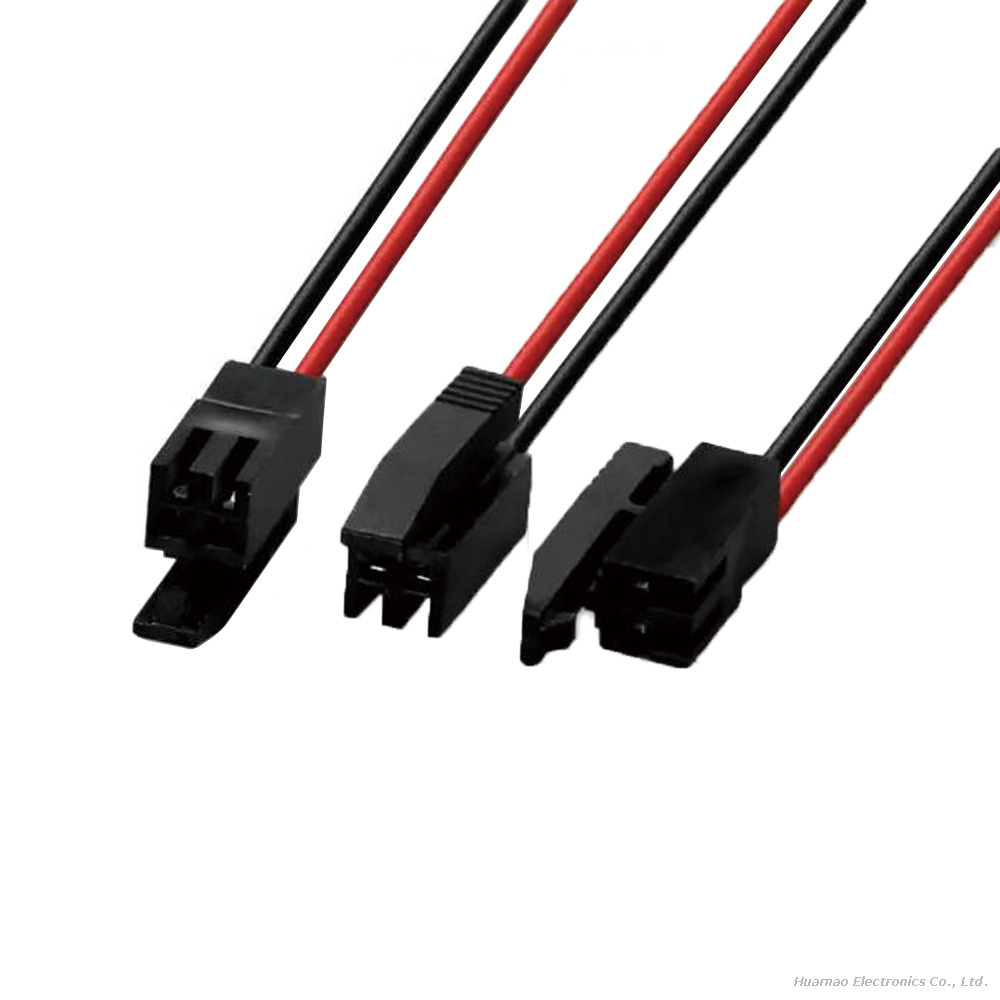

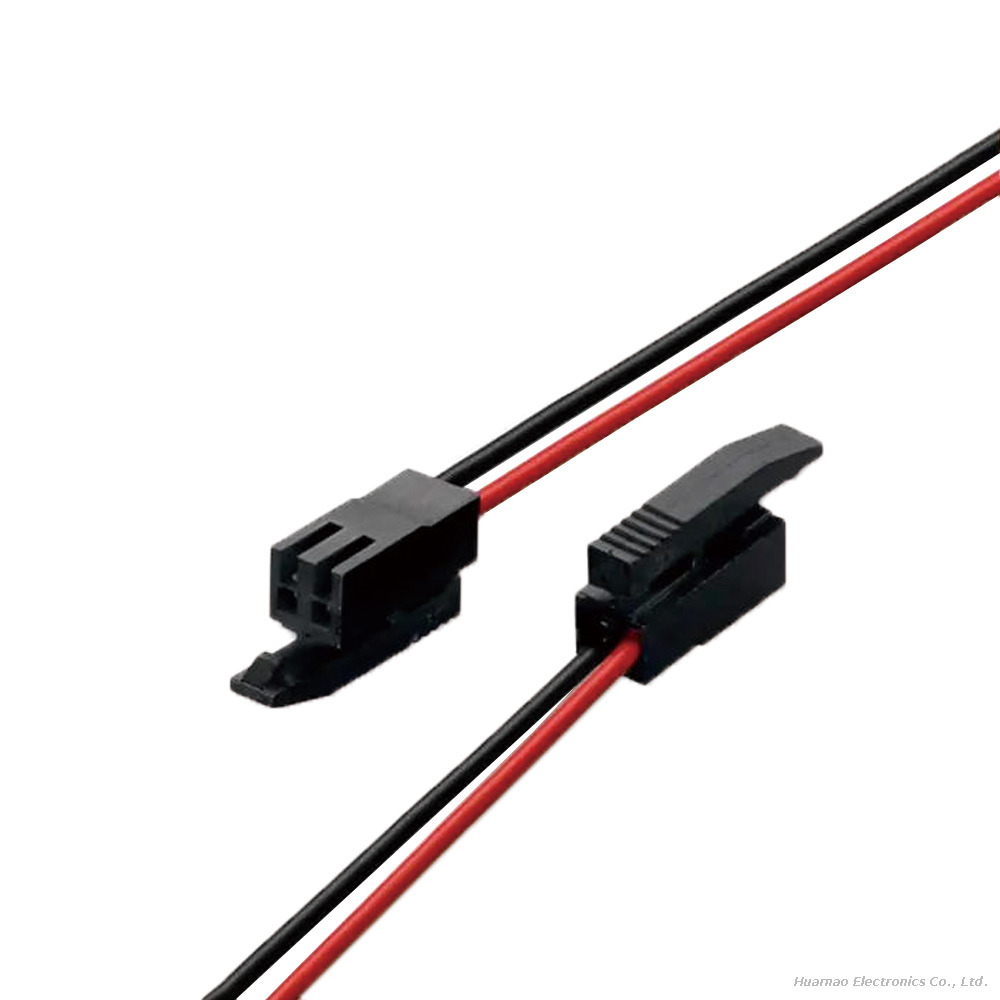

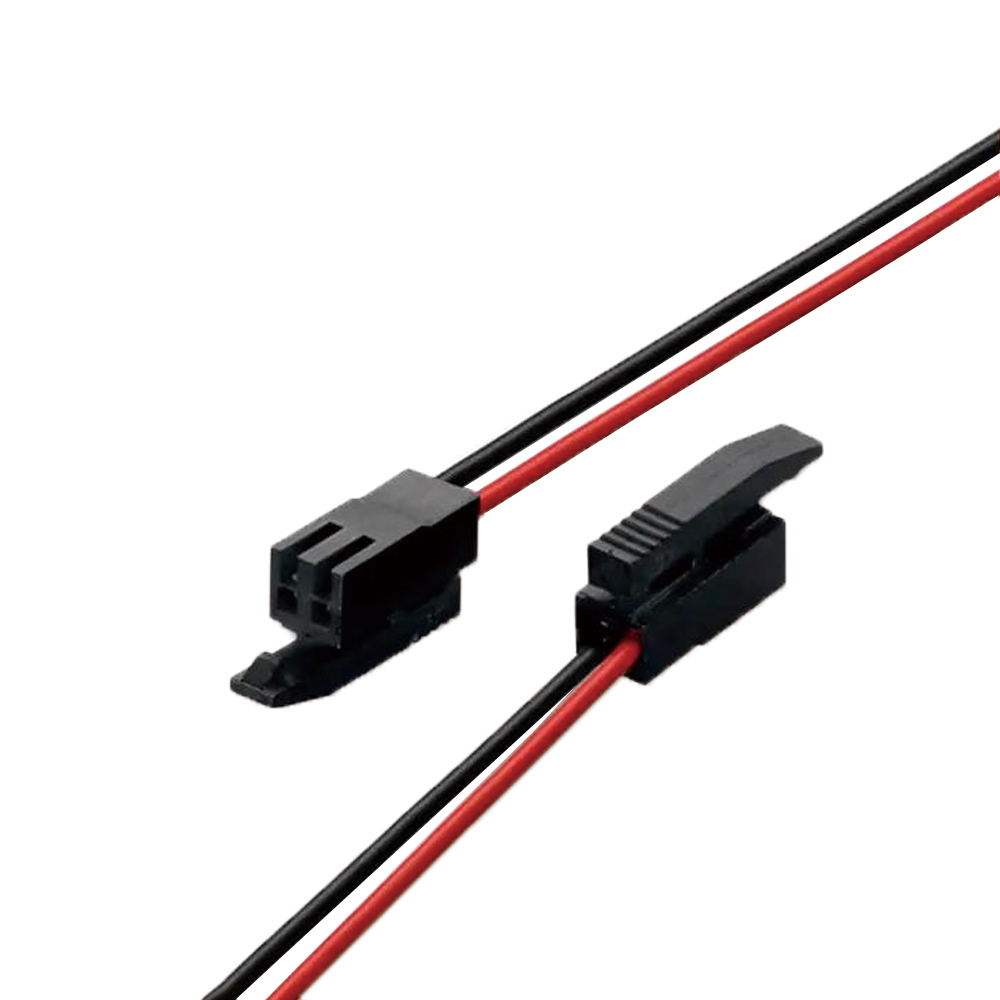

JAE IL-L2S-S3L-B(N) Connector: Standard 2.54mm pitch, 2-pin socket with friction-lock mechanism, ensuring a secure connection and preventing accidental disconnection under vibration.
FANUC CNC Compatibility: Exclusively engineered for FANUC 0i, 18i, 31i series systems, directly matching the A98L-0031-0025 (BR-2/3AGCT4A) lithium battery interface.
High-Quality Industrial Conductor: Uses UL1007 22-24AWG stranded tinned copper wire, offering low resistance, high conductivity, and excellent oxidation resistance.
Superior Insulation & Durability: Flame-retardant PVC insulation (UL94 V-0) with an operating temperature range of -40°C to +85°C, resistant to oil, abrasion, and aging.
Precision Crimping Process: Fully automated terminal crimping ensures high tensile strength, stable contact, and zero risk of loose wires or poor connectivity.

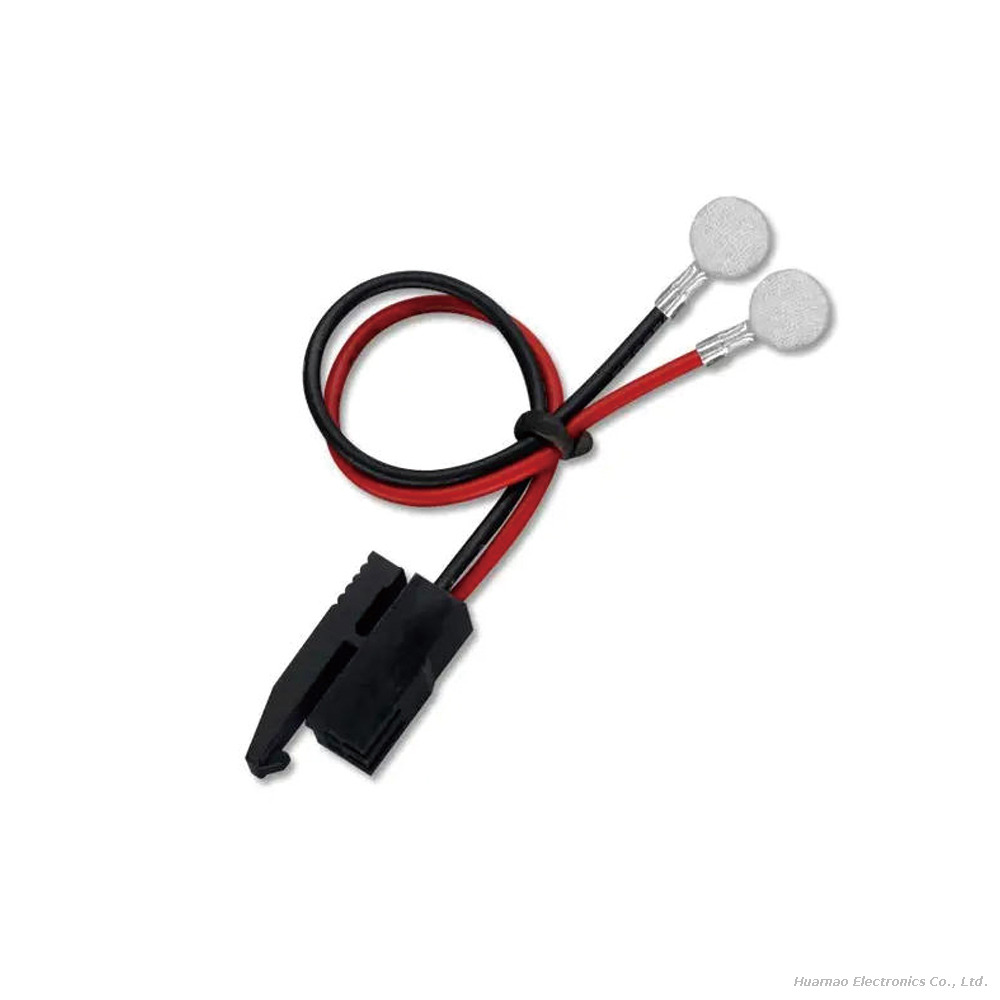

Customizable Design: Available in standard lengths (100mm, 150mm, 200mm) or custom lengths; wire ends can be tinned or fitted with nickel tabs for direct battery soldering.
RoHS Compliant: Meets international environmental standards, safe and non-polluting for industrial use.
Application Scope
FANUC CNC Systems: 0i, 0i Mate, 18i, 31i, 0i-MF, etc.
Battery Compatibility: BR-2/3AGCT4A 6V, A98L-0031-0025, A02B-0236-C281 battery cases.
Core Function: Maintains system parameters, machining programs, and coordinate data when the main power is off.
Industrial Environments: Machining centers, CNC lathes, milling machines, and other automated equipment.
