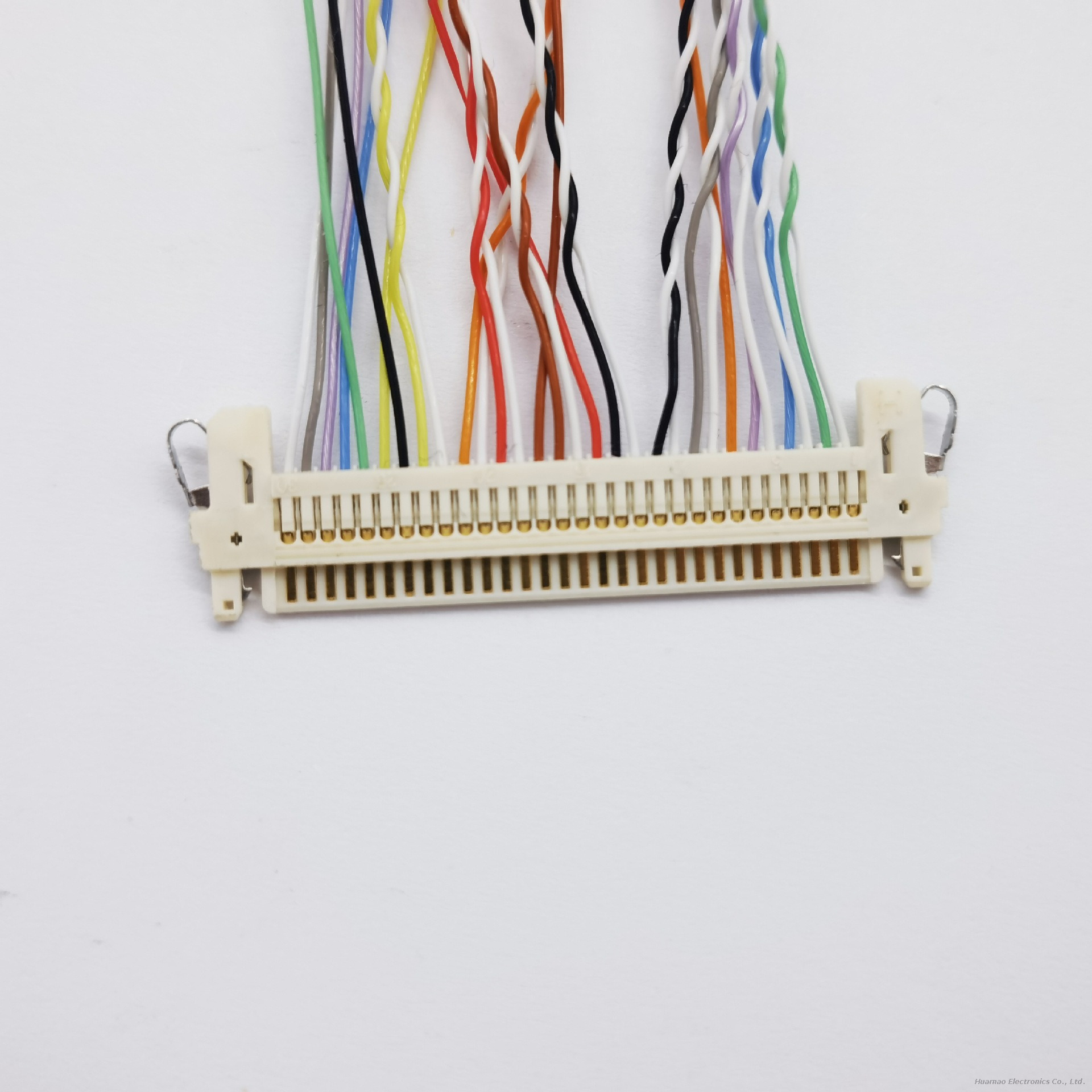

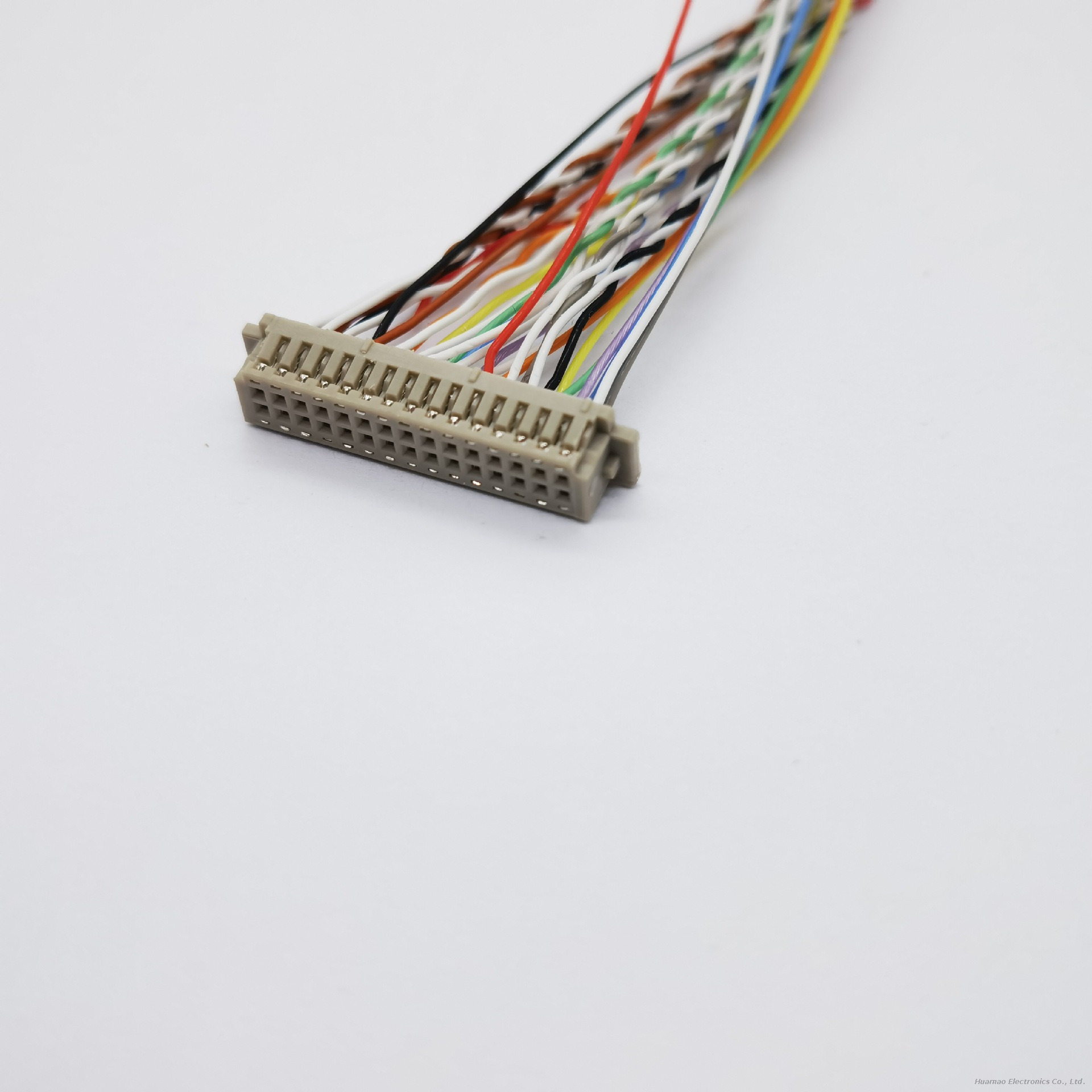

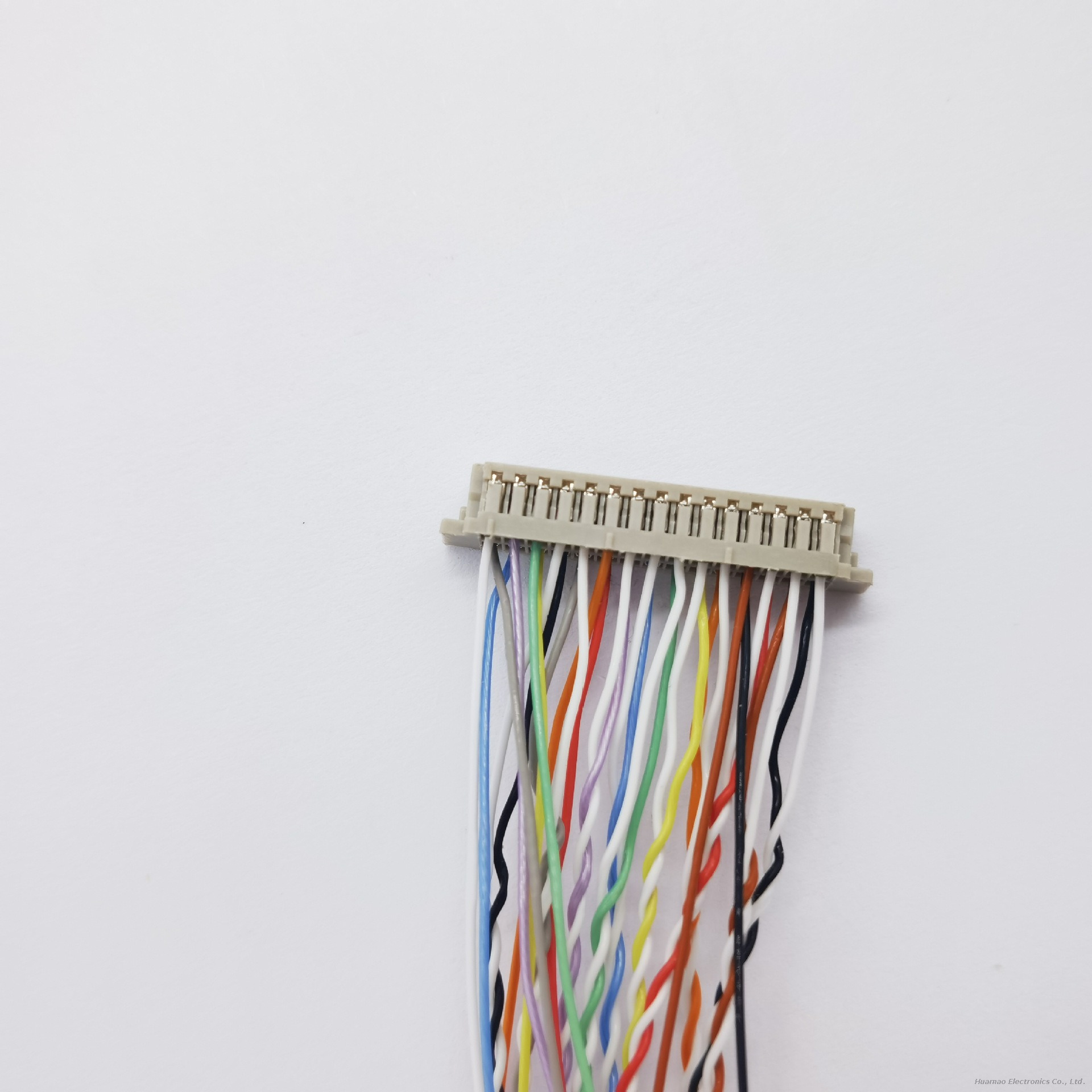

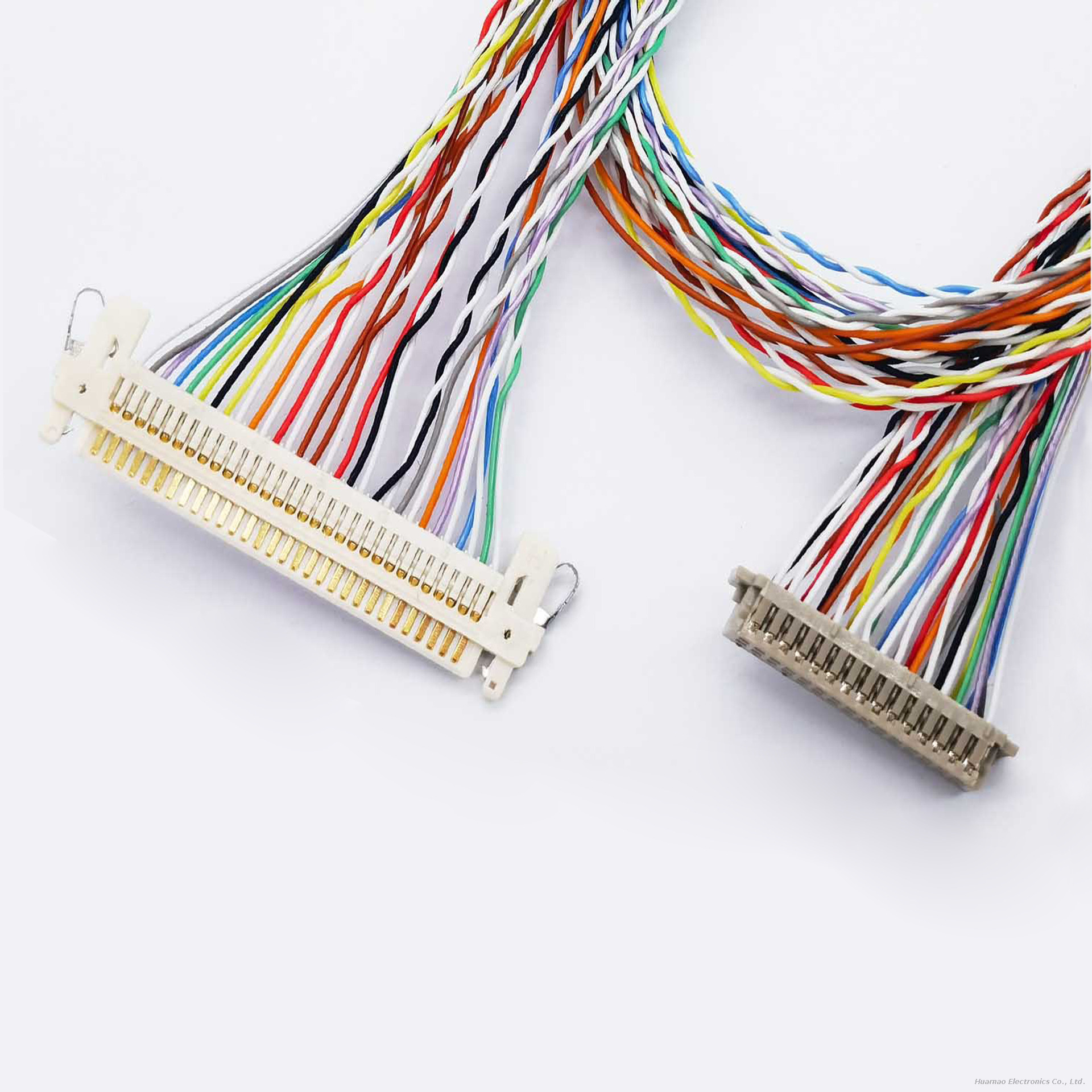

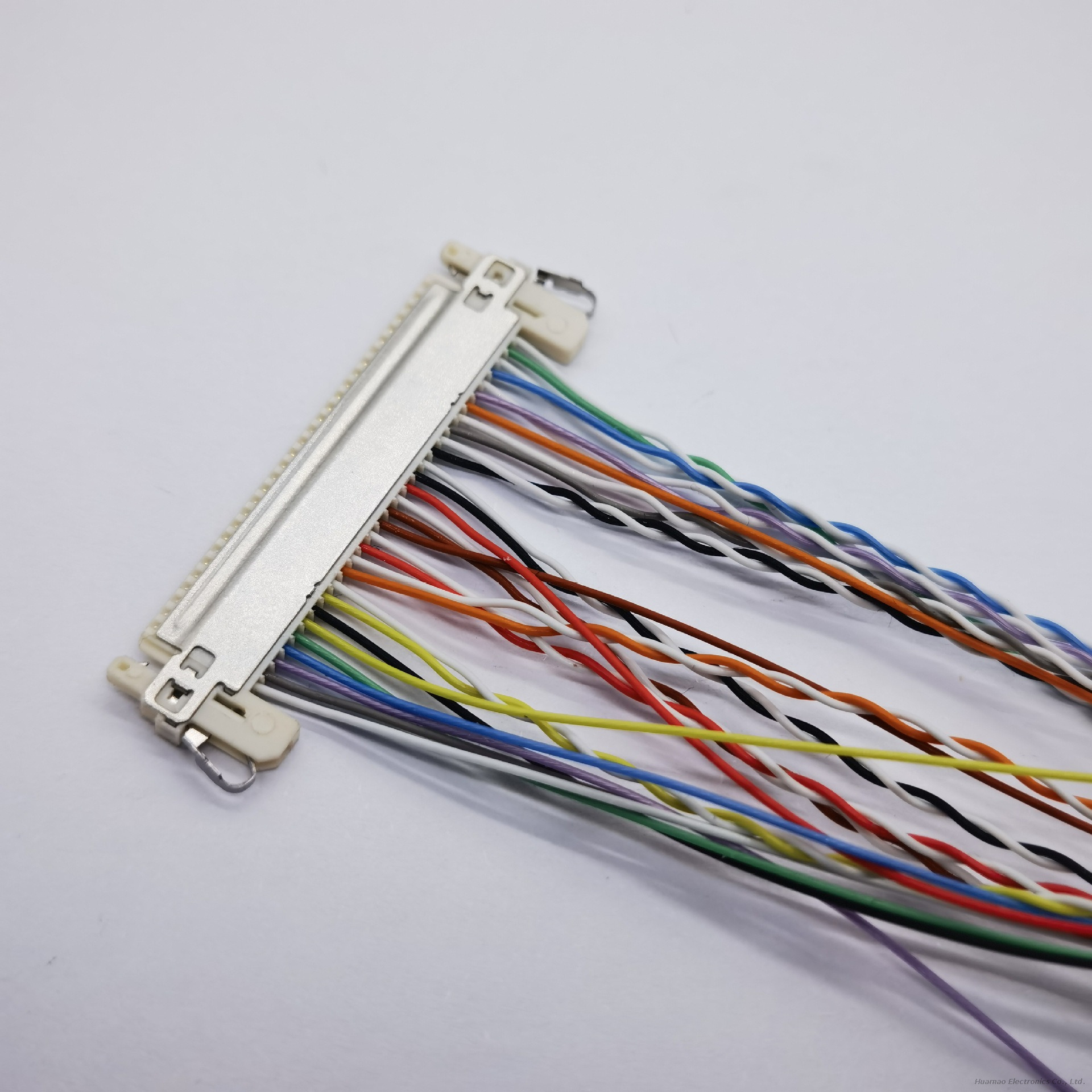

Custom DF13-2*15 Pin LVDS Cable Wire Connector Cable Assembly for Video

Custom DF13‑2*15 Pin LVDS cable assembly, dual‑row 30‑position connector wire harness dedicated for high‑definition video signal transmission. Fine‑pitch compact structure saves internal device space, twisted‑pair differential wiring effectively suppresses electromagnetic interference. Precise impedance control reduces high‑speed signal crosstalk and image distortion, flexible thin cable supports custom length and wire gauge. Widely applied for industrial display panels, medical monitors, vehicle‑mounted screens, POS terminals and embedded equipment video interconnection.

Model:
DF13-2*15P
Brand:
huamao
Code:
DF13

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

1.25mm Terminal Wire Wire Harness Assembly Custom LVDS Cable Assembly 31 Pin LVDS Cable 40 Pin Lvds Cable 51 Pin Lvds Cable Factory customized screen cable

Product Description

DF13 series is a compact wire‑to‑board connector widely used in display industry. DF13‑2*15 means two rows, 15 pins per row, total 30‑pin contact points. The harness can be configured as DF13‑to‑DF13 double‑ended, or DF13 to other replacement connector according to customer drawing/specification.

Adopt high‑flex LVDS twisted‑pair wire; optional overall aluminum‑mylar shielding layer to suppress EMI electromagnetic interference, reduce screen flicker, snow‑point and signal loss. Customizable cable length, wire gauge, shielding structure, strain relief and harness fixing accessories. Widely applied in industrial human‑machine interface HMI, medical display, advertising player screen, embedded device display module. All production complies with RoHS‑2.0 environmental requirements.

Specifications

Connector	Hirose DF13 series
Supported Wire	28‑32 AWG LVDS twisted‑pair signal wire
Rated Current	0.5A per signal pin; max 2A for power pins
Rated Voltage	AC 125V
Operating Temperature	‑40℃ ~ +85℃
Customizable Item	Cable length, wiring map, shielding

Advantages

Compact 1.25mm DF13 Small‑size Layout
Double‑row 2×15‑pin high‑density design, save internal space of thin embedded devices, fit compact LCD module installation space constraints.
Custom Wiring Diagram Strictly Follow Customer Pin‑out
Produce strictly per customer pin assignment drawing; adjust twisted‑pair grouping, power‑ground allocation to match main board and screen specification, avoid display abnormal picture.
Optional Full Shielding Effectively Suppress EMI Interference
Overall foil shielding structure greatly reduces electromagnetic noise interference, effectively solve screen flicker, color distortion, snowflake problems caused by nearby power supply or motor interference.
High‑quality Crimp Assembly Anti‑Drop‑out Terminals
DF13 housing built‑in terminal locking tang, after professional crimp‑insertion process, terminals resist retreat under equipment vibration, guarantee stable long‑time video transmission.
Rich Customization Capability
Support arbitrary length, single‑end / double‑end connectors, high‑flex wire, marking labels, auxiliary fixing accessories; can realize DF13 transfer to other connector.
Strict Pre‑shipment Testing
Each batch undergo continuity, short‑circuit, insulation resistance testing; sampling verify LVDS signal integrity, reduce after‑sales failure risk for display finished products.

Application

Industrial HMI Human‑Machine Interface Equipment
Industrial touch screen DF13 LVDS internal signal cable, workshop control panel LCD display harness
Medical Display Devices
Patient monitoring instrument screen connection wire, medical diagnostic equipment LVDS video cable
Commercial Advertising & Digital Signage
Small‑size advertising player internal display harness, vending machine touch display DF13 cable assembly
Embedded & IOT Control Equipment
Industrial box computer built‑in LCD screen wire, automation equipment embedded display module
Automotive Auxiliary Display (indoor cabin non‑safety‑critical)
On‑board secondary display, instrument auxiliary screen internal LVDS signal harness

FAQ

**Q1: Must I provide pin‑out drawing for custom DF13‑2*15 LVDS cable?**

A: Yes. LVDS cables have strict differential pair pin definition. Different screen / motherboard manufacturers use different pin assignments. Please provide pin‑map or sample cable for copying to avoid wrong picture or no display.

Q2: Do I need shielding for DF13 LVDS cable?

A: If the cable runs close to power lines, motor or switching power supply circuit, shielding is strongly recommended. For completely closed equipment internal short‑distance wiring, unshielded version can be selected to reduce cost.

**Q3: What maximum length can DF13‑2*15 LVDS cable make?**

A: Normally stable within 1 meter. Longer length will require higher‑performance twisted‑pair wire and good shielding; over 1.5m will risk signal attenuation and display abnormality, need to evaluate project feasibility in advance.
