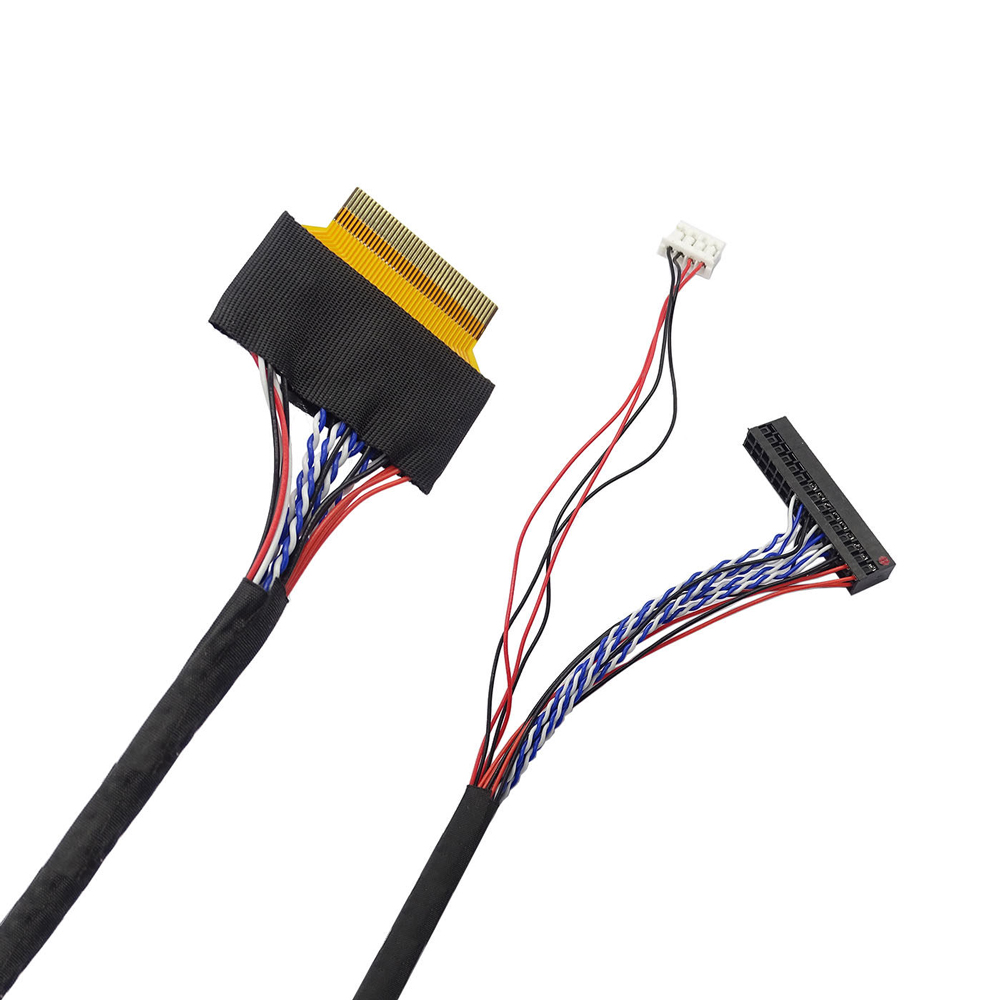

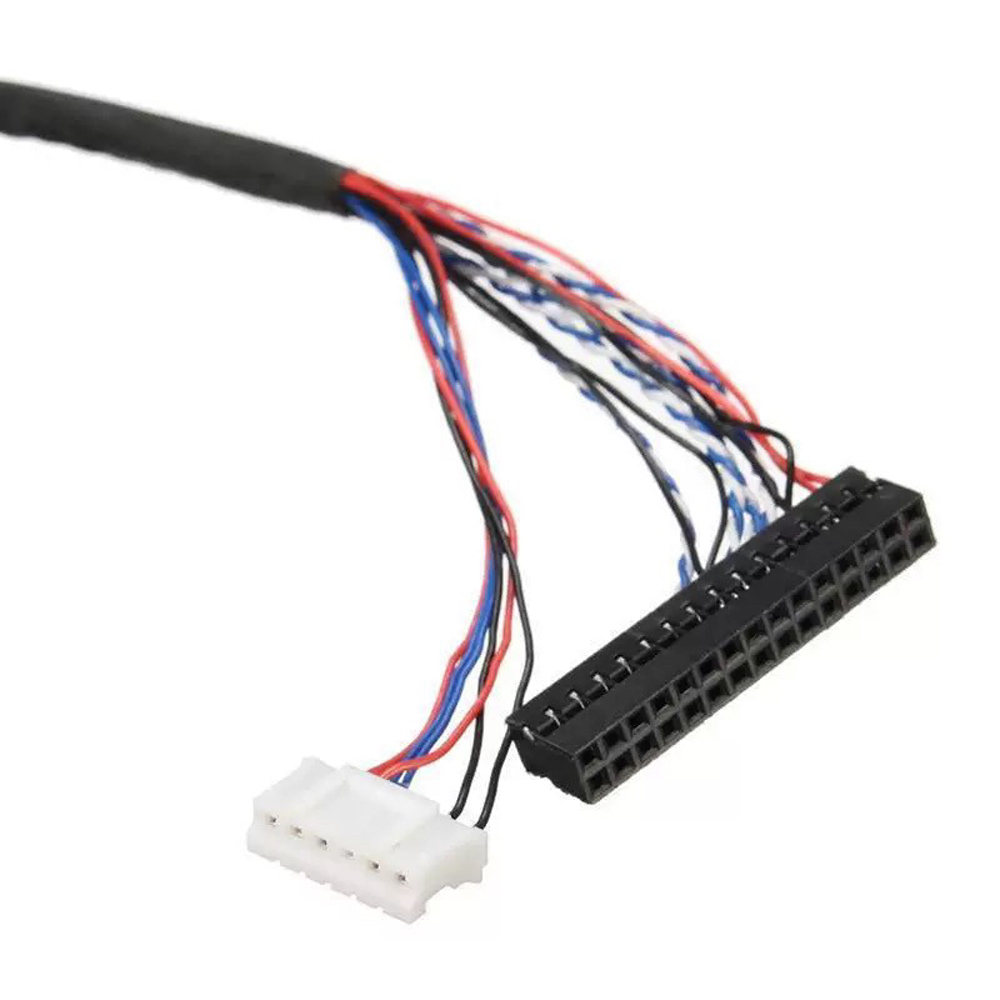

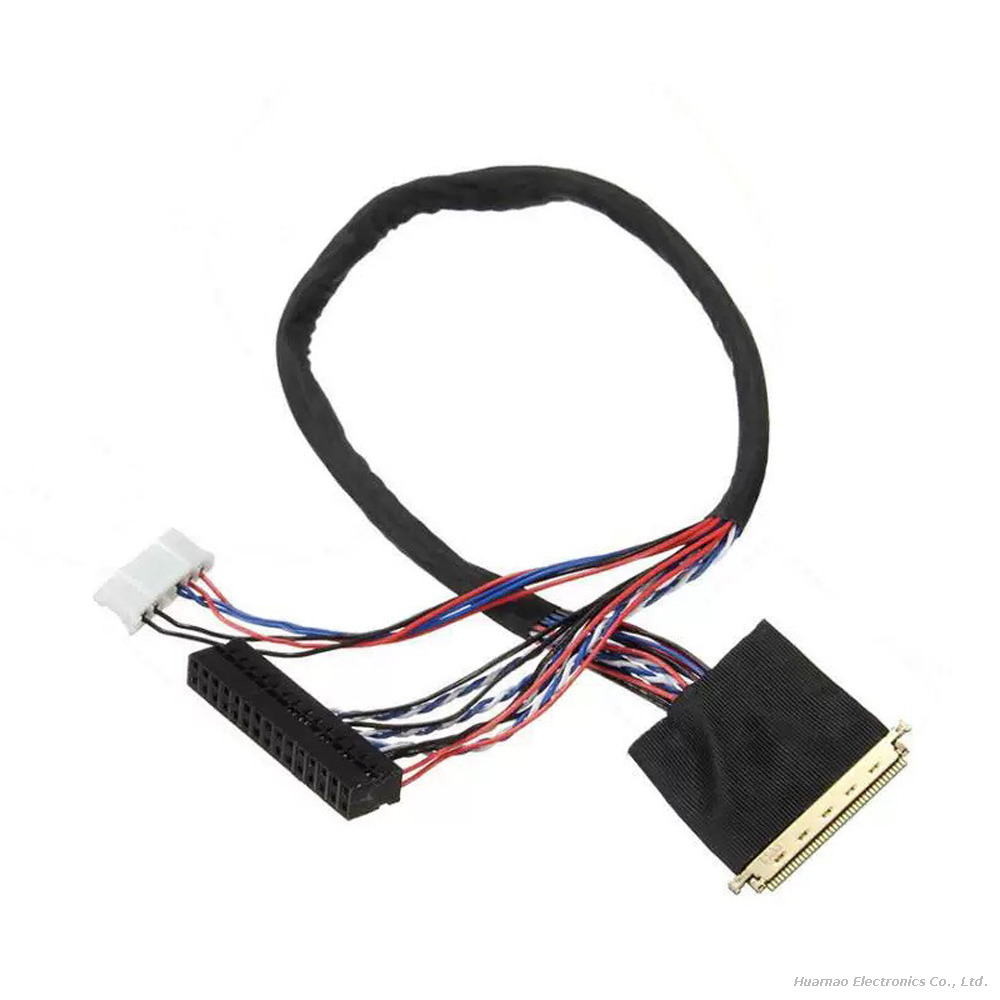

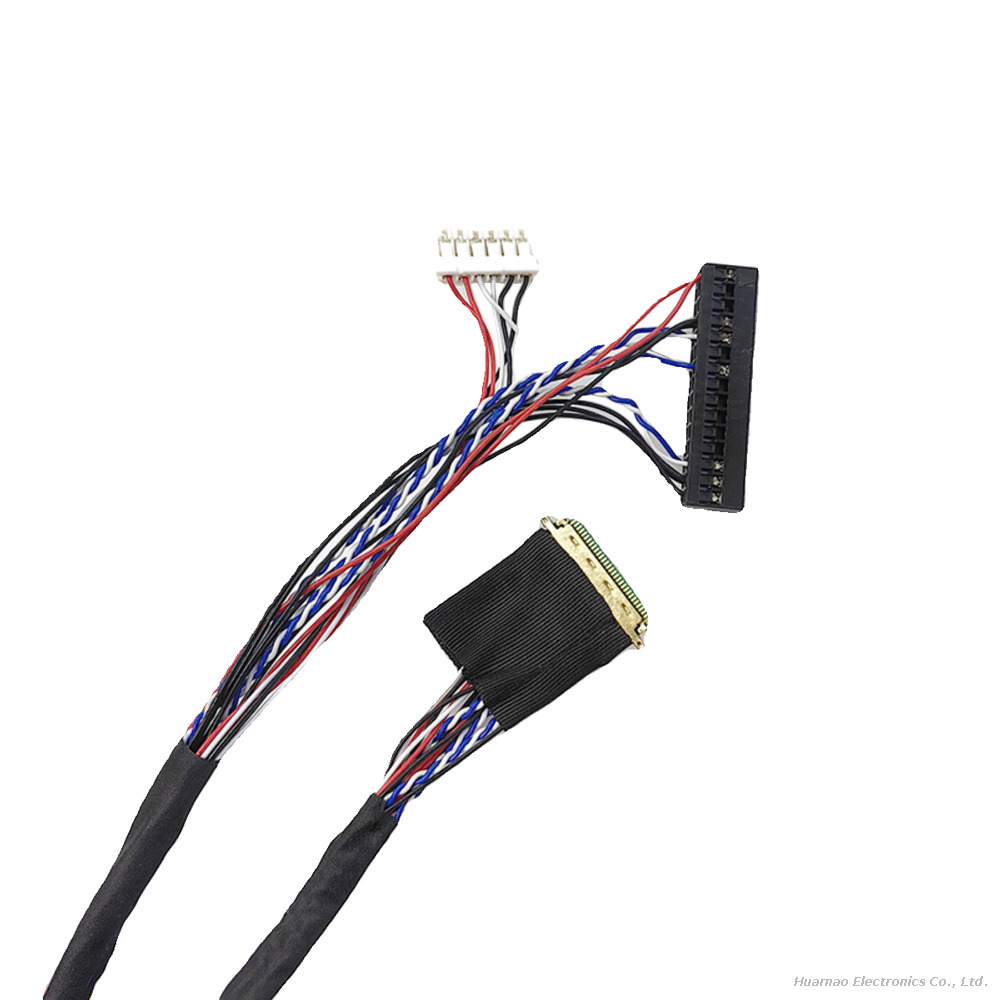

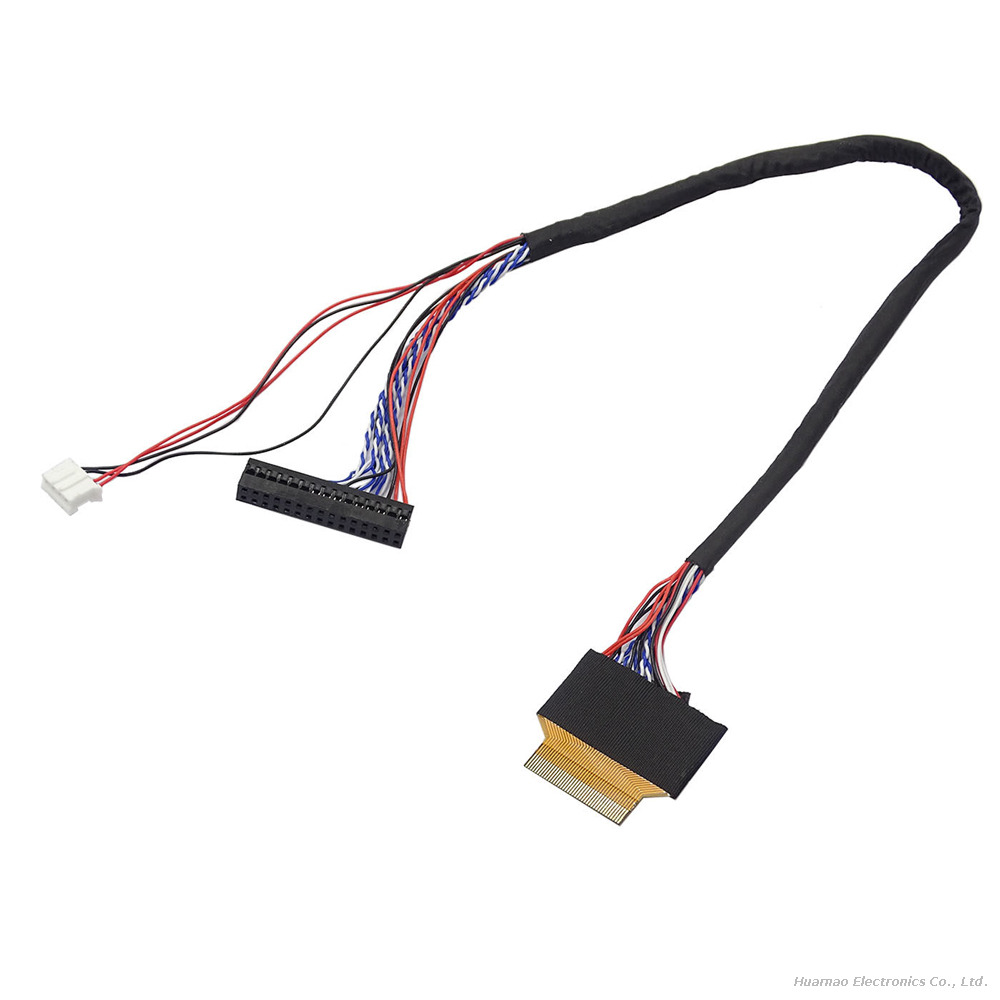

This 40-pin LVDS (Low-Voltage Differential Signaling) cable is a high-performance micro-coaxial cable assembly designed to connect LED/LCD display panels to mainboards or timing controllers. Adopting 0.5mm ultra-fine pitch connectors, it supports stable high-speed video signal transmission for HD to FHD resolutions, and is specially built for slim display devices. With precise impedance matching and strong EMI shielding, it ensures clear imaging with barely any signal interference.
Key Features & Advantages
Compact Micro-Coaxial Design0.5mm high-density pitch and micro-coaxial structure save internal space, suitable for ultra-thin display devices.
Stable Signal IntegrityOptimized 100Ω ±10% impedance and differential pair layout reduce crosstalk and signal loss, delivering flicker-free video output.
Secure Anti-Drop ConnectionBuilt-in locking tab provides firm connection, preventing disconnection caused by vibration or movement.
Anti-Misinsertion ProtectionAsymmetric polarized design ensures correct plugging direction, protecting the cable and display panel from damage.
Flexible & Long-LastingUltra-thin and flexible cable fits narrow routing spaces, and stands repeated bending without signal decline.
Strong Anti-InterferenceFull shielding structure effectively blocks electromagnetic interference, keeping signal stable in complex electronic environments.
Typical Applications
Laptop and notebook LED/LCD screens (10.1" to 17.3")
All-in-One PC display panels
Industrial control monitors and embedded display systems
Medical imaging display devices
Portable gaming consoles with high-resolution screens
Automotive infotainment display units
Tablet and convertible device displays
Quality Assurance & Customization
100% electrical performance testing including continuity, insulation resistance and impedance matching
Automated precision assembly ensures stable connection quality
Customizable cable length available
Optional strain relief boots for enhanced connector durability
Configurable for single-channel or dual-channel signal modes
Eco-friendly materials compliant with RoHS and lead-free standards
