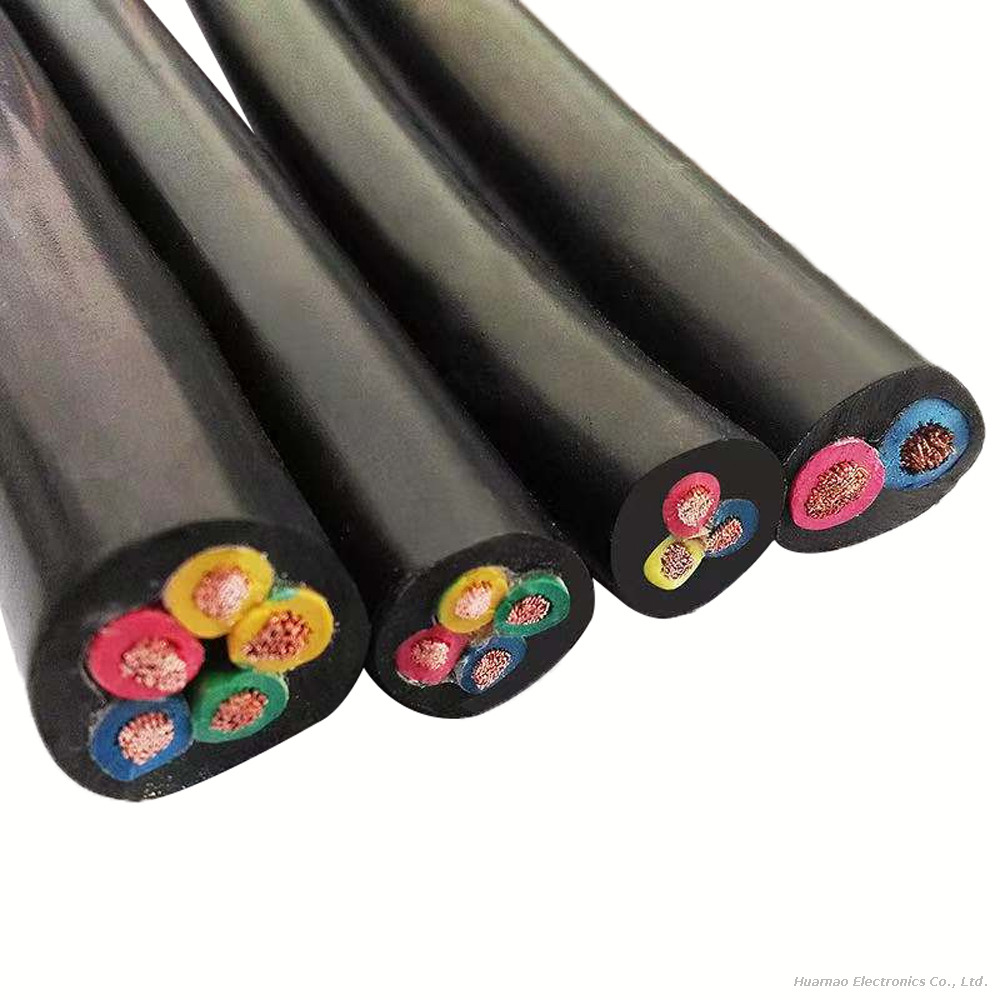

PVC Insulated Wire RVV5 1/2/3/4/5/6 Cores Electrical Wire And Cable

RVV5 flexible PVC insulated multi‑core electrical cable, available in 1/2/3/4/5/6‑core specifications for low‑voltage power and signal transmission. Soft stranded copper conductors deliver excellent bending performance, durable PVC insulation and outer sheath provide abrasion‑resistance, anti‑aging and insulation protection. Flexible round cable structure suits indoor wiring installation, widely used for household appliances, distribution cabinets, surveillance cameras, automation equipment, lighting systems and internal power connection of mechanical devices.

Model:
RVV5
Brand:
huamao
Code:
RVV5

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Copper Cable electrical cable Flexible Cable armoured cable power wire Factory customized RVV5 cable For battery cable electrical wire for house cooper wire

Product Description

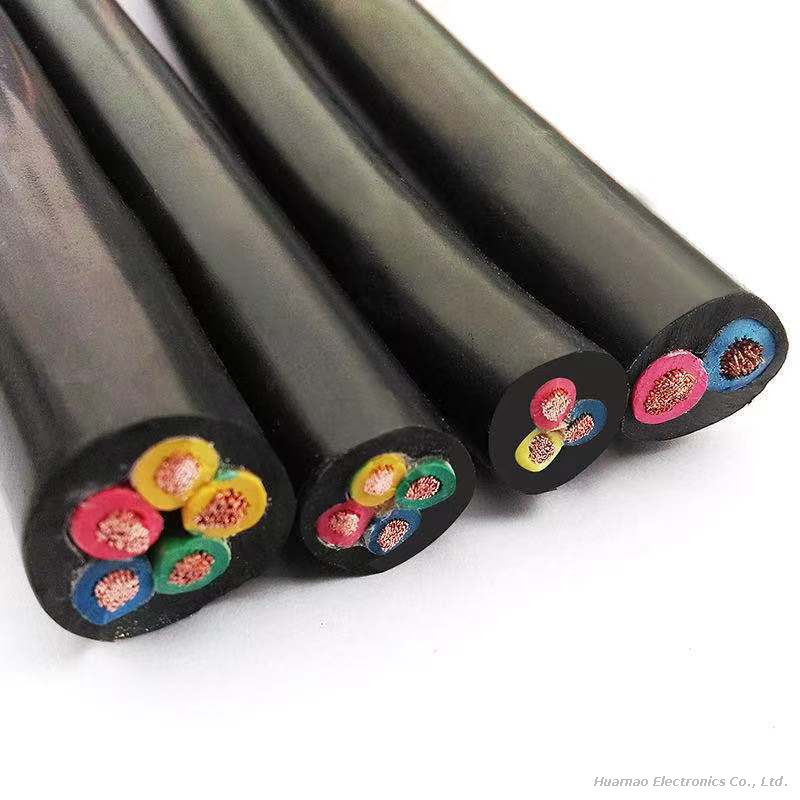

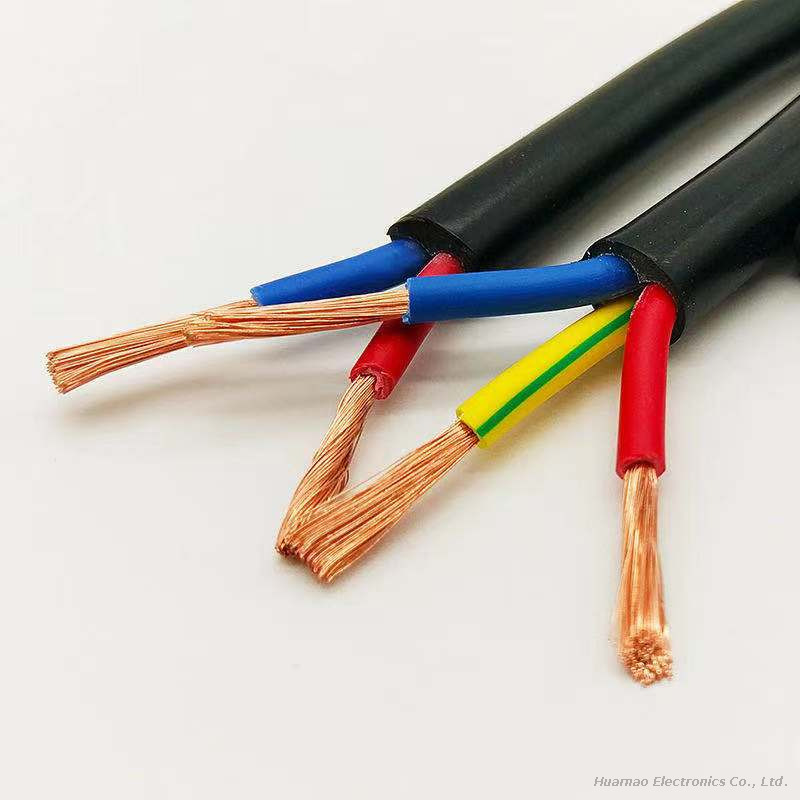

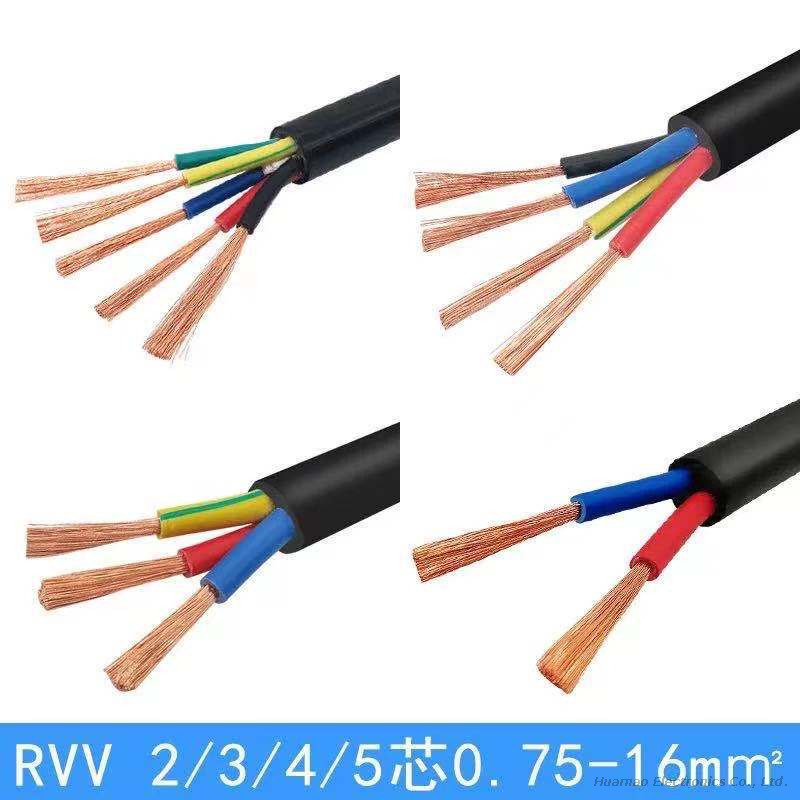

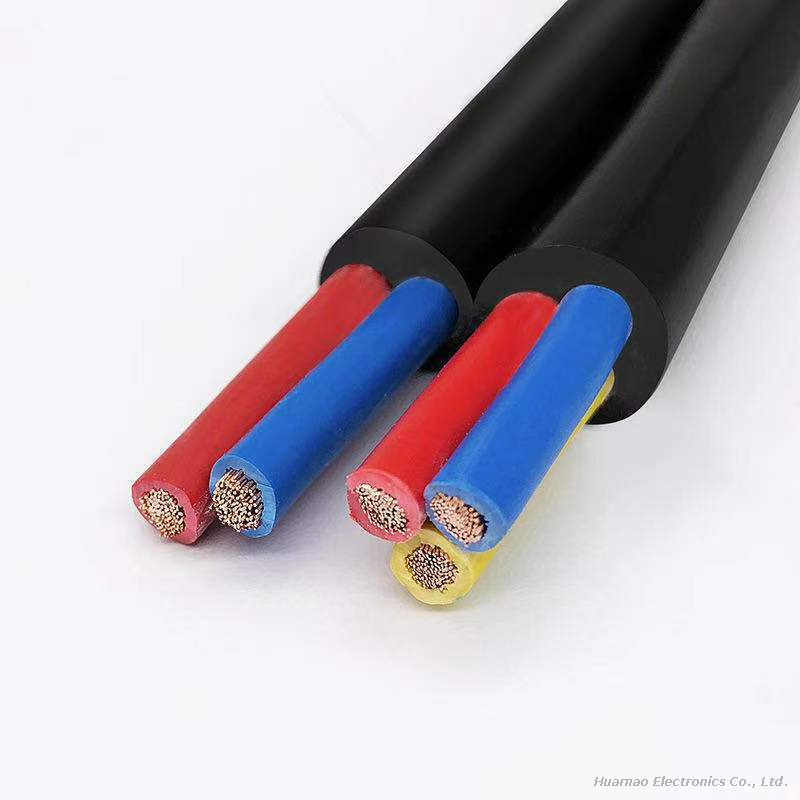

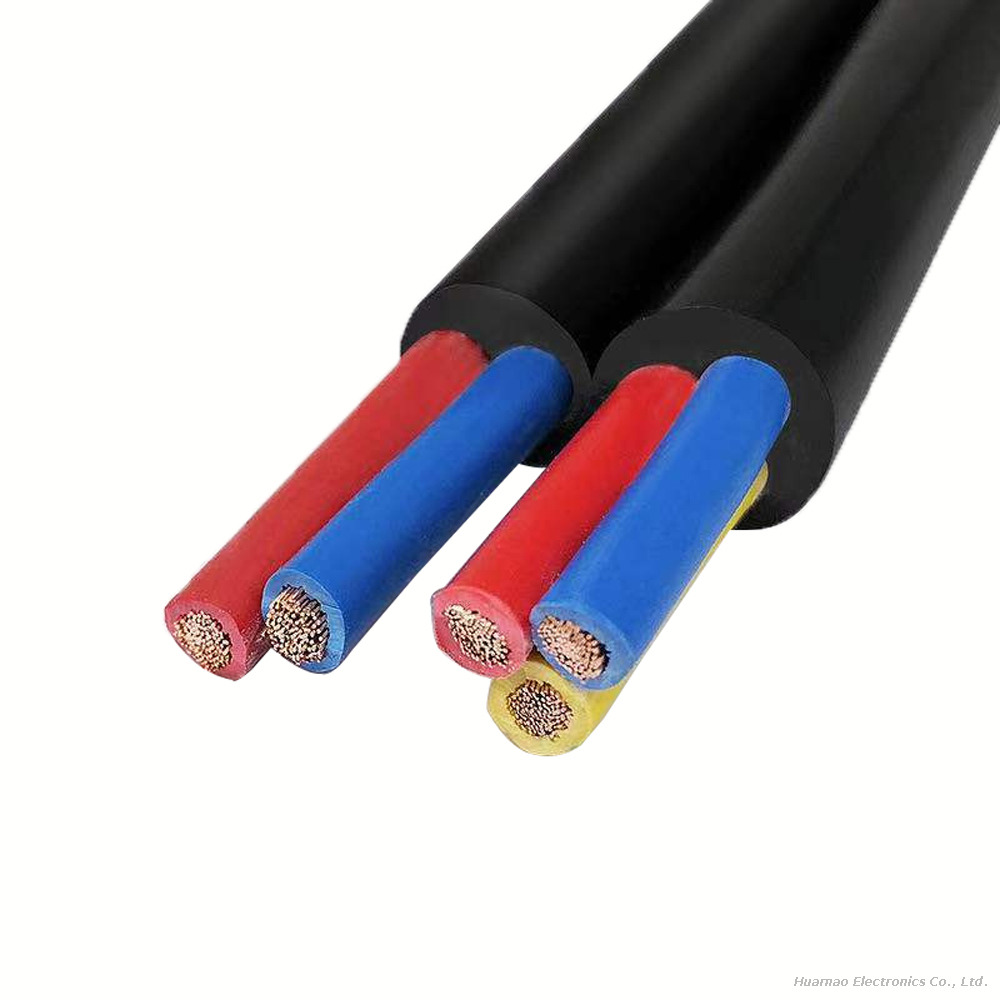

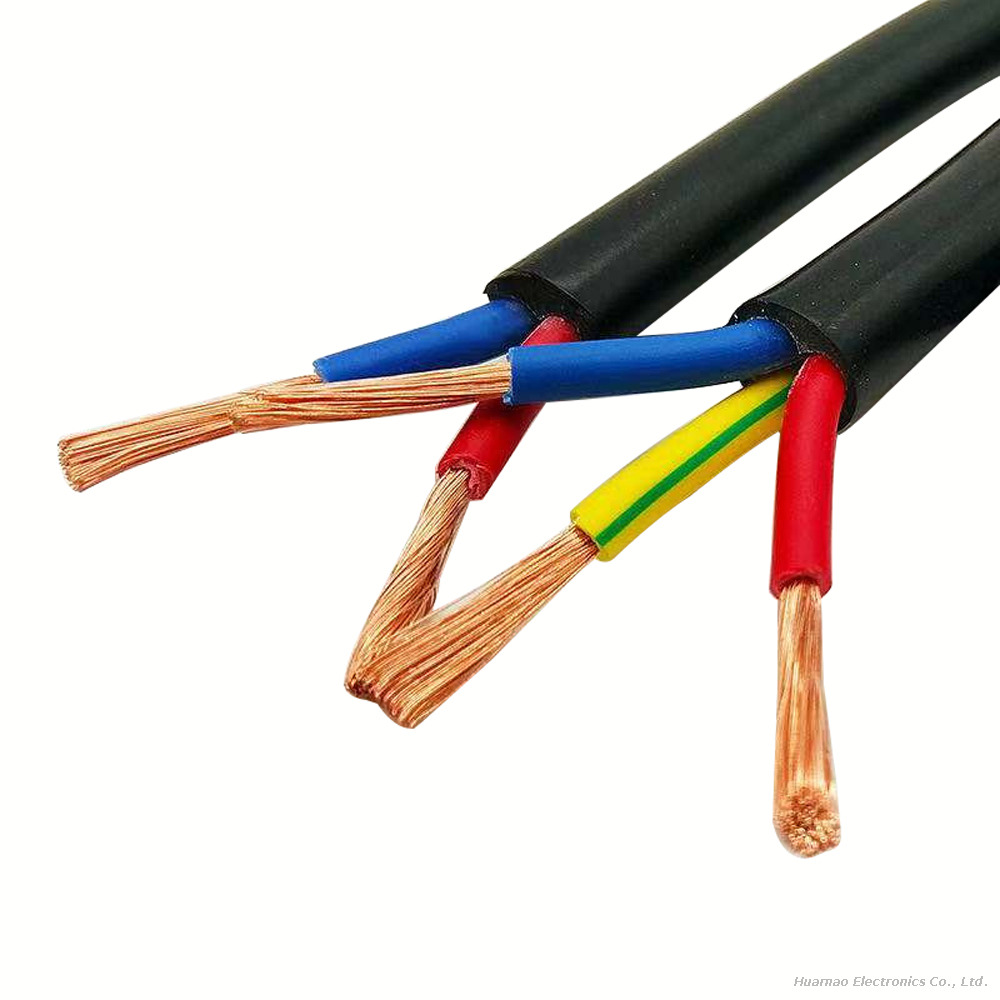

RVV cable, also known as sheathed flexible wire, is round multi‑core flexible electrical cable. It consists of multiple strands of fine copper conductors, PVC core‑insulation for each core, and overall PVC outer protective sheath. Available in 1‑core, 2‑core, 3‑core, 4‑core, 5‑core, 6‑core versions, RVV5 stands for 5‑core specification.

Fine‑stranded copper gives good bending performance. PVC insulation and sheath provide basic oil‑resistance, anti‑aging and mechanical protection. Mainly used for indoor low‑voltage power supply and control signal transmission, suitable for fixed installation or mobile wiring of electrical equipment. Widely applied in distribution cabinets, automation equipment, household appliances, security monitoring, lighting engineering. Products comply with national standards, RoHS‑2.0 environmental requirements.

Specifications

Cable Type	RVV PVC insulated & sheathed flexible multi‑core cable
Conductor	Class 5 multi‑strand flexible bare copper
Insulation	PVC
Rated Voltage	300 / 500 V
Operating temperature	‑20℃ ~ +70℃

Advantages

Excellent Flexibility
Multi‑strand fine copper conductor, easy bending, suitable for equipment moving wiring, cabinet internal threading.
Integrated PVC Sheath Protection
Integral outer sheath resists light mechanical abrasion, dirt, and slight oil contamination, protects inner insulated cores.
Wide‑range core & size selection

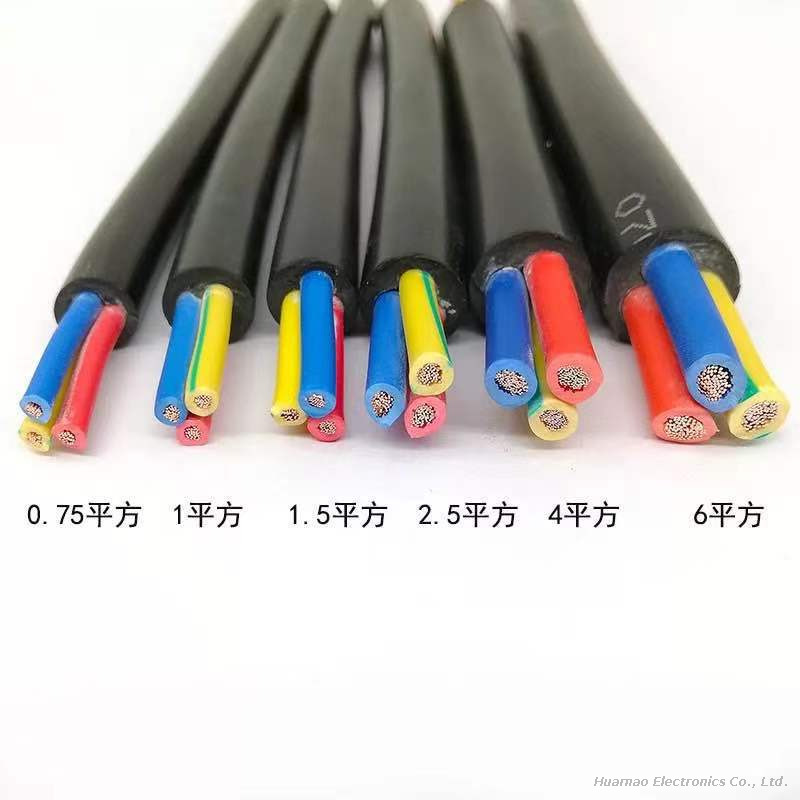

Complete core‑count from 1‑6 cores and multiple cross‑sections, covers power and low‑voltage control signal needs.
Clear core color identification
Standard color‑coded insulated cores, convenient for field wiring and maintenance, reduce wiring error risk.
Optional flame‑retardant grade ZR‑RVV
Flame‑retardant variant available for cabinet, public building projects to improve fire‑safety performance.
Cost‑effective indoor general‑purpose cable
Mature general‑purpose wire, stable quality, widely stocked for industrial and civil indoor applications.

Application

Industrial automation & control cabinet wiring
PLC cabinet internal power and signal connection, control panel equipment interconnection wiring
Security & monitoring system
Surveillance camera power supply cable, alarm device connection wire
Household & commercial electrical equipment
Lighting system wiring, small home appliance internal power lead, office equipment connection
Machinery equipment internal wiring
Small‑size machine tool, conveyor equipment low‑voltage power and control flexible wiring
Building indoor distribution engineering
Indoor fixed laying for low‑voltage auxiliary circuits (Note: RVV is not for direct buried outdoor use without additional protection)

FAQ

Q1: Difference between RVV and RVVP?

A: RVV: ordinary multi‑core flexible cable without shielding. RVVP: RVV plus overall copper braid shielding, used where anti‑EMI interference is needed for weak‑signal circuits.

Q2: Can RVV cable be buried directly underground?

A: Not recommended. RVV outer sheath is ordinary PVC, poor resistance to soil corrosion and UV. If buried, must run inside protective conduit.

Q3: What is the difference between RVV and BV cable?

A: BV is single‑core solid hard copper wire for fixed laying. RVV is multi‑core flexible stranded‑copper sheathed cable for flexible or mobile wiring scenarios.

Q4: What is ZR‑RVV?

A: ZR means flame‑retardant. ZR‑RVV is flame‑retardant RVV version, slows flame spread, widely used in public building projects.

Q5: Can RVV transmit both power and signal together?

A: It can carry low‑voltage power and common switch control signals. Not suitable for high‑speed differential signals (LVDS, USB etc.) without shielding; for high‑speed signal choose RVVP shielded cable.
