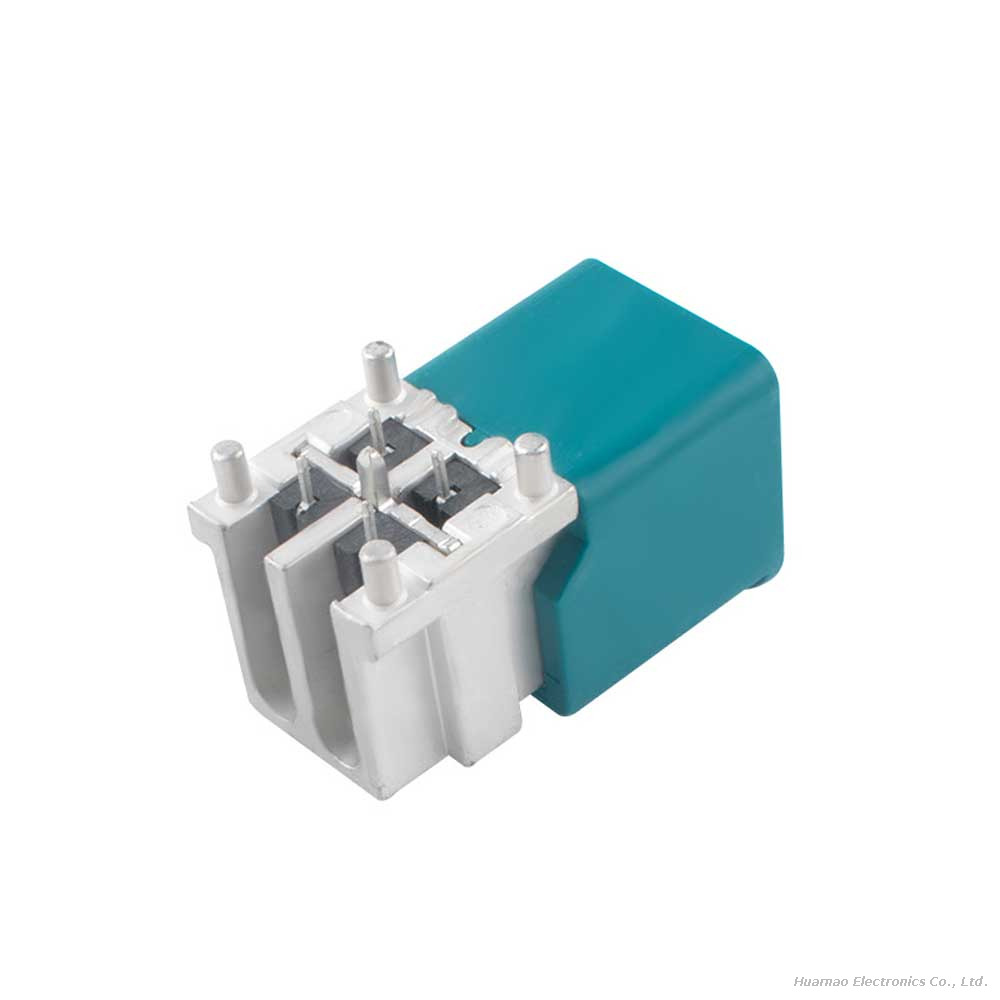

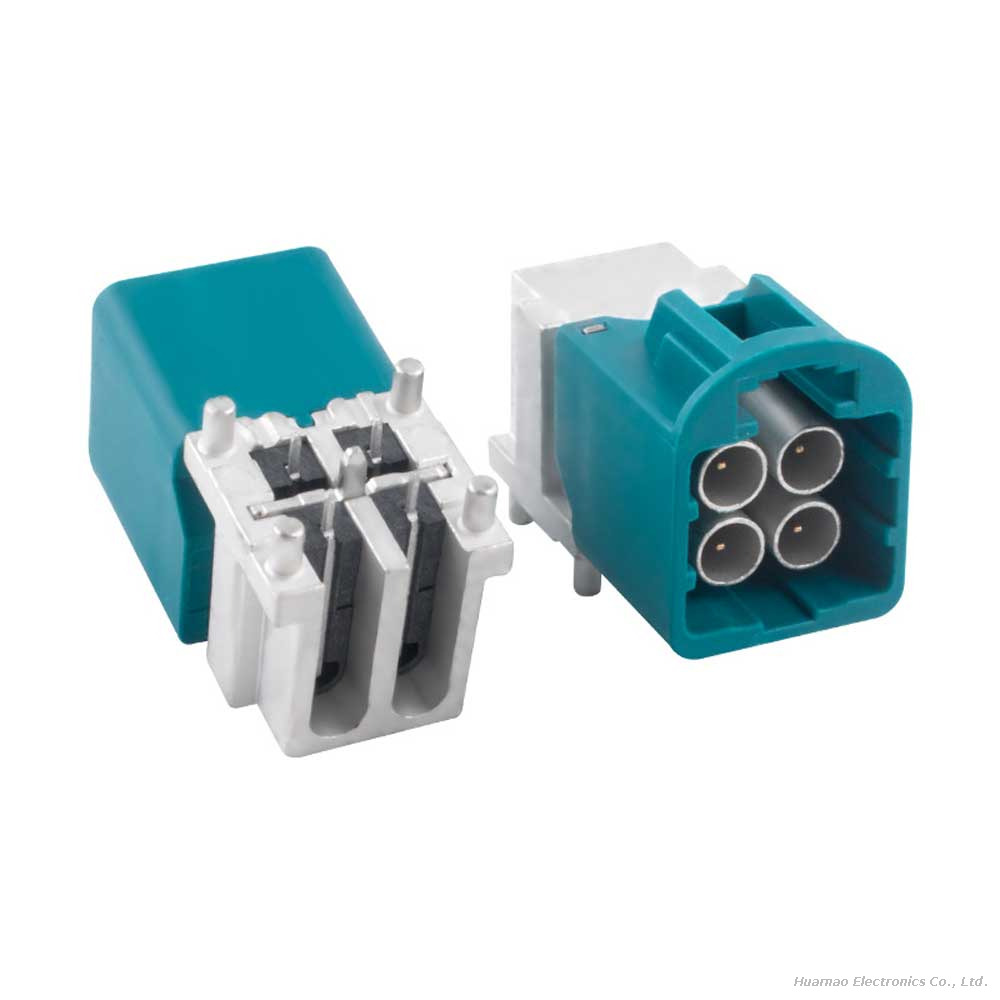

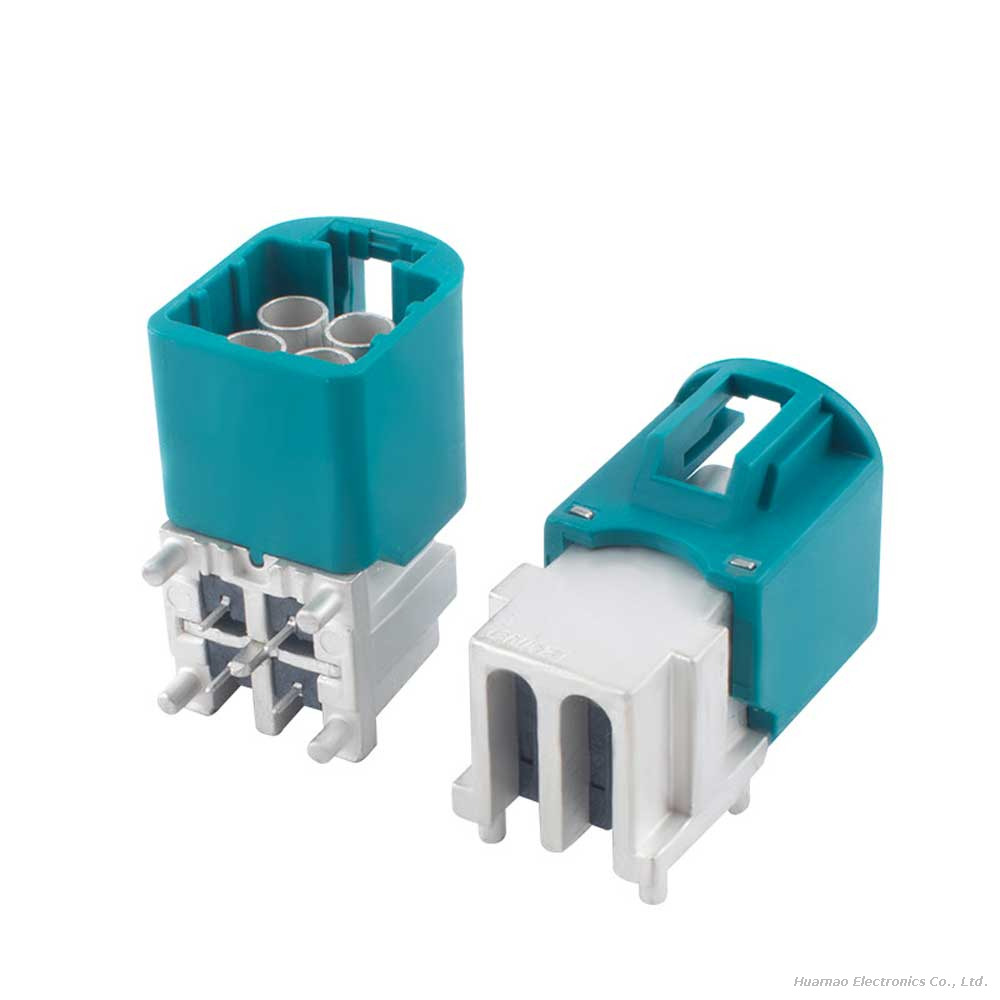

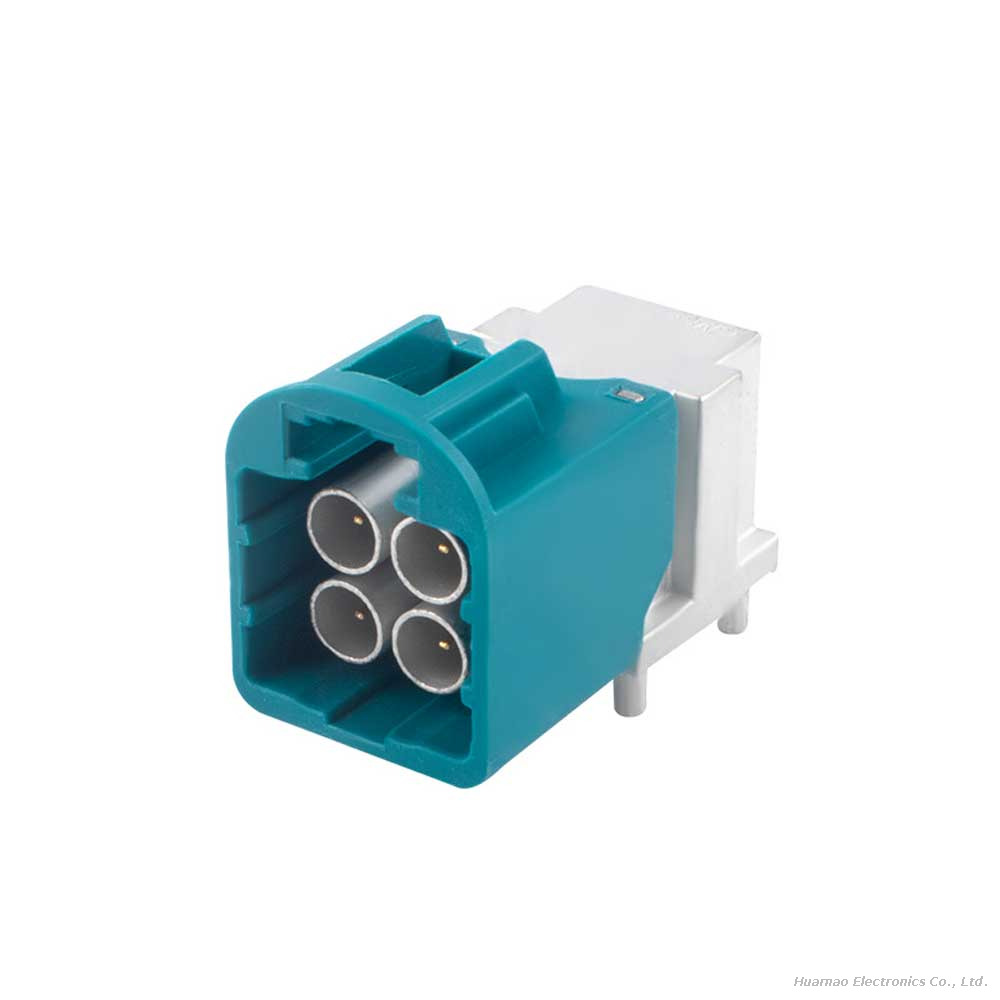

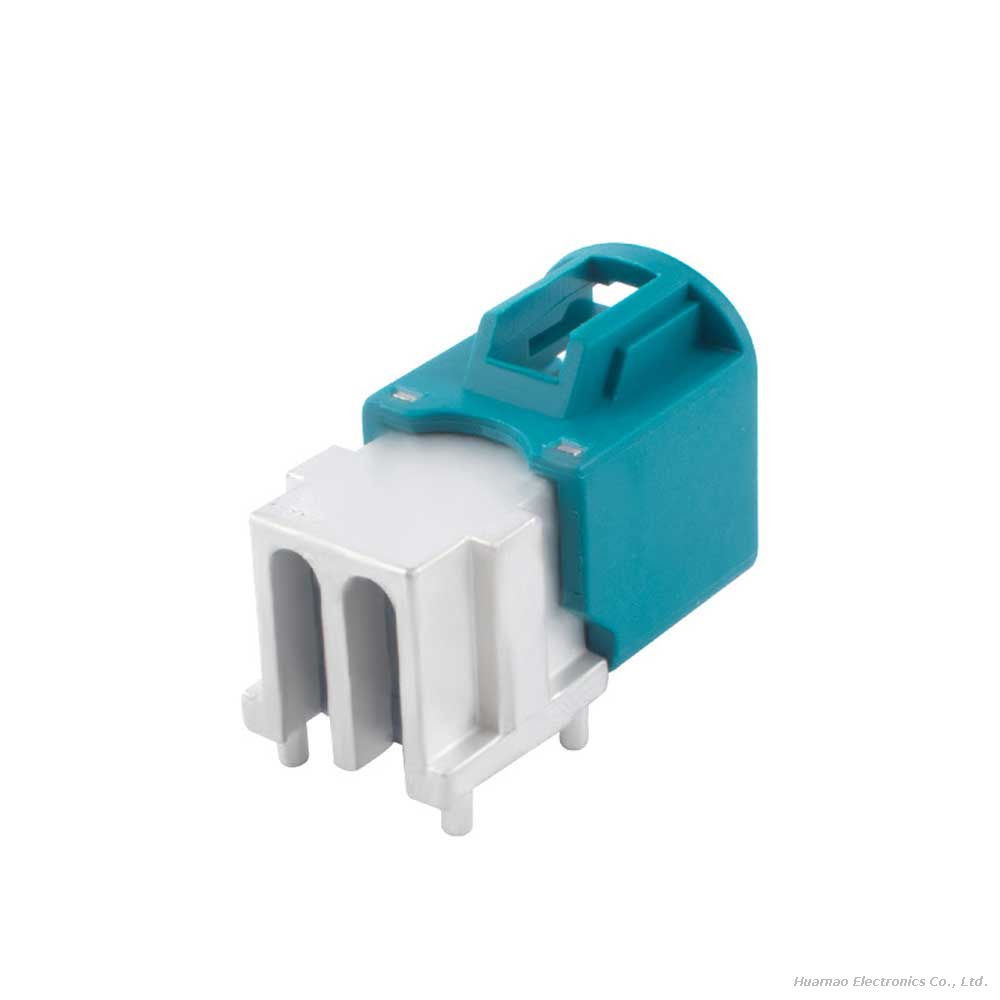

HFM MINI-FAKRA 4-in-1 Right Angle Male Horizontal PCB Mount Connector for Vehicles

HFM MINI-FAKRA 4-in-1 Right Angle Male Horizontal PCB Mount Connector for Vehicles

Model:MINI FAKRA-J 4 in 1 HFM

Type:Right Angle Male,Horizontal PCB Mount

Ports:4 in 1

Standard:MINI-FAKRA

Operating Temperature:-40℃ to +105℃

Mount Type:Through-Hole or SMT PCB Mount(Customizable)

Model:
MINI-FAKRA-J
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

MINI-FAKRA-J Connector HFM Automotive Connector 4-in-1 PCB Mount Connector Right Angle MINI-FAKRA Automotive High-Frequency Connector HFM 4-Port Horizontal PCB Connector 4-in-1 Multi-Port Design

Product Description

This MINI-FAKRA-J 4-in-1 HFM (High-Frequency Miniature) right-angle male connector is a high-performance automotive-grade PCB mount solution, designed for multi-signal integration in modern vehicles. Featuring a compact 4-in-1 port configuration, 90° right-angle (horizontal) form factor, and compliance with MINI-FAKRA/HFM standards, it enables seamless connection for high-speed Ethernet, RF, LVDS, and telematics signals in space-constrained automotive PCB layouts. The teal/turquoise housing ensures industry-standard color coding, while robust construction delivers reliable performance in harsh vehicle environments.

Key Features

✅ 4-in-1 Multi-Port Integration

Consolidates four independent signal paths into a single connector, reducing PCB footprint and wiring complexity. Ideal for multi-channel systems like in-car infotainment, camera arrays, and antenna distribution, eliminating the need for multiple individual connectors.

✅ MINI-FAKRA-J / HFM Standard Compliance

Fully compliant with global MINI-FAKRA/HFM automotive standards, ensuring perfect interoperability with matching MINI-FAKRA female connectors and harnesses. The standardized interface guarantees secure, error-free mating for automotive OEM/ODM applications.

✅ Right Angle (90°) Horizontal PCB Mount

The low-profile horizontal form factor is optimized for compact automotive PCB installations, fitting tight enclosures, dashboard control units, and roof-mounted modules. The through-hole/SMT PCB mount provides a stable, vibration-resistant connection.

✅ Automotive-Grade Durability

Constructed with high-temperature resistant materials and a rugged housing, the connector meets AEC-Q200 automotive reliability standards. It withstands extreme temperatures (-40°C ~ +105°C), mechanical vibration, and moisture, ensuring long-term performance in under-hood and cabin environments.

✅ High-Frequency & Multi-Signal Support

Engineered for high-speed automotive communication, including 100BASE-T1/1000BASE-T1 Ethernet, RF (GPS/4G/5G), LVDS video, and V2X signals. Optimized impedance matching ensures minimal signal loss and reliable data transmission at frequencies up to 6 GHz.

✅ Secure Mechanical Locking

The MINI-FAKRA-style positive-locking mechanism provides a secure, vibration-proof connection, preventing accidental disconnection during vehicle operation.

Common Applications

Automotive Infotainment Systems: Head units, rear-seat entertainment displays, and audio control modules.
High-Speed Vehicle Ethernet: 100BASE-T1/1000BASE-T1 networks, vehicle-to-everything (V2X) communication.
ADAS & Driver Assistance: Camera, radar, and LiDAR sensor data transmission for advanced safety systems.
Telematics & GPS: Telematics control units (TCUs), GPS/Beidou antenna signal distribution.
Compact Automotive Control Units: PCB-mounted modules for body control, lighting, and powertrain systems.
Automotive RF Communication: 4G/5G telematics, WiFi/Bluetooth, and satellite radio antenna connections.

Why Choose This MINI-FAKRA-J Connector?

Space-Saving 4-in-1 Design: Reduces PCB real estate by integrating four signals into one connector, ideal for modern compact automotive electronics.
Low-Profile Horizontal Form Factor: Fits tight enclosures and compact PCB layouts, enabling flexible installation in challenging vehicle spaces.
Automotive-Grade Reliability: Meets strict AEC-Q200 standards, withstanding vibration, temperature extremes, and moisture for long-term vehicle use.
Multi-Signal Compatibility: Supports RF, Ethernet, LVDS, and high-speed data, eliminating the need for multiple connector types in a single system.
Standardized MINI-FAKRA Interface: Ensures interoperability with industry-standard MINI-FAKRA cables and harnesses, simplifying integration with OEM automotive systems.

Customization Options

We offer flexible customization solutions to meet automotive project requirements:

Mount Types: Through-hole or SMT PCB mount variants for different assembly processes.
Color Coding: Custom housing colors for OEM-specific vehicle applications.
Pin Configurations: Custom 4-port configurations tailored to specific signal needs (e.g., Ethernet-only, RF-only).
Waterproof Versions: IP67-rated sealed housings for under-hood or exterior applications.
Bulk OEM/ODM: Private labeling, custom packaging, and technical support for large-scale automotive production.
