Auto Fuse Kit Automotive Plug-in Fuse 1-50A for Cigarette Lighter 4s Shop Electric Vehicle Motorcycle

Auto Fuse Kit Automotive Plug-in Fuse 1-50A for Cigarette Lighter 4s Shop Electric Vehicle Motorcycle

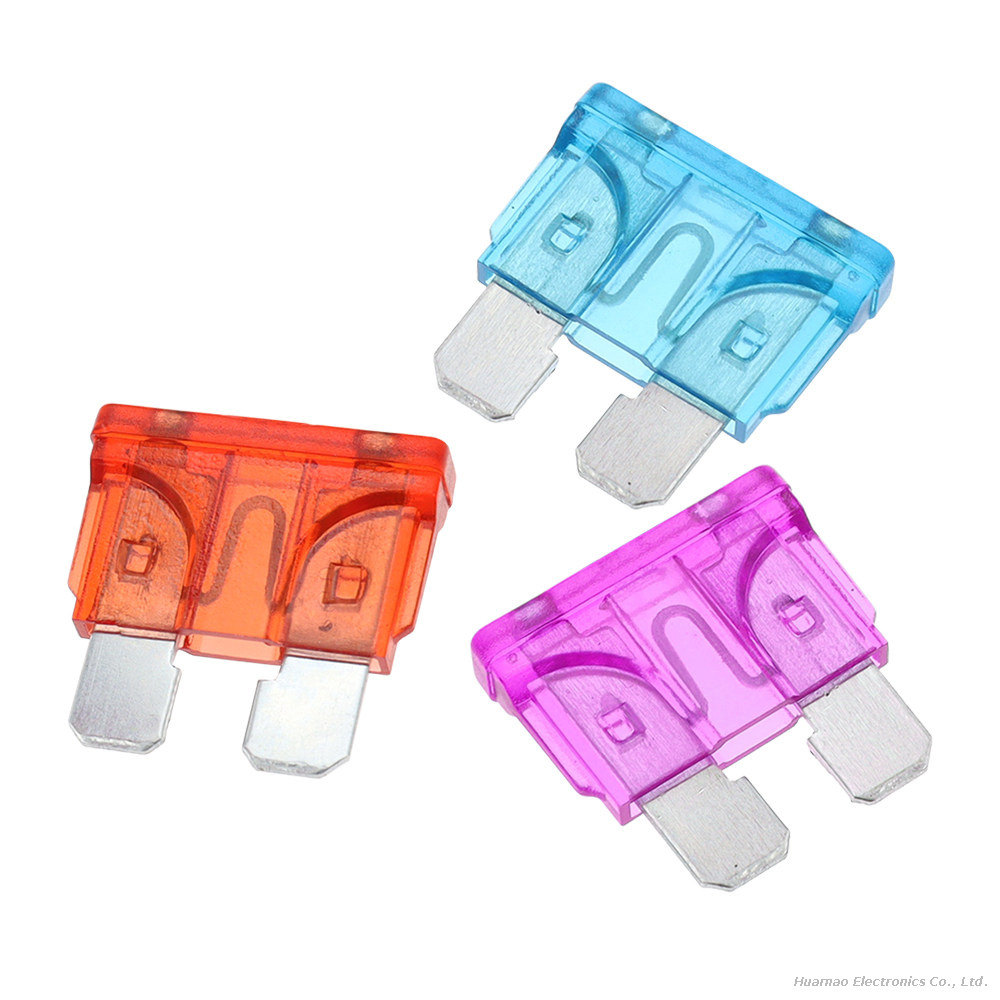

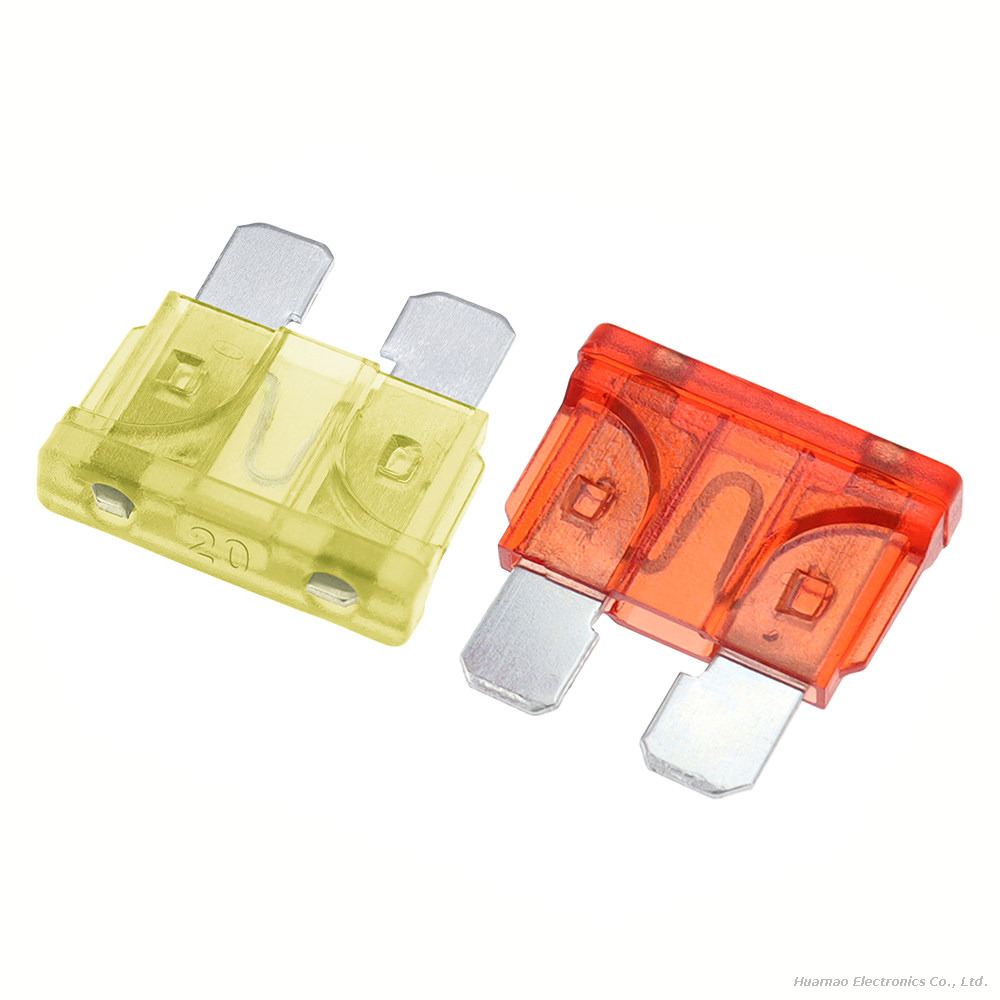

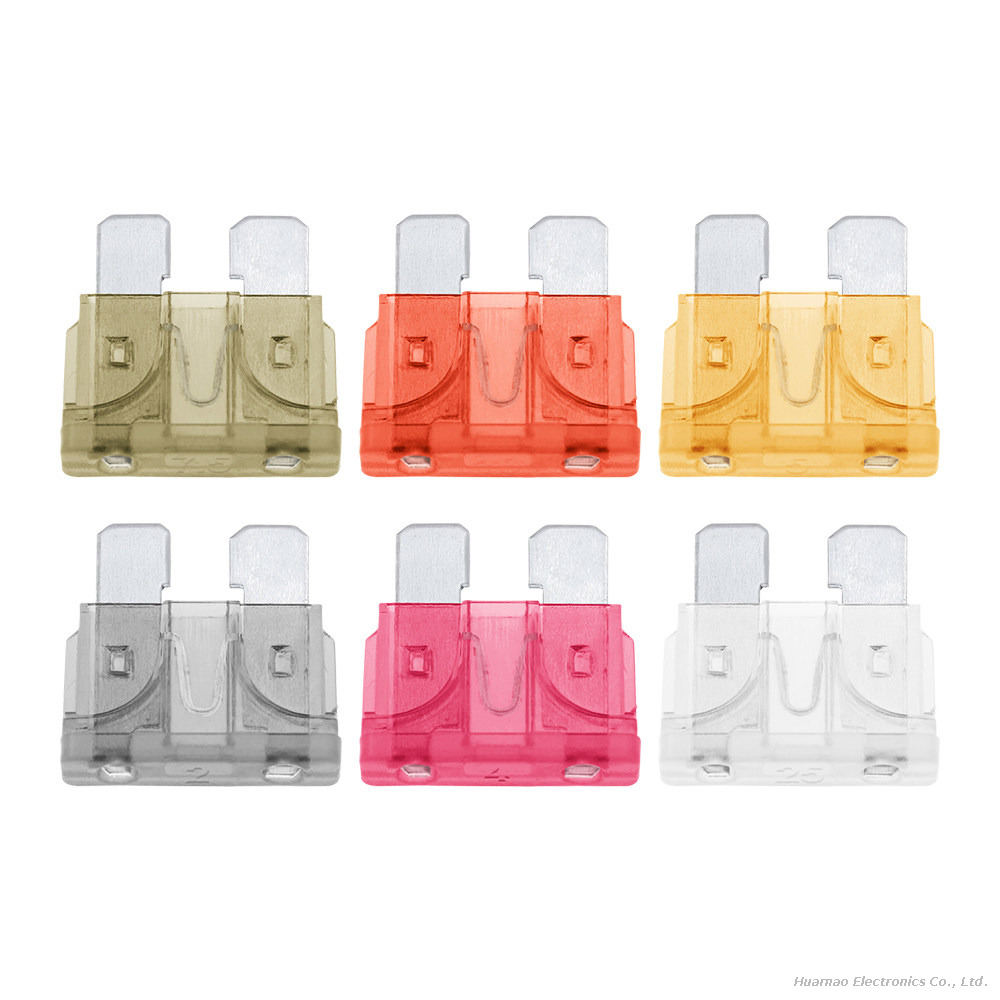

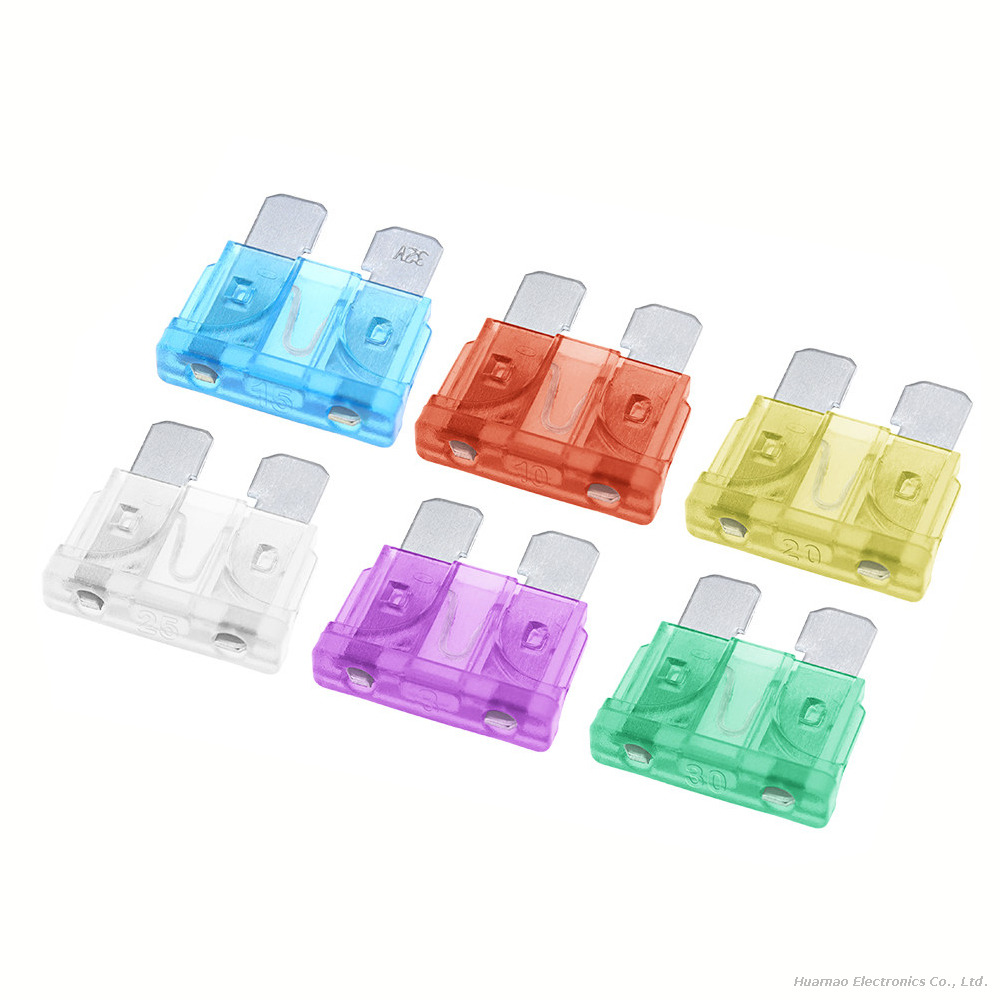

This is a standard medium-size automotive blade plug-in fuse, with transparent color-coded plastic housing and zinc alloy melt wire inside. Different transparent shell colors correspond to different rated current specifications (1A–50A). It serves as overcurrent short-circuit protection for vehicle electrical circuits, widely applied to car cigarette lighter, dashboard instruments, EV control circuits, motorcycle lighting & ignition systems, truck electrical modules and auto 4S maintenance repair kits. When circuit overload or short-circuit occurs, the internal alloy melt wire instantly fuses to cut off power, effectively protecting automotive ECU, wiring harness, lamps and electrical components from burnout damage. The transparent colored shell allows visual inspection of blown fuse status without disassembly. Standard blade pin size fits all mainstream automotive fuse holders, fully RoHS compliant, complete current range 1A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, sold separately or assembled into mixed current fuse kit boxes for auto repair shops.

Model:
Auto Fuse
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Auto Fuse Automotive Plug-in Fuse color coded transparent car fuse car circuit safety fuse

Product Description

Color-coded transparent shell design enables maintenance technicians to quickly distinguish current ratings and check blown fuses at a glance, greatly improving vehicle fault repair efficiency in 4S shops and repair garages. Standard medium blade universal size fits almost all fuel vehicles, new energy electric vehicles and two-wheeled motorcycles on the market, one product covers most vehicle maintenance replacement demands. Precision alloy melt wire features accurate overload fusing characteristics, effectively prevent expensive vehicle ECU, navigation, cigarette lighter and lamp circuit burnout caused by short-circuit or overload current. High-temperature resistant PC plastic shell adapts harsh engine compartment working environments of -40℃ ~ +125℃, no deformation or cracking after long-term engine heat radiation. Complete full current range from 1A to 50A covers weak signal instrument circuits and high-power electrical equipment (air conditioning, cooling fan, cigarette lighter) protection needs of all vehicle electrical systems.

Every automotive blade fuse passes strict factory safety testing before shipment, including overload fusing characteristic test, high-low temperature cycling aging test, insulation withstand voltage test and vibration fatigue screening. We supply single current loose fuses and mixed current assembly fuse kit boxes for auto parts wholesalers, 4S service stations, electric vehicle manufacturers and motorcycle accessory factories.

Specifications

Product Model	Medium standard size automotive blade plug-in fuse
Rated Current Range	1A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A
Rated Voltage	DC 32V standard automotive system voltage
Fuse Wire Material	Low melting point zinc alloy precision melt strip
Operating Temperature Range	-40℃ ~ +125℃
Insulation Withstand Voltage	500V AC

Advantages

Color-coded transparent visible shell: Directly observe whether internal melt wire is blown, quickly identify current grade by shell color, save vehicle circuit fault diagnosis time for auto repair technicians.
Full 1A–50A complete current series: Cover weak signal instrument circuits and high-power load equipment (cigarette lighter, cooling fan, vehicle air conditioner) all vehicle electrical protection demands.

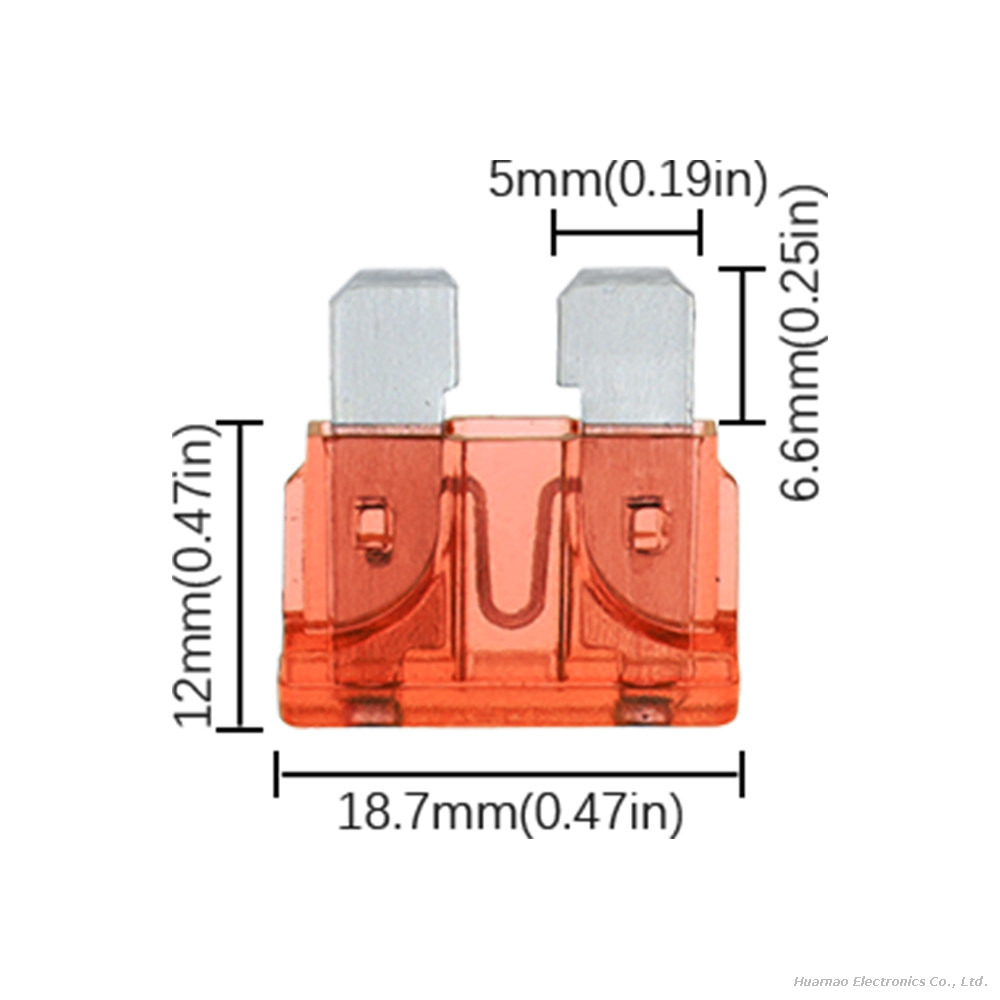

Standard medium blade universal size: Compatible with original fuse holders of fuel cars, new energy EVs, motorcycles and light trucks, convenient for 4S shop unified spare parts inventory management.
Precision zinc alloy melt wire core: Stable and accurate overload fusing performance, effectively block surge short-circuit current to protect vehicle ECU, wiring harness and electrical components from burnout fire risks.
High-temperature resistant anti-aging transparent PC housing: No brittle cracking under long-term engine compartment heat and winter low temperature cycling, long service life for vehicle long-term operation.
Auto repair exclusive kit customization service: Supply single loose fuses and mixed multi-current storage kits with fuse pullers, small-batch samples available for auto parts distributors and EV vehicle factory matching verification.

Application

Passenger Fuel Car Electrical Circuit Protection:Car cigarette lighter power medium blade fuse, dashboard instrument signal circuit plug-in fuse, vehicle air conditioning cooling fan overload protection fuse, car audio navigation circuit overcurrent fuse
New Energy Electric Vehicle Control Systems:EV battery management weak signal circuit fuse, electric vehicle central control instrument protection fuse, new energy vehicle charging port low-current signal blade fuse
Motorcycle & Two-Wheeler Electrical Equipment:Motorcycle headlight turn signal circuit fuse, electric scooter controller overload plug-in fuse, motorcycle ignition system short-circuit protection medium fuse
Auto 4S Shops & Vehicle Repair Garages:Mixed current medium fuse maintenance kit for repair station backup replacement, vehicle breakdown emergency spare plug-in fuse, auto parts store bulk loose fuse wholesale supply
Light Commercial Trucks & Construction Machinery Mini Vehicles:Light truck interior lighting circuit fuse, mini engineering vehicle instrument panel overcurrent protection blade fuse, van refrigeration unit power medium plug-in fuse

FAQ

Q1: What is the difference between medium size blade fuse and mini small car fuse?

A: Medium standard blade fuse has wider blade pins and larger current carrying range (up to 50A), mostly used for main power circuits such as cigarette lighter, cooling fan and air conditioner; mini small fuses are smaller, only for weak signal instrument circuits below 15A.

Q2: How to quickly judge whether the car fuse is blown?

A: This product adopts fully transparent colored plastic housing, you can directly observe the internal alloy melt wire through the shell; if the middle melt wire is disconnected, the fuse is blown and needs replacement.

Q3: Can this medium fuse be used for electric motorcycle and new energy vehicle circuits?

A: Yes, rated DC 32V matches most EV and motorcycle low-voltage auxiliary electrical systems, suitable for instrument, lighting and charging signal circuit overcurrent protection.

Q4: Is it allowed to replace a blown fuse with a higher current specification?

A: Strictly prohibited. Must replace with the same rated current fuse as the original factory specification; using a larger current fuse will lose protection function, easily cause vehicle wiring harness overheating and fire hazards.

Q5: Can we customize mixed current combination fuse kits for auto repair shops?

A: Fully supported, we can assemble different proportion mixed current fuse storage kits, and match plastic fuse puller removal tools as complete maintenance spare parts sets.
