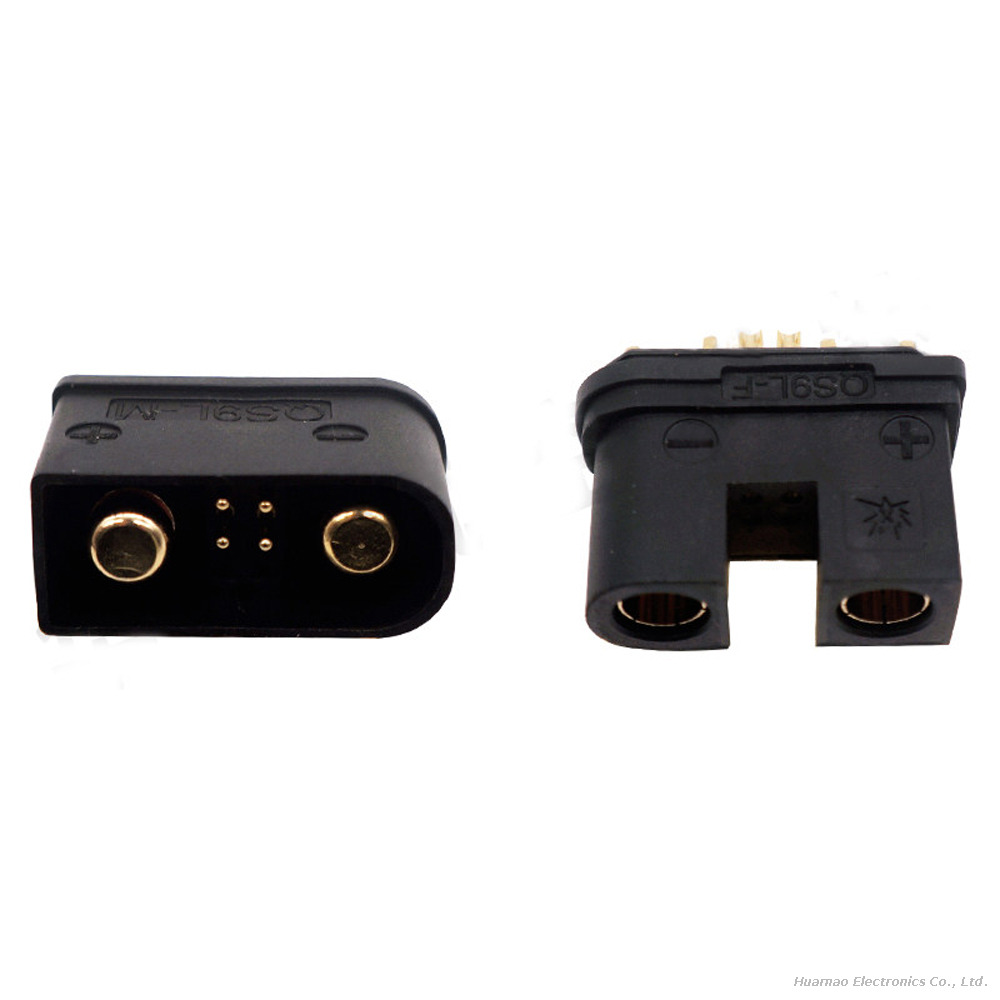

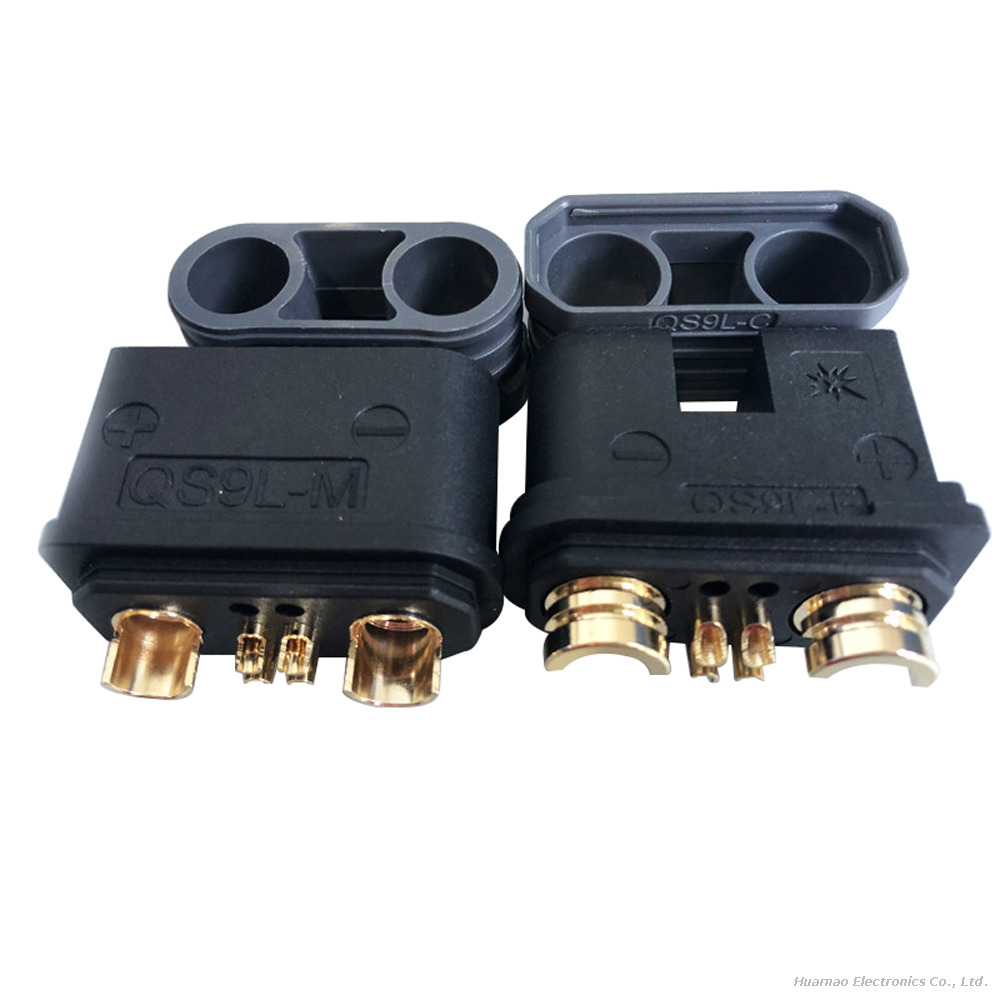

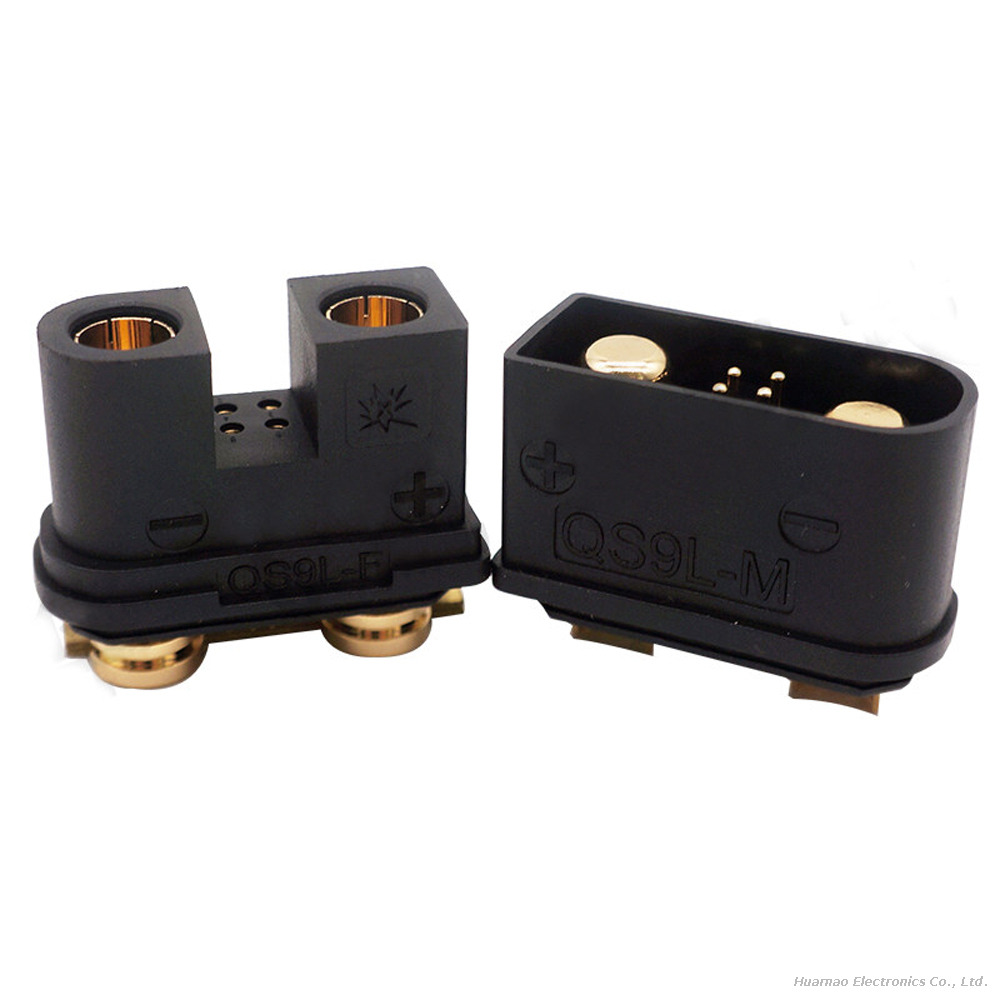

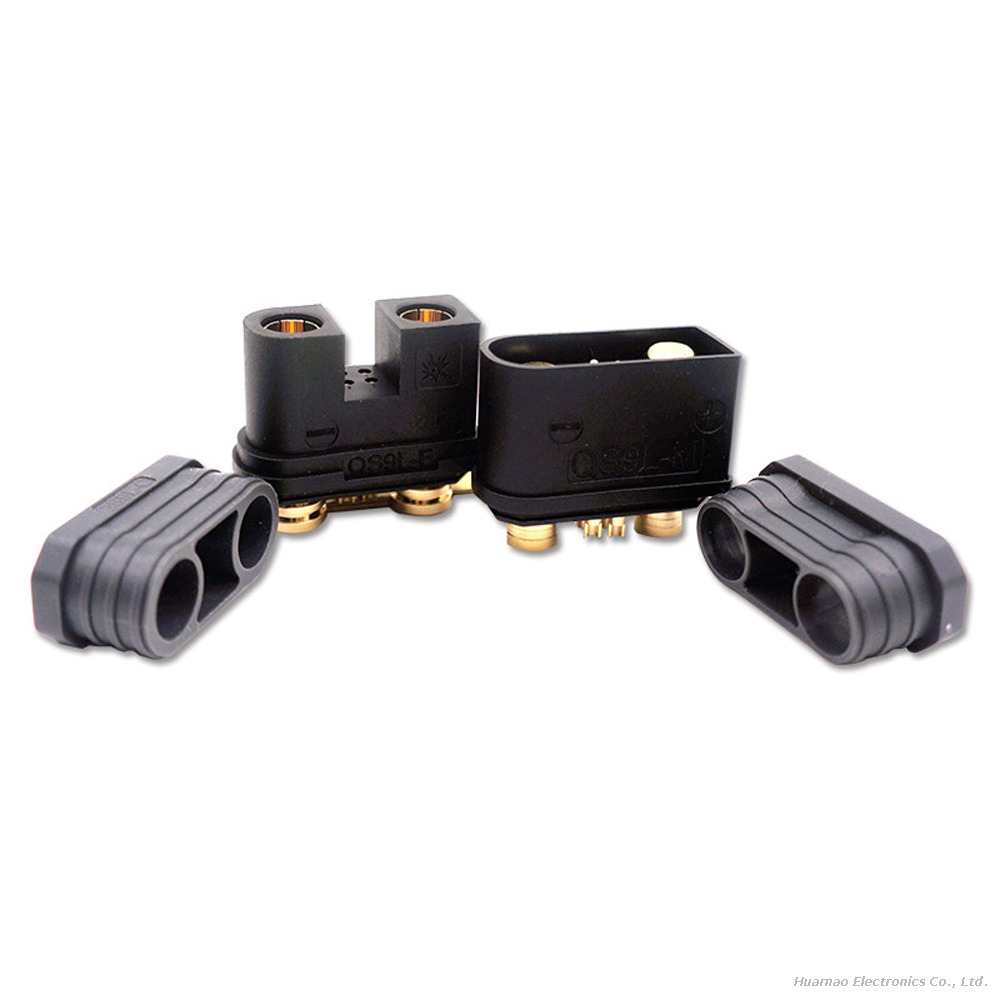

QS9 Male Female Connector Antispark Gold-Plated Terminal High Current Banana Head

QS9 Male Female Connector Antispark Gold-Plated Terminal High Current Banana Head

This QS9L series heavy-duty power connector is a two-pole high-current plug equipped with built-in anti-spark auxiliary signal pins, thick full gold-plated banana terminals, supporting continuous 180A / peak instantaneous 240A discharge. It is specially designed for large-capacity lithium battery packs, high-power FPV multi-rotor UAVs, RC off-road vehicles, portable outdoor energy storage power stations, electric skateboards and industrial high-current power conversion modules. The integrated anti-spark small contact pin realizes pre-contact current buffering during live plugging, eliminating electric arc sparks and greatly improving lithium battery operation safety. Thickened pure copper gold-plated conductive poles minimize loop resistance and heat accumulation, effectively avoiding melting and burnout under full-load heavy discharge. Black UL94 V-0 flame retardant PA66 plastic housing with integrated PCB soldering feet, convenient for direct welding on BMS mainboards and power distribution PCBs. Fully RoHS compliant, customizable wire solder terminal version, male/female matching sets and parallel power distribution assembly, widely used in large agricultural spraying drones, high-power RC models and outdoor camping energy storage equipment.

Model:
QS9 Male Female Connector
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

QS9 Male Connector QS9 Female Connector High Current Connector Gold-Plated Terminal Lithium Battery Adapter Banana Head Connector RC Model Car Accessories

Product Description

Built-in anti-spark auxiliary pin structure solves the safety hazard of open flame sparks when plugging high-capacity lithium batteries live, greatly reducing fire risk during field battery replacement for large UAVs and energy storage power stations. Extra-thick gold-plated copper poles with large contact area drastically reduce circuit resistance, effectively controlling temperature rise under 180A full continuous discharge, fundamentally avoiding the common failure of inferior high-current plugs melting and burning. Integrated PCB flat solder feet simplify lithium pack BMS board assembly process, no extra wire transfer needed, save internal battery space. Flame retardant PA66 housing meets strict fire safety standards of aerial lithium battery equipment; clear positive/negative embossed marks prevent reverse insertion short-circuit damage to expensive BMS chips and power equipment. Male/female self-locking tight fit structure will not separate under UAV flight vibration and RC model violent jolting, avoiding sudden power loss crash accidents.

Every QS9L connector passes strict factory high-current safety testing before shipment, including 180A long-hour temperature rise test, anti-spark arc suppression test, 48-hour salt fog anti-corrosion screening and PCB solder foot tensile retention test. We supply single male/female PCB plugs and matched thick silicone wire adapter cables for large agricultural UAV manufacturers, outdoor energy storage power station brands and high-power RC hobby factories.

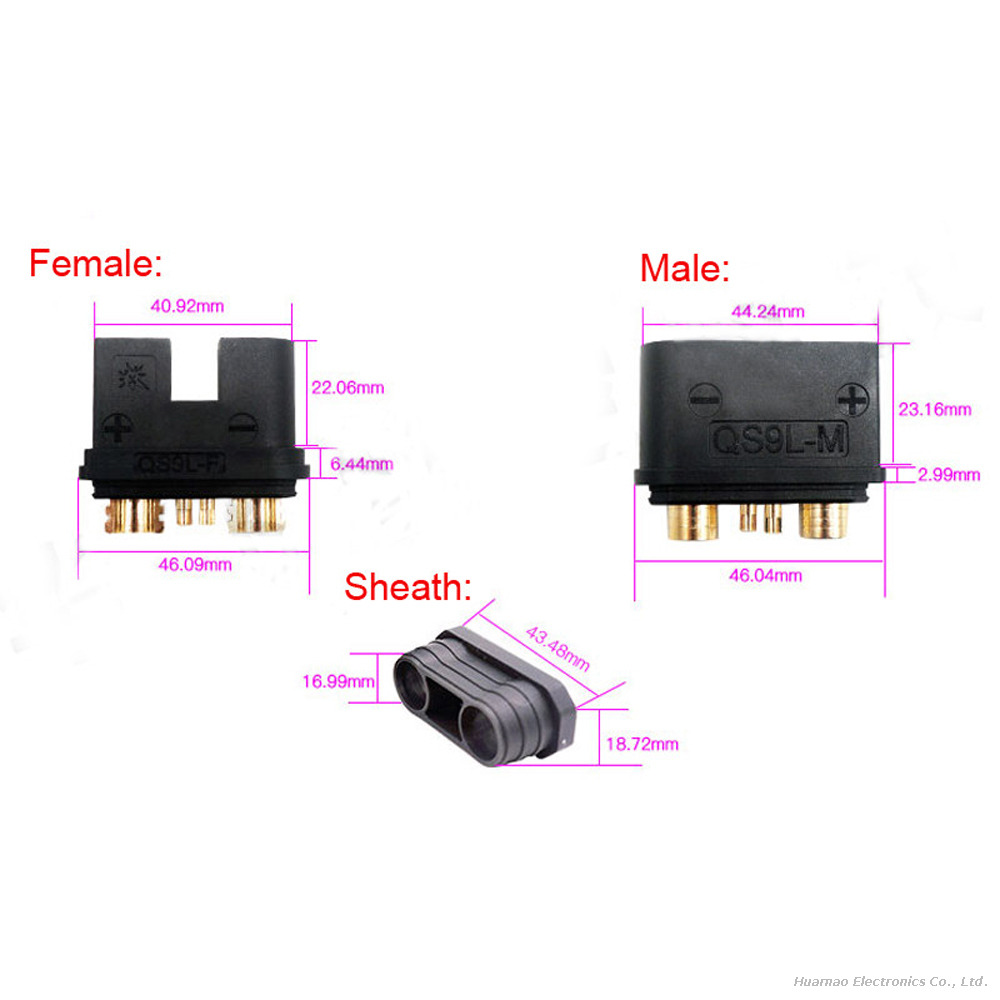

Specifications

Connector Model	QS9L-M male plug / QS9L-F female socket matching set
Rated Current	Continuous 180A; instantaneous peak 240A
Rated Voltage	DC 1000V
Housing Material	PA66 nylon plastic
Operating Temperature Range	-40℃ ~ +180℃

Advantages

Built-in anti-spark pre-charge auxiliary pin patent design: Eliminate electric arc sparks during live battery plugging, solve the biggest fire safety hidden danger of high-capacity lithium battery field operation, far safer than ordinary XT90/XT150 non-anti-spark plugs.
Ultra-thick large-area gold-plated high-current terminals: Extremely low contact resistance, minimal heat accumulation under 180A full continuous load, avoid plug melting and thermal runaway risks of lithium packs.
Integrated PCB flat solder foot layout: Direct surface soldering on BMS and power distribution PCBs, simplify large lithium battery internal assembly structure, save battery compartment layout space.
UL94 V-0 high flame retardant plastic housing: Resist high temperature generated by heavy current discharge, not easy to soften and deform under long-hour full-load operation of large UAVs and energy storage power stations.
Clear embossed positive/negative polarity identification + tight self-locking fit: Prevent reverse plug short-circuit burnout of power equipment; strong clamping force anti-separation under flight and vehicle vibration.
High-power lithium equipment exclusive targeted customization service: Supply PCB mount bare plugs and finished thick silicone wire adapter cables; small-batch prototype samples available for agricultural spraying UAV, outdoor energy storage station and high-power RC vehicle product development verification.

Application

Large Agricultural Spraying Multi-Rotor UAVs:20L agricultural drone main lithium battery QS9L PCB power connector, heavy-lift aerial survey multi-rotor battery anti-spark plug, large FPV cargo transport aircraft BMS board high-current terminal assembly
Outdoor Portable High-Power Energy Storage Power Stations:3000W~6000W camping energy storage battery pack QS9L PCB connector, portable solar storage power anti-spark power plug, off-grid household large capacity lithium battery main power terminal
High-Power RC Hobby Models:1/5 scale high-speed RC off-road car lithium battery QS9L heavy current plug, large RC boat high-discharge LiPo power connector, giant RC helicopter ESC main power PCB mount plug
Electric Mobility Equipment:High-power electric skateboard / scooter lithium pack anti-spark QS9L connector, electric motorcycle large capacity battery PCB power terminal assembly, balance car high discharge lithium power plug
Industrial Portable High-Current Test Equipment:Portable high-power battery discharge tester QS9L power connector, lithium cell aging test bench multi-group parallel power distribution plug, mobile welding machine lithium power pack PCB mount terminal

FAQ

Q1: What is the function of the middle small auxiliary pins of QS9L plug?

A: They are anti-spark pre-charge pins. These tiny pins touch the circuit first when plugging, pre-charge the capacitance in the power system to buffer instantaneous high current, so no bright electric arc spark appears during live connection/disconnection of large lithium batteries.

Q2: What is the maximum continuous discharge current QS9L can safely bear?

A: Stable continuous working current 180A; short-time instantaneous peak discharge can reach 240A, fully meeting the full-throttle power demand of large agricultural UAVs and 6kW energy storage power stations.

Q3: Can this QS9L plug be directly soldered to the lithium BMS PCB board?

A: Yes, the bottom comes with integrated flat PCB solder pins, which can be directly inserted into the through holes of the protection board for automatic wave soldering, no extra wire transfer required.

Q4: What is the difference between QS9L and ordinary XT150 high-current plugs?

A: QS9L adds built-in anti-spark auxiliary pins to eliminate arc sparks, and uses thicker gold-plated copper poles with higher 180A continuous current rating; XT150 has no anti-spark function and lower current tolerance.

Q5: Can we customize the version with rear wire solder terminals instead of PCB pins?

A: Fully supported, we can produce QS9L male/female plugs with open rear solder cups, which can be soldered with 8AWG/10AWG thick silicone wire to make lithium battery extension adapter cables.
