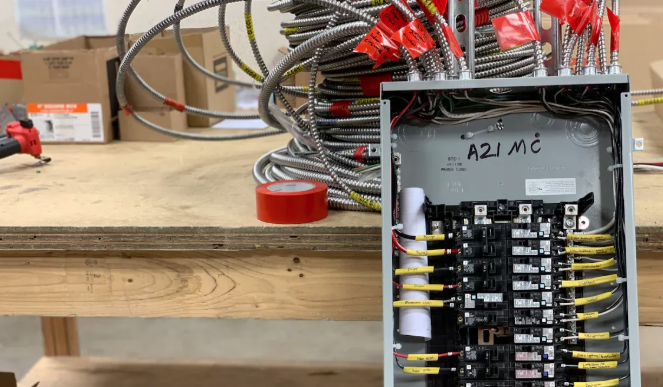

What Is Metal Clad Cable and How Is It Used?

Metal clad cable has a tough metal cover. This cover protects the wires inside from damage and electrical problems. This design keeps wiring and cable systems safe in hard places. It is important to know how to pick and put in metal clad cable. This helps stop problems like wires getting too hot, electric shocks, or machines breaking. Picking the right cable and putting it in the right way is important. If you use the wrong size, do not ground it well, or break the rules, it can cause fires or system problems. Good companies like Huamao Electronics follow strict rules. This makes sure their cables work well and are safe.

Metal clad cable has a tough metal cover. This cover keeps wires safe from harm, water, and fire. It is safer than many other cables. This cable bends easily and is simple to put in. You do not need extra conduit. This saves time and money on wiring jobs. There are different kinds of metal clad cable for different uses. Some are made for wet, outdoor, or dangerous places. Metal clad cable is used in homes, stores, factories, and hospitals. It follows strict safety rules and lasts a long time. Always follow local codes for your project. Use the right metal clad cable to stay safe and make sure it works well.

Metal Clad Cable Overview

What Is Metal Clad Cable

The National Electrical Code (NEC) says metal clad cable is made in a factory. It has one or more insulated wires inside a metal cover. The cover can be made from interlocking tape or a smooth or bumpy metal shell. Sometimes, the cable also has optical fiber parts. The sheath is made from copper or aluminum. This keeps the wires safe from harm. The wires inside can be as small as 18 AWG or as big as 2,000 kcmil. Metal clad cable follows strict rules for how it is built and used. This makes it a good and safe choice for many electrical jobs.

Note: Metal clad cable is not like other cables. It gives strong protection but is still flexible. People use it in many places, like homes, stores, and factories.

Key Features

Metal clad cable is special because of its design and safety. Here are some important parts and reasons why it is useful:

• Insulated Conductors: The cable has wires with insulation, usually made from THHN or THWN copper. This keeps the wires safe from heat and water.

• Grounding Conductor: There is a separate grounding wire inside. This wire keeps people safe from electric shocks. It meets UL 1569 and NEC rules. The grounding wire helps stop shocks and system problems.

• Protective Metal Sheath: The outside armor is made from aluminum or steel. It protects the wires from being hit or crushed. The armor also keeps out chemicals, water, fire, and bugs. Aluminum armor is light and bends easily. Steel armor is stronger for hard jobs.

• Binder Tape and Outer Jackets: The wires are wrapped with binder tape, like mylar or polypropylene, to hold them together. Some cables have extra jackets made from PVC or plastic. These are good for wet or buried places.

• Compliance with Industry Standards: Metal clad cable must follow UL, NEC, and IEC rules. These rules make sure the cable is safe and works well in many places.

• Mechanical Protection: The metal cover keeps the wires safe from hits and crushing. This makes metal clad cable good for places where wires might get hurt.

• Electrical Safety: The grounding wire and metal cover help stop electric shocks. The cable also blocks electromagnetic noise.

• Versatility: Metal clad cable can go in open or hidden spaces, even in air-handling areas. You do not need extra conduit, so it saves time and money.

• Corrosion Resistance: Aluminum armor does not rust. This makes the cable good for wet or outdoor places.

Tip: When picking metal clad cable, choose ones that follow UL and NEC rules. Companies like Huamao Electronics can make custom cables, wiring harnesses, and terminal connectors for your project.

Types of Metal Clad Cable

Metal clad cable comes in different types. Each type is made for a special job or place. Knowing the types helps people pick the right cable. You might need it for a store, a factory, or a risky area.

Standard MC Cable

Standard MC cable has a metal cover. This cover is usually aluminum or steel. It keeps the wires safe from hits and cuts. The cable has insulated wires and a ground wire. This makes it safer than some other cables. You can use standard MC cable in dry or wet places. Many have a PVC jacket to keep out water. MC cable does not need a conduit most of the time. This makes putting it in faster and easier.

Standard MC cable must pass tough tests like UL 1569 and NEC 330. These rules make sure the cable is safe for stores and factories. Many towns say you must use UL cables for MC cable jobs. Companies like Huamao Electronics make MC cables that follow these rules. They give good choices for wiring harness and cable assembly.

Tip: Always look for UL and NEC labels when picking MC cable.

MC-HL and Specialty Types

MC-HL cable is a special kind of metal clad cable. It is made for dangerous places. It has a welded, bumpy aluminum cover. This stops gases, vapors, and water from getting in. MC-HL cable is good for places with fire risks, like oil plants or chemical factories. It can handle up to 35 kV. It also has insulation that does not burn easily.

Some metal clad cables are made for fire or blocking signals. These use strong insulation like XLPE or EPR. They can take high heat and harsh chemicals. Some special cables must pass extra tests, like IEC 60332 for fire. Huamao Electronics can make custom cables for hard jobs. They make sure every connector and cable is top quality.

Note: Only trained workers should put in MC-HL cables. Local officials must check the work to keep everyone safe.

Uses and Applications

Commercial and Industrial

Metal clad cable is important in many work places. Electricians and engineers pick it because it is strong and safe. It keeps wires safe where they might get hurt. Many buildings and factories use it for power and lights. It also helps control machines. The cable works in open or hidden spots, like walls and ceilings. It can go under floors too.

• Used in stores, hospitals, and theaters

• Put in factories, warehouses, and job sites

• Good for sending power to lights and outlets

• Used in cable trays, wet places, and buried in the ground

• Picked for small motors and HVAC wiring

• Allowed in air spaces and dangerous places if listed

Workers use metal clad cable where extra safety is needed. It protects from fire, water, or getting hit. The cable bends easily around machines. Companies like Huamao Electronics make special cables for hard jobs. Their cables follow strict safety rules.

Tip: For tough jobs, use a wiring harness or cable assembly made for industry.

Residential and Special Environments

People sometimes use metal clad cable in homes. This cable gives strong protection and has a full-sized ground wire. It is good for garages, basements, and outside where wires can get hit.

• Used in homes for lights, outlets, and appliances

• Liked in garages, workshops, and unfinished basements

• Good for dry places inside or outside

• Needed where machines, people, or things might hurt wires

• Picked for things that move or shake

Installers use metal clad cable when safety is very important. The metal cover keeps wires safe from damage. It also helps stop electrical problems. In special places like hospitals or big buildings, this cable works well and meets safety rules. For wet places, use a PVC-jacketed cable with water-safe parts.

Note: Always check local rules before using metal clad cable at home or in special places. For custom cables, ask trusted companies like Huamao Electronics.

Advantages of Metal Clad Cable

Durability and Safety

Metal-clad cables are known for being strong and safe. They have a metal sheath made from aluminum or steel. This metal cover keeps the wires safe from getting hurt. It is much stronger than just plastic insulation. Here are some reasons why these cables last longer and keep people safe:

1. The metal armor stops hits, crushing, and even rodent bites.

2. These cables do not let in water or rust. They also work well in hot or cold places.

3. Their build follows tough safety rules. This means they last a long time in factories, outside, or underground.

4. The ground wire and PVC jacket give more safety. This helps a lot in wet or rusty places.

5. Cables without armor are not as safe. They are better for safe indoor spots.

Tip: Picking a cable with a metal sheath helps stop electrical accidents and lowers fire risk. Many workers pick these cables when safety is very important.

The table below shows the differences:

Flexibility and Cost Savings

Metal-clad cables are also flexible. They use interlocked armor that bends easily. This lets workers put cables through tight spaces and around things. They do not need extra tools. Because the cable is flexible, you do not need conduit or pull-boxes. This saves time and money.

• Workers finish jobs faster because the cable moves easily in walls and ceilings.

• Needing fewer parts and less work makes the job cheaper.

• On big jobs, using these cables can help workers do 30% more work. This saves a lot of money.

• The design also means less fixing later, since the cables do not break easily.

Contractors say they save 50-70% on work and parts compared to old conduit and wire systems.

If a business wants to make their electrical work better, they should use a trusted supplier like Huamao Electronics. Their wiring harness and cable assembly products are high quality. They meet world standards and can be made for any job. This helps keep things safe and working well.

Installation and Considerations

Code Compliance

Electricians must follow rules when working with MC cable. The National Electrical Code (NEC) gives steps for safe work. Installers need to hold and support MC cable every 6 feet. They must also do this within 12 inches of each end or bend. This stops the cable from hanging down or getting hurt. The smallest bend allowed is seven times the cable’s width for interlocked armor or corrugated sheath. This keeps the cable from folding or snapping.

MC cable can go in dry indoor places like garages, basements, and stores if it is held up and safe. For wet or harsh places, use jacketed MC cable or MC-HL types. You can use it outside only if it is made for outdoors. The metal cover can be the ground wire if it meets NEC rules. If not, you need a separate ground wire. Installers should not use staples. They must use clamps or holders made for MC cable. NEC Article 330 lists these rules and helps keep people safe.

Tip: Always check local rules before you start. Some places have extra safety steps.

Best Practices

Trusted makers share tips for putting in MC cable. Installers should use anti-short bushings to stop sharp edges from hurting wires, even if the NEC does not say you must. It is important to handle the cable with care. Do not pull too hard and always use the right parts for each link.

For long up-and-down runs, hold the cable at the top and every 6 feet. This keeps wires from sliding down. Fire-rated MC cable is best for alarms and emergency lights. Always pick the right cable for the job, like standard MC, MC-HL, jacketed MC, or Aluminum Interlocked Armor. These steps help the cable stay strong and safe for a long time.

Huamao Electronics makes custom wiring harness and cable assembly products. Their cables meet world rules and pass tough tests. For special jobs or hard places, ask a trusted maker like Huamao Electronics. This helps you follow the rules and get good results.

MC Cable vs. Other Cables

MC vs. AC Cable

MC cable and AC cable look almost the same, but they are not. They are built in different ways and used for different jobs. MC cable has a green wire inside for grounding. AC cable uses a metal strip in its armor to ground. This makes MC cable safer and easier to check for grounding. MC cable can be used outside, underground, and in wet places. AC cable is only for dry, indoor spots like above ceilings.

The table below shows how they are different:

MC cable is picked for places like factories and hospitals. It is also used in shopping centers and parking garages. People use it in data centers and outside jobs too. Installers choose MC cable for control circuits and power jobs. It is also good for temporary power at building sites. MC cable is strong and bends easily. This makes it great for many wiring harness and cable assembly needs.

Tip: MC cable follows more safety rules and works in tougher places than AC cable.

MC vs. NM Cable

MC cable and NM cable are made for different uses. MC cable has a metal armor that keeps wires safe from damage and water. It also stops rodents from chewing the wires. NM cable, or Romex, has a plastic cover and is only for dry, indoor places. MC cable can be used outside, in wet spots, and in risky areas. NM cable cannot go in these places.

The table below compares them:

MC cable can be put in cable trays and open spaces. It can even be buried if it is rated for that. NM cable must stay hidden in walls or ceilings. It cannot go underground or in wet places. Installers use MC cable for garages, basements, and places with big machines. NM cable is best for simple home wiring.

Note: Always check local rules before picking a cable. For custom cables, Huamao Electronics has many wiring harness and cable assembly choices for any job.

Metal clad cables have a tough metal cover to protect wires. There are many kinds for inside, outside, and dangerous places. People use them for power, lights, and control jobs. They are safe and simple to put in. Picking a certified supplier with ISO 9001 and good checks stops problems. Custom wiring harness or cable assembly products help special projects and make things safer. Companies with technical help and flexible choices make projects work better.

FAQ

What is the main purpose of metal clad cable?

Metal clad cable keeps wires safe from harm. The metal cover stops things from hitting or breaking the wires. It also keeps out water and chemicals. Electricians use it in many places, like stores, factories, and homes. This makes wiring safer and more reliable.

Can metal clad cable be used outdoors or underground?

Yes, you can use metal clad cable outside or underground if it has a special jacket. Installers must pick the right kind for wet or rough places. Always check local rules before putting it in.

How does metal clad cable compare to nonmetallic cable?

Metal clad cable is stronger than nonmetallic cable. Its metal cover stops crushing and keeps out animals. Nonmetallic cable, like Romex, is only for dry, inside spots. Metal clad cable works better for tough jobs.

Does metal clad cable require a conduit?

Most of the time, metal clad cable does not need a conduit. The metal cover already protects the wires. This makes jobs faster and costs less for wiring harness and cable assembly work.

Where can I find custom metal clad cable solutions?

Huamao Electronics makes custom metal clad cable, wiring harness, and terminal connectors. You can visit their product page to learn more. Their cables are high quality and work for many kinds of jobs.
