Author: Site Editor Publish Time: 2025-08-13 Origin: Site
Picking the right wiring harness for a smart fingerprint lock is about fit, bend life, and clean power. Choose a compact 2.0 mm connector system, plan for repeated door movement, lock the harness down against vibration, and tame noise so low‑power electronics stay stable. A pre‑terminated wiring harness speeds assembly and keeps maintenance simple.
A smart fingerprint lock lives inside a tight, vibrating, and often cold enclosure, and it draws tiny currents most of the day with quick spikes to drive a latch. That mix means your wiring harness must be slim enough to fit, flexible enough to survive door slams and seasonal temperature swings, and consistent enough to keep the fingerprint sensor and keypad calm during motor bursts. A small 2.0 mm board interface helps you save depth, a soft jacket keeps bend life high, and a keyed plug reduces mis‑mating during service. When you choose a harness built with clean crimps, matched AWG per branch, and reliable retention, you get predictable performance in the field and a smoother line build.
Huamao’s Wiring Harness category emphasizes three things that matter in this exact scenario: high‑quality construction for durable, long‑lasting performance; seamless integration for plug‑and‑play fit; and industry compliance backed by rigorous quality controls. That is why a ready‑made wiring harness for compact devices can cut assembly time and error rates in a smart home product line.
Start with the board footprints and the real electrical map. Note each header’s pitch, pin count, and orientation. Record peak current for the motor or solenoid, typical logic and sensor draw, the target AWG per branch, and the run length you can accept inside the escutcheon and door skin. A wiring harness that matches actual loads will run cooler and last longer.

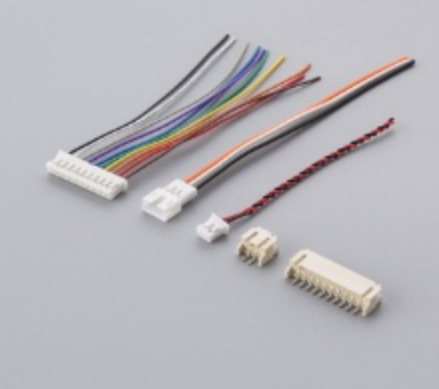

A PHR 2.0mm wiring harness keeps the footprint small and the plug height low, which suits tight covers. Align latch direction with the removal path so technicians can unplug without twisting the cable. If the actuator branch needs more current margin, consider splitting the loom or stepping that branch to a sturdier connector while keeping 2.0 mm for the sensor and logic lines.
PVC is a solid general‑purpose jacket, XLPE adds abrasion and heat resistance, and silicone stays flexible in winter. Put shielding or a solid ground reference near sensor and keypad leads if they must run alongside motor wiring. A wiring harness with just enough protection avoids bulk but still keeps EMI in check.
Respect minimum bend radius at the hinge path or pass‑through, add tie points within a few centimeters of each connector, and route away from sharp ribs. Plan slack as a small stress loop, not a long tail that snags. A wiring harness that moves naturally with the door will not tug on headers or rub through jackets.
Ask for 100% continuity on every unit, plug/unplug cycle checks, and a short flex test. Label polarity, channels, and revision so service teams can swap parts without guesswork. In pilots, run door‑slam tests while watching for resets or false fingerprint reads. A wiring harness that passes these basics is ready to scale.
A smart fingerprint lock benefits from compact board‑to‑wire links and consistent retention. Here is how popular options compare inside tight housings.
Table 1: Compact connection options inside a smart fingerprint lock
| Option | Typical pitch or form | Height in cavity | Current per contact (typical use) | Retention and latch behavior | Bend life suitability | Assembly difficulty | Where it fits best |
|---|---|---|---|---|---|---|---|
| PHR 2.0 mm connector wiring harness | 2.0 mm pitch | Low | Low to moderate for logic/sensors | Positive latch or friction fit in series | Good with fine‑strand wire | Low | Fingerprint module, keypad, status LEDs, low‑power rails |
| 2.54 mm XH‑style harness | 2.54 mm pitch | Moderate | Moderate for actuator lines | Strong latch options | Good | Low to moderate | Motor or solenoid branches when space allows |
| FFC/FPC tail | 0.5–1.0 mm pitch | Ultra‑low | Low (width dependent) | ZIF or flip latch | Excellent in one plane | Moderate | Ultra‑slim inter‑board links or bezel paths |
| Micro coax assembly | 1.13–1.37 mm OD | Very low | Low (signal paths) | Crimped shells | Very good | High | Noise‑sensitive, high‑speed lines |
Huamao’s catalog includes multiple 2.0 mm families that serve compact devices well, including JST PHR Series 2.0 pitch assemblies and PHDR‑20V series links used widely in smart appliances. For lock cores that mix low‑power boards and higher‑current actuators, a split wiring harness approach is common: 2.0 mm for signal and small rails, and an extra connector for the drive pair.
Getting a few fundamentals correct is the difference between a quiet product and a lock that resets on every slam. The ranges below help you size and route your wiring harness with confidence.
Table 2: Typical design targets for a smart fingerprint lock wiring harness
| Parameter | Recommended range | Why it matters |
|---|---|---|
| Logic/sensor supply current | Tens to hundreds of mA | Keeps MCU and fingerprint sensor stable |
| Actuator peak current | Short bursts per lock/unlock | Guides AWG and connector selection |
| Conductor size (AWG) | 26–28 AWG for logic; 22–24 AWG for motor branch | Balances flexibility and current |
| Branch length | 80–300 mm per path | Enough slack for service, not enough to snag |
| Jacket options | PVC, XLPE, silicone | Match climate, abrasion, and bend life |
| Minimum bend radius | ≥ 5× cable OD (smaller for silicone) | Extends flex life near hinges |
| Qualification essentials | 100% electrical test, pull force, insertion cycles, flex cycles, thermal/vibration checks | Predicts real‑world reliability |
In addition to these device‑level numbers, think in terms of daily usage. A door sees thousands of closures per year, small temperature swings across day and night, and occasional impacts. A wiring harness that is strain‑relieved and routed with these realities in mind will survive for years without intermittent faults.
The phrase PHR 2.0mm wiring harness describes a compact 2.0 mm pitch wire‑to‑board family that shines in tight spaces and low‑to‑moderate current paths. Inside a smart lock, this is a natural fit for the fingerprint module, keypad, LED indicators, and small power rails. It is different from bulkier 2.54 mm systems that offer more headroom for actuators. For the latch motor or solenoid, measure peak current and select a thicker conductor or a separate connector with higher retention and temperature margin. Keep the highest current pair physically separated from sensitive lines. That small spacing change alone can stop sensor glitches during lock/unlock events.
As you build your bill of materials and cable map, keep your naming clean: reserve the PHR 2.0 mm designation for tight board links and label any actuator branch clearly by current and wire size. If you list this project internally, you can tag it with the application to avoid confusion: 应用：Smart Fingerprint Lock.
The battery to board wiring harness for smart lock should keep resistance low so standby voltage stays consistent. Use a short route to the PMIC and keep the battery sense and thermistor lines away from the motor pair. In ultra‑slim designs, a low‑profile wiring harness for slim locks paired with a 2.0 mm header helps you hold depth while keeping serviceability intact.
These links are sensitive to noise and alignment. A 2.0mm connector wiring harness with a reliable latch, a tidy ground return, and a little extra slack for service makes installation easy and eliminates false touch or fingerprint reads. If the module sits on a movable escutcheon, pick soft jackets and fine‑strand conductors to boost bend life.
This path carries short but higher currents. Bump the AWG by one or two sizes compared to logic runs, and tie the harness down to prevent micro‑movement. An anti‑vibration wiring harness for door locks uses keyed housings and positive latches so the plug stays seated after thousands of door slams. If space allows, isolate the actuator on its own connector to simplify service.
Where the harness crosses from the interior shell to the exterior keypad, add a grommet, keep the bend radius generous, and avoid stacking layers that compress when the door closes. A flexible wiring harness for hinge routing, especially with silicone jackets, keeps performance consistent through winter and summer.
Random reboots or laggy biometrics are often wiring‑related. If the lock resets during an unlock action, watch the voltage rails; a too‑thin actuator branch or long shared return can sag. Shorten that path or step up the conductor size on the drive pair. If your fingerprint module throws false reads, reroute its harness away from the actuator lines and add a ground reference next to the sensor pair. A wiring harness that sits loose can move just enough to unseat a plug over time, so add a tie point close to each connector and, if needed, switch to a connector series with a stronger latch.
Cold weather that makes plastics stiff can expose a weak bend path. Swap jackets to silicone for cold climates, and check that your minimum bend radius is not violated near the pass‑through. If the plug feels loose at service, validate the insertion cycle rating and pull force; request stronger housings or add strain relief boots. An intermittent issue often points to a crimp or an out‑of‑tolerance housing, which is why 100% electrical test and sample pull checks matter in production.
Smart lock interiors keep getting thinner, while users expect a quiet, effortless experience. That pushes connector pitches smaller and encourages a plug‑and‑play wiring harness strategy, where keyed, anti‑mistake housings make assembly faster. Low‑power system‑on‑chips reduce average draw but keep short peak spikes for actuators, so mixed‑gauge branches within a single loom are now common. Brands also ask for greener materials, better UV stability on any exposed tails, and seals that hold up to spray and cleaning chemicals.
Modularity is another trend: sub‑looms let you replace a fingerprint sensor harness without touching the actuator branch. This approach supports fast service while keeping plant assembly steps consistent. For a smart home product family, that consistency across models saves time and cuts error rates. A wiring harness built to these realities will serve the product and the team equally well.
Smart lock programs need repeatable quality, clean fit, and reliable delivery. Huamao’s Wiring Harness lineup is built around three principles that match those needs:
High‑Quality Construction: top‑quality materials with careful component selection and clean assembly ensure durability and long‑lasting performance. A wiring harness that starts with consistent crimps and accurate strip lengths ends with fewer field issues.
Seamless Integration: plug‑and‑play engineering that fits into tight housings, reduces assembly time, and lowers the risk of installation errors. When your wiring harness mates cleanly and routes predictably, your build gets simpler.
Industry Compliance: adherence to rigorous quality control and standards so you get reliable results every batch. Documented inspections and functional tests give you traceability and confidence while scaling.
The catalog shows practical 2.0 mm families and related options that map to smart home needs. Product examples include JST PHR Series 2.0 pitch connector assemblies, JST PHDR‑20V 2.0 mm wiring harnesses used in smart home appliances, JST PH 2.0 mm terminal wires with UL1007 leads, JST PUDP‑40V‑S 2.0 mm wire‑to‑board links, and even mixed families like MX 51065 or MX 560123 for compact battery or control modules. That breadth lets you build a coherent wiring harness strategy across logic, sensor, and actuator branches.
If you are benchmarking options, start with the Wiring Harness category and branch out to Wire Harness Assembly for pre‑bundled looms, and to cable families (PVC, XLPE, Silicone) to match your climate needs.
A clean brief helps you get accurate quotes, reliable samples, and a wiring harness that drops into your design without rework. Capture the connector series and pin counts for every board, the maximum current per circuit, and the conductor size per branch. Note overall length and tolerance, latch direction and exit angle, and the jacket material by climate. If you need shielding, specify the coverage and how it ties to ground. Plan for mounting accessories like tie‑downs, grommets, and strain relief boots. Ask for 100% electrical test, pull force, insertion cycle targets, and flex testing that mirrors door use. Spell out labels—polarity marks, channel IDs, and barcodes for traceability—and define packaging so harnesses arrive ready for your line. If your door lock wiring harness assembly splits into modular sub‑looms, include a simple breakout diagram.
Teams that manage a platform of models should also request revision control and a sample‑to‑mass‑production plan. That way, once you approve a pilot set, scale‑up keeps dimensions, crimps, and materials consistent. You can unify your smart fingerprint lock wiring harness across SKUs with shared lengths and labels while swapping only the branches that differ per model.
Two internal references anchor a strong sourcing journey. Use a category‑level link when you want to browse options, and a customization link when you are ready to spec your own build. Both paths lead to the same catalog, and both make it easy to contact the team for samples and guidance.
Browse the full category and get guidance on compact connectors, bend life, and materials here: custom wiring harness solutions
Q1: What is the quickest way to select a harness for a smart lock?
A1: Start with space and current. Confirm your board headers and their pitch, set current budgets for logic and the actuator, and pick a 2.0 mm system where space is tight. Size conductors by branch, plan strain relief near each plug, and request 100% electrical test on every wiring harness before you scale.
Q2: Where does a PHR 2.0mm wiring harness make the most sense?
A2: It is ideal for compact board‑to‑wire links inside a Smart Fingerprint Lock, such as the fingerprint sensor, keypad, LEDs, and low‑power rails. For actuator lines, check peak current and consider a thicker conductor or a separate connector family with higher retention to keep temperature and voltage drop in check.
Q3: How should I pick AWG for logic versus the latch drive?
A3: For logic and sensors, 26–28 AWG balances flexibility and durability. For a motor or solenoid branch, 22–24 AWG handles short bursts better. Keep that branch short, add tie‑downs, and verify temperature rise under repeated lock/unlock cycles to confirm the wiring harness will stay stable over time.
Q4: What’s the easiest way to improve bend life through a hinge or pass‑through?
A4: Respect a generous bend radius, use fine‑strand conductors, and switch to silicone jackets in cold climates. Add a loop of slack tied down near each connector so the wire does not pull the header. A flexible wiring harness for hinge routing will survive door slams and seasonal temperature swings.
Q5: How do I keep connectors from creeping loose over time?
A5: Choose keyed housings with positive latches, route cables so they do not tug on the plug, and add a tie point within a few centimeters of each header. Verify insertion cycle ratings and pull force in your qualification plan. A wiring harness with proper retention saves you from intermittent faults later.
Q6: Which should I use in tight spaces—2.0 mm wire‑to‑board or FFC?
A6: FFC is the thinnest and bends well in one plane, perfect for stacked boards. A 2.0 mm wire‑to‑board harness is easier to handle and service and offers better strain relief. Pick based on space, bend direction, and maintenance needs. Many smart locks blend both in different places to get the best of each.
Q7: How do I order a custom harness without missing details?
A7: Share connector series and pin counts, current per circuit, AWG per branch, length and tolerance, latch direction, jacket material, and any shielding. Add labels, test plans (100% electrical, pull, insertion cycles, flex cycles), and packaging instructions. For a family of locks, ask for revision control so every wiring harness stays consistent across models.
Smart locks are unforgiving on cables: they are thin, they vibrate, and they expect flawless low‑power performance. When you get the basics right—compact connectors, mixed‑gauge branches, strain relief near plugs, and tidy routing—a wiring harness becomes invisible in daily use. That is the goal: quiet, reliable, and easy to assemble at scale. If you are comparing options or speccing a platform, bookmark the category and talk to a supplier that already serves compact smart devices.
