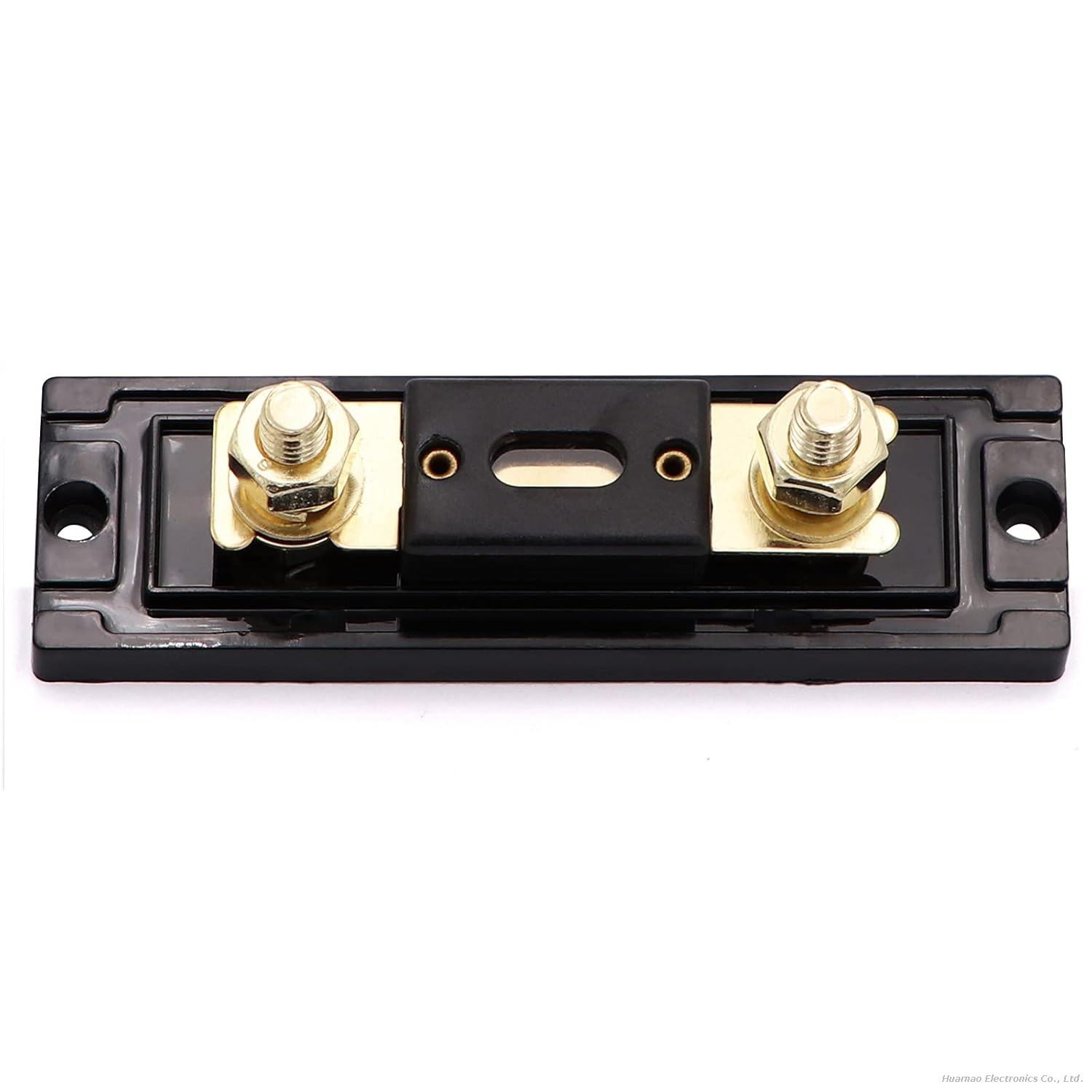

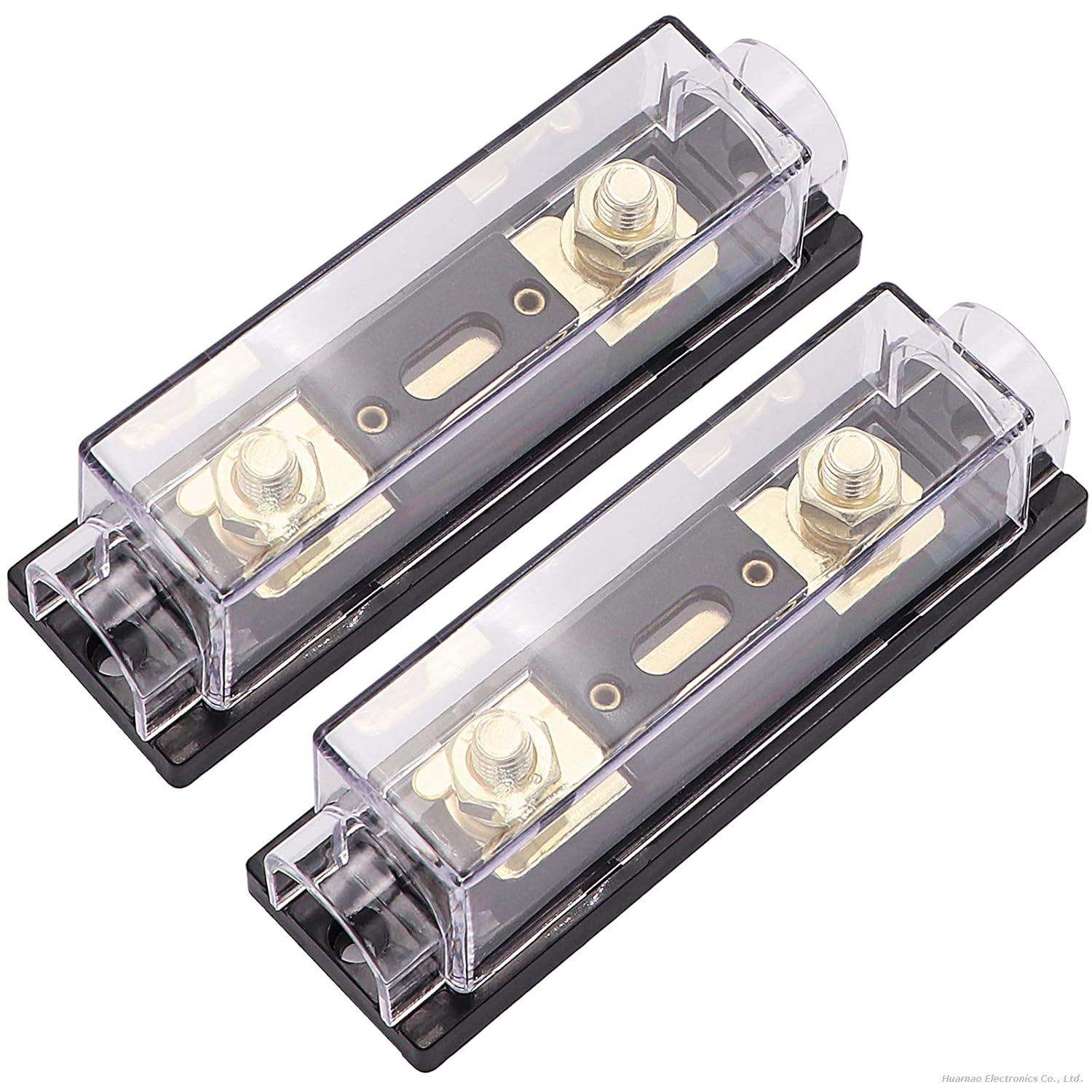

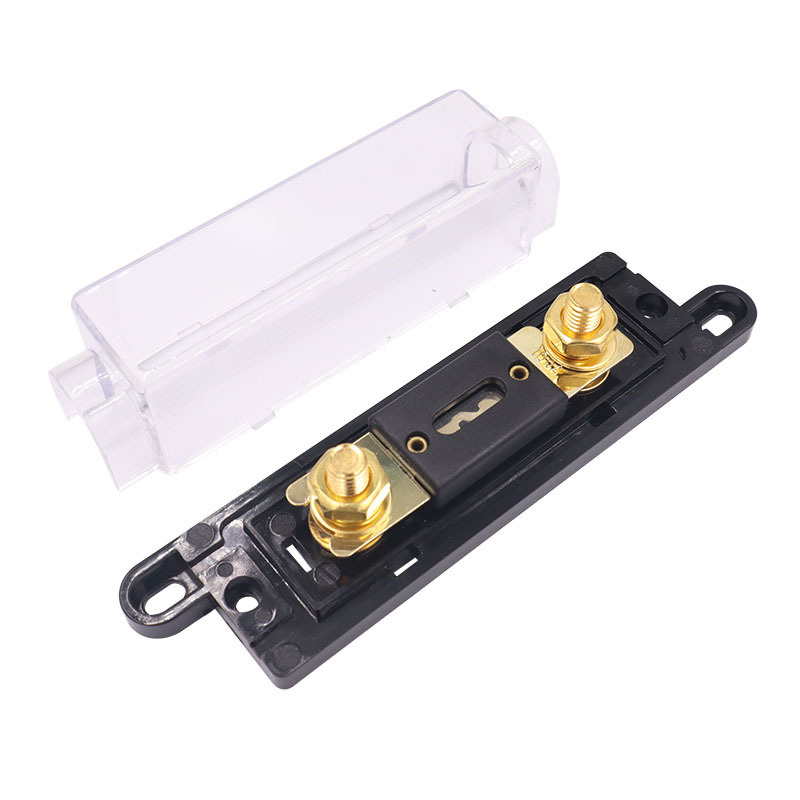

100 Amp ANL Fuse Holder with 100 Amp Fuses for Car Audio Amplifier(Black)

AC adapter current 100 Amps
Brand Ingoulut
Voltage 100 Volts
Material Brass
Mounting type Holder

Model:
ANL Fuse Holder
Brand:
Huamao
Code:
HM10914A

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Fuse Holder Box Car Audio Power Fuse ANL Fuse Holder for Car Audio Amplifier

Product Description

Engineered exclusively for high-performance car audio systems, this 100A ANL fuse holder delivers reliable overcurrent protection for powerful amplifiers—paired with a pre-included 100A ANL fuse for immediate, plug-and-play use. The sleek black housing blends seamlessly with automotive wiring setups, while the heavy-duty ANL design handles the extreme current demands of car audio amplifiers (up to 100A continuous) without voltage drop or overheating. Ideal for aftermarket car audio upgrades, custom sound systems, and professional installers seeking robust circuit protection.

Core Features & Performance Highlights

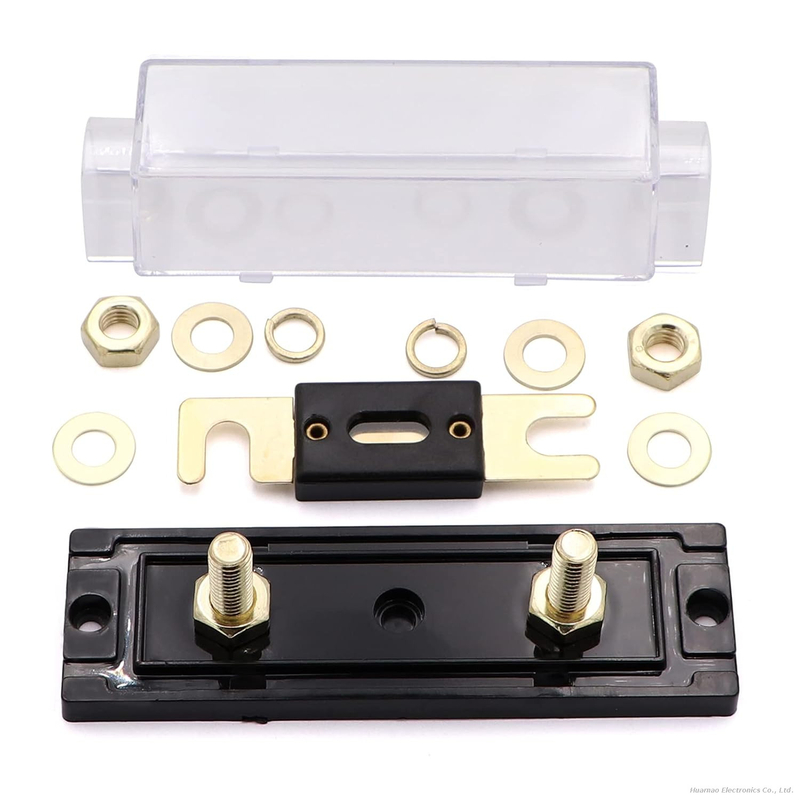

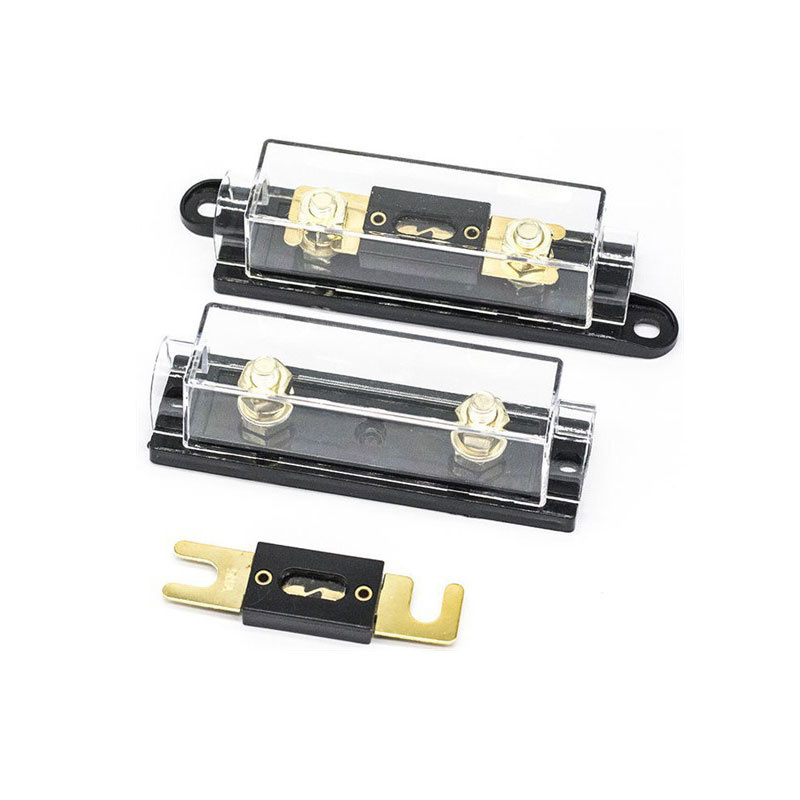

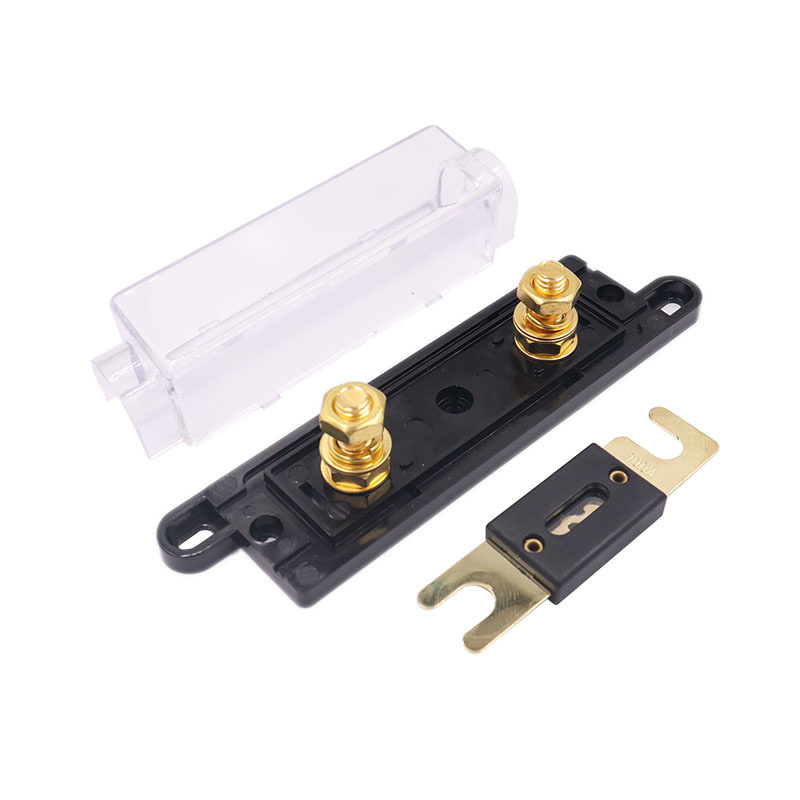

All-in-One Solution: Includes 1x 100A ANL fuse holder + 1x 100A ANL fuse—no need to purchase fuses separately. Saves time on installation and ensures perfect compatibility between holder and fuse (ANL format: industry standard for high-current car audio applications).
100A High-Current Capacity: Rated for 100A continuous current (250V AC/DC) to match the power needs of mid-to-high wattage car audio amplifiers (500W–2000W+ systems). Precision-machined copper contacts minimize resistance, ensuring maximum power delivery to amplifiers while triggering instantly during overcurrent events (e.g., short circuits, wiring faults).
Durable Black Housing Design: Crafted with impact-resistant, flame-retardant ABS plastic (UL94 V-0 rated) in a sleek black finish—resists scratches, UV damage, and underhood heat (operating temperature: -40°C to 105°C). The compact ANL form factor fits tight spaces in car trunks, under seats, or engine bays, without compromising protection.

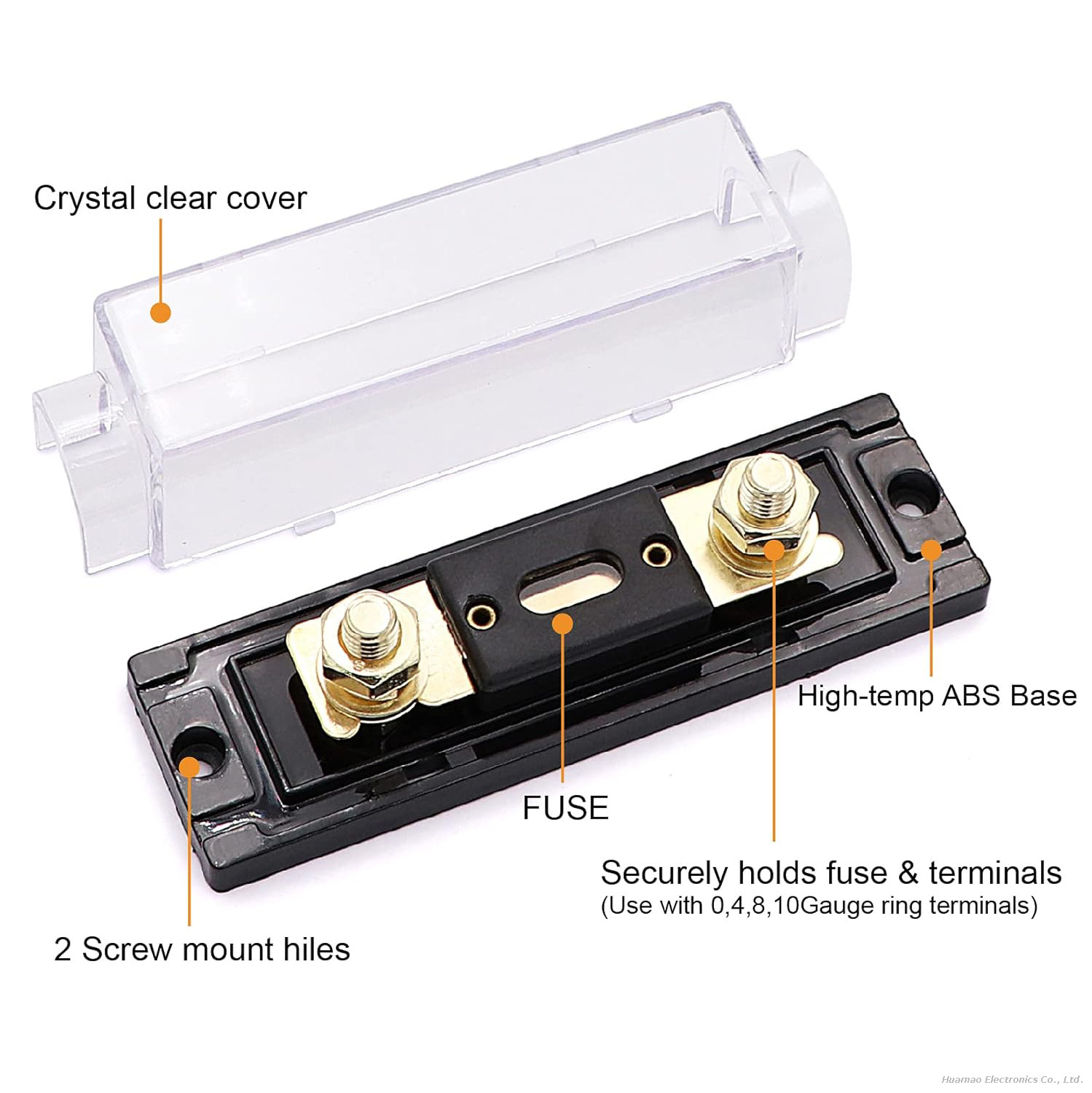

Secure Bolt-Down Connection: Features heavy-duty tin-plated copper terminals with bolt-down hardware (compatible with 4AWG–8AWG car audio wires) for a vibration-resistant, corrosion-proof connection. Eliminates loose contacts common in lower-grade holders, ensuring stable performance even in bumpy driving conditions.
Car Audio-Optimized Safety: The ANL fuse design provides fast-acting overcurrent protection to shield amplifiers, wiring, and vehicle electrical systems from damage. The holder’s open-frame design allows for easy fuse inspection, while the raised terminal edges prevent accidental short circuits during installation.
Tool-Easy Installation: Compatible with standard car audio wiring (crimp or solder connections) and requires only basic tools (wrench/screwdriver) for setup. No specialized knowledge needed—perfect for DIY enthusiasts and professional installers alike.

Technical Specifications

Parameter	Specification
Fuse Type	ANL(Automotive High-Current)
Rated Current	100A（fuse included）
Rated Voltage	250V AC/DC
Compatible Wire Gauge	4AWG-8AWG(car audio power wires)
Housing Material	Flame-retardant ABS plastic(black)
Contact Material	Tin-plated copper(low-resistance)
Operating Temperature	-40℃ to 105℃

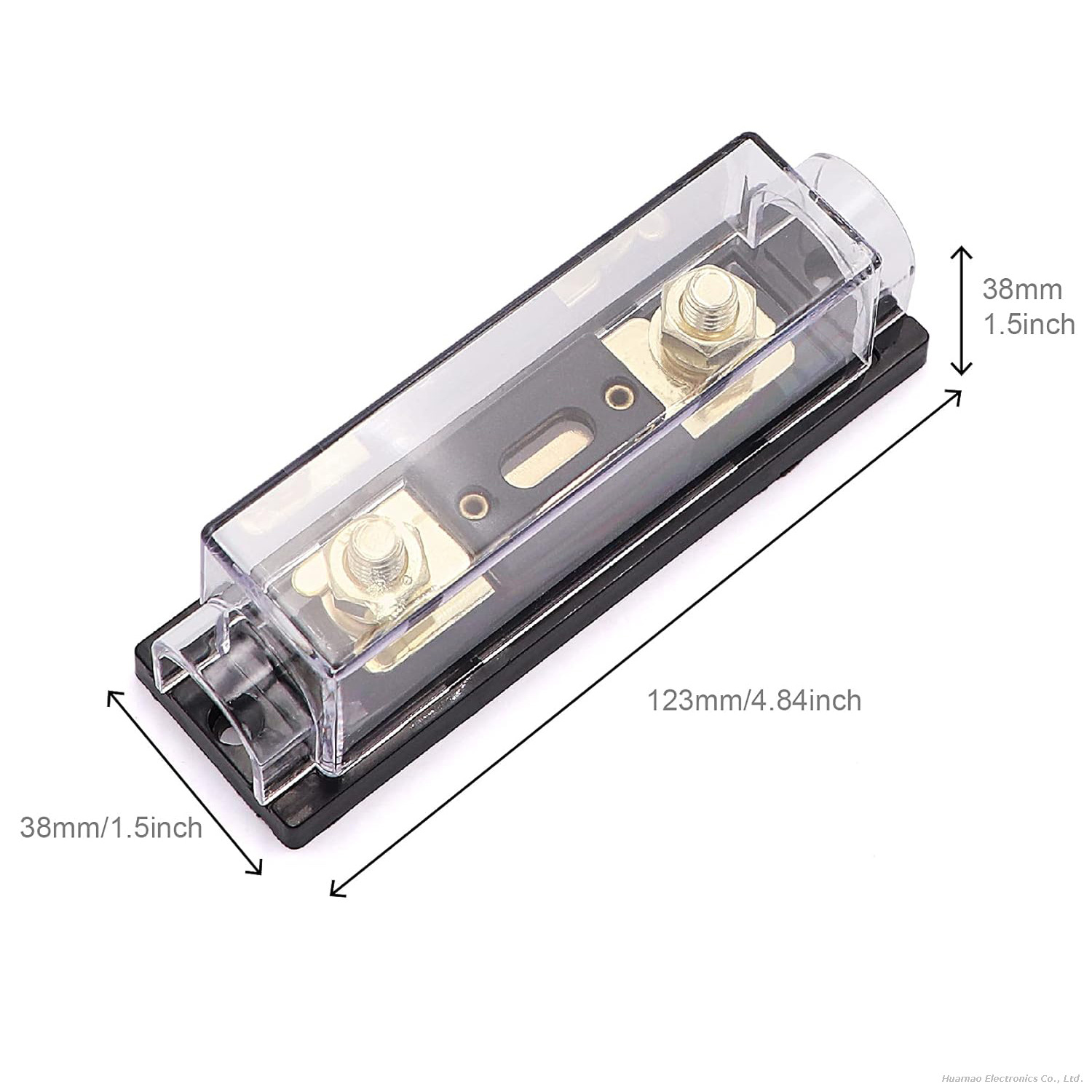

Dimensions（L x W x H）	85mm35mm20mm(approx.)
Certidication	UL,RoHS compliant

Ideal Application Scenarios

This 100A ANL fuse holder is purpose-built for:

Car Audio Amplifiers: Aftermarket mono-block, 2-channel, 4-channel amplifiers (500W–2000W+) in cars, trucks, SUVs, and motorcycles.
Custom Car Sound Systems: High-power subwoofers, component speakers, and multi-amplifier setups requiring dedicated overcurrent protection.
Automotive Auxiliary Power: High-current accessories (e.g., LED light bars, portable power inverters) that share the vehicle’s electrical system with audio equipment.
Professional Installations: Car audio shops and installers seeking reliable, code-compliant protection for client vehicles.
DIY Audio Upgrades: Enthusiasts building custom trunk setups or upgrading factory audio systems to handle higher wattage.

Quality Assurance & Compliance

Manufactured in ISO 9001-certified facilities, each fuse holder undergoes rigorous testing—including 100A current load tests, vibration resistance (per ISO 16750), and temperature cycling—to meet automotive-grade reliability standards. The included 100A ANL fuse is rated for fast-acting protection, complying with IEC 60269-1 standards. Every unit is inspected for terminal tightness, housing integrity, and fuse compatibility to ensure long-term performance in demanding car audio environments.

Bulk & Customization Options

We offer bulk pricing for car audio shops, installers, and manufacturers:

Custom wire pre-installation (cut to specific lengths: 15cm–50cm)
Branding/labeling options for resale
High-volume production support (1000+ units)
Color variations (custom orders only)

Whether you’re upgrading your personal vehicle’s audio system or sourcing reliable fuse holders for commercial installations, this 100A ANL solution delivers the high-current protection and durability car audio systems demand.
