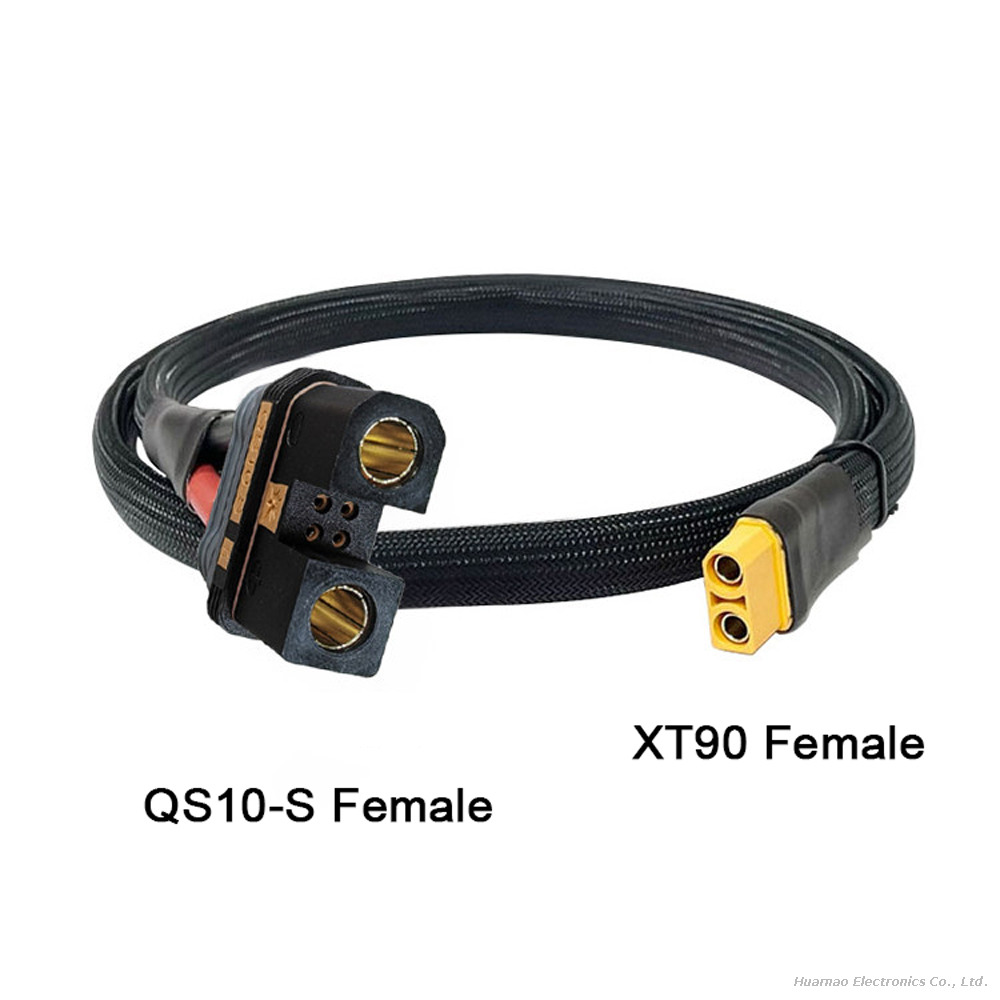

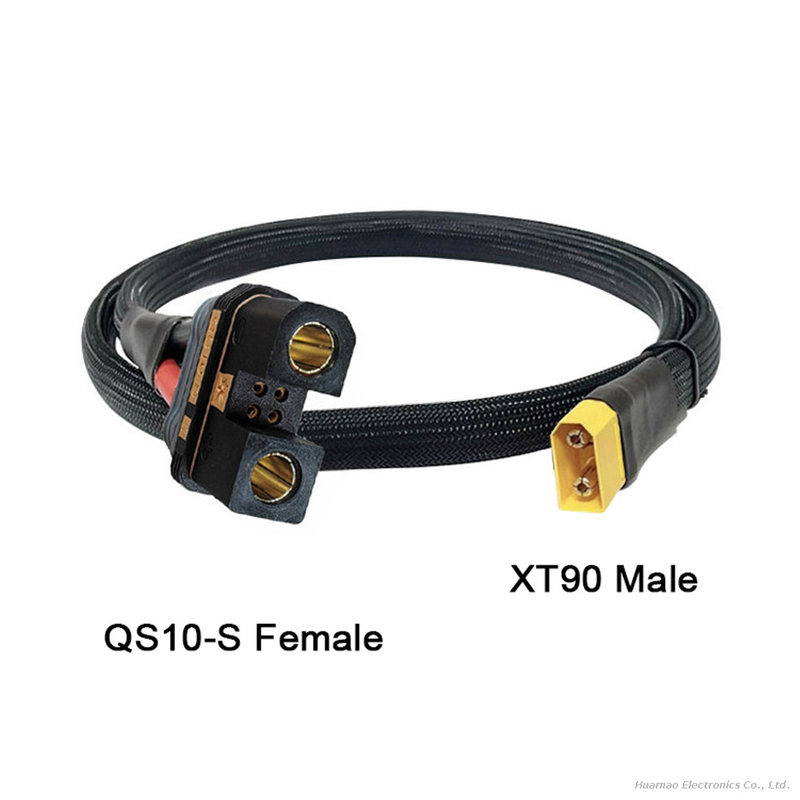

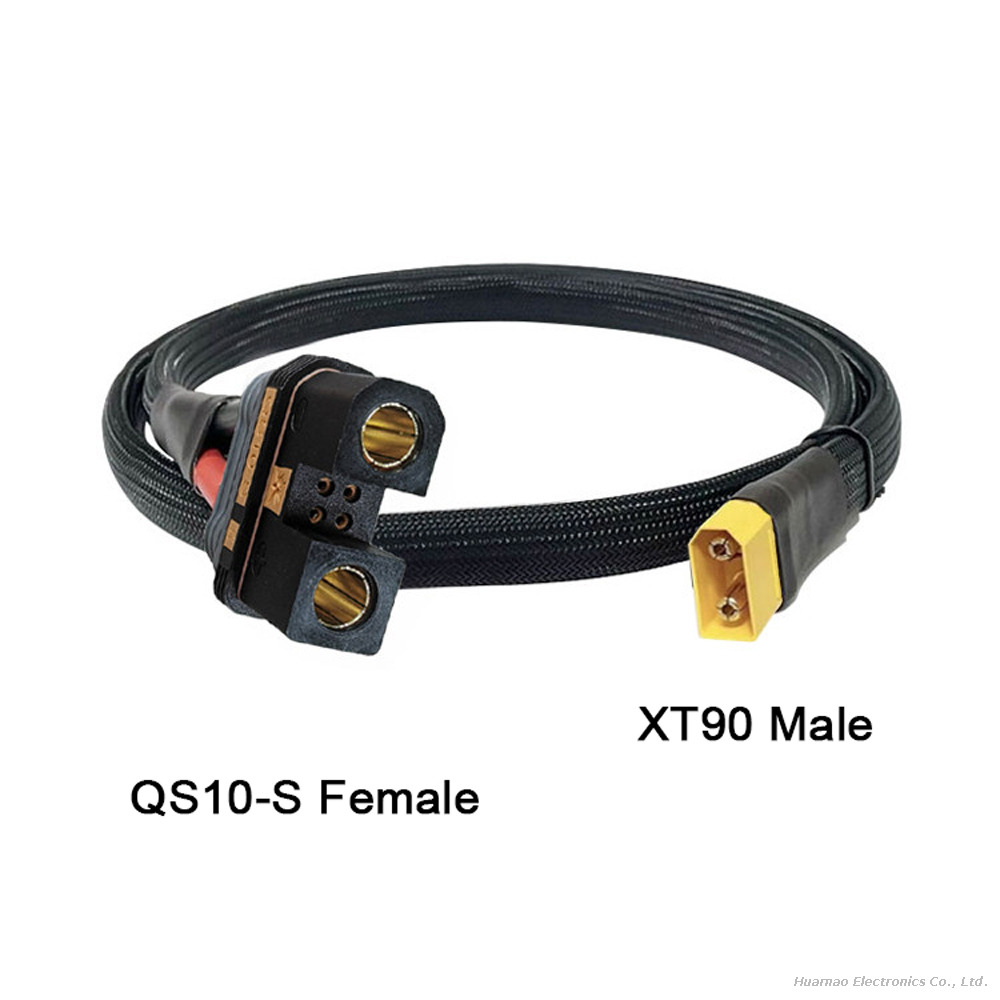

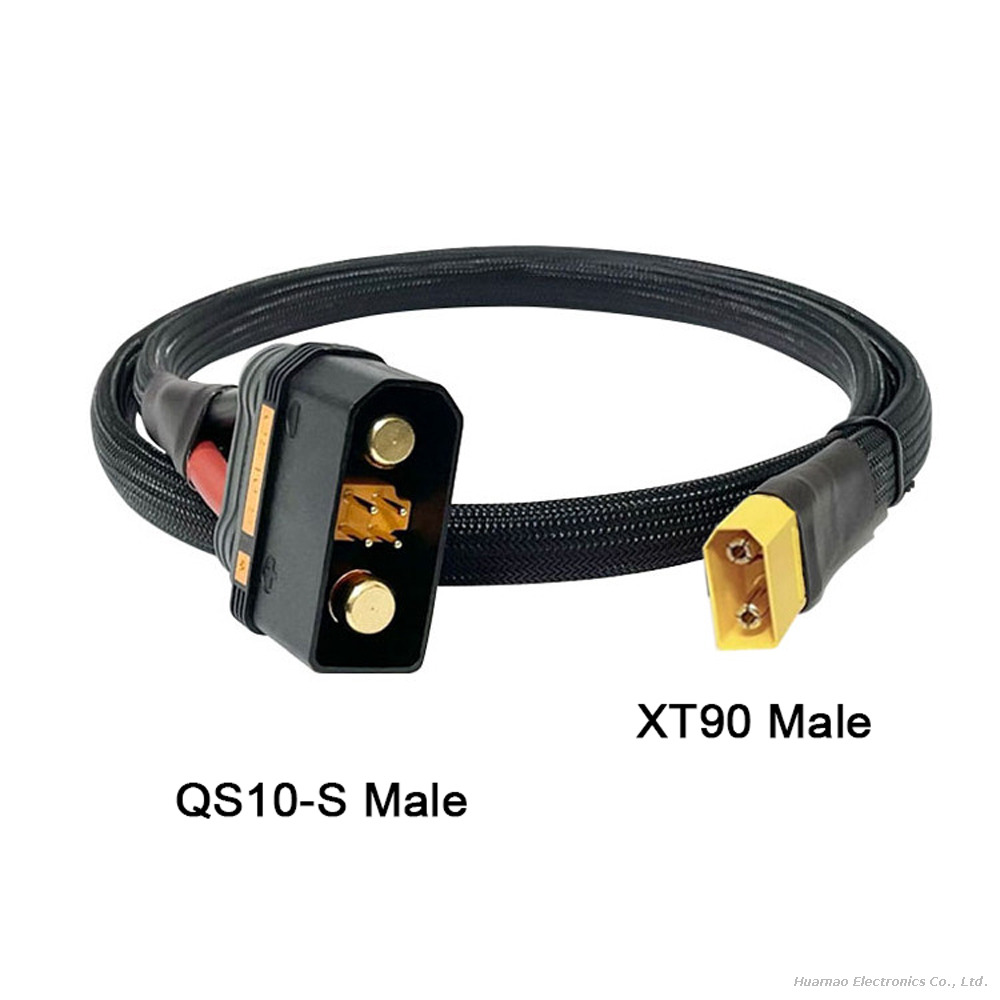

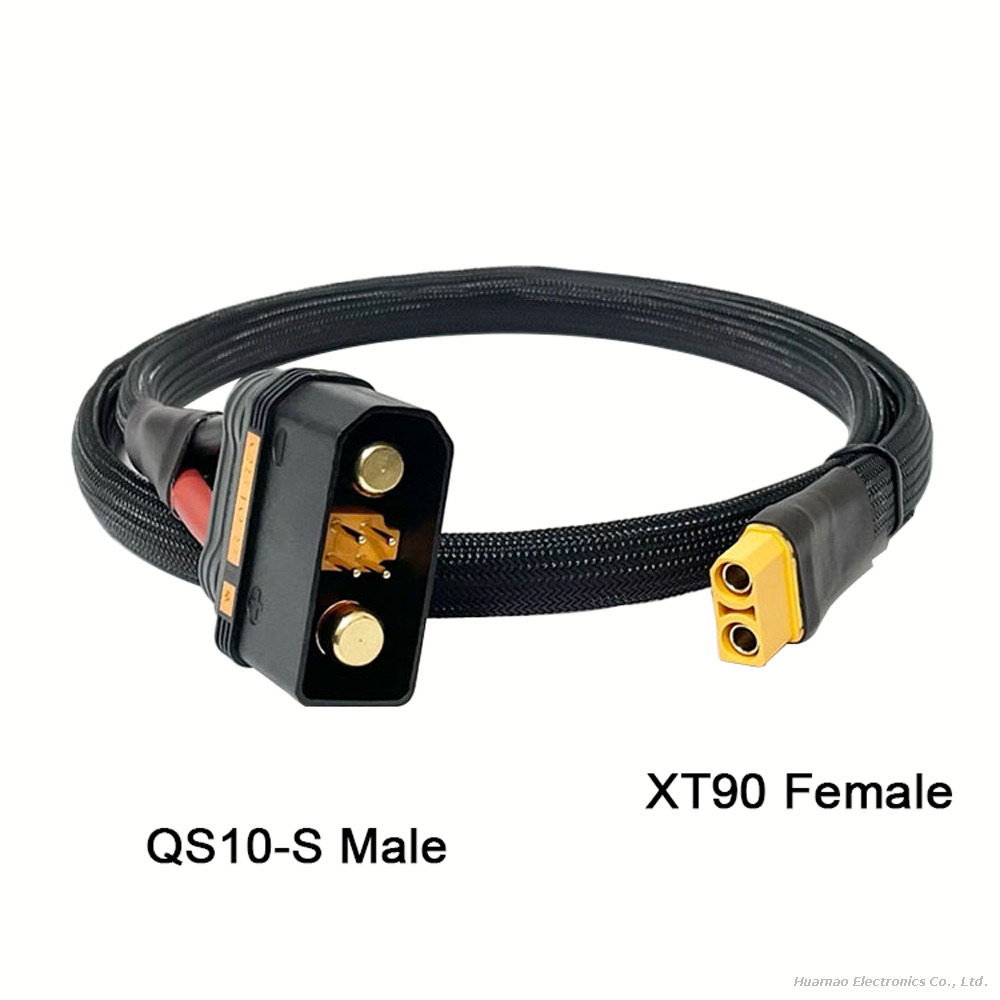

XT90 to QS10-S Anti Spark Plug Cable Male and Female Connector High Current for Energy Storage Module

XT90 to QS10-S Anti Spark Plug Cable Male and Female Connector High Current for Energy Storage Module

Custom conversion cable with XT90 male/female and QS10-S anti-spark plug terminals, built-in anti-spark pre-charge design, supports 100A stable high current transmission. Braided protective wire sleeve, thick gauge high temperature cable, widely used for household energy storage modules, lithium battery packs, RV power systems, large drone battery connection conversion.

Model:
XT90 to QS10-S
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon Buy at Aliexpress

XT90 to QS10-S connector cable Anti Spark connector cable male and female connector cable High Current Connector Cable high current adapter harness QS10 power connection cable

Product Description

QS10-S integrated anti-spark pre-charge structure can effectively eliminate arc spark when plugging high-voltage large-capacity batteries, protect contact terminals and extend service life. Matched thick high-current silicone wire + full wrap braided wear-resistant sleeve, resist bending, abrasion and high temperature; support customized cable length, wire cross-section, male/female combination scheme, comply with battery safety standards for energy storage equipment.

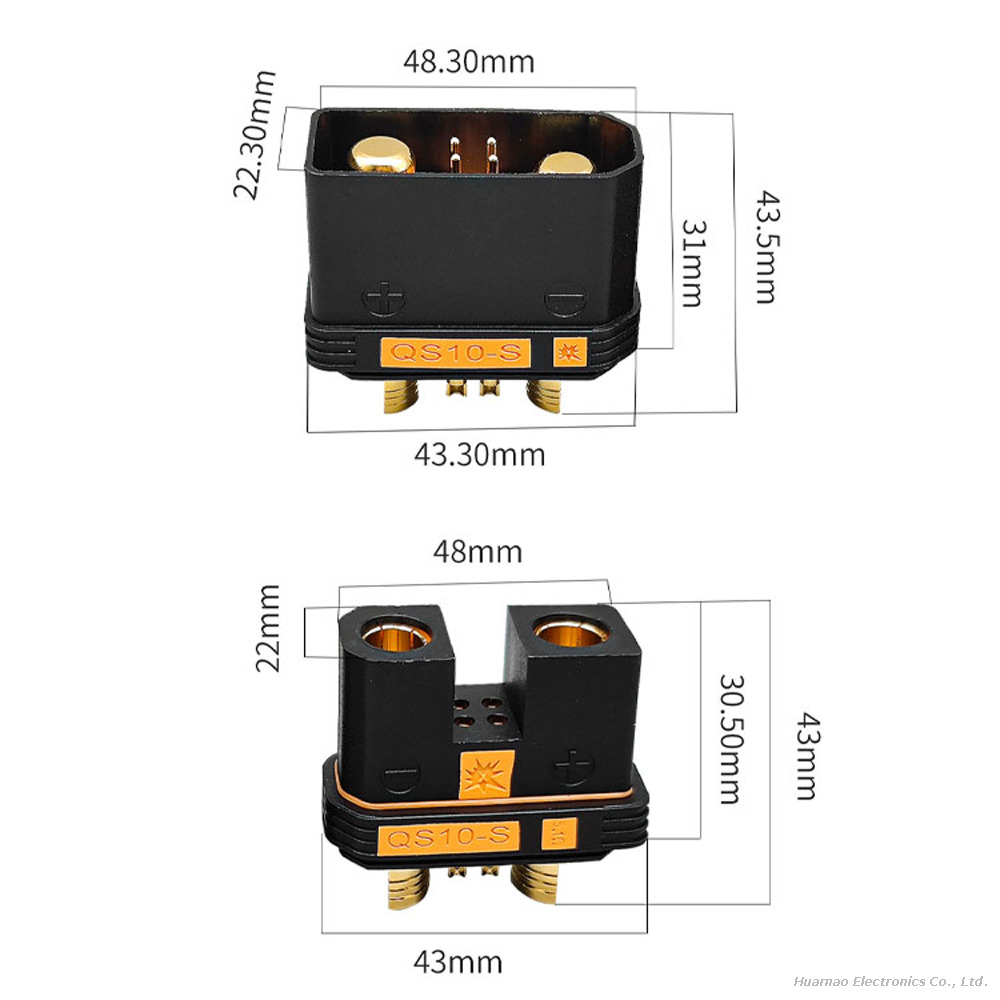

Specification

Product Type	XT90 Male/Female to QS10-S Anti-Spark Conversion Cable
QS10-S Rated Current	Continuous 100A / Peak 150A
XT90 Rated Current	Continuous 90A / Peak 120A
Rated Voltage	DC 1000V
Cable Type	High temperature resistant silicone wire (6~10AWG optional)
Operating Temperature	-40℃ ~ +180℃

Advantages

QS10-S Built-in Anti-Spark Pre-Charge Design
Pre-charge contact first powers on when plugging, avoids high voltage battery arc spark burn terminals, greatly improves battery connection safety for energy storage equipment.
Ultra High Current Load Capacity
Large gold-plated contact area + thick silicone wire, low heating under long-time high current work, no overheating risk for energy storage module long-term discharge/charge.
Dual Connector Universal Compatibility
Connect mainstream XT90 battery equipment to QS10-S anti-spark energy storage interfaces, solve different connector adaptation problems for battery packs, inverters and BMS modules.
Braided Sleeve Wear & Vibration Resistance
Full wrapped nylon braided outer layer, resistant to equipment internal friction, repeated bending and vehicle vibration, effectively extend harness service life.
High Temperature Safety Silicone Wire
Silicone insulation layer withstands high temperature inside energy storage cabinet, not easy to aging and cracking, stable performance in long-term closed equipment environment.
Strong Strain Relief & Stable Structure
Connector root reinforced with multi-layer heat shrink and crimp fixing, prevent wire breakage caused by pulling and bending in daily use.

Application

Household & Commercial Energy Storage Modules
Lithium iron phosphate energy storage battery pack, BMS management board, inverter conversion connection wiring
RV & Off-Grid Mobile Power Supply
RV on-board large capacity battery pack, portable off-grid power station interface conversion cable
Large Industrial Drone Battery Systems
Multi-cell large drone battery pack, charging cabinet XT90 to anti-spark QS10 transition harness
Electric Vehicle Auxiliary Battery Equipment
Modified vehicle auxiliary lithium battery, forklift small battery pack high current connection adapter wire
Solar Off-Grid Power Generation System
Solar combiner box, energy storage battery cabinet internal cross-brand connector conversion wiring

FAQ

Q1: What is the core advantage of QS10-S anti-spark compared to ordinary high current plugs?

A: QS10-S has independent pre-charge pin, pre-charges the circuit first during plugging, suppresses arc spark generation, avoids terminal ablation caused by frequent plugging high-capacity batteries and extends connector service life.

Q2: What wire gauge should be selected for 100A long-term use?

A: It is recommended to use 8AWG silicone wire for 100A continuous working current; for cable length over 2m, upgrade to 6AWG wire to reduce line voltage drop and heat generation.

Q3: Can this cable be used for charging and discharging of energy storage batteries at the same time?

A: Yes, the cable and connectors support bidirectional charge and discharge, but please match the positive and negative polarity strictly to avoid short circuit damage.

Q4: Is the QS10-S connector waterproof?

A: Standard QS10-S is indoor cabinet type non-waterproof connector, suitable for internal use of energy storage equipment; outdoor exposed use needs customized waterproof QS version.

Q5: What is the difference between XT90 and QS10-S applicable scenarios?

A: XT90 is widely used in drone model batteries with mature matching; QS10-S focuses on high safety anti-spark demand scenarios such as large energy storage battery packs, more suitable for high-capacity lithium equipment long-term use.
