You can find three main types of electronic cable today: coaxial, twisted pair, and fiber optic. Each type helps connect devices, send data, or give power to equipment. Coaxial cables send TV and internet signals. Twisted pair cables are good for computer networks. Fiber optic cables give the fastest data speeds. Picking the right cable makes your network faster and more reliable. For example, Cat8 twisted pair cables can go up to 40 Gbps. Lower categories have slower speeds. If you need things like a wiring harness or cable assembly, picking the right cable keeps your setup safe and efficient.
There are three main cable types: coaxial, twisted pair, and fiber optic. Each one is used for different things like TV, internet, or fast data transfer. Coaxial cables are good for TV and internet. They have strong shielding to stop interference. They can last a long time if you take care of them. Twisted pair cables are bendy and not expensive. They are great for home and office networks. Some types help lower electrical noise. Fiber optic cables are the fastest and go the farthest. They are best for data centers and networks that need to be ready for the future. Picking the right cable makes your system faster, safer, and more reliable. Think about what your project needs before you buy a cable.
There are three main types of electronic cable. These are coaxial cable, twisted pair cable, and fiber optic cable. Each one has its own design and job. People use these cables to connect devices, move data, or power things at home, work, or in factories. Let’s look at what makes each cable special and how to pick the best one for you.Picking the right electronic cable helps your network or wiring harness work better and stay safe.

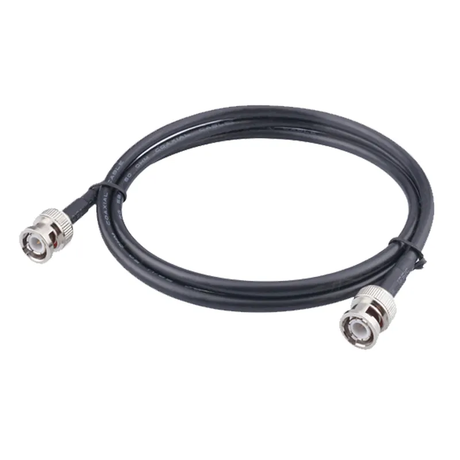

Coaxial cable has a wire in the center. Around it is an insulator, a metal shield, and a cover. You see this cable with TVs, internet, and some security cameras. The shield keeps outside signals away, so your connection stays clear.
Coaxial cables carry high-frequency signals.
The shield stops electromagnetic interference, so it is good for video and data.
You can use coaxial cable for short or medium distances.
Coaxial cable is strong against bending and crushing. If you install it right and use good connectors, you lose less signal and the cable lasts longer. But if you bend or crush it too much, it may not work well, so be careful.Coaxial cables are checked for bending, plugging in and out, and how well they block electricity to make sure they last.
Twisted pair cable has pairs of copper wires twisted together. This twist helps stop interference from other wires or devices. You find twisted pair cables in computer networks, phones, and many cable assemblies.
There are two kinds: Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP).
UTP is used in homes and offices. STP is better where there is a lot of electrical noise.
Twisted pair cables can be very fast, up to 10 Gb/s for Ethernet.
You can use twisted pair cable for local networks, wiring harnesses, and some factory controls. It is flexible and not expensive, so many people use it for electronic cable needs.
Fiber optic cable has thin glass or plastic strands that send data as light. You see this cable in fast internet, data centers, and big communication systems. Fiber optic cable is very fast and can go far without losing signal.
Fiber optic cables can carry a lot of data, up to 200 Gbps in new data centers.
They do not get interference from electricity, so your data is safe and steady.
Fiber optic cable can go up to 200 km, much farther than copper cables.
Fiber optic cable gives you less delay and more trust in your connection. This is great for things like online games, video calls, and money transfers.
Here is a table to help you compare the main types of electronic cable:
Cable Type | Maximum Distance | Bandwidth Capacity | Voice Channel Capacity |
|---|---|---|---|
Coaxial | 2.5 km | 100-1000 MHz | 24 |
Twisted Pair | 100 m (Cat 6) | Up to 10 Gb/s | 24 |
Fiber Optic | 200 km | 2.5+ Gb/s to 200+ Gb/s | 32,000+ |
Note: Fiber optic cable has the most bandwidth and goes the farthest. It is the best choice for new data centers and big networks.
When you pick an electronic cable, think about what you need. For home networks, twisted pair cable is usually enough. For TV or internet, coaxial cable works well. For fast and long-distance needs, fiber optic cable is best. Huamao Electronics has many cable assembly and wiring harness choices for your project.
Coaxial cable has layers that make it special. The center wire carries the signal. A thick insulator keeps the signal safe. A braided metal shield blocks outside signals. The outer jacket covers and protects the cable. This design gives coaxial cable strong shielding. The braid coverage and connector quality show how well it blocks unwanted signals. Rules like IEC 61000-4-21 and SCTE tell how to test shielding. Coaxial cable gives clear video and data, even with lots of electrical noise. If you install and ground it right, your connection stays stable.
Tip: Always look for damage or loose connectors. Even a small hole or bad connection can make the cable shield weaker.
Twisted pair cable has copper wires twisted together in pairs. The twist helps stop interference from other wires or devices. You can pick Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP). STP is better if there is a lot of interference. Cat 6A twisted pair cables can cut crosstalk by 25% more than Cat 6. This means you get a cleaner signal and less noise. Standards like ANSI/TIA-568-C and ISO/IEC 11801 make sure twisted pair cable is safe and works well. These rules also help you match your cable with other products, like a wiring harness or terminal connector.
Twisted pair cables are flexible and easy to use.
They work well for networks and phones.
Shielding and twisting both help stop interference.
Fiber optic cable is fast and goes far. It uses thin glass or plastic fibers to send data as light. This means it does not get electrical interference. There are two main types: single-mode and multimode. Single-mode fiber has a small core and can send data up to 140 km. Multimode fiber is good for shorter distances, up to 2 km. Tests show single-mode fiber can go over 100 Gbps, much faster than copper cables. Rules from groups like IEC and UL make sure fiber optic cables are safe and work well.
Feature | Single-Mode Fiber | Multimode Fiber |
|---|---|---|
Core Diameter (µm) | 8-9 | 50-100 |
Max Distance (km) | Up to 140 | Up to 2 |
Bandwidth Capacity | 100+ Gbps | 10-400 Gbps |
Fiber optic cable is best for fast, long-distance data in modern networks.
When you pick an electronic cable, check for safety marks and if it works with your devices. Standards from ANSI, IEC, and UL help you know your cable will last and work well.
Coaxial cables are used in homes and businesses. They are important for cable TV and internet. Almost half of these cables help send internet data. Over 40% are used for cable TV. This makes coaxial cable a top pick for clear video and fast internet. You also see them in security cameras and old network setups. Their strong shield keeps signals steady, even with lots of electronics around.
Application | Market Share (2025) |
|---|---|
Internet Data Transfer | 47.8% |
Cable Television Industry | 42.1% |
Coaxial cables give you good TV and internet service. They are simple to set up and last a long time. That is why many homes use them.
Twisted pair cables link computers, phones, and other devices in LANs. You find them in offices, schools, and smart buildings. These cables are used in wiring harnesses and terminal connectors. Many companies pick twisted pair cables because they are cheap and flexible. You can make your network better by using Cat6A or Cat7. These types are faster and have less interference. Twisted pair cables are also good for factories and smart city projects.
Picking the right twisted pair cable makes your network safer and faster. This helps your devices talk to each other quickly and clearly.

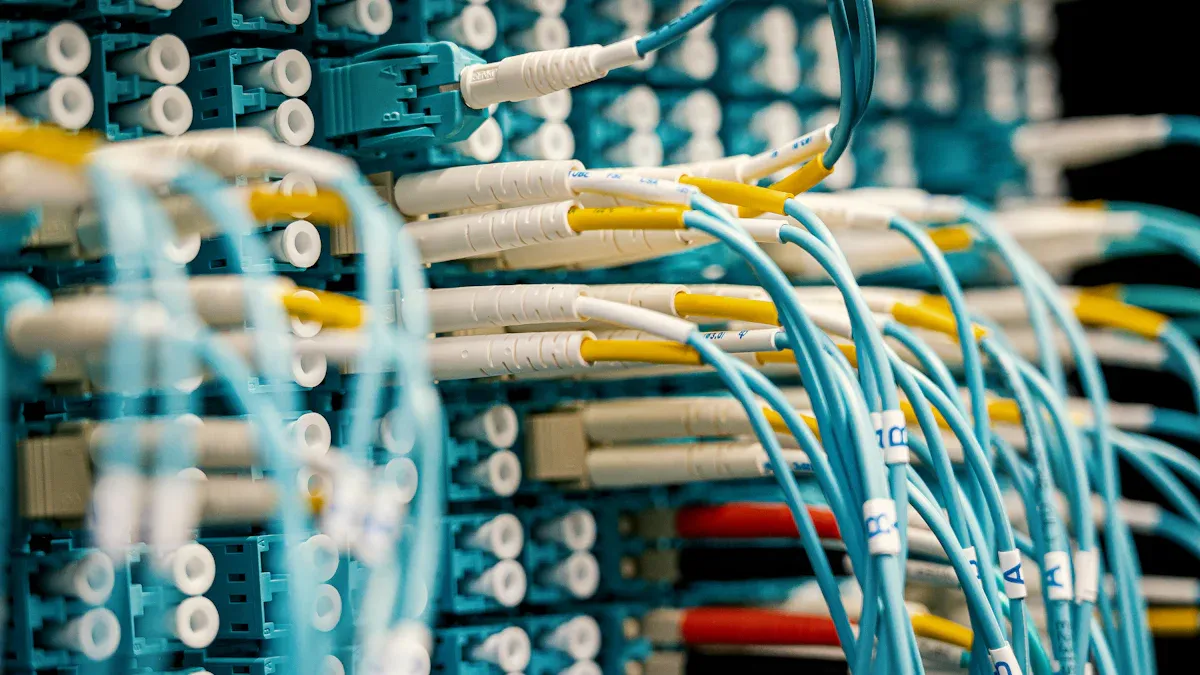

Fiber optic cables are used for fast internet and data centers. They are needed where lots of data must move quickly. You see them in cloud computing, 5G, and big server rooms. Fiber optic cables are light and easy to handle. This saves time and money when you install them. They keep your data safe from electrical noise and work well over long distances. Data centers use fiber optics to connect servers and link to the internet. This makes fiber optic cable very important for modern networks.
Fiber optic cables can go from 10 Gbps to 100 Gbps or more.
They help data centers grow and use new technology.
Their design helps with cooling and saves energy.
Using fiber optic cable gives you the best speed for long-distance data. It is the best choice for networks that need to be ready for the future.
Choosing the right cable—coaxial, twisted pair, or fiber optic—keeps your system safe and working well. Huamao Electronics has many cable assembly and wiring harness options for your project.
You have learned about coaxial, twisted pair, and fiber optic cables. Each cable is good for different things. Look at the table below to see how they compare:
Cable Type | Data Speed | Interference Resistance | Distance | Cost |
|---|---|---|---|---|
Coaxial | Moderate | Good | Medium | Balanced |
Twisted Pair | Lower | Moderate | Short | Low |
Fiber Optic | Highest | Excellent | Very Long | High |
Think about what your project needs before picking a cable. The right cable, wiring harness, or terminal connector keeps your system safe and working well. Make sure the cable fits your space and job for the best results.
There are three main types of electronic cable. These are coaxial cable, twisted pair cable, and fiber optic cable. Each type is best for different jobs like TV, internet, or fast data. Picking the right cable helps your wiring harness or cable assembly work better.
Think about what you need for speed, distance, and blocking interference. Twisted pair cables are good for home networks. Fiber optic cables are best for long distances or fast speeds. Coaxial cables work well for TV and internet.
A wiring harness puts many cables or wires together in a group. It helps keep cables neat and safe inside machines or cars. This makes your setup tidy, safe, and easy to fix. Huamao Electronics can make custom wiring harnesses for many jobs.
You can use terminal connectors with most cables, like twisted pair and coaxial cables. These connectors help you join cables safely and tightly. Always pick the right connector for your cable to get the best results.
