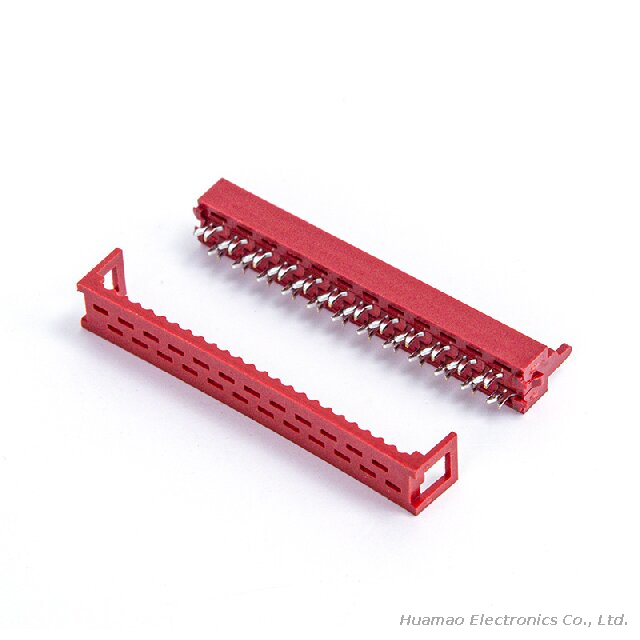

TE 8‑215079‑8 belongs to TE Connectivity Micro‑MaTch series, red plastic housing female‑on‑board receptacle, 1.27 mm pitch, 18‑pin two‑row structure, through‑hole PCB soldering installation.
Micro‑MaTch adopts exclusive positioning spring contact structure, which absorbs tiny displacement caused by equipment vibration and thermal expansion, effectively avoids fretting‑corrosion failure of tin‑plated contacts and ensures gas‑tight stable connection.We can provide finished harnesses: assemble IDC crimp ribbon cable or discrete wires, customize cable length, pin‑out definition and strain‑relief processing. Mainly applied for industrial measuring instruments, smart household appliances, set‑top boxes, audio equipment and control module internal interconnection.
Specification
Part Number
| 8-215079-8(Micro-Match) |
| Pitch | 1.27mm |
| Connection Type | Board to Board/Wire to Board |
| Rated Current | 1A per contact |
| Rated Voltage | 100V AC/DC |
| Operating Temperature | -40℃ to +125℃ |
| Applicable Cable | 28AWG flat ribbon cable for IDC termination |
Advantages
Additional positioning spring absorbs micro‑movement caused by vibration & temperature change, maintains gas‑tight contact, greatly reduces tin‑contact fretting‑corrosion risk, improves long‑term reliability
Compact 1.27 mm Fine‑Pitch Layout
Small footprint saves PCB space, supports high‑density multi‑signal concentrated interconnection inside compact equipment.
Red Housing for Easy Identification
Distinctive red plastic housing, convenient for production assembly visual identification, prevents mis‑insertion.
Dual‑Use for Board‑to‑Board & IDC Ribbon‑Cable Harness
Can directly mate with board‑mount male header for board‑to‑board; or cooperate with IDC male‑on‑wire to process ribbon‑cable wire‑to‑board harness.
Through‑Hole Kinked‑Solder‑Tail Retention
Kinked solder tails enhance PCB mechanical retention, resist pulling force and vibration in industrial environment.
Mature Mass‑Production‑Proven System
Micro‑MaTch series is widely adopted in instrument, home appliance and communication industries; complete tool‑chain supports large‑volume harness manufacturing.
Application
Industrial Instrument & Control Equipment
Measuring instruments, PLC auxiliary modules, industrial control board internal signal interconnection.
Household Appliances & Smart Home
Set‑top boxes, high‑end audio, large home‑appliance control‑module internal wiring.
Communication & Office Electronic Devices
Network terminal equipment, printer and copier PCB‑to‑PCB connection.
Automotive‑Related On‑Board Electronic Modules
Car radio, navigation and dashboard auxiliary signal harness (non‑power‑circuit).
Consumer Electronic Products
High‑end multimedia equipment, embedded device internal multi‑channel signal transmission.
FAQ
Q1: What is TE 8‑215079‑8?
A: It is Micro‑MaTch series 18‑pin two‑row red female‑on‑board receptacle, 1.27 mm pitch through‑hole soldering, famous for anti‑fretting‑corrosion contact structure, supports board‑to‑board and IDC ribbon‑cable harness connection。
Q2: Can it be used for IDC flat ribbon cable?
A: It needs to match the supporting Micro‑MaTch male‑on‑wire IDC connector to terminate flat ribbon cable; 8‑215079‑8 itself is the board‑mount female socket.
Q3: What is per‑pin rated current?
A: 1 A per contact, mainly used for signal and small‑power circuits, not for high‑current power loops.
Q4: What is the advantage of Micro‑MaTch compared with ordinary fine‑pitch connectors?
A: The built‑in positioning‑spring structure effectively inhibits fretting‑corrosion, greatly improves connection reliability under vibration and temperature‑cycling conditions。
Q5: Is this connector waterproof?
A: Standard version is non‑waterproof, for internal device application only, not suitable for exposed wet environment.
