1.2mm Pitch SMK CPL6506-0101F Connector Cable for Smart Home Appliances

SMK CPL6506-0101F 1.2mm Pitch Ultra-thin Terminal Wire for Smart Home Appliances

This ultra-low-profile wire-to-board crimp wiring harness adopts original SMK CPL6506-0101F 6-position plug housing belonging to CPL-1.2 ultra-thin series, fixed 1.2mm single-row fine pitch, industry-leading ultra-low 1.2mm mated stacking height. Unique top vertical insertion + horizontal wire outlet design, dual-side clamping gold-plated contact terminals, rated 2A/30V AC/DC with AWG28 wire, wide temperature range -25℃ ~ +85℃, UL94 V-0 flame retardant thermoplastic housing, fully RoHS lead-free compliant. We support full OEM customization of cable length, AWG wire gauge, wire color and dual-end connector collocation, specially optimized for internal power & signal wiring of slim smart home appliances, wearable electronics, tablet PCs and miniature industrial control modules.

Model:
SMK CPL6506-0101F
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon Buy at Aliexpress

SMK CPL6506-0101F Ultra-Thin Terminal Wire SMK Smart Home Wire Precision Terminal Wire 6Pin Terminal Wire Ultra-Thin Precision Wire Electronic Connection Wire SMK Terminal Wire Internal Appliance Wire

Product Description

This pre-crimped finished wiring assembly uses complete authentic SMK CPL-1.2 series matched components, all parameters cross-verified from SMK official global datasheet:

Plug Housing PN: CPL6506-0101F, 6-circuit single-row crimp plug, 1.20mm center pitch, natural white flame retardant plastic
Mating PCB Receptacle: CPL6106-0101F SMT surface mount female wafer for PCB reflow soldering
Dedicated Crimp Terminal: SMK CPL series tin/gold-plated phosphor bronze contact, exclusive for AWG28~AWG30 ultra-fine discrete wire
Matching Wire Spec: AWG28/AWG30 flexible stranded electronic wire, insulation outer diameter φ0.50~φ0.63mm

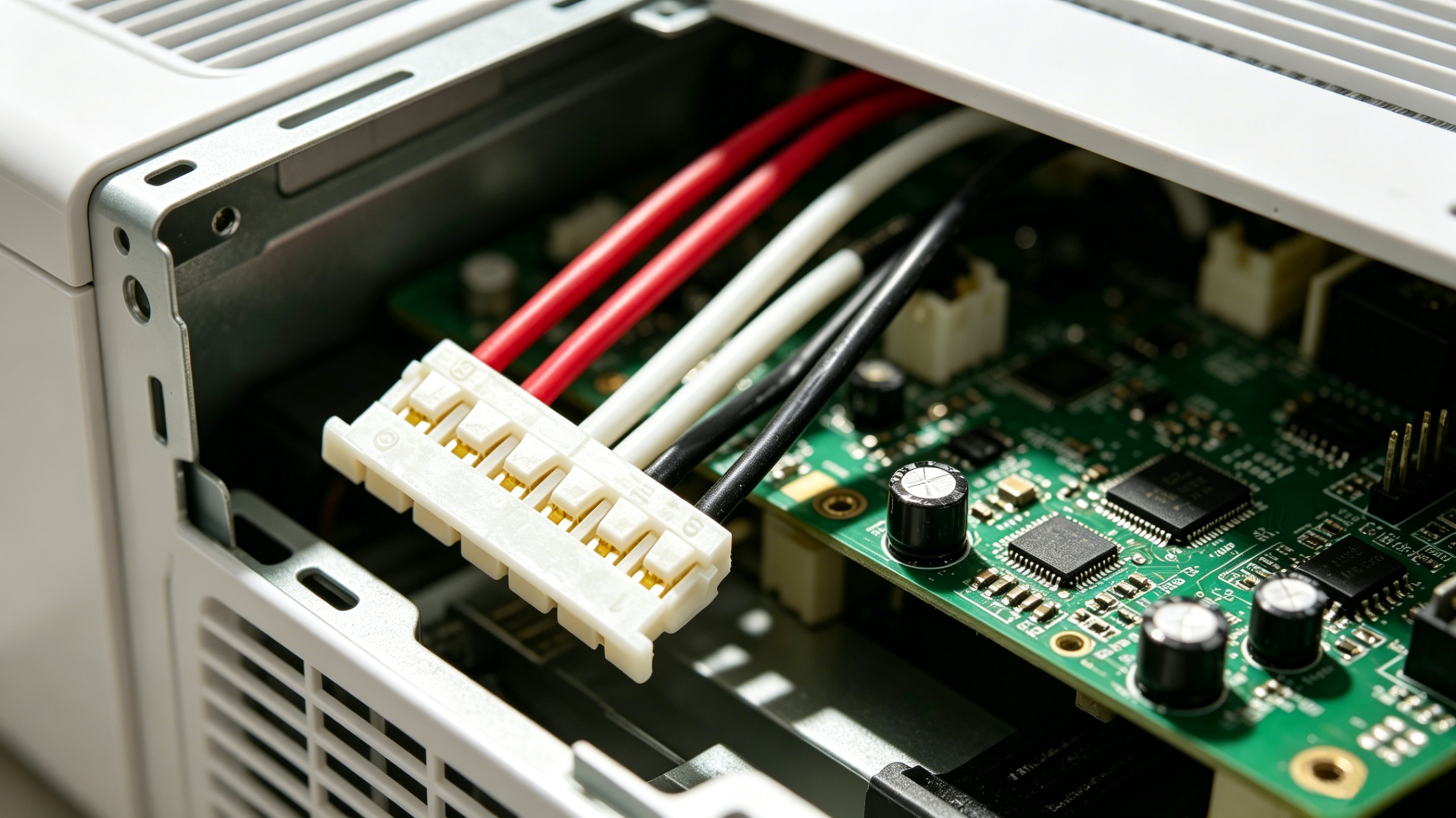

SMK CPL6506-0101F 1.2mm Pitch Ultra-thin Terminal Wire for Smart Home Appliances

The connector adopts a space-saving structural design: vertical top-entry mating with horizontal parallel wire outlet, wires extend flat against PCB surface without vertical bending dead angles, perfectly fit ultra-narrow internal space of slim smart home control panels, small kitchen appliances and wearable equipment. The dual-side clamping contact structure holds plug terminals on both upper and lower sides, greatly improving anti-vibration performance and effectively avoid fretting corrosion & intermittent contact faults under long-term equipment vibration.

Built-in elastic housing lance firmly locks crimp terminals inside the shell, preventing terminal back-out during wire pulling and assembly operations. Gold-plated copper alloy contacts maintain ultra-low stable contact resistance for long-term stable transmission of low-current sensor signals and miniature battery power supply. Multi-color coded thin wires simplify circuit sorting during mass assembly of smart home equipment.

Every finished harness undergoes 100% strict quality inspection before shipment, including continuity test, terminal pull retention force test, 500V AC high voltage withstand test and thermal cycling aging test. We supply single-end plug finished cables and cross-type dual-connector conversion harness OEM solutions for smart home appliance, consumer electronics and miniature sensor manufacturers.

Specifications

Plug Housing Part Number	SMK CPL6506-0101F,6Pin single row crimp plug
Connector Series	SMK CPL-1.2 ultra-thin wire to board crimp series
Center Contact Pitch	1.20mm single row
Mated Stacking Height	Ultra-low 1.2mm industry-leading slim profile
Mating SMT PCB Receptacle	CPL6106-0101F vertical SMT wafer
Applicable Wire Gauge	AWG28-AWG30 tinned stranded copper electronic wire
Customizable Services	Cusom cable length,wire criss-section,wire colorr order

Advantages

Industry-leading 1.2mm ultra-low mated height: 1.2mm fine pitch + ultra-flat stacking profile, drastically save limited internal space of slim smart home control panels and mini household appliances, realize thinner equipment structural design.
Horizontal flat wire outlet innovative layout: Wires run parallel to PCB without vertical bending, avoid wire fatigue fracture caused by repeated bending inside narrow device cavities.
Dual-side clamping anti-vibration contact design: Upper & lower double-sided holding terminals effectively resist vibration, tilt and fretting corrosion, stable signal transmission for long-running smart home equipment such as range hoods, air purifiers and humidifiers.
Built-in elastic terminal locking lance: Simple insertion with reliable retention force, reduce defective rate of terminal shedding during mass production assembly.
Mini 2A current capacity in tiny package: Balances ultra-small size and low-power power supply demand, simultaneously transmit multi-channel sensor signals and small battery power inside smart devices.
Flexible full OEM customization support: Arbitrary adjustable cable length, wire thickness and wire color sequence according to smart home equipment circuit schematics; small prototype sample orders available for product development verification.

Application

Smart Home Small Household Appliances:Smart air purifier mainboard sensor wiring, mini humidifier control panel signal harness, intelligent range hood touch module internal wire, small kitchen appliance (air fryer, yogurt maker) power signal connecting cable
Wearable Smart Electronic Devices:Smart watch built-in lithium battery charging wire, TWS wireless earbuds power signal harness, fitness tracker miniature sensor internal wiring
Slim Portable Consumer Electronics:Tablet built-in camera thin signal cable, portable handheld beauty device battery connecting wire, mini handheld fan control board terminal wire
Miniature Industrial & IoT Sensing Equipment:Small environmental monitoring sensor power harness, miniature door/window magnetic contact signal wire, compact intelligent locker control module internal wiring
Medical Portable Detection Instruments:Mini handheld blood glucose detector internal thin wire, wearable vital sign monitoring equipment low-current signal harness

FAQ

Q1: What series, pitch and pin count does SMK CPL6506-0101F belong to?

A: It belongs to SMK CPL-1.2 ultra-thin wire-to-board connector series, 6-position single-row crimp plug with fixed 1.20mm center pitch, all specifications sourced from official SMK global datasheet.

Q2: What is the rated current and voltage of this connector?

A: When matched with AWG28 wire, each pin supports stable 2A continuous transmission, maximum rated voltage 30V AC/DC, only applicable to low-current signal and miniature power supply circuits.

Q3: What matching PCB receptacle mates with CPL6506-0101F plug?

A: Exclusive matching SMT PCB female wafer model is CPL6106-0101F, vertical surface mount type for automatic reflow soldering production lines.

Q4: What is the biggest advantage of dual-side clamping contact structure?

A: The contact holds the terminal from upper and lower sides at the same time, greatly improves anti-vibration performance, avoids intermittent signal disconnection faults caused by long-term vibration of smart home appliances.

Q5: Can different connector types be matched on the opposite cable end?

A: Yes, we provide OEM conversion harness service, the opposite end can be equipped with other SMK/JST/Hirose miniature fine-pitch connectors as required by customer smart home equipment drawings and circuit schematics.
