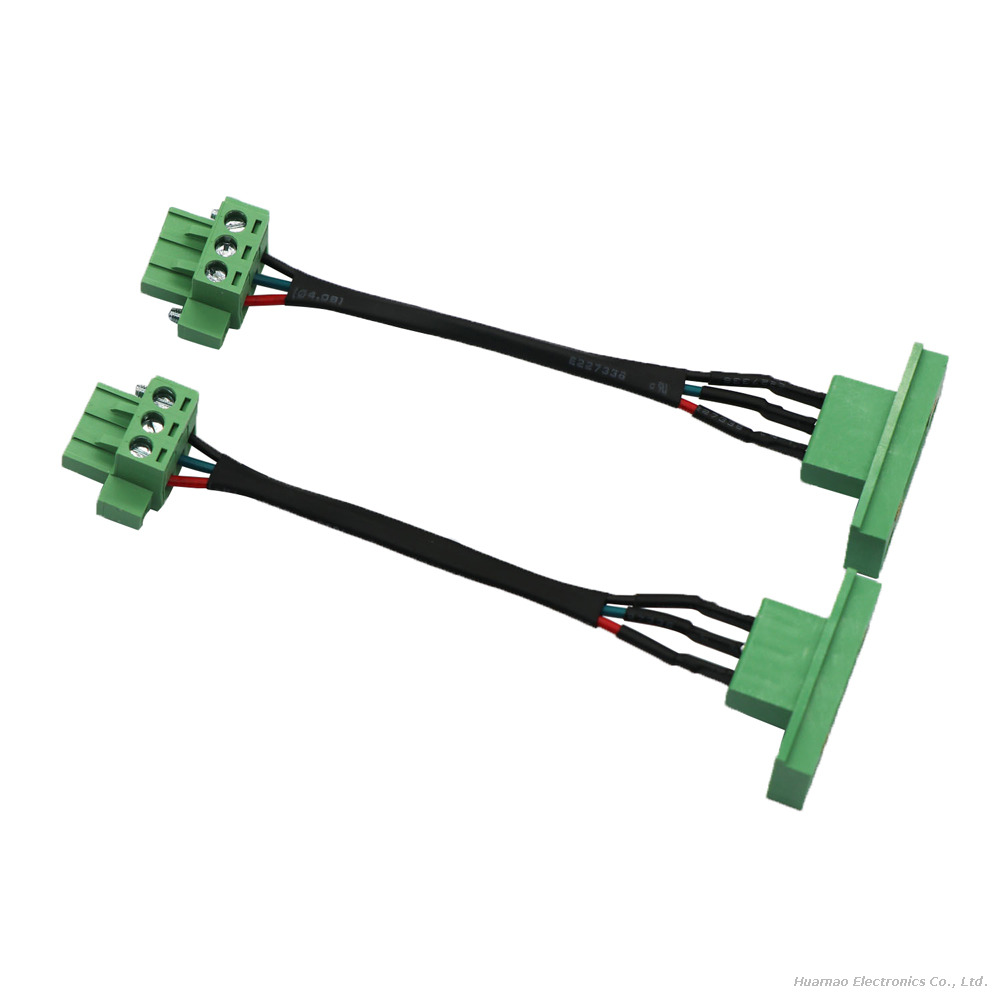

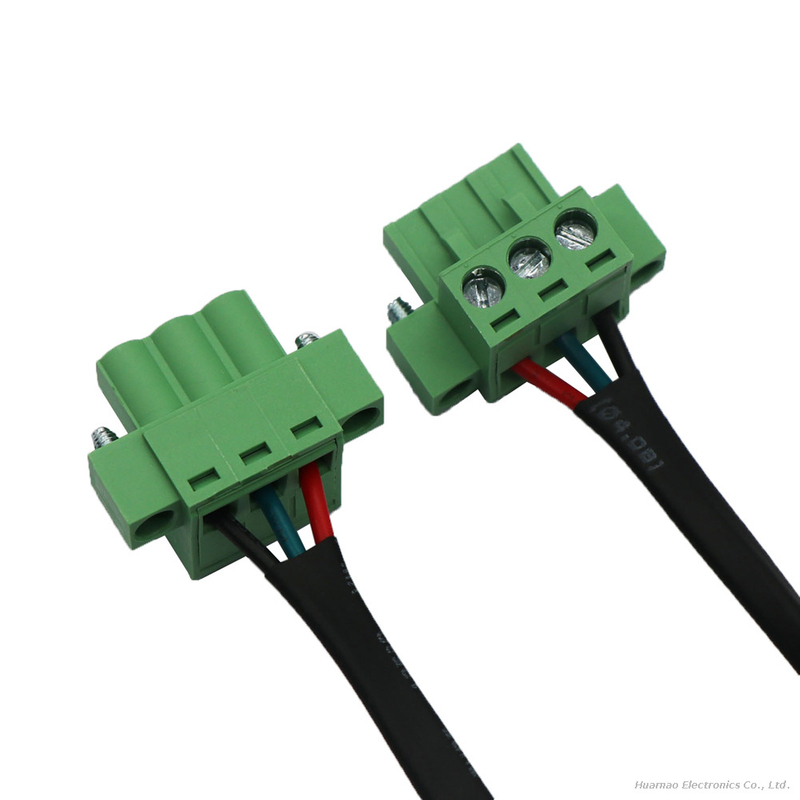

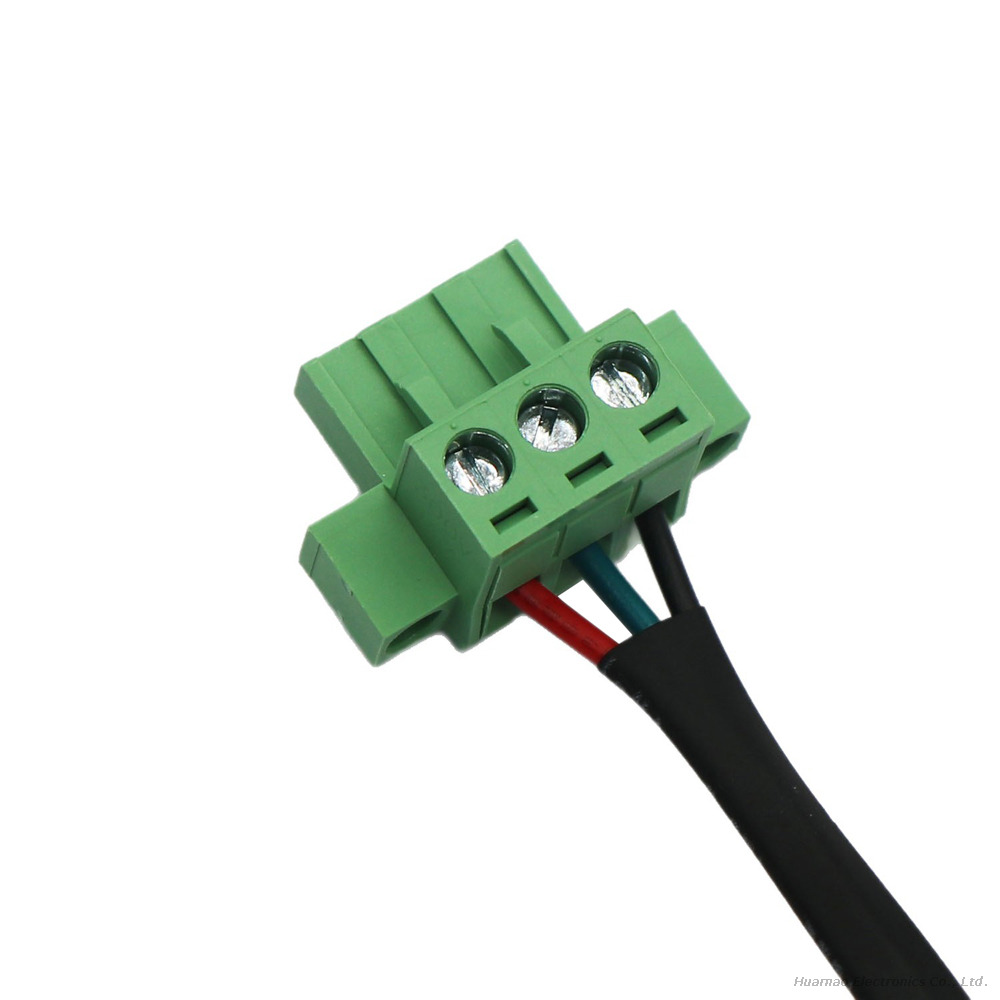

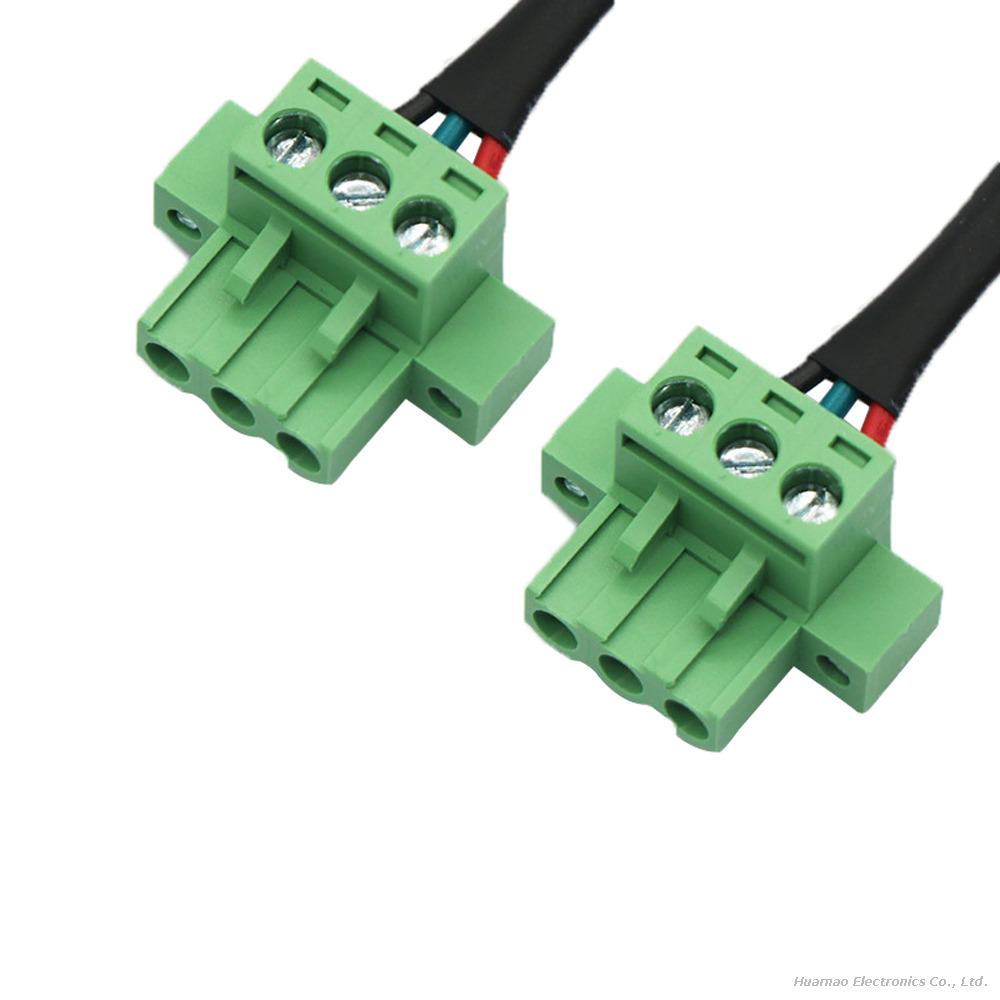

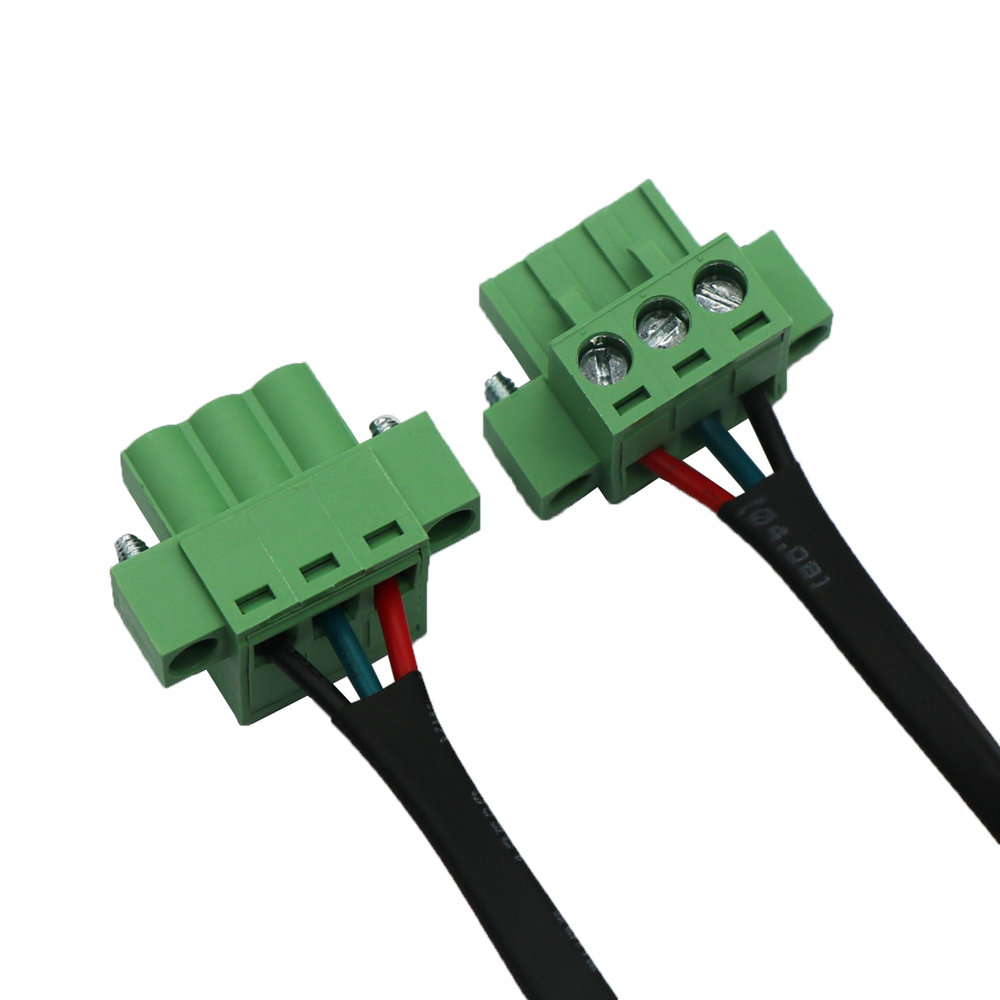

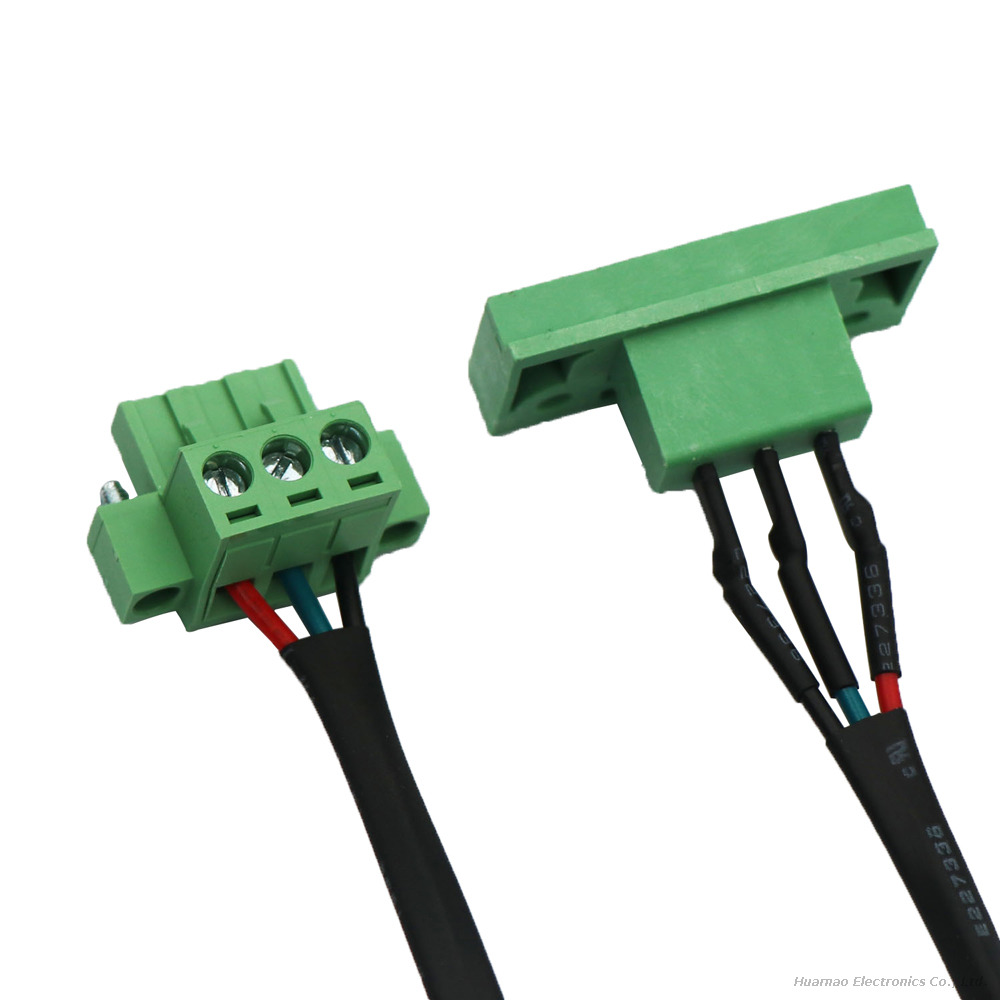

The 5.08mm Pluggable Terminal Block Wire Harness redefines industrial connectivity with its modular design and robust construction. Featuring a standard 5.08mm pitch – the industry benchmark for PLC and automation systems – this male-female connector pair supports 2-12 pole configurations to accommodate diverse signal and power transmission needs. The pluggable design enables tool-free disconnection for rapid maintenance, while the secure mating mechanism ensures vibration-resistant performance in high-stress industrial environments.
Advantages
Industrial-Grade Durability: PA66 V-0 flame-retardant housing and tin-plated phosphor bronze contacts resist corrosion, temperature extremes, and mechanical wear for long-term reliability
Dual Termination Options: Screw-clamp (secure torque 0.5Nm) for heavy-duty applications and push-in spring (tool-free) for fast wiring in high-volume production
Vibration Resistant: Secure mating interface meets IEC 60068-2-6 vibration standards, ensuring connection stability in industrial machinery and mobile equipment
Modular Flexibility: 2-12 pole configurations and stackable design enable customized circuit layouts, supporting system expansion and space optimization
Compliance Assurance: Fully compliant with RoHS 2011/65/EU, UL, CSA, and IEC 60947-7-4 standards, meeting global industrial safety requirements
Low Contact Resistance: ≤20 mΩ contact resistance minimizes signal loss and heat generation, ensuring efficient power/signal transmission
Error Prevention: Polarized design and color-coded housing eliminate reverse mating, reducing installation errors and system downtime
Applications
Ideal for a wide range of industrial and electronic applications requiring secure, modular connectivity:
PLC (Programmable Logic Controller) input/output (I/O) modules
Industrial automation systems (sensors, actuators, relays)
Power distribution units and junction boxes
Instrumentation and test equipment
HVAC control systems
Automotive electronics (heavy-duty vehicles, RVs, marine)
Telecommunications and data center equipment
Medical devices (diagnostic equipment, monitoring systems)
