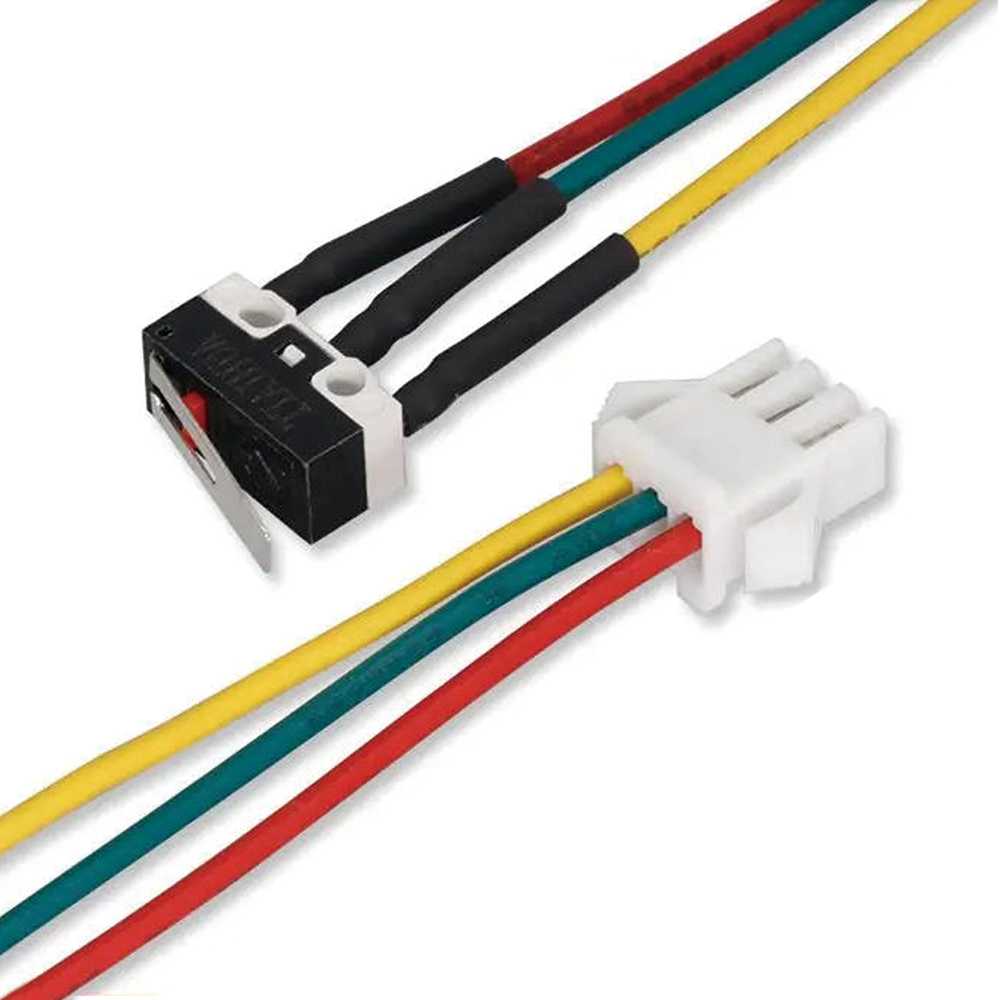

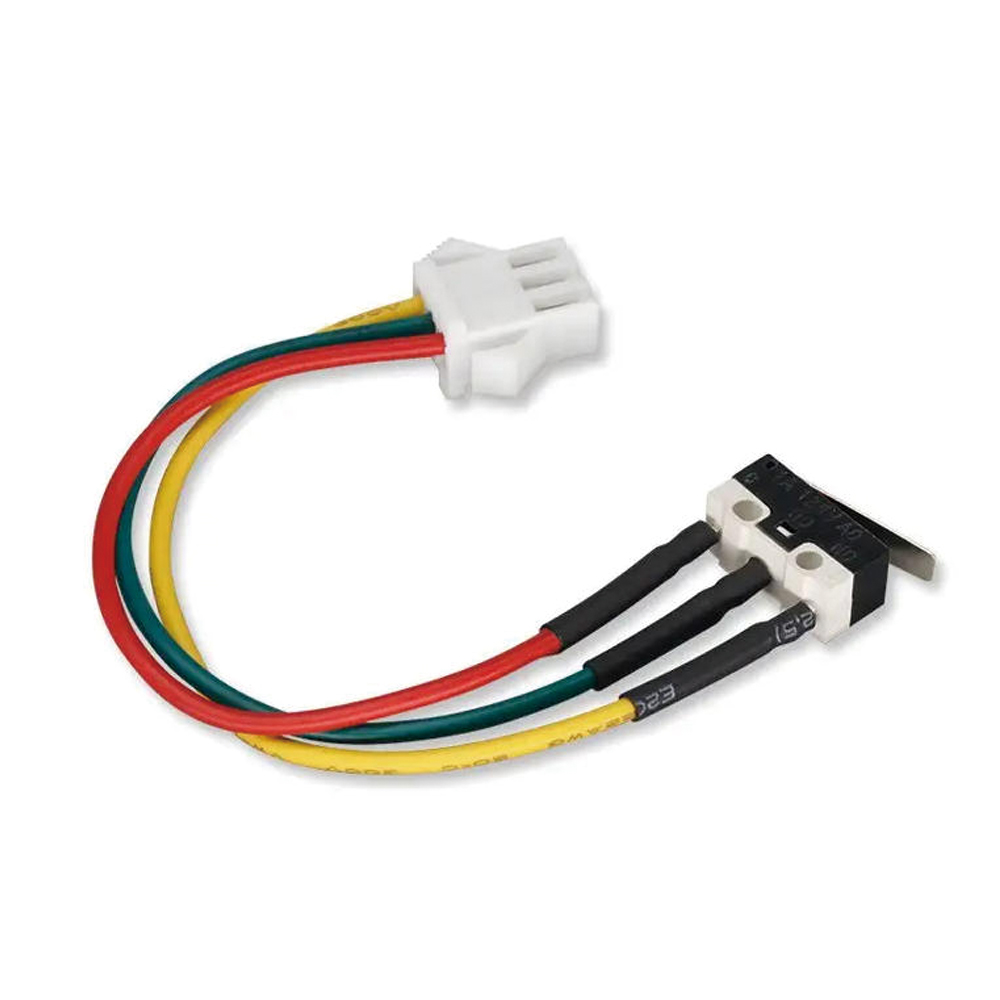

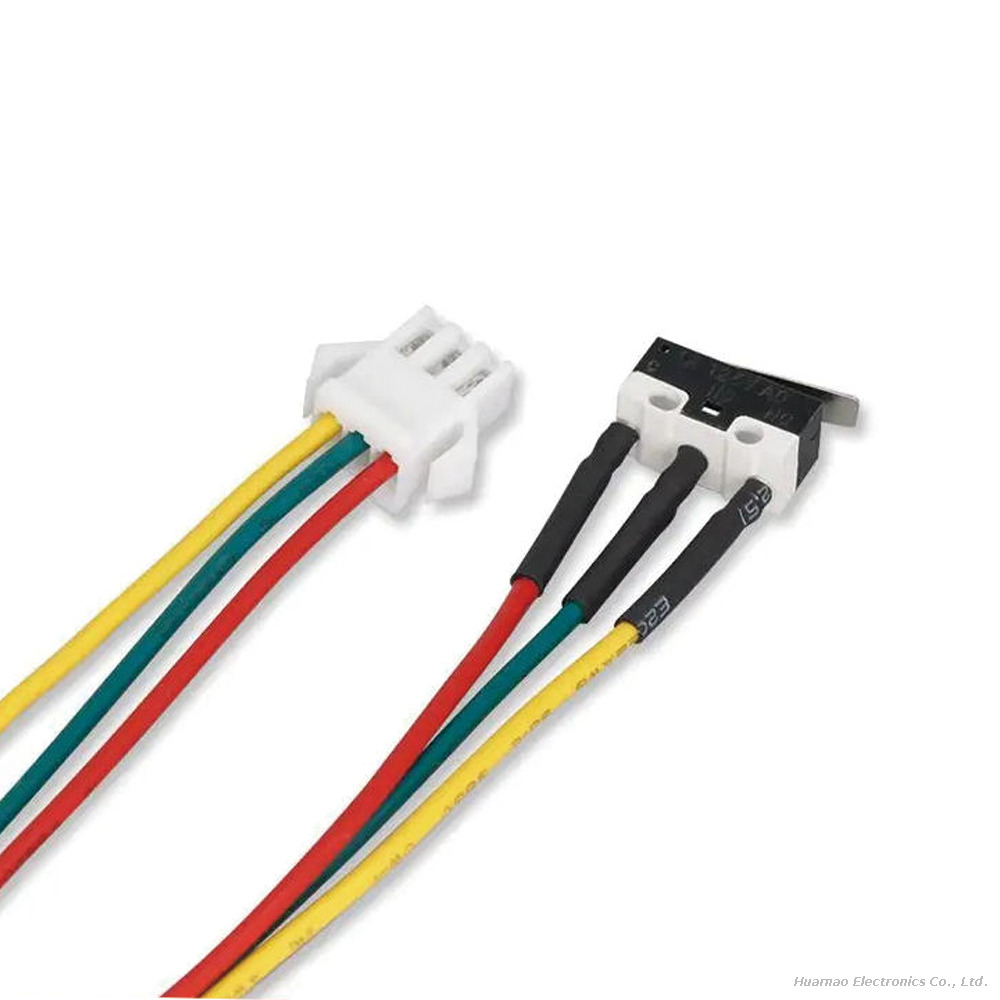

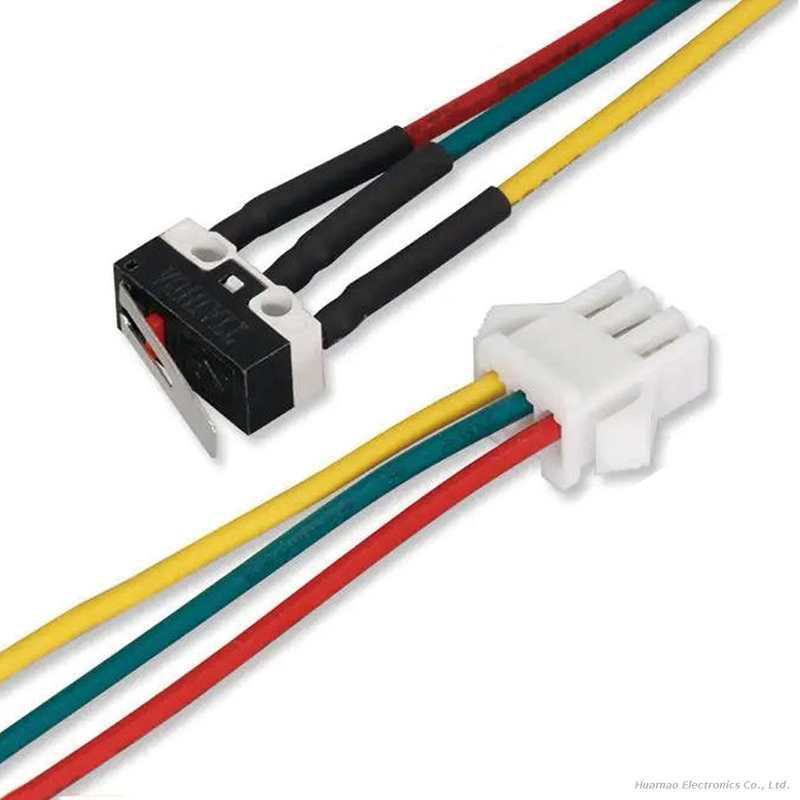

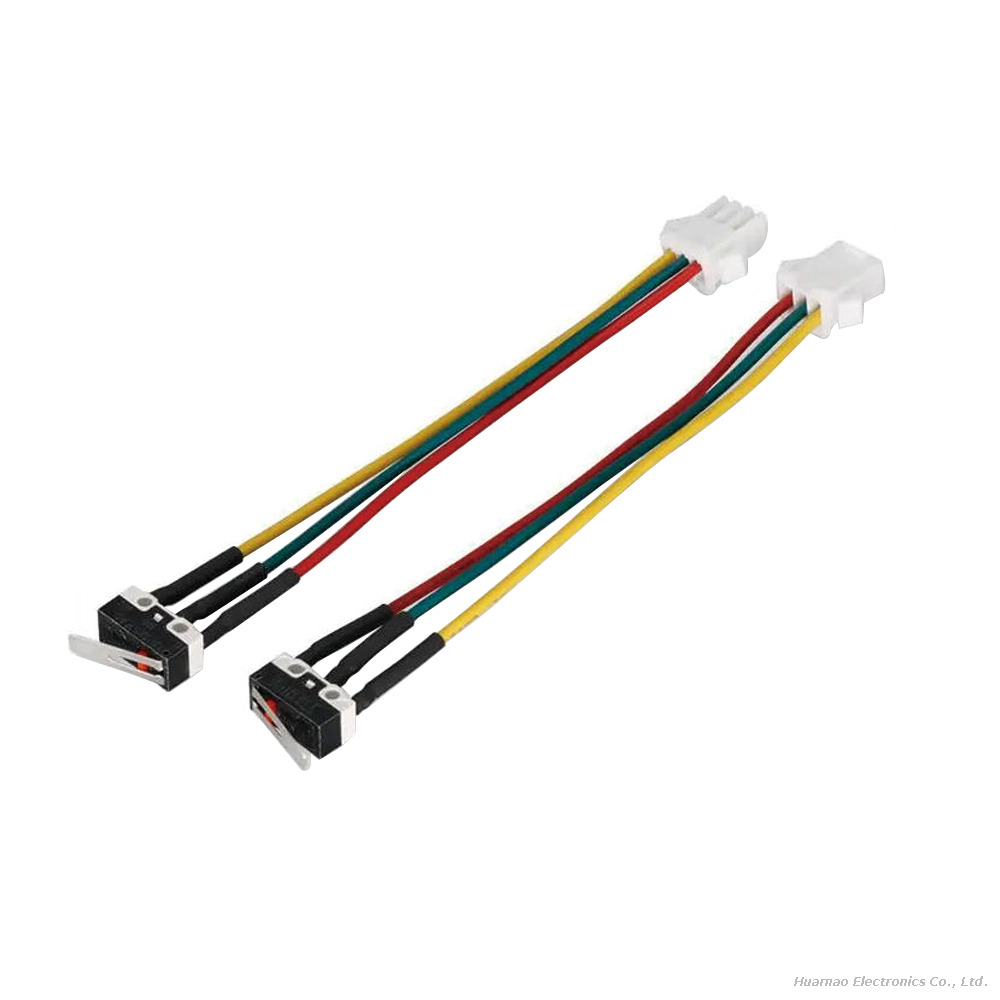

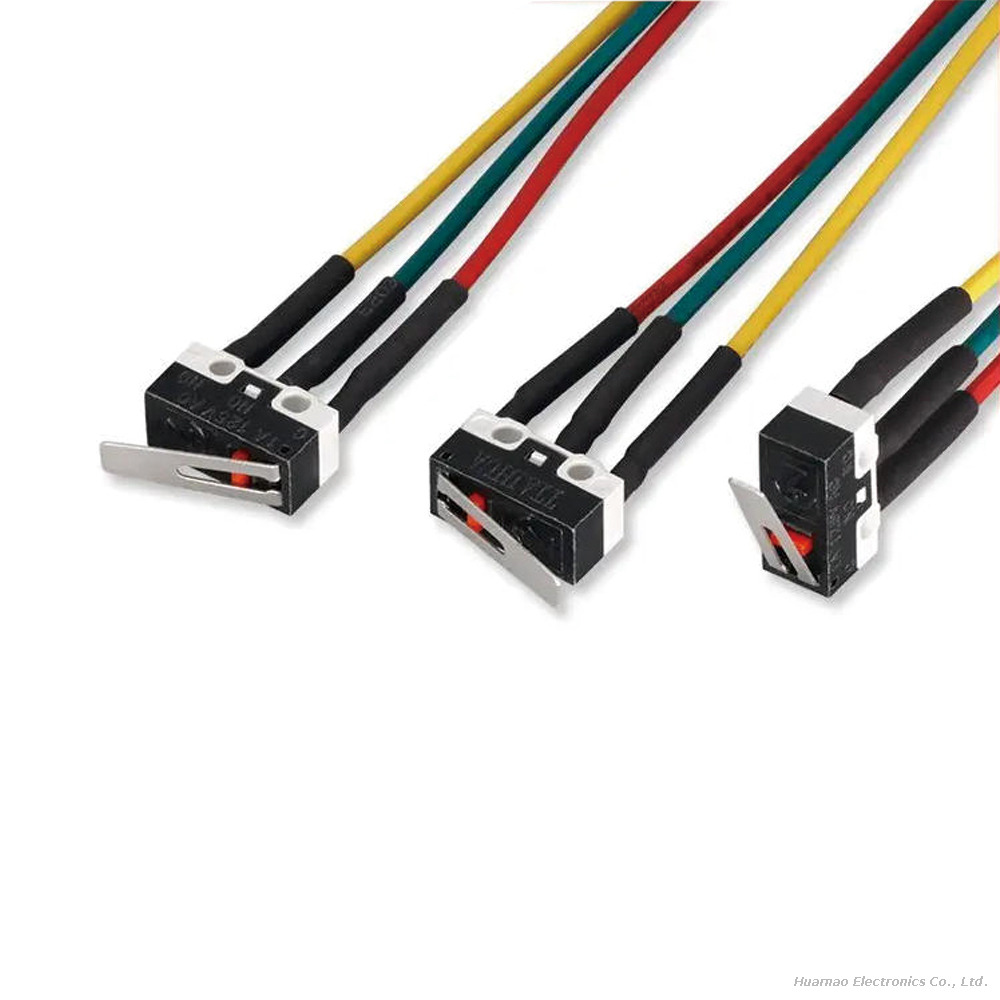

SM-3P micro connector cable is a professional 3-pin connection harness specially developed for the control systems of gas stoves and water heaters. It features high temperature resistance, anti-vibration and secure locking performance, mainly used for power supply and signal transmission between the main control board, ignition device, temperature sensor, solenoid valve and flame detector of gas appliances, ensuring stable and safe operation of kitchen hot water and cooking equipment.
Key Features & Advantages
High Temperature Resistance
Adopts heat-resistant insulation material, adapting to the high-temperature working environment inside gas stoves and water heaters, preventing insulation aging and short circuits.
Self-Locking Anti-Loosening
Built-in buckle design effectively prevents connector loosening caused by equipment working vibration, ensuring stable signal transmission.
Anti-Misplug Polarization
Unique asymmetric housing structure avoids reverse connection, protecting the ignition module, temperature control panel and solenoid valve from damage.
Compact Micro Structure
Small size and flexible wire are suitable for narrow internal installation space of gas appliances.
Stable Conductivity
Tinned copper terminals reduce contact resistance, ensuring reliable transmission of ignition signals and temperature sensing signals.
Moisture & Aging Resistance
Excellent insulation performance adapts to the humid environment inside water heaters and long-term daily use.
Typical Applications
Wiring harness for gas stove ignition control module
Connection cable for water heater temperature sensor & thermistor
Solenoid valve control wire for gas stoves and gas water heaters
Flame detection sensor connection wire for gas stoves
Power and signal transmission between main control board and accessories of water heaters
Internal micro connection for range hoods and integrated kitchen appliances
Quality Assurance & Customization
100% electrical continuity testing before shipment
Customizable cable length, wire color and wire sequence
Optional high-temperature silicone wire for extreme high-temperature scenarios
Stable crimping process ensures high pull-out force and long service life
Suitable for mass production of kitchen and bathroom electrical appliances
