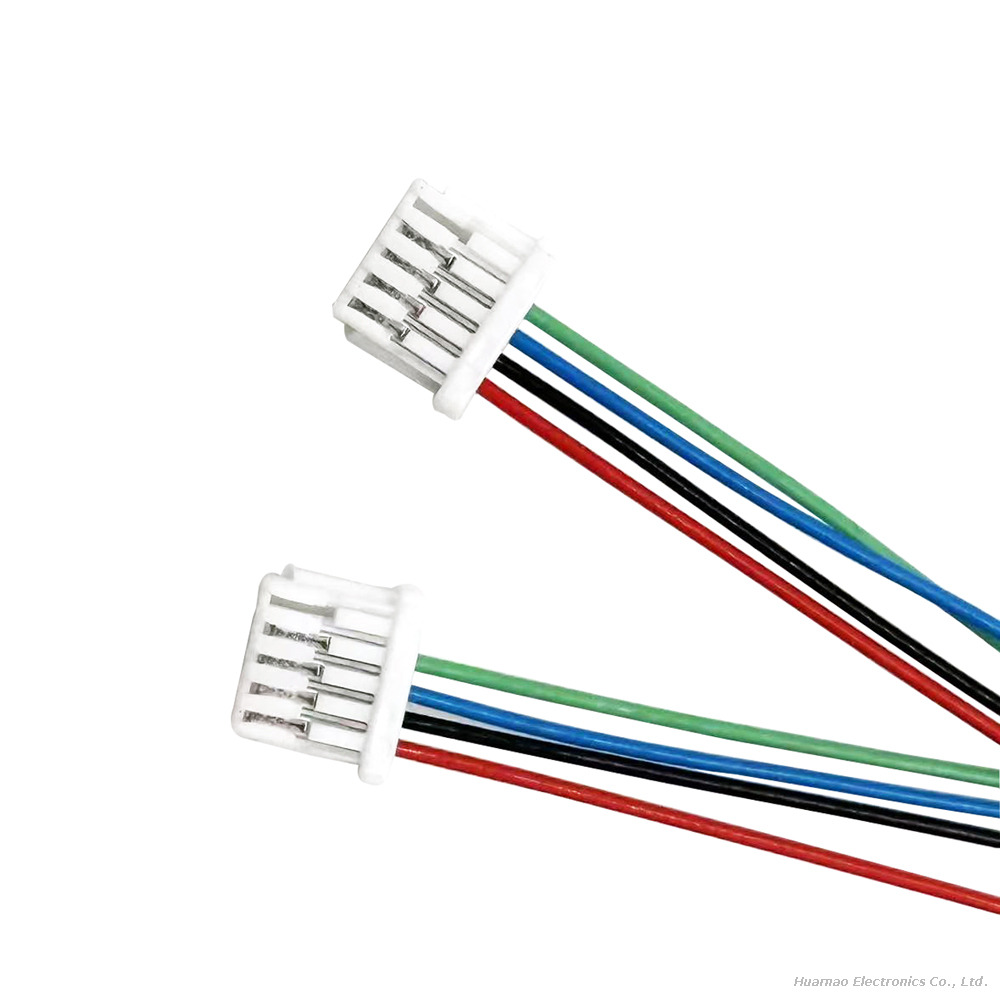

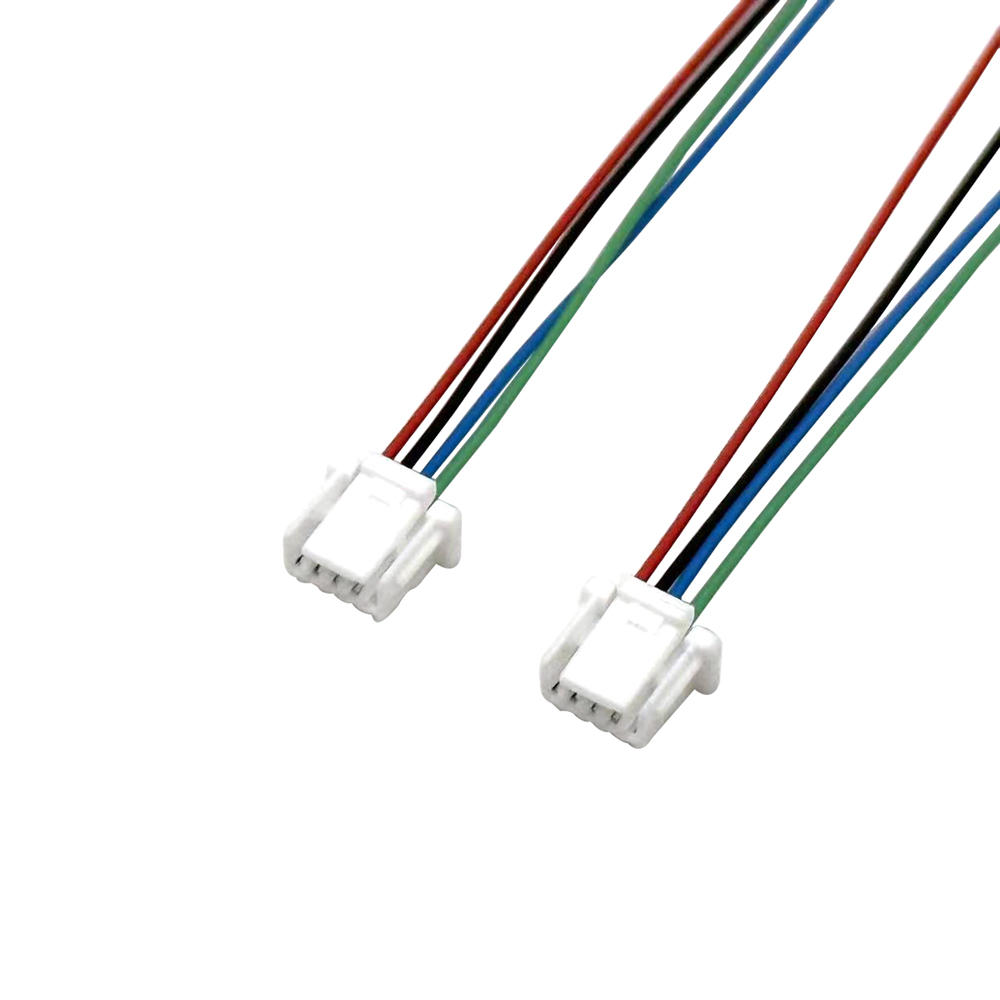

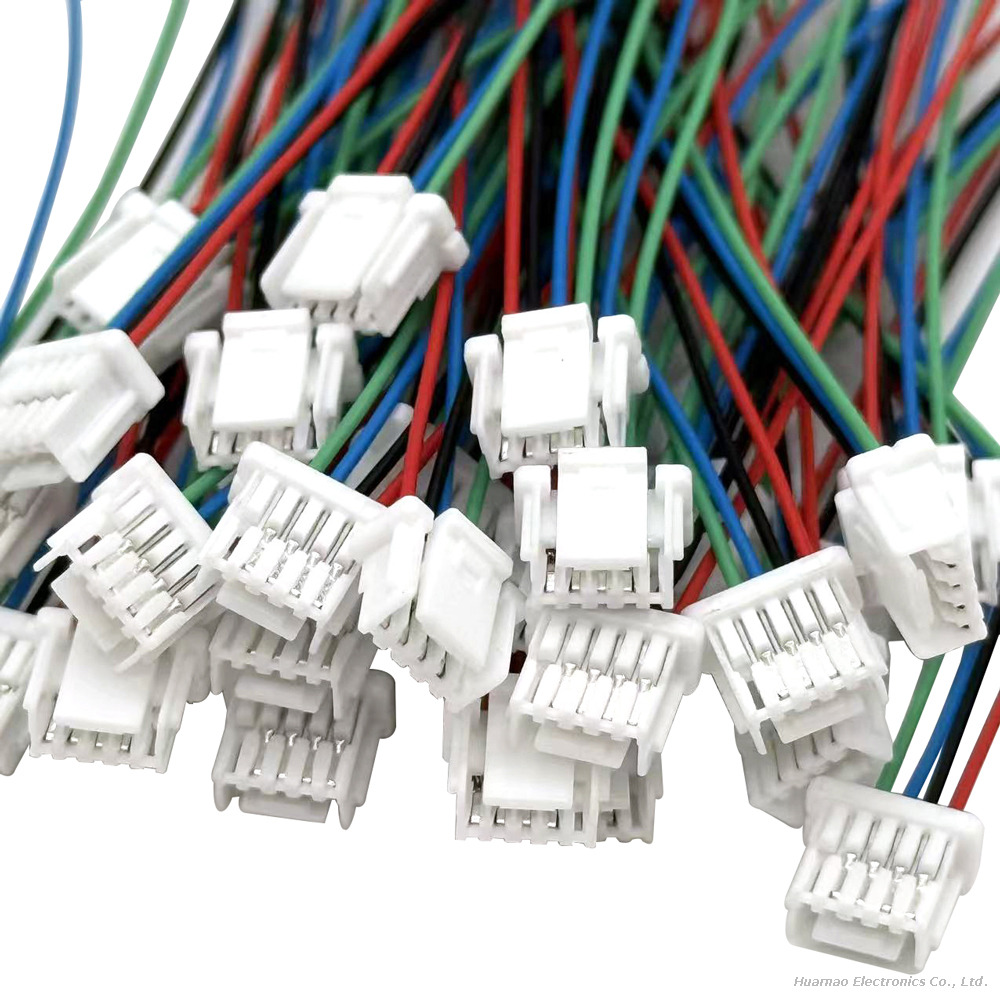

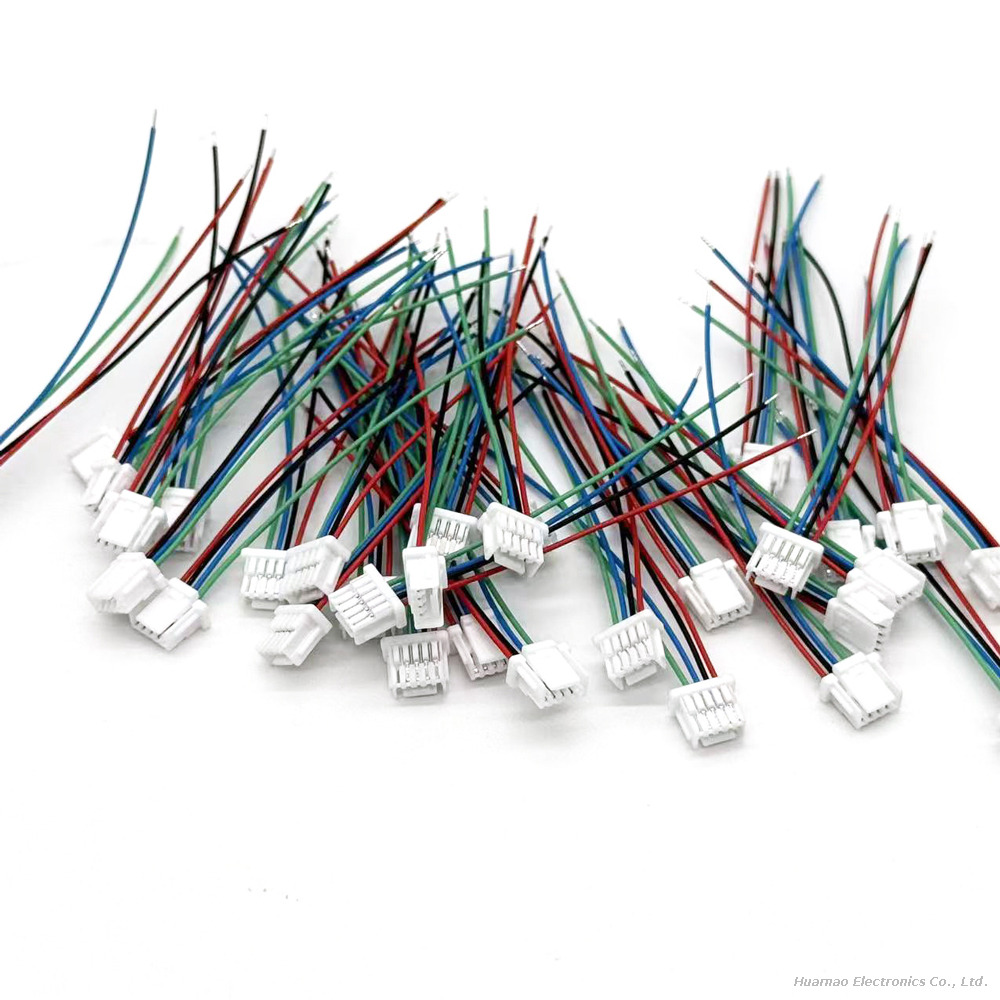

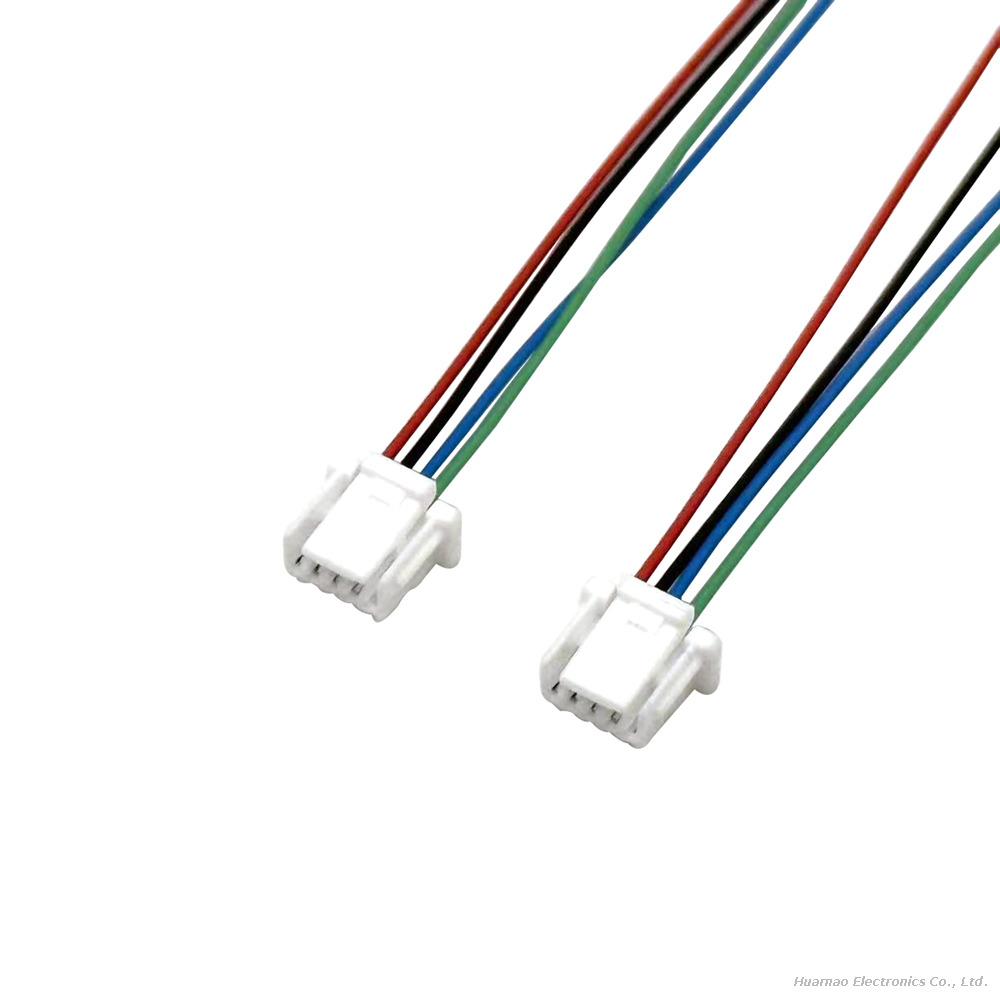

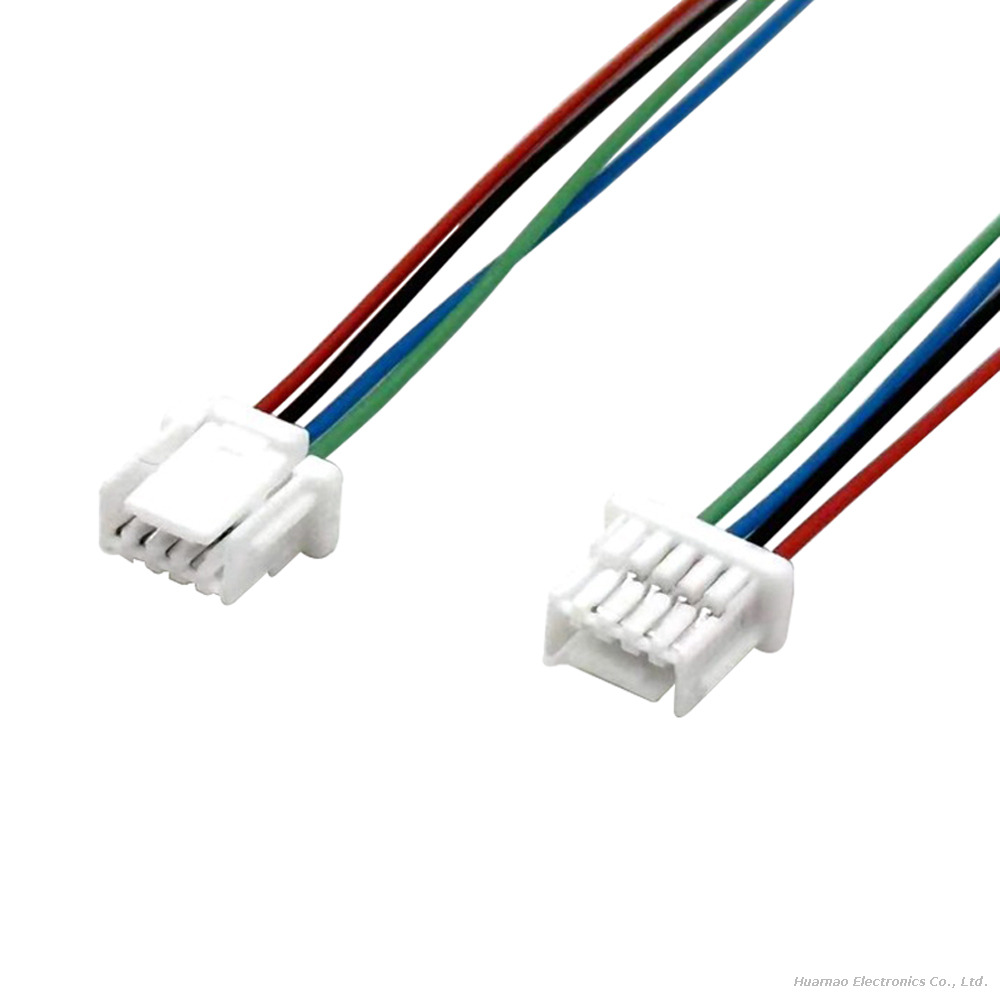

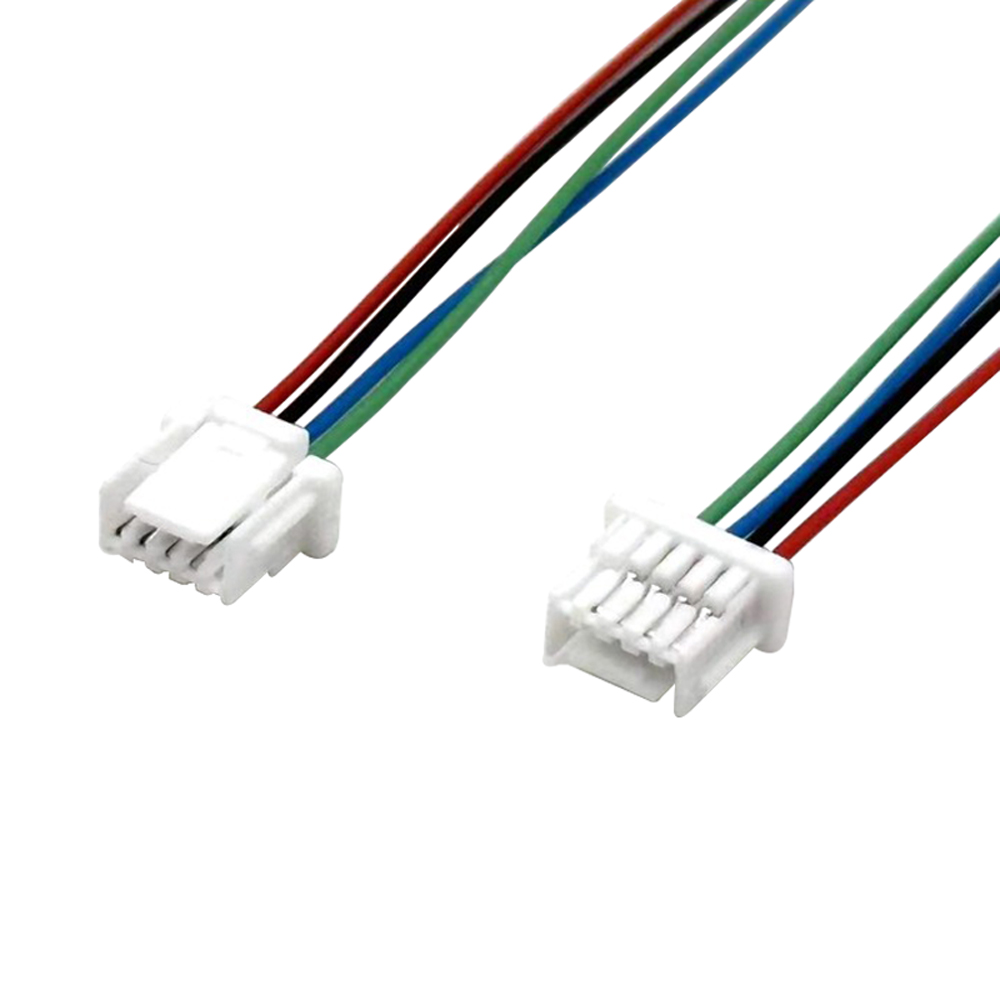

NSHR-05V-S Connection Wire JST 1.0mm Buckle Original Terminal Wire Harness for Pan Tilt Motor Projector

This NSHR-05V-S terminal wire harness adopts JST 1.0mm pitch original specification with buckle design, and is precision-processed for pan tilt motor control and projector internal wiring. It realizes stable, anti-loosening power and signal transmission for pan tilt devices, projection equipment and other precision electronic products, ensuring long-term reliable operation of the connected components.

Core Features

1.Precision Specification Matching

• Adopts NSHR-05V-S original connector and JST 1.0mm ultra-fine pitch terminal, perfectly compatible with pan tilt motor, projector and related precision electronic modules, ensuring zero misfit and stable contact.

• 5-position terminal design (NSHR-05V-S is 5-core), supports simultaneous transmission of power, control signals and feedback signals for multi-functional equipment connection.

2.Anti-Loosening Buckle Design

• Built-in JST 1.0mm buckle structure, effectively prevents terminal loosening and disconnection caused by equipment movement, vibration (suitable for pan tilt motor’s rotating operation) and external collision, enhancing connection reliability.

3.High-Stability Transmission Performance

• High-purity oxygen-free copper core with low resistance, minimizes signal loss and power consumption, ensuring stable control of pan tilt motors and clear signal transmission of projector optical components.

• Insulated sheath made of flame-retardant and high-temperature resistant material (adapted to projector’s heat generation environment and pan tilt motor’s long-term working state), with excellent insulation and anti-interference performance.

4.Durable & Compact Processing

• Precision crimping process for terminals and wires, firm connection, anti-oxidation and anti-fracture, suitable for long-term use in harsh working environments.

• Ultra-thin and flexible wire design, perfectly fits the narrow internal space of projectors and pan tilt motors, convenient for wiring and layout.

Applicable Scenarios

• Pan Tilt Motor System: Signal and power connection for PTZ cameras, photographic pan tilt mechanisms, robotic pan tilt modules, etc.

• Projector Internal Wiring: Connection between projection optical machine, control board, motor drive module and power supply module.

• Precision Electronic Equipment: Small-sized terminal connection for smart optoelectronic devices, micro motor control systems and precision instrument modules.

• Equipment Maintenance & Customization: Replacement and custom processing of original terminal wire harnesses for pan tilt motors and projectors.

FAQ

Q1: Can I start a sample order first before ordering more?

A: Sure, Goochain provide free samples if we have stock, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.



Q2: What payment methods do you accept?

A: PayPal, T/T, Bank Transfer, Western Union and L/C

Q3: How does your factory do regarding quality control?

A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc

Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?

A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.

Q5: Delivery time and warranty? Which shipping service you will use for my goods?

A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.

Q6: Where is your factory located? How can I visit there?

A: Sure. We are more than happy to receive you in Dongguan and show you around our workplace.
