MMCX To SMA FPV Antenna Extension Cable Jumper Wire RF Coaxial Cable Assemblies

MMCX To SMA FPV Antenna Extension Cable Jumper Wire RF Coaxial Cable Assemblies

Service:OEM and ODM products are acceptable
Samples:Samples confirmed first before mass production

Model:
MMCX To SMA FPV
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon Buy at Aliexpress

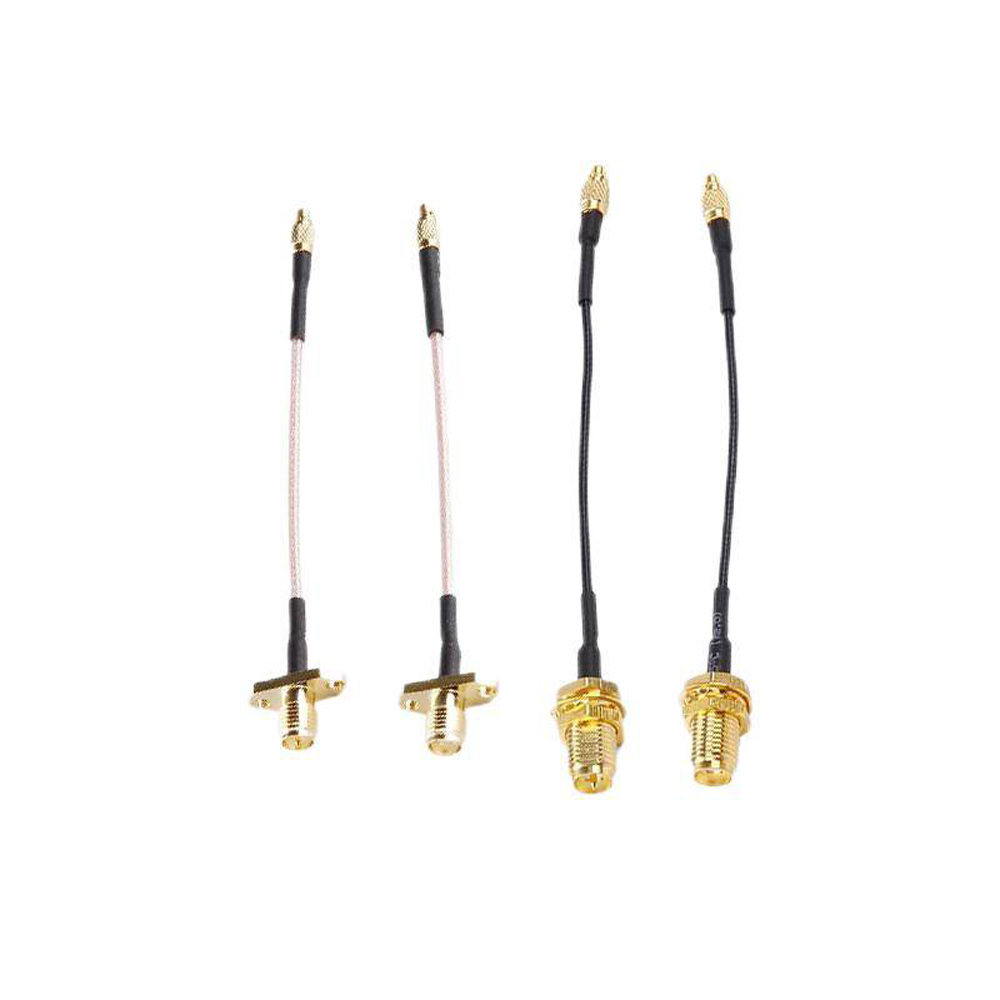

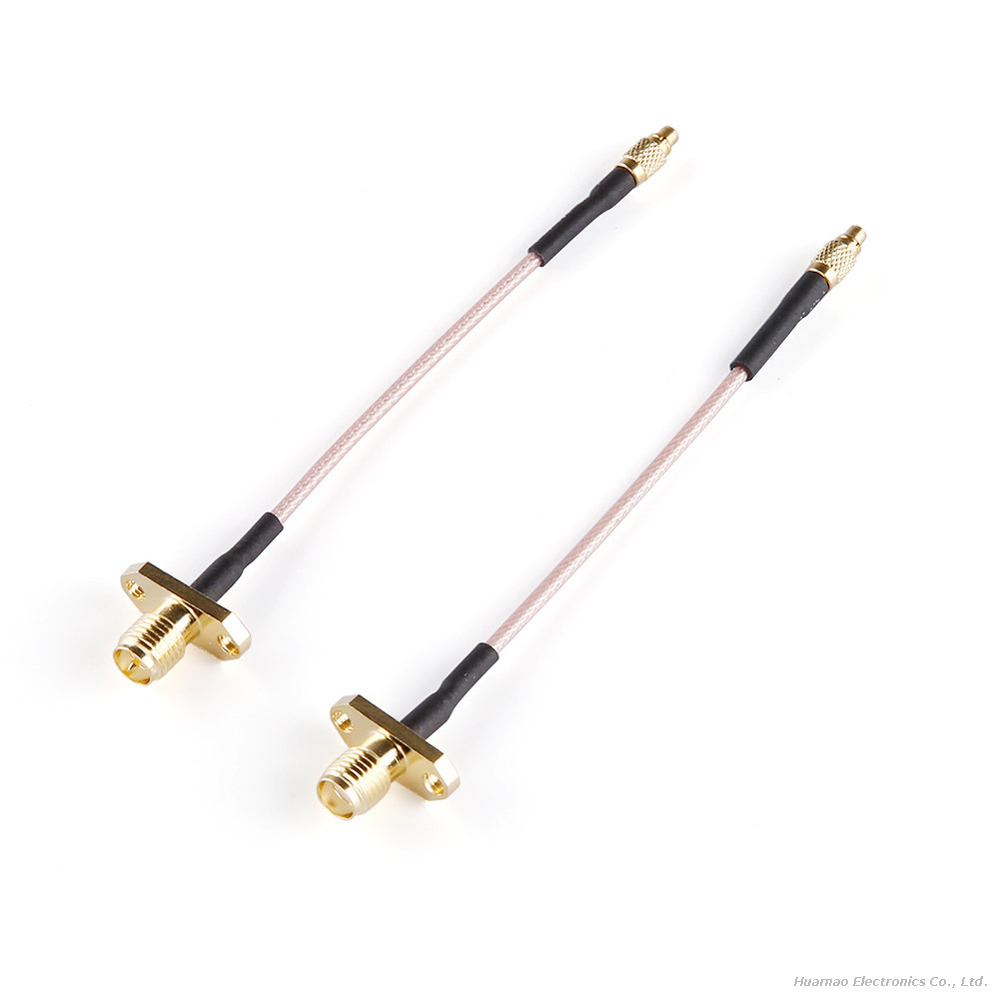

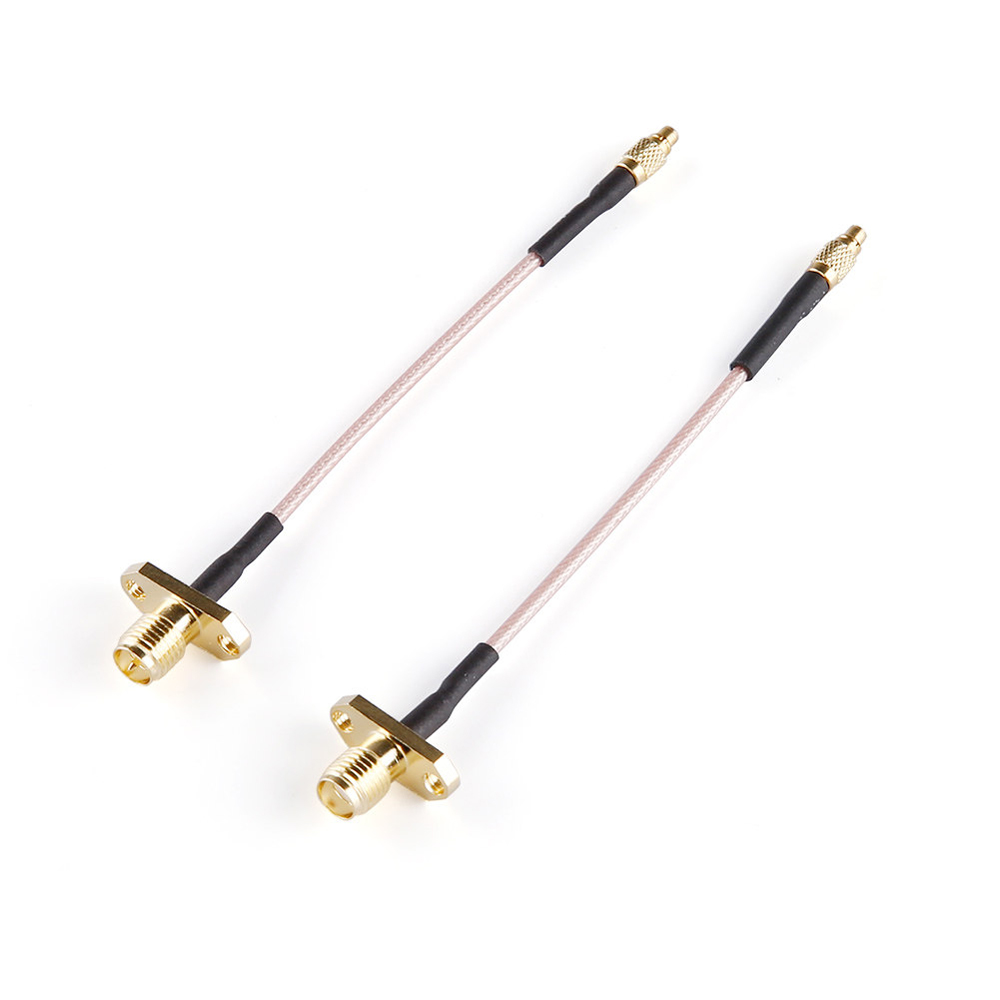

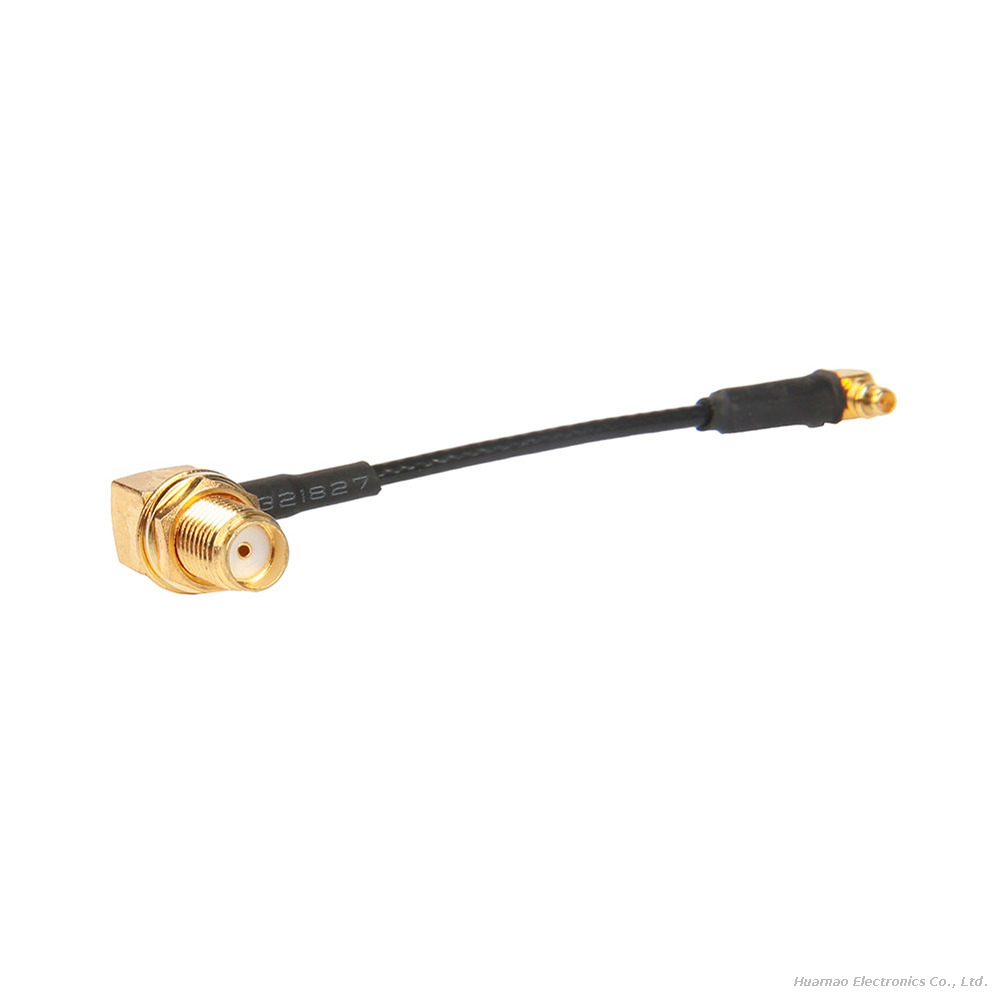

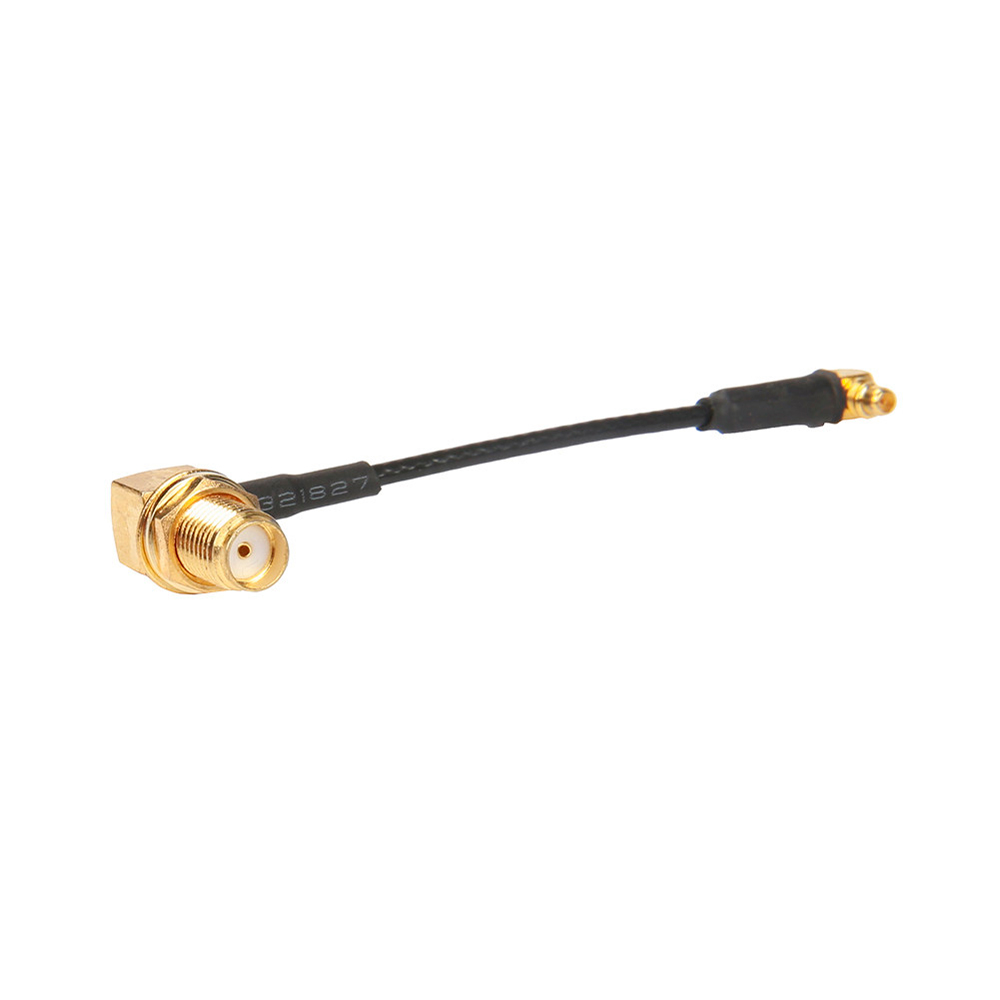

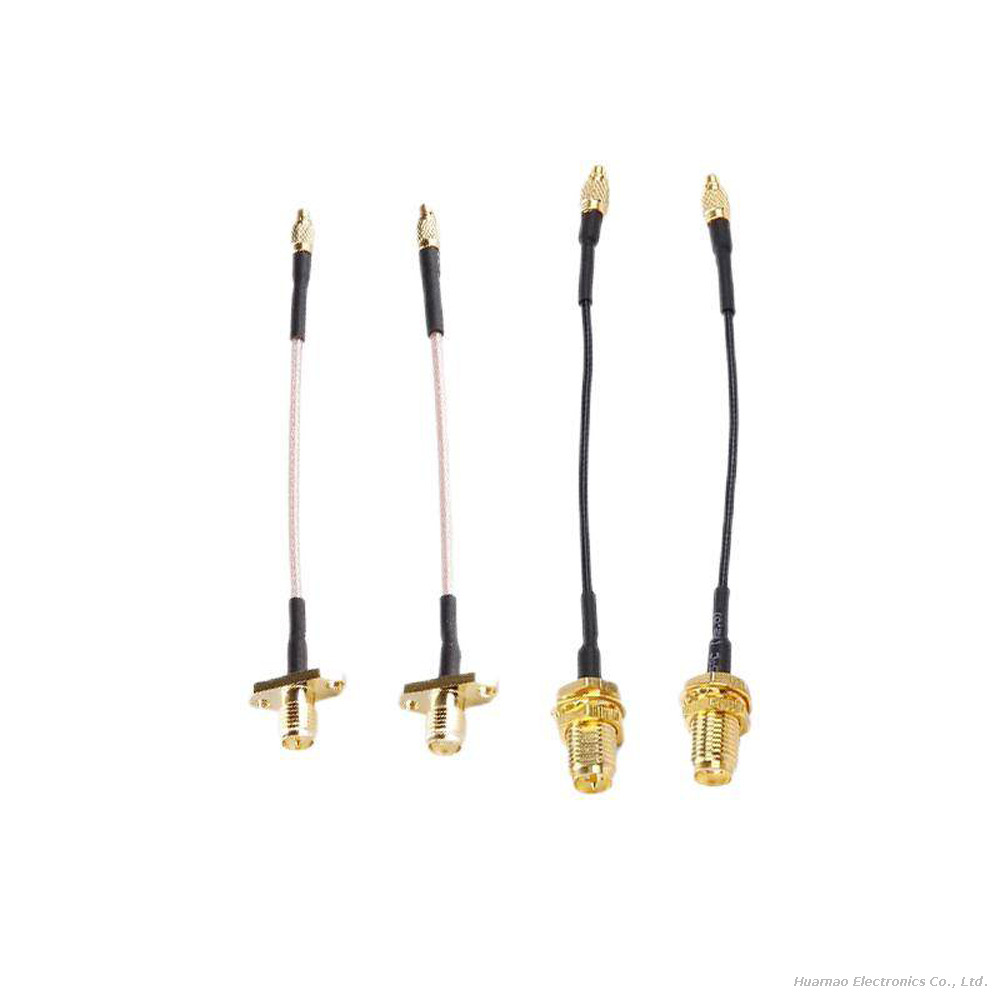

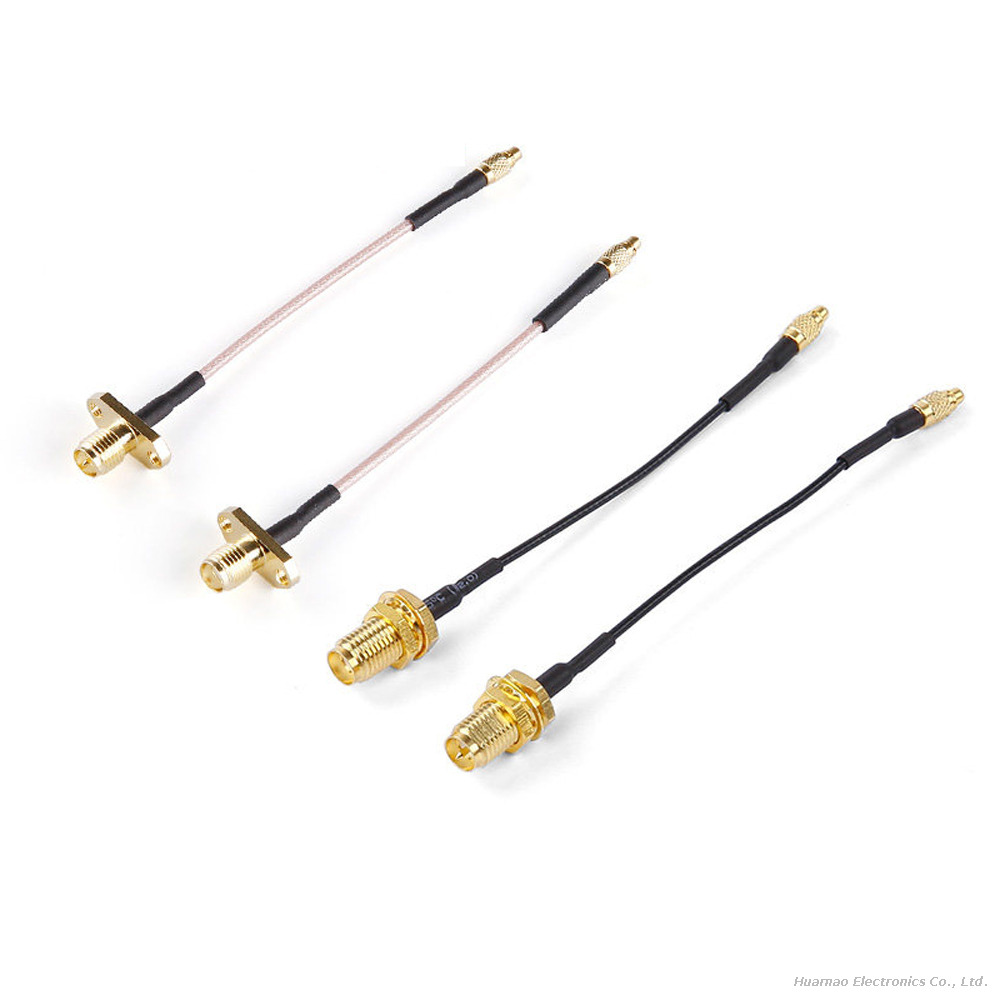

MMCX To SMA FPV Antenna Extension Cable Jumper Wire RF Coaxial Cable Assemblies MMCX Male Right Angle Plug RG316 coaxial cable

Product Description

MMCX to SMA FPV Antenna Extension Cable is engineered to deliver reliable high-frequency signal transmission for FPV drones, ground stations, and wireless communication devices. As a professional RF coaxial cable assembly, it bridges MMCX and SMA interfaces seamlessly—solving compatibility challenges in space-constrained setups while maintaining signal integrity for critical missions. We understand that every project has unique requirements, so we offer flexible customization to align with your specific use case, whether it’s a hobbyist’s DIY build or an industrial-scale deployment.

Key Features & Technical Specifications

Broad Frequency Compatibility: Supports 2.4GHz, 5.8GHz, and up to 6GHz frequency ranges, ideal for FPV video transmission, RC links, and IoT wireless modules.
Low-Loss Signal Performance: Constructed with premium RG178/RG316 coaxial cable (available in 137/178 wire gauge) and gold-plated connectors, minimizing insertion loss and ensuring crystal-clear imagery with ultra-low latency.
50Ω Impedance Matching: Standard 50-ohm impedance design guarantees compatibility with most RF systems, reducing VSWR (Voltage Standing Wave Ratio) for stable signal output.
Versatile Connector Options: Available in straight/right-angle MMCX male connectors paired with SMA male/female (outer thread inner pin/inner hole) interfaces—with custom connector combinations available to match your device’s exact needs.
Durable & Flexible Build: Features snap-on coupling for secure connections (supports hundreds of mating cycles) and a flexible jacket resistant to high temperatures, corrosion, and mechanical stress. Custom jacket materials (e.g., flame-retardant, waterproof) are offered for extreme environments.
Custom Lengths: Offered in standard 0.05m to 3m lengths (0.05m, 0.1m, 0.3m, 0.5m, 1m, 1.5m, 3m) — plus tailor-made lengths from 0.03m (3cm) to 10m to fit specialized installation requirements, from compact drones to large-scale ground station setups.

Applications

Designed specifically for FPV enthusiasts, engineers, and IoT professionals, this RF coaxial jumper wire excels in:

FPV drones (DJI FPV Air Unit, custom builds) and ground stations (including long-range flight setups requiring custom-length extensions)
Wireless communication devices (Wi-Fi, Bluetooth, LTE/5G modules) with unique interface or length needs
IoT sensors, trackers, and industrial monitoring systems in harsh environments (custom waterproof/flame-retardant options available)
Test equipment (spectrum analyzers, signal generators) and DIY projects requiring precise connector/length combinations
Antenna extension for optimal signal placement in confined spaces (custom flexible routing solutions for tight installations)

Quality Assurance

Each MMCX to SMA extension cable—whether standard or custom—undergoes strict quality control, including signal loss testing, connector durability checks, and custom specification verification. We ensure compliance with industry standards for RF coaxial assemblies, providing a reliable solution for both professional and hobbyist applications. Custom orders receive the same rigorous testing to guarantee performance matches your exact requirements.

Customization Details

We specialize in turning your unique requirements into high-performance cables. Our customization options include:

Length Tailoring: Choose any length from 0.03m (3cm) to 10m, with precision cutting to avoid signal degradation in non-standard sizes. Ideal for compact drone builds (3cm ultra-short jumpers) or large ground stations (10m extended runs).
Connector Customization: Mix and match interfaces (e.g., MMCX male to SMA female right-angle, MMCX female to SMA male straight) or request specialized connector plating (e.g., rhodium for extreme durability) to fit your device’s exact port configuration.
Jacket & Shielding Upgrades: Opt for flame-retardant (UL94 V-0 rated) jackets for industrial use, waterproof (IP67 rated) jackets for outdoor/aviation applications, or double-shielded (braided + foil) construction for high-EMI environments (e.g., industrial factories, urban FPV flights).
Bulk & OEM/ODM Solutions: Custom packaging, logo printing, and batch labeling for resellers or corporate projects. We support low MOQs (minimum order quantities) for small teams and large-scale production for industrial clients.
Rapid Prototyping: Get a custom sample within 3-5 business days to test compatibility before full production—ensuring your project stays on schedule.

Why Choose Our RF Coaxial Cable Assemblies?

Precision Engineering: Ensures seamless interface compatibility and long-lasting performance—even for custom configurations.
Space-Saving Design: Compact MMCX connectors and flexible cable routing optimize installation in tight spaces, with custom lengths eliminating excess cable clutter.
Enhanced Signal Stability: Multi-layer shielding (with upgrade options) reduces electromagnetic interference (EMI) for uninterrupted transmission in any environment.
Customer-Centric Customization: Our engineering team works directly with you to understand your needs, providing expert recommendations and adjusting specs until you’re fully satisfied.
Reliable Lead Times: Standard orders ship within 1-2 business days; custom orders ship within 5-7 business days (with expedited options available for urgent projects).
