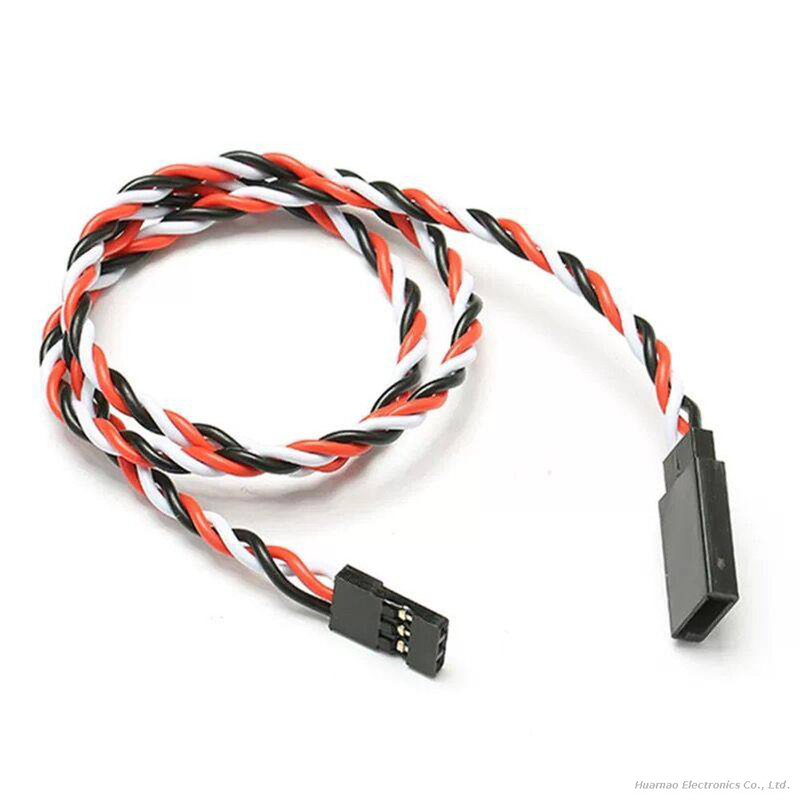

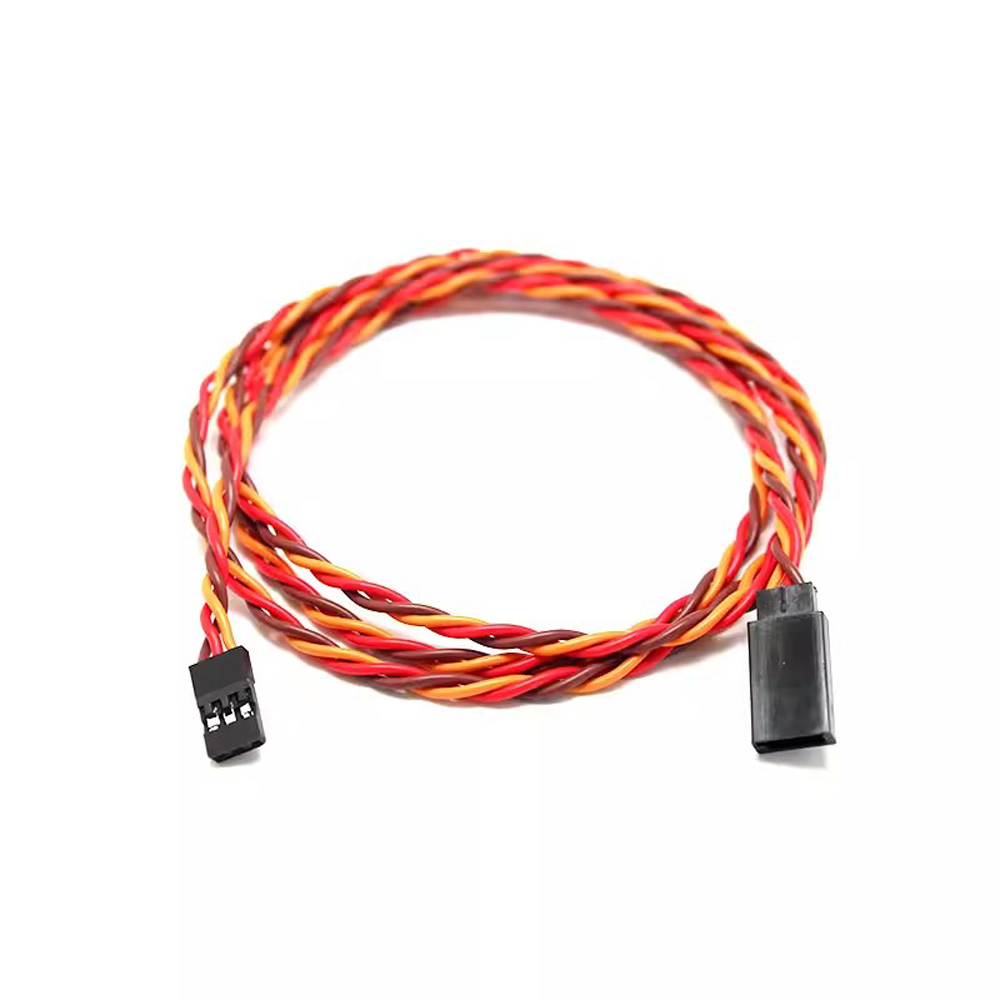

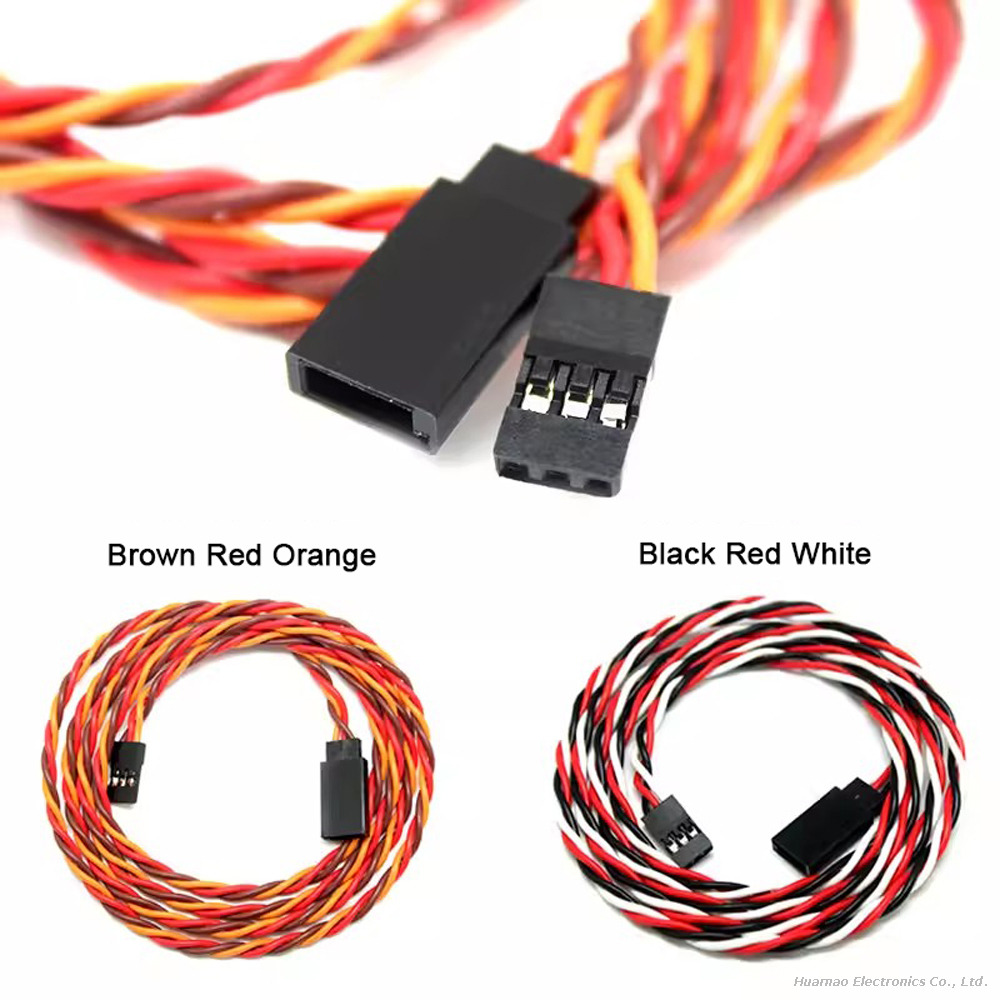

Engineered exclusively for servo system signal extension and anti-interference requirements, this male-to-female servo extension twisted cable assembly is purpose-built to deliver stable, loss-free signal transmission in high-noise industrial environments. Featuring a precision-twisted conductor structure, 30/60 high-core count, and standard 150mm length, it seamlessly extends servo motor connections while eliminating electromagnetic interference (EMI) and radio frequency interference (RFI)—critical for precision motion control systems where signal integrity directly impacts operational accuracy. Ideal for industrial automation, robotics, and CNC equipment, this servo extension cable solves common issues of signal dropout and data distortion in extended servo setups.
Core Performance & Servo-Specific Advantages
1. High-Density Anti-Interference Twisted Conductor Design
The core of this servo extension cable lies in its optimized twisted pair structure, where each signal/ground wire is tightly twisted at a precision twist pitch to cancel out EMI and RFI generated by servo motors, drives, and industrial machinery. This design outperforms standard parallel wiring, ensuring crisp, error-free signal transmission for encoder feedback, position data, and control commands—even in high-vibration, high-noise factory floors. The 30/60 high-core configuration supports multi-channel servo signal and power delivery, eliminating the need for multiple separate cables and simplifying servo system wiring.

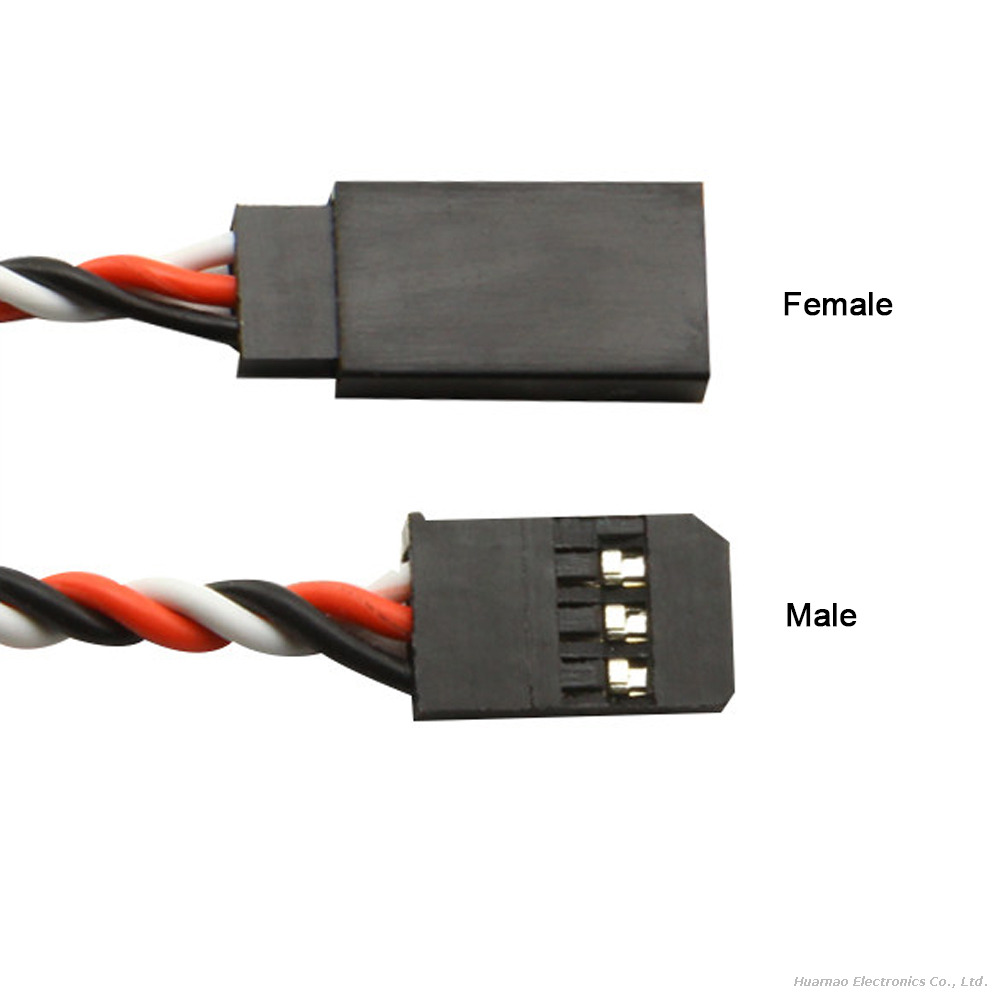

2. Male-to-Female Seamless Servo Compatibility
Equipped with standard servo male and female connectors (matching industry-standard servo interface pins), the assembly enables plug-and-play extension without additional adapters or wiring modifications. The tight-mating connector design ensures vibration-resistant connection, preventing accidental dislodgment in continuous-operation servo systems (e.g., robotic arms, CNC machining centers). The gender-matched layout also supports series/parallel extension of multiple servo axes, streamlining multi-axis motion control setups.

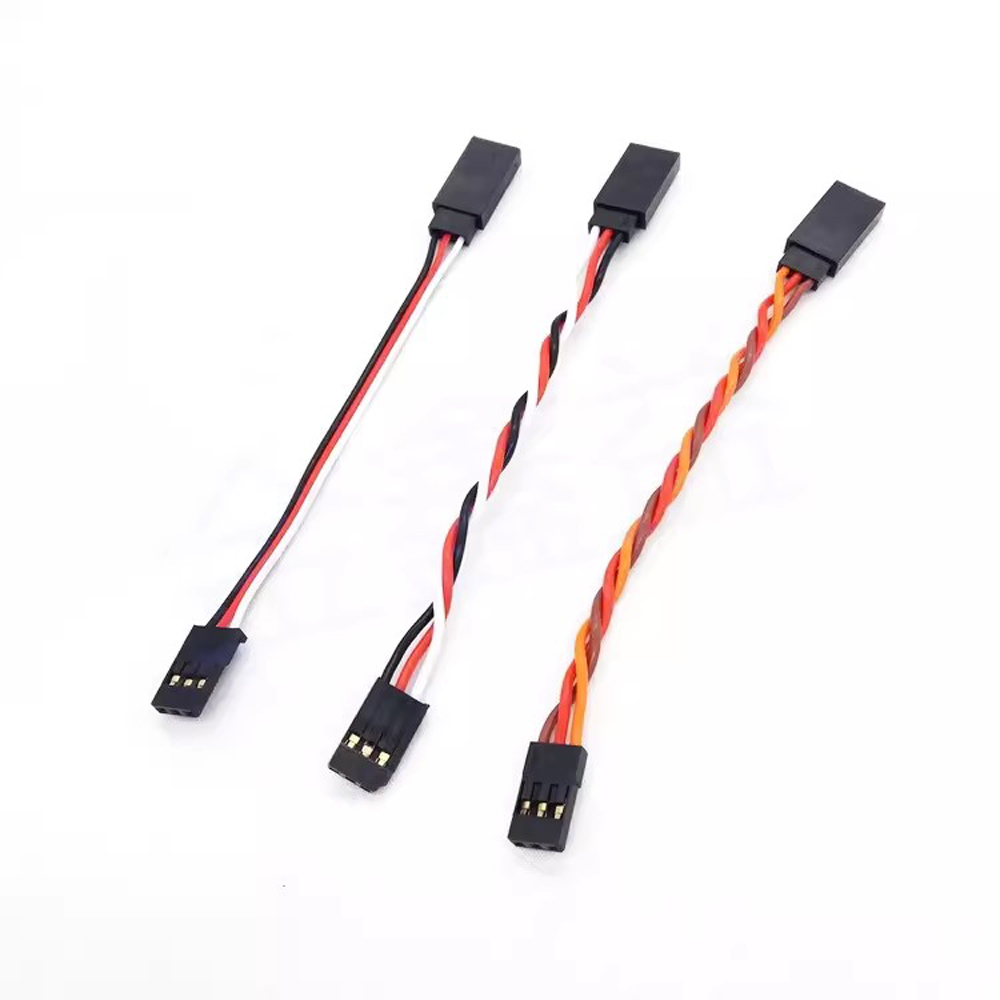

3. 150mm Standard Length with Customization Flexibility
Pre-configured with a 150mm standard length (the most commonly used specification for short-distance servo extension), it eliminates guesswork for small-to-medium servo system expansions. For custom installation distances, we offer full length customization (50mm–5000mm) to fit tight machine enclosures, long-span robotic arms, or remote servo drive setups—ensuring a perfect fit for any servo project without excess cable slack or length shortages.
4. Industrial-Grade Durability for Harsh Environments
Constructed with servo system-specific high-performance materials to withstand extreme industrial conditions:
Conductors: High-purity tinned/silver-plated copper cores (30/60 cores) for ultra-low signal resistance and corrosion resistance, minimizing power loss and signal attenuation during transmission.
Insulation & Sheath: Flame-retardant, abrasion-resistant PVC/PE sheath (UL94 V-0 rated) that resists oil, moisture, and mechanical wear; rated for -40°C to 105°C operating temperatures, suitable for cold storage facilities, high-temperature production lines, and outdoor industrial settings.
Reinforced Strain Relief: Integrated stress relief sleeves at both cable ends to prevent wire breakage at connector junctions, extending the cable’s service life in continuous-motion servo applications (e.g., automated assembly lines).
5. Precision-Crafted for Servo Motion Control
Engineered to meet the strict electrical and mechanical demands of servo systems:
Low contact resistance ( ensures stable power and signal delivery, avoiding servo motor jitter or position feedback errors.
Supports high-speed servo signal transmission (up to 100Mbps) and high-current power supply, compatible with both AC and DC servo drives.
5000+ mating cycle durability testing ensures long-term reliability in heavy-duty industrial servo operations.
Ideal Application Scenarios
This 30/60-core 150mm servo extension twisted cable is the go-to connectivity solution for precision servo systems across industries:
Industrial Robotics: 6-axis robotic arms, collaborative robots (cobots), and mobile robotic platforms (servo motor extension, encoder signal transmission).
CNC & Precision Machining: CNC lathes/milling machines, laser cutting equipment, and plasma cutters (servo drive extension for linear/rotational axes).
Automation Production Lines: Automated assembly lines, packaging machines, and material handling systems (multi-axis servo synchronization).
Medical & Semiconductor Automation: High-precision medical diagnostic equipment, semiconductor wafer handling robots (low-interference signal critical for micro-control).
Printing & Packaging: High-speed printing presses, label applicators, and cartoning machines (servo position feedback extension for accurate motion control).
Quality Assurance & Compliance
Manufactured in ISO 9001-certified facilities, every servo extension twisted cable undergoes rigorous end-to-end quality testing to ensure servo-grade reliability:
Signal Integrity Testing: 1000+ hours of continuous servo operation trials to verify no signal loss, dropout, or distortion.
Environmental Stress Trials: Temperature cycling (-40°C to 105°C), humidity exposure (85% RH, 85°C), and vibration testing (10–2000Hz) validate performance in extreme industrial environments.
Electrical Safety Checks: Continuity, insulation resistance, and overcurrent protection testing to meet international servo system safety standards.
Each unit is individually inspected for connector fit, conductor crimp integrity, and twisted structure precision, guaranteeing consistent performance in critical servo motion control applications.
Customization & Bulk Support
We offer end-to-end OEM/ODM services for servo system manufacturers, integrators, and distributors:
Custom core counts (20–100 cores) to match specific servo drive signal/power requirements.
Bespoke length, sheath color, and strain relief designs for brand differentiation and inventory management.
Rapid prototyping (5–15 days) for custom servo cable assemblies and high-volume mass production (10,000+ units).
Technical consultation to optimize cable routing and anti-interference design for your unique servo system setup.
Whether you need standard 150mm extension cables for small servo upgrades or custom high-core twisted assemblies for large industrial systems, our servo extension cables deliver the anti-interference performance and durability your motion control projects demand.
