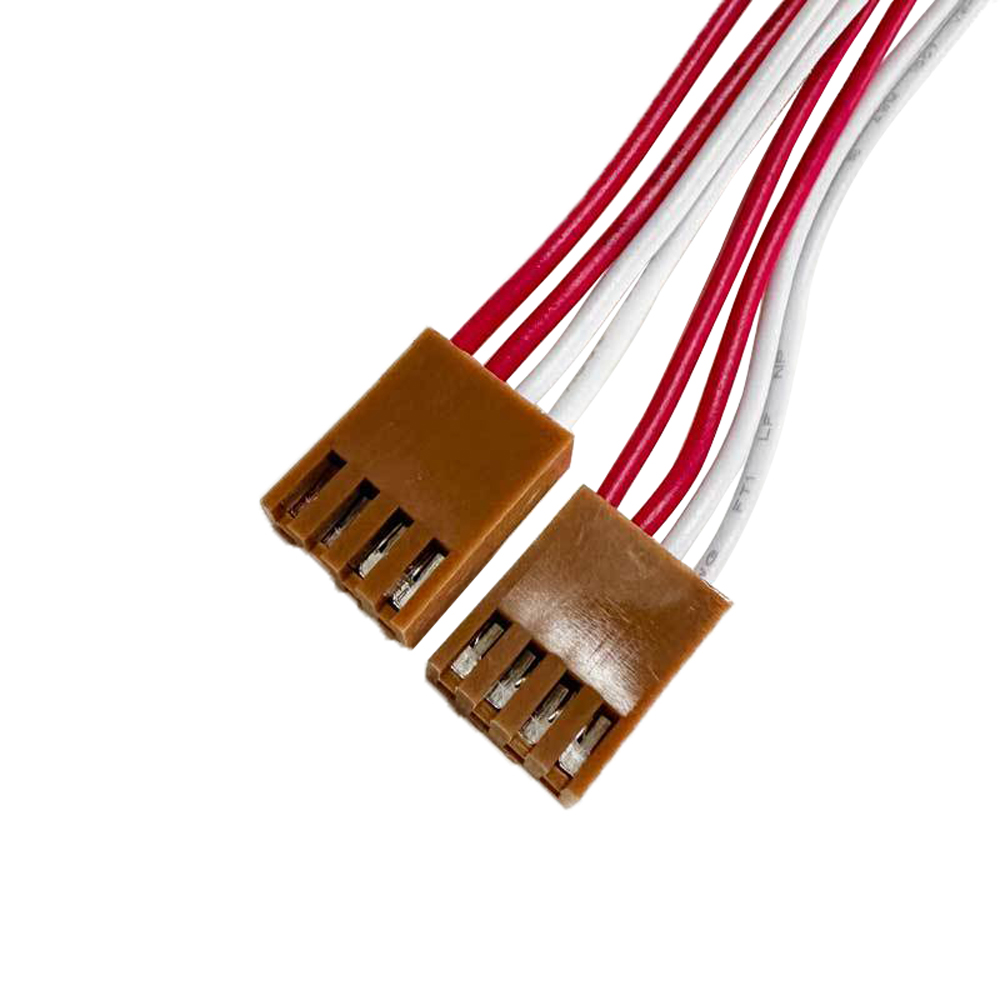

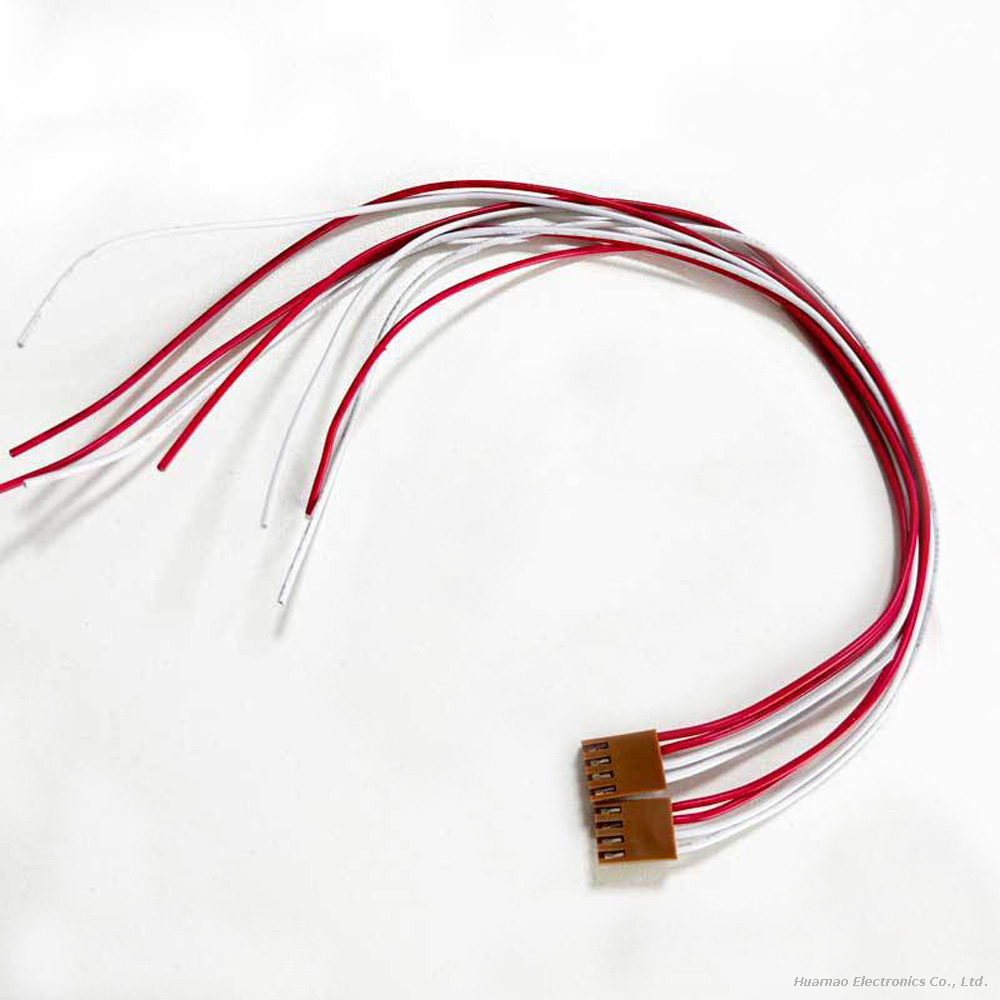

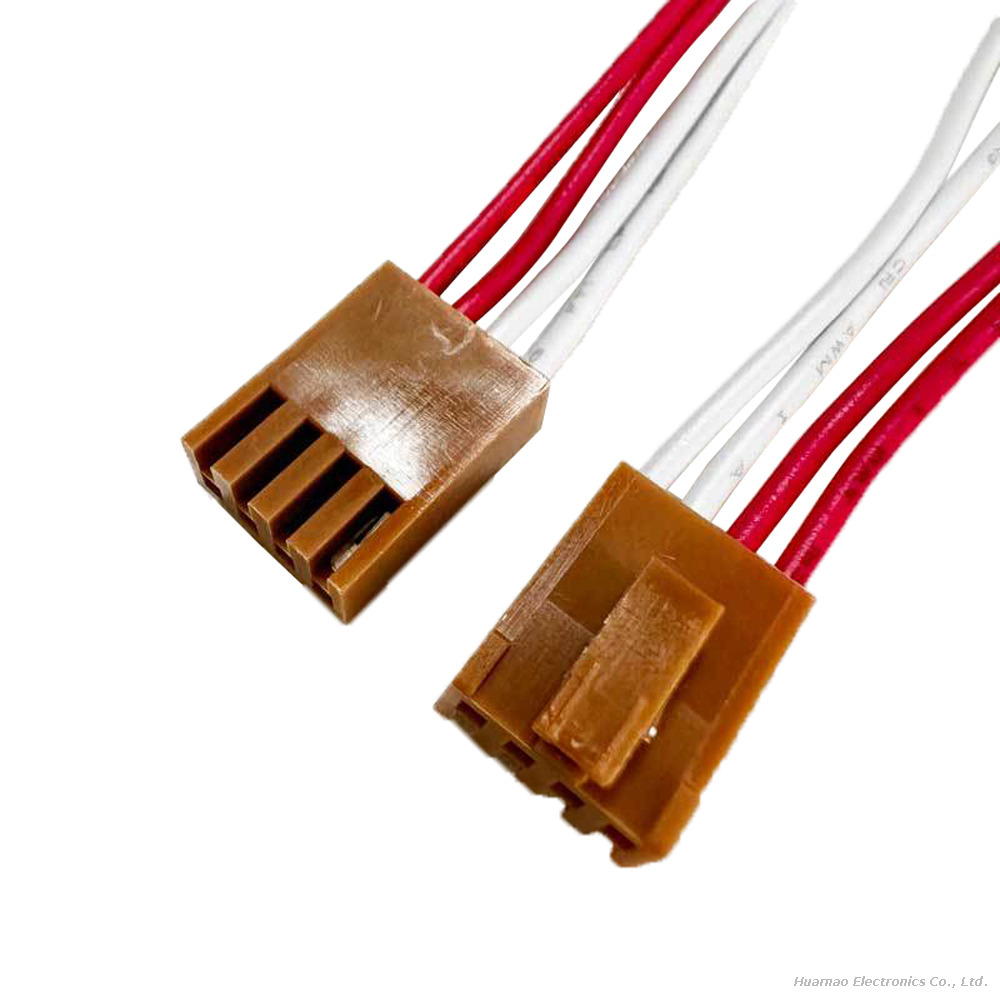

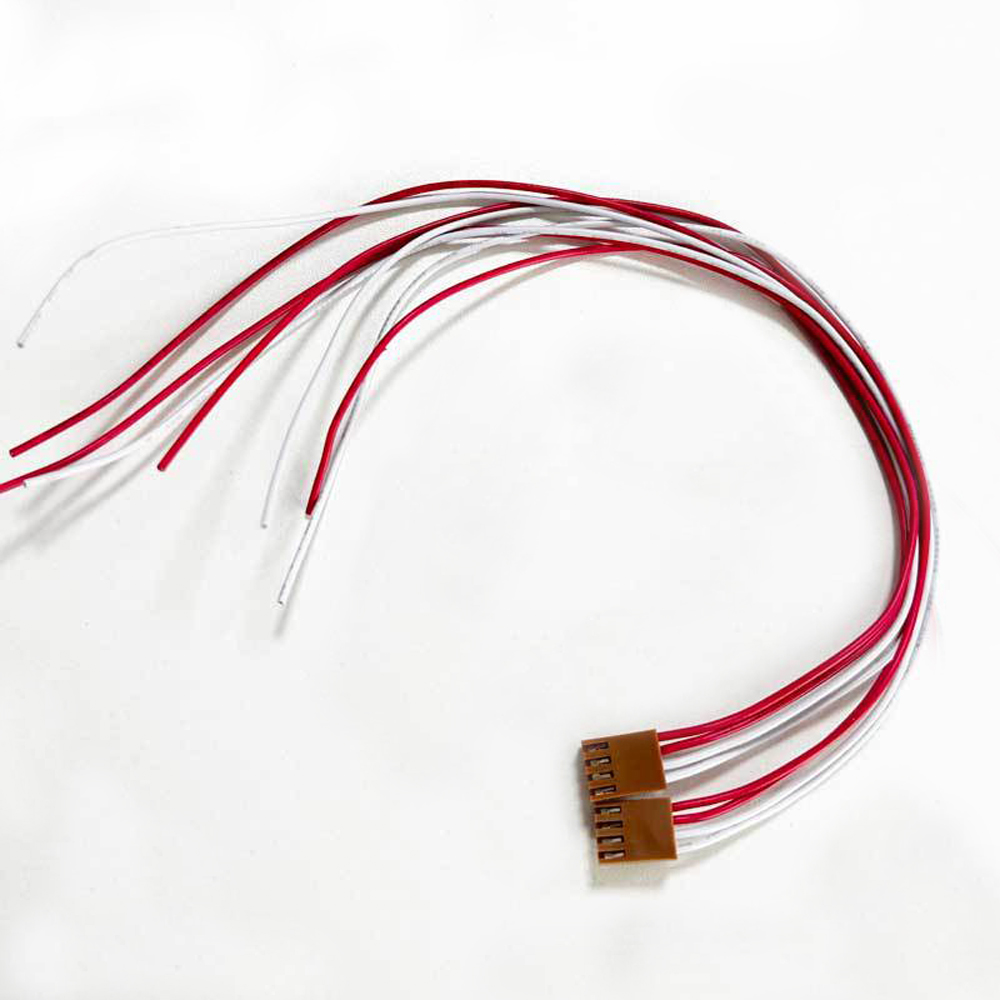

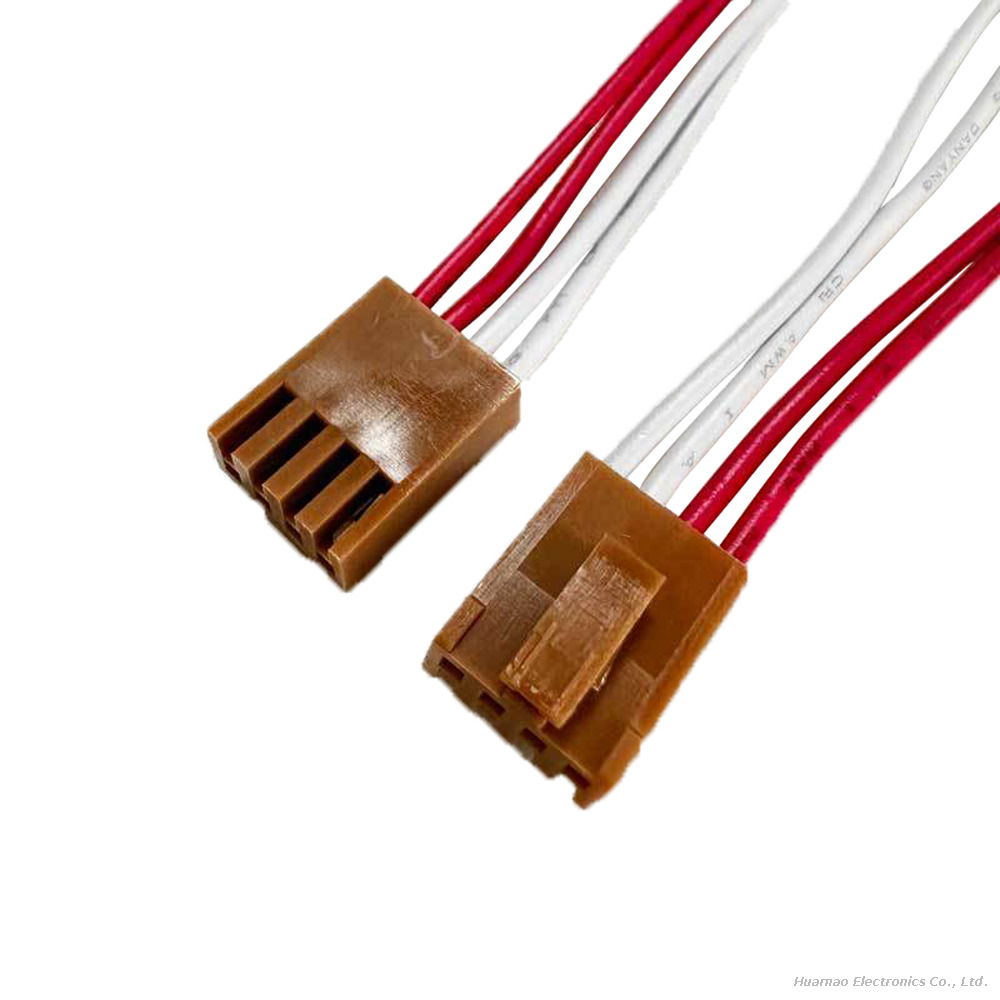

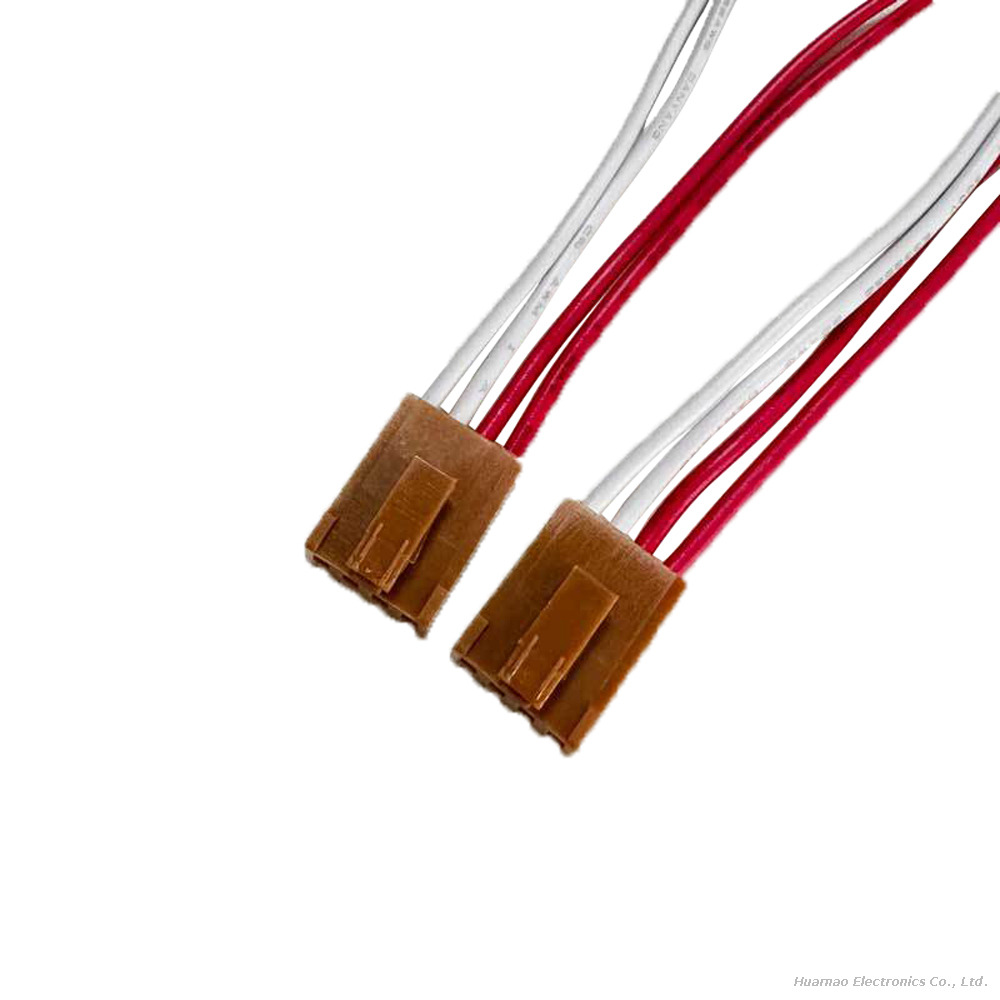

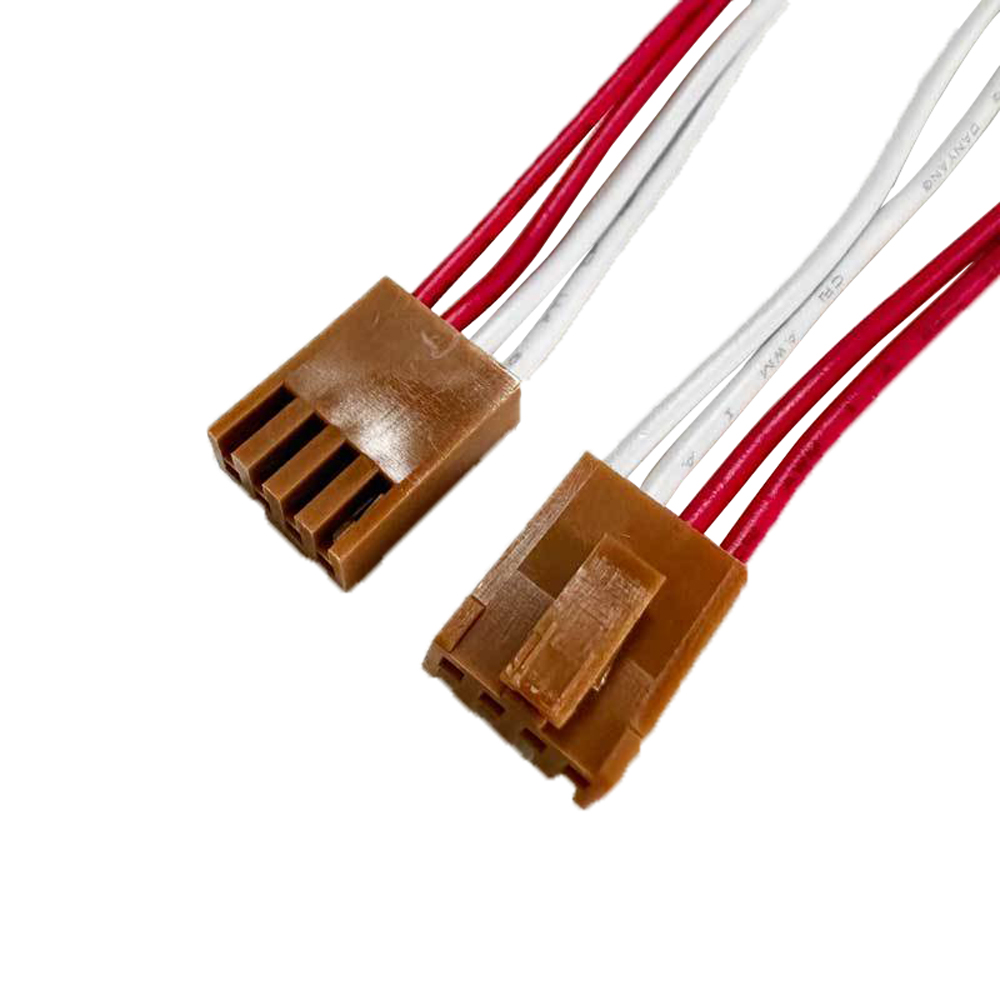

The JAE 2.54mm IL-4S-S3L-(N) terminal wire assembly is a precision-engineered battery plug connector cable belonging to JAE’s IL series—specialized for reliable power and signal transmission in battery-powered systems. Featuring a 4-position (4P) single-row design with a 2.54mm standard pitch, it adopts a crimp-terminated structure compatible with fine-gauge wires, tailored to meet the high-reliability requirements of battery connection scenarios. As a product of JAE’s precision manufacturing, it excels in compactness and durability, making it ideal for both consumer and industrial battery-powered equipment.
Features
2.54mm standard pitch + 4P single-row configuration, optimizing space utilization in compact battery modules
Integrated mechanical locking structure prevents accidental disconnection from vibration or impact
High-conductivity contacts (available in tin or gold plating) ensure low contact resistance and long-term corrosion resistance
Wide operating temperature range (-40°C to +85°C) adapting to extreme battery working environments
Crimp termination design enables efficient, automated assembly with stable connection performance
RoHS compliant, meeting global environmental standards for electronic components
Compact and lightweight construction, suitable for high-density battery pack wiring
JAE’s precision manufacturing ensures consistent quality and excellent mechanical durability
Applications
Lithium battery packs: Consumer electronics batteries, industrial lithium-ion battery modules, and energy storage battery connections
Portable electronic devices: Power supply wiring for handheld tools, mobile terminals, and wearable devices
Industrial equipment: Battery connection for industrial robots, test instruments, and automation control modules
Medical devices: Power transmission for portable diagnostic equipment and battery-powered medical instruments
Automotive electronics: Auxiliary battery wiring for in-vehicle electronic systems and small electric vehicle components
Consumer electronics: Battery connectors for home appliances, digital products, and portable charging device
