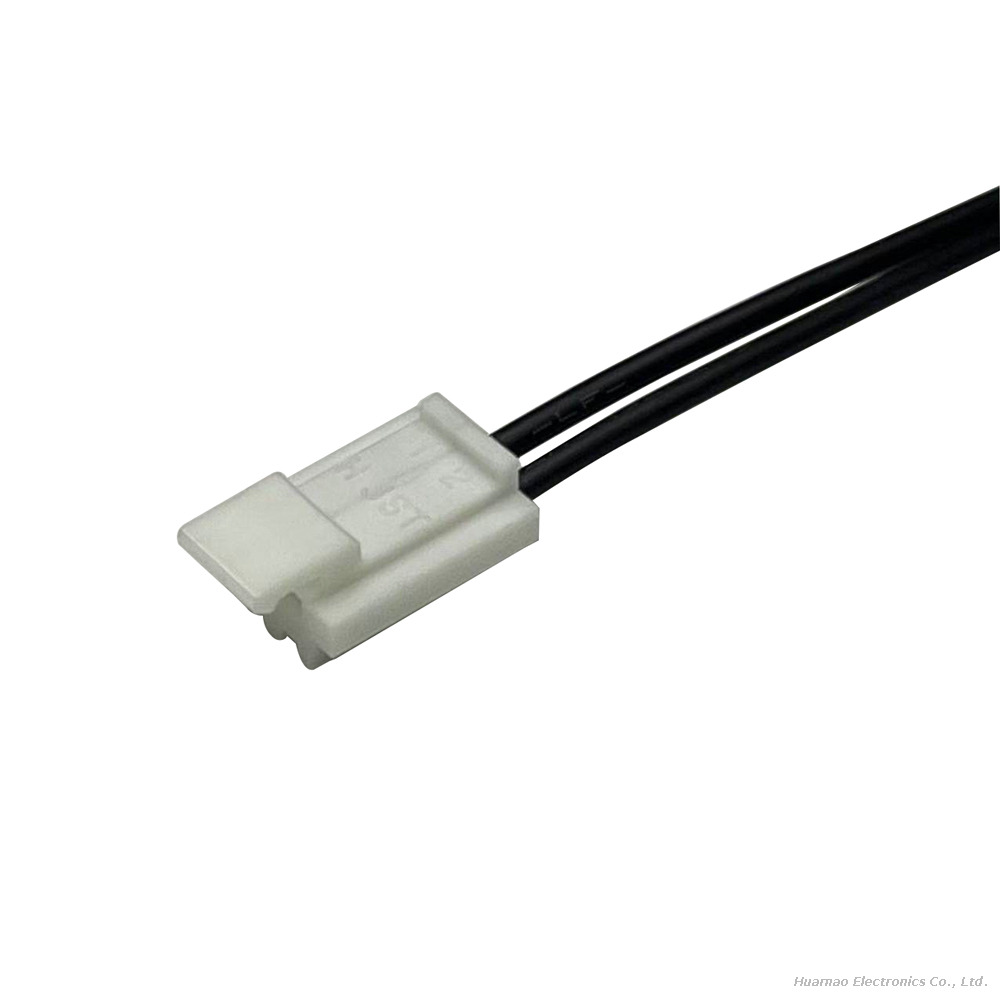

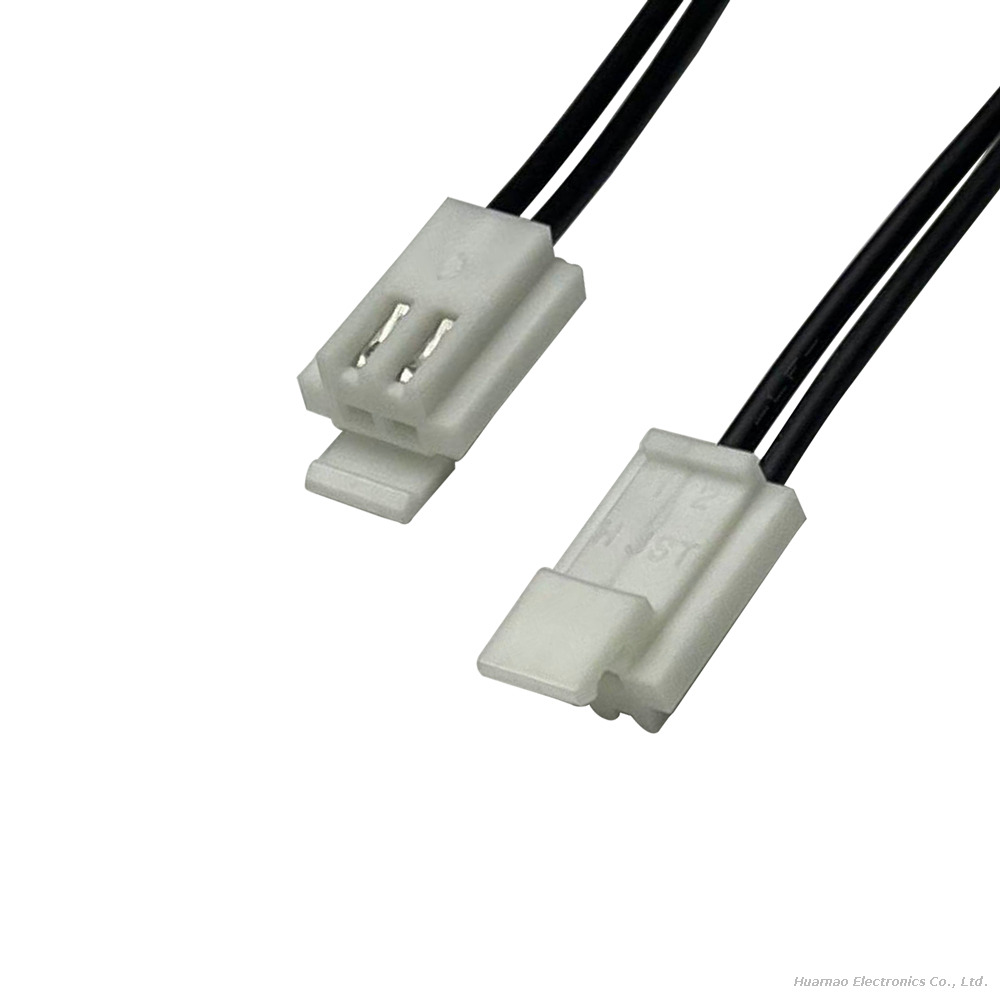

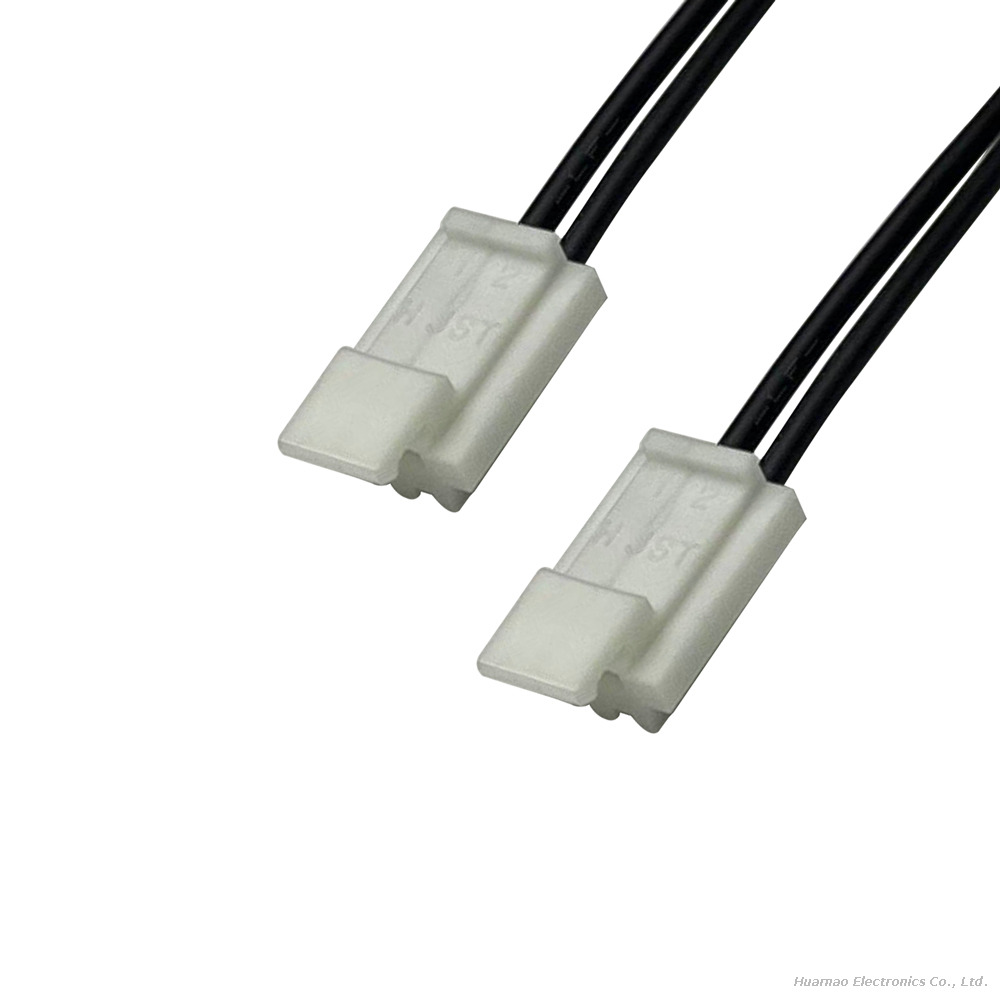

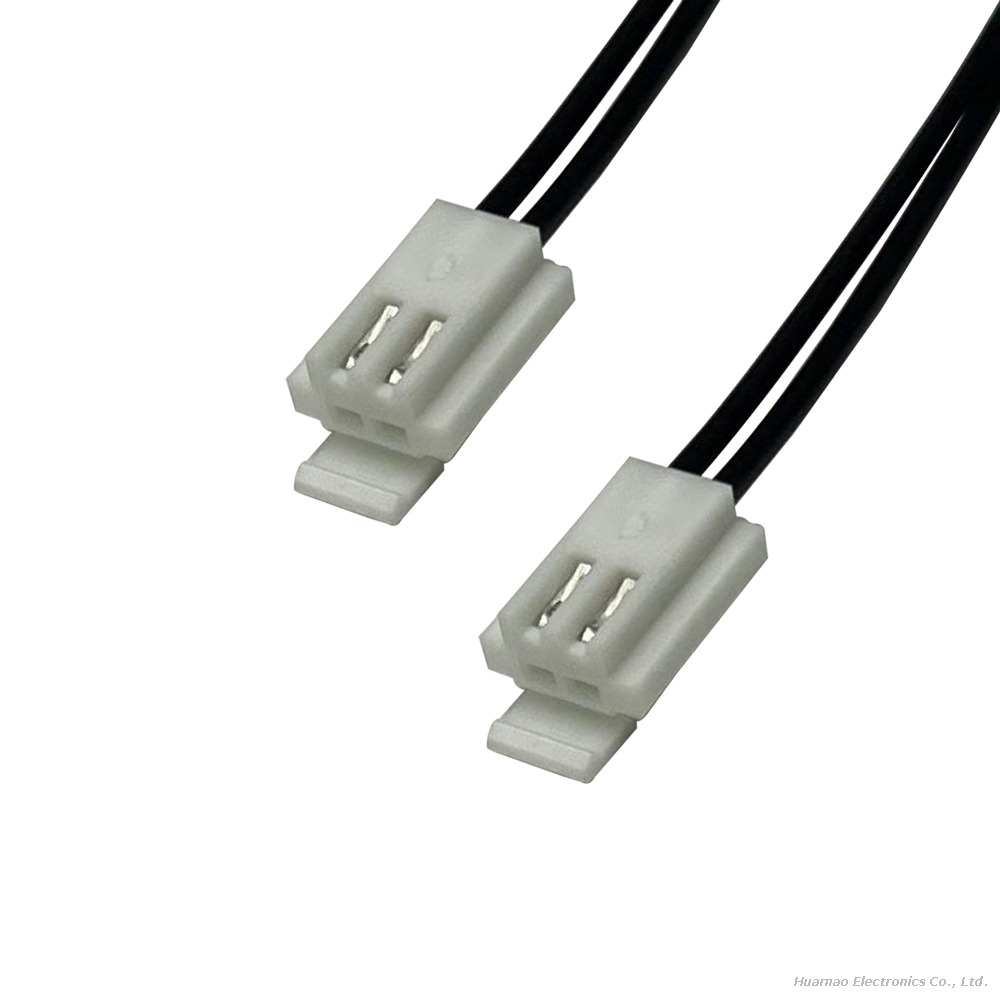

The H2P-SHF-AA wire harness represents JST's commitment to excellence in wire-to-board connectivity, combining compact design with industrial-grade reliability. As part of JST's renowned NH series, this 2-position crimp housing features a 2.5mm standard pitch, enabling seamless integration with global PCB design standards and legacy systems requiring efficient space utilization.
Advantages
Superior Folded Beam Construction: JST's signature contact design withstands repeated stress, resists permanent deformation, and offers an extended service life
Double-Sided Contact: Protected entry eliminates contact damage from mismating, providing consistent high contact pressure and maintaining continuity at all times
Error-Proof Design: Polarization key prevents incorrect mating, reducing assembly time and field failures
Universal Compatibility: 2.5mm standard pitch ensures seamless integration with global PCB design standards
Automation Ready: Engineered for high-volume production with automated crimping and insertion processes
Space-Saving Design: Single-row 2P configuration maximizes board space utilization for compact electronic devices
Versatile Wire Compatibility: Accommodates 22-28 AWG wires for diverse signal and power transmission requirements
Applications
Ideal for a wide range of electronic applications requiring reliable wire-to-board connectivity:
Consumer electronics (computers, printers, home appliances, audio equipment)
Industrial automation and control systems (PLC I/O modules, sensors, actuators)
Medical devices (diagnostic equipment, patient monitoring systems)
Telecommunications and networking hardware
Automotive electronics (infotainment, lighting control modules)
Test and measurement instruments
Power distribution units and junction boxes
LED lighting systems and signage
FAQ
Q1: Can I start a sample order first before ordering more?
A: Sure, Goochain provide free samples if we have stock, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.
Q2: What payment methods do you accept?
A: PayPal, T/T, Bank Transfer, Western Union and L/C
Q3: How does your factory do regarding quality control?
A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc
Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?
A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.
Q5: Delivery time and warranty? Which shipping service you will use for my goods?
A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.
