This 2.4GHz + 5.8GHz dual-band FPC (Flexible Printed Circuit) internal antenna is a compact, high-performance RF solution designed for built-in WiFi, Bluetooth, and IoT wireless applications. It features a flexible FPC structure with an adhesive sticker mount, available with either an IPEX/U.FL connector or a direct solderable pin for easy integration into space-constrained devices. Optimized for 2.4GHz (WiFi/Bluetooth/Zigbee) and 5.8GHz (WiFi) bands, this low-profile antenna delivers stable signal transmission, excellent anti-interference performance, and reliable connectivity for smart home, industrial, and consumer electronics.
Key Features
✅
Dual Band CompatibilityFully optimized for the
2.4GHz (2400-2500MHz) and
5.8GHz (5150-5850MHz) ISM bands, supporting WiFi 802.11b/g/n/ac/ax, Bluetooth, Zigbee, and other 2.4/5.8GHz wireless protocols. Ideal for dual-band routers, IoT gateways, and smart devices.
✅

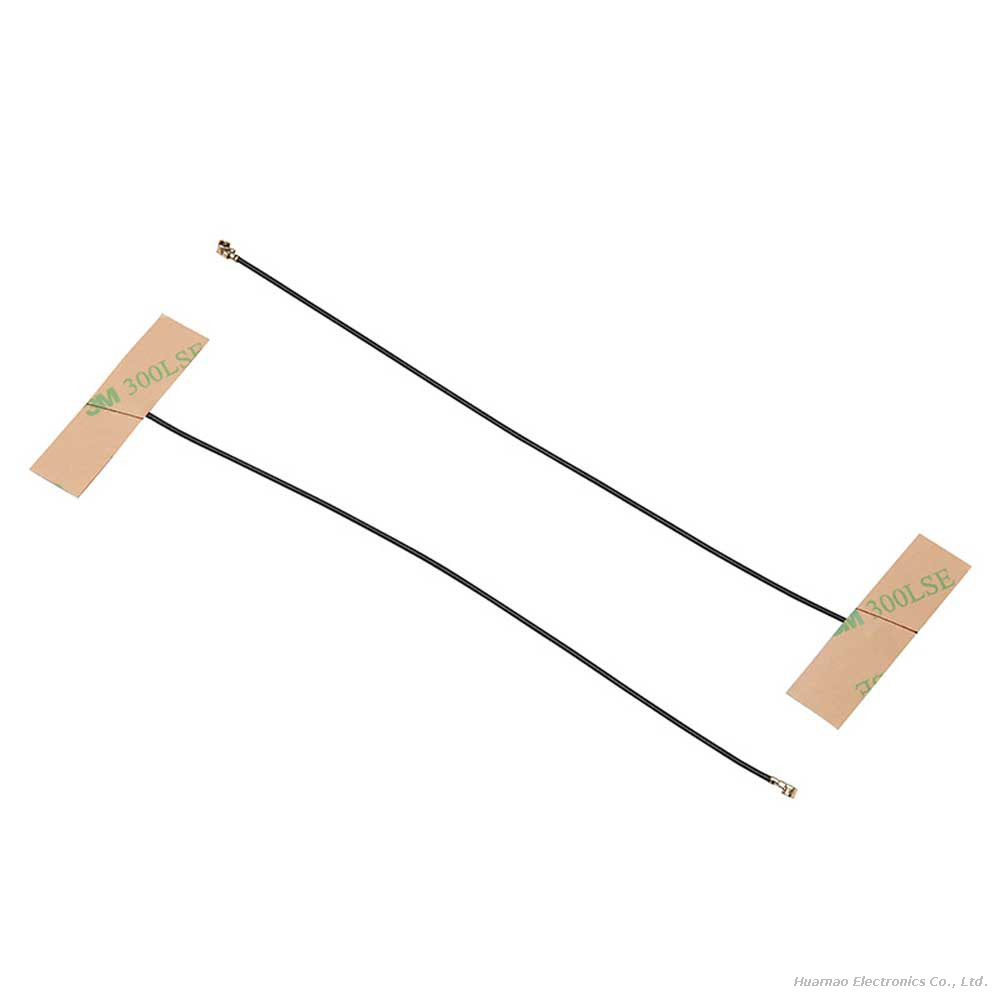

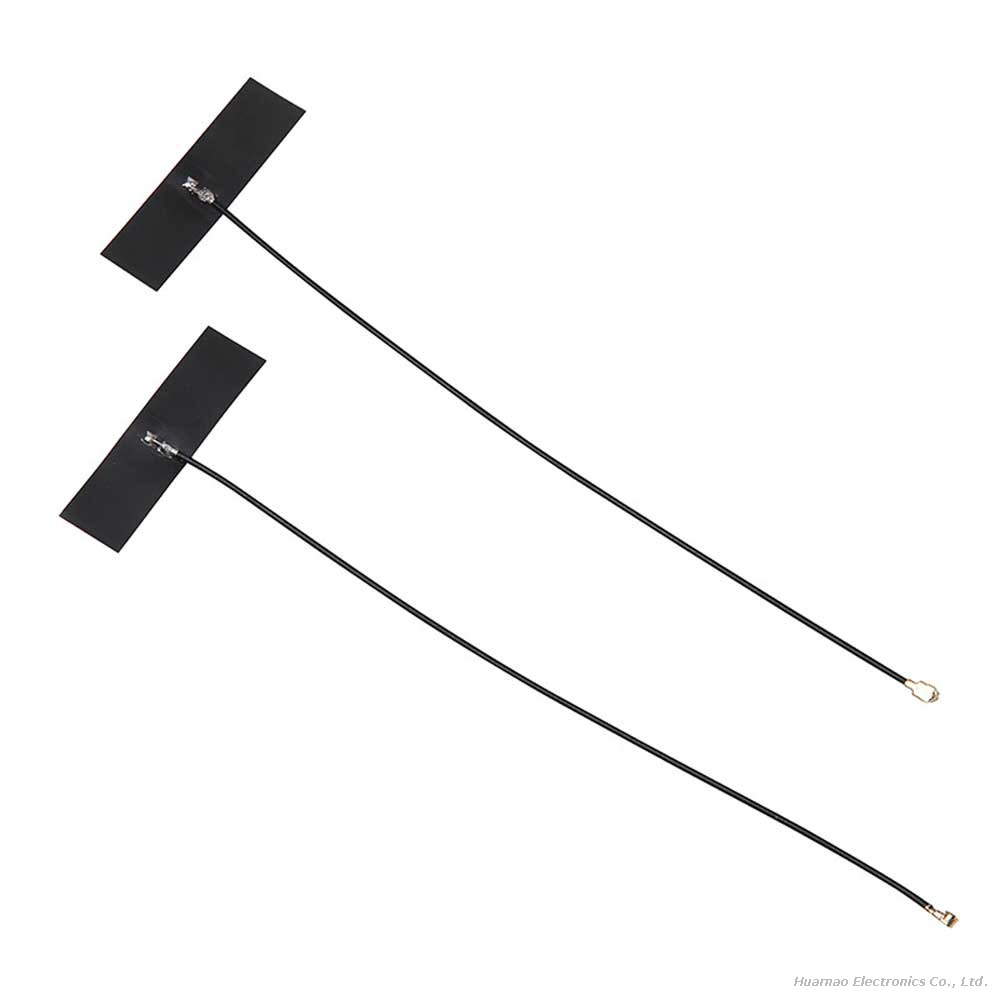

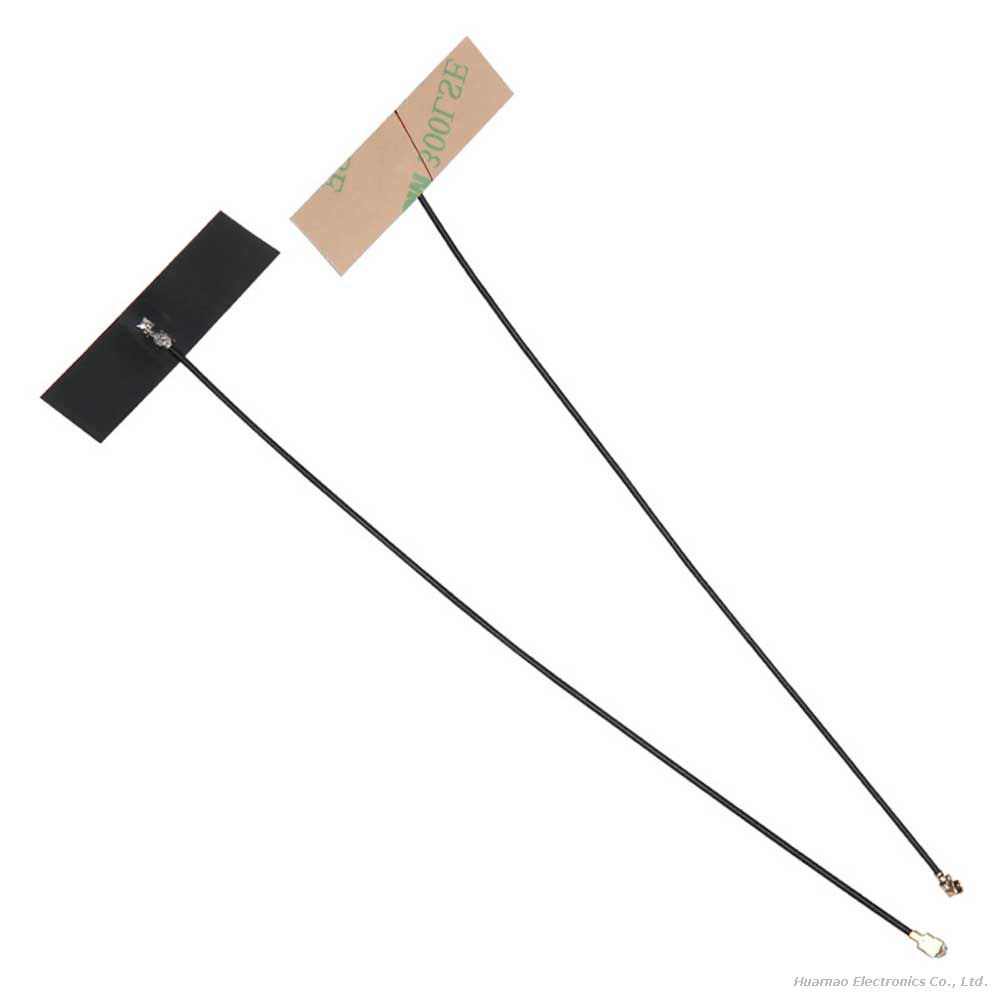

Flexible FPC Sticker DesignConstructed with thin, flexible FPC material and equipped with a strong 3M adhesive backing, the antenna can be easily mounted on flat or curved surfaces inside devices. The low-profile form factor fits perfectly in compact enclosures like laptops, wearables, and small IoT sensors.
✅

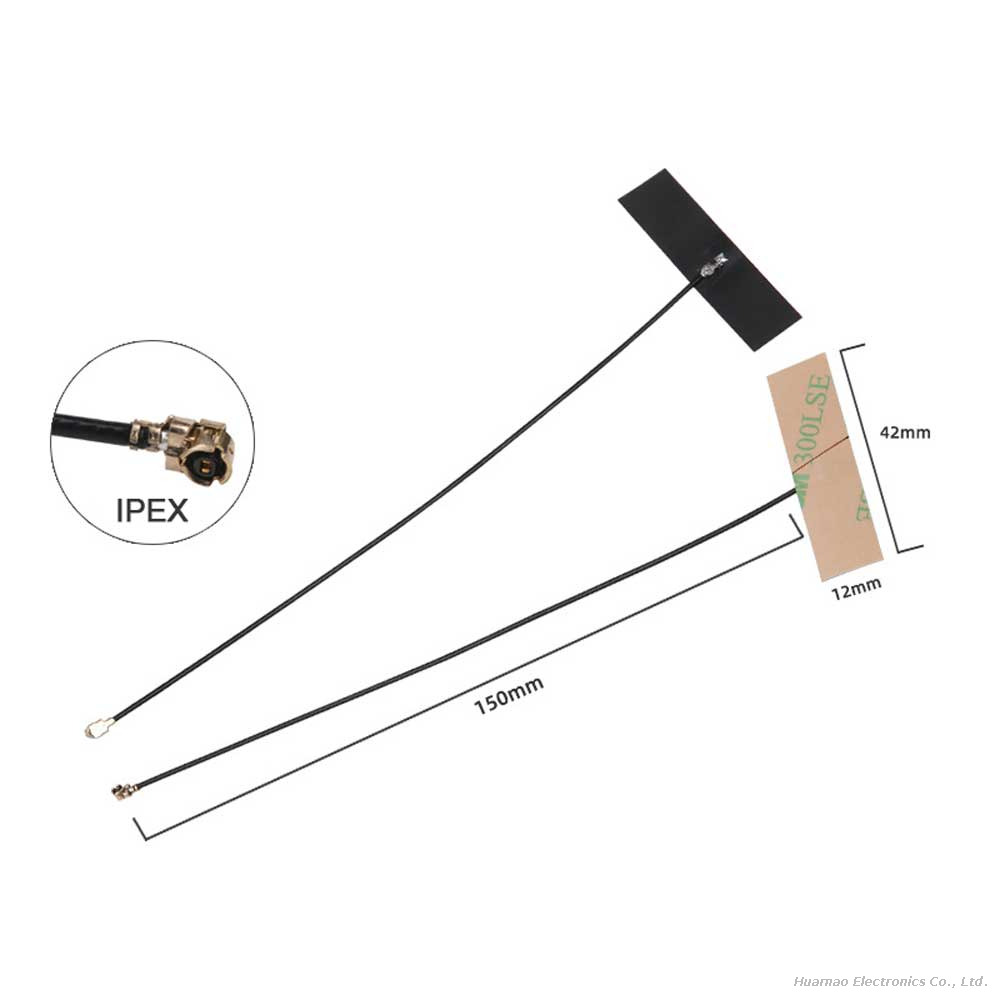

Dual Connector OptionsAvailable with two termination types to match different integration needs:

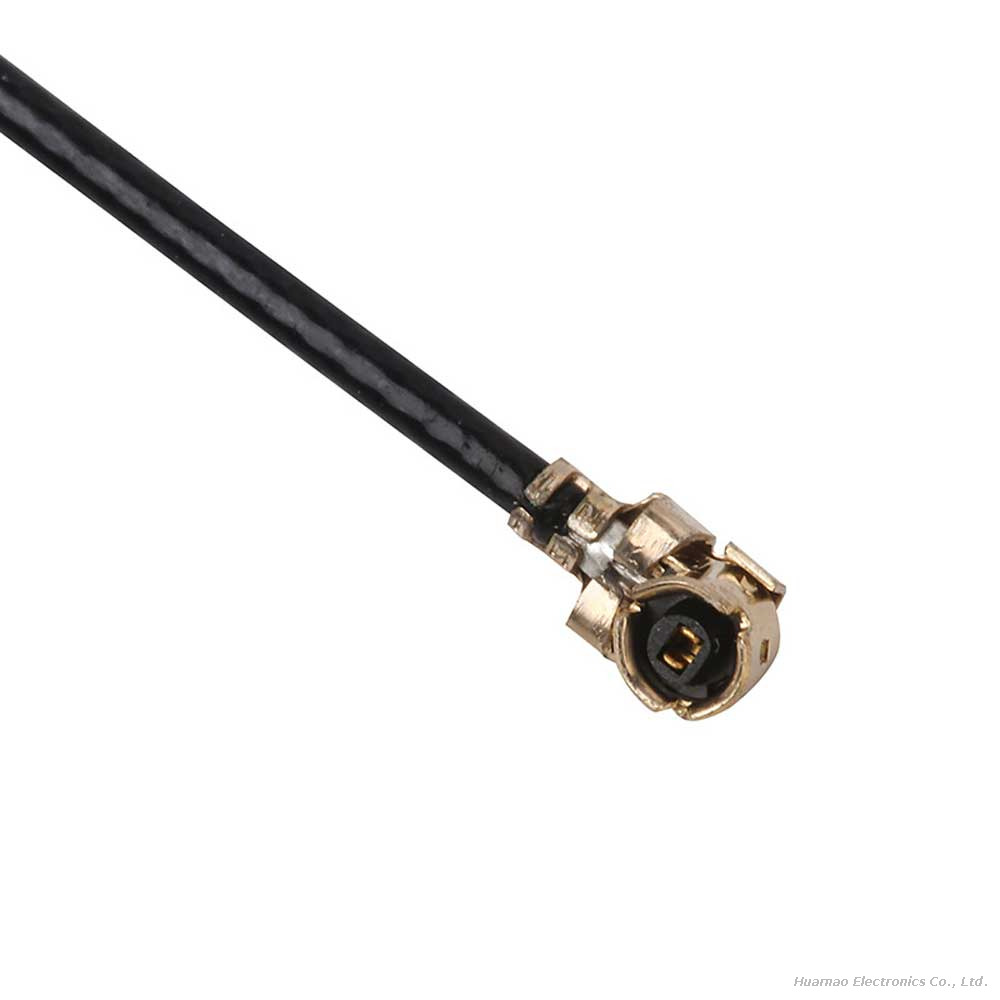

IPEX/U.FL Connector: For quick, tool-free connection to WiFi/Bluetooth modules (ideal for modular devices)
Solderable Pin: For direct PCB soldering (ideal for permanent, high-reliability installations)
✅
High Gain & Low LossDesigned with optimized trace patterns for consistent gain (typically 1.5-2dBi) across both bands, minimizing signal attenuation and ensuring reliable wireless performance even in metal-enclosed or shielded environments.
✅
50Ω Impedance MatchingStandard 50Ω impedance design ensures optimal RF performance, minimizing signal reflection (VSWR ≤ 1.5) and maximizing power transfer for stable, high-speed wireless links.
✅
Industrial-Grade DurabilityHigh-quality FPC material and gold-plated contacts resist oxidation, corrosion, and mechanical stress. The antenna operates reliably across a wide temperature range (-40°C to +85°C), suitable for both indoor and industrial use.
Common Applications
Smart Home Devices: WiFi routers, smart speakers, cameras, and home automation hubs
IoT & Industrial: Wireless sensors, gateways, PLC modules, and industrial control equipment
Consumer Electronics: Laptops, tablets, smart wearables, and portable Bluetooth devices
Medical Devices: Patient monitors, diagnostic equipment, and connected health devices
Automotive: In-vehicle infotainment, telematics, and connected car modules
Test & Development: Prototype boards, RF testing, and IoT module development
Why Choose This Dual Band FPC Antenna?
Space-Saving Design: Ultra-thin flexible FPC form factor fits in the tightest device enclosures, ideal for compact electronics.
Dual Connector Flexibility: Choose between IPEX or solderable termination to match your device’s integration needs.
Optimized Dual-Band Performance: Tuned specifically for 2.4G and 5.8G bands, ensuring maximum efficiency for WiFi and Bluetooth communication.
Easy Installation: Strong adhesive backing allows quick, permanent mounting on any flat surface inside your device.
Reliable Connectivity: Low-loss design and high-quality components ensure stable signal transmission even in challenging environments.
Customization Options
We offer flexible customization to meet your project requirements:
Custom Sizes: Tailored antenna dimensions to fit your device’s internal layout
Connector Types: SMA, RP-SMA, MMCX, or other custom connectors (upon request)
Cable Lengths: 50mm to 500mm+ (custom lengths available)
Frequency Tuning: Custom optimization for specific sub-bands (e.g., 2.4G only or 5.8G only)
Bulk OEM/ODM: Private labeling, custom packaging, and technical support for high-volume projects
