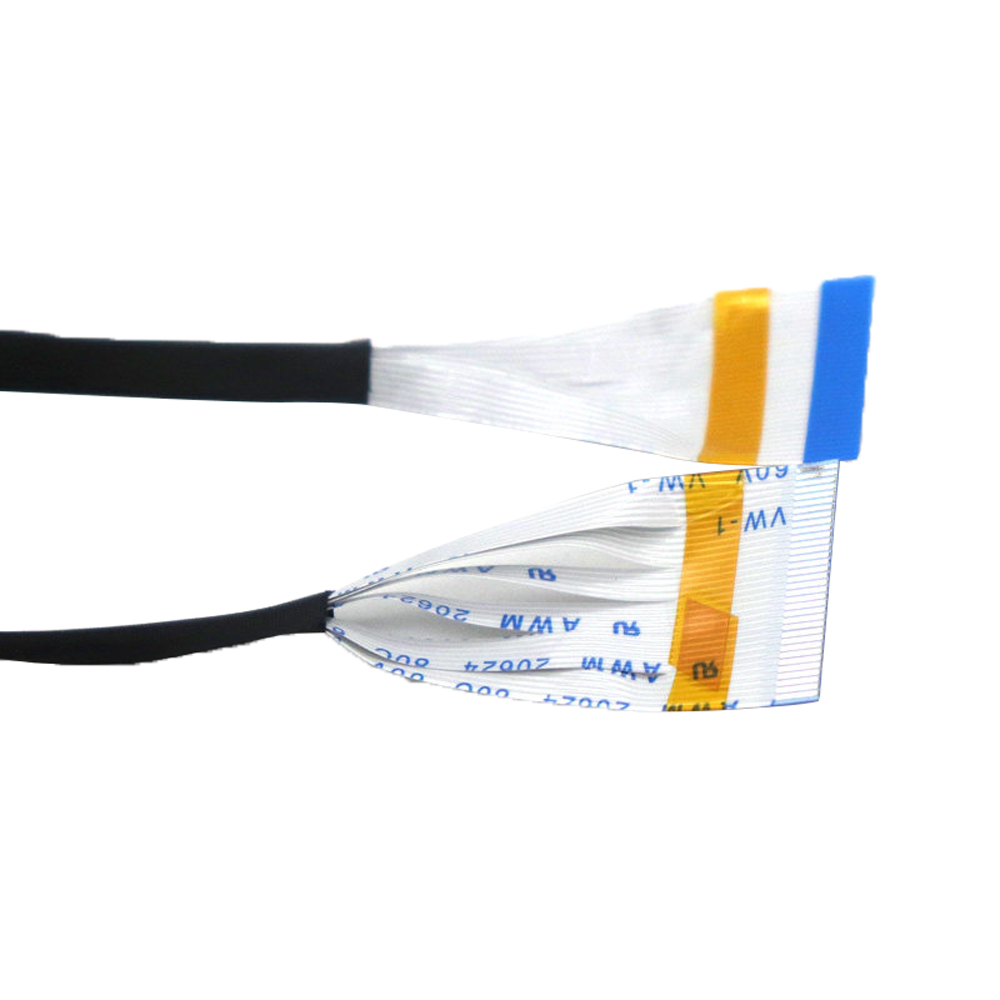

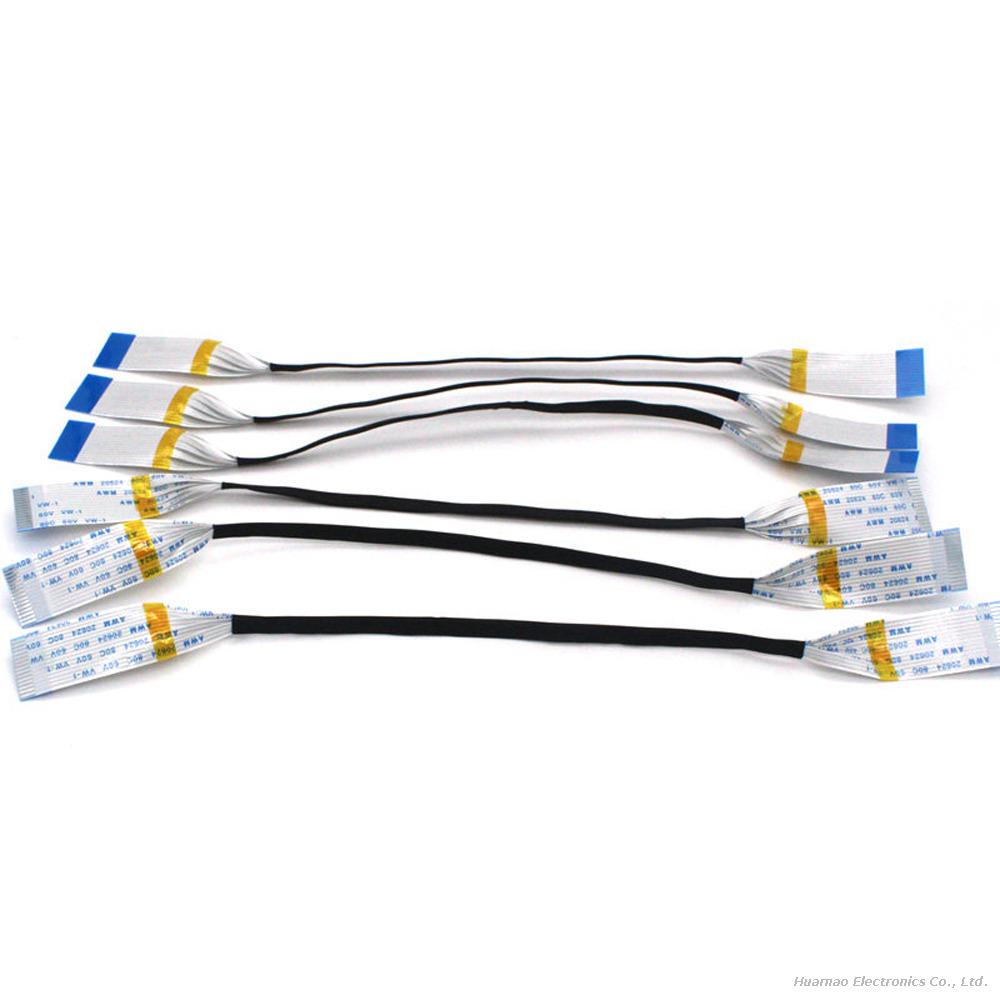

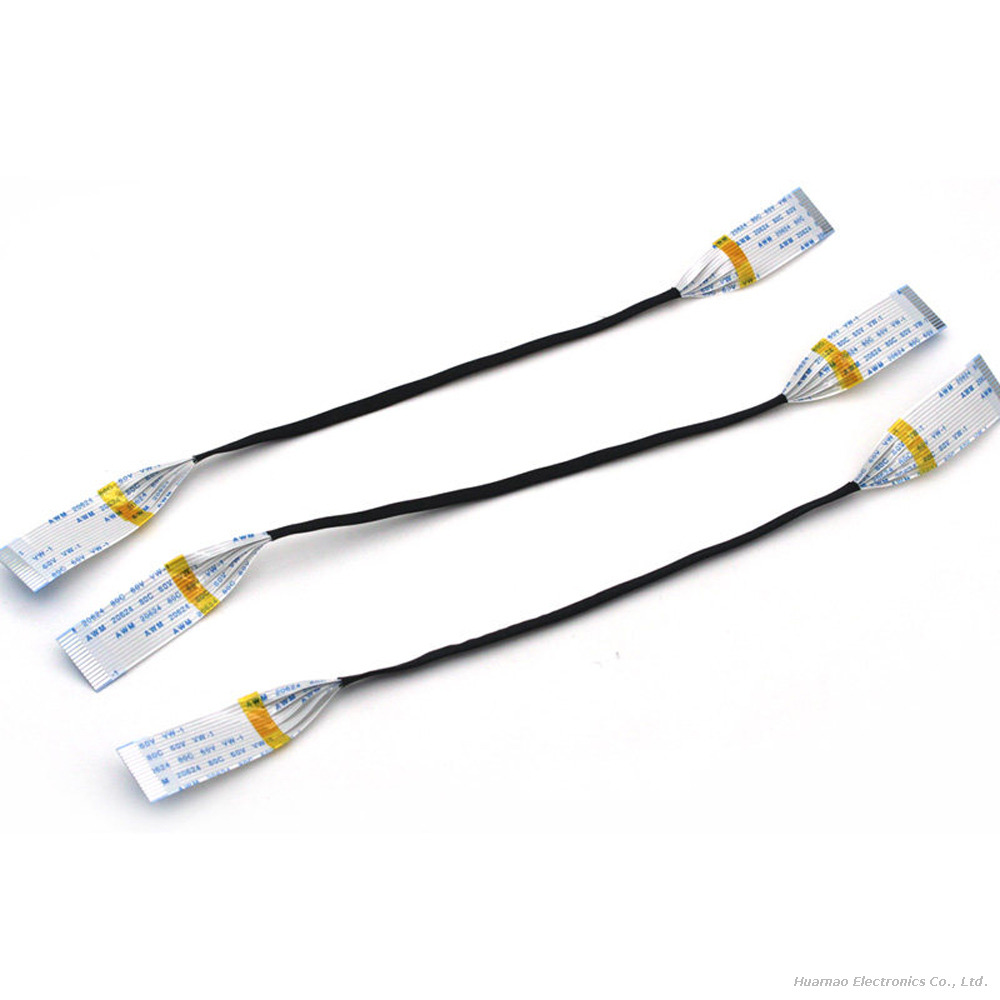

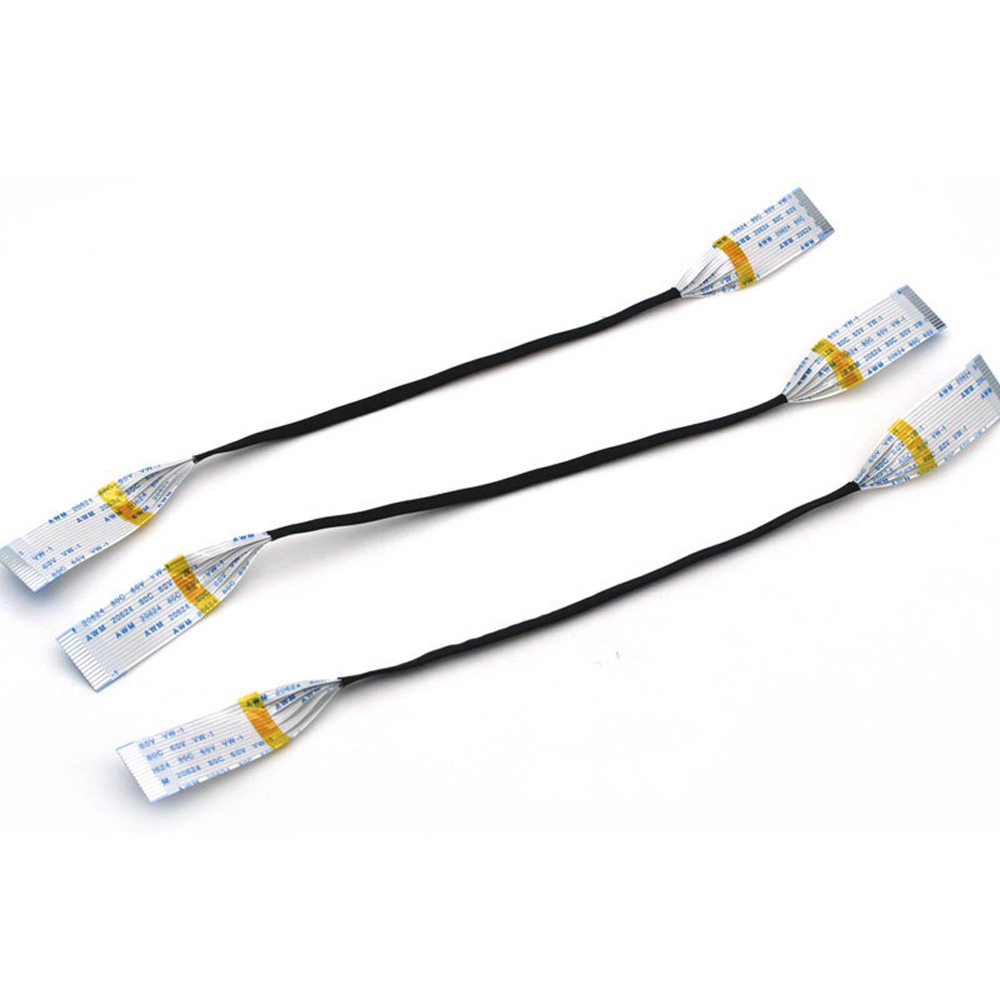

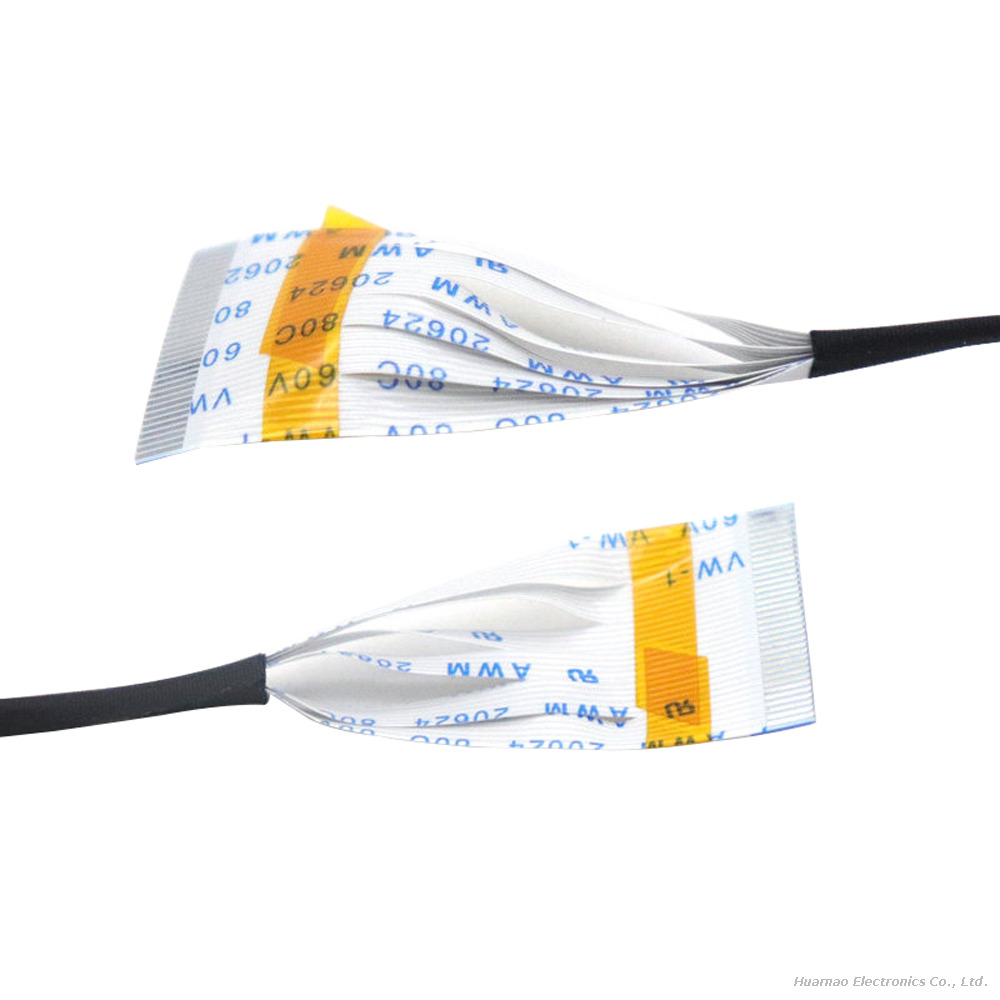

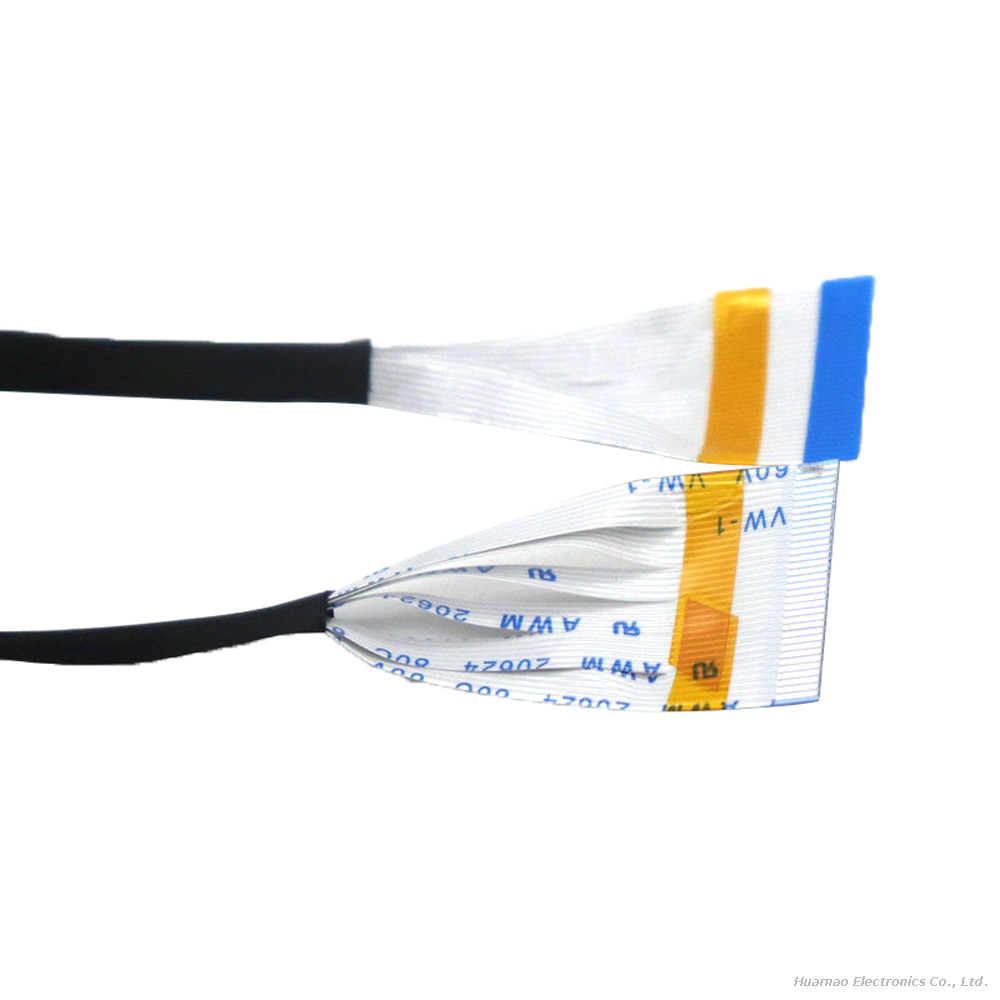

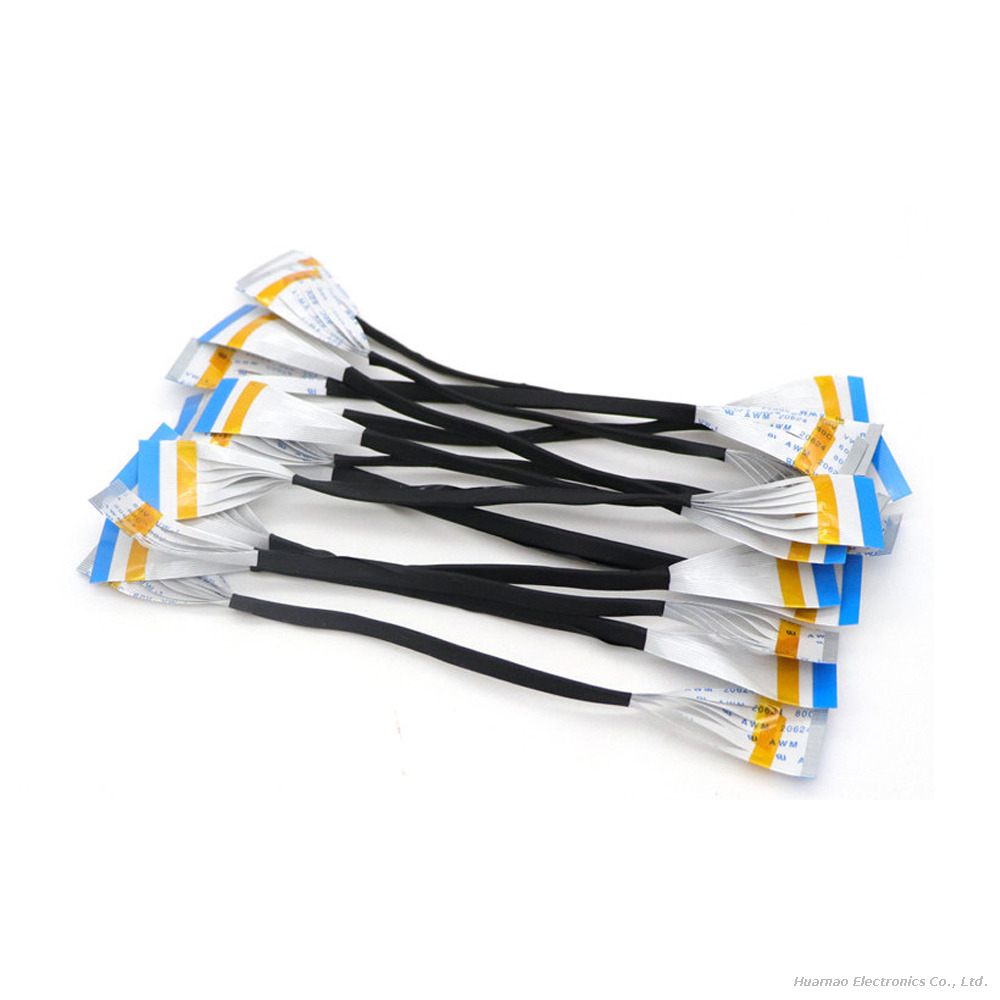

FFC Flexible Flat Parellel Cable 0.5mm 22P 24P 26P 30P 40P Acetate Cloth FPC Cable

This is a series of Flexible Flat Parallel Cables (FFC) with 0.5mm pitch and pin counts ranging from 22P to 40P, featuring acetate cloth insulation for enhanced durability and flexibility. Designed for high-density, space-constrained electronic applications, these cables provide reliable signal/power transmission between PCBs, FPCs, or components in compact devices. They support both same-side (Type A) and opposite-side (Type B) contact configurations, with standard lengths customizable from 20mm to 1000mm to meet diverse installation needs.

Features

• Ultra-compact 0.5mm pitch: Maximizes space efficiency for miniaturized electronics

• Multiple pin options: 22P, 24P, 26P, 30P, 40P to accommodate various I/O requirements

• Acetate cloth insulation: Offers excellent flexibility, heat resistance, and mechanical protection

• Dual contact configurations: Same-side (Type A) and opposite-side (Type B) for versatile connection scenarios

• High-conductivity conductors: Tinned copper for low resistance and corrosion resistance

• Reliable electrical performance: Rated for 0.5-1A per contact, 30-50V DC, operating temperature -40°C to +85°C

• Easy installation: Direct plug-in design eliminates soldering for quick assembly

• RoHS compliant: Environmentally friendly lead-free construction

Applications

• Consumer Electronics: Smartphones, tablets, wearables, digital cameras, laptops, gaming consoles, and home appliances (LCD TVs, printers, scanners)

• Automotive Systems: Infotainment displays, instrument clusters, sensor modules, and interior lighting controls

• Industrial Automation: PLCs, IoT sensors, control panels, and small-scale automation equipment

• Medical Devices: Portable diagnostic tools, patient monitors, and compact medical instrumentation

• Telecom & Computing: Networking hardware, SSDs, optical drives, and display panels

• Automotive: Dashboard electronics, door modules, and camera systems requiring flexible connections

FAQ

Q1: Can I start a sample order first before ordering more?

A: Sure, Goochain provide free samples if we have stock, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.



Q2: What payment methods do you accept?

A: PayPal, T/T, Bank Transfer, Western Union and L/C

Q3: How does your factory do regarding quality control?

A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc

Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?

A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.

Q5: Delivery time and warranty? Which shipping service you will use for my goods?

A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.
