F to SMA Antenna Signal Adapter Male Female RF Coaxial Connector

F-type to SMA RF coaxial adaptor set with male and female conversion interfaces, dual-layer plating structure combining nickel shell and gold-plated inner conductors. Broadband stable electrical performance reduces signal distortion, anti-slip knurled surface improves assembly efficiency for mass production. RoHS compliant universal conversion fitting, ideal interconnection accessory for TV signal amplifier manufacturers, wireless router suppliers, satellite communication and monitoring equipment factories.

Model:
F to SMA
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

F to SMA connector F to SMA RF adapter SMA coaxial converter F-SMA signal transition connector gold-plated F SMA RF coaxial plug antenna connector

Product Description

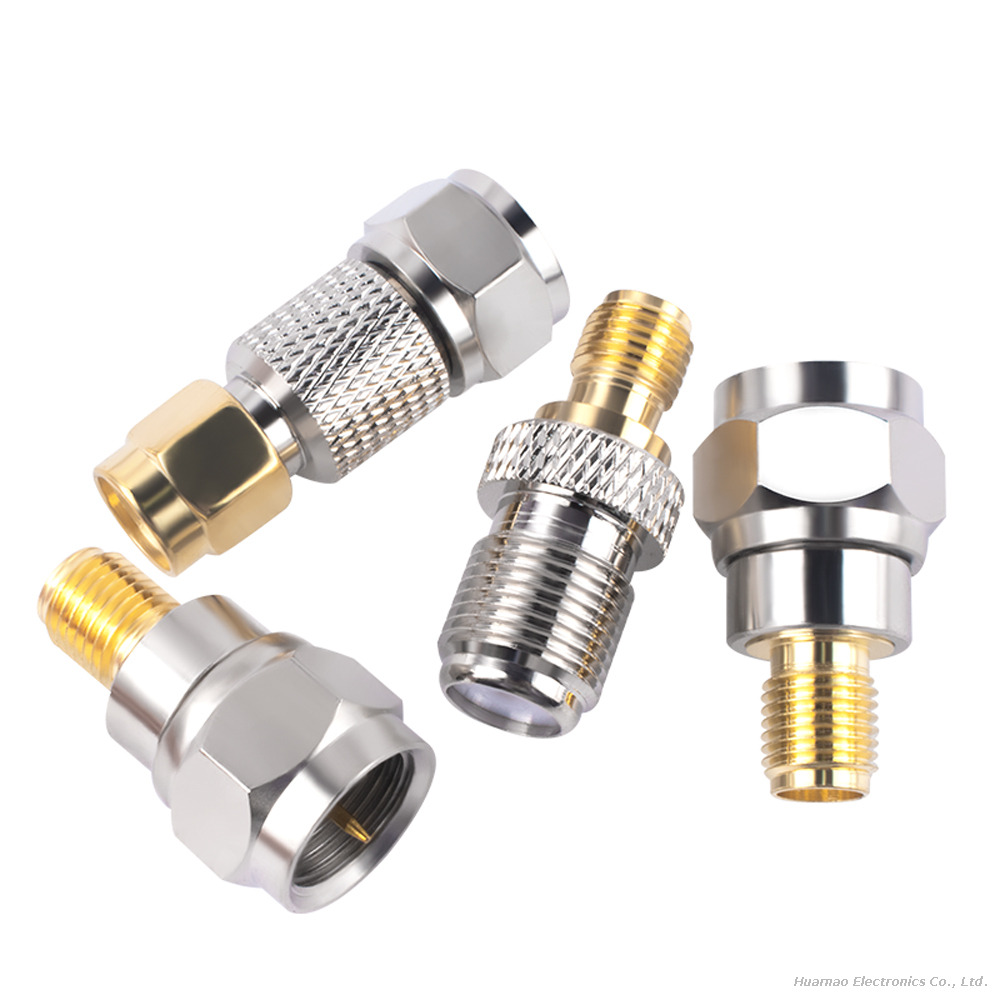

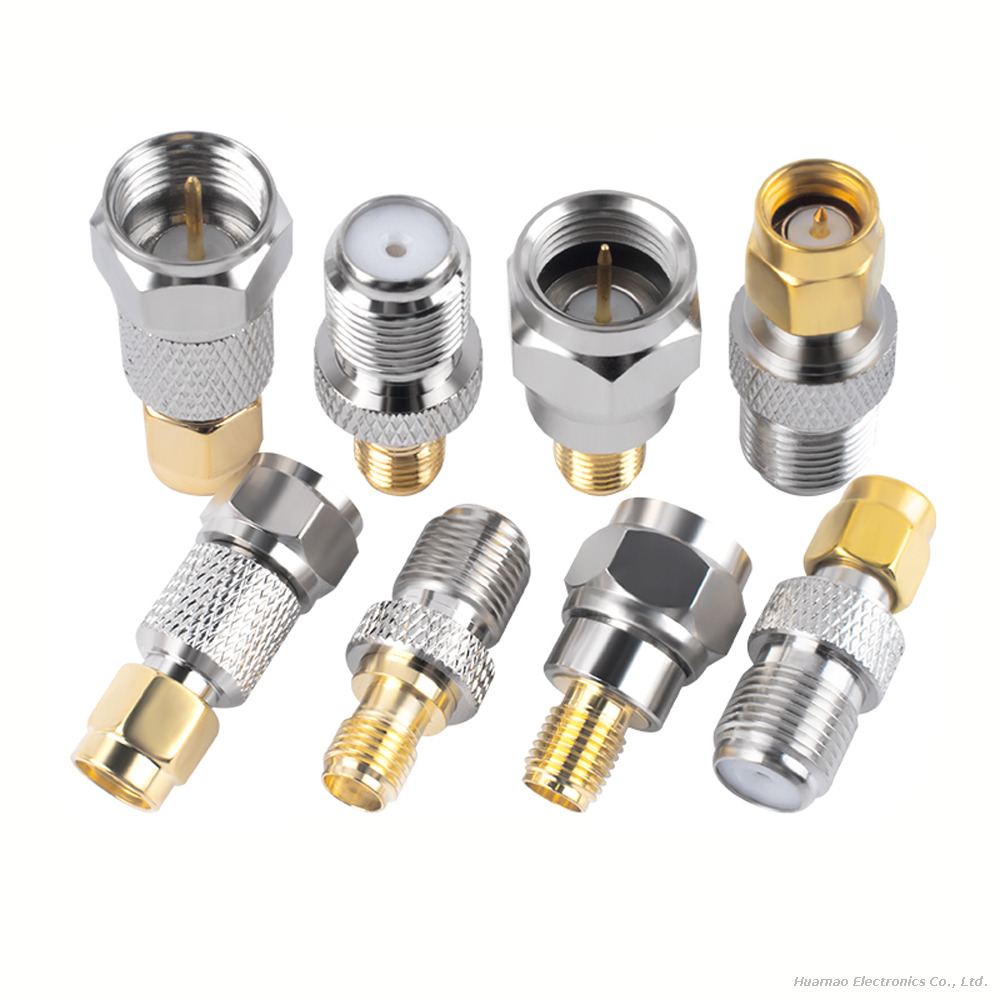

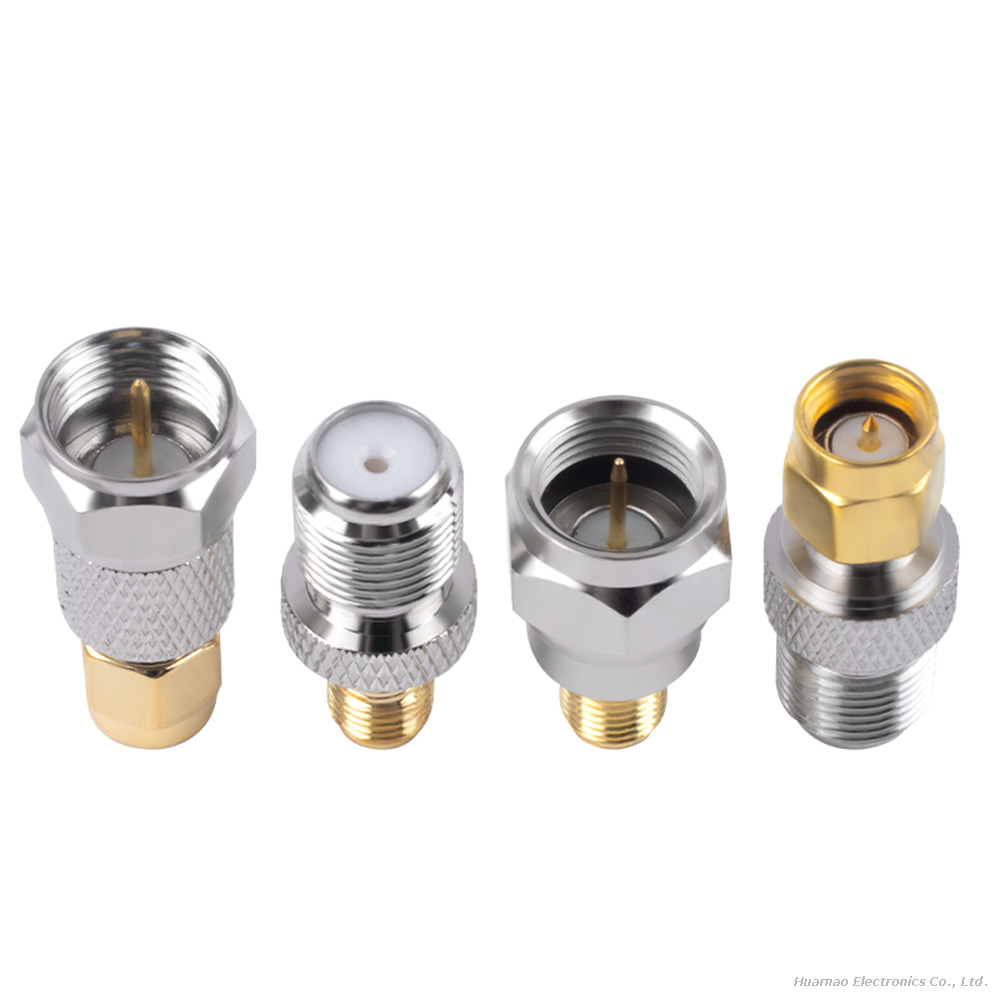

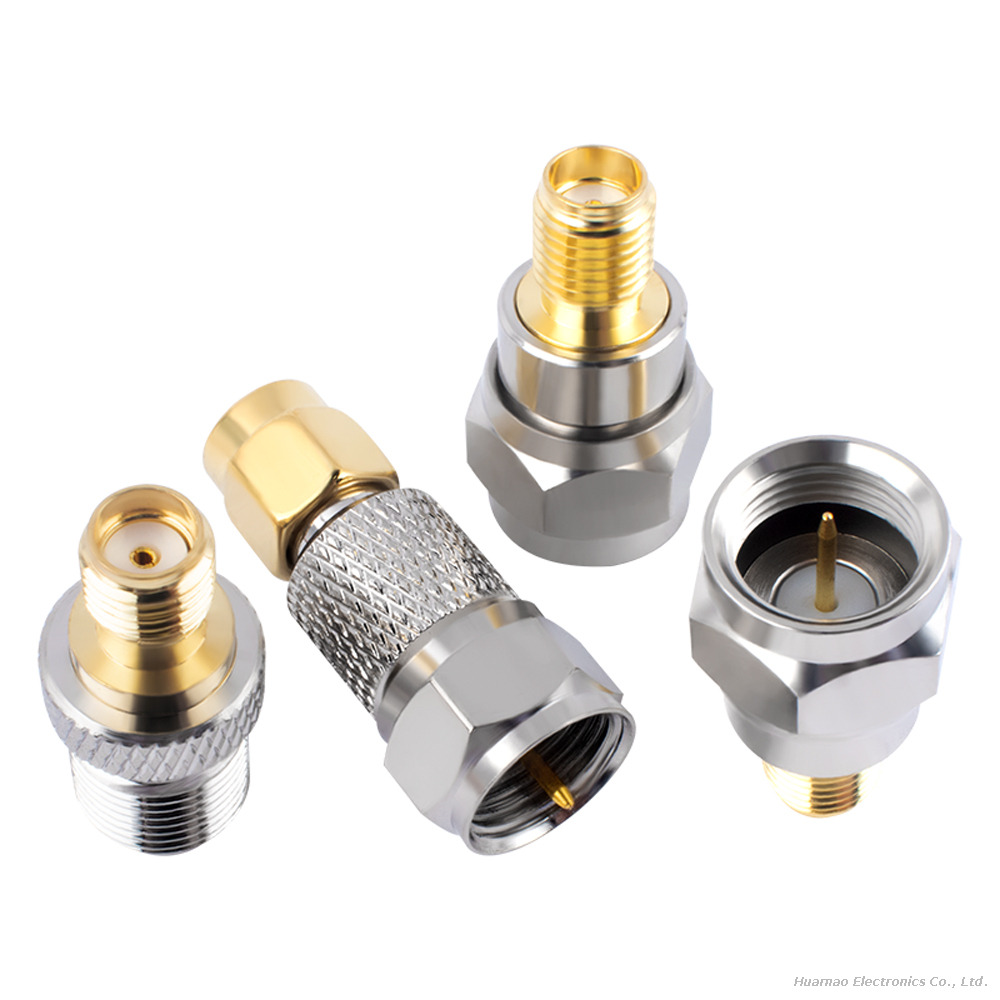

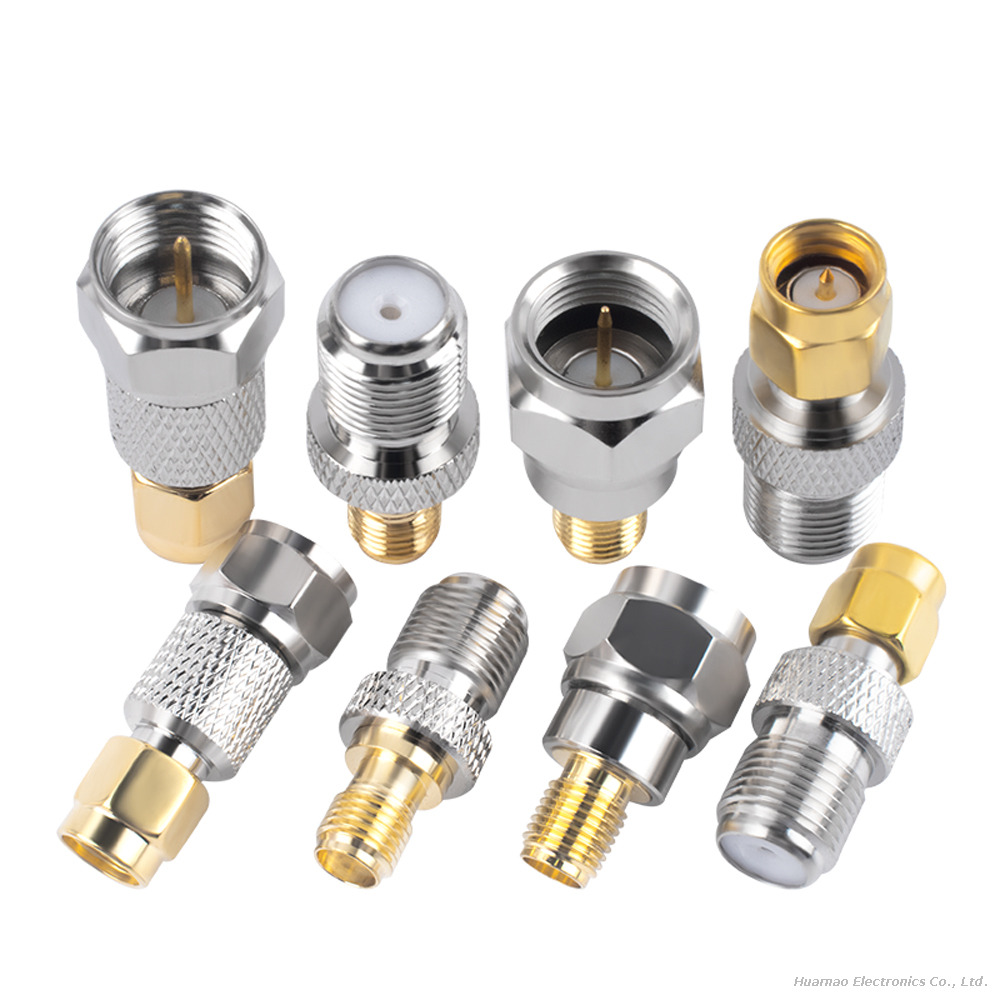

This full-series F-to-SMA RF coaxial adapter realizes bidirectional signal conversion between F-type (75Ω CATV standard) and SMA (50Ω wireless communication standard) interfaces, including four mainstream combinations shown in the picture: F male to SMA male, F male to SMA female, F female to SMA male, F female to SMA female.

The main body is forged from solid brass with matte nickel plating for corrosion resistance; central contact pin adopts thick hard gold plating to avoid oxidation and signal attenuation after long-term use. Partial models are equipped with knurled anti-slip outer nuts, allowing hand tightening without tools for quick disassembly of household antennas and TV equipment.

Working frequency covers DC~3GHz, fully compatible with digital cable TV, satellite receiving signals, 2.4G WiFi router external antennas, amateur radio short-distance signal transceivers. Built-in PTFE stable dielectric core ensures low VSWR signal transmission, avoids picture flicker and signal loss caused by interface mismatch. All raw materials comply with RoHS environmental protection standards, suitable for household consumer electronics and small wireless communication equipment assembly.

Specifications

Series Model	F to SMA straight RF adapter
Operating Frequency Band	DC ~ 3 GHz
Internal Dielectric Material	PTFE stable high insulation core
Lock Nut Option	Smooth hex nut / knurled anti-slip hand-tight nut optional
Operating Temperature Range	-20 ℃ ~ +70 ℃
Withstand Voltage	500V DC / 1min no breakdown

Advantages

4 Full Interface Combinations Cover All Household TV & Wireless Conversion Scenarios (Core Advantage)
Four male/female cross matching specifications, solve all docking demands between CATV F antenna port and SMA router/GPS antenna port, one series adapts digital TV, satellite receiver, wireless signal equipment multi-scene use, reduce inventory model types.
Knurled Anti-Slip Nut Tool-Free Quick Assembly For Household Use
Unique textured knurled locking nut design, users can manually tighten without small wrenches, convenient for ordinary families to replace TV antennas and debug router signals by themselves.
Nickel-Plated Shell + Gold-Plated Pin Double Anti-Corrosion Structure Long Service Life
Nickel outer layer resists daily air oxidation and water vapor corrosion in TV cabinets; gold-plated inner pin avoids signal weakening and TV picture snow noise caused by long-term contact oxidation.
DC~3GHz Broadband Compatible With All Civil TV & 2.4G Wireless Signals
Covers full frequency bands of digital cable TV, satellite TV, 2.4G WiFi router, amateur radio short-distance communication, realize one adapter multi-purpose.
Compact Mini Straight Body Easy Hidden Wiring Layout
Small overall volume, can be hidden in TV cabinet wiring trough, wall hole gaps, no protruding large volume affecting home decoration aesthetics.
One-Stop Custom F-SMA Antenna Extension Cable Service
Support small batch sample production and mass OEM processing, can be matched with RG6/RG59/RG58 coaxial wire to make custom-length finished signal jumper cables for TV antenna manufacturers and wireless router factories.

Application

Digital Cable & Satellite Television Equipment Systems
Set-top box F-SMA signal transition adapter, wall TV panel F female to SMA male antenna converter, satellite dish feeder F male to SMA female amplifier connecting plug
Wireless Router & Indoor WiFi Antenna Devices
2.4G wireless router SMA port to TV F port signal receiving adapter, signal repeater F-SMA short extension jumper, indoor omnidirectional antenna interface conversion connector
Amateur Radio & Short-Distance Signal Receiving Equipment
Short-wave radio F feeder to SMA test instrument transition plug, portable signal detector F-SMA signal input adapter, small outdoor signal transceiver antenna converter
Household Intelligent Monitoring & Signal Amplifier Equipment
Monitoring camera wireless signal antenna F-SMA adapter, TV signal booster interface transition connector, indoor distributed antenna system signal bridging plug
Consumer Electronic Aftermarket Modified Signal Equipment
Universal TV antenna modified SMA router receiving adapter, aftermarket indoor signal enhancement short transition jumper, portable handheld signal meter matching F-SMA converter

FAQ

Q1: What is the advantage of knurled nut version compared with ordinary smooth hex nut?

A: The surface dense diamond knurling increases friction, can be manually screwed tightly without matching open-end wrench, very suitable for ordinary household users to independently install and replace antennas; smooth hex nut needs wrench for precise locking, more used for fixed equipment professional engineering wiring.

Q2: Can this F-SMA adapter be used for outdoor wall-mounted satellite dish antennas?

A: The nickel-plated shell has certain anti-rust performance, but this adapter has no integrated waterproof sealing ring; if used outdoors for a long time, it is recommended to wrap the joint with waterproof heat shrink tube to avoid rainwater vapor entering and causing signal short circuit.

Q3: What is the maximum working frequency of this F-SMA adapter?

A: Nominal stable working frequency DC~3GHz, fully supports all digital cable TV, satellite TV and 2.4G WiFi signal transmission; it cannot be used for 5.8G WiFi, millimeter wave and other high-frequency signals above 3GHz.
