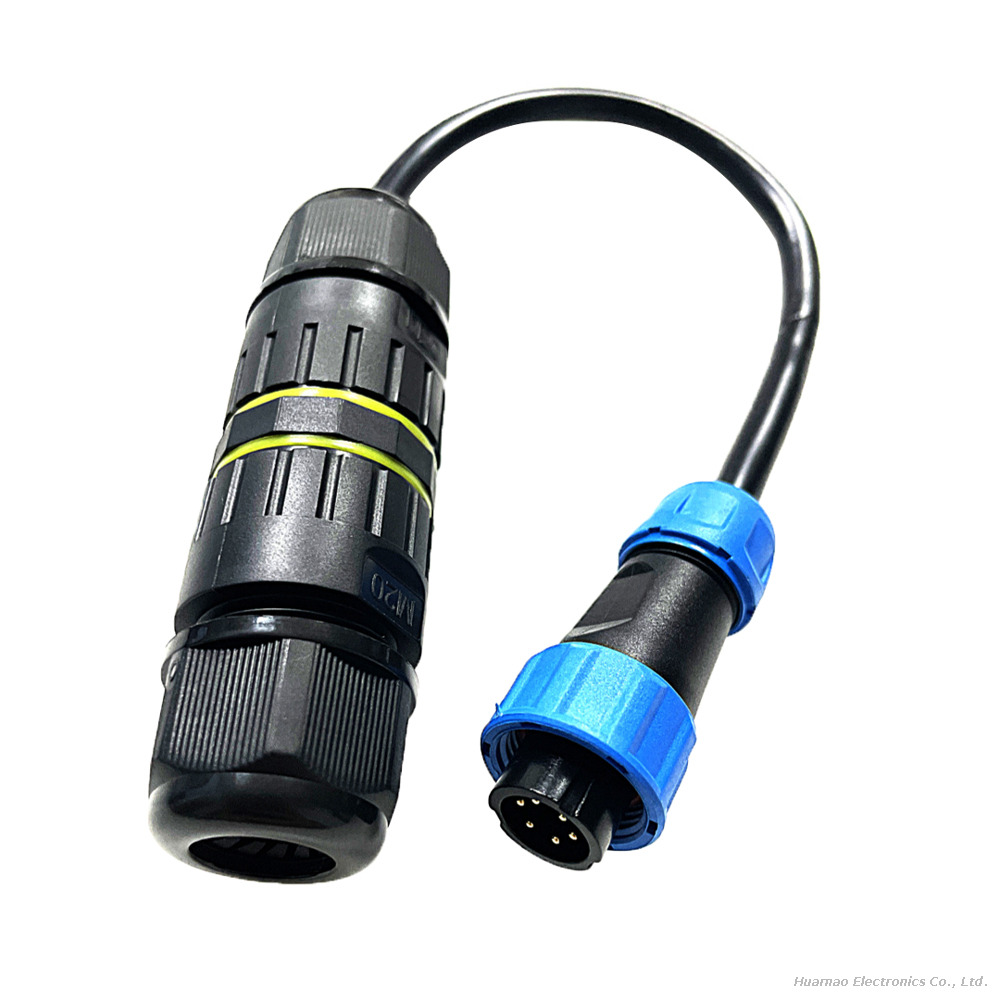

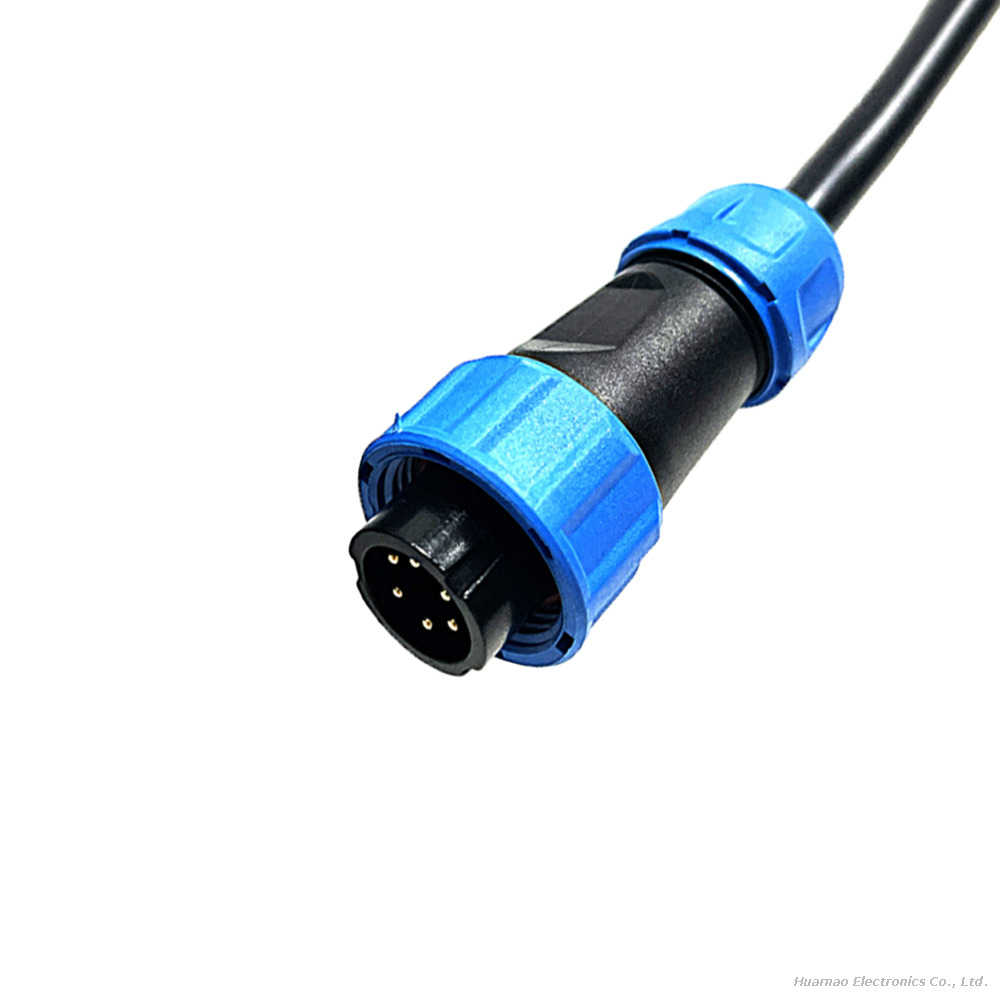

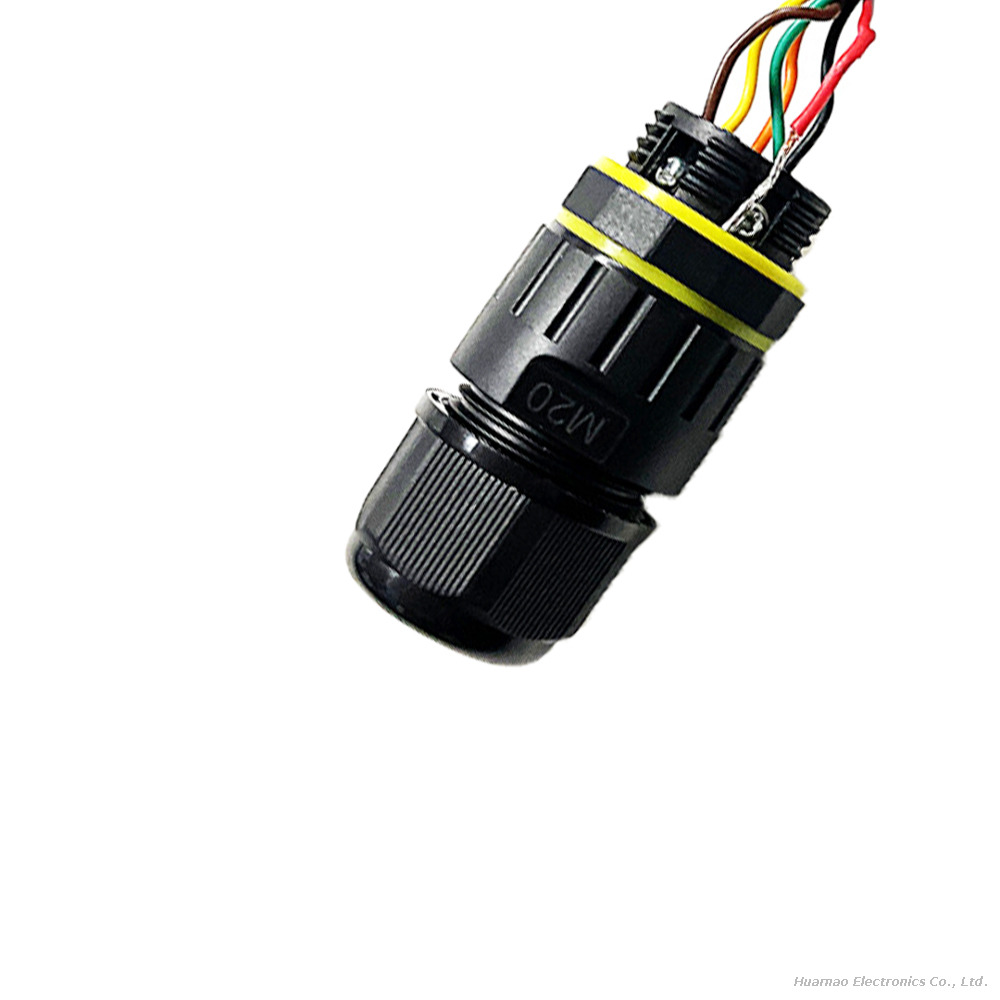

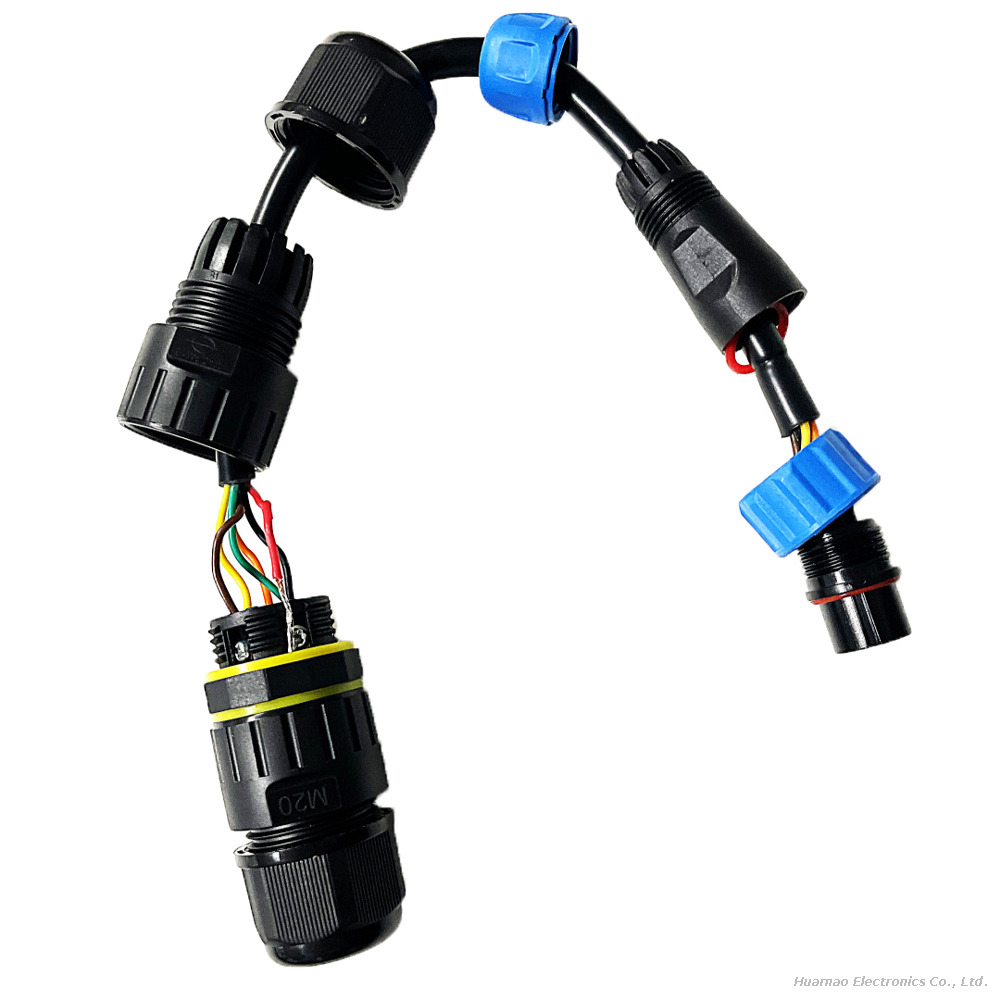

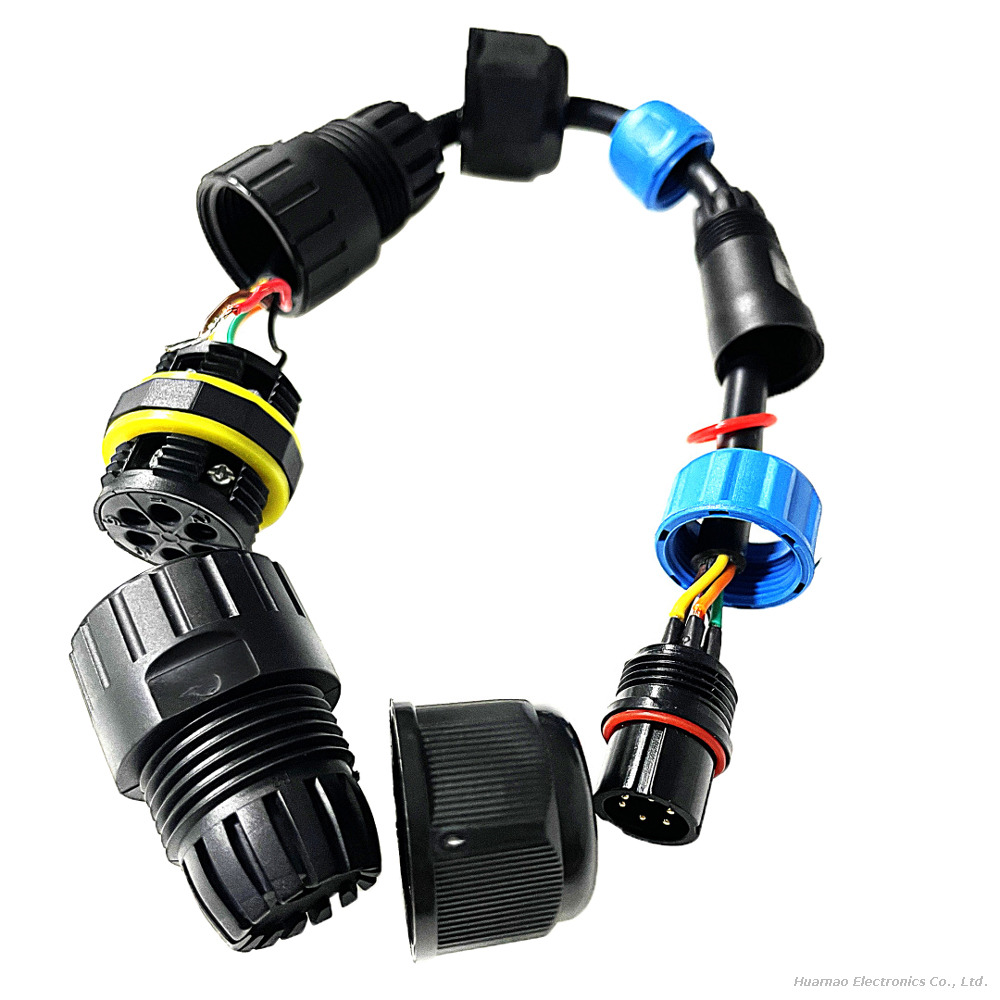

EW-M20 to SP20-7P Aviation Waterproof Connector Cable

This finished waterproof aviation cable assembly integrates SP20-7P male plug and female socket of M20 standard circular connector series, dedicated for outdoor humid, dusty, underwater and underground wiring scenarios. The connector adopts double-layer silicone sealing gaskets inside the front and rear ends, which can completely isolate rainwater, dust, fog and corrosive moisture to realize IP68 fully waterproof performance. The outer shell is added with anti-UV modifier, which will not crack, fade or age after long-term outdoor sunlight exposure.

Internal conductive pins are thickened gold-plated copper material, which effectively reduces contact resistance and avoids overheating during long-time continuous power supply. The connection part adopts precision crimping process to firmly lock the wire core and prevent wire falling off caused by pulling and vibration. The matched multi-core rubber power cable has excellent low-temperature resistance, oil resistance and bending resistance, and can maintain softness in -40℃ ultra-low temperature environment.

Each batch of finished harness will pass strict waterproof immersion test, continuity test, terminal pull-out test and high voltage withstand test before delivery, which can stably transmit power and control signals at the same time. We provide single-ended finished cable and customized double-end conversion harness OEM solutions, which can be mass-produced for outdoor engineering equipment manufacturers.

Specifications

Advantages

• IP68 dual-layer sealing waterproof design: Double silicone gaskets at both cable inlet and mating surface completely block liquid and dust, suitable for fountain, underground buried, coastal humid and other harsh environments.

• Tool-free threaded locking structure: Anti-slip knurled texture on the shell, easy to screw tight by hand without auxiliary tools; strong axial pull resistance, will not loosen under vehicle bump, equipment vibration.

• Anti-aging UV-resistant plastic housing: Modified PA66 raw material effectively resists ultraviolet radiation, solves the problem of brittle cracking of ordinary plastic plugs after long-term outdoor use.

• High-performance gold-plated conductive pins: Low contact resistance, small heat generation under full load, stable transmission of power and weak control signals without signal attenuation.

• All-weather flexible rubber cable: Good cold resistance, oil resistance and wear resistance, suitable for agricultural machinery, industrial equipment frequent bending wiring.

• Flexible one-stop OEM customization: Support arbitrary adjustment of cable length, wire thickness and pin count; small sample orders are acceptable for project prototype testing, mass production MOQ negotiable.

Application Scenarios

• Outdoor monitoring equipment: IP camera power extension cable, solar surveillance camera signal wiring harness

• Landscape lighting projects: Garden lawn lamps, fountain underwater lights, stage floodlight power connecting wire

• Solar new energy equipment: Solar street light power harness, small photovoltaic panel signal transmission cable

• Agricultural & garden machinery: Irrigation water pump, lawn mower, outdoor spraying equipment power wire

• Industrial field equipment: Outdoor intelligent sensors, portable detection instruments, mining portable equipment wiring

• RV & energy storage equipment: RV external power cord, small energy storage battery waterproof connection harness
