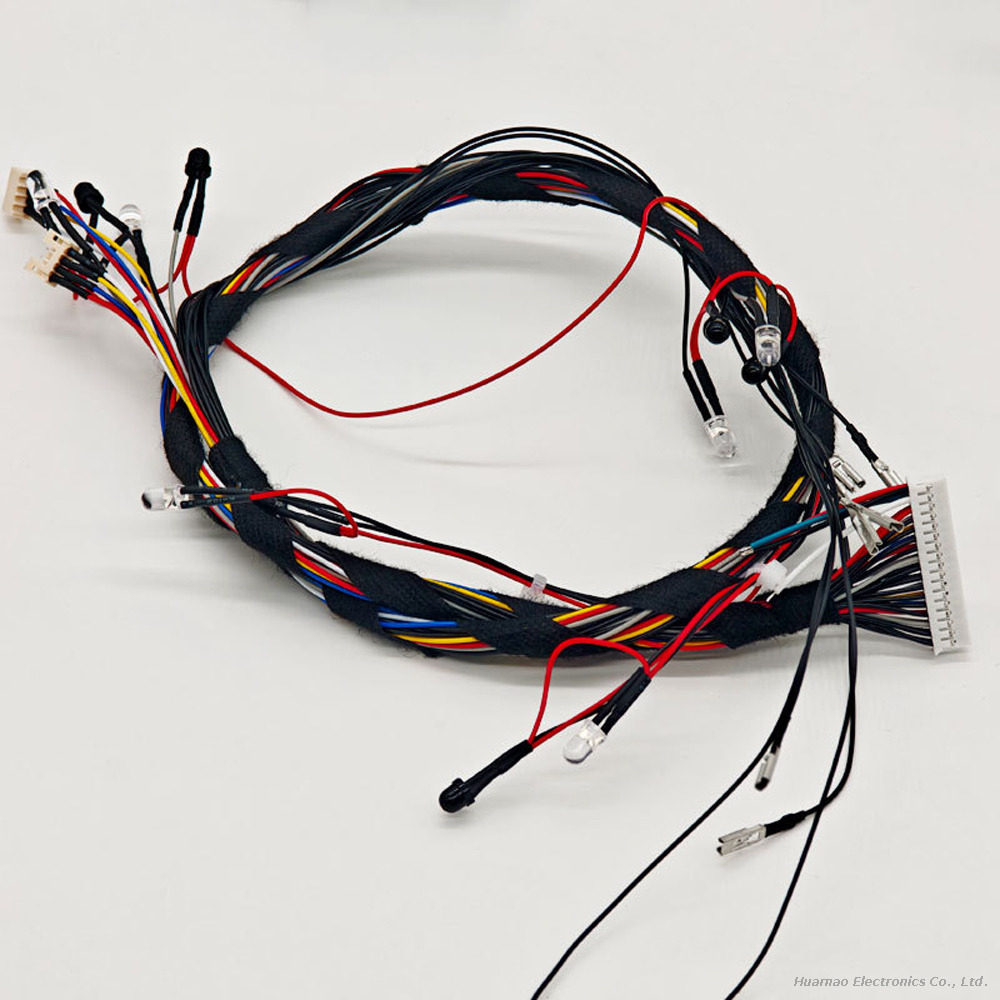

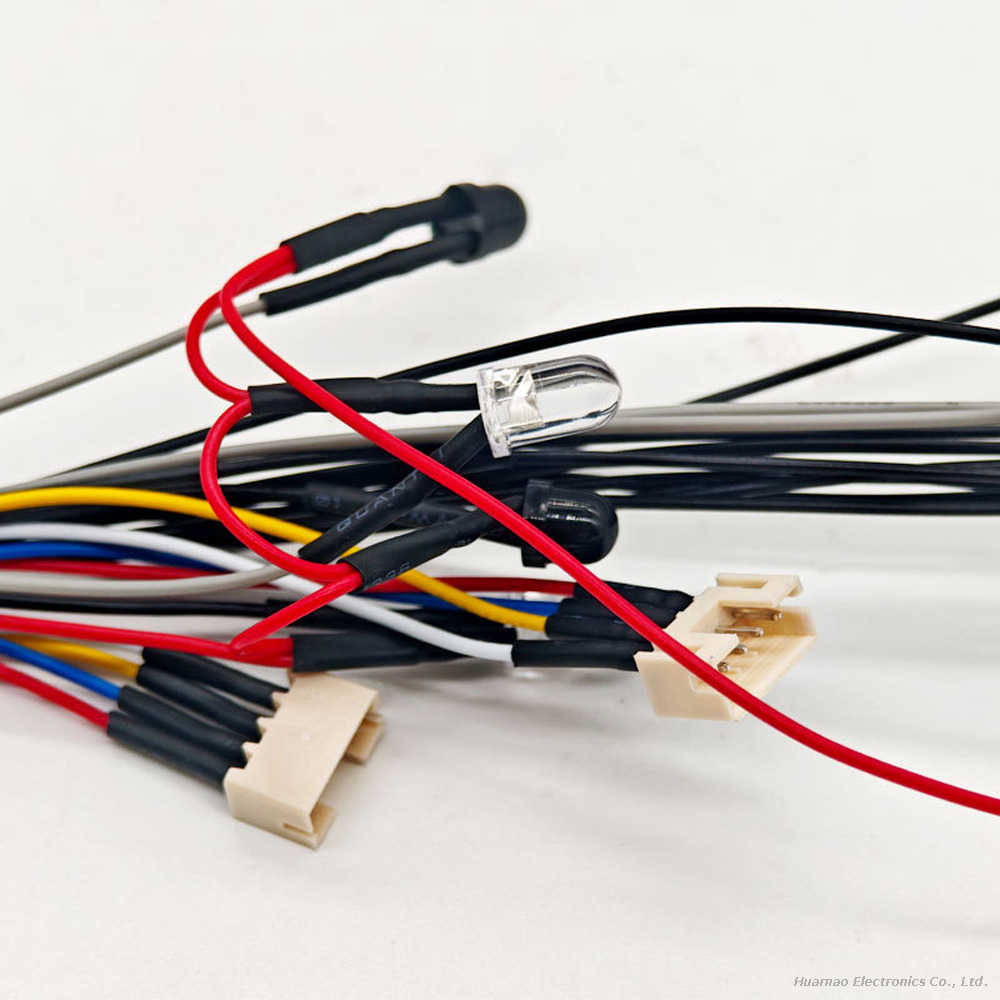

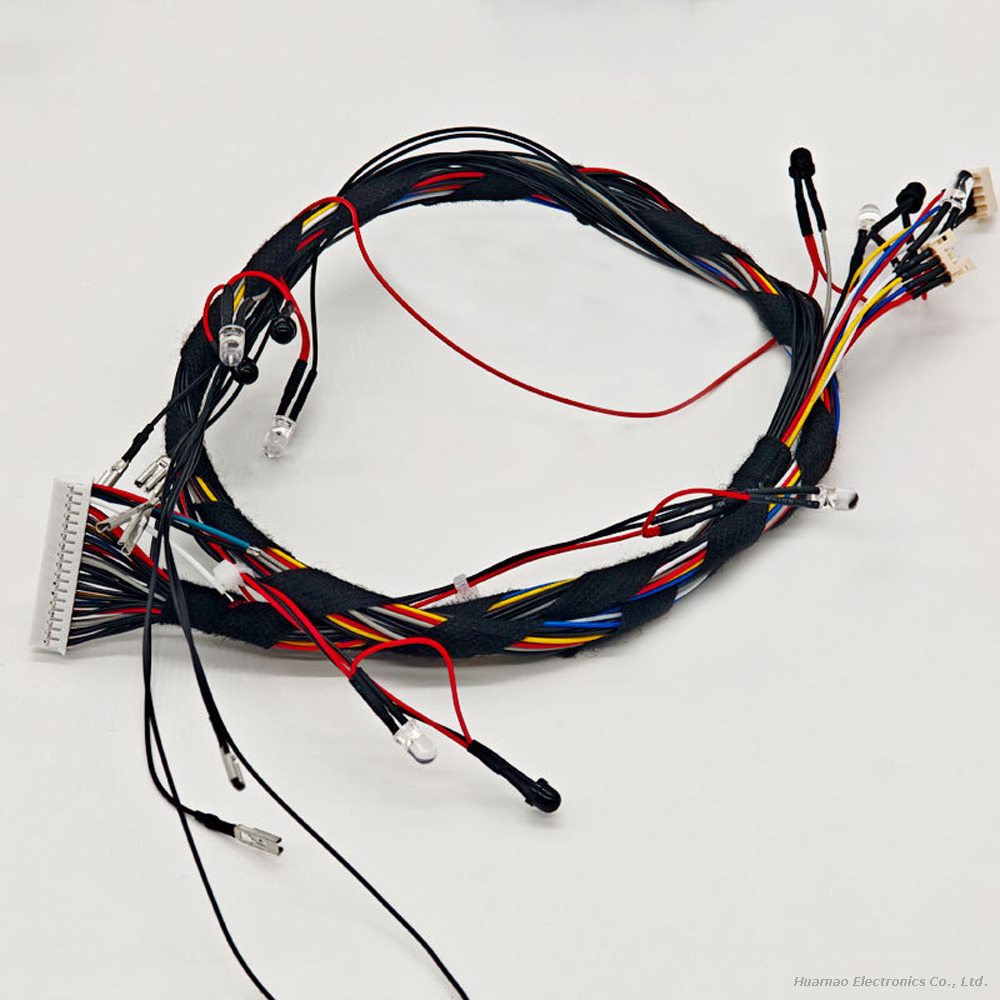

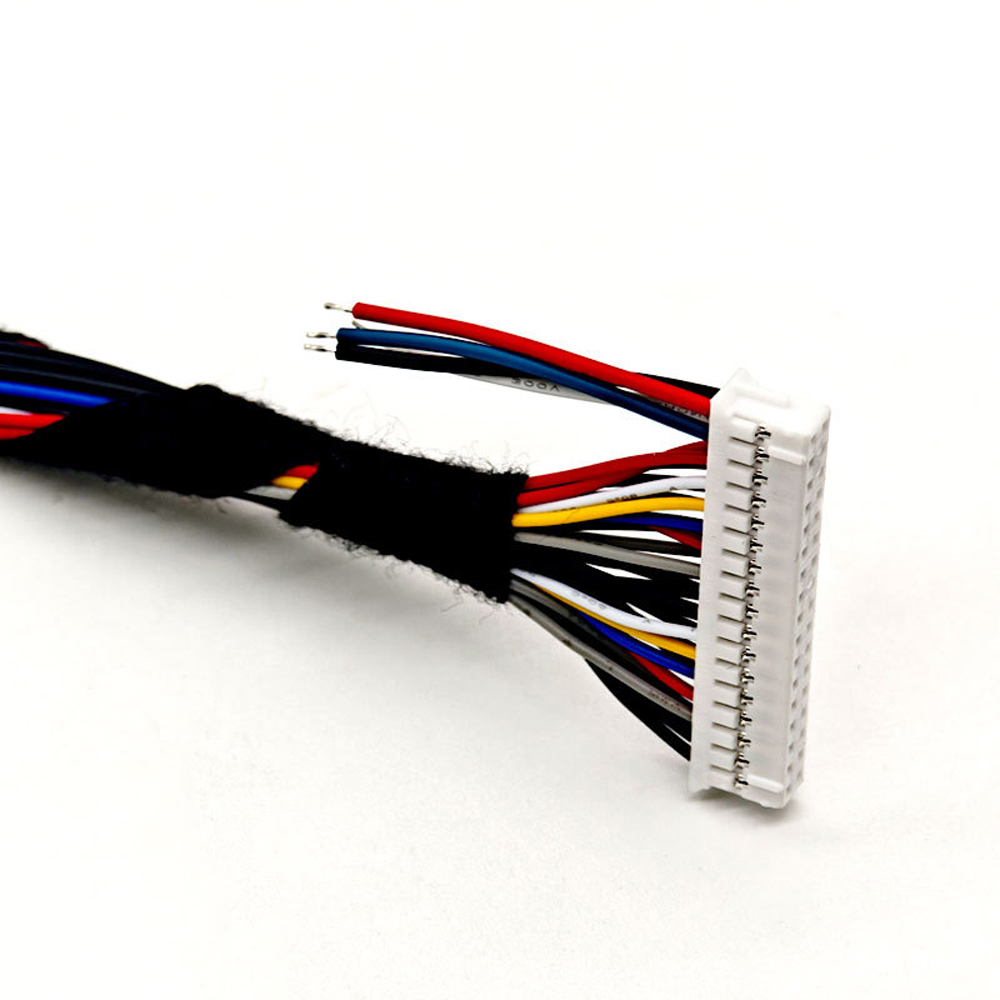

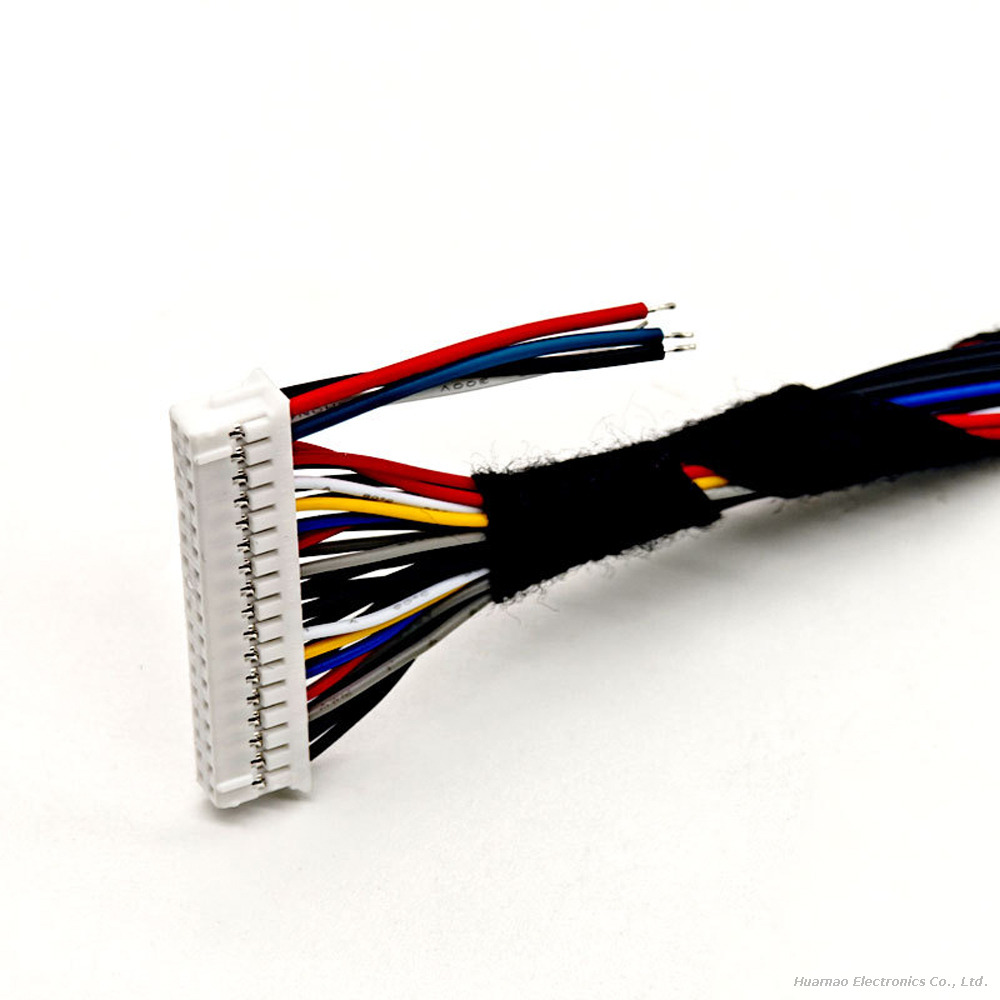

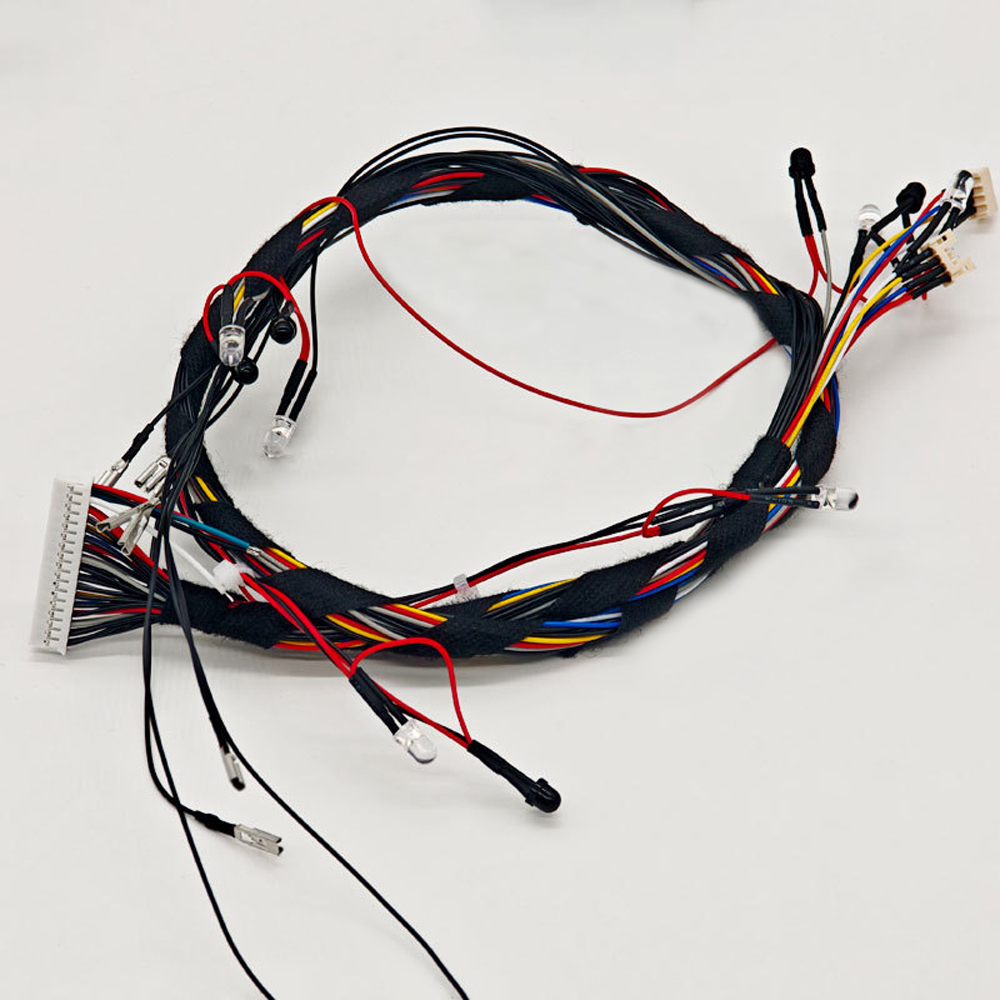

This multi-functional integrated wiring harness is professionally engineered to cover three core application scenarios: internal signal wiring for ATM financial equipment, terminal connection cables for smart toilet sanitary systems, and dedicated high-voltage interlock (HVIL) wiring for new energy vehicles. It combines precision low-voltage signal transmission performance and automotive high-voltage safety protection design in one assembly. Adopting multi-layer reinforced insulation and anti-interference structure, the harness maintains stable operation in financial equipment's dust-proof environment, bathroom high-humidity conditions, and NEV harsh high-voltage operating scenarios, achieving universal reliability across different industrial and civilian fields.
Core Technical Specifications
NEV HVIL Performance: Complies with new energy vehicle high-voltage interlock safety standards, dedicated HVIL loop design, insulation withstand high voltage, anti-arc and anti-leakage protection structure
ATM Equipment Adaptation: Low-resistance shielded wire core, strong anti-electromagnetic interference, ensuring stable data signal transmission for financial control systems
Toilet Terminal Design: Moisture-proof, water-splash resistant and anti-aging insulation, adapting long-term high-humidity bathroom working environment
Material Grade: High flame-retardant cross-linked insulation material, wide temperature resistance range -40℃～ +125℃
Structural Craft: Reinforced crimp terminals and integrated injection molding, anti-vibration, anti-pull and anti-loosening construction
Compliance Certification: Automotive LV/HV safety certification, RoHS environmental standard, financial equipment insulation safety specification fully met
Key Product Advantages
✅ Triple-Scenario Universal Compatibility: One harness matches ATM internal wiring, smart toilet terminal connection and NEV high-voltage interlock loop requirements to reduce procurement costs
✅ Professional HVIL Safety Protection: Exclusive high-voltage interlock circuit design cuts off risks automatically during abnormal disconnection, protecting NEV high-voltage system safety
✅ Anti-Interference for ATM Use: Shielded structure eliminates electromagnetic noise, guaranteeing accurate and non-lost data transmission for financial self-service equipment
✅ Moisture-Proof for Sanitary Application: Waterproof and damp-resistant outer layer prevents short circuits and aging in humid toilet installation spaces
✅ Durable All-Round Structure: Anti-vibration, high-temperature resistant and wear-resistant design adapts complex working conditions of vehicles, electronics and sanitary equipment
Application & Custom Service
Widely used for ATM banking machine internal power and signal wiring, smart toilet and bathroom equipment terminal connection harnesses, new energy electric vehicle high-voltage interlock safety circuit dedicated cables. All products pass high-voltage withstand test, conduction inspection and environmental aging test before delivery. We support customized wire gauges, lengths, shielding structures and connector configurations for multi-industry personalized matching needs.
