Are you planning to install a 50-amp circuit? Choosing the right wire size is crucial for safety. Incorrect wire sizing can lead to dangerous overheating or inefficient performance.In this article, we’ll cover the best wire sizes for 50-amp circuits and why it matters. You’ll learn how to choose the right wire based on your specific needs and common applications.
When setting up a 50-amp circuit, it’s essential to pick the right wire size for both safety and efficiency. The most commonly used wire sizes for 50-amp circuits are:
Copper Wire: 6 AWG
Aluminum Wire: 4 AWG
These sizes are typically enough for most household and light industrial applications, like connecting large appliances such as dryers, ovens, and RVs.
Copper is a better conductor than aluminum, which means it can handle more current with less heat. This is why a smaller gauge of copper wire (6 AWG) can handle the same current as a larger aluminum wire (4 AWG). Copper wires also have a longer lifespan and are less prone to corrosion compared to aluminum, making them a popular choice for more critical applications.
Choosing the right wire size is crucial to prevent overheating and potential fire hazards. An undersized wire can overheat, causing the insulation to melt, leading to short circuits and fires. Over-sizing the wire is not as dangerous, but it can lead to unnecessary costs and installation challenges.
For long-distance runs, if the circuit is over 100 feet, you may need to upgrade the wire size to compensate for voltage drop. In this case, you would likely need to use 4 AWG copper or 2 AWG aluminum to ensure that power is delivered efficiently without loss.
Huamao Electronics specializes in providing high-quality wire harnesses and electronic cables that meet industry standards. Whether you need automotive wire harnesses or medical cables, their products ensure safety and performance in various setups, including high-demand circuits like 50 amps.
When choosing the wire size for a 50-amp circuit, several key factors come into play. Let's break it down to make sure you get the safest and most efficient setup.
The longer the circuit, the more resistance it has. This means the wire will experience a voltage drop as electricity travels through it. If the wire run is too long, the voltage at the appliance may be lower than needed, causing it to underperform or even damage it.
Voltage Drop Impact: For runs longer than 100 feet, you may need a larger wire size to maintain proper voltage.
How to Calculate: Use a voltage drop calculator to determine if you need to upsize the wire. For instance, if you are wiring a 50-amp circuit over 150 feet, you might need 4 AWG copper or 2 AWG aluminum.
The size of wire you need depends on what’s being powered. High-energy appliances, such as electric dryers and ovens, demand more power, so the wire must be able to handle the load.
High-energy Appliances: These include electric stoves, dryers, and hot tubs.
Examples: If you're wiring an RV hookup, it often requires a 50-amp circuit to handle the high demand of electrical devices in the RV.
Copper is the go-to choice for most 50-amp circuits. It's more conductive than aluminum, which means it can handle more current without overheating. But aluminum is a more affordable option, though it requires a larger gauge to carry the same amount of current.
Pros of Copper: Higher conductivity, longer lifespan, less corrosion.
Cons of Copper: More expensive than aluminum.
Pros of Aluminum: Cheaper, lighter.
Cons of Aluminum: Requires a larger gauge and is more prone to corrosion.
Different wire types suit various needs, and it’s essential to pick the right one for your specific setup.
Copper Wire Types: THHN, XHHW, UF-B.
Aluminum Wire Types: USE-2, 2-2-2-4 Aluminum URD.
These different types offer varying insulation levels and are rated for different applications, such as underground or high-temperature environments.
Huamao Electronics offers high-quality wiring harnesses and connector solutions that meet your needs for both domestic and industrial applications. Whether you're wiring an automotive wire harness or setting up an electronic cable, they ensure top-notch products for safety and performance.
Voltage drop plays a crucial role in determining how well your 50-amp circuit performs. Let’s break it down.
As electricity travels through a wire, it faces resistance. The longer the wire, the more resistance it encounters. This resistance results in voltage loss as the electrical current moves along the wire.
Distance matters: The longer the wire, the higher the resistance, leading to a greater voltage drop.
Wire material: Copper wires are more efficient at carrying current compared to aluminum, reducing voltage drop over the same distance.
A large voltage drop can affect your appliances and electrical systems. When voltage at the appliance drops too much, it can cause underperformance or even damage.
Underpowered appliances: Appliances like electric stoves or dryers might not function properly if the voltage is too low.
Potential damage: Long-term voltage drop can harm sensitive devices by supplying them with insufficient power.
A simple way to minimize voltage drop is by using a thicker wire. Larger gauge wire reduces the amount of resistance in the circuit, allowing it to carry more current over longer distances.
Thicker wire, less resistance: Upgrading to a larger wire reduces voltage drop, especially for circuits that run longer than 100 feet.
If your 50-amp circuit runs over a long distance, you’ll need to increase the wire size. This ensures that voltage remains consistent across the circuit.
Longer runs need thicker wires: For distances over 100 feet, consider upgrading to a larger wire size like 4 AWG copper or 2 AWG aluminum to prevent excessive voltage drop.
When wiring a 50-amp circuit, the distance it needs to cover plays a crucial role in choosing the right wire size. Let’s explore the considerations for both short and long runs.
For shorter distances, less resistance is encountered, and standard wire sizes like 6 AWG copper or 4 AWG aluminum are usually sufficient. These sizes provide enough conductivity to safely carry 50 amps of current without excessive voltage drop.
6 AWG Copper Wire: Ideal for circuits up to 100 feet.
4 AWG Aluminum Wire: A good alternative for those looking to save on costs while still maintaining efficiency.
For circuits running longer distances, resistance increases. This means you’ll need to upsize the wire to maintain proper voltage and prevent excessive power loss. For distances over 100 feet, 4 AWG copper or 2 AWG aluminum should be used to minimize voltage drop and ensure efficient operation.
4 AWG Copper Wire: Suitable for distances of 100 to 150 feet.
2 AWG Aluminum Wire: Necessary for circuits longer than 150 feet to prevent voltage drop and ensure a safe electrical flow.
Choosing the wrong wire size for a 50-amp circuit can lead to serious issues, including safety hazards and performance problems. Let’s dive into the potential consequences.
If the wire is too small for the current, it will overheat. Overheated wires can melt their insulation and even cause fires. This is a serious safety risk, especially in areas where wires are hidden behind walls or ceilings.
Fire Risk: The wire may get so hot that it ignites nearby materials.
Overheating: Wires not rated for the current can heat up and cause insulation damage, leading to short circuits.
When the wire is undersized, it can't supply enough power to appliances. This can cause them to malfunction or break down. Similarly, circuit breakers may not trip when needed, leading to possible damage to both the appliances and the wiring.
Appliance Damage: Appliances won’t get enough power, which may cause them to underperform or even burn out.
Circuit Breaker Failures: An undersized wire might not trigger the breaker in time, causing the system to overheat and fail.
| Issue | Consequence |
|---|---|
| Overheating | Can lead to fire hazards and insulation damage |
| Appliance Damage | Appliances may burn out or perform poorly |
| Circuit Breaker Failure | Breakers may fail to trip, resulting in overheating |
While using a larger wire isn’t as dangerous as using a smaller one, it comes at a higher cost. Larger wires are more expensive, and you’ll end up spending more on material than necessary.
Higher Costs: Larger wires are typically more expensive, which adds unnecessary costs to the project.
Wasted Resources: Larger wires may be harder to work with, especially when you don’t need such a big size.
While over-sizing the wire may not cause direct damage, it can lead to practical issues. The larger wire may be difficult to handle, and it might not fit properly into connectors or panels designed for smaller gauges.
Handling Difficulties: Larger wires are tougher to work with, especially in tight spaces.
Connector Issues: Some connectors or circuit breakers are not designed for large wires, leading to possible installation difficulties.
| Issue | Consequence |
|---|---|
| High Material Costs | Larger wires increase the overall cost of the project |
| Difficult to Handle | Larger wires can be harder to install, especially in tight spaces |
| Connector Compatibility | Over-sized wires may not fit into standard connectors |
Using the right wire size for a 50-amp circuit is essential for safety, efficiency, and cost-effectiveness. Undersized wires can lead to dangerous overheating and damage, while oversized wires may increase costs and complicate installation.
When selecting wire for a 50-amp circuit, the type of wire plays a significant role. There are various wire types suited for different applications. Here’s a breakdown of the most common options.
THHN (Thermoplastic High Heat-resistant Nylon-coated) and THWN (Thermoplastic Heat and Water-resistant Nylon-coated) wires are the go-to options for general-purpose wiring. These wires are versatile and can handle standard indoor wiring needs for 50-amp circuits.
Pros: Durable, widely available, and affordable.
Applications: Ideal for indoor residential and light commercial circuits.
XHHW (Cross-linked High Heat-resistant Water-resistant) wire is designed for more demanding environments, especially where the wire will be exposed to higher temperatures or outdoor conditions.
Pros: Water and heat-resistant.
Applications: Suitable for outdoor installations, like RV hookups or outdoor lighting.
UF-B (Underground Feeder and Branch Circuit) wire is designed to be buried underground. It’s tough and built to handle the conditions found in direct burial applications.
Pros: Rated for direct burial, resistant to moisture.
Applications: Ideal for powering outdoor lighting, garden equipment, or underground service.
USE-2 (Underground Service Entrance) is another type of wire used for underground circuits. It is designed to handle the environmental conditions of underground installations.
Pros: UV-resistant, durable in harsh environments.
Applications: Suitable for underground power lines or service entrance cables.
2-2-2-4 Aluminum URD (Underground Residential Distribution) wire is designed for underground, direct burial applications. It is commonly used in larger power installations or as a feeder cable.
Pros: Strong, built for long-term underground use.
Applications: Ideal for high-power underground circuits.
| Wire Type | Application | Best For |
|---|---|---|
| THHN/THWN | General indoor wiring | Most residential and light commercial use |
| XHHW | Outdoor, high-heat, or wet environments | RV hookups, outdoor lighting |
| UF-B | Underground wiring | Direct burial for outdoor circuits |
| USE-2 | Underground service | Service entrance, direct burial |
| 2-2-2-4 URD | Direct burial, high-power underground circuits | Heavy-duty residential power feeds |
Installing a 50-amp circuit is a task that requires attention to detail. Follow these steps to make sure the installation is done safely and effectively.
Start by determining where the wiring will run. Map out the route for the circuit from the breaker panel to the appliance or outlet. Keep in mind any obstacles, and make sure the wire path is clear and safe.
Consider the distance: If the distance exceeds 100 feet, you might need to use a larger gauge wire.
Avoid interference: Plan the path to avoid areas with high temperatures or water exposure.
Choose the correct wire size for your 50-amp circuit. For most setups, 6 AWG copper or 4 AWG aluminum will be sufficient. However, if you're running the wire over long distances, you might need to upsize to 4 AWG copper or 2 AWG aluminum.
Wire types: Consider THHN for general indoor wiring, XHHW for outdoor applications, or UF-B for underground installations.
Ensure compatibility: Choose a wire type rated for the environment where the wire will be installed.

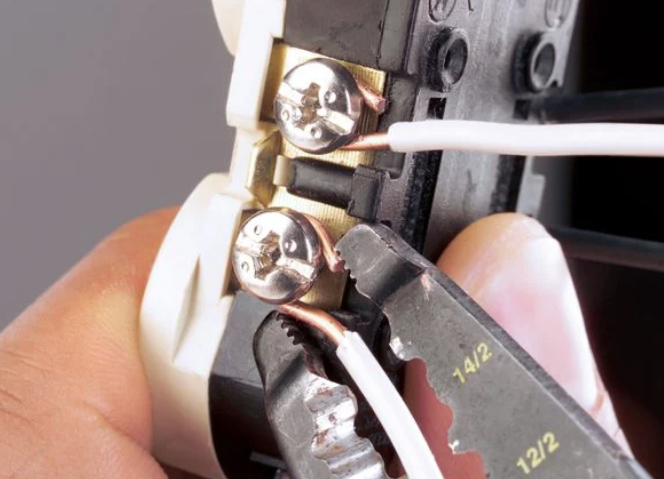

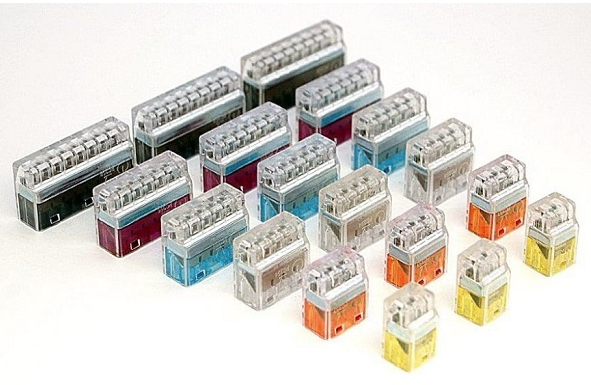

Once the wire is in place, you'll need to make the connections. Attach the wire to the circuit breaker and the appliance or outlet according to the manufacturer’s instructions. Make sure all connections are secure and that the wire is stripped to the correct length.
Wire stripping: Strip the insulation carefully to avoid damaging the wire.
Secure connections: Use appropriate connectors or terminals to ensure a solid connection.
While installing a 50-amp circuit can be a DIY project, there are times when it's best to call a licensed electrician. Professionals can ensure the job is done safely and up to code.
Expertise: Electricians are familiar with local regulations and can handle complex installations.
Safety: They have the experience to avoid electrical hazards during installation.
Each region has its own building and electrical codes. An electrician ensures that your installation complies with these codes, avoiding potential fines or safety issues.
Code compliance: Professionals ensure that everything meets safety standards.
Permits: An electrician will handle any necessary permits or inspections.
Electrical work can be tricky, and mistakes can lead to serious issues like short circuits or fire hazards. An electrician can help avoid these mistakes by:
Proper grounding: Ensuring the system is correctly grounded.
Correct breaker selection: Choosing the right size and type of breaker for the circuit.
| Task | DIY | Electrician |
|---|---|---|
| Wire Selection | Possible, but tricky | Expert advice available |
| Planning the Path | Easy with proper tools | Handled professionally |
| Making Connections | Can be done safely | Proper connections guaranteed |
| Code Compliance | Hard to ensure | Full compliance assured |
| Safety | Risky for beginners | Safe installation ensured |
A 50-amp circuit is typically sufficient for various household applications, but what if your power demands change? Let's explore whether a 50-amp circuit will meet your current and future needs.
A 50-amp circuit can handle many high-powered appliances and systems commonly found in homes.
Electric ranges: These appliances often require a 50-amp circuit to handle the high energy needed for cooking.
Electric dryers: Dryers, especially those in larger homes, typically need 50 amps to operate efficiently.
RVs: Many recreational vehicles need 50 amps for powering all the electrical systems inside, including air conditioning, lights, and kitchen appliances.
If you plan to add more high-powered appliances, such as a second dryer, oven, or hot tub, a 50-amp circuit might not be enough. Consider your future needs when planning your electrical setup.
Adding new appliances: Check the power requirements of any future appliances to ensure your circuit can handle the load.
Space for expansion: It’s a good idea to install a circuit panel that allows for future upgrades to higher-capacity circuits.
A 50-amp circuit may not be enough if your home or business demands a lot of power. For larger homes or commercial spaces, upgrading to a 100-amp or 200-amp service might be necessary.
100-Amp Service: Ideal for homes with multiple high-energy appliances or larger homes.
200-Amp Service: Needed for very large homes, businesses, or when running heavy equipment.
To determine if a 50-amp circuit is enough, calculate the total wattage of all appliances running on the circuit.
Formula: Amps × Volts = Watts. For a 50-amp circuit at 240 volts, the total wattage would be 12,000 watts.
Power needs: Add up the wattage of all devices you plan to use on the circuit. If the total exceeds the capacity of your circuit, you may need a higher-amp service.
| Appliance | Power Requirement | Amp Circuit Needed |
|---|---|---|
| Electric Range | 8,000 - 12,000 watts | 50 amps |
| Electric Dryer | 5,000 - 7,000 watts | 50 amps |
| Air Conditioning (Central) | 3,500 - 5,000 watts | 30-50 amps |
| Hot Tub | 6,000 - 12,000 watts | 50-100 amps |
| RV Electrical System | 3,000 - 5,000 watts | 50 amps |
The National Electrical Code (NEC) sets guidelines to ensure electrical installations are safe and efficient. Let’s look at what the NEC recommends for 50-amp circuits.
According to the NEC, 6 AWG copper wire is the standard size for a 50-amp circuit. Copper wire is a great choice due to its high conductivity, which helps carry the electrical load efficiently.
Copper wire: Known for better conductivity, which minimizes power loss and reduces heating issues.
Ampacity: 6 AWG copper wire can safely handle 50 amps of current under normal conditions.
If you opt for aluminum wire, the NEC recommends using 4 AWG aluminum for 50 amps. Aluminum is more affordable than copper but requires a larger gauge to carry the same current safely.
Aluminum wire: It’s cost-effective but has lower conductivity than copper, which is why a larger gauge is needed.
Ampacity: 4 AWG aluminum wire can handle 50 amps, though it needs to be installed correctly to ensure long-term reliability.
While the NEC provides national standards, local codes can vary depending on where you live. Local jurisdictions might have additional safety measures, so it’s important to check these before proceeding with your installation.
Code variations: Local codes may be stricter than NEC requirements, especially in areas with high environmental risks or older buildings.
Consult an electrician: A licensed electrician can help ensure compliance with both national and local codes.
Circuit breakers protect your electrical system by interrupting the flow of electricity in case of an overload. The NEC recommends a 50-amp breaker for a 50-amp circuit, but it’s important to choose the right type.
Breaker type: A standard 50-amp breaker is sufficient for most residential applications, but if you have specific needs, like an RV or workshop, you may need specialized breakers.
Overload protection: Ensure the breaker is rated for the wire size you’re using to prevent overheating and potential damage.
| Wire Type | Recommended Size | Max Ampacity |
|---|---|---|
| Copper | 6 AWG | 50 amps |
| Aluminum | 4 AWG | 50 amps |
| Breaker Size | 50 Amps | Matches wire size |
While 8 AWG wire is commonly used for circuits with lower amperages, it’s not suitable for a 50-amp circuit. Let’s look at why.
The term ampacity refers to the maximum amount of electric current a conductor or device can carry safely. For a 50-amp circuit, 8 AWG wire doesn’t have enough ampacity to handle the current safely.
8 AWG Wire: Typically rated for 40 amps.
50-amp requirement: A 50-amp circuit needs a 6 AWG copper or 4 AWG aluminum wire to safely carry the current without overheating.
According to the National Electrical Code (NEC), 6 AWG copper or 4 AWG aluminum wires are the recommended sizes for a 50-amp circuit. Using 8 AWG wire can lead to excessive heat build-up and potential safety hazards.
NEC Standard: For a 50-amp circuit, the NEC recommends 6 AWG copper or 4 AWG aluminum to ensure safe operation.
Using Smaller Wire: Smaller wires like 8 AWG can cause excessive voltage drop, inefficient power delivery, and potential overheating.
Here’s a comparison of wire sizes needed for various circuit breaker sizes, including 30, 40, 50, and 60 amps.
| Breaker Size | Copper Wire Size | Aluminum Wire Size |
|---|---|---|
| 30 Amps | 10 AWG | 8 AWG |
| 40 Amps | 8 AWG | 6 AWG |
| 50 Amps | 6 AWG | 4 AWG |
| 60 Amps | 6 AWG | 4 AWG |
Voltage drop occurs as electricity travels through the wire. If the wire size isn’t adequate, the voltage will drop, affecting appliance performance. To calculate the voltage drop:
Formula:
Voltage Drop = (2 × Length × Current × Resistance) ÷ 1,000
Where Length is the one-way distance in feet, Current is the amperage, and Resistance depends on the wire gauge.
You can use online voltage drop calculators to easily determine if your wire is adequate for the circuit length. These tools can help ensure your system runs efficiently.
If you’re installing a 50-amp circuit in high-temperature environments (like attics or areas near heat sources), you should choose heat-resistant wires.
Heat-resistant wires: Look for wires rated for high temperatures, such as XHHW or THWN, which can withstand higher heat without degrading.
For circuits in hot environments, it’s also important to use the correct insulation type. Wires like THHN or XHHW are ideal because they’re designed to handle both high temperatures and potential moisture.
Insulation Options: Choose from heat- and moisture-resistant insulation to ensure long-lasting, safe wiring in high-temperature areas.
Choosing the right wire size for a 50-amp circuit is crucial for safety and efficiency. Use 6 AWG copper or 4 AWG aluminum for most applications. Ensure proper wire sizing to avoid overheating and potential hazards. For complex installations or when in doubt, consult a licensed electrician to ensure compliance and safety.
A: 6 AWG Copper or 4 AWG Aluminum wire.
A: No, 8 AWG wire can typically carry up to 40 amps, not 50 amps.
A: Up to 100 feet, but beyond that, you should consider using a larger wire to prevent voltage drop.
