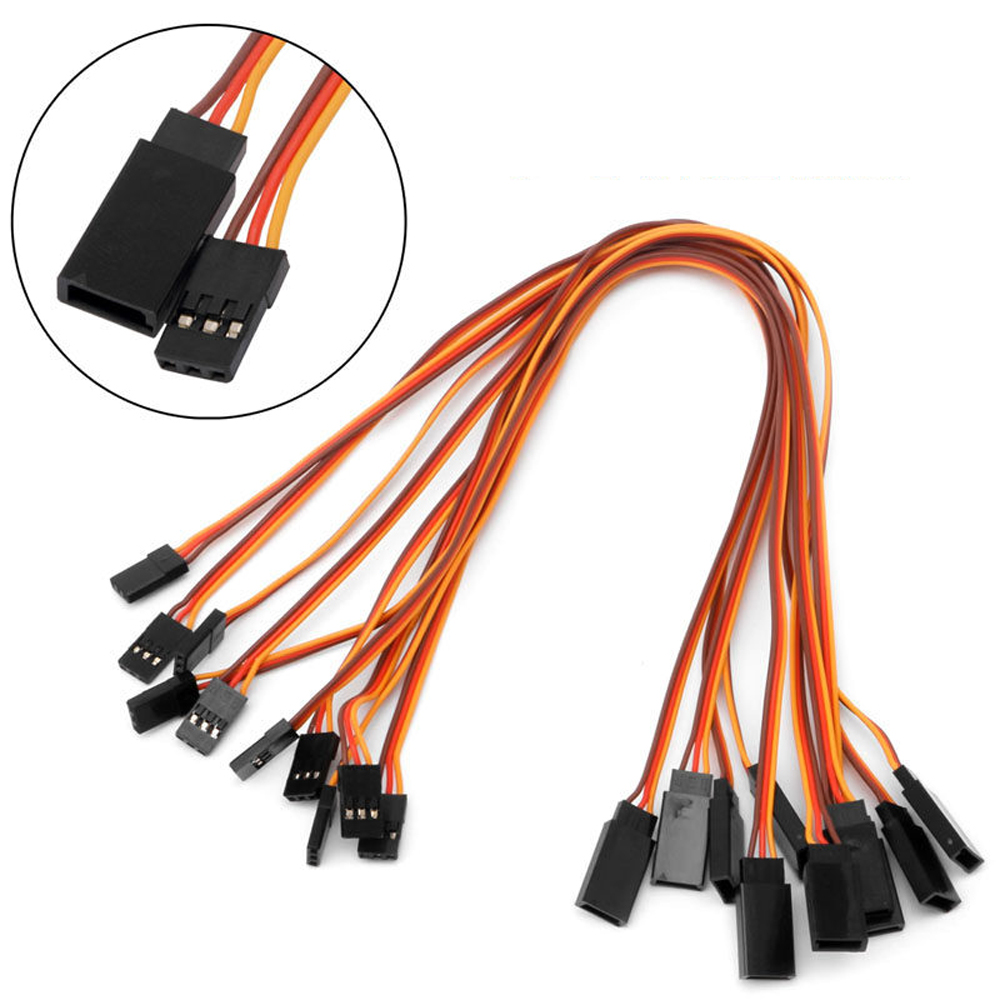

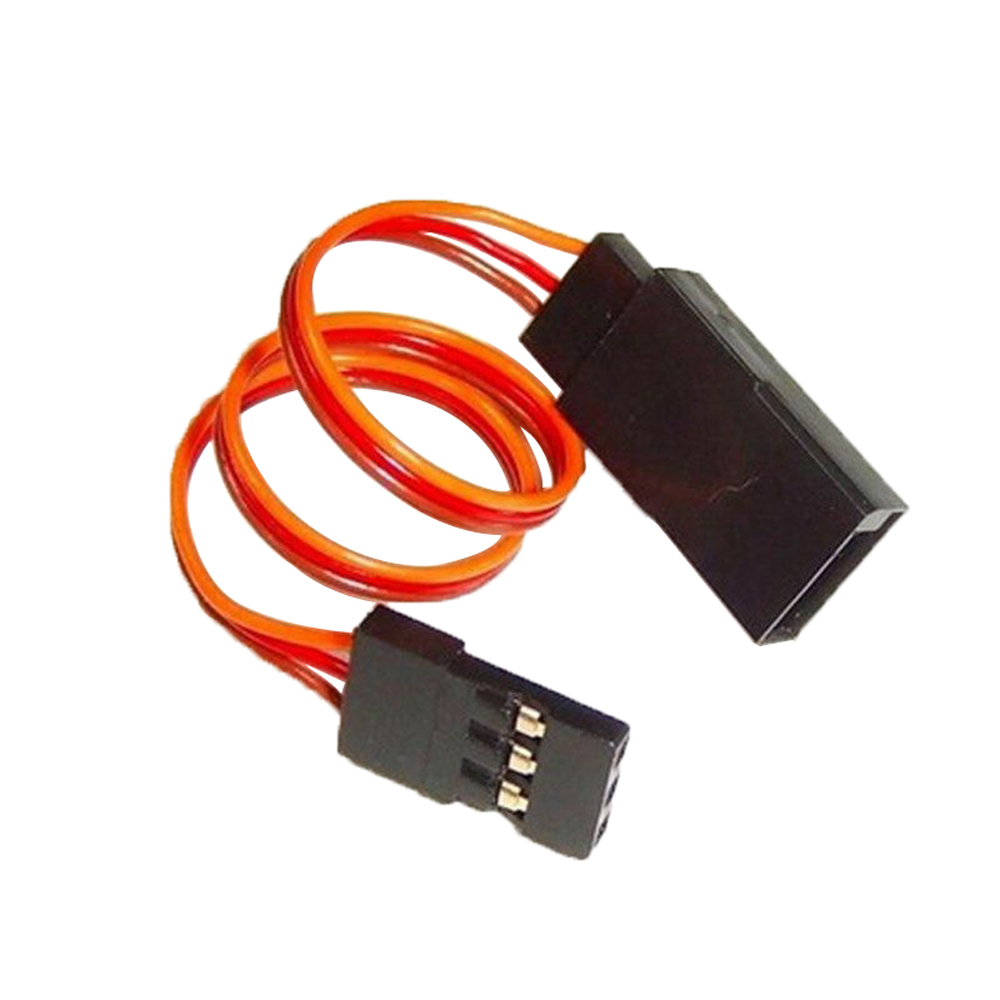

Engineered exclusively for drone signal transmission, this male-to-female servo extension cable features genuine Futaba JR universal plugs and a high-flex bonded conductor structure—purpose-built to deliver low-latency, interference-free signal transfer between drone ESCs (Electronic Speed Controllers) and receivers. The 30/60 multi-core design supports multi-channel servo control, while the bonded cable construction ensures durability in high-vibration drone flight environments. Ideal for multi-rotor drones, racing quads, and fixed-wing UAVs, it solves common issues of signal delay and mechanical fatigue in extended drone wiring setups.
Core Advantages for Drone-Specific Applications
1. Futaba JR Universal Compatibility
Equipped with industry-standard Futaba JR plugs (compatible with Spektrum, Hitec, and modern Airtronics systems) , featuring 0.1" pin spacing and gold-flashed contacts for secure, corrosion-resistant mating. The keyed design prevents reverse polarity, enabling plug-and-play integration with drone ESCs, receivers, and servos—no adapters required. Works seamlessly with both Futaba J-style and JR unkeyed connectors , making it a universal solution for hobbyist and professional drone builds.
2. Drone-Optimized Bonded Cable Structure
Adopts high-flex bonded conductor technology (instead of twisted pairs) to address drone wiring’s unique challenges: parallel-bonded wires reduce tangling during flight maneuvers, while the integrated structure enhances resistance to mechanical fatigue from frequent folding . The design maintains signal integrity for drone-specific high-frequency PWM signals (30–60kHz) , outperforming traditional cables in weight-to-durability ratio—critical for UAV payload optimization.
3. 30/60 Cores Multi-Channel Support

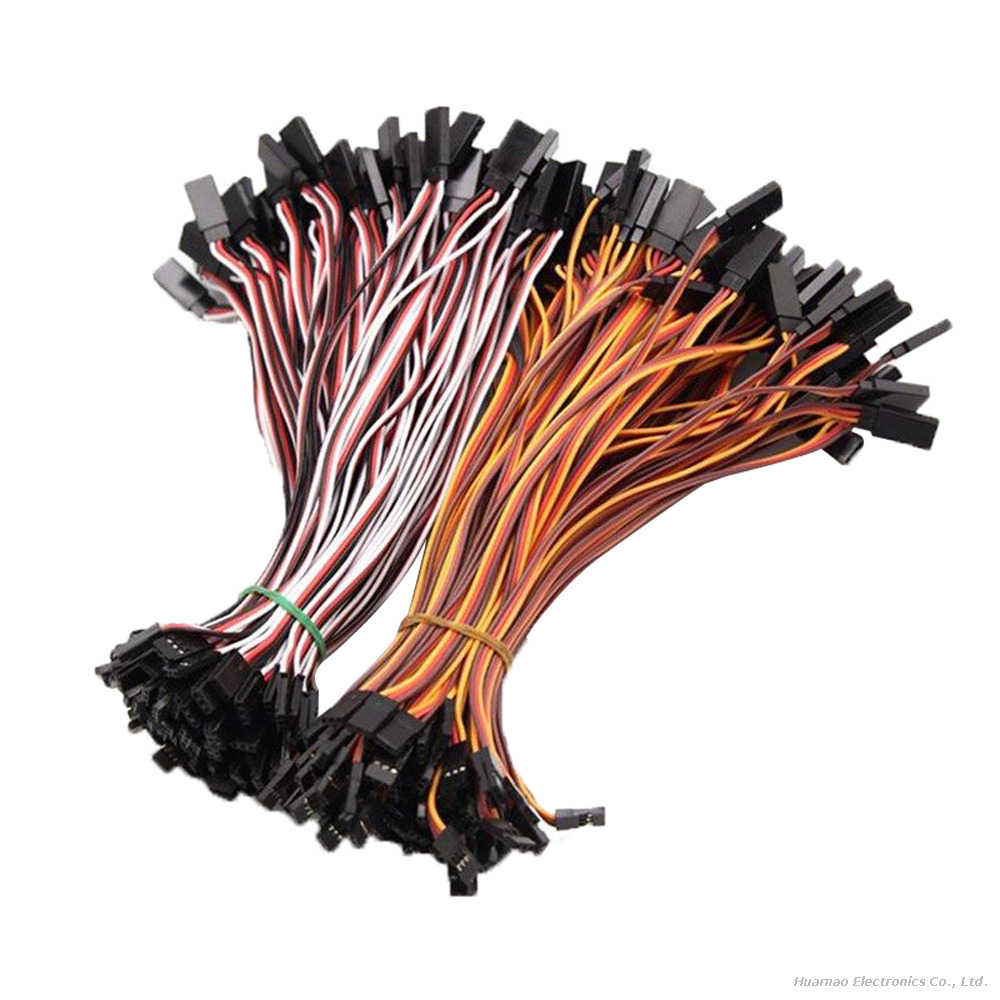

Available in 30-core or 60-core configurations to accommodate single or multi-servo drone setups:
30-core: Ideal for compact drones (e.g., 250-class racing quads) with 4–6 ESCs/receivers
60-core: Suits large UAVs (e.g., agricultural drones) requiring synchronized multi-servo control
Eliminates the need for multiple single-core cables, simplifying drone internal wiring and reducing airflow obstruction.
4. UAV-Ready Durability & Lightweight Design
Constructed to withstand extreme drone operating conditions:
Conductors: 24–26AWG tinned copper cores for low-resistance signal transfer, rated for 2A max current (perfect for drone ESC power demands )
Insulation: TPU elastic sheath (UL94 V-0) with million-cycle bending life , resistant to UV, oil, and impact—adaptable to -30°C to 85°C flight environments
Strain Relief: Reinforced rubber boots at plug junctions prevent wire breakage from drone vibration (tested to 50Hz–2kHz vibration standards )
Lightweight: Bonded structure reduces cable weight by 15% vs. twisted alternatives, preserving flight time
5. Signal Stability for Drone Control
Engineered to minimize signal attenuation in drone ESC/receiver communication:
Low contact resistance ( ensures accurate servo response and throttle control
Shielded bonded structure suppresses electromagnetic interference (EMI) from drone motors
Color-coded wires (black/red/yellow standard) enable error-free ESC-to-receiver wiring
Ideal Drone Applications
This bonded servo extension cable is tailored for:
Multi-Rotor Drones: Racing quads, cinematic drones, and consumer-grade multi-copters (ESC-to-receiver signal extension)
Fixed-Wing UAVs: Hobbyist planes and industrial inspection drones (servo control signal transmission)
Specialty Drones: Agricultural UAVs, search-and-rescue drones, and drone racing rigs (multi-channel servo synchronization)
DIY Drone Builds: Custom drone projects requiring reliable ESC-receiver connectivity and organized wiring
Drone Upgrades: Retrofitting stock drones with extended servo leads for modified frames or payloads
Quality Assurance for Drone Reliability
Manufactured to align with emerging drone cable technical standards , each cable undergoes:
Signal Latency Testing: Verified <1ms delay for drone high-speed flight control
Vibration Resistance Trials: Passed 500+ hours of drone-specific vibration testing (10–2000Hz)
Mechanical Fatigue Testing: 1 million+ bending cycles without signal loss
Connector Durability: 3000+ mating cycles for repeated drone maintenance
Every unit is inspected for gold-plated contact integrity, bonded conductor alignment, and plug fitment—ensuring fail-safe performance in critical drone operations.
Customization for Drone Builders
We offer drone-specific OEM/ODM services:
Custom lengths (50mm–300mm) to fit compact or extended drone frames
20–80 core count options for specialized multi-servo setups
Color-coded conductors for simplified ESC/receiver wiring
Lightweight low-profile design for payload-sensitive UAVs
Private labeling for drone kit manufacturers
Whether you’re building a racing drone or industrial UAV, this Futaba JR-compatible bonded cable delivers the signal stability and durability required for demanding flight environments.
