Security Industrial Control Robot Flexible Cable Customized Connection Harness

Security Industrial Control Robot Flexible Cable Customized Connection Harness

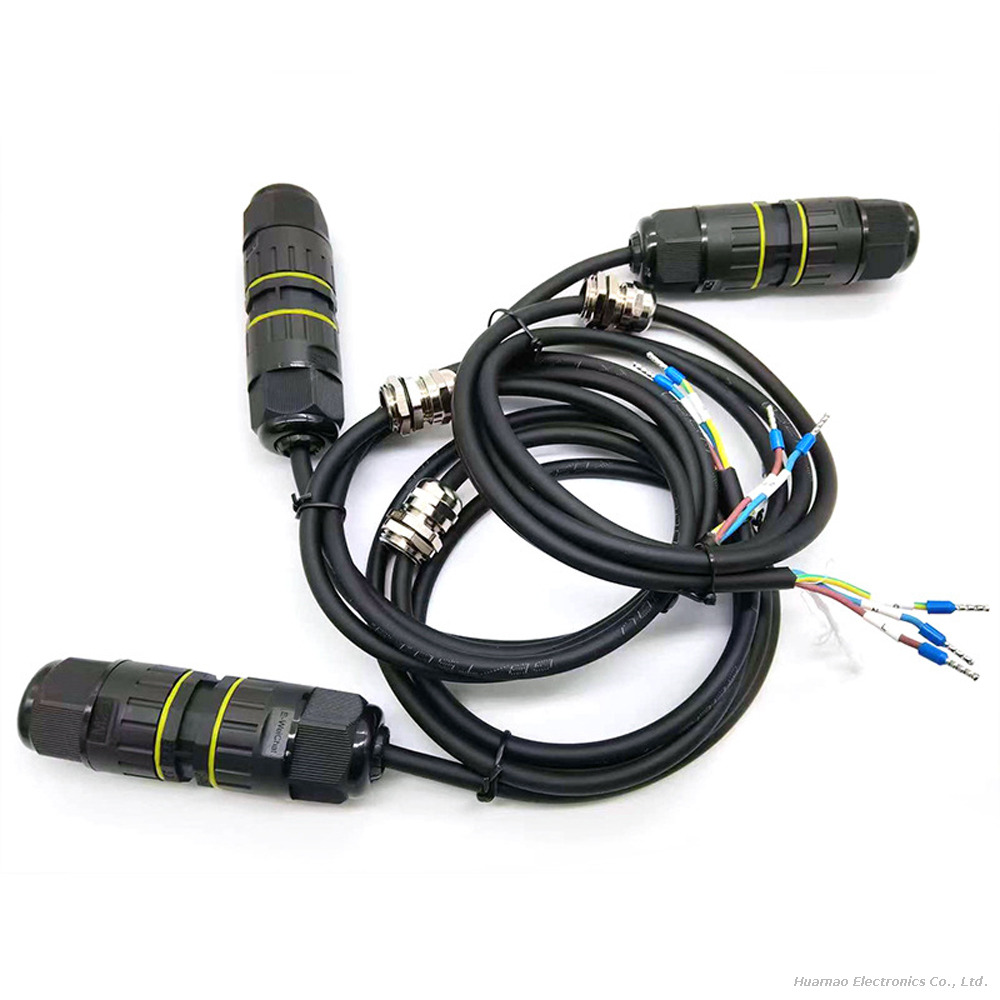

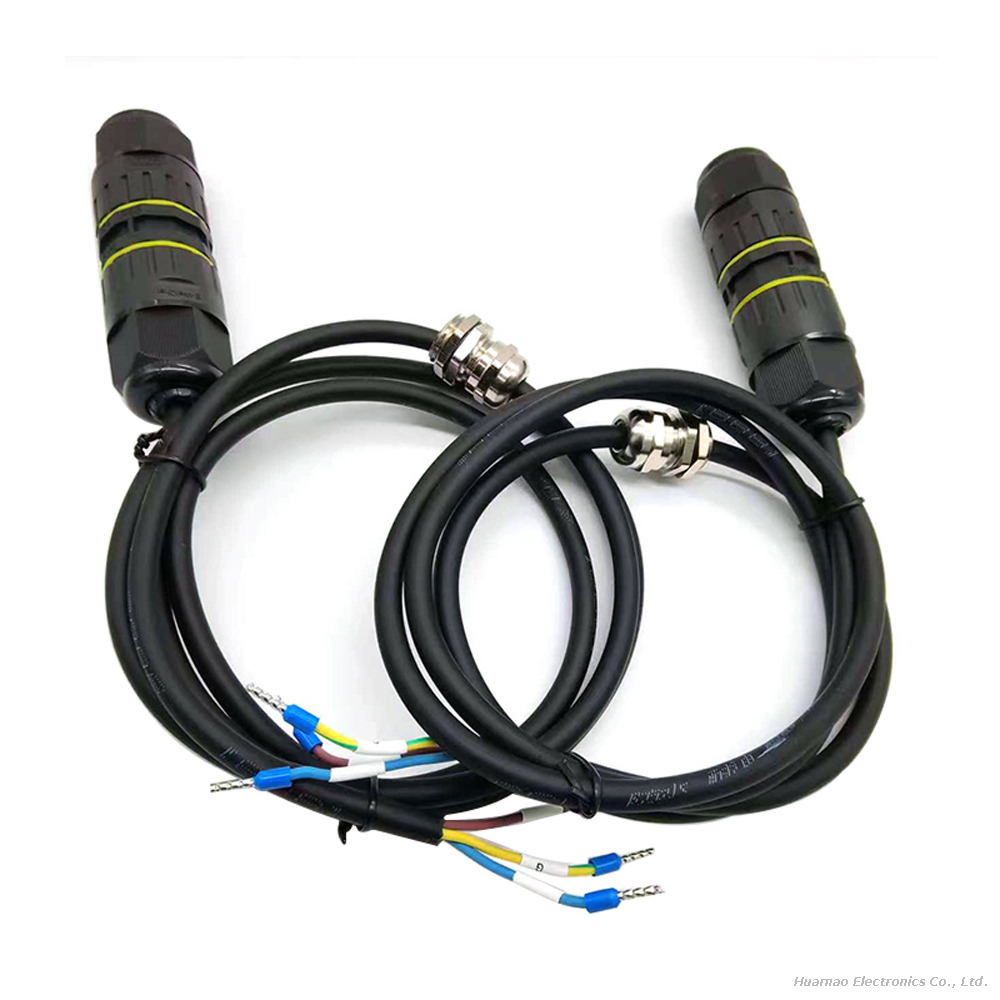

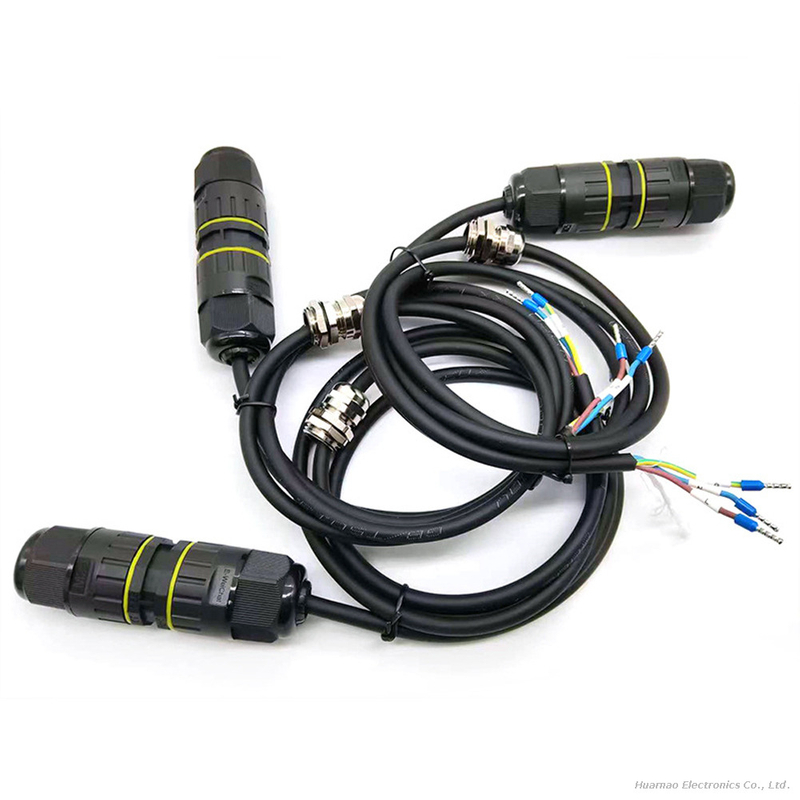

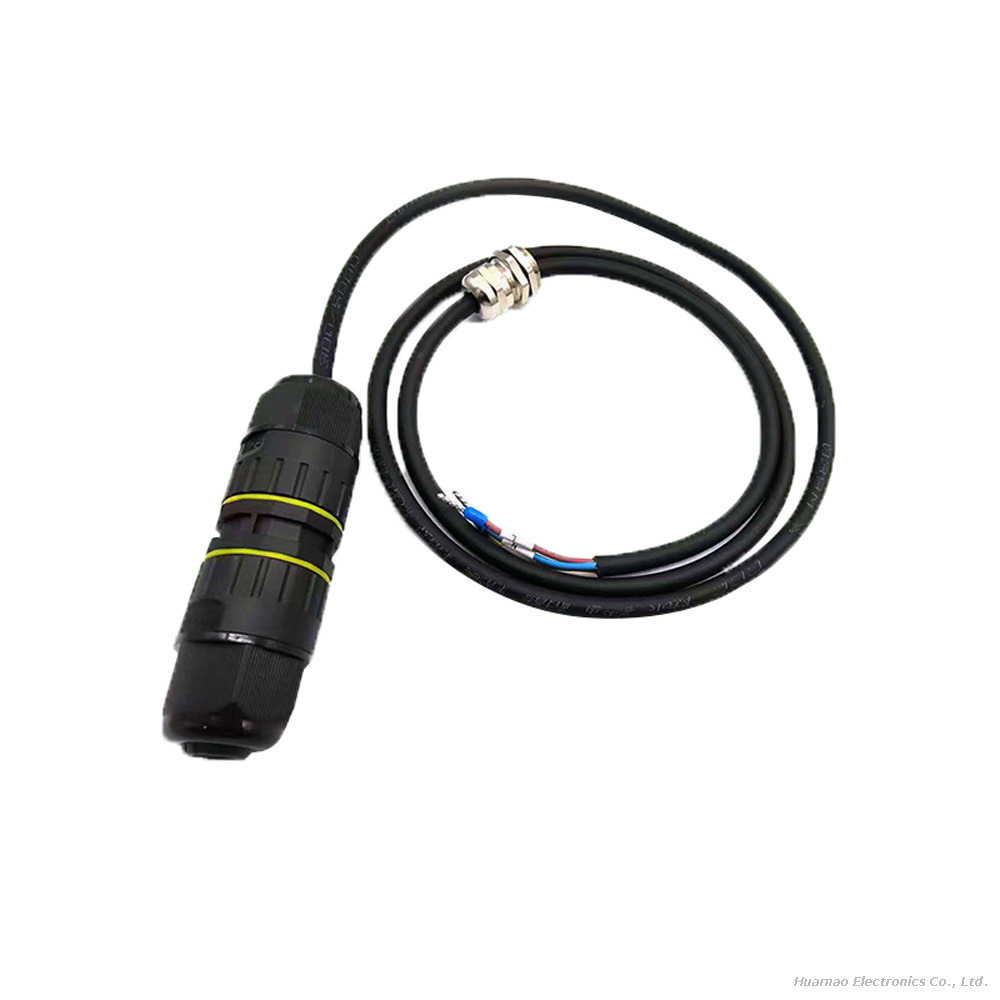

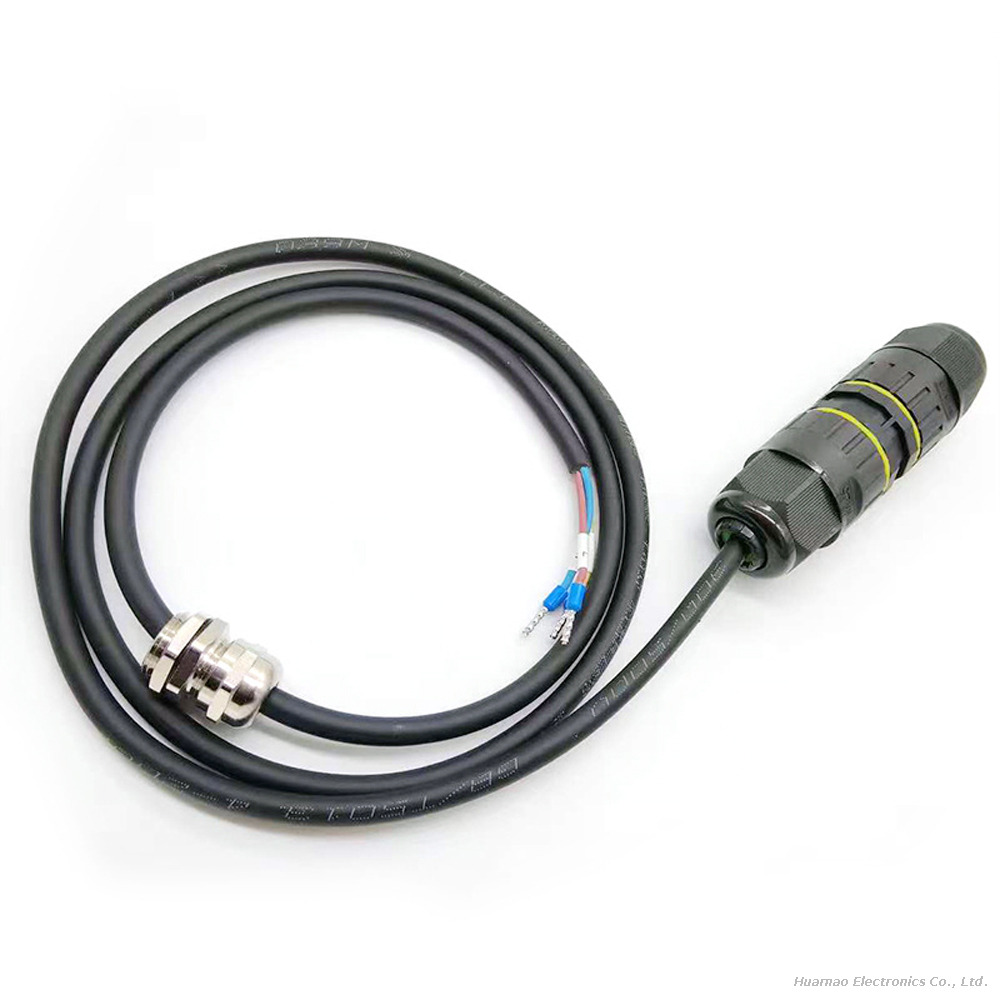

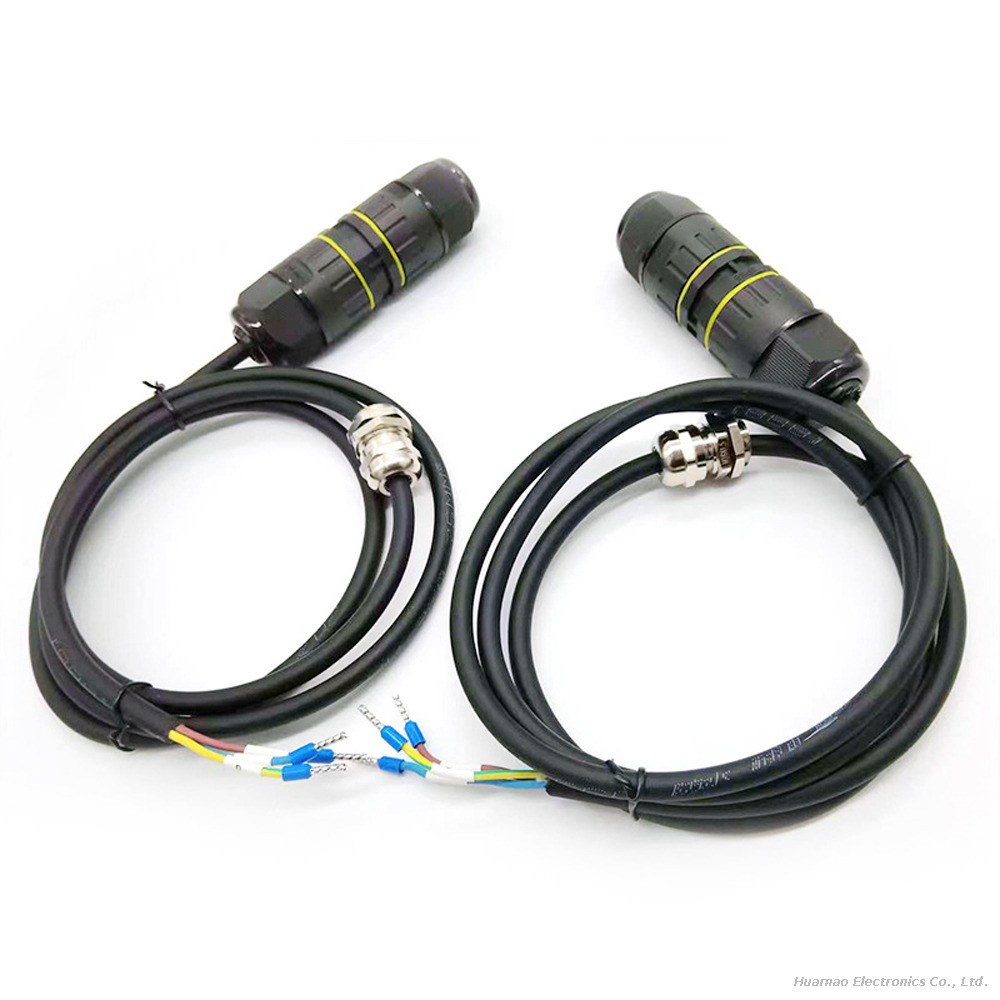

This custom flexible waterproof wiring assembly is equipped with a multi-section threaded waterproof circular plug on one end and open tin-dipped color-coded wire terminals on the opposite side, matched with a metal cable gland for fixed panel mounting. Built with multi-layer silicone sealing rings, the connector reaches IP68 deep waterproof and dustproof protection grade, effectively isolating rainwater, dust, moisture and corrosive fog for long-term outdoor and workshop operation. The flexible anti-bend outer cable sheath tolerates frequent twisting and reciprocating swing, supporting mixed transmission of communication signals and miniature power supply. Fully RoHS compliant, customizable core count, wire cross-section, total cable length and terminal processing modes are available, widely applied to industrial robot control modules, security monitoring equipment, outdoor communication base station auxiliary wiring, intelligent industrial sensor signal interconnection and outdoor access control systems.

Model:
Robot Flexible Cable
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Communication Equipment Wire Harness Waterproof Connector Cable Robot Flexible Cable

Product Description

Designed for fixed-install industrial and communication equipment that requires long-term outdoor exposure, the IP68 multi-layer sealing system can withstand long-term shallow water immersion, far exceeding ordinary IP65/IP67 waterproof harnesses for rainy and submerged scenarios. The nickel-plated metal cable gland solves the loose cable sliding problem of plastic fixed fittings, firmly locking the cable on equipment cabinet panels to eliminate joint water ingress risks caused by cable pulling and vibration. Color-distributed multi-core internal wires integrate communication data signals and low-voltage power loops into one single cable, simplifying messy wiring layout of security cameras, industrial robots and outdoor communication equipment. The flexible outer sheath withstands thousands of reciprocating bending cycles without cracking or internal wire breakage, adapting to robot joint swing and frequent equipment maintenance disassembly operations.

Every finished harness undergoes strict factory quality testing before shipment, including IP68 full water immersion sealing test, reciprocating bending fatigue test, salt fog corrosion screening and high voltage insulation withstand test. We supply fixed-length finished waterproof cables and customized multi-core conversion wiring for industrial control manufacturers, security monitoring equipment brands and outdoor communication hardware suppliers.

Specifications

Connector Type	Multi section screw lock circular waterproof connector
Auxiliary Fixed Fitting	Nickel plated brass metal compression cable gland
Internal Wire Gauge	AWG22/AWG24 multi-strand flexible tinned copper wire
Operating Temperature Range	-40℃ to +90℃
Locking & Fixed Structure	Screw rotary anti-loose connector

Advantages

IP68 triple-layer full deep waterproof sealing system: Compared with ordinary single-seal IP67 plugs, three silicone gaskets completely block water and dust intrusion, suitable for outdoor equipment exposed to heavy rain, water splashing and temporary shallow submersion scenarios, greatly reducing equipment short-circuit failure rates in humid environments.
Matching nickel-plated metal cable gland panel fixing design: The built-in brass compression fitting locks the cable tightly on equipment cabinet walls, prevents cable sliding and pulling force from transferring to the connector joint, effectively avoiding sealing failure caused by external traction.
Multi-stage anti-slip threaded locking connector: Yellow marked anti-slip rings increase friction during manual tightening, uniform compression force after full screwing will not loosen under long-term equipment vibration, superior anti-vibration performance to snap quick-disconnect plugs.
Dual flexible outer sheath material selection for differentiated scenarios: Standard PVC version for dry outdoor security monitoring and communication equipment with cost advantages; oil-resistant PUR upgrade version for metal processing industrial robot workshops with heavy cutting fluid and oil mist corrosion.
Multi-core integrated power + communication signal transmission: Independent color-coded internal cores simultaneously transmit equipment communication data signals and low-voltage auxiliary power supply, reduce the quantity of separate wiring harnesses during equipment installation and cut construction wiring costs.
Multi-industry universal flexible customization service: Support short 0.3m built-in robot joint wiring and long-distance 15m outdoor equipment extension cables, small batch prototype sample orders available for industrial control, security and communication equipment new product development verification.

Application

Industrial Control & Multi-Axis Robot Equipment:6-axis industrial robot external sensor waterproof signal cable, intelligent production line PLC auxiliary communication wiring harness, CNC equipment outdoor limit detection multi-core flexible cable, automated logistics sorting robot power signal integrated assembly
Outdoor Security Monitoring & Access Control Systems:Outdoor waterproof surveillance camera communication power combined cable, community outdoor access control panel waterproof wiring harness, underground parking lot security detector flexible connection wire, roadside intelligent traffic monitoring equipment signal cable
Outdoor Communication Auxiliary Hardware Equipment:Small outdoor communication base station auxiliary control waterproof harness, street intelligent signal repeater multi-core flexible cable, rural outdoor optical box power signal connecting wire, roadside 5G micro-station auxiliary detection wiring assembly
Outdoor Intelligent Environmental Monitoring Sensors:Outdoor meteorological multi-parameter monitoring station waterproof cable, water quality real-time detection sensor flexible connection harness, farm intelligent irrigation control equipment multi-core communication wire, forest fire prevention monitoring terminal power signal cable
Commercial Outdoor Intelligent Lighting & Control Equipment:Large commercial plaza intelligent landscape light control waterproof harness, outdoor advertising screen auxiliary detection flexible cable, villa courtyard intelligent access control power communication integrated wire

FAQ

Q1: What waterproof level does this wiring harness reach? What scenarios is it suitable for?

A: After fully screwing the connector and compressing the metal cable gland, the whole assembly reaches IP68 grade, which can resist long-term rain soaking and temporary shallow water immersion, suitable for fully outdoor security, communication and industrial equipment installed without shelter.

Q2: What is the function of the middle metal cable gland?

A: It is used to fix the cable on equipment cabinet and panel holes, the internal rubber sleeve compresses the cable outer sheath to prevent the cable from sliding and pulling the connector joint, and also forms an extra layer of waterproof barrier at the panel penetration position.

Q3: Can this cable work in industrial workshops with cutting fluid and oil mist?

A: Standard PVC sheath is not resistant to long-term chemical oil corrosion; we can customize oil-resistant PUR outer sheath version, which resists lubricating oil, cutting fluid and industrial oil mist erosion for metal processing production lines.

Q4: Can the wire end be processed into pre-crimped terminals instead of tin bare wires?

A: Custom pre-insulated crimp terminal processing is supported, which can directly dock with PLC, controller and power module terminals without manual on-site tinning operation.

Q5: How many bending cycles can this flexible multi-core cable withstand?

A: Flexible PVC/PUR outer jacket and multi-strand tinned copper core pass more than 600,000 reciprocating bending tests, fully meeting the long-term swing demand of robot joints and frequent maintenance disassembly of outdoor equipment.
