SMA-J-JW Elbow Straight RF Coaxial Connector

Universal SMA-J-JW male RF coaxial plug assortment including straight and elbow 90-degree crimp connectors for antenna and audio equipment. Gold-plated center pin delivers stable low-loss broadband signal transmission, hexagonal nut design facilitates quick assembly with standard coaxial cables. Customizable cable crimp sizes, RoHS compliant interconnection fitting, reliable RF terminal solution for wireless communication, audio device and signal test equipment manufacturers.

Model:
SMA-J-JW
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

SMA-J straight crimp RF connector elbow male coaxial plug SMA male antenna crimp terminal straight combo connector Micro Coaxial Cable Crimp RF Connector SMA elbow adapter

Product Description

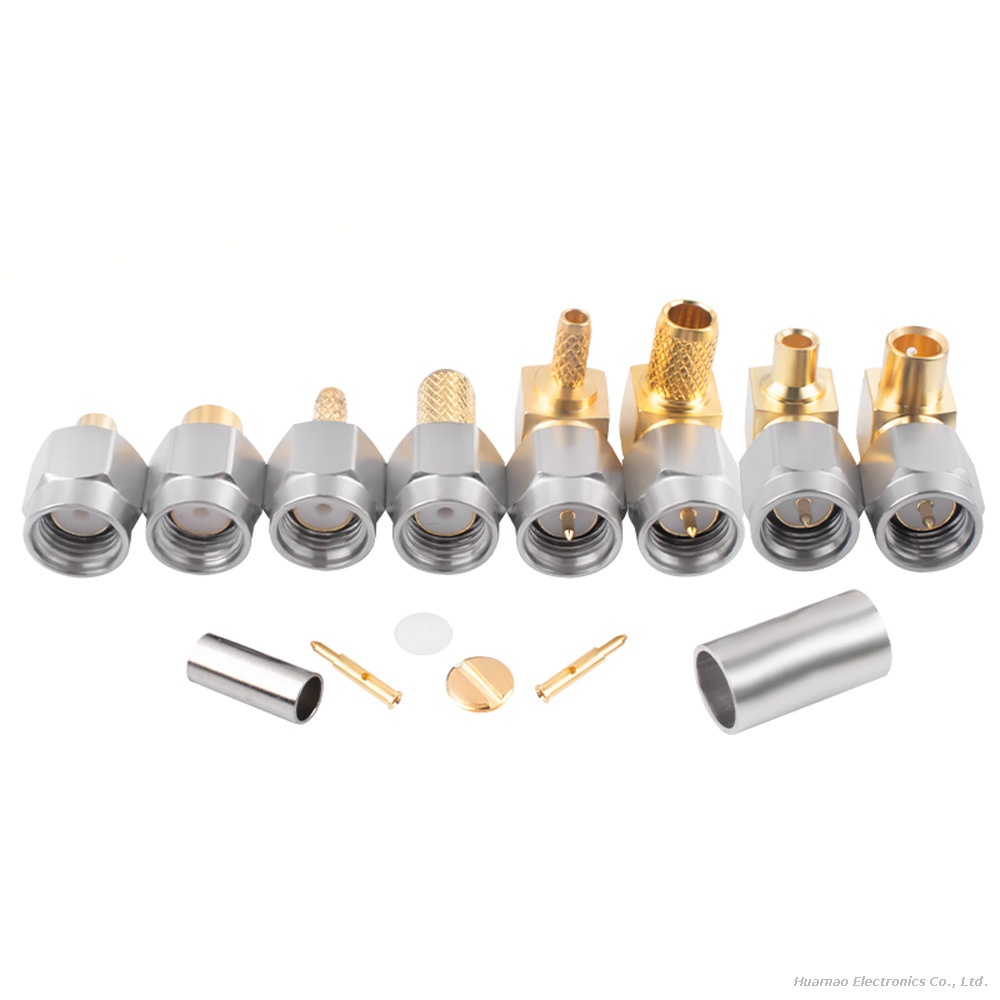

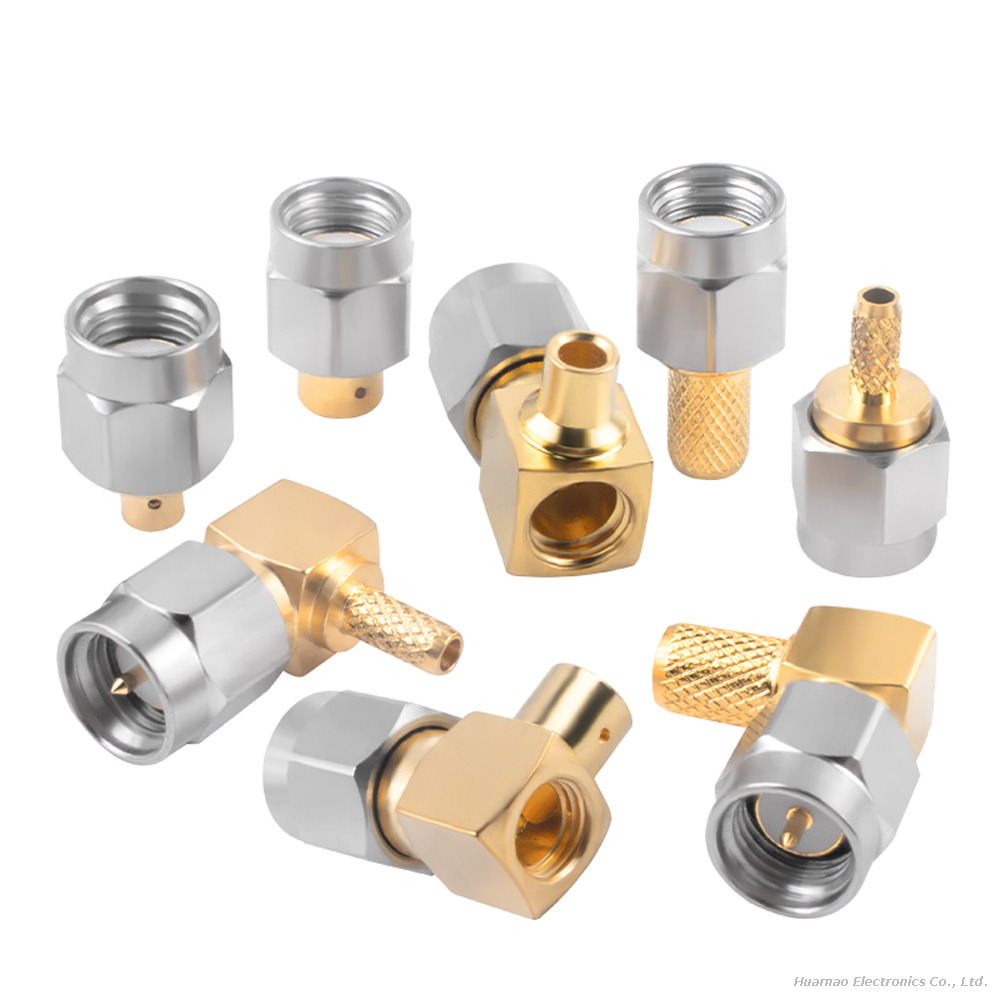

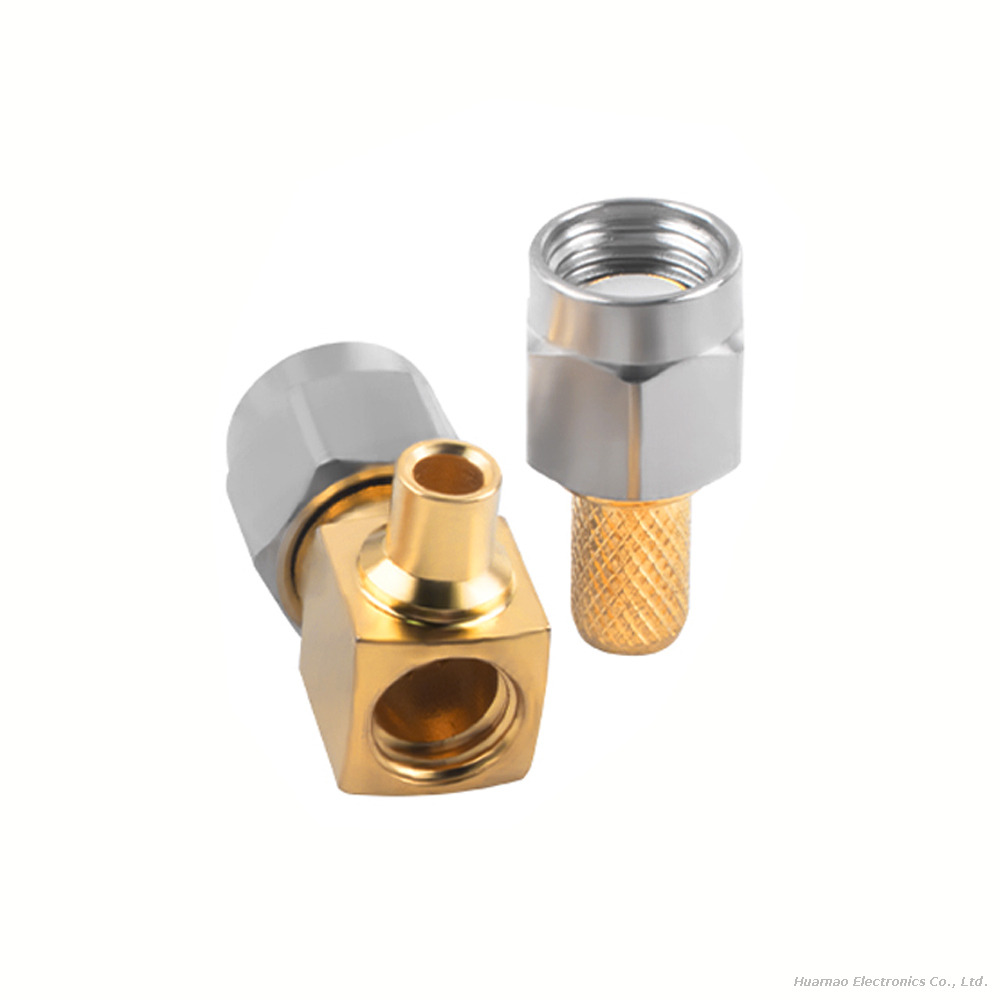

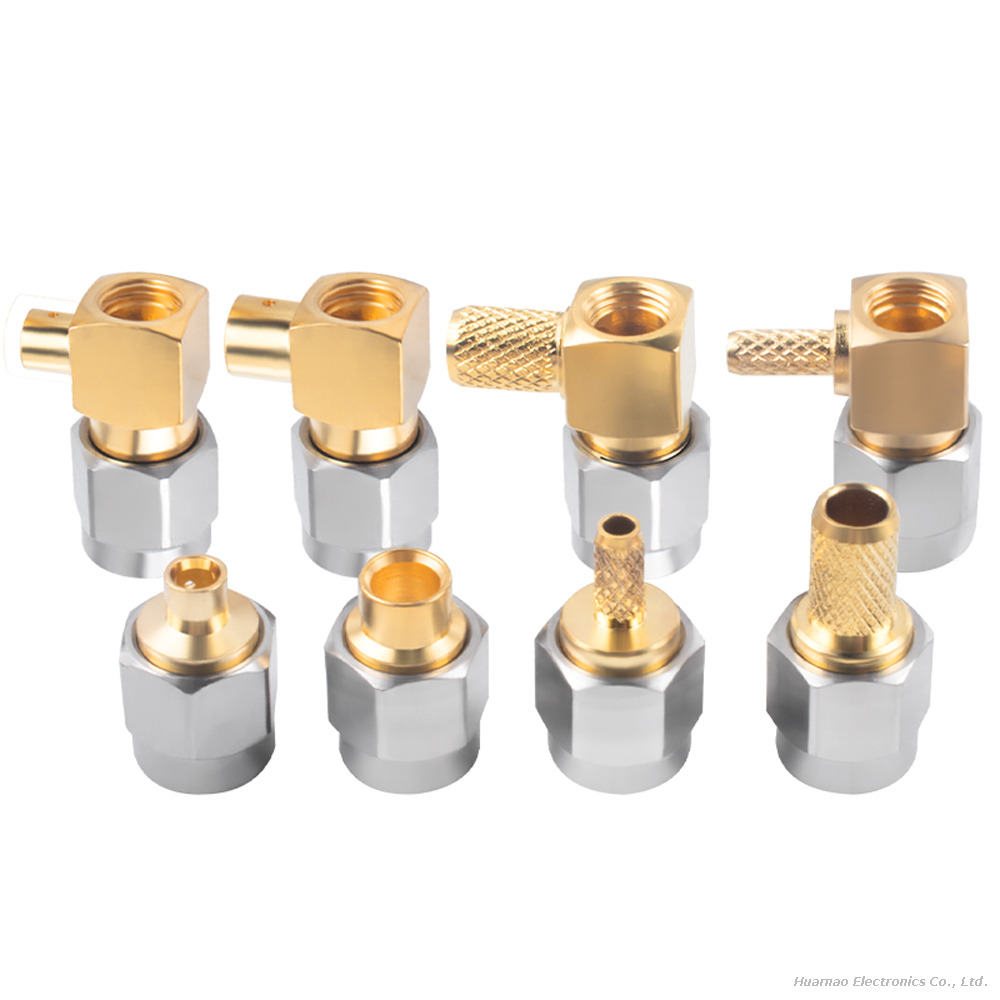

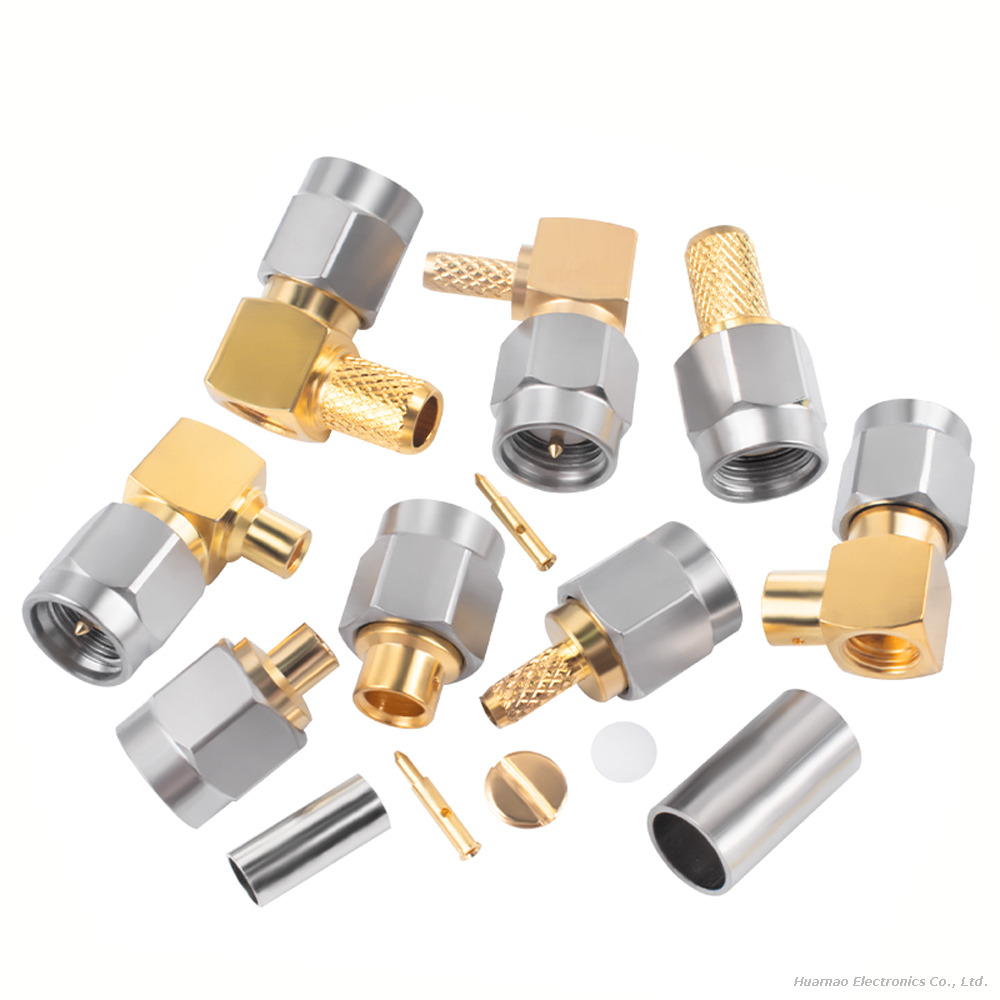

SMA-J straight through crimp plug and SMA-JW 90° right-angle elbow crimp plug, covering all thin micro coaxial wiring scenarios for wireless equipment.

Outer shell adopts solid brass matte nickel plating for wear and corrosion resistance; central contact pin, elbow transition block and crimp ferrule use full hard gold plating to reduce contact resistance and avoid oxidation signal drift after long-term equipment operation. The crimp end is designed with diamond knurled texture, which increases clamping force when crimping RG174 / RG316 ultra-thin coaxial shielding braid, realizing 360° complete shielding continuity and suppressing EMI interference inside equipment.

Built-in PTFE high-temperature stable dielectric core, stable impedance within DC~6GHz frequency band, no signal reflection loss caused by temperature alternation. The right-angle SMA-JW model solves the space limitation of narrow PCB cabinets and hidden antenna wiring, avoiding sharp cable bending fracture.

Widely matched with car GPS antennas, wireless router built-in modules, Bluetooth testing equipment, portable remote control signal transceivers. Support customized full gold-plated shell, lengthened crimp section and finished RF jumper production; all raw materials comply with RoHS low-halogen environmental standards.

Specifications

Series Model	SMA-J (Straight Crimp Male), SMA-JW (90° Elbow Crimp Male)
Compatible Coaxial Cables	RG174 / RG316 50Ω ultra-thin micro coaxial wire
Characteristic Impedance	50 Ω universal wireless RF standard
Operating Frequency Band	DC ~ 6 GHz
Internal Dielectric	PTFE high-temperature stable insulation core
Operating Temperature Range	-40 ℃ ~ +125 ℃

Advantages

Dual Straight + Elbow Complete Series Covers All Thin Coax Wiring Scenarios (Core Advantage)
SMA-J straight and SMA-JW 90° elbow two specifications are matched at the same time, solving linear panel wiring and narrow space folded hidden wiring demands of wireless equipment, one series meets router, GPS, test instrument multi-product design, simplify supplier inventory management.
90° Elbow SMA-JW Solves Narrow Space Cable Bending Breakage Problem
Ordinary straight connectors need sharp 90° bending of thin coax inside narrow cabinets, which easily leads to internal core wire fatigue fracture; the integrated L-shaped elbow directly changes the cable outlet direction, protect RG174/RG316 micro thin wire service life.
Knurled Gold-Plated Crimp Ferrule Stable Shielding Anti-EMI Interference
Diamond texture crimp sleeve increases friction with shielding braid, will not slip after long-term equipment vibration; 360° full gold-plated shielding layer effectively filter frequency converter and power supply electromagnetic noise, prevent GPS positioning drift and WiFi signal weakening.
Mixed Nickel-Gold Plating Balance Cost And High-Frequency Performance
Outer shell adopts low-cost wear-resistant nickel plating, key conductive contact parts use thick gold plating to ensure signal stability, avoid the high cost of full gold-plated connectors while guaranteeing long-term anti-oxidation performance.
DC~6GHz Broadband Compatible With All Civil Wireless Communication Signals
Covers GPS full band, 2.4G/5.8G WiFi, Bluetooth, remote control UHF frequency band, widely applicable to consumer electronics, industrial IoT wireless modules, laboratory miniature test equipment.
One-Stop Custom Thin Coax RF Jumper Service
Support small batch prototype sampling and mass OEM production, can be processed into finished straight/elbow SMA antenna extension cables with customized lengths of RG174/RG316 micro coax for wireless module factories.

Application

Vehicle GPS & New Energy Vehicle T-box Positioning Equipment
Car navigation SMA-JW elbow hidden wiring crimp connector, new energy vehicle T-box internal folded thin coax SMA-J plug, rearview mirror built-in positioning antenna right-angle RF terminal
Wireless Router & IoT Communication PCB Modules
WiFi6 gateway PCB narrow space SMA-JW elbow antenna crimp plug, industrial IoT data acquisition module straight SMA-J signal terminal, Bluetooth audio transmitter built-in thin coaxial connector
Portable Handheld Signal Test & Remote Control Equipment
Handheld signal detector SMA-J straight antenna plug, drone remote control internal folded wiring SMA-JW elbow connector, portable walkie-talkie miniature RF crimp terminal
Laboratory Miniature Wireless Debugging Instruments
Mini spectrum analyzer internal hidden SMA-JW elbow fitting, Bluetooth module production line test SMA-J straight crimp plug, low-power signal receiver thin coax RF connector
Smart Home Consumer Electronic Wireless Equipment
Smart lock wireless signal SMA-J crimp terminal, wireless camera built-in antenna 90° elbow SMA-JW plug, household air conditioner WiFi module thin coaxial connector

FAQ

Q1: What is the difference between SMA-J straight and SMA-JW elbow connectors in usage?

A:SMA-J straight: Cable extends along the same axis as SMA thread, used for equipment panel linear outward antenna wiring, short signal path, minimum attenuation;

SMA-JW elbow: Cable outlet is perpendicular to the thread axis, used for narrow PCB cabinet, side wall hidden wiring, avoid sharp bending of thin coaxial wire inside limited space;

The two cannot replace each other due to different mechanical space layout demands.

Q2: Can this SMA-J/JW crimp connector use thick RG58 coaxial cable?

A: No. The inner diameter of the knurled crimp ferrule is designed for ultra-thin RG174/RG316 micro coax, the shielding braid of thick RG58 cannot be fully clamped, which will cause poor shielding and serious signal leakage. If you need RG58 matching, select SMA-J-5 large crimp type connector.

Q3: Is SMA-JW elbow easy to cause high-frequency signal reflection loss?

A: No. The internal transition part of the elbow is integral gold-plated smooth right-angle block, optimized impedance matching design, VSWR ≤1.40 up to 6GHz, no obvious signal surge or attenuation compared with straight SMA-J.

Q4: What is the service life of the gold-plated contact inside the connector?

A: Hard gold plating thickness ≥0.6μm, can withstand ≥500 times repeated plugging and unplugging, long-term indoor equipment operation will not oxidize and blacken, contact resistance remains stable.
