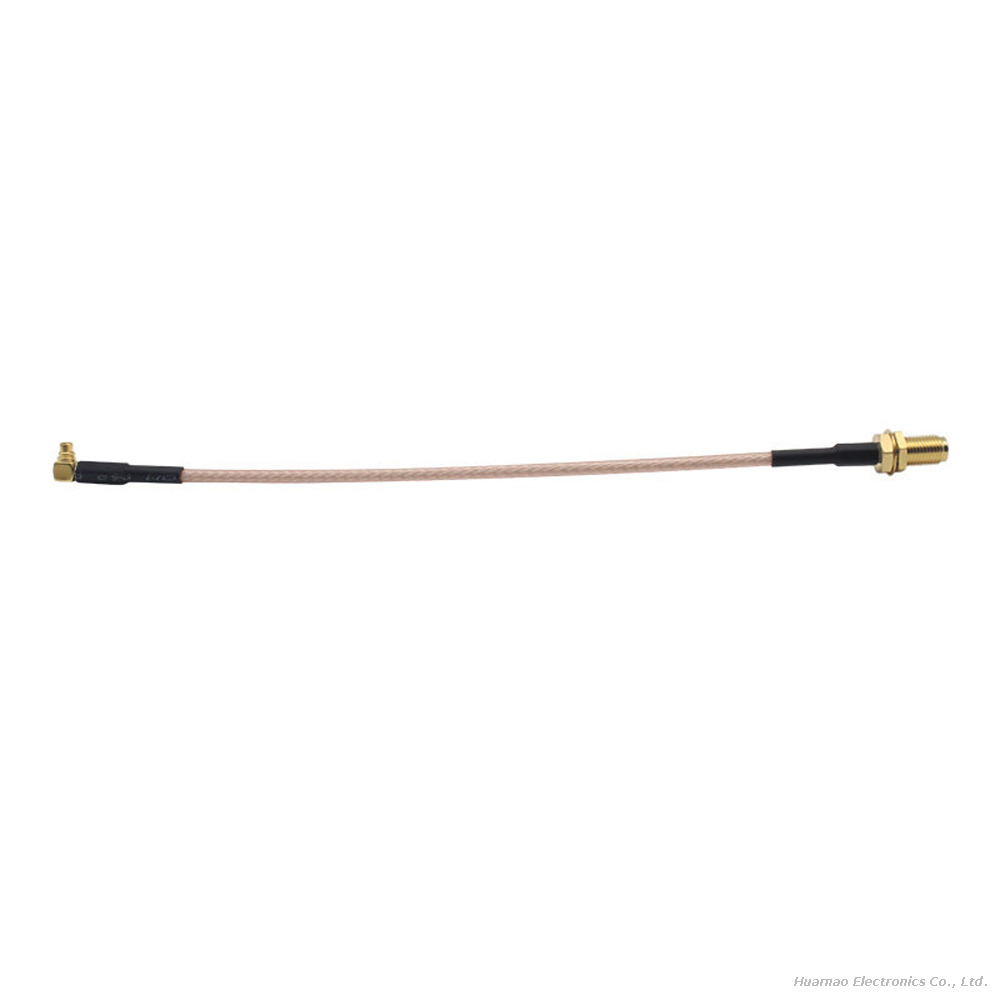

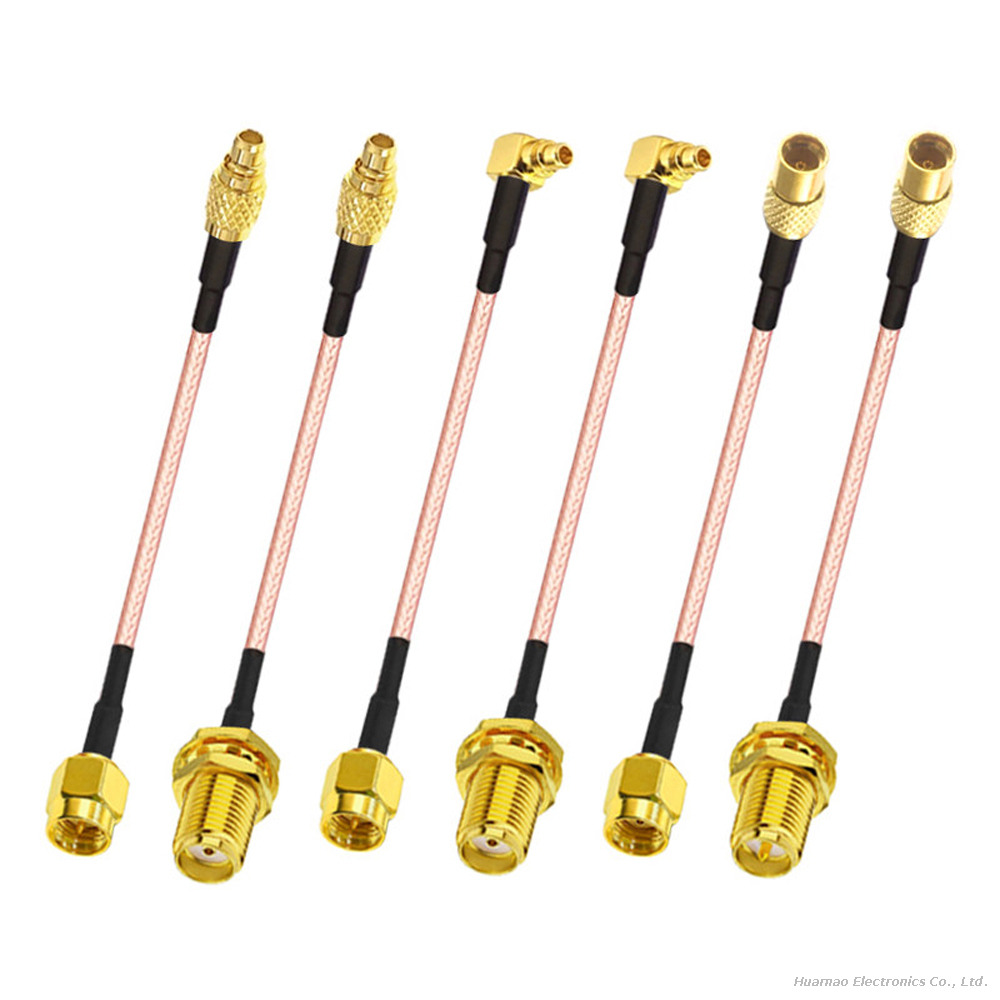

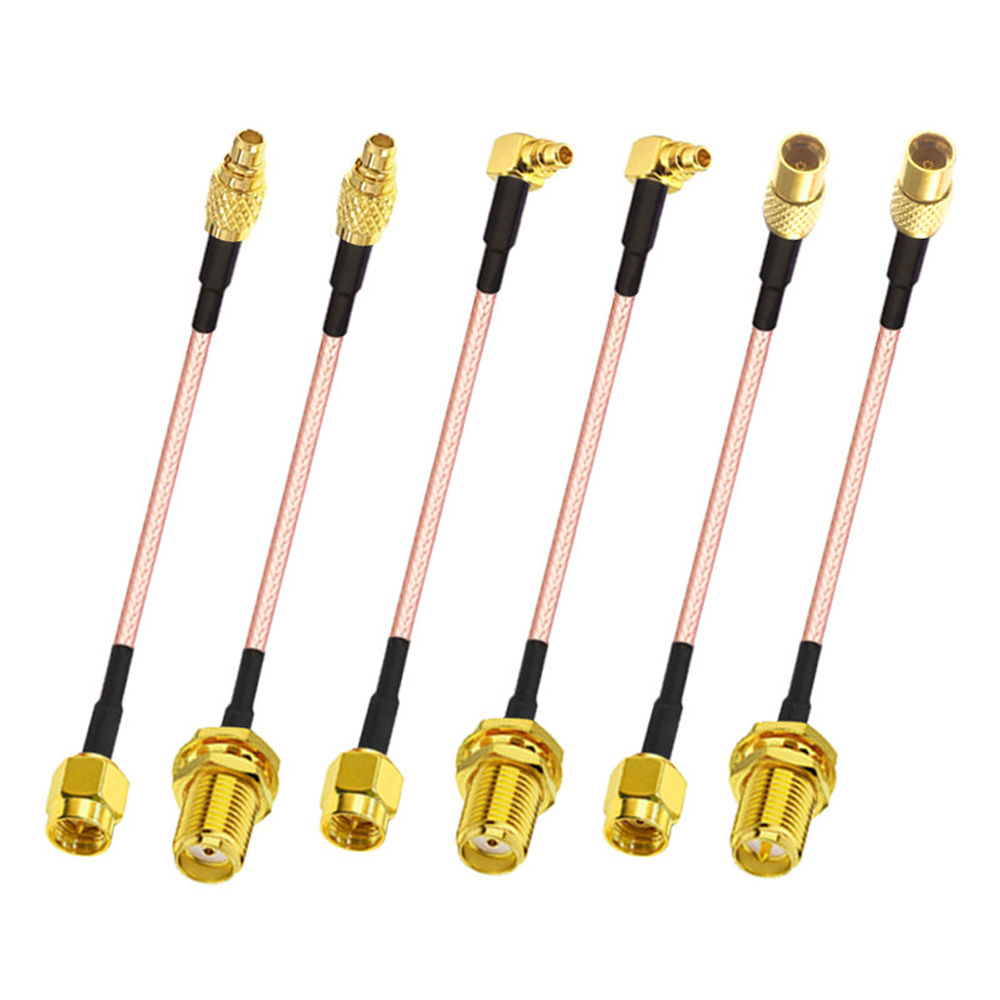

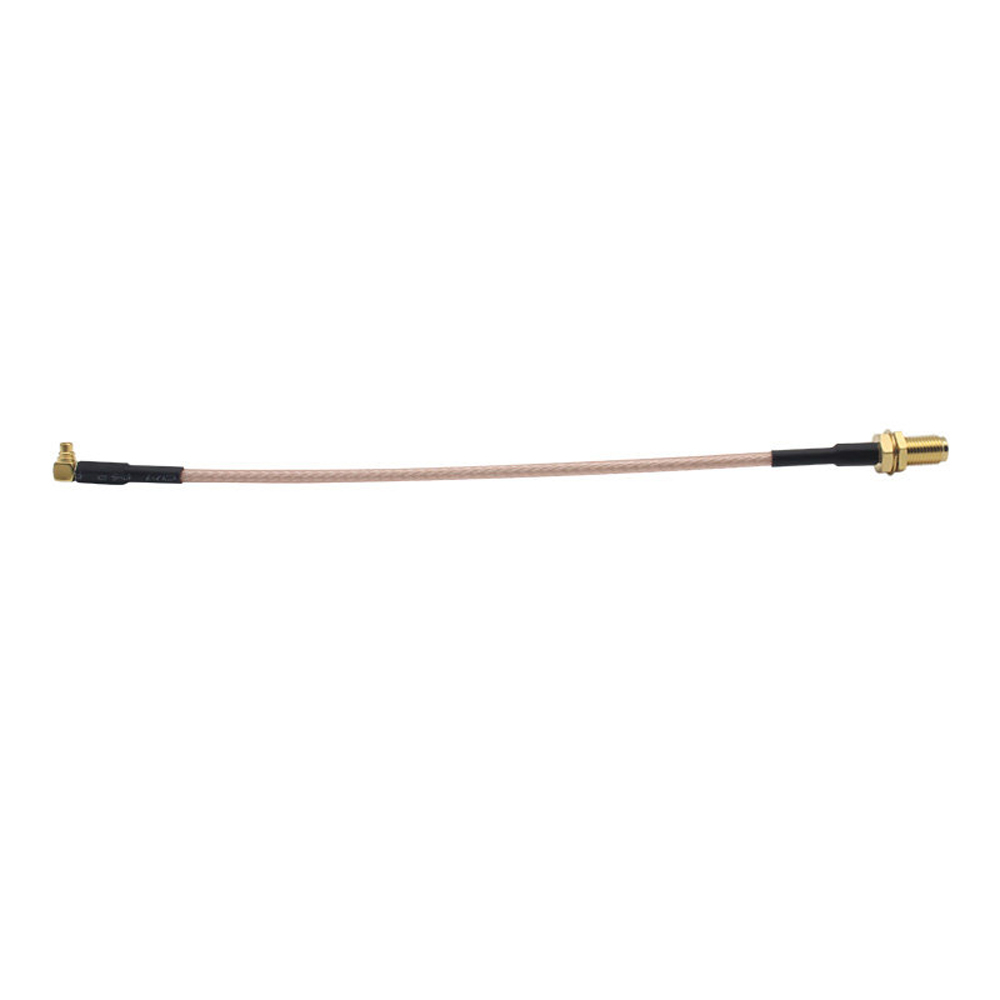

MMCX-JW To SMA-K Male And Female RF Coaxial Adapter Cable Elbow Connector Wire Harness

This RF coaxial adapter cable features an MMCX-JW elbow connector paired with SMA-K male and female connectors, specifically designed for high-frequency signal transmission in RF communication systems. It delivers low-loss, stable connectivity for high-frequency signals, perfectly adapting to space-constrained installation scenarios while ensuring reliable performance across diverse electronic and communication applications.

Features

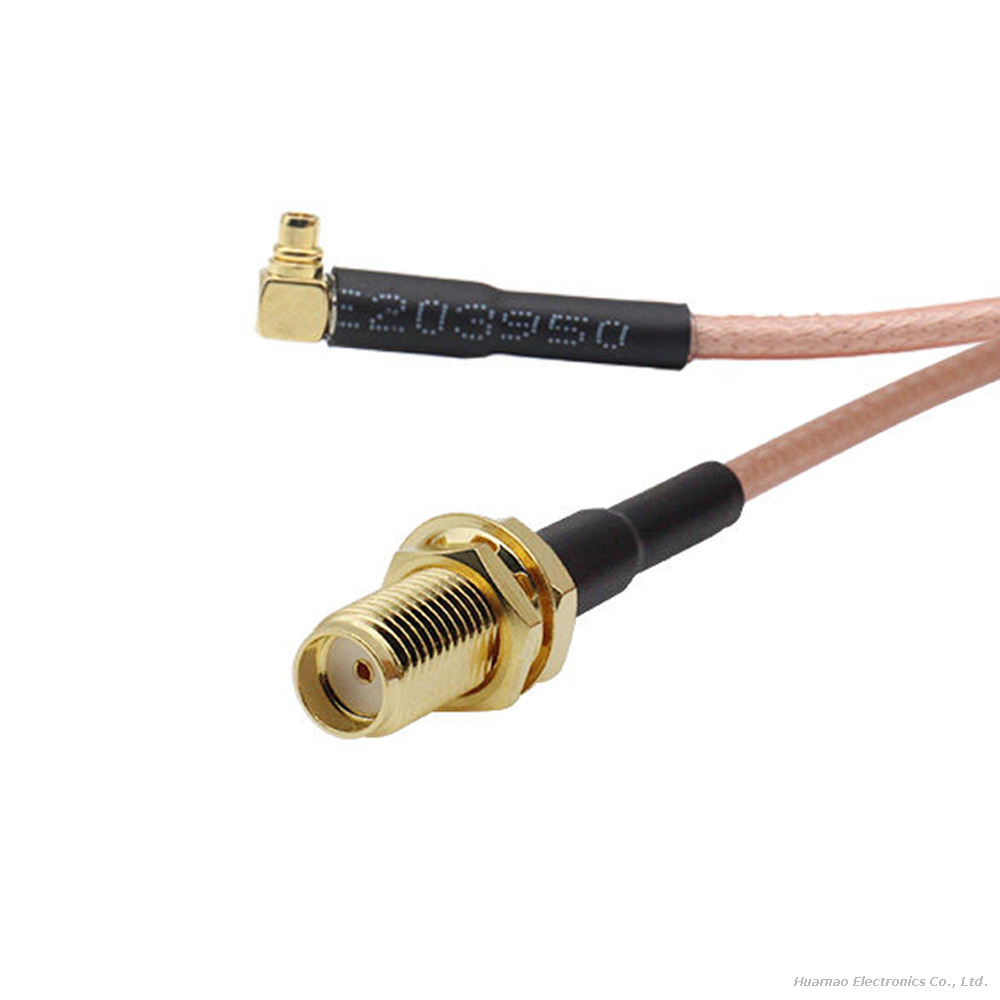

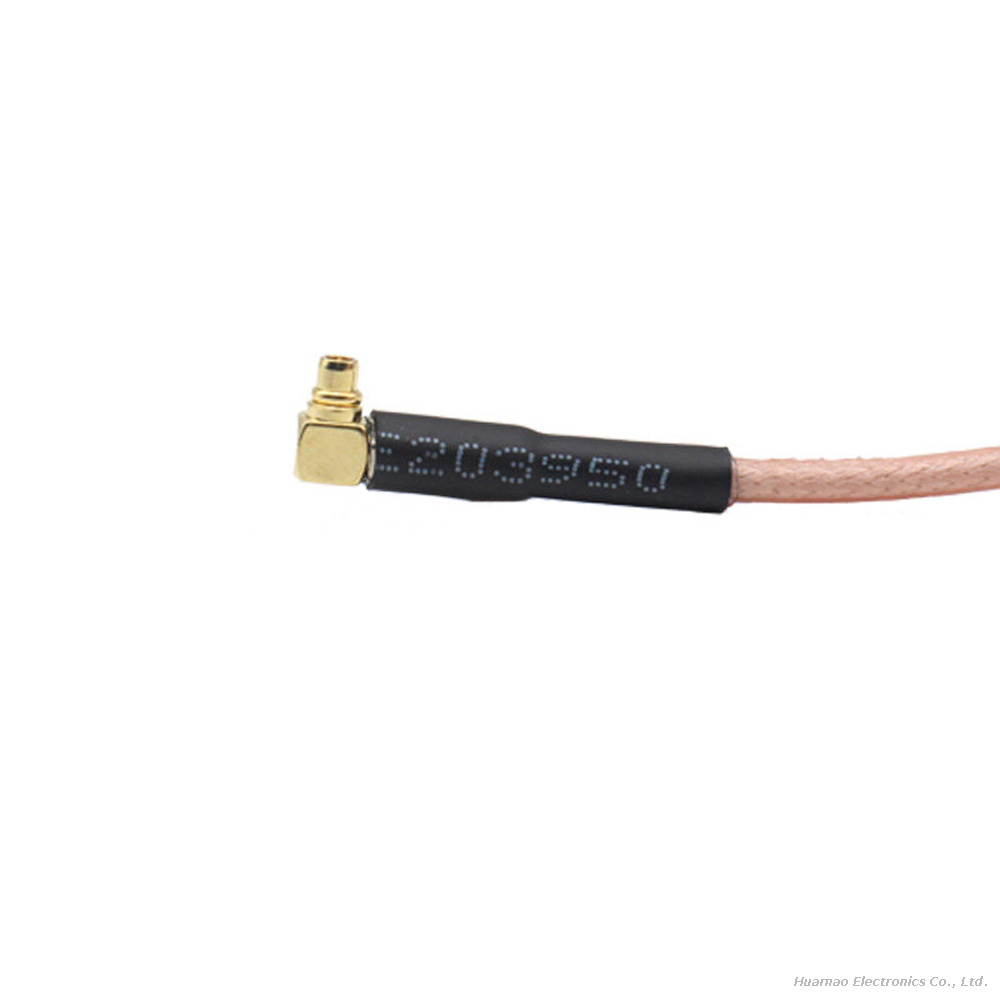

• MMCX-JW elbow connector with snap-lock design for secure mating and space-saving routing

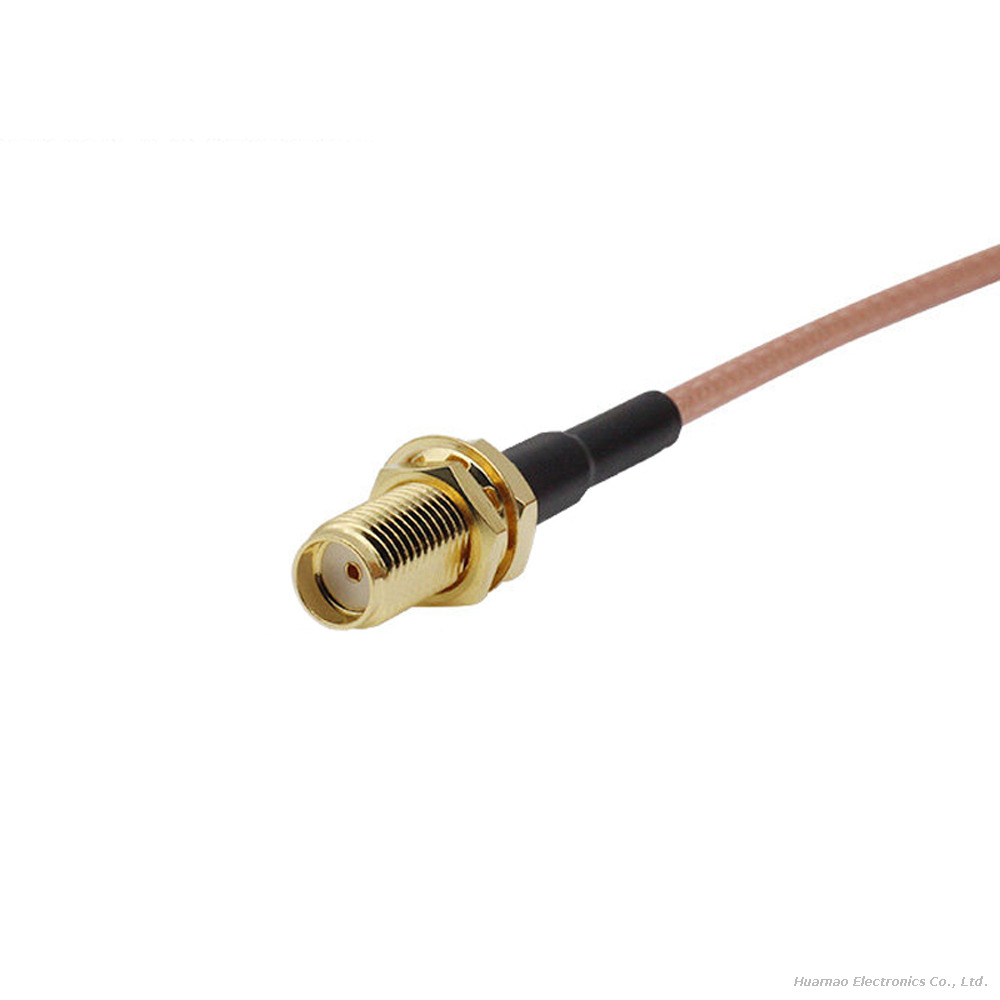

• Standard SMA-K male/female connectors with threaded locking mechanism to prevent vibration-induced disconnection

• 50Ω characteristic impedance for optimal RF signal integrity, compatible with most communication systems

• Supports DC to 6GHz frequency range, ideal for high-speed data and RF signal transmission

• Low insertion loss (≤0.3dB @ 2GHz) and VSWR (≤1.2) for minimal signal attenuation

• Double shielding (braided copper + aluminum foil, 95% coverage) to eliminate electromagnetic interference (EMI)

• High-purity copper conductor and gold-plated contacts for low contact resistance and long-term corrosion resistance

• Flexible PVC jacket with wear-resistant and oil-resistant properties, adapting to harsh operating environments

• Wide operating temperature range: -40°C to +85°C, suitable for indoor and outdoor applications

• RoHS compliant, meeting global environmental and safety standards




Applications

• RF communication devices: Routers, modems, wireless transceivers, and signal boosters

• Test and measurement equipment: Signal generators, spectrum analyzers, and network analyzers

• Consumer electronics: Satellite receivers, set-top boxes, and portable communication devices

• Security and surveillance systems: Wireless cameras, microwave transmitters, and monitoring sensors

• Aerospace and automotive electronics: In-vehicle RF modules and avionics auxiliary communication systems

• Industrial control systems: RF-based remote monitoring and data transmission equipment

• Telecommunication infrastructure: Base station auxiliary connections and signal distribution systems
