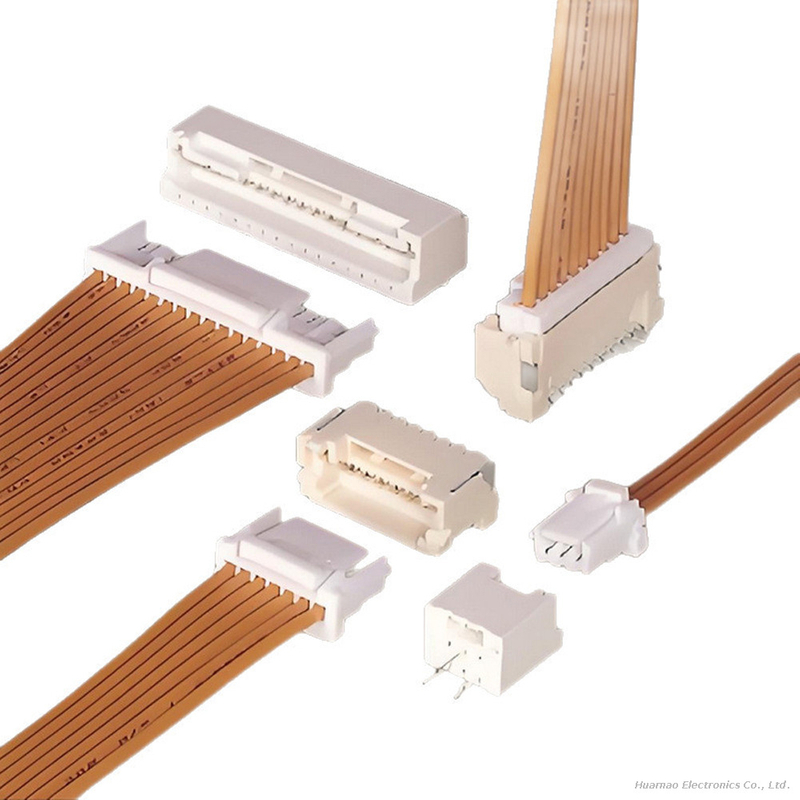

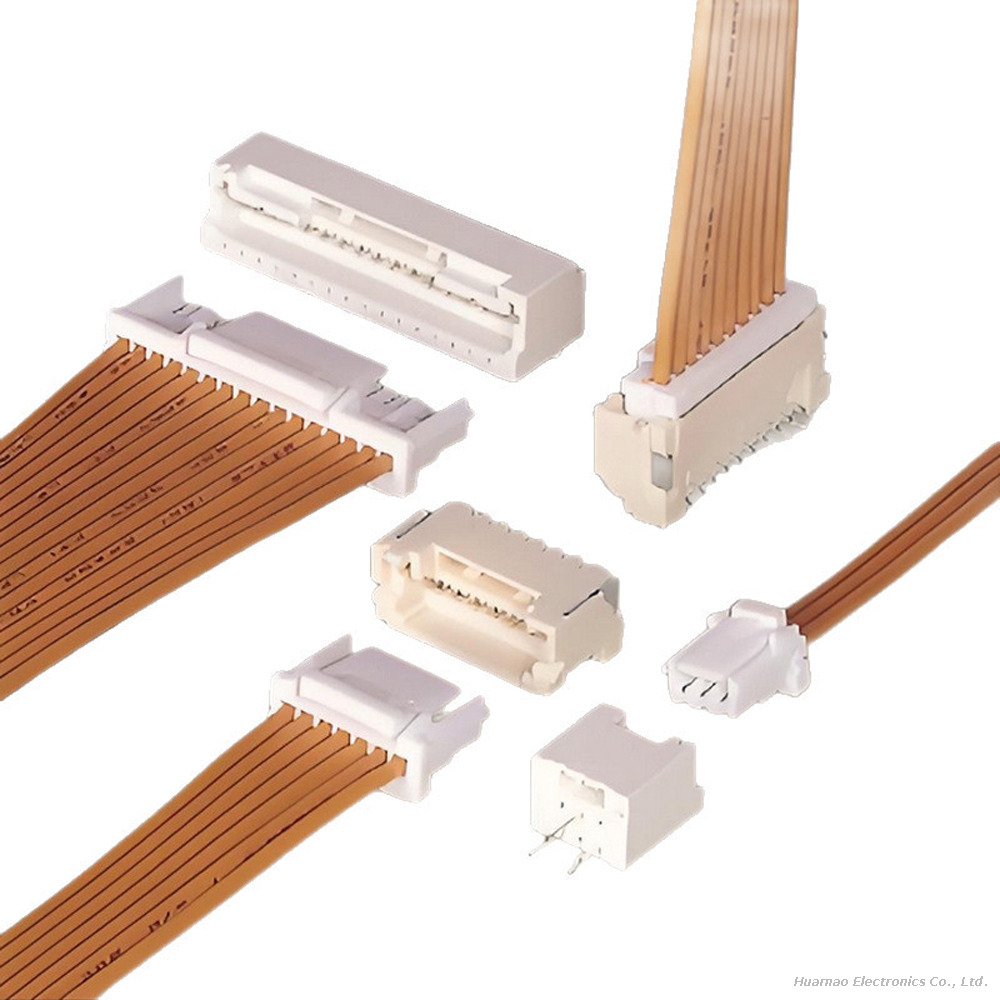

This is a 1.5 mm pitch wire-to-board connector with a solid locking feature for high-density board design. Ease of mating is facilitated with a low insertion force and a positive tactile clicking sensation, providing a highly reliable connection.
| Pitch | 1.5mm |
| Circuit | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
| Current rating | 2 A AC/DC (AWG #24) |
| Voltage rating | 100 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 500MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 500 VAC for one minute. |
| Conductor size | AWG #30,#28,#26,#24 0.05mm2 to 0.21mm2 |
| Insulation O.D. | φ0.76mm to φ1.2mm |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
