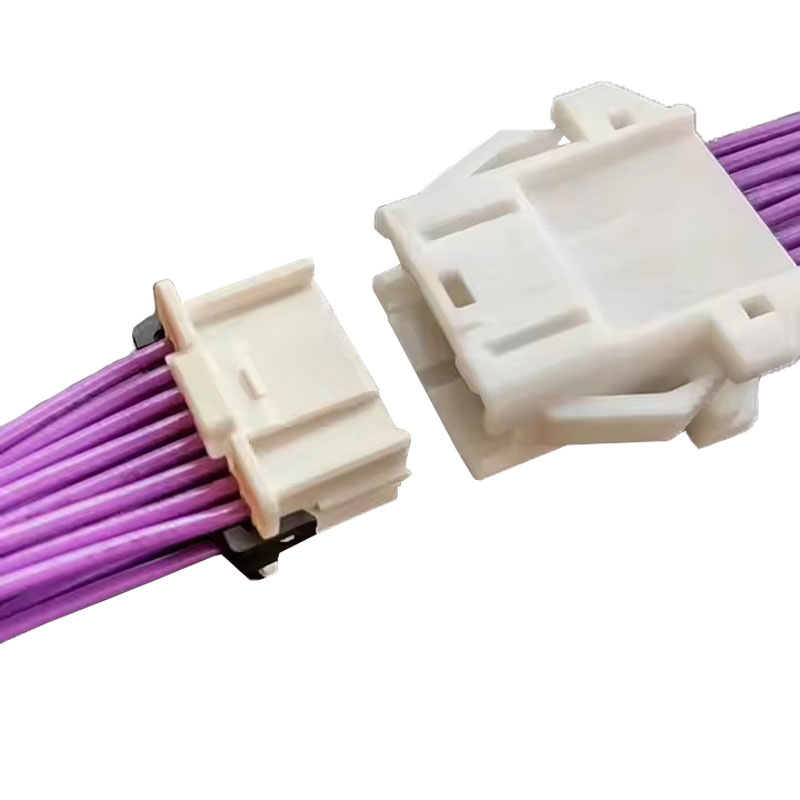

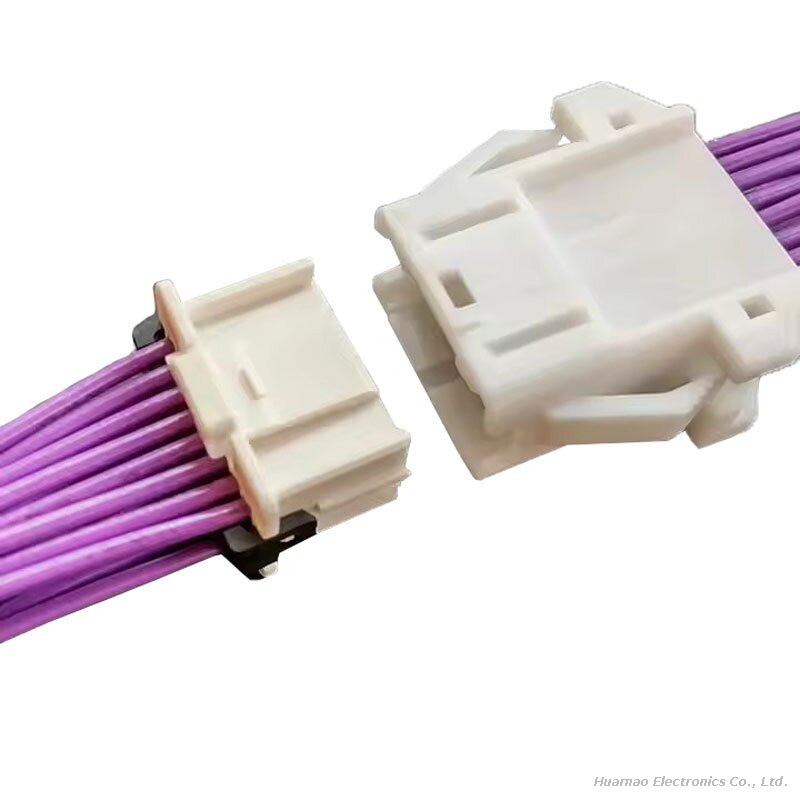

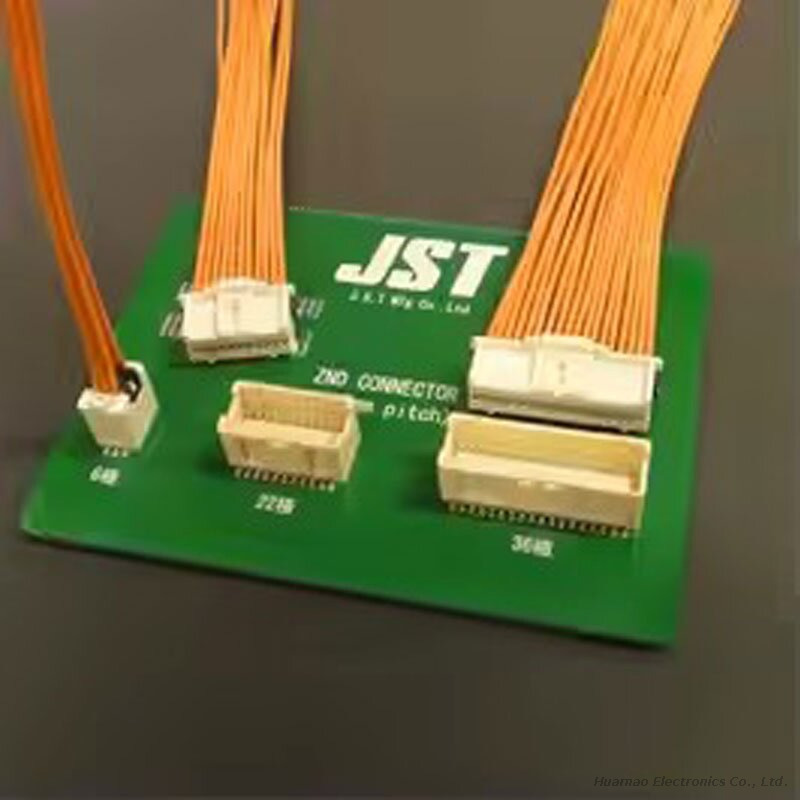

This JST ZND Connector is a high-performance 1.5mm pitch, dual-row wire-to-wire connector designed to meet the needs of high-density equipment applications. It features a secure locking mechanism that ensures reliable connections and minimizes the risk of incomplete mating. The connector is equipped with a retainer-mountable type for added stability, along with a panel-locking mechanism that enhances its robustness. With superior insertion and withdrawal operability, the ZND connector is engineered for low insertion force, making installation and maintenance easier. Additionally, the connector supports keying development, allowing for customization and further improving the security and functionality of connections in complex systems.
| Pitch | 1.5mm |
| Circuit | 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36 |
| Current rating | 2 A AC/DC (AWG #24) |
| Voltage rating | 100 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 500MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 500 VAC for one minute. |
| Conductor size | AWG #28,#26,#24 0.08mm2 to 0.21mm2 |
| Insulation O.D. | φ0.76mm to φ1.3mm |
| Remarks | Wire-to-Wire type available |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
