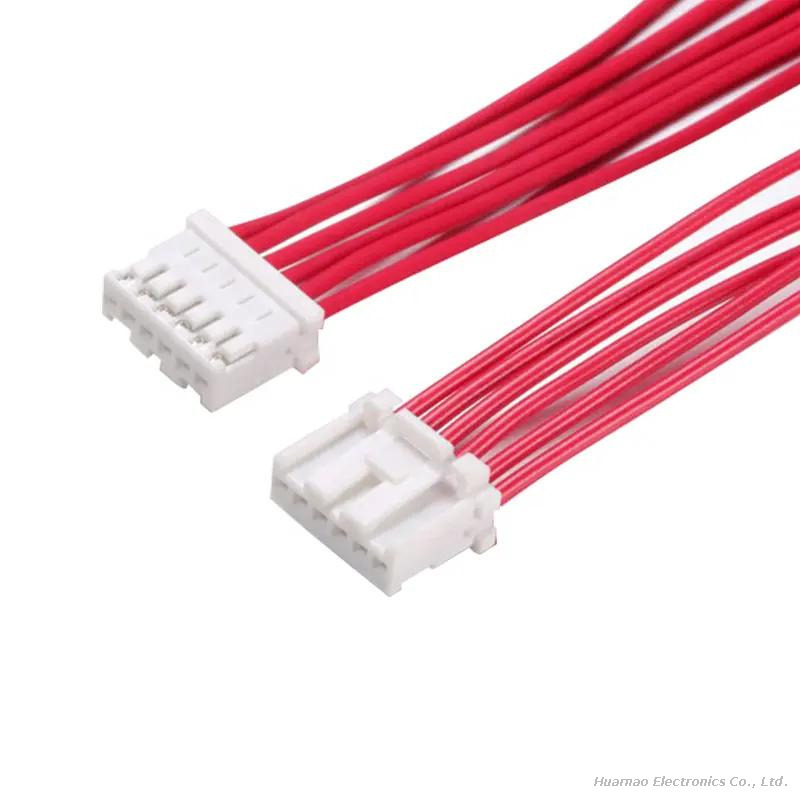

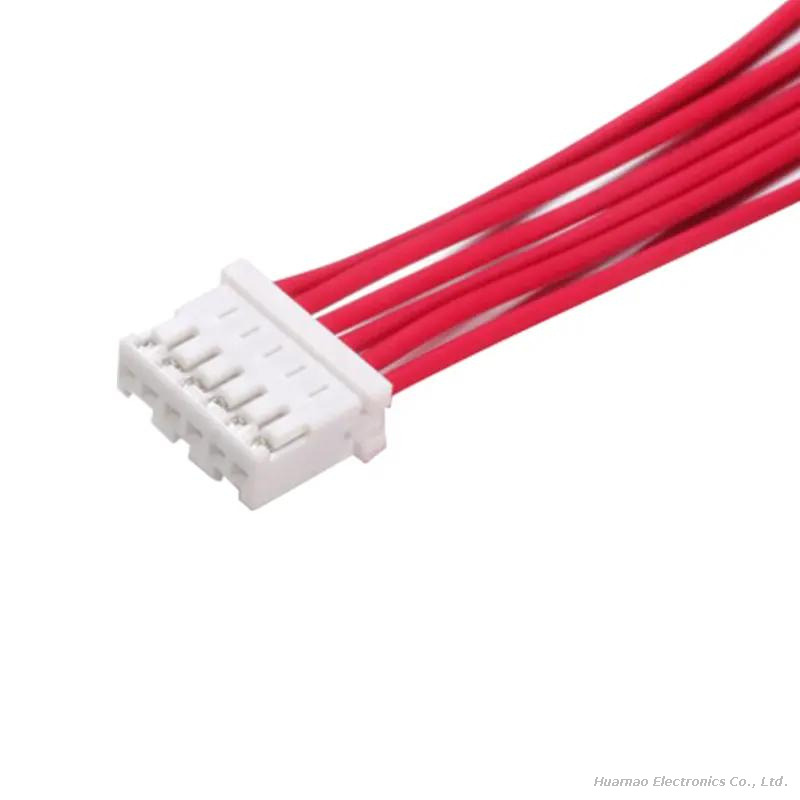

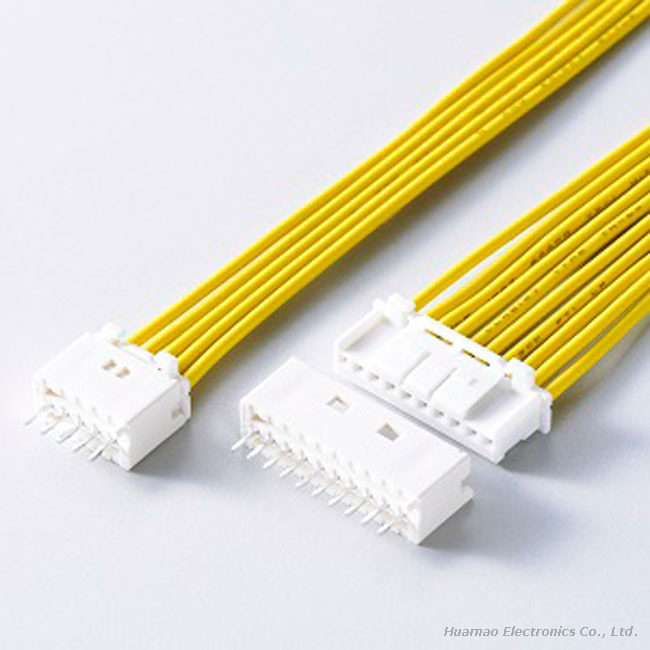

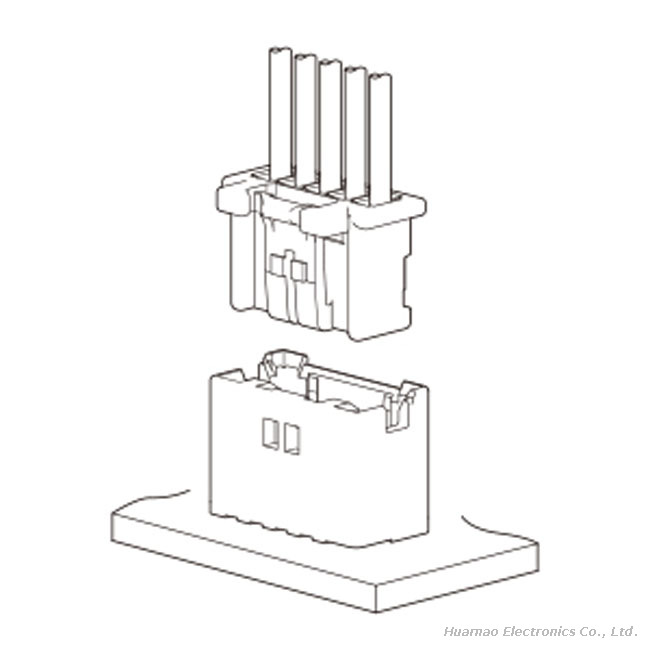

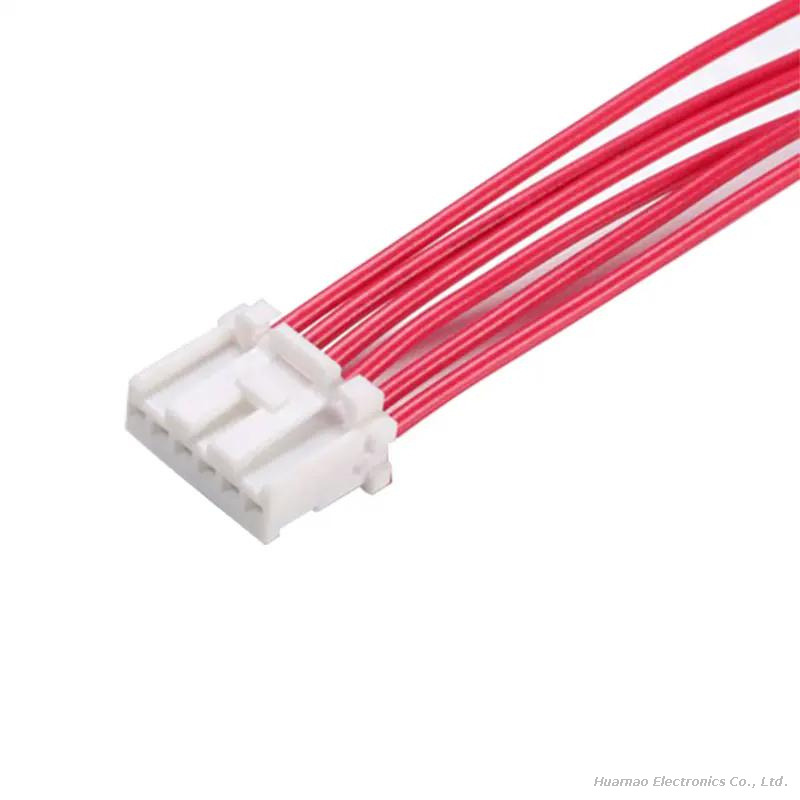

This is a 2.0 mm pitch wire-to-board connector with a mechanism to prevent incomplete mating, and designed as low profile type connector with mounting height of 9.6 mm.
| Pitch | 2mm |
| Circuit | 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Current rating | 3 A AC/DC (AWG #22) |
| Voltage rating | 100 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 800 VAC for one minute. |
| Conductor size | AWG #28,#26,#24,#22 0.08mm2 to 0.33mm2 |
| Insulation O.D. | φ0.8mm to φ1.5mm |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
Contact our technical support team for customized probe configurations. Each automotive diagnostic kit includes calibration certificates and testing manuals. Express shipping available for urgent testing equipment requirements.
