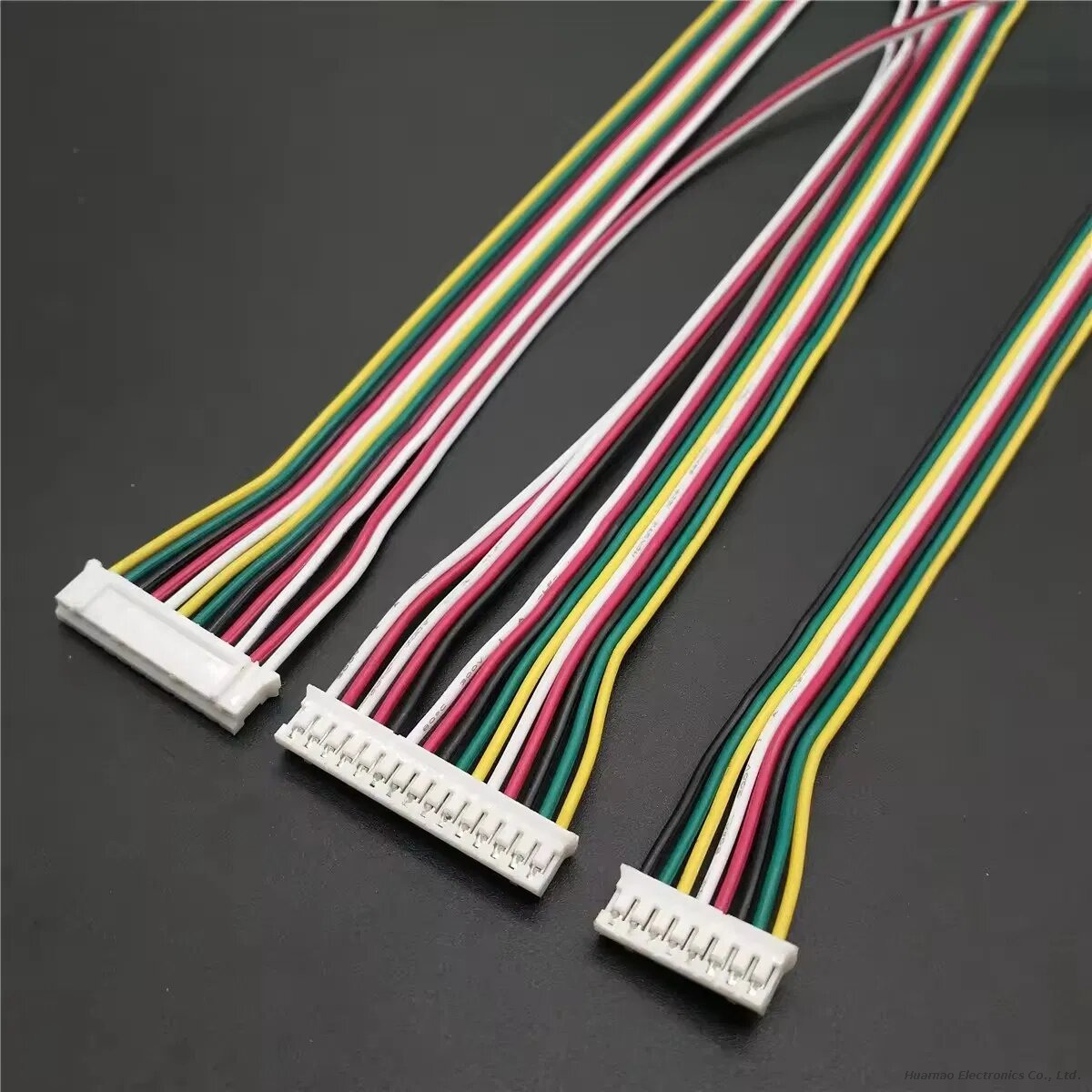

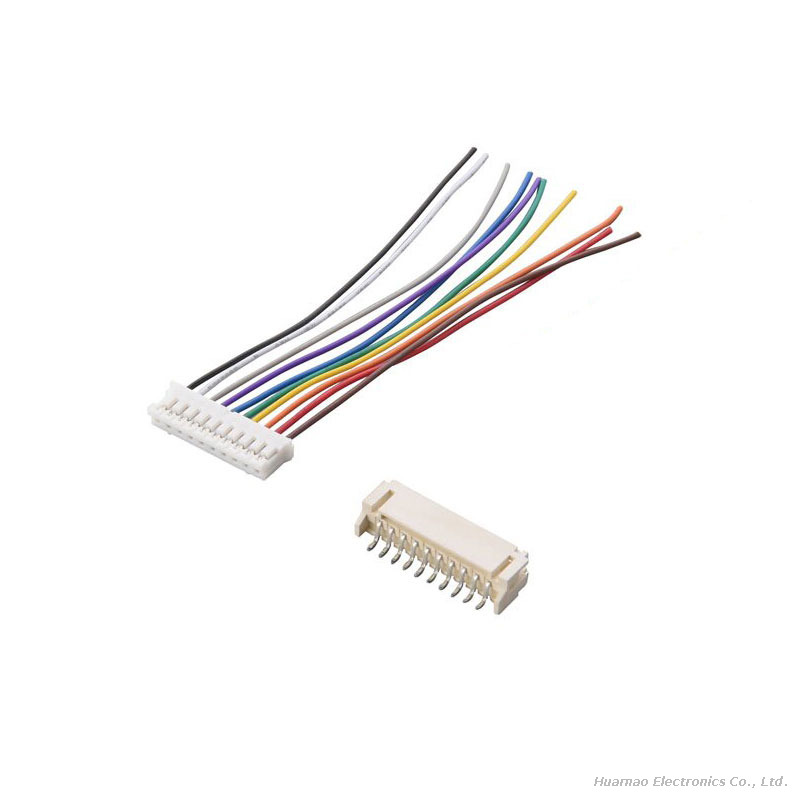

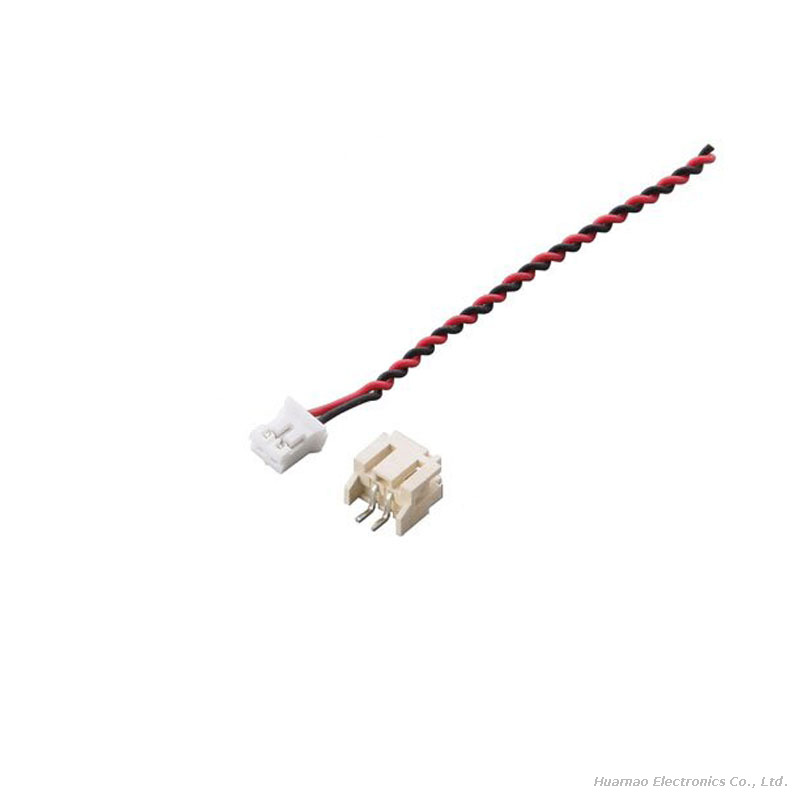

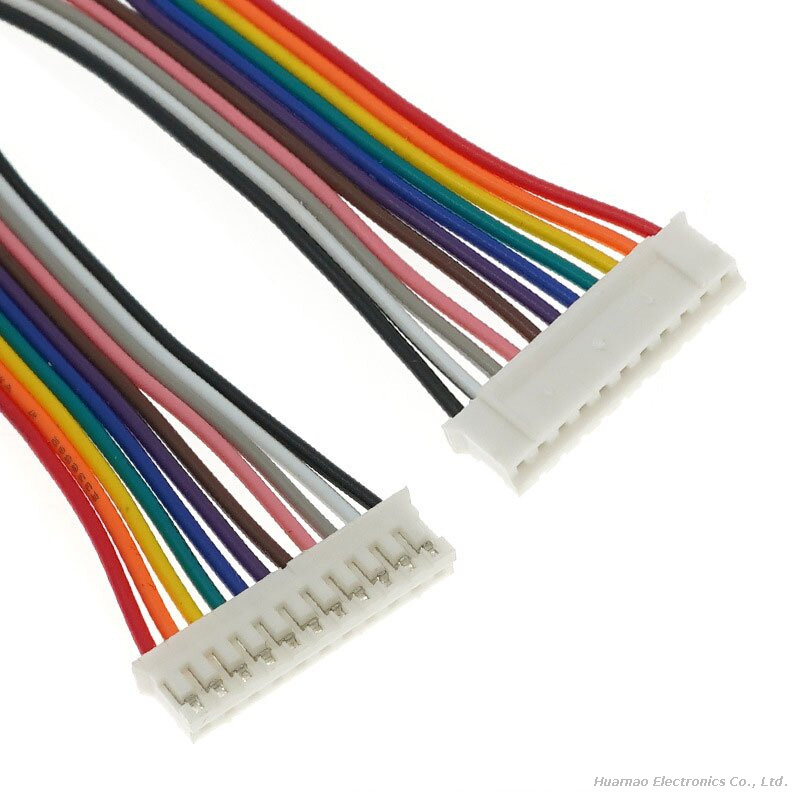

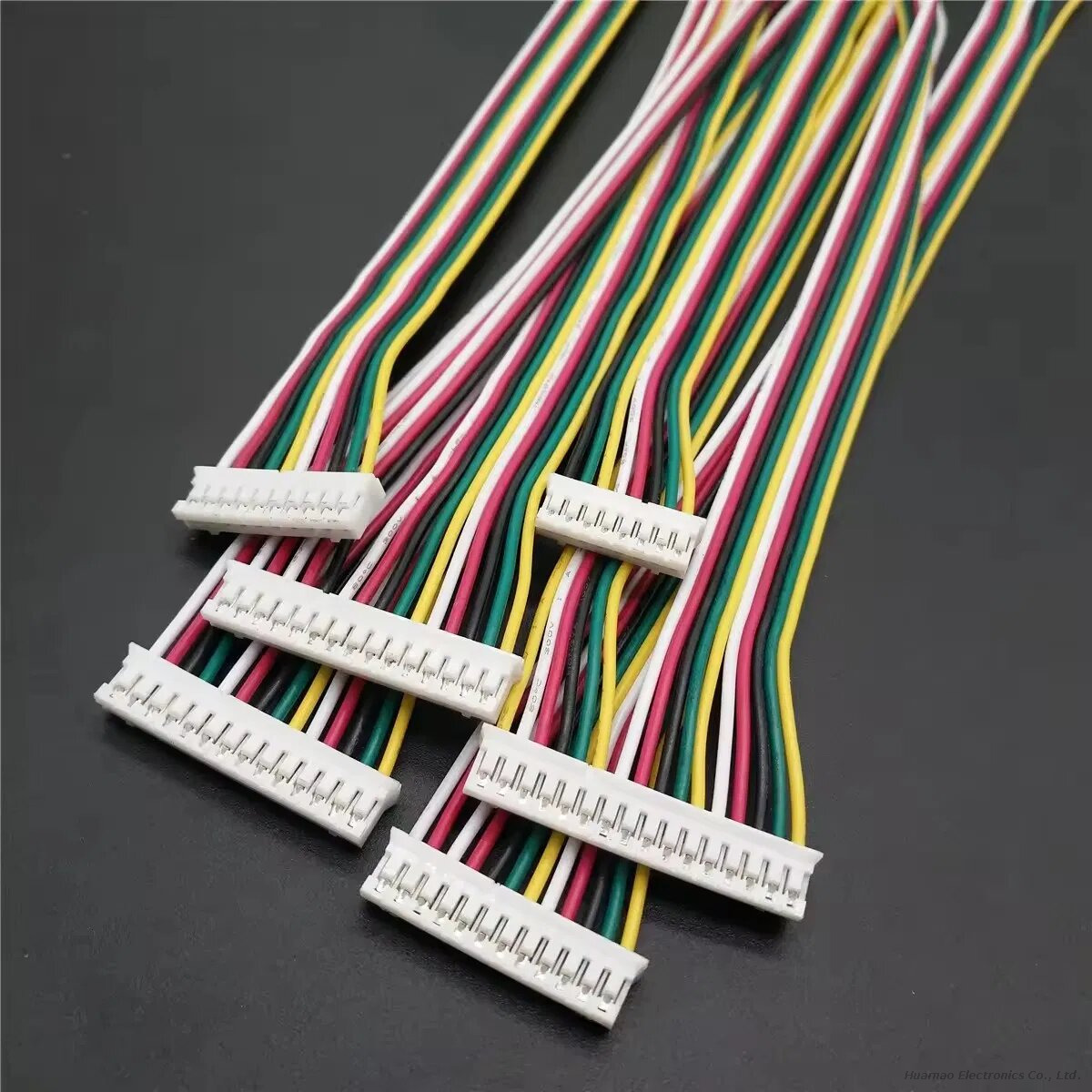

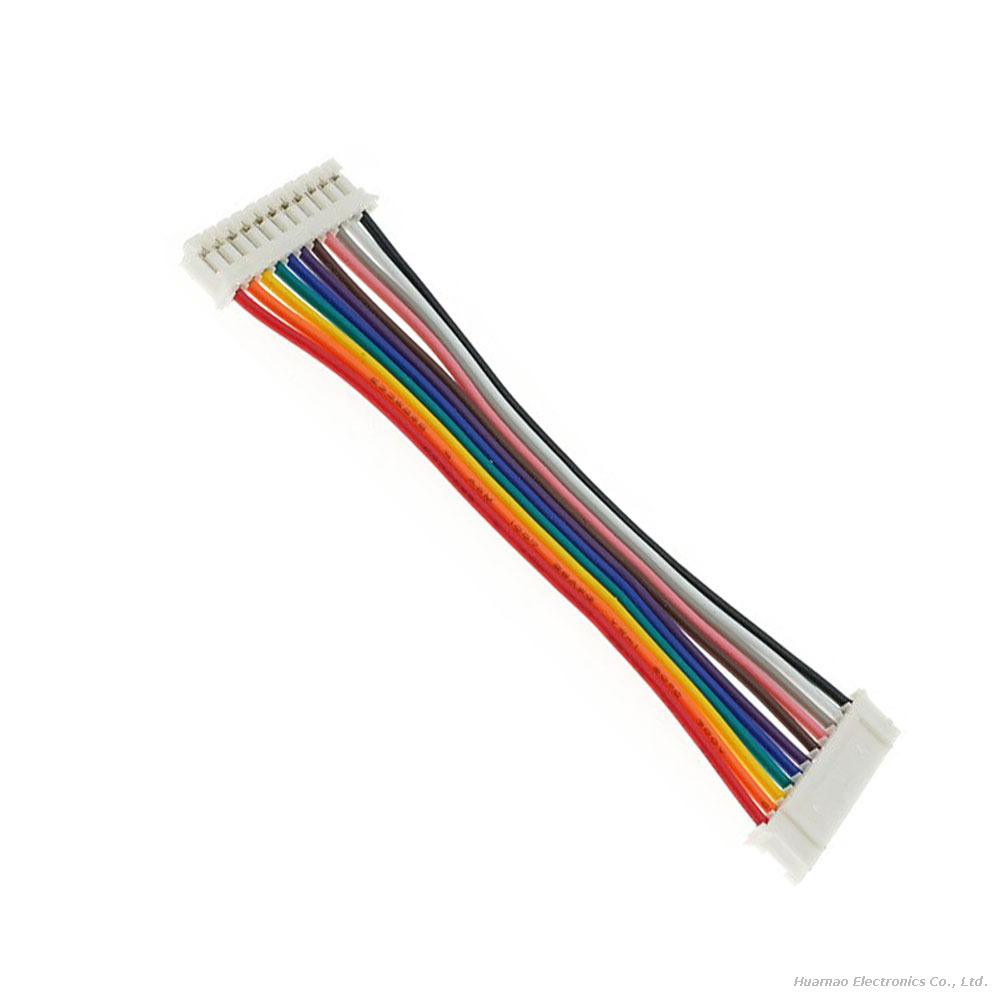

Engineered exclusively for the precise connectivity needs of LCD panel screen displays, this JST PHR Series male and female 2.0mm pitch single-row wiring harness delivers stable, low-interference signal and power transmission. Designed to fit the ultra-compact internal enclosures of LCD panels—from small industrial displays to large-format screens—it serves as a critical link between LCD panels, driver boards, backlight modules, and touch control units. The pre-assembled male-female connector pair eliminates mismatched components, ensuring seamless integration and reliable performance in diverse display applications where signal integrity and space efficiency are non-negotiable.
Core Performance & LCD Panel-Specific Advantages
1. JST PHR Series Precision Compatibility
Features authentic JST PHR Series male and female single-row connectors engineered to JST’s proprietary design, with a 2.0mm ultra-fine pitch that aligns perfectly with the compact pinout requirements of most standard LCD panel modules. The male-female mating set includes precision-machined terminal pins and sockets, guaranteeing a secure, vibration-resistant connection—critical for fixed-mount LCD panels (e.g., industrial controls, automotive displays) and preventing signal dropouts or power interruptions during operation.
2. LCD-Optimized Signal & Power Transmission
Tailored to LCD panel’s low-voltage (3.3V/5V) and low-current signal transmission demands, the harness uses high-purity tinned copper wiring with ultra-low contact resistance. This design minimizes signal attenuation and electromagnetic interference (EMI), ensuring crisp, flicker-free display output—critical for high-resolution LCD panels (including IPS, TN, and VA types) used in visual equipment. The single-row layout also simplifies wiring for LCD’s compact control circuits, avoiding signal crosstalk between power and data lines.
3. Durable, Heat-Resistant Construction for Display Environments
Built to withstand the thermal and mechanical stress of LCD panel operation:
Terminals: Phosphor bronze with tin plating for superior corrosion resistance and long-term electrical conductivity (supports 5000+ mating cycles).
Wiring: UL2651/UL1007 stranded copper core (28AWG–24AWG) for flexible, durable signal transfer, insulated with flame-retardant PVC/PE material rated for -40°C to 105°C.
Housing: High-strength PBT plastic housing (UL94 V-0 rated) that resists heat, oil, and minor impacts—ideal for LCD panels in industrial, automotive, and commercial settings.
4. Tool-Easy Installation & Space-Saving Design
The 2.0mm single-row form factor maximizes space efficiency, fitting seamlessly into LCD panel’s narrow PCB slots and backlight enclosures. The pre-crimped male-female terminals enable tool-free snap-in installation (or minimal screwdriver use for secure locking), reducing assembly time for LCD panel manufacturing, repairs, and retrofits. Color-coded wiring options are available for easy identification of power, data, and ground lines, streamlining complex LCD panel wiring workflows.
5. Customizable Configurations for Diverse LCD Panels
Fully flexible OEM/ODM customization to match the unique requirements of different LCD panel sizes and types:
Adjustable wire length (50mm–500mm) for small portable LCDs to large wall-mounted displays.
Custom terminal count (2–20 pins) to support single-signal, dual-signal, or integrated power/data LCD panel interfaces.
Optional strain relief sleeves for rugged LCD applications (e.g., outdoor displays, industrial machinery).
Brand-specific labeling and connector color options for OEM branding and inventory management.
6. Rigorous Quality Validation for Display Reliability
Each harness undergoes strict testing aligned with LCD panel industry standards:
Signal stability trials (1000+ hours of continuous operation) to ensure no display flicker or data loss.
Vibration resistance testing (per ISO 16750) for automotive/industrial LCD panels.
Temperature cycling (-40°C to 105°C) and humidity exposure (85% RH, 85°C) to validate performance in extreme environments.
Compliant with UL, RoHS, and ISO 9001 standards to meet safety and quality requirements for consumer and industrial display products.
Technical Specifications
| Parameter | Specification |
|---|
| Connector Series | JST PHR Series (Single-Row) |
| Pitch | 2.0mm |
| Connector Type | Male & Female Terminal Set (Included) |
| Pin Count | 2–20 Pins (Customizable) |
| Terminal Material | Phosphor Bronze + Tin-Plated |
| Wire Gauge | 28AWG–24AWG (UL2651/UL1007) |
| Rated Voltage/Current | 50V AC/DC / 1.5A Max |
| Insulation Material | Flame-Retardant PVC/PE (UL94 V-0) |
| Operating Temperature | -40°C to 105°C |
| Compatible LCD Types | Industrial, Automotive, Medical, Smart Home, Commercial LCD Panels |
| Certification | UL, RoHS, ISO 9001 |
Ideal Application Scenarios
This JST PHR 2.0mm single-row harness is the go-to connectivity solution for LCD panel displays across industries:
Industrial LCD Panels: PLC control panels, industrial touchscreens, machine vision displays, and factory automation monitors.
Automotive LCD Displays: Car infotainment screens, dashboard instrument panels, rear-seat entertainment systems, and truck/motorcycle instrument displays.
Medical LCD Equipment: Patient monitor screens, diagnostic instrument displays, and medical imaging device interfaces.
Smart Home & Consumer LCDs: Smart TV control panels, kitchen appliance displays, digital photo frames, and portable media player screens.
Commercial LCD Displays: POS system screens, digital signage, advertising displays, and vending machine interfaces.
IoT & Wearable LCDs: Small wearable displays, IoT sensor terminals, and compact smart device screens.
Quality Assurance & Compliance
Manufactured in ISO 9001-certified facilities, every JST PHR harness is 100% inspected for connector fitment, terminal crimp integrity, and signal transmission performance. We adhere to strict quality control processes to ensure each unit meets the high reliability standards required for LCD panel production and long-term use. All products comply with international safety and environmental regulations, making them suitable for mass production and retail in global markets.
Bulk & Customization Support
We offer end-to-end OEM/ODM services for LCD panel manufacturers, installers, and distributors:
Rapid prototyping (5-15 days) for custom LCD harness designs.
High-volume bulk production (10,000+ units) with competitive pricing.
Custom wire length, pin count, and wiring color coding for specific LCD panel models.
Private labeling and packaging options for resale under your brand.
Whether you’re sourcing standard harnesses for mass LCD panel production or custom solutions for specialized display projects, our JST PHR Series harnesses deliver the precision, stability, and durability your LCD applications demand.
