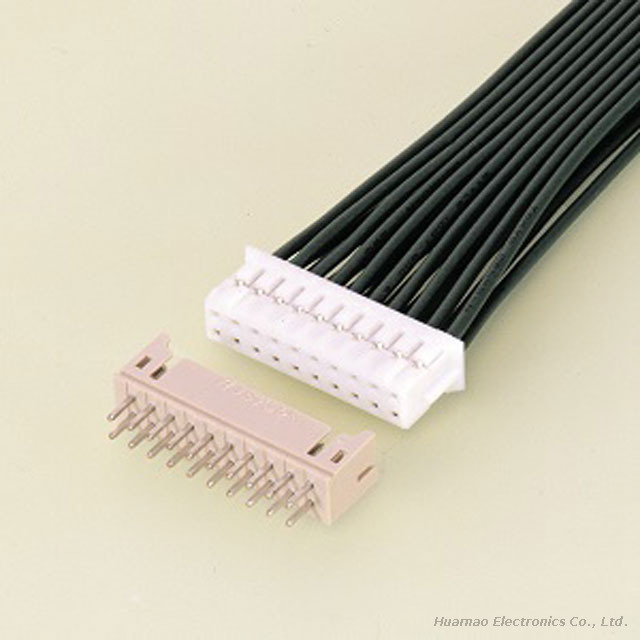

This is a 2.0 mm pitch dual-row wire-to-board connector. With a mounting height of 8.8 mm and a depth of 5 mm, the low-profile, space-saving design supports the miniaturization and high-density design of devices.
| Pitch | 2mm |
| Circuit | 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34 |
| Current rating | 3 A AC/DC (AWG #22) |
| Voltage rating | 250 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 800 VAC for one minute. |
| Conductor size | AWG #28,#26,#24,#22 0.08mm2 to 0.33mm2 |
| Insulation O.D. | φ0.9mm to φ1.5mm |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
