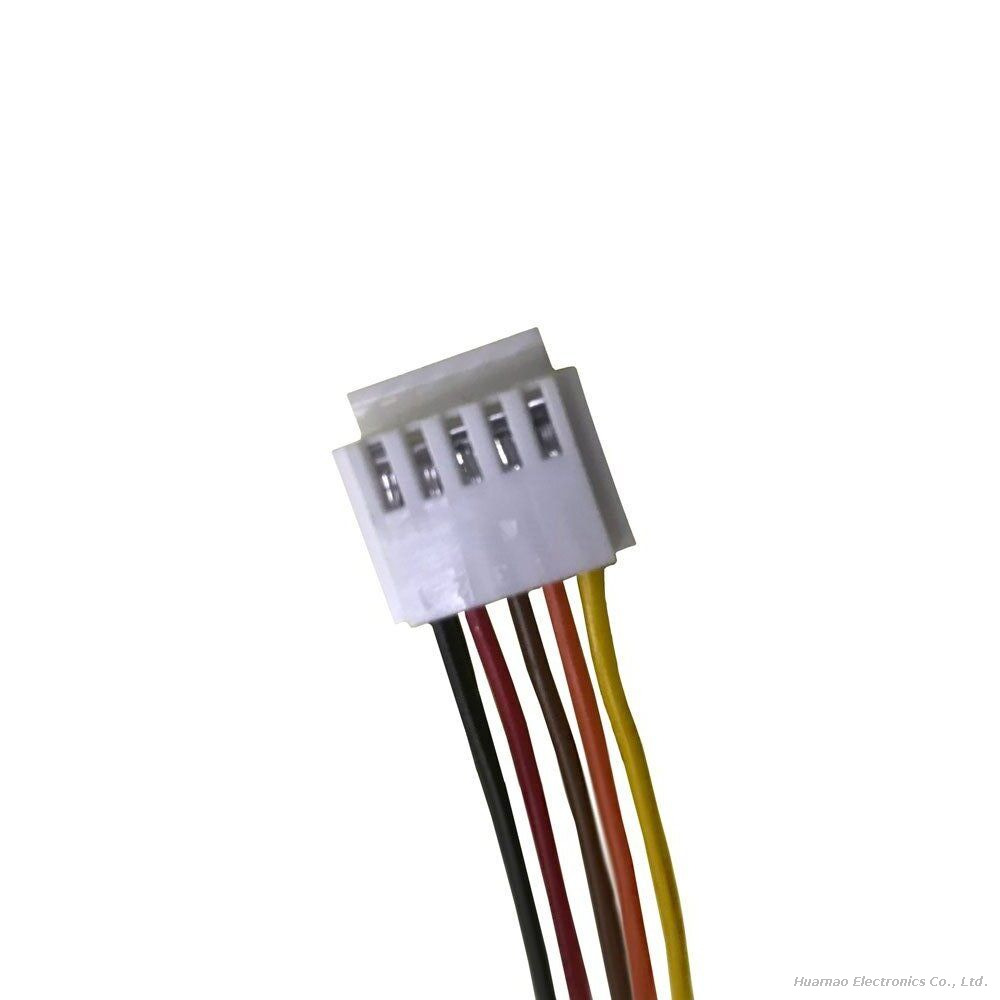

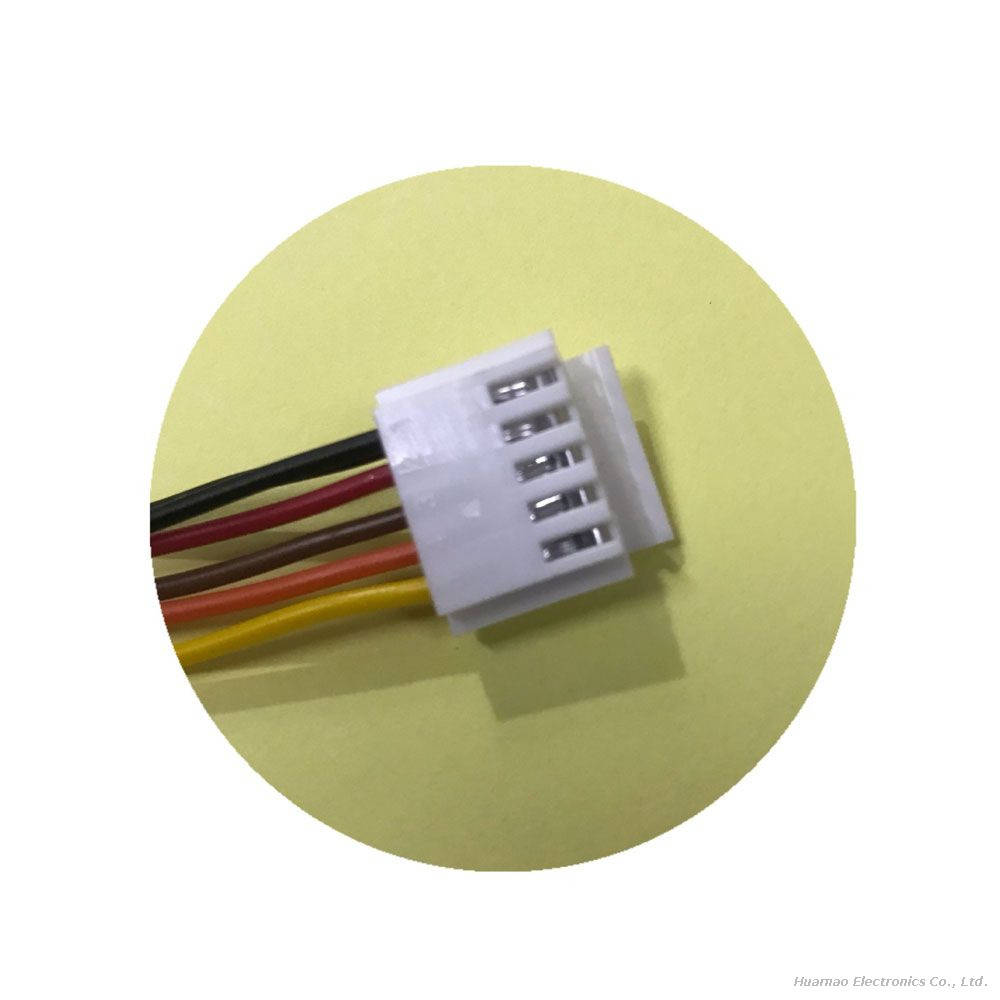

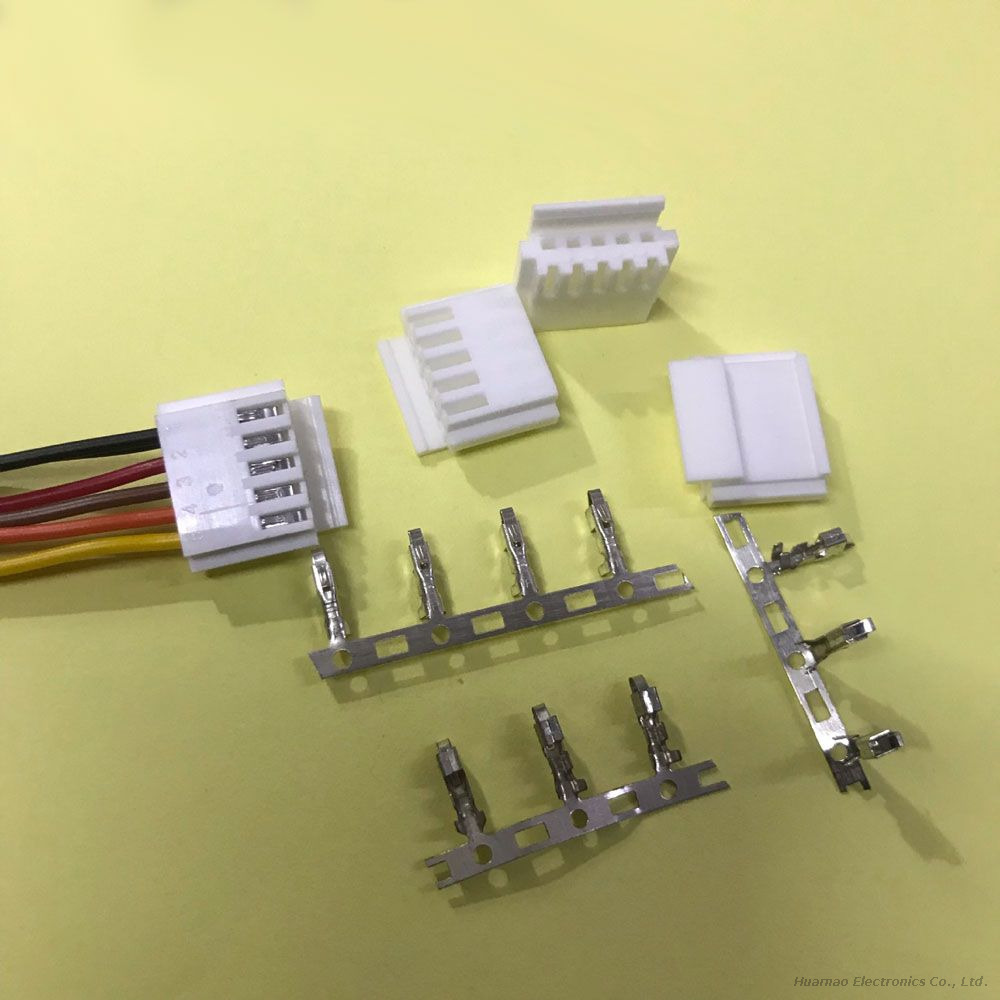

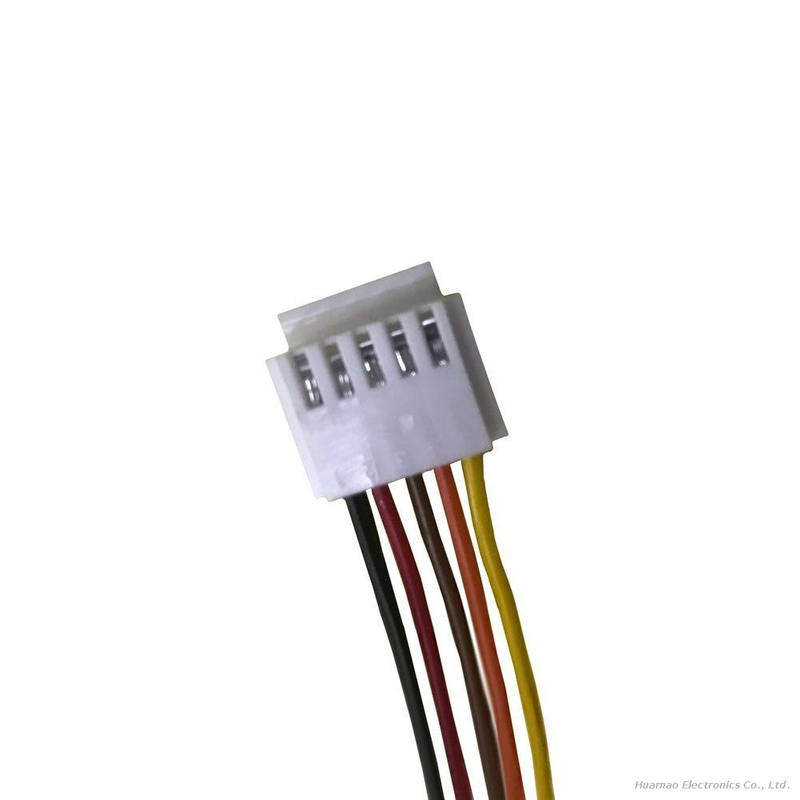

This finished cable assembly adopts the authentic JST H5P-SHF-AA connector from the classic NH series, featuring a standard 2.50mm center pitch and 5-position pin configuration. Manufactured with precision industrial crimping technology, this wiring harness delivers steady signal transmission and reliable circuit connection for compact precision electronic devices. The original JST housing comes with an integrated locking structure to prevent disconnection caused by vibration, while high-flexibility insulated wire enables neat routing inside narrow equipment spaces. Strict quality control ensures stable electrical performance and long-term service life for commercial and industrial electronic assembly scenarios.
Core Technical Specifications
Connector Model: Original JST H5P-SHF-AA, NH series genuine mating connector
Pitch Dimension: Standard 2.50mm spacing, widely compatible with mainstream PCB pin headers
Pin Count: 5Pin dedicated circuit layout for small-power signal and low-current connection

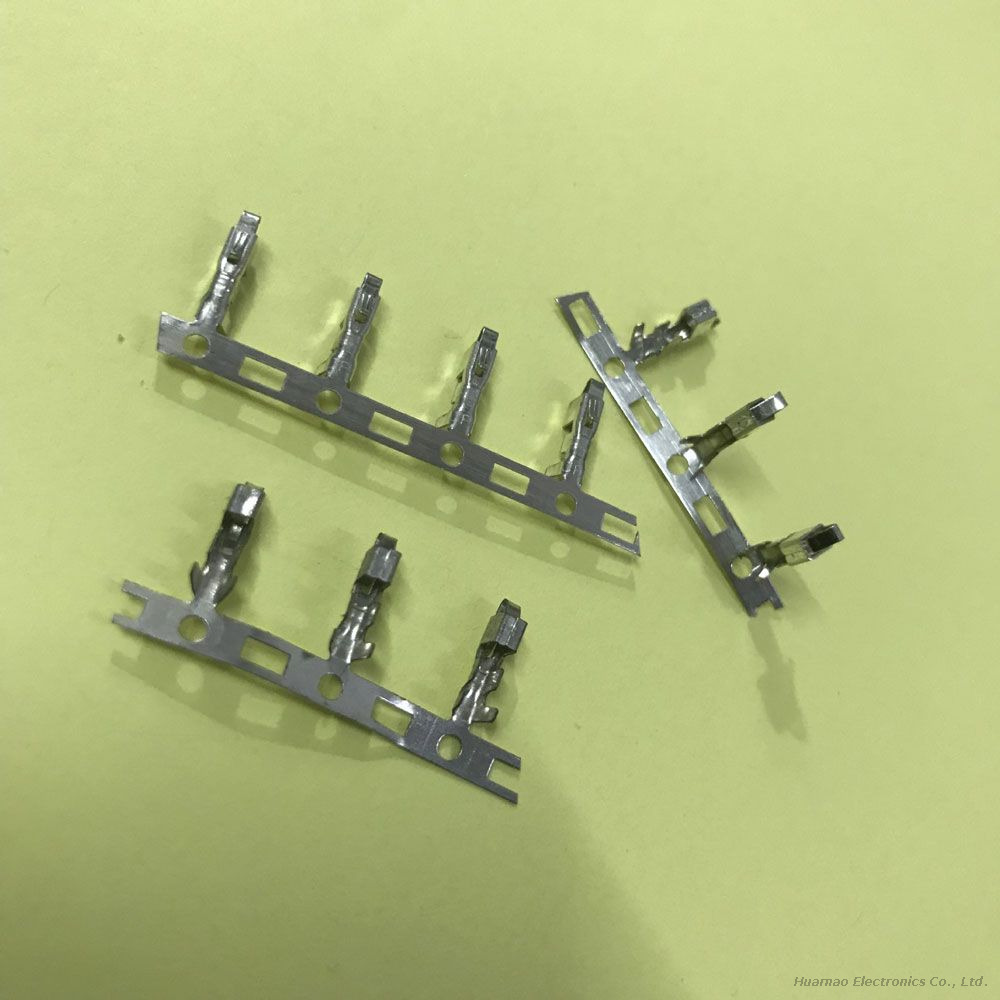

Terminal Material: Tin-plated phosphor bronze terminals, low contact resistance and excellent oxidation resistance

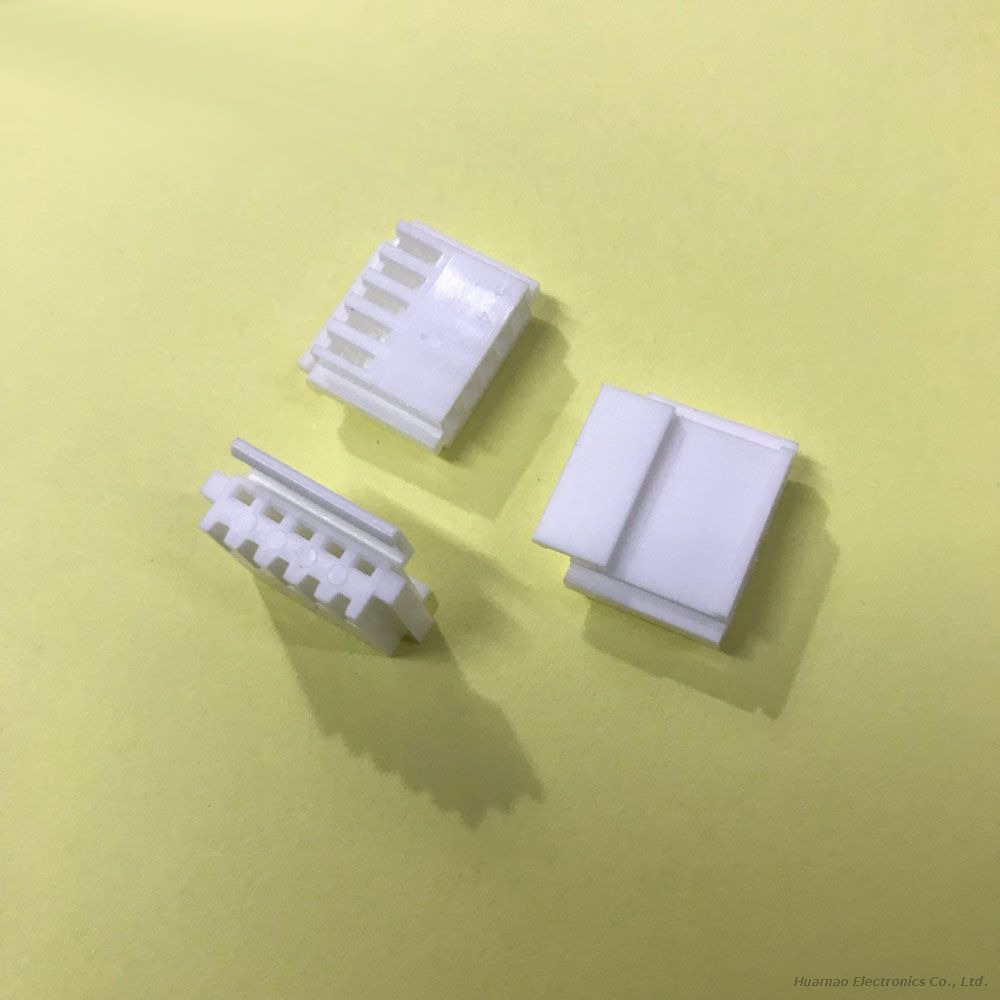

Housing Grade: UL94 V0 flame-retardant insulating plastic for enhanced safety protection
Working Temperature: Stable performance range from -25°C to +85°C
Compliance Standard: Full RoHS environmental certification, meeting global electronic industry safety norms

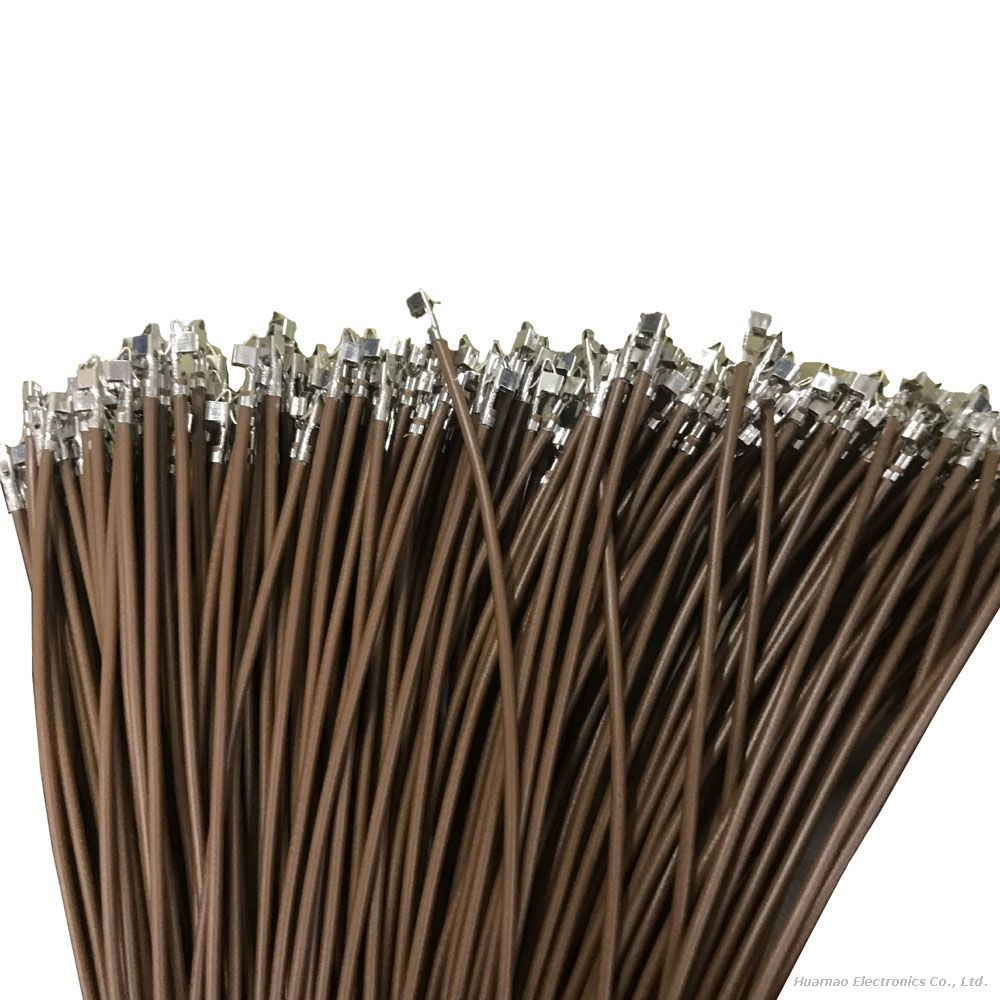

Processing Craft: Precision automatic crimping, strong pull resistance and anti-loosening structure
Key Product Advantages
✅ Genuine JST NH Series Compatibility: Perfect dimensional tolerance for seamless plugging and locking with matching male terminals
✅ Universal 2.50mm Standard Pitch: Fits most mini circuit boards and modular interfaces to simplify structural design work
✅ Anti-Vibration Locking Design: Built-in buckle structure avoids poor contact during long-term equipment operation
✅ Fine Workmanship & Durability: Reinforced crimping process prevents wire shedding under frequent bending and movement
✅ Compact & Flexible Layout: Slim cable body adapts to narrow internal installation positions of small electronic products easily
Application & Custom Service
Suitable for smart home control modules, small industrial circuit boards, medical miniature equipment, consumer electronics internal wiring and various precision low-current connection projects. Every harness passes continuity testing and tensile inspection before delivery. Custom cable lengths, wire gauges and color arrangements are available to meet personalized assembly requirements.
