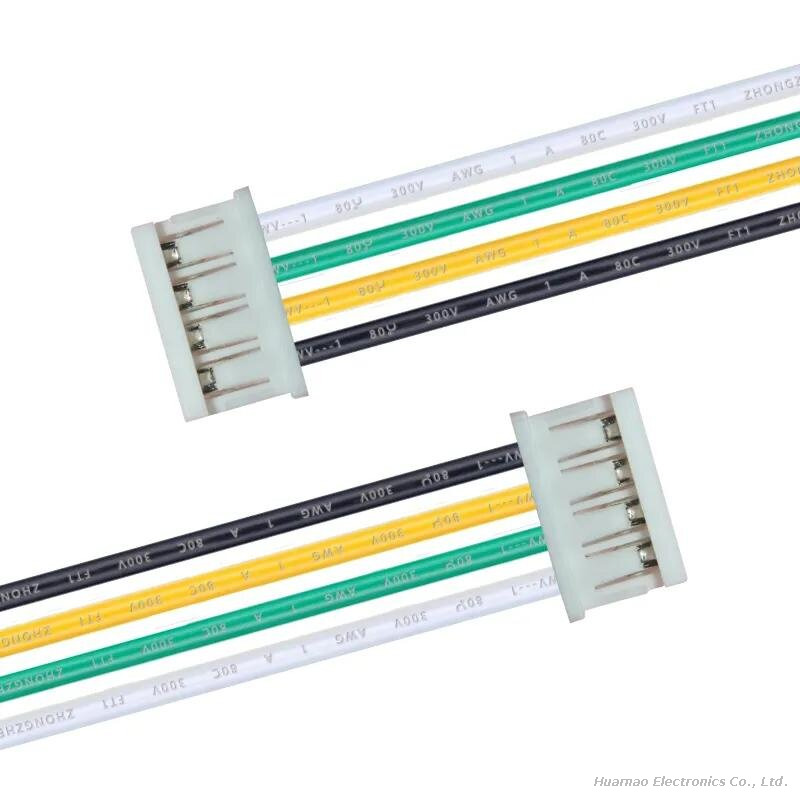

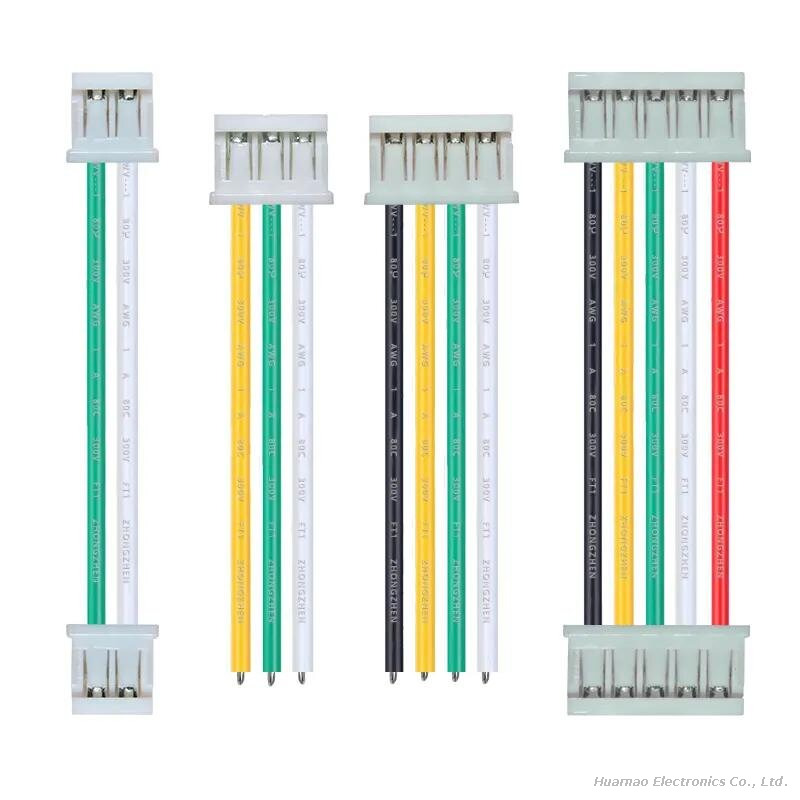

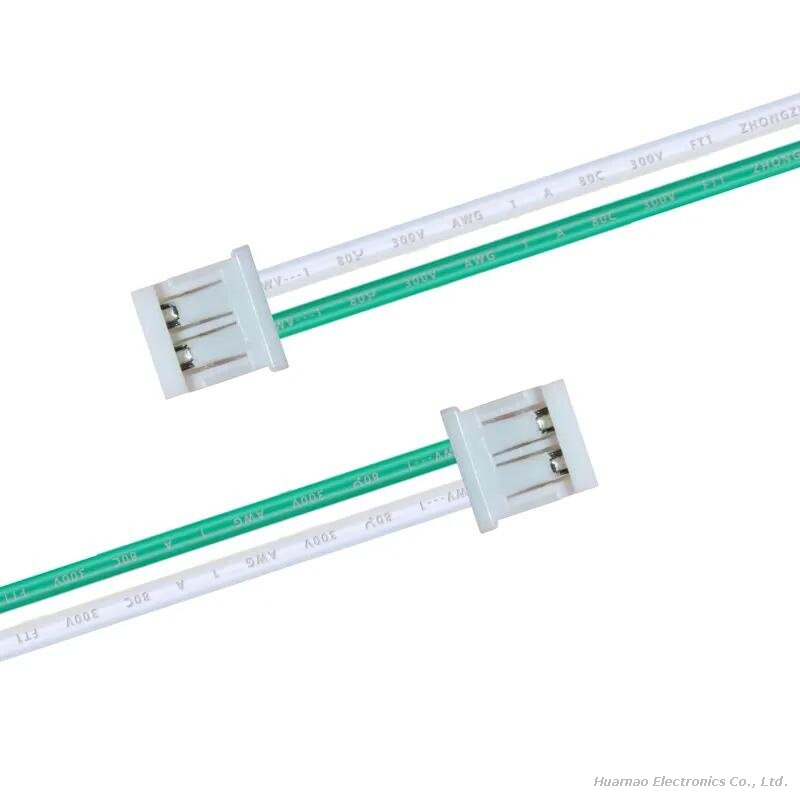

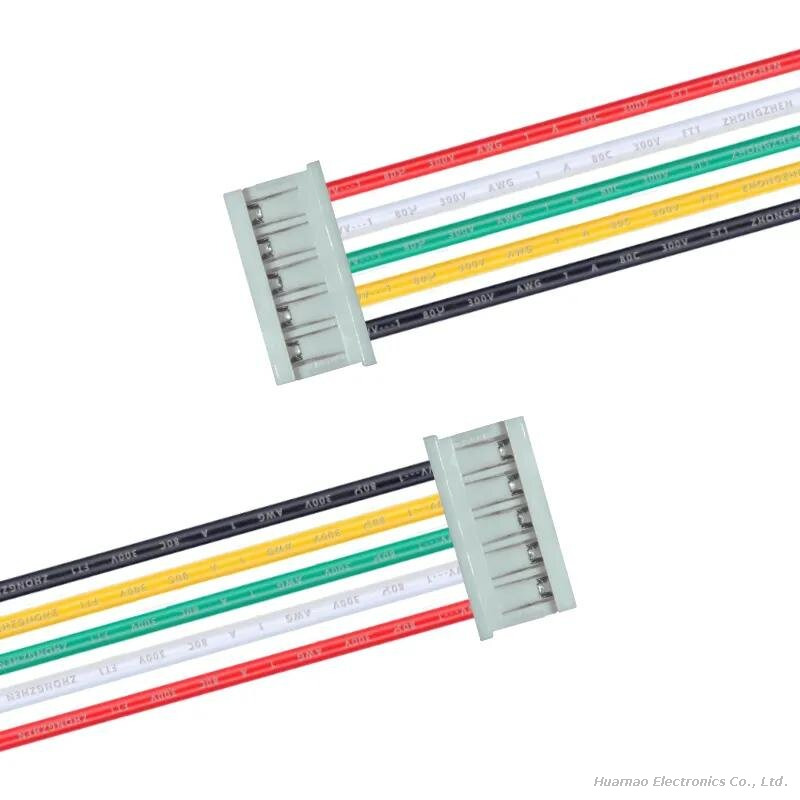

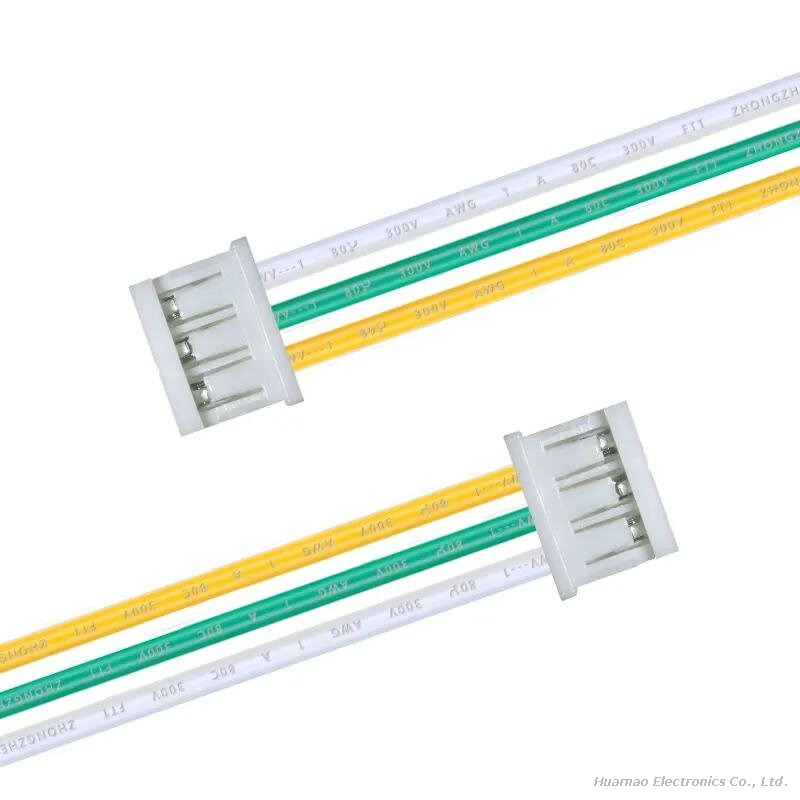

This is a 2.5 mm pitch low-profile, wire-to-board connector that meets the needs of high density PCB requirements and provides design flexibility in all sorts of electronic devices. The top entry type is 3.8 mm in thickness and 8.1 mm in height. The low profile design helps to save space. The contact design provides a high-reliability connection. The EH series also offers excellent harness workability and is easy to mate and unmate.
| Pitch | 2.5mm |
| Circuit | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 |
| Current rating | 3 A AC/DC (AWG #22) |
| Voltage rating | 250 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 800 VAC for one minute. |
| Conductor size | AWG #32,#30,#28,#26,#24,#22 0.032mm2 to 0.33mm2 |
| Insulation O.D. | φ0.5mm to φ1.9mm |
| Remarks | Compatible connectors available (Crimp-style / IDC-style HR connector) |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
