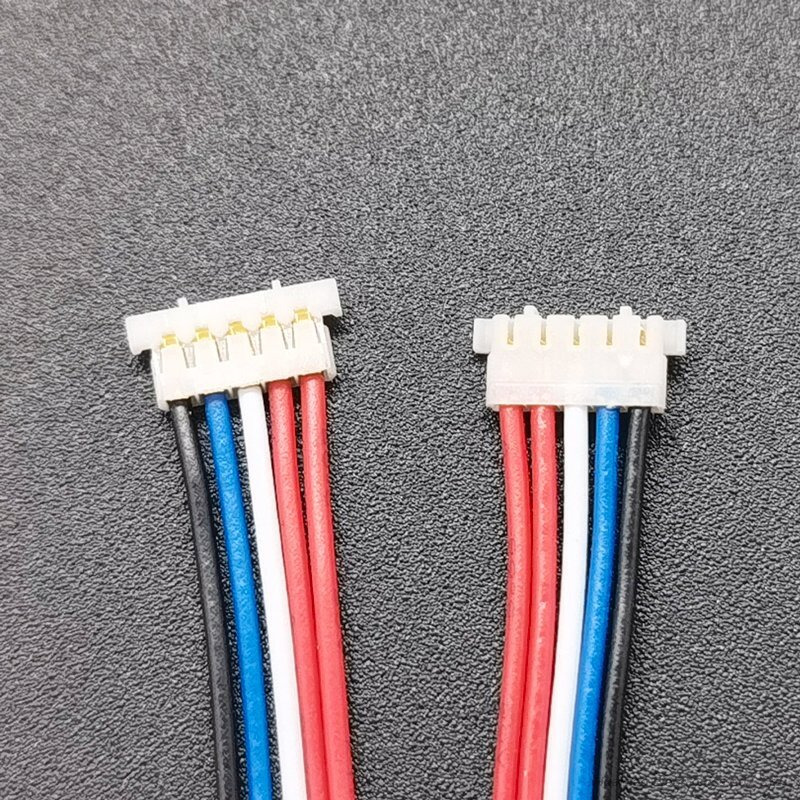

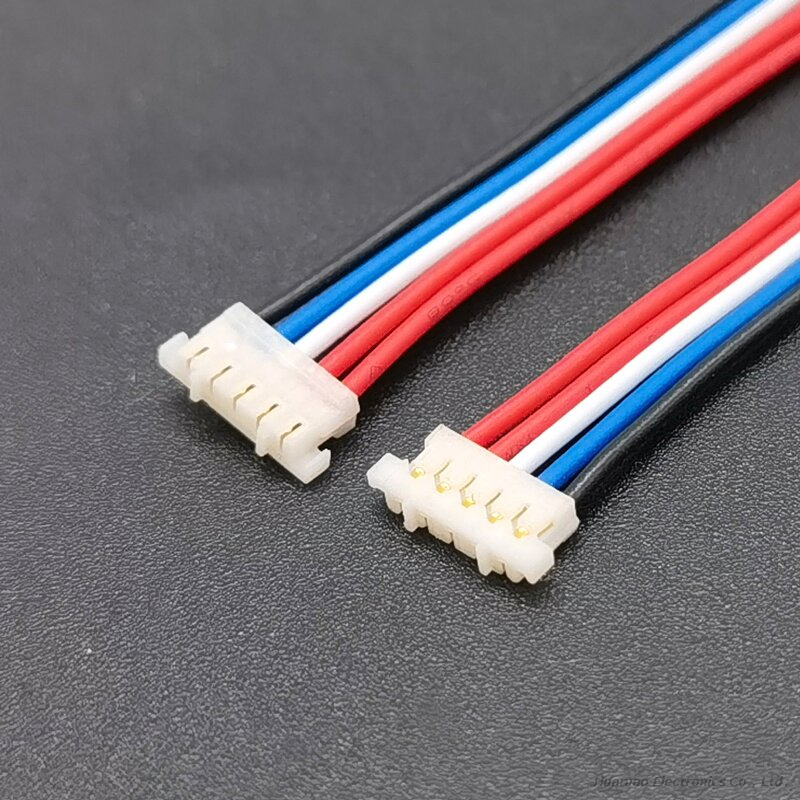

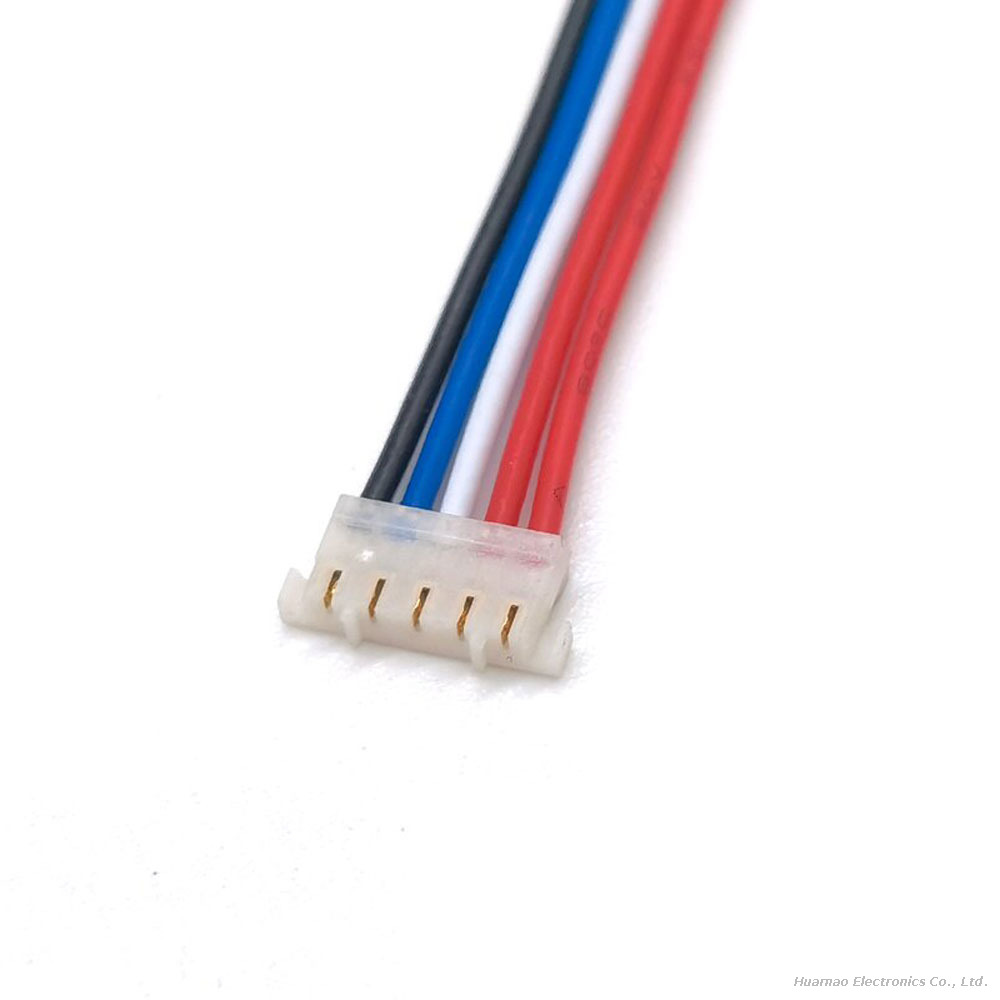

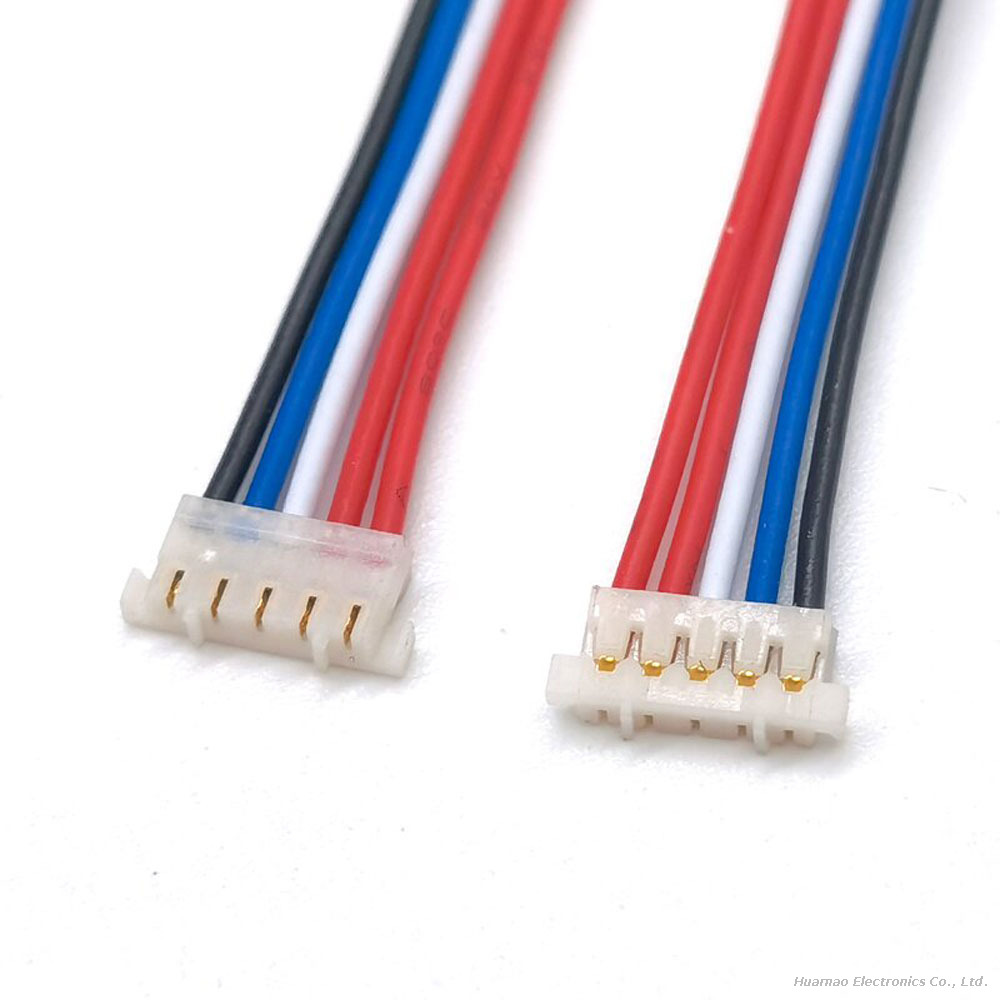

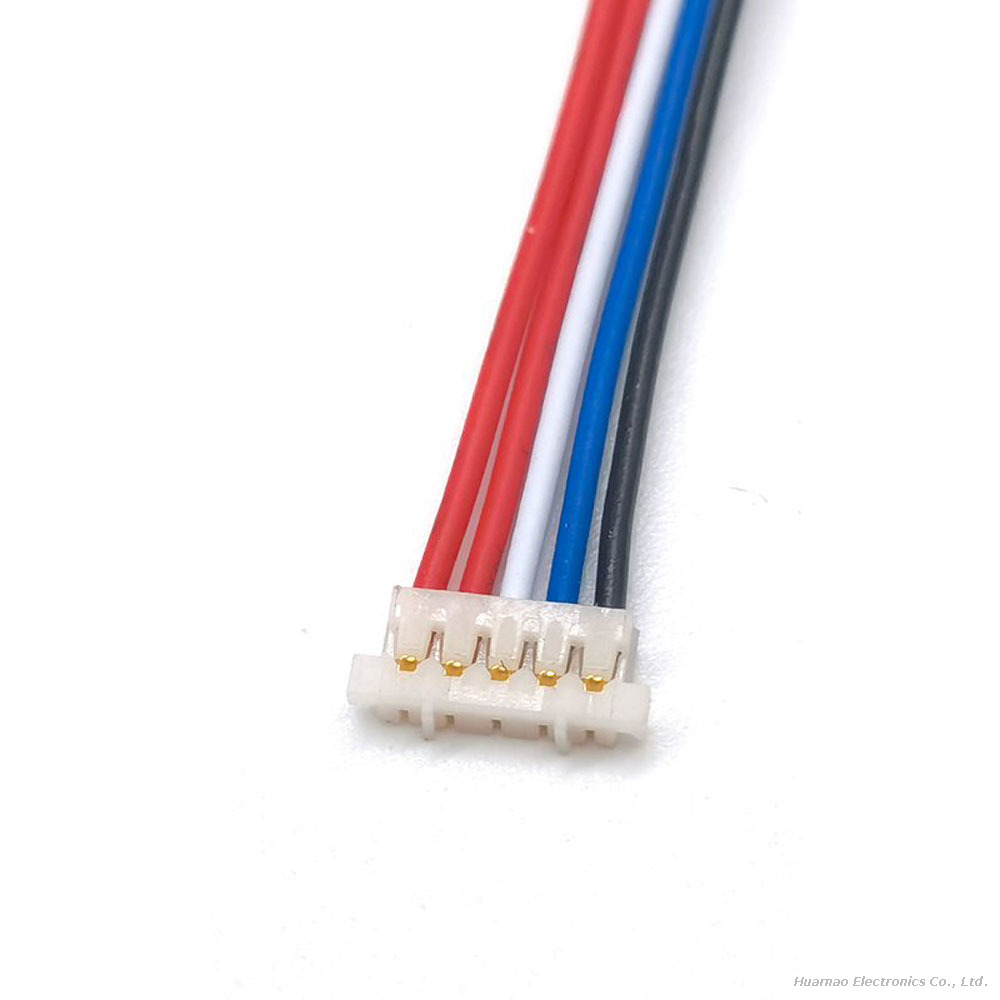

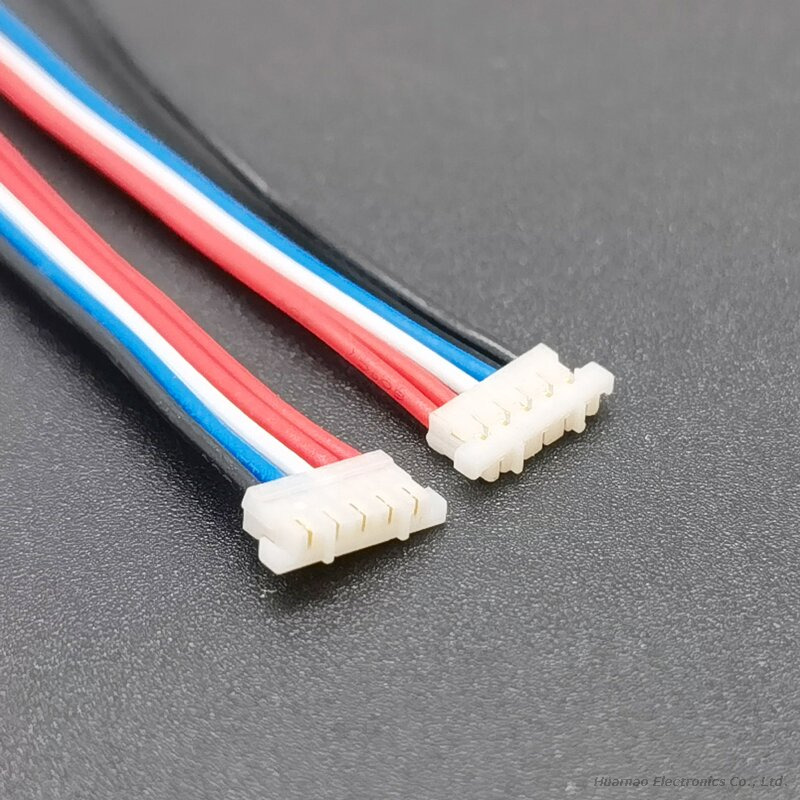

This is a 1.3 mm pitch, crimp style connector for wire-to-board connections. It features a compact, low profile design with a depth of 4.3 mm and a mounting height of 1.9 mm.
| Pitch | 1.3mm |
| Circuit | 2, 3, 5 |
| Current rating | 3 A AC/DC (AWG #26) 1 A AC/DC (Only No.3 circuit of 5-circuit product, AWG #26) |
| Voltage rating | 30 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 100MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 500 VAC for one minute. |
| Conductor size | AWG #28,#26 0.08mm2 to 0.14mm2 |
| Insulation O.D. | φ0.63mm to φ0.98mm |
| Parameter | Value |
|---|---|
| Certification | CE, ISO 9001, RoHS |
| Storage Case Size | 9.00cm × 11.00cm × 14.00cm |
| Package Weight | 0.500kg |
| Application | GM Vehicle Terminal Testing |
| Interface Type | HDR Compatible |
| Production Capacity | 10M sets/year |
| MOQ | Sample Testing Kit Available |
| Lead Time | 15 working days |
| Quality Control | Full Testing Report Included |
| Warranty | 12-month Replacement |
| Standards | YUV, MSDS certified |
| Payment Terms | L/C, T/T, PayPal |
| Shipping Options | Global Express Available |
