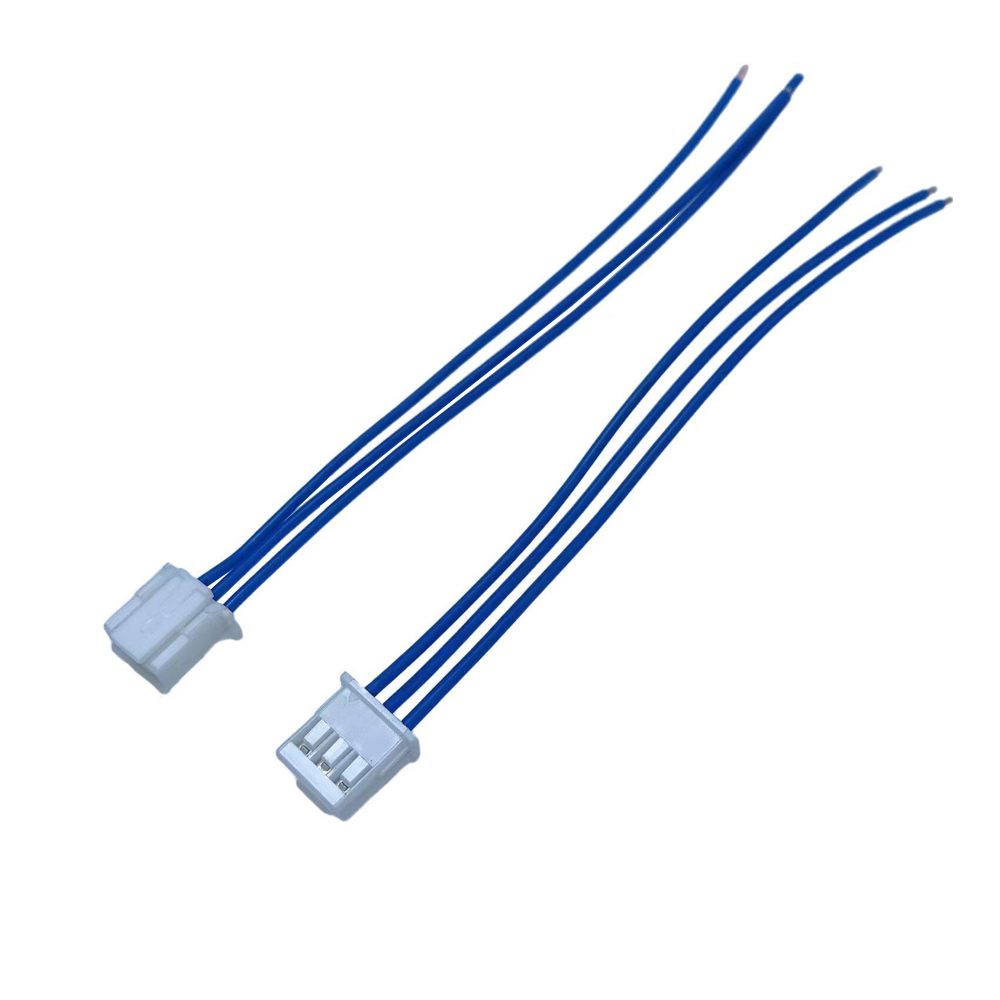

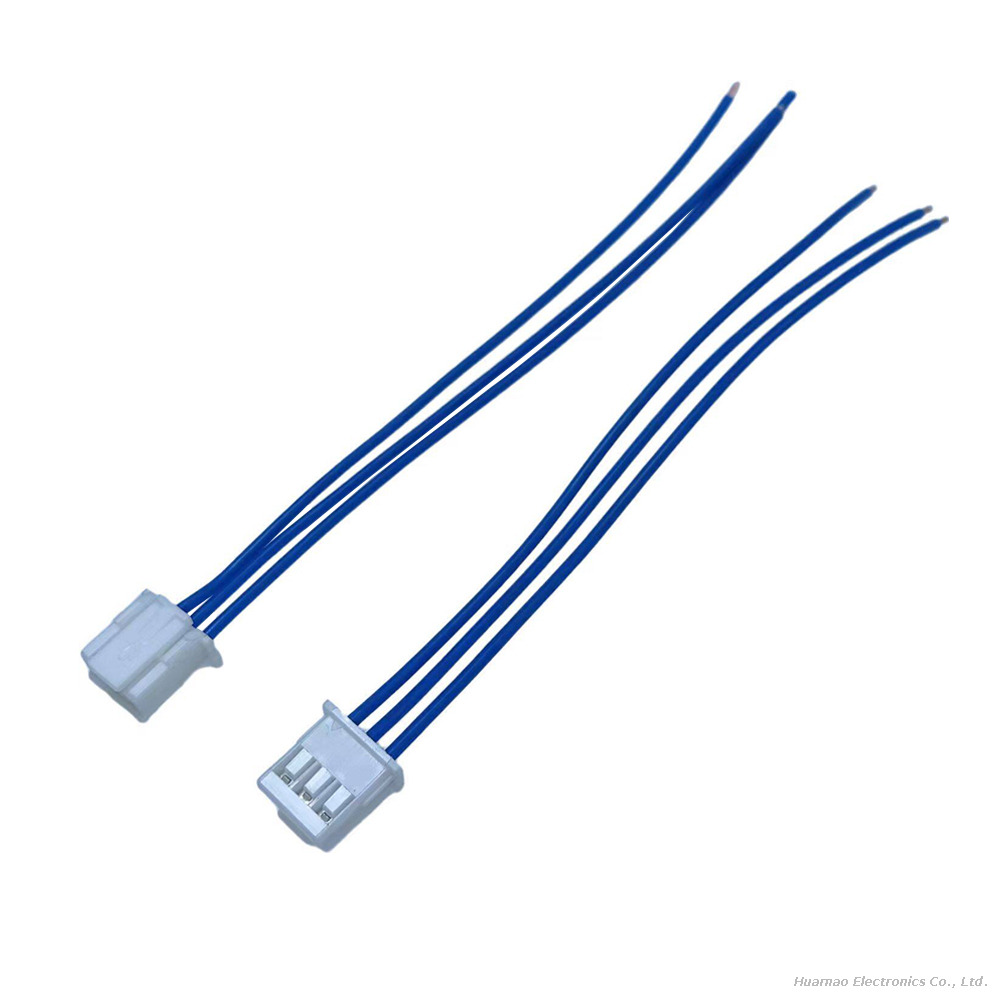

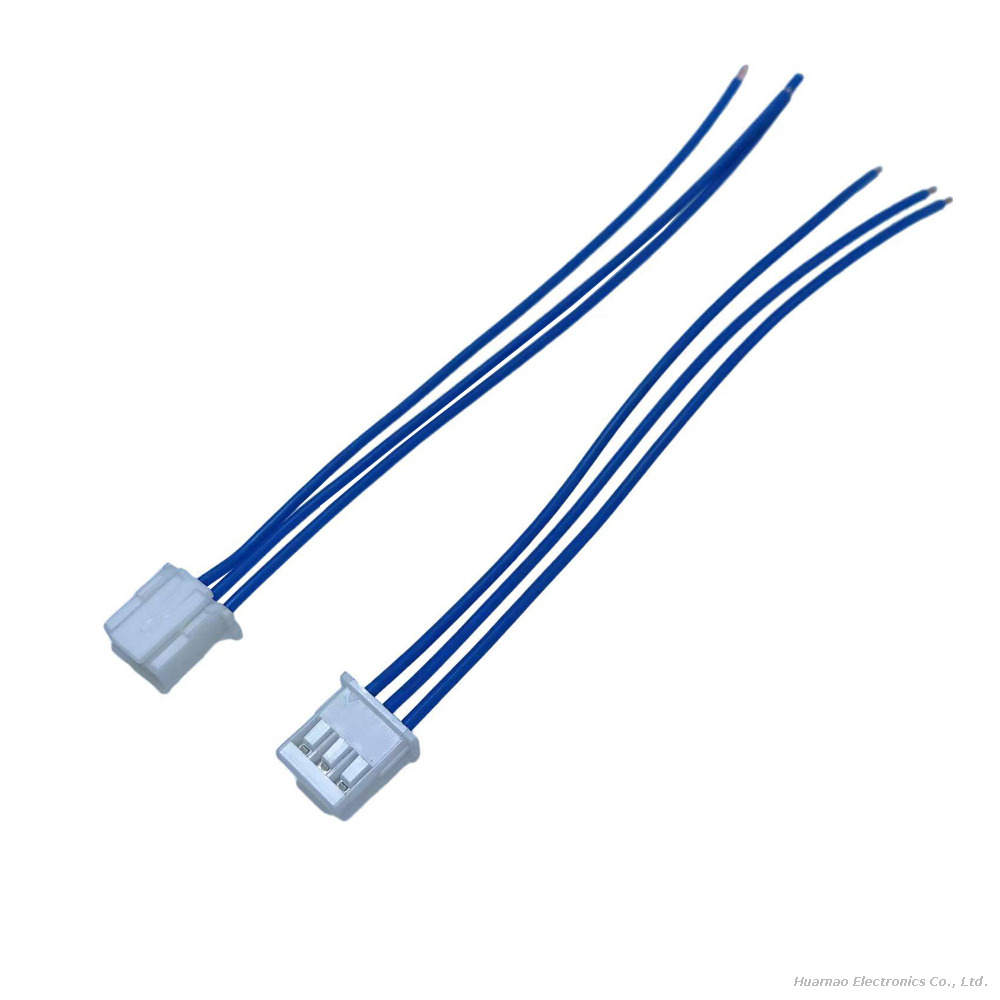

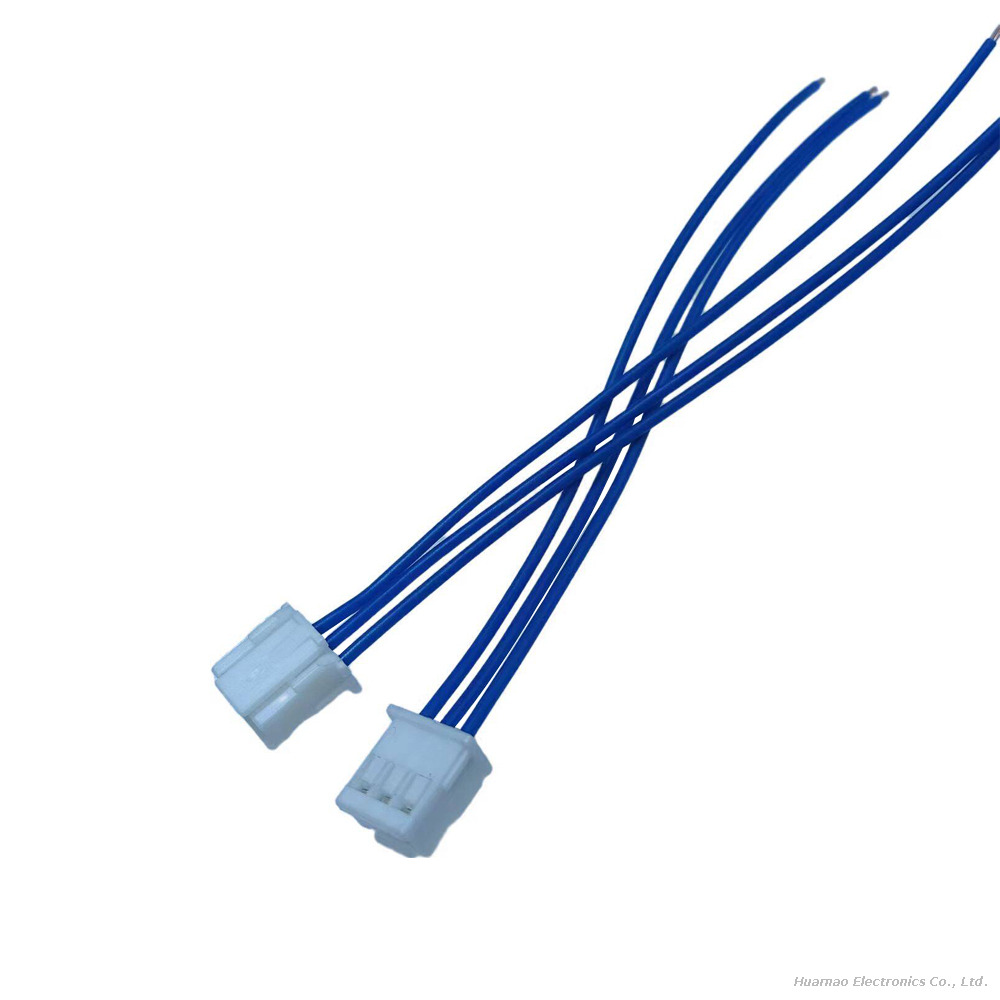

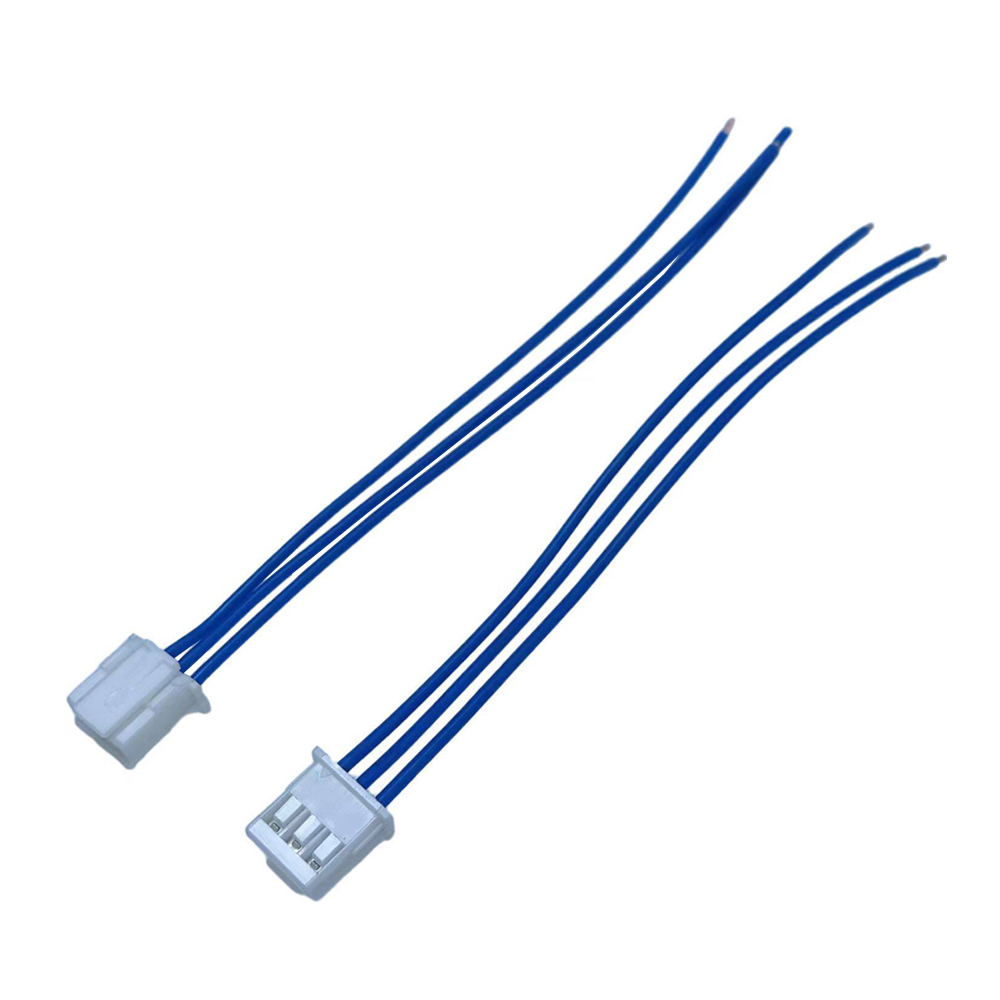

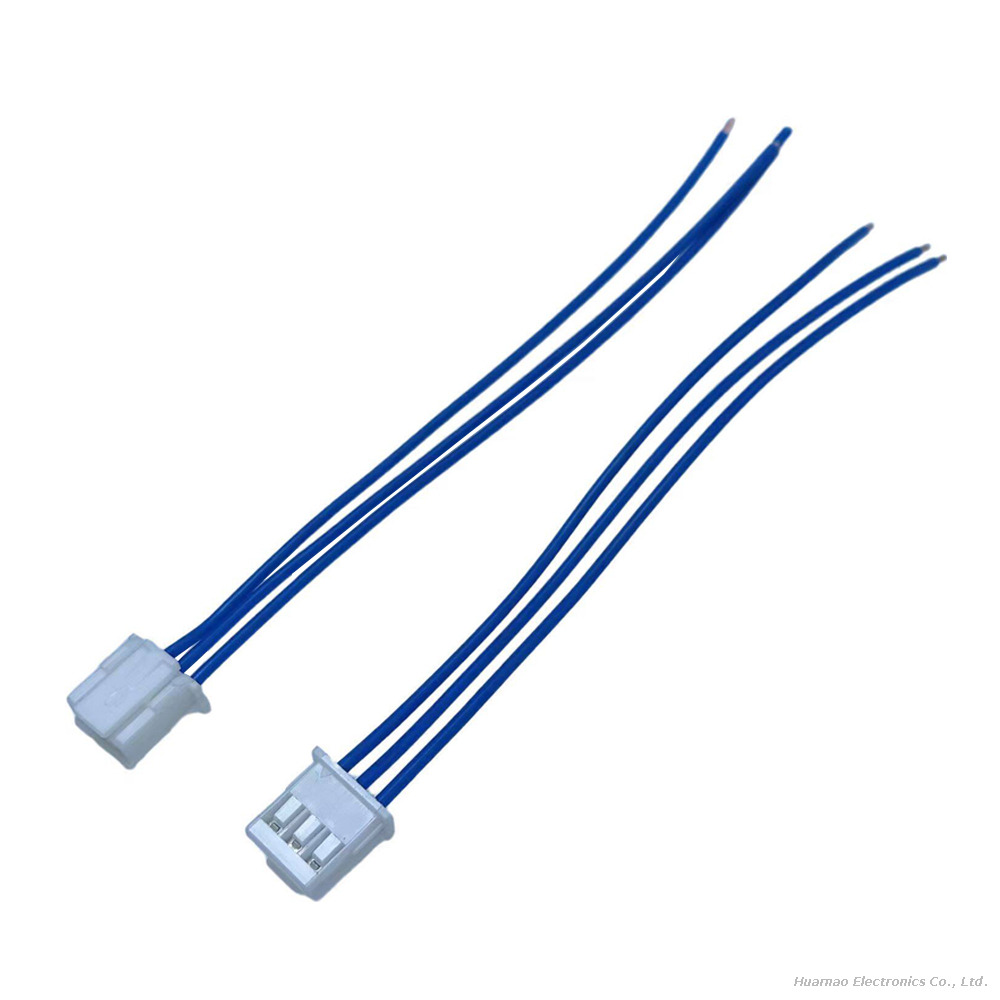

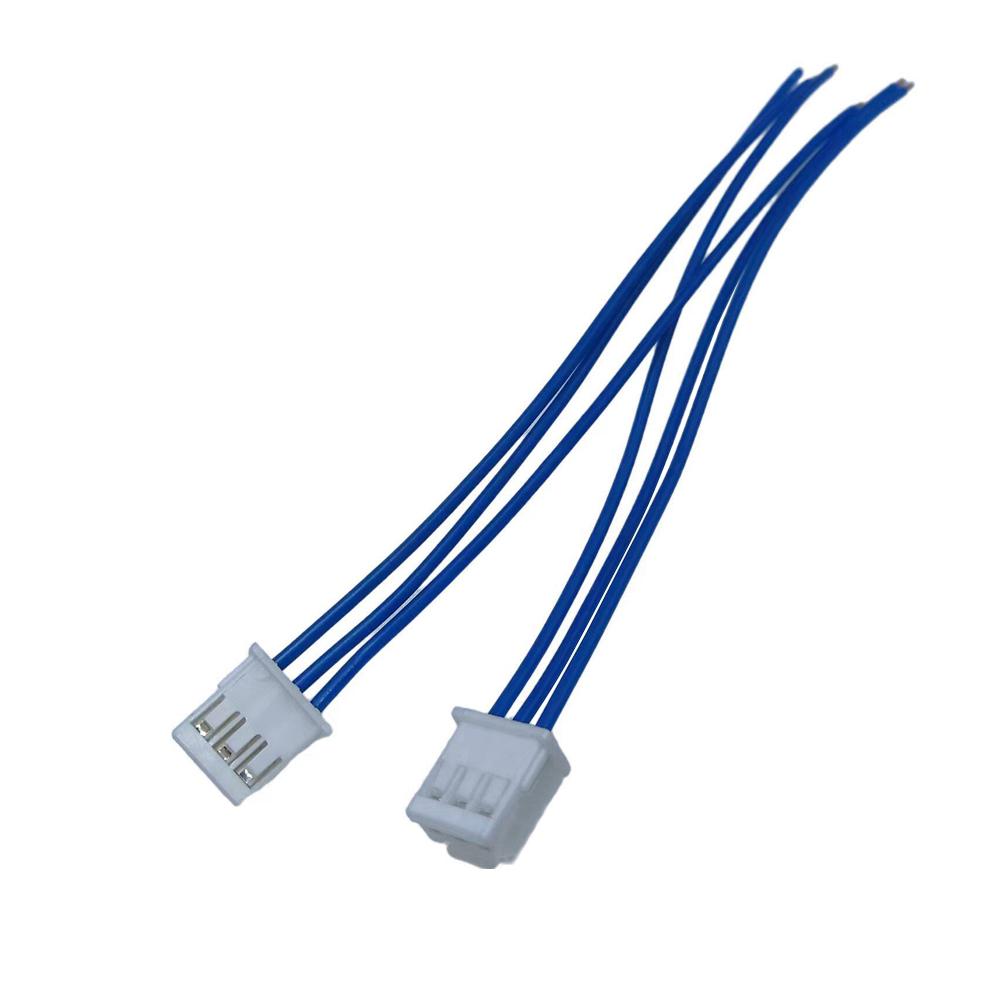

JST XAP-03V-1 Crimp Terminal Wire 2.5mm Pitch Wire To Wire Connector

This wire-to-wire connector cable features the JST XAP-03V-1 crimp terminal with a standard 2.5mm pitch, designed for reliable power and signal transmission in various electronic applications. It offers a secure and durable connection solution, compatible with a wide range of wire gauges and suitable for both consumer and industrial devices requiring stable interconnections.

Features

• Equipped with original JST XAP-03V-1 3-position housing, ensuring high compatibility and reliability

• 2.5mm standard pitch for flexible and space-efficient wire-to-wire connections

• Supports AWG 20-28 wires with precision crimp terminals, providing low contact resistance (≤10mΩ initial)

• Secure locking mechanism prevents accidental disconnection from vibration or wire routing

• Polarized design and secondary retainer feature avoid misalignment and partial insertion risks

• Operates in a wide temperature range of -25°C to +85°C, adapting to diverse environmental conditions

• 250V AC/DC voltage rating and 3A current capacity for versatile power and signal applications

• UL94V-0 flame-retardant PA66 housing with excellent insulation resistance (≥1000MΩ)

• RoHS compliant and UL recognized (E60389), meeting global safety and environmental standards




Applications

• Consumer electronics: Internal wiring for audio-visual equipment, home appliances, and digital devices

• Industrial automation: Connection for sensors, PLCs, and industrial control system components

• Robotics and drones: Power and signal transmission in compact electronic assemblies

• Lighting systems: Wiring for LED fixtures and lighting control modules

• Medical devices: Low-voltage signal connections in portable medical equipment

• Automotive electronics: Auxiliary system wiring (non-critical circuits) and electronic accessories

• General electronic projects: Custom wiring harnesses for DIY kits and prototype assemblies

FAQ

Q1: Can I start a sample order first before ordering more?

A: Sure, We provide free samples if the stock sufficient, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.



Q2: What payment methods do you accept?

A: PayPal, T/T, Bank Transfer, Western Union and L/C

Q3: How does your factory do regarding quality control?

A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc

Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?

A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.

Q5: Delivery time and warranty? Which shipping service you will use for my goods?

A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.
