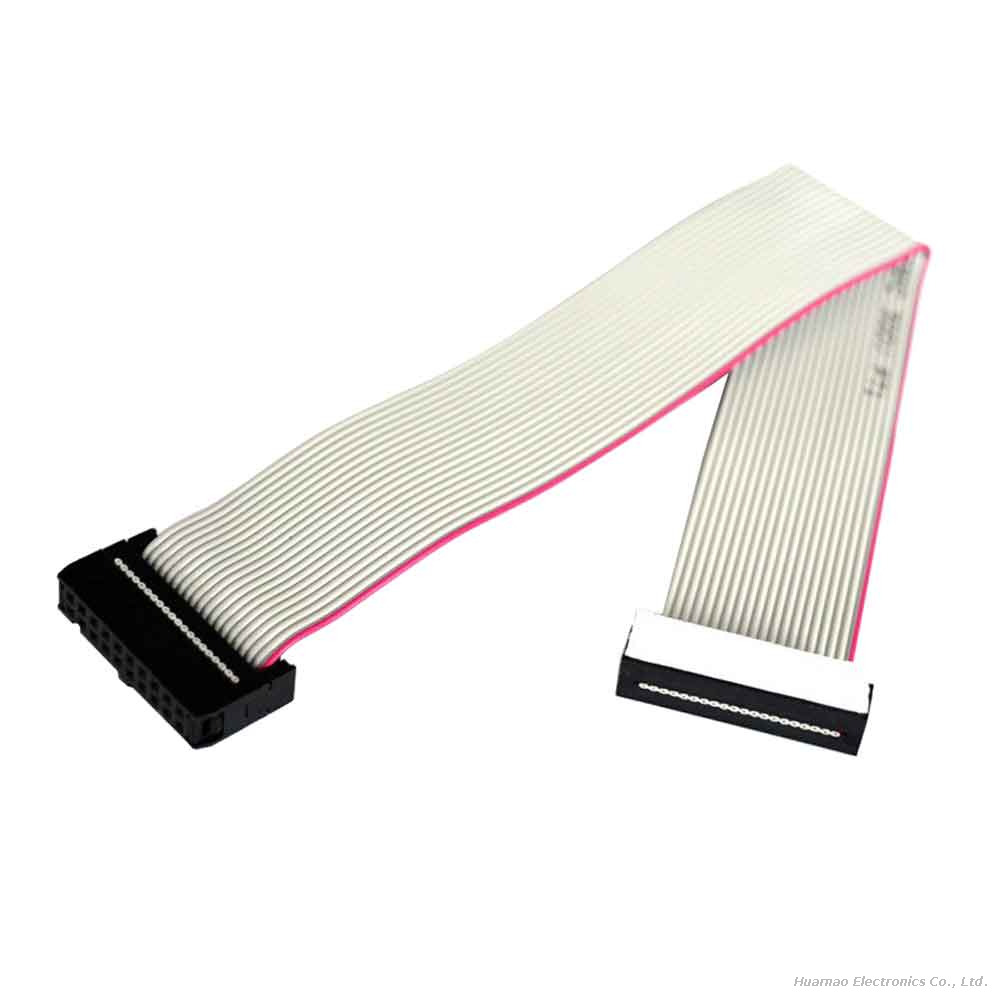

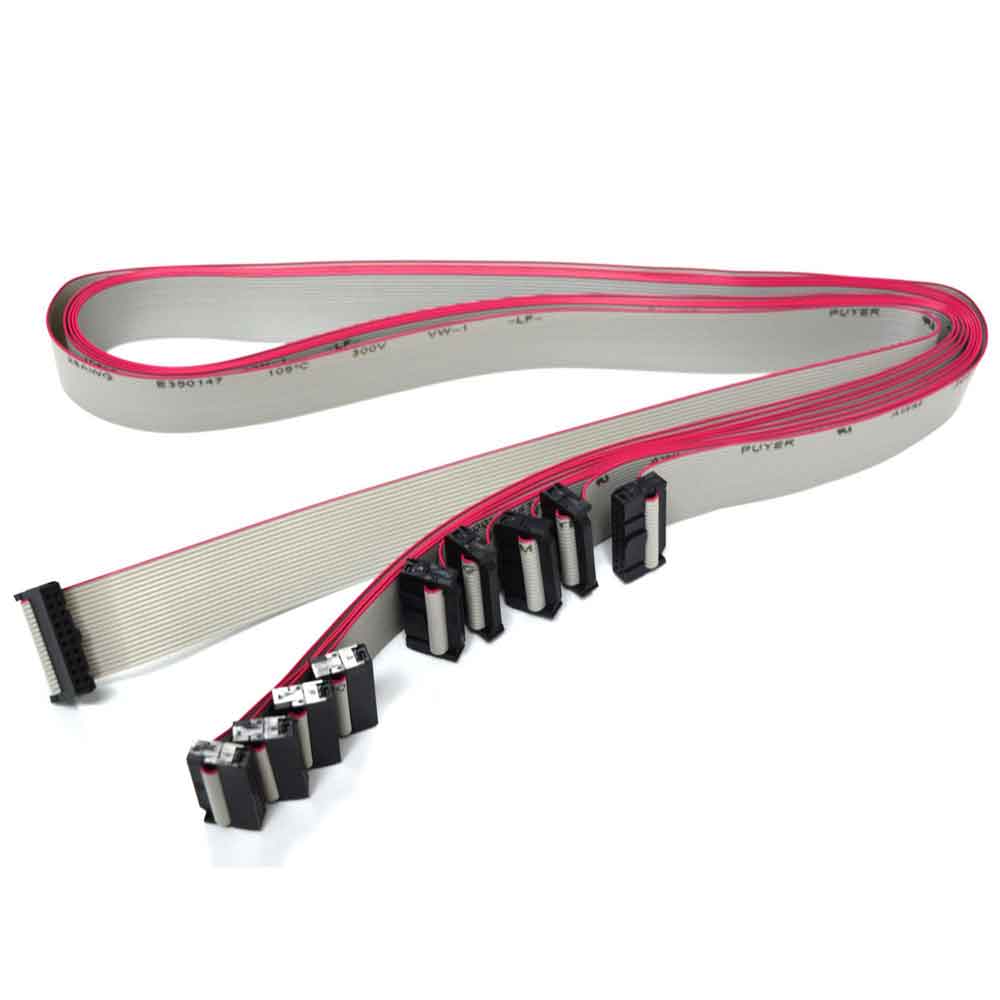

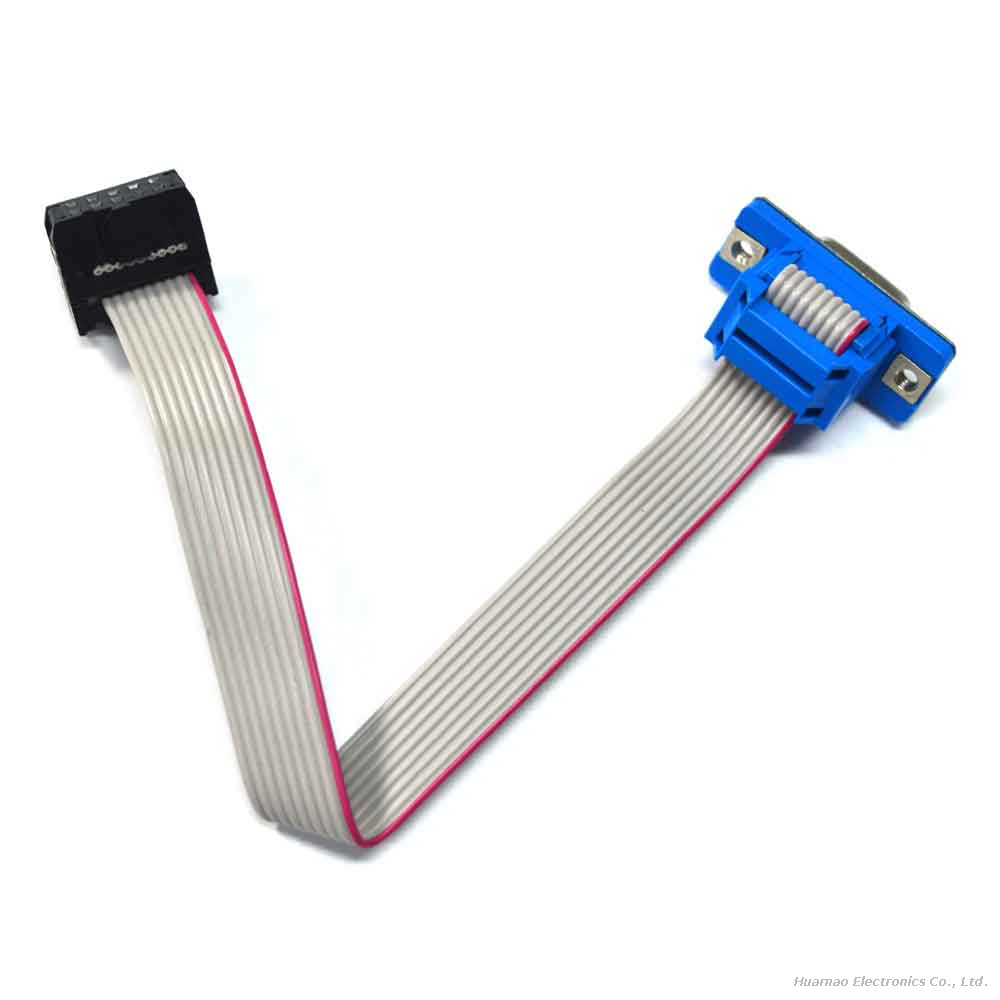

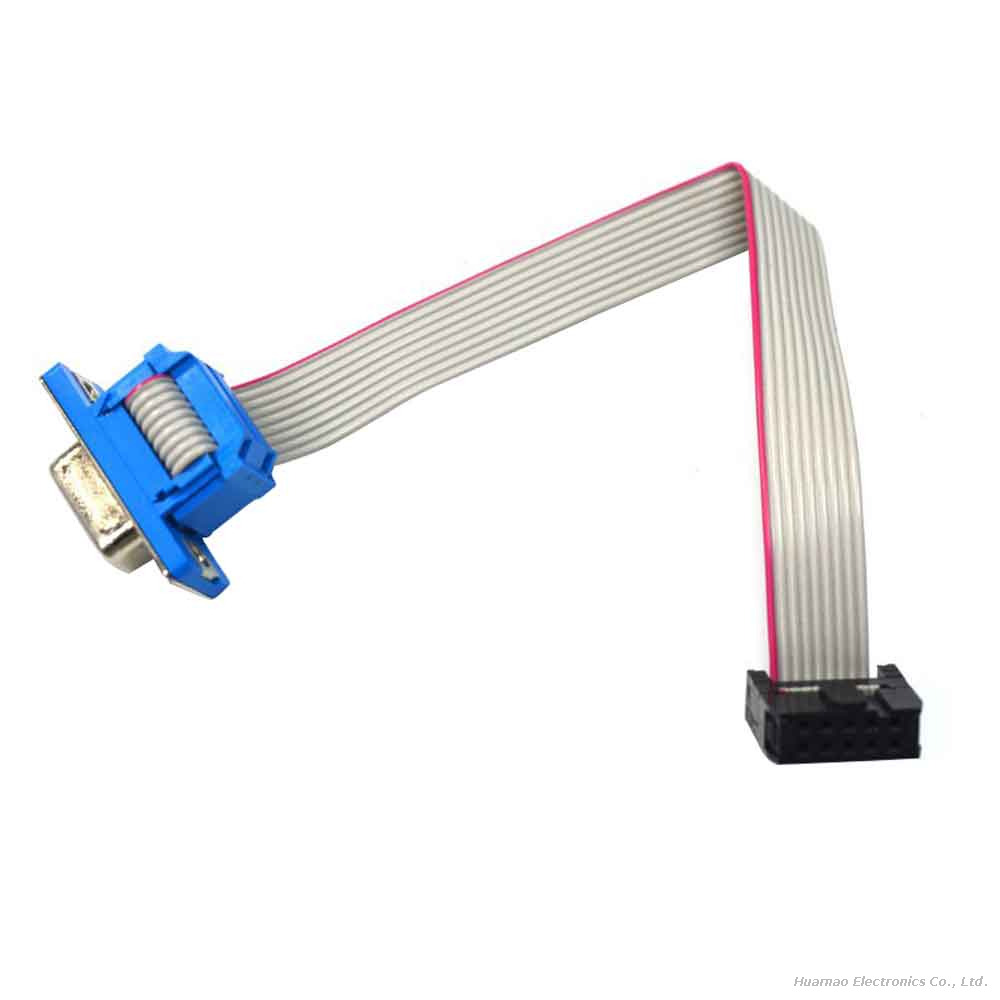

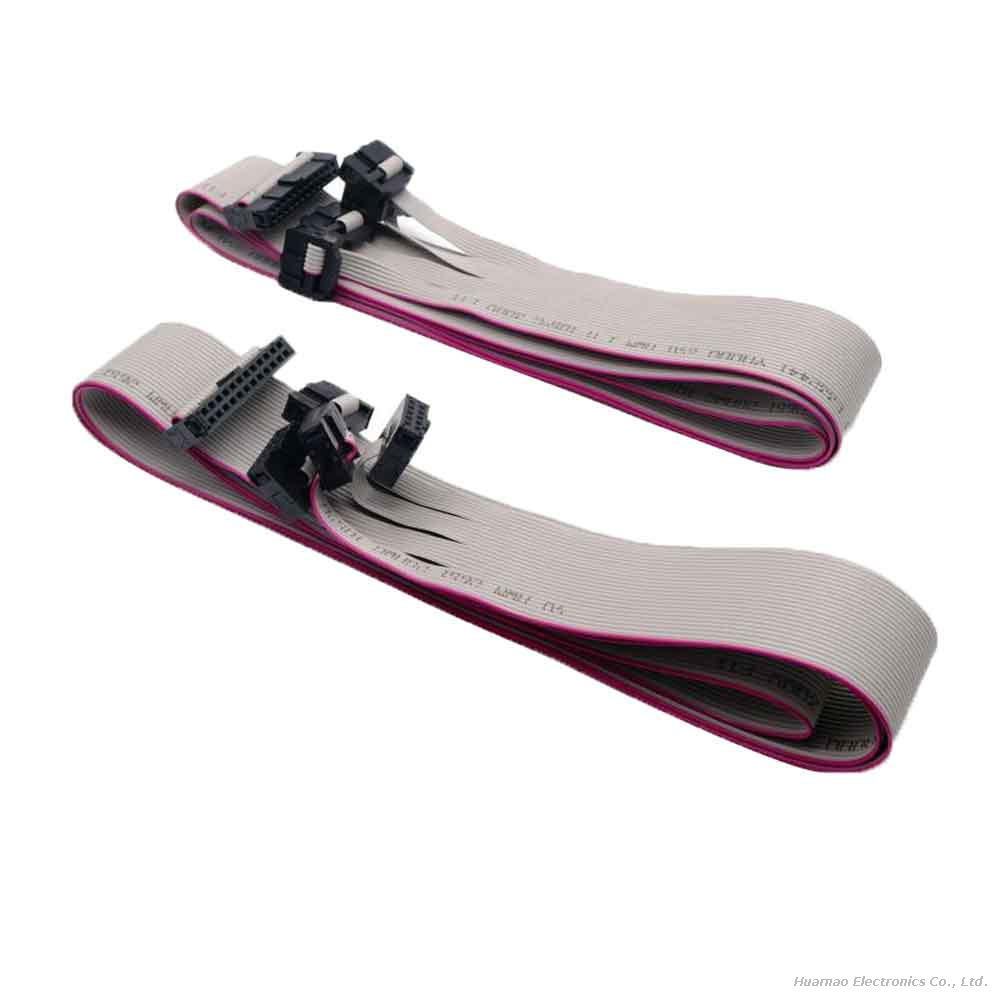

This series includes 2.54mm pitch 10P red-edge gray ribbon cable and 40P motor-dedicated gray flat cable, specially developed as connection wires for syringe pumps. Adopting IDC (Insulation Displacement Connection) technology, the flat flexible cables feature neat wiring, anti-bending performance and polarization identification, providing stable signal and drive transmission for syringe pump control boards, stepping motors and actuator modules, meeting the precision and reliability requirements of medical fluid control equipment.
Key Features & Advantages
Standard 2.54mm IDC Pitch
Universal spacing matches mainstream industrial and medical equipment interfaces, with strong compatibility for syringe pump control systems.
10P Red Edge Polarization
Clearly marks the first pin to effectively avoid wrong insertion, protecting the syringe pump control circuit board and motor driver.
Flat Ribbon Cable Design
Neat and compact wiring saves internal space, adapting to the narrow structure of precision syringe pumps.
40P for Motor Drive
Sufficient pins meet multi-channel signal transmission of stepping motors, realizing accurate speed regulation and propulsion control.
IDC Quick Crimp
Tool-efficient crimping without stripping insulation, improving assembly efficiency and ensuring stable connection under vibration.
Bending Resistance
Flexible flat wire withstands repeated bending, suitable for wiring of moving components inside the syringe pump.
Stable Signal Transmission
Low-resistance copper conductor ensures accurate transmission of control signals for precise fluid injection.
Typical Applications
Signal connection between syringe pump main control board and stepping motor
Internal wiring for medical infusion pumps and micro-injection pumps
40-pin drive cable for precision motor control in fluid delivery equipment
IDC interface connection wire for laboratory precision syringe pumps
Internal flat cable for medical dosing and quantitative injection devices
Quality Assurance & Customization
100% electrical continuity testing before shipment
Customizable cable length, pin count and IDC connector type
Optional shielding design to improve anti-interference performance
Suitable for mass assembly of medical precision instruments
