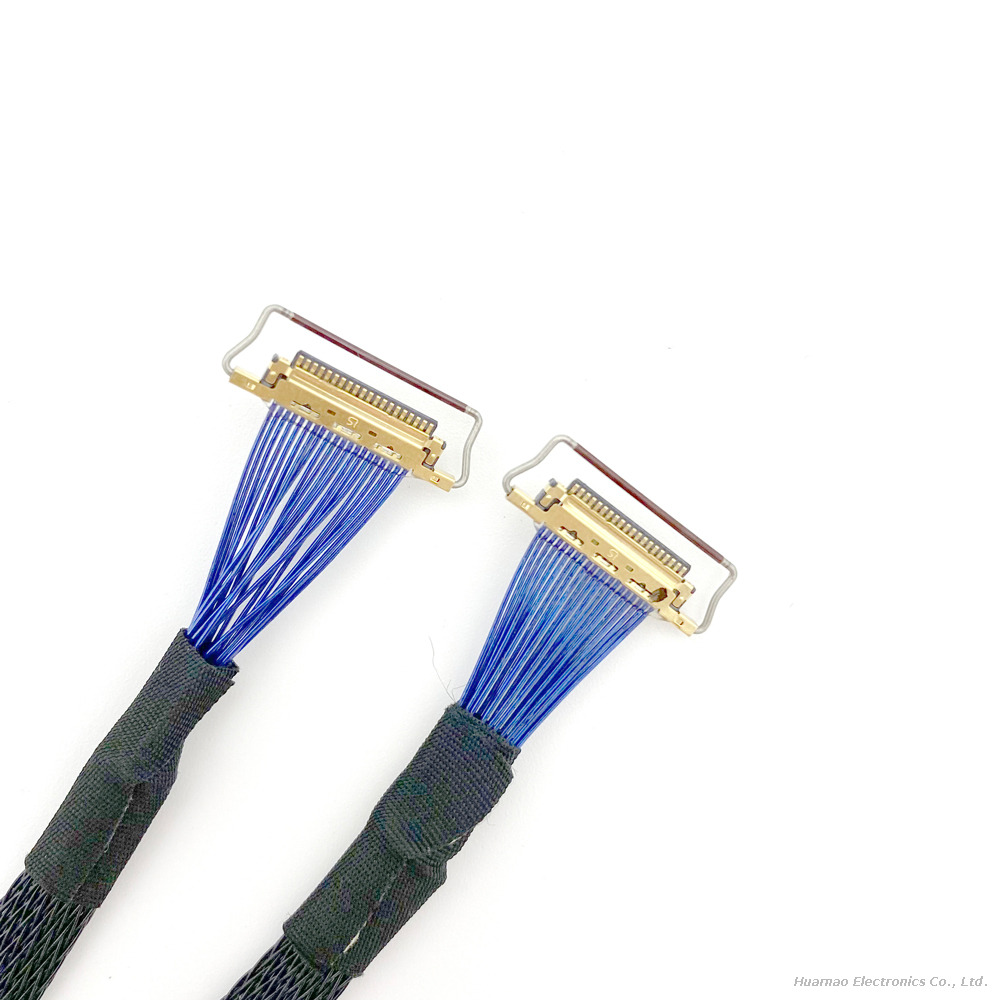

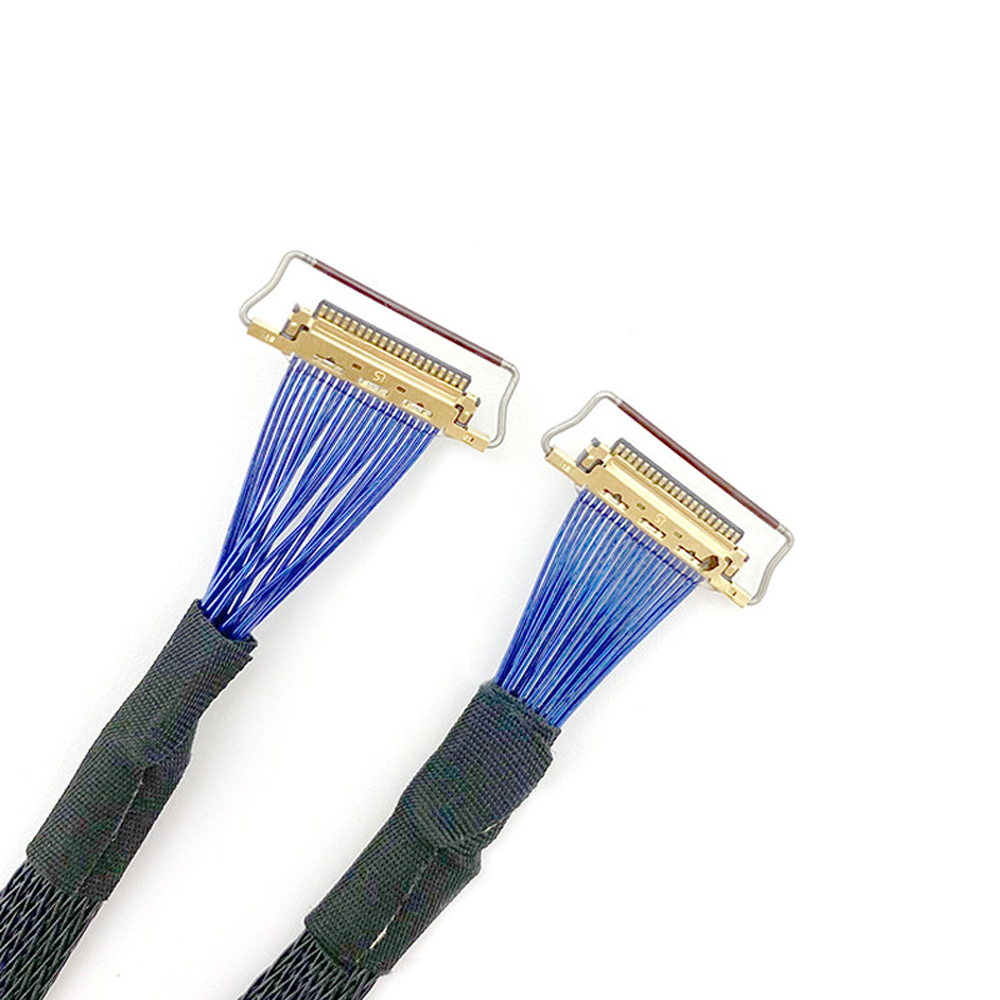

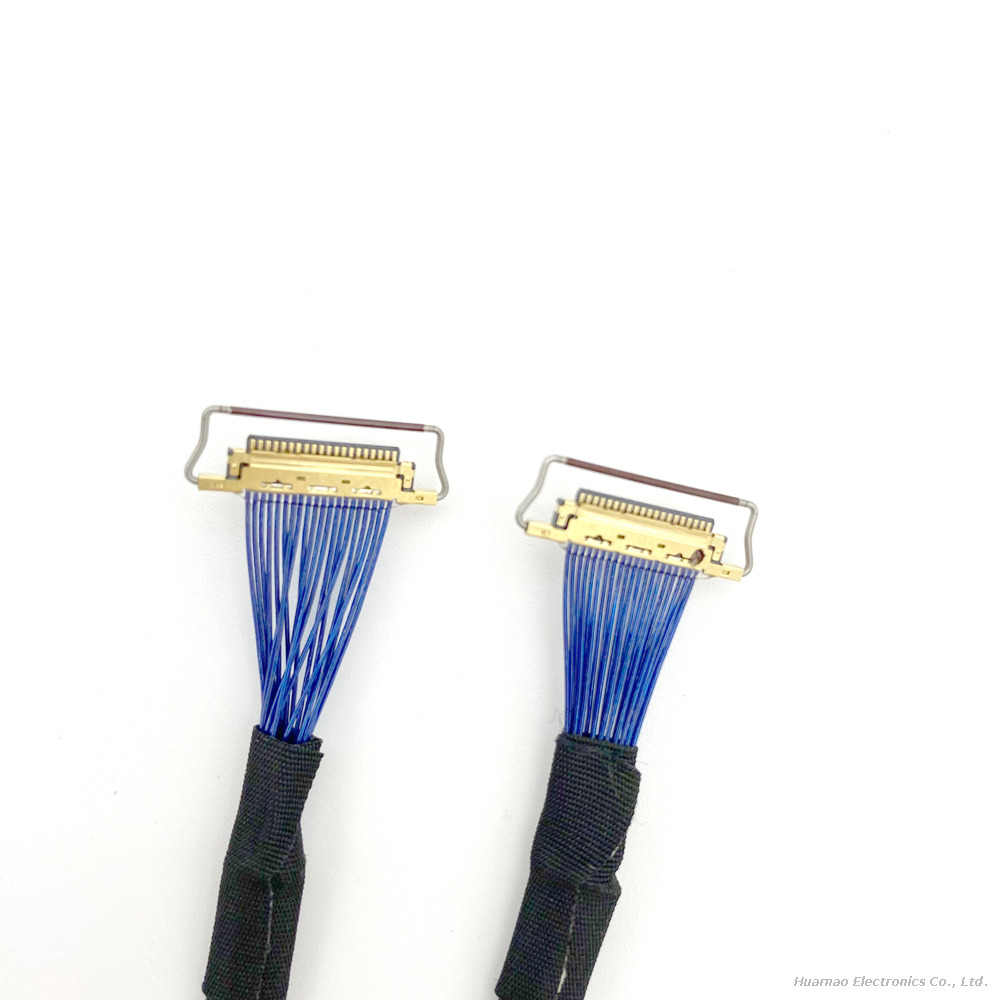

This is a high-speed EDP (Embedded DisplayPort) screen cable assembly equipped with I-PEX 20454-20P micro-coaxial connectors, featuring a 0.5mm pitch and precision micro-coaxial wiring. Designed specifically for high-definition display signal transmission, it delivers exceptional anti-interference performance, stable impedance control, and ultra-flexibility, making it the ideal solution for connecting motherboards to high-resolution LCD/OLED panels in compact devices.
Key Features
I-PEX 20454-20P Standard Connector: Uses genuine I-PEX CABLINE®-VS series connectors with a compact, low-profile design, ensuring a secure and stable connection.
0.5mm Fine Pitch: High-density 20-pin arrangement, perfect for ultra-slim devices and narrow-space wiring requirements.
Micro Coaxial Construction: Built with UL1354 40AWG ultra-fine coaxial wires, providing precise 90Ω impedance control.
Superior Anti-Interference: Full 360° shielding layer effectively suppresses EMI/RFI interference, ensuring crystal-clear, error-free 4K video signal transmission.
High Flexibility & Durability: Exceptional flex life and small bending radius, withstands repeated opening/closing of laptops and device hinges.
Gold-Plated Contacts: 3-5μ gold-plated terminals for excellent conductivity, oxidation resistance, and reliable long-term performance.
High-Speed Bandwidth: Fully supports eDP 1.4/2.0 standards, accommodating high resolutions and high refresh rates.
Customizable: Available in various lengths (e.g., 150mm, 300mm) and pin configurations (same-side/different-side).
Application Scope
Consumer Electronics: Laptop, Ultrabook, Tablet, All-in-One PC screen connections.
Industrial Equipment: Industrial touch panel PCs, medical imaging displays, automotive infotainment screens.
High-Performance Displays: 4K/8K high-resolution LCD/OLED panel signal cables.
Portable Devices: Handheld consoles, diagnostic equipment, and other slim, high-performance electronics.
