Ultra-Thin I-PEX 20373 High-Speed Coaxial FPC for Cameras

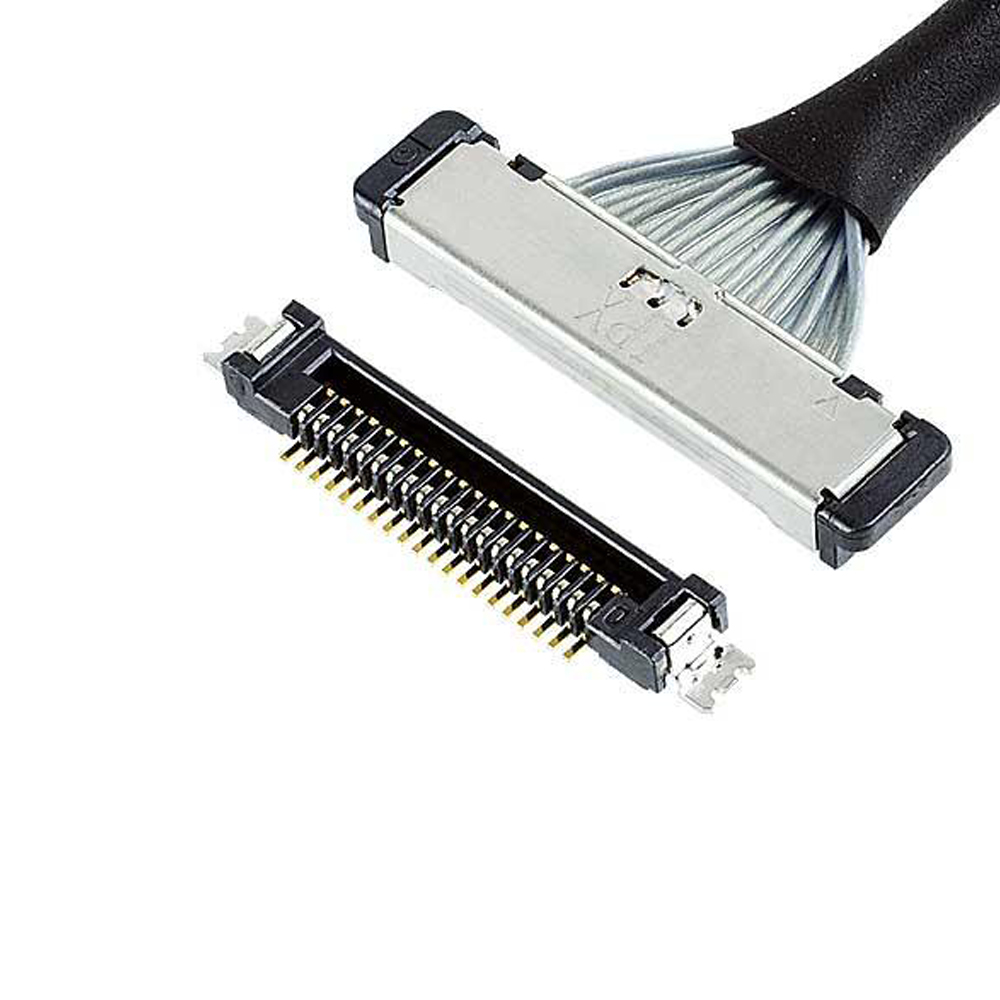

I-PEX 20373-030T Micro Coaxial Cable 0.4mm Pitch HD Camera Screen Wiring Harness

Name: I-PEX 20373-030T Micro Coaxial Cable 0.4mm Pitch HD Camera Screen Wiring Harness
Brand: I-PEX
Rating: 5.0 (73 reviews)

Pitch:0.4mm

Pin Count:30Pin

Cable:Micro Coaxial Cable

Cable Size:34-42 AWG

Model:
I-PEX 20373-R30T-06
Brand:
I-PEX

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

I-PEX 20373-R30T-06 Ultra-Fine Coaxial Cable High-Speed Signal Cable LVDS Ribbon Cable I-PEX 20373 Wire Camera Signal Cable 30Pin Coaxial Cable High-Density Camera Cable Coaxial Camera Wire

Product Description

High-data-rate transfer (16 Gbps/lane), narrow depth, robust, max power delivery (AWG 34), 0.4 mm pitch, right angle vertical mating type micro-coaxial connector

This I-PEX 20373-R30T-06 ultra-fine coaxial LVDS camera module signal cable is a high-performance signal transmission harness designed for high-resolution camera modules and compact electronic devices. Featuring the original I-PEX 20373-R30T-06 connector with an ultra-fine pitch and 30-pin configuration, it provides reliable, low-noise high-speed signal transmission for slim camera and imaging applications.

Feature
