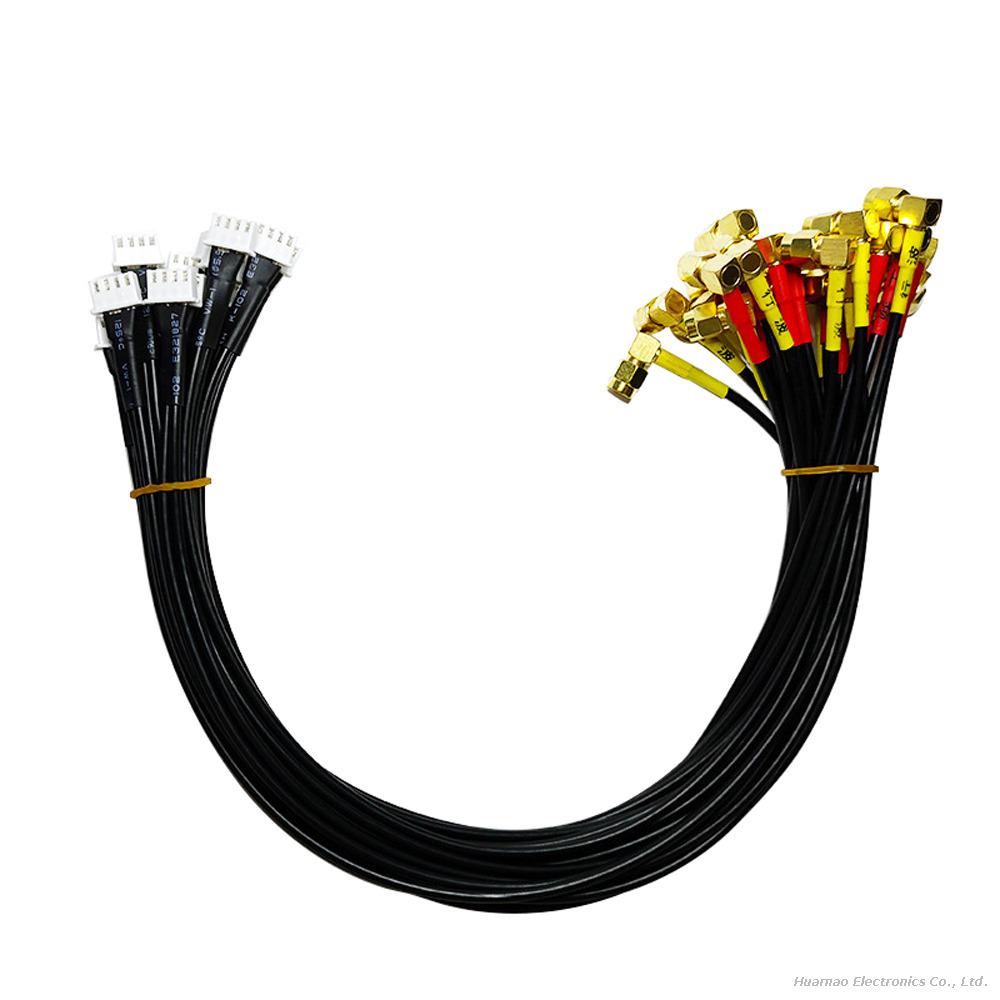

This SMA male RG174 coaxial RF cable to XH2.54-4P terminal wire is a high-performance signal conversion harness designed for RF communication and electronic module applications. It connects SMA right-angle male RF connectors to XH2.54 4Pin terminal blocks, providing a stable, low-loss solution for signal transmission between RF modules and circuit boards.

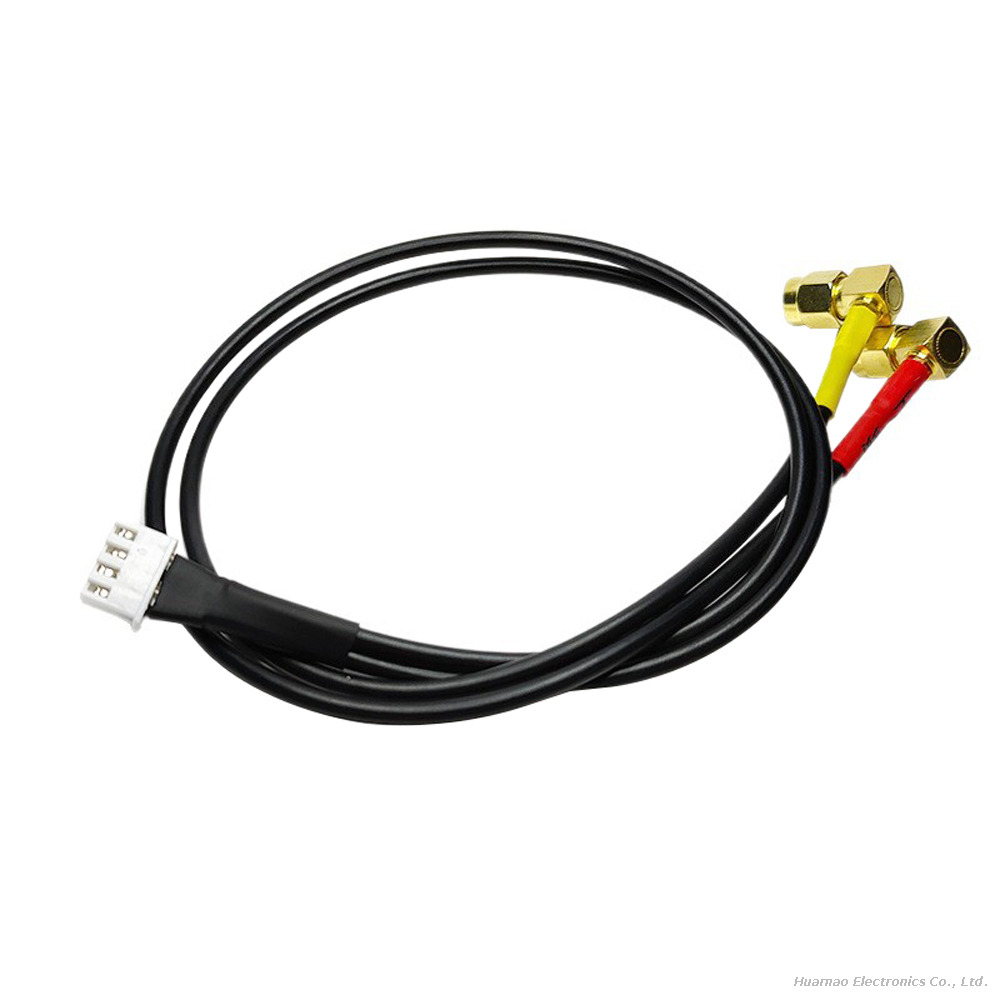

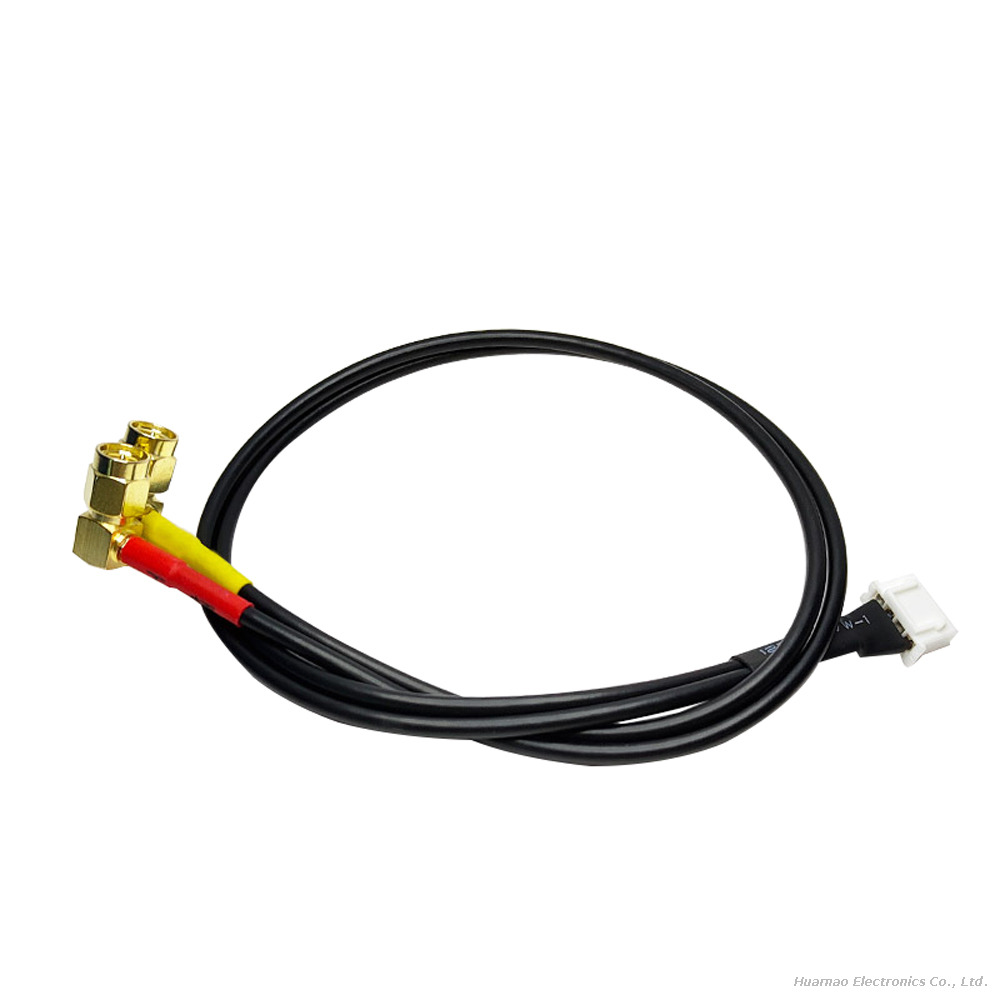

Dual-Connector Design for RF to Board ConversionFeatures SMA right-angle male RF connectors (gold-plated for low signal loss) on one end and a standard XH2.54-4P 4Pin terminal on the other. Perfect for converting RF signals from antennas/modules to circuit boards with XH2.54 headers, simplifying integration.
RG174 Coaxial Cable for Low-Loss RF TransmissionUses high-quality RG174 coaxial cable, which offers excellent impedance matching (50Ω) and low signal attenuation. Ideal for transmitting high-frequency RF signals in applications like Wi-Fi, Bluetooth, and other wireless modules.

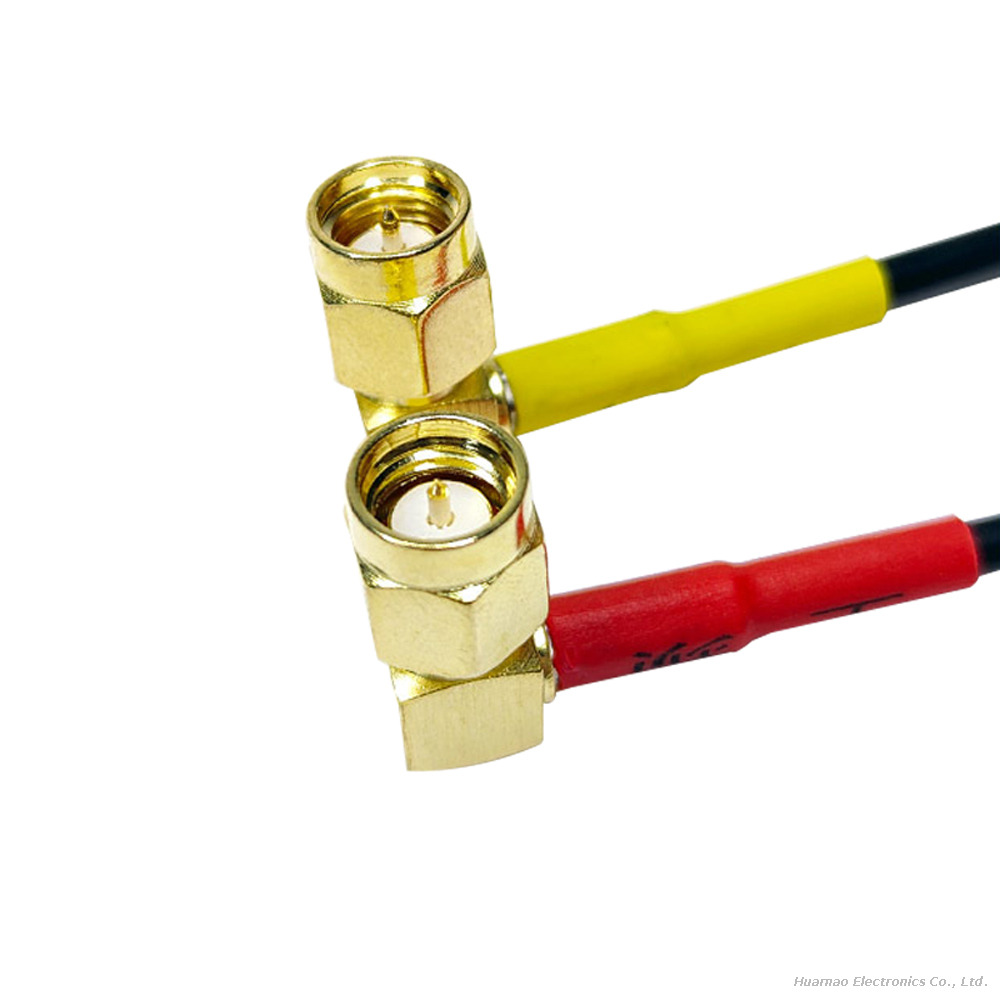

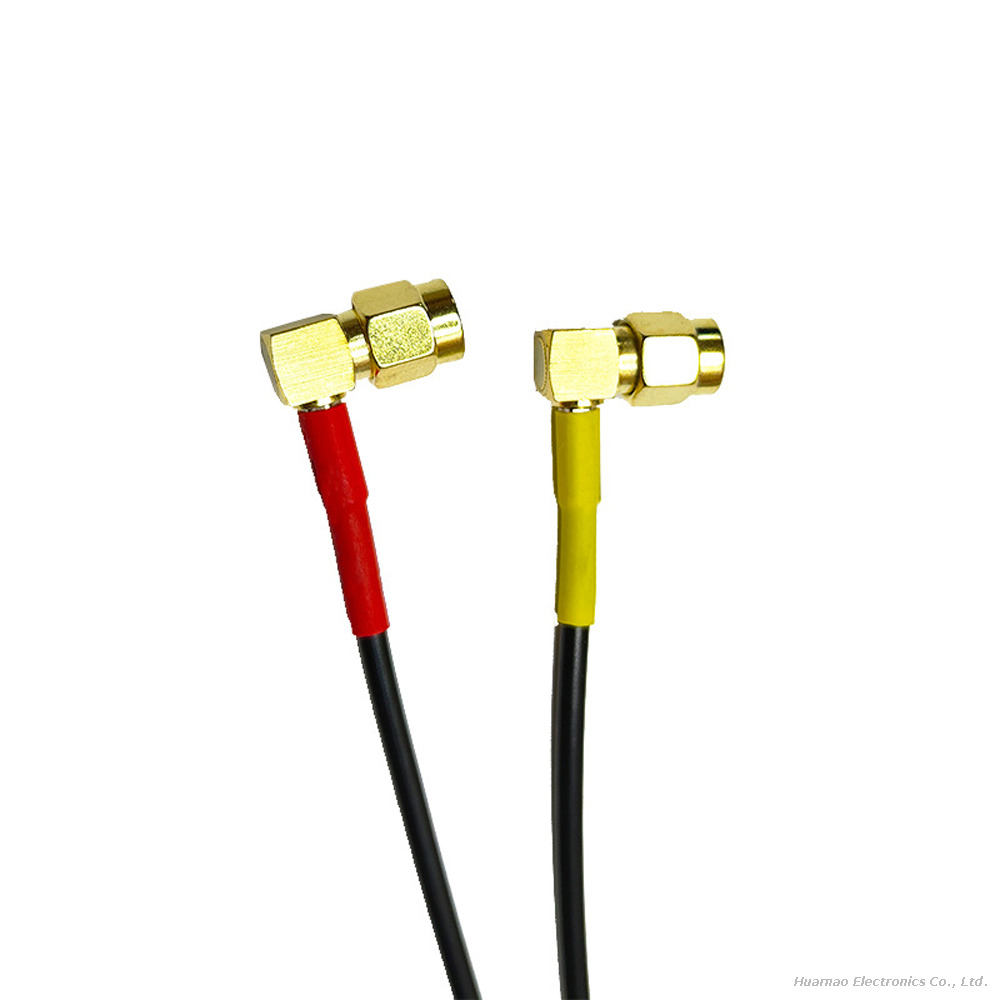

Gold-Plated SMA Connectors for Reliable RF PerformanceThe SMA connectors are gold-plated, providing excellent corrosion resistance, low contact resistance, and stable electrical performance. This minimizes signal loss and ensures long-term reliability in wireless communication systems.
Flexible & Durable ConstructionThe cable features a flexible outer jacket and reinforced strain relief at both ends, preventing wire breakage and improving durability. The heat-shrink tubing at the XH2.54 end provides additional insulation and protection for the terminal connection.
Versatile Compatibility for RF ApplicationsWidely used in wireless communication modules, IoT devices, RF test equipment, and embedded systems. Supports custom wire lengths and single/double-ended configurations to meet diverse project and integration needs.
Whether you’re connecting RF modules to circuit boards, setting up wireless test systems, or designing embedded communication devices, this SMA male to XH2.54-4P RG174 coaxial cable offers a reliable, low-loss, and flexible solution for your signal conversion needs.
