How to Choose M8 Connector and M12 Cconnector

What are M8 and M12 connectors?

The M12 connector is a circular waterproof connector with a 12mm locking thread. It typically has a minimum IP65 protection rating, ensuring reliability in the presence of liquids or dust. M12 connectors find wide application in connecting sensors, actuators, industrial Ethernet, and fieldbus devices. They are suitable for harsh industrial environments and even corrosive environments.

On the other hand, the M8 connector is an electrical connector designed for waterproof applications. It features a circular shape with an 8mm connection diameter, hence the name M8. Users can find various styles of this connector, including straight, angled, and panel-mount options. They can wire it using either screw or spring terminals. M8 connectors are a common choice for connecting sensors, actuators, and other devices in industrial automation applications. They are also prevalent in the automotive industry, as well as in process control and instrumentation fields.

M8 Connector Types

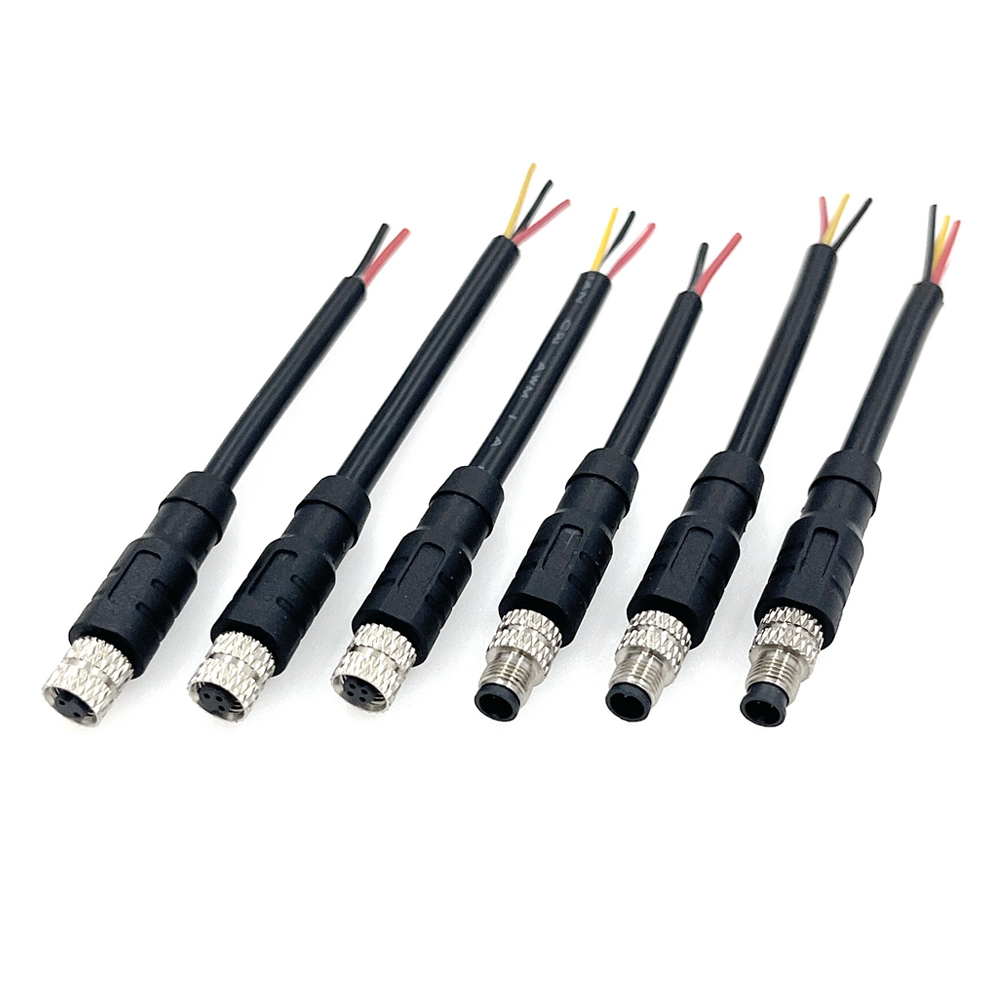

a. M8 Cables: Manufacturers produce M8 cables as overmolded M8 connectors with pre-wired cables in a variety of lengths, gauges, cable jacketing (PVC or PUR), and connector configurations, whether shielded or unshielded, based on the specific application requirements.

b. M8 Field Wireable Connectors: Users can install cables in the field without wiring. Shells are available in PA66 or zinc.

• Plastic M8 Field Wireable Connectors

• Metal M8 Field Wireable Connectors

c. M8 panel mount connectors: front or rear mountable, available for PCB mounting and can be referred to as M8 PCB connectors.

• Front panel mount M8 connectors

• Back panel mount M8 connectors

• M8 PCB Connectors

Five Key Considerations to be Aware of Before Purchasing M8 Connector

1.Types of M8 connectors: Firstly, it is important to determine the specific type of M8 connector you require. Such as pre-wired (shielded or unshielded), field-wireable (metal or PA66 housing), panel-mount (front or rear mount, PCB mount), or splitters, coding types, male or female, straight or right-angle, and pin count.

2.Electrical parameters of M8 connectors: The current-carrying capacity of M8 connectors is crucial as it determines their suitability for different applications. Due to their compact size, M8 connectors with more pins generally have lower current-carrying capabilities. Typically, a 3-pin M8 connector will have a higher rated current compared to an 8-pin M8 connector. If the rated current of an M8 connector does not meet the requirements. It may be necessary to consider larger-sized connectors like M12 connectors. M8 connectors are more suitable for applications with lower current and size requirements.

3.Installation environment and size requirements: The feasibility of using M8 connectors depends on the available installation space. If the height and width are sufficient, individuals can make the choice between straight or angled connectors based on the available space. In situations where space is limited, it is advisable to consider smaller connectors.

4.Varied environmental requirements: Different M8 connectors may lack features such as waterproofing, shock resistance, or corrosion resistance, which are necessary for use in harsh environments.

5.Lifespan of M8 connectors: Some connectors may remain undisturbed for extended periods once installed in a device. It is important to consider whether long-term exposure to water, oil, vibration, or other environmental factors could impact the connector’s IP rating. Additionally, the design lifespan of the connector should meet the reliability requirements for maintaining secure connections within the equipment.
