How To Choose Drone Wiring Harness Suitable for Your?

Drone wiring harness is a set of "customized cable assembly" that integrates and bundles all the wires, connectors, terminals, shielding layers and protective sleeves inside the drone according to functions and paths. It is equivalent to the blood vessels and nerves of the drone and is responsible for centralized and reliable transmission of power and signals.

Many drone flight problems such as out-of-control flight, blurred image transmission screens, short circuits, and gimbal freezes are not caused by faults in flight control or motor equipment, but by improper wiring harness selection, substandard materials, and mismatched specifications. To ensure flight stability, extend equipment life, and avoid safety risks, it is crucial to learn to accurately select the appropriate drone wiring harness.

一.Power Cable:Maintain the bottom line of flight safety

The power harness is responsible for high-current power transmission between the battery, distribution board, ESC, and motor, and is the basis for safe flight of the drone.

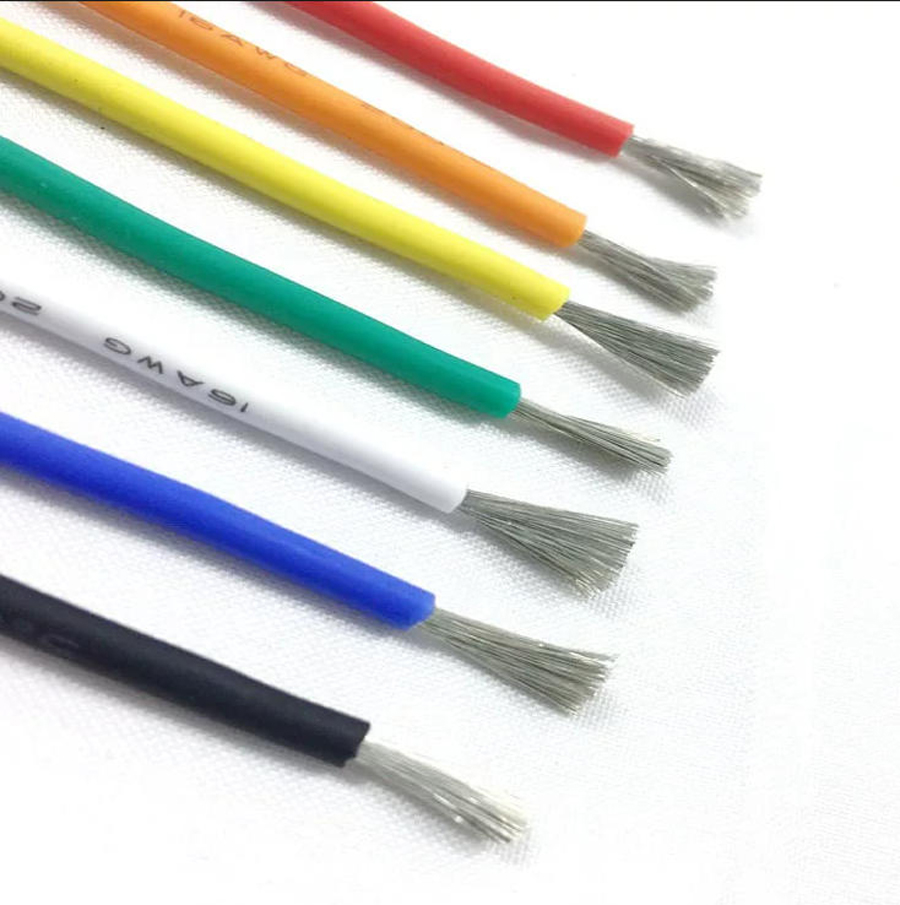

1.Wire diameter selection

Mini portable drone (peak current within 20A): Use 18-20AWG silicone wire, which is lightweight and does not take up space in the body, meeting the needs of low-power power supply;

Aerial photography drones (peak current 20-40A): Use 14-16AWG silicone wire, which combines conductivity and lightweight, and is suitable for daily aerial photography, hovering, and low-speed flight conditions;

Small and medium-sized load-bearing drones (peak current 40-80A): Use 12-14AWG silicone wire, which has low resistance and fast heat dissipation, and supports long-term continuous high-power operation;

Large-scale heavy-duty drones (peak current above 80A): Use 10-12AWG thick silicone wires to prevent wires from getting hot and short-circuit faults under high loads.

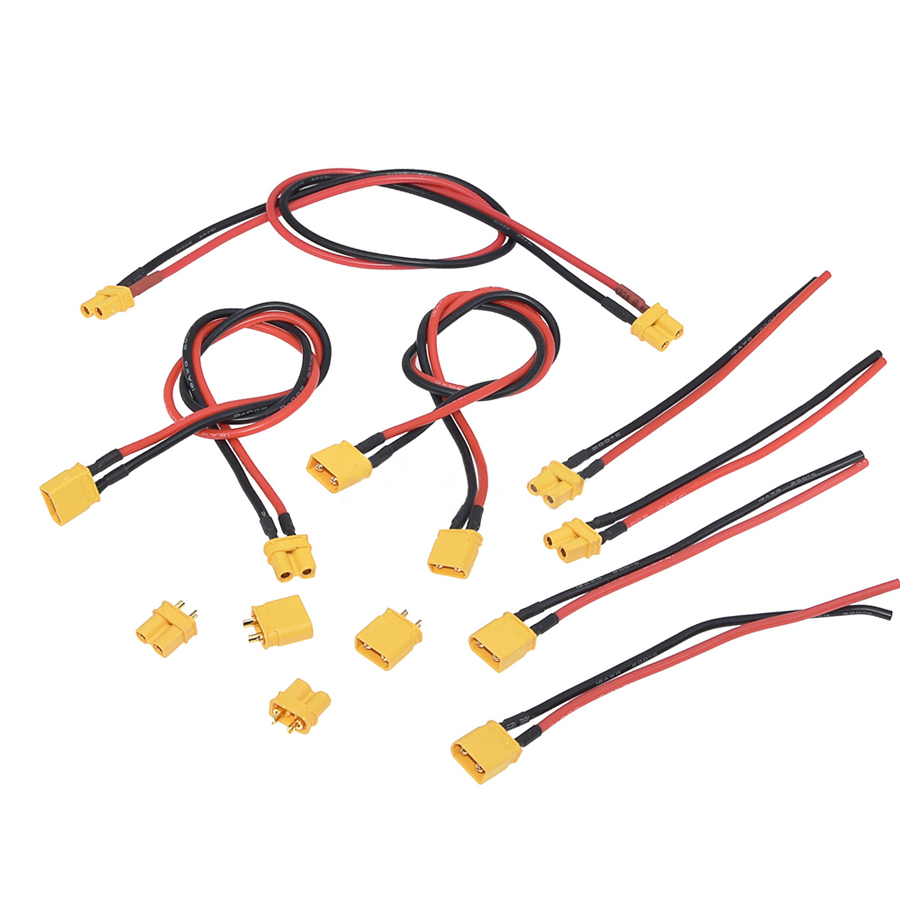

2. Power interface selection

Small UAV: XT30, suitable for currents within 30A, with obvious advantages of compact size and lightweight;

Aerial photography, FPV: XT60, carrying current within 60A, the most versatile and cost-effective, and is the first choice for most players;

High-power industrial drones: XT90 or EC5, can carry 90A-120A high current, more stable contact, suitable for long-term and high-intensity operations;

ESC and motor connection cable: 3.5mm/4mm gold-plated bullet interface is preferred. The gold-plated material is anti-oxidation and has low contact resistance, which can effectively reduce power loss.

二.Signal harness selection: ensuring flight stability and accuracy

Compared with the power harness, the signal harness has a thinner wire diameter and more precise functions. It is mainly responsible for signal transmission such as flight control instructions, sensor data, image transmission, and gimbal control.

1. Control signal lines (Flight controller, GPS, sensors)

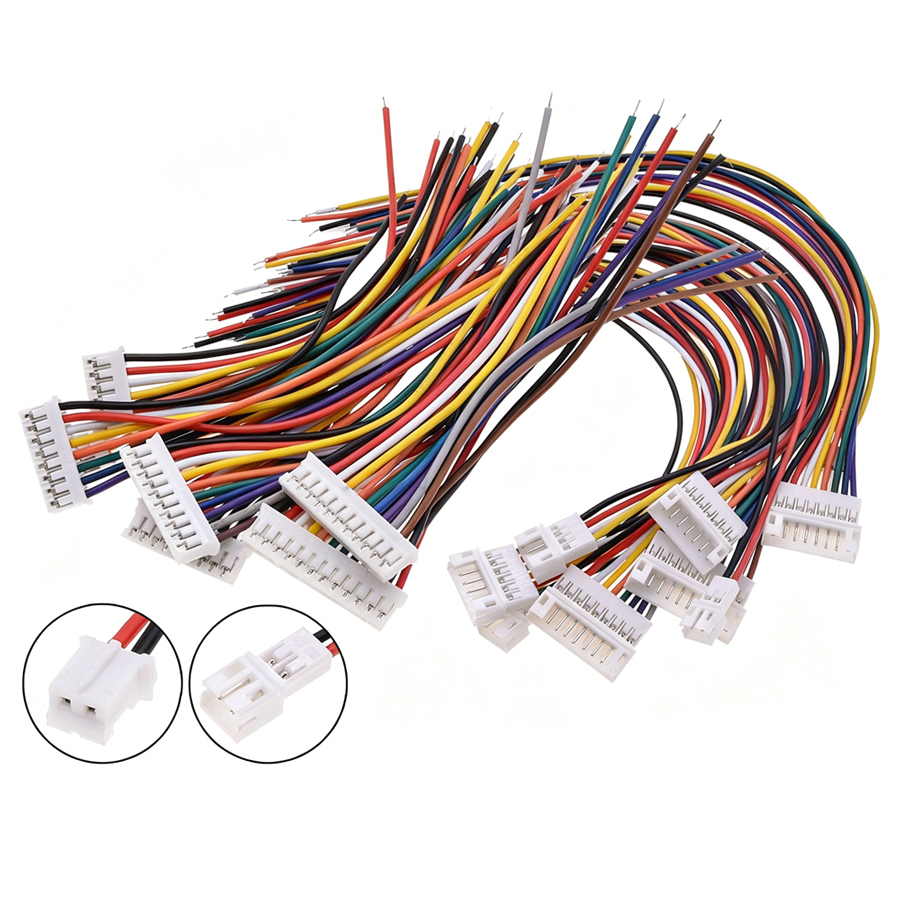

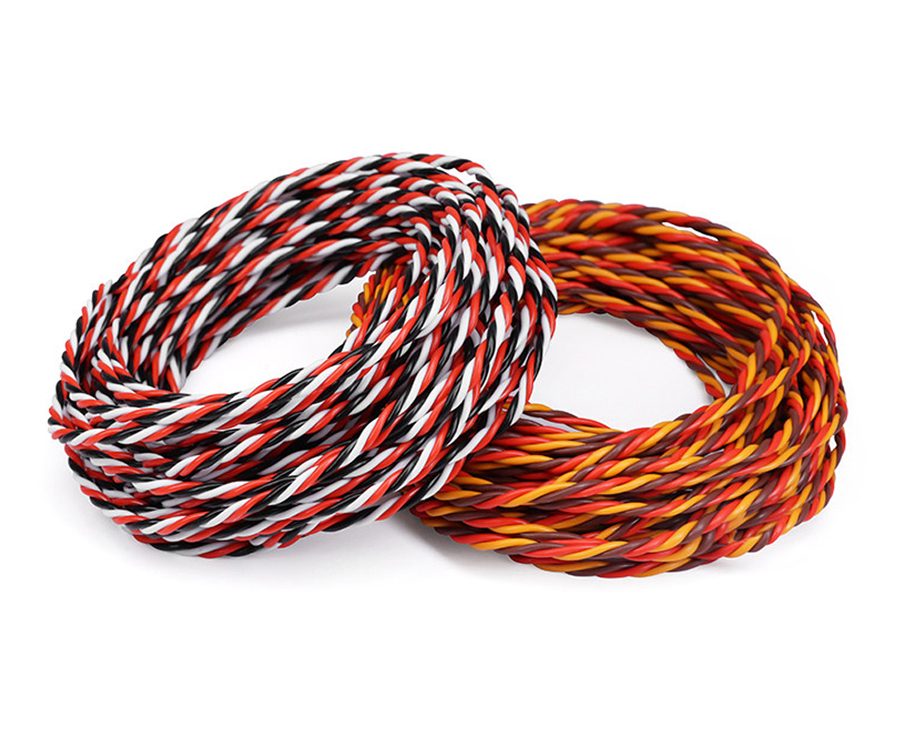

For the connection lines of flight control, compass, barometer, receiver and other equipment, it is recommended to use 24-30AWG multi-strand twisted pair cable. The twisted pair structure can independently offset part of the electromagnetic interference and adapt to common transmission protocols such as I2C, UART, and SPI. The preferred interfaces are JST PH2.0 and ZH1.5 micro interfaces, which are small in size and designed with locks, making them difficult to loosen in flight vibration environments. Among them, GPS and high-precision compass lines must use double-layer shielded wires, which are double-shielded by aluminum foil + copper braid to isolate electromagnetic interference from power lines and ensure positioning accuracy.

2. Dedicated signal cable for image transmission and camera

Analog image transmission has extremely high requirements for high-frequency signal transmission. It is necessary to use RG178 and RG316 special 50Ω coaxial cable, with a shielding coverage of over 95%, to minimize snowflakes and freezes in image transmission caused by high-frequency interference. Digital high-definition image transmission and aerial photography cameras are suitable for LVDS, MIPI special shielded cables or FFC flexible cables. They are thin and light and fit the body, transmitting high-definition images without delay or distortion.

3. PTZ dedicated wiring harness

The PTZ requires continuous rotation and pitch adjustment, and the wires are frequently bent, making them the most susceptible to damage. The selection must give priority to highly flexible and bend-resistant wire harnesses. It uses ultra-fine multi-stranded stranded conductors + flexible insulation materials, which can withstand more than 100,000 bends without breaking. The interfaces use DF13 and Micro JST micro interfaces, which are suitable for the narrow installation space of the gimbal and take into account flexibility and stability.

三.Material and protection

The drone is in a complex environment of vibration, temperature changes, and airflow impact throughout the entire process. Ordinary civilian wires cannot adapt to flight needs. The quality of the material directly determines the service life and safety of the wire harness.

1. Insulation layer: Prioritize the use of high-quality silicone insulation layer, which can withstand temperatures ranging from -60°C to 200°C. It does not soften at high temperatures and does not harden or crack at low temperatures. It is extremely flexible and suitable for complex environments such as high altitudes, outdoors, and plant protection. Resolutely avoid ordinary PVC wires, which are resistant to temperature differences, easy to age, stiff and easy to break, and are completely unsuitable for drone use.

2. Conductor material: Mainly use tin-plated pure copper conductors, which are anti-oxidation, easy to weld, and have stable conductivity. High-end industrial drones can use silver-plated copper conductors, which have lower resistance and stronger high temperature resistance, further reducing signal and power losses.

3. Protective accessories: All wire harness joints must be sealed and insulated with heat-shrinkable tubes to avoid short circuits and oxidation; braided network tubes can be installed on the fixed lines of the fuselage to be wear-resistant and pull-resistant; high-frequency and precision signal lines must be shielded and wrapped throughout, and strong and weak current lines can be protected by zones.

四.Core taboos in wire harness selection and matching

Many players only focus on wire specifications but ignore the matching and wiring details, which ultimately leads to flight failures. Four major issues need to be avoided during the selection process:

1. Mixing of strong and weak currents: Thick power supply lines and thin signal control lines are strictly prohibited from being bundled in parallel or crossing at close range. A spacing of more than 2cm and vertical angle wiring must be maintained to avoid electromagnetic interference generated by power current from breakdown signal data.

2. Improper wire length redundancy: If the wire harness is too short, it will pull the connector and cause breakage and fall off. If the wire harness is too long, it will form an interference loop and increase the weight of the fuselage. The wiring follows the principle of "just enough, leaving a little slack", and a bending allowance is reserved for active parts.

3. Do not be greedy for cheap when using virtual-labeled wires: Some brand-name wires on the market have problems such as falsely-marked wire diameters, excessive conductor impurities, and cut corners in the shielding layer. Although they appear to be up to standard, their actual current-carrying and anti-interference capabilities are extremely poor. Novices prefer to choose finished drone-specific wire harnesses or regular custom-made wire harnesses.

4. Mixed and mismatched interfaces: Interfaces with different functions and different currents are not allowed to be used forcibly. Interfaces without locks should not be used in high-frequency vibration parts to prevent interfaces from loosening during flight and loss of control due to power failure.

五.One-stop model selection reference (direct adaptation)

In order to facilitate players to quickly select models, standardized adaptation plans are compiled based on mainstream models:

1. Mini drone (<250g): 20AWG silicone power cable + XT30, 28-30AWG twisted cable, GPS and image transmission lines are equipped with single-layer shielding as standard;

2. Mainstream aerial photography drones (250g-2kg): 14-16AWG silicone power cable + XT60, 24-26AWG shielded signal wire, fully precision signal line double-shielded;

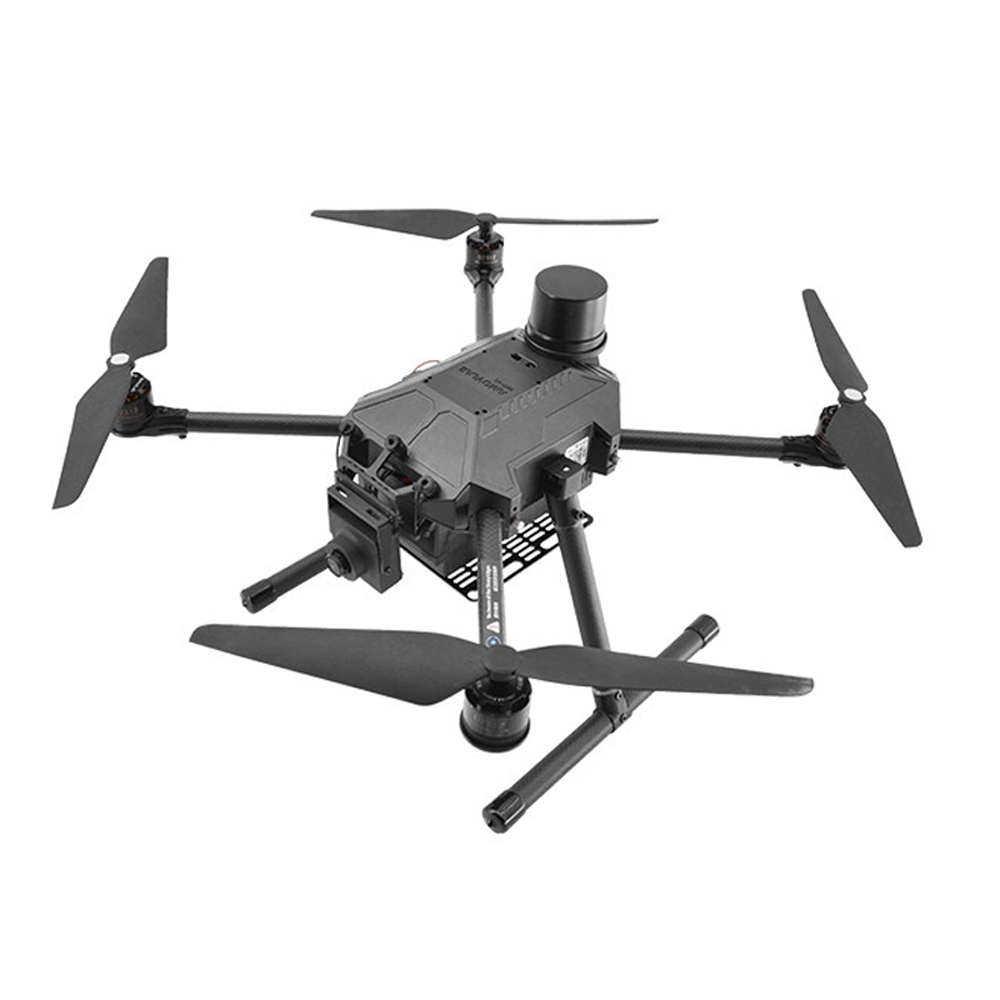

3. Industrial/Plant Protection UAV (>2kg): 12-14AWG thick power cable + XT90/EC5 interface, 22-24AWG high specification shielded wire, fully partitioned wiring for strong and weak current, and anti-vibration reinforcement throughout.

UAV wiring harness selection is never a simple matter of "matching the interface and selecting the right wire diameter", but a systematic combination of aircraft model power, flight scenarios, and equipment functions. For novice players, priority is given to the finished wire harness that matches the model, which is worry-free and highly stable; for advanced players, wire specifications, lengths and interfaces can be customized according to modification needs to achieve the optimal balance of lightweight and stability. Choosing the right wiring harness can not only avoid aircraft crashes, loss of control, and image transmission failures from the source, but also maximize the flight performance of the drone and extend the service life of the entire aircraft.
